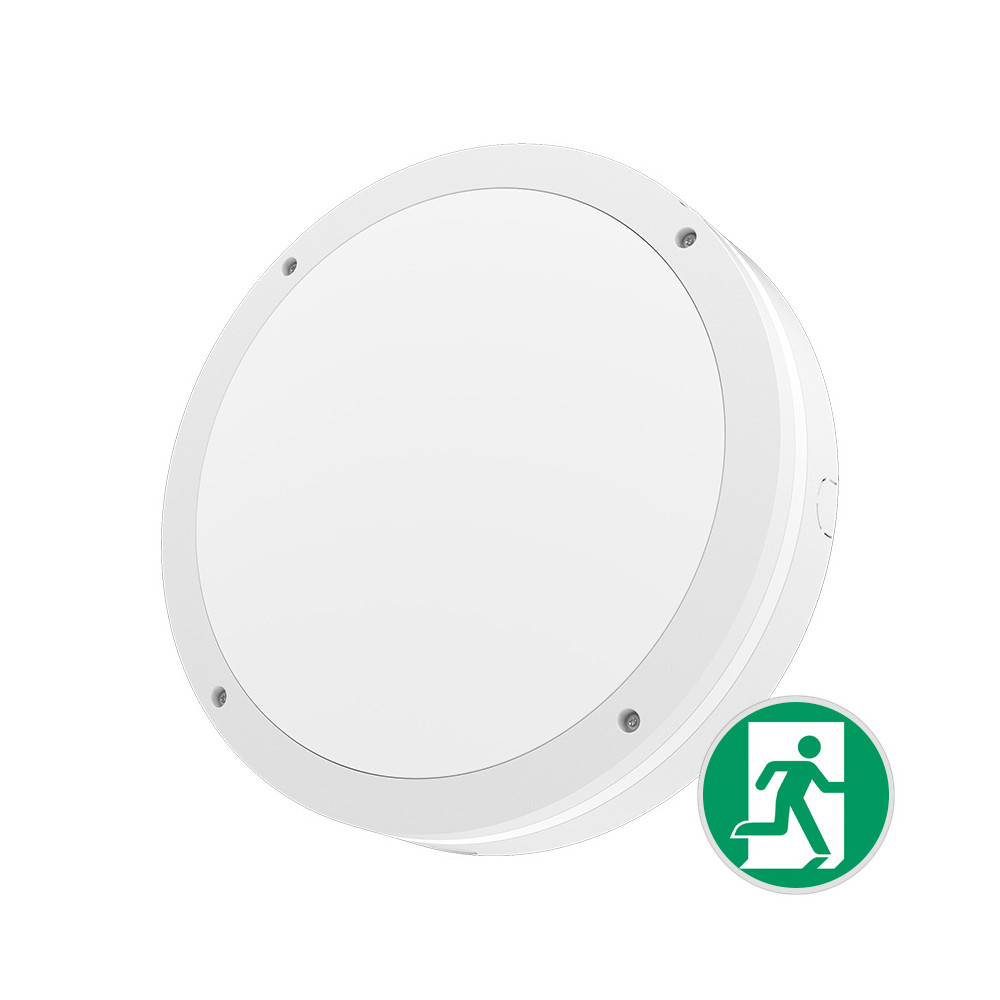

DomeLED Astral Emergency CLAREO 18W DESIGN White

DomeLED Astral CLAREO, the design for residences in Emergency version

Its integrated battery offers 3 hours of autonomy with a luminous flux of 270 lm when needed.

With its 18W power and color temperature selector of 2700, 3000 and 4000K, this LED ceiling light will perfectly adapt to each of your residential or other projects.

The product has a loopable terminal block, it also has a double cable entry to allow entry from the back or the side. Available in standard version or with integrated detector, in black or white.

Ultra-resistant: Anti-tear, IP65 and IK10.
Product guaranteed for 5 years for 50,000 operating hours.
Direct/Indirect diffusion for a halo design lighting.

Box contents: 1 DomeLED Astral Emergency, 1 hex key, 4 hex screws, 4 screw covers, 3 fixing screws, 3 wall plugs, 3 sealing gaskets.

Notable features:

3 hours battery autonomy
Classic or HF detection version
Power and temperature selectors, loopable
Anti-tear polycarbonate housing IK10

DomeLED Astral Emergency CLAREO 18W DESIGN White

Pricing is only available to customers who are logged into their account and whose access request has been validated.

To request access, go here

General characteristics

Lifetime	50 000 h
Brand	CLAREO
Range	DESIGN
Product family	Bulkhead lights

Installation environment	Residential, Commercial
Quick installation	YES
Repairable	YES
Warranty	5 years

Electrical characteristics

Voltage	200-240 V AC
Power	18 W
Electrical class	Class II

Facteur de puissance >	0,9
Taux de distorsion harmonique <	20 %
Power range	0-25 W
EU energy class 2019/2015	F

Lighting characteristics

Technology	LED
Lumens output	1400 - 1700 lm
Energy savings	- 10%
Lumens efficiency	90 lm/W
Lifetime LXBY	L70B10

Diffuser	Opale
Photobiological risk	GR0 - No risk
IRC >	80
UGR <	24
Lumens range	1100-1599 lm

Physical characteristics and dimensions

Diameter	275 mm
Height	67 mm
Materials	Polycarbonate
Waterproof	YES
IP	IP65

IK	IK10
Product color	White
Diameter range	251-300 mm
Working temperature	-20 °C to 45 °C
Installation mode	Surface-mounted, Wall light
Type	SMD 2835

Standards and regulations

CEE	BAR-EQ-110

Standards	CE, RoHS

Technical data sheets, IES files, installation instructions, certificates... are only downloadable for customers whose access has been validated. To request access, go here

To access the prescription text, you must have an account and log in.
