New CLAREO ADVANCE 8 LED panel:

Equipped with "Edgelit" technology, this luminaire has excellent uniformity.

Ideal and compatible installation in all offices or rooms equipped with a suspended ceiling.

Designed for intensive use, with a 5-year warranty and 50,000 hours.

Simple installation with quarter-turn connection.

Box contents: 1 CLAREO ADVANCE 8 Panel, 1 safety cable, and 1 female quarter-turn connector for driver connection.

Other possible installation methods: with integration frame sold separately or surface-mounted frame

accessories: dimmable drivers, integration frame and suspension kit.

Key features:

  • IP44 protection rating from below
  • Long lifespan: 50,000 hours
  • Warranty: 5 years
  • Comparative UGR < 19
  • Safety cable included
  • SDCM < 3
Ref: PAN.102696

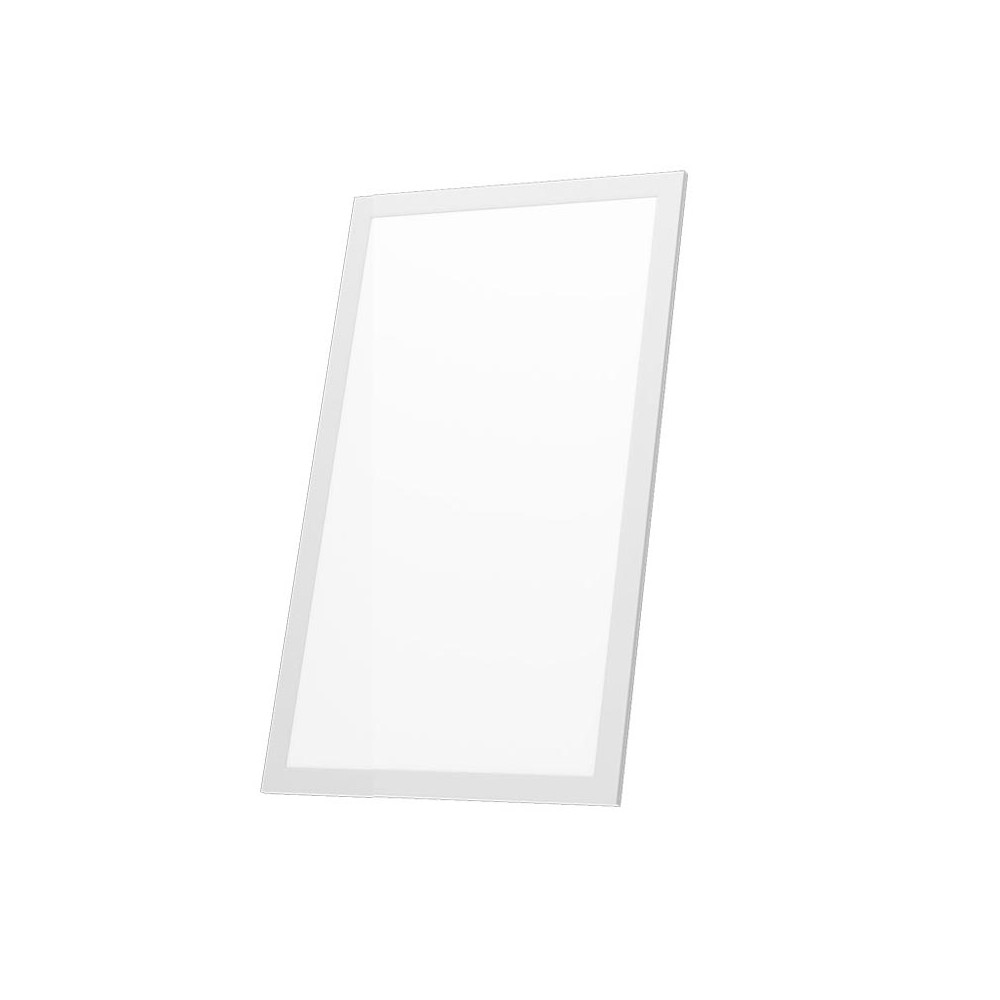

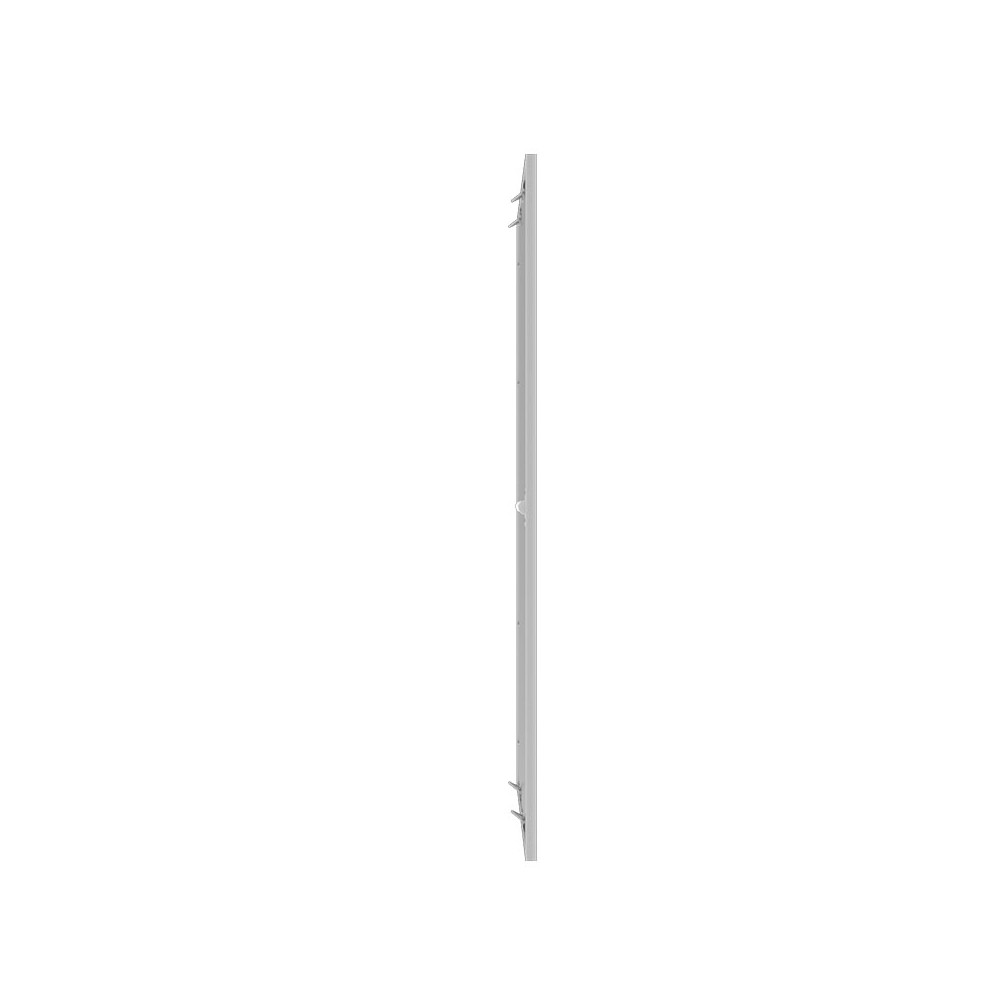

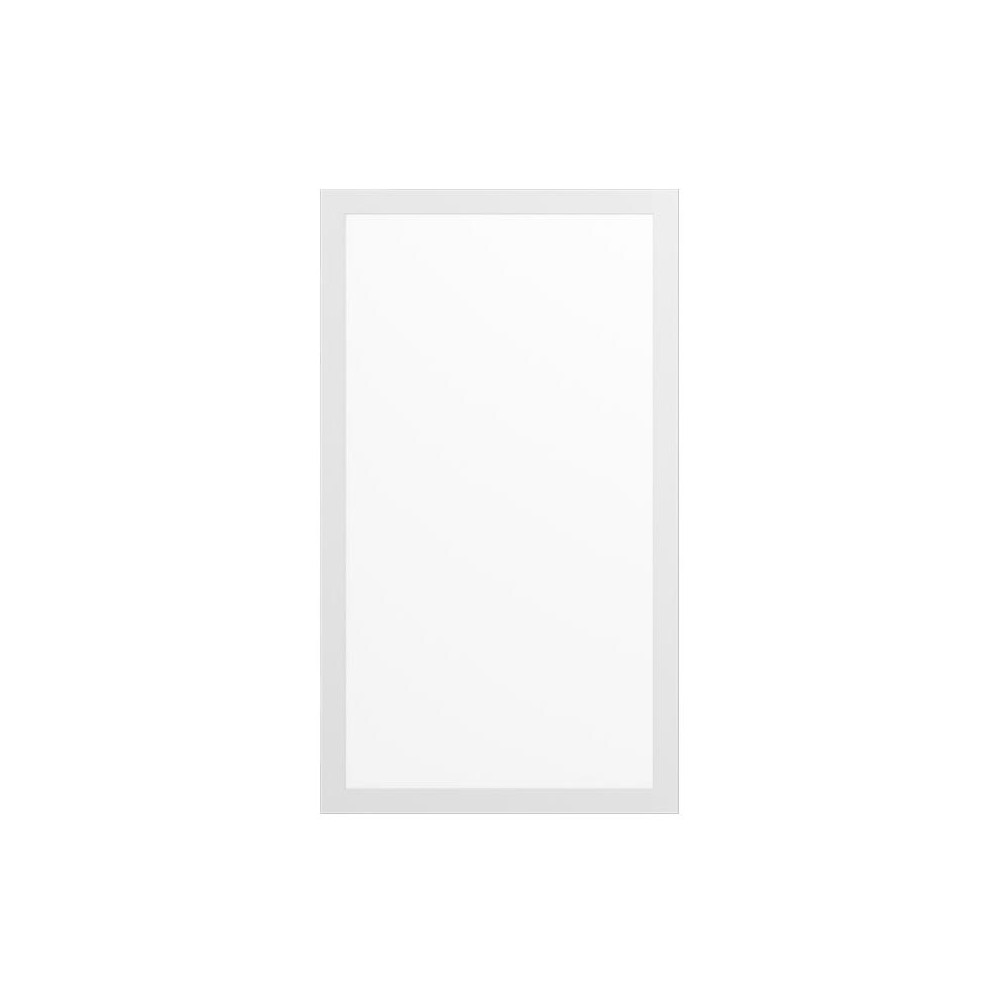

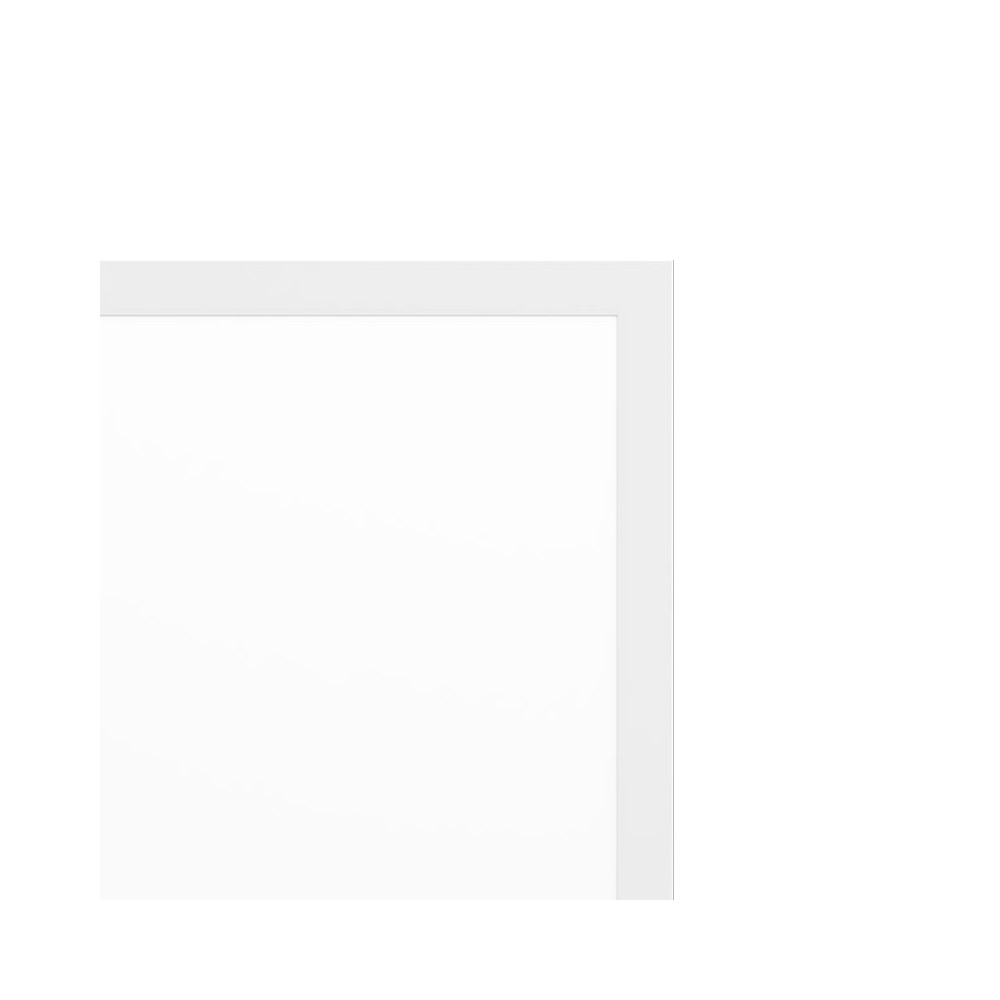

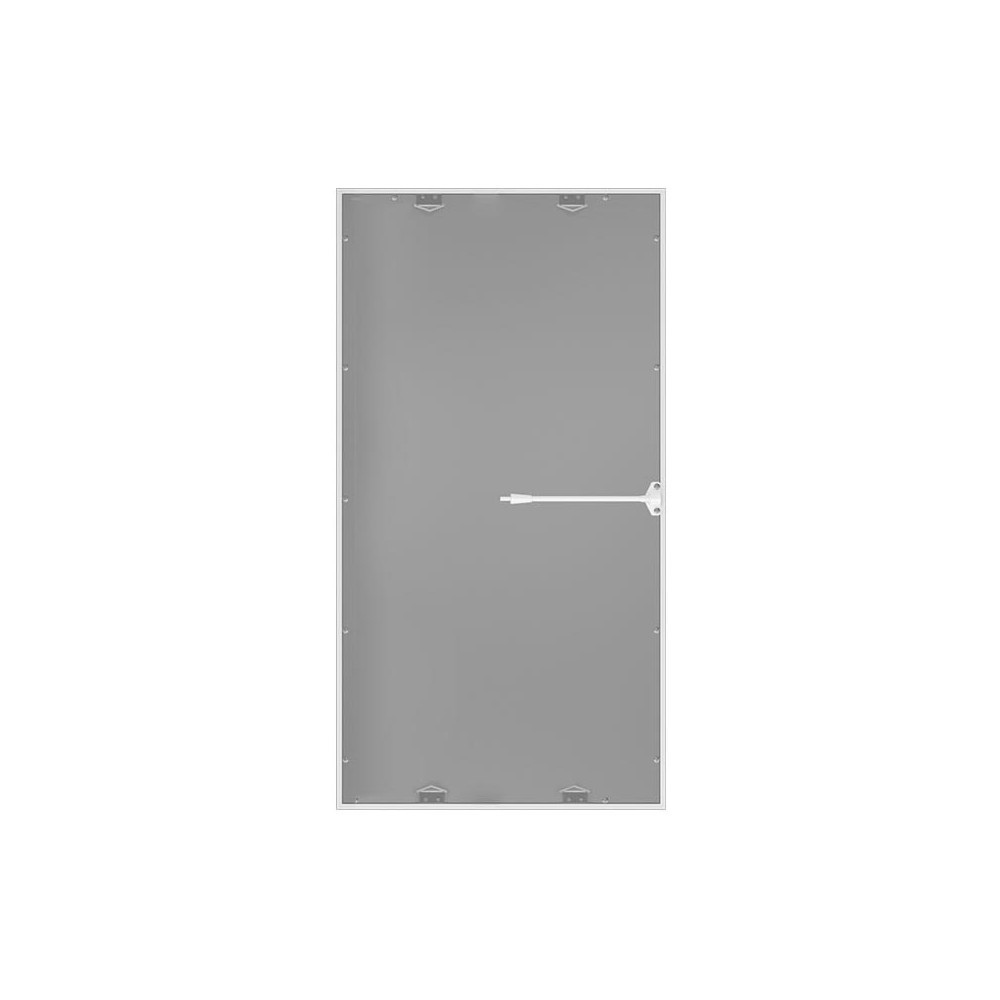

Panel Edge CLAREO 300x600 20W 120lm/W ADVANCE 8 Without Driver FS

save_alt Download the technical sheet

Color

White neutral - 4000K

Angle

In stock, next day delivery before 1pm
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

General characteristics
Lifetime 50 000 h
Brand CLAREO
Range ADVANCE
Product family Panels
Installation environment Office
Quick installation YES
Repairable YES
Warranty 5 years
Electrical characteristics
Current Up to 500 mA
Power 20 W
Electrical class Class III
Power range 0-25 W
EU energy class 2019/2015 E
Lighting characteristics
Technology LED
Lumens output 2400 lm
Energy savings - 30 %
Lumens efficiency 120 lm/W
Lifetime LXBY L80B10
Diffuser Opale
Beam Angle 110 deg
Photobiological risk GR0 - No risk
IRC > 80
UGR < 19
Lumens range 2000-2999 lm
Physical characteristics and dimensions
Height 295 mm
Standard length 60 cm
Width 595 mm
Length 9 mm
Net weight 0.6 kg
Materials Steel
Waterproof No
IP IP44
IK IK04
Product color White
Cut-out 300 x 600 mm
Working temperature -20 °C to 40 °C
Detailed color White
Type SMD 2835
Standards and regulations
Standards CE
