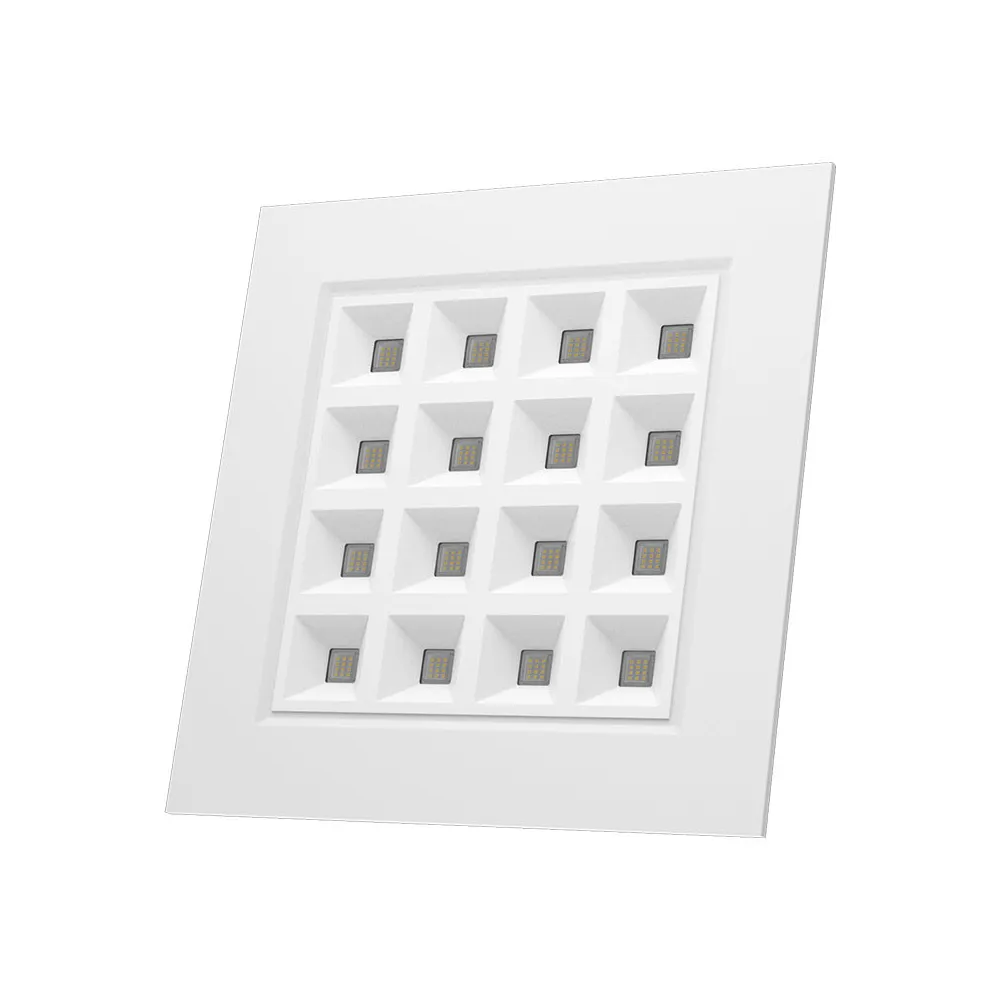

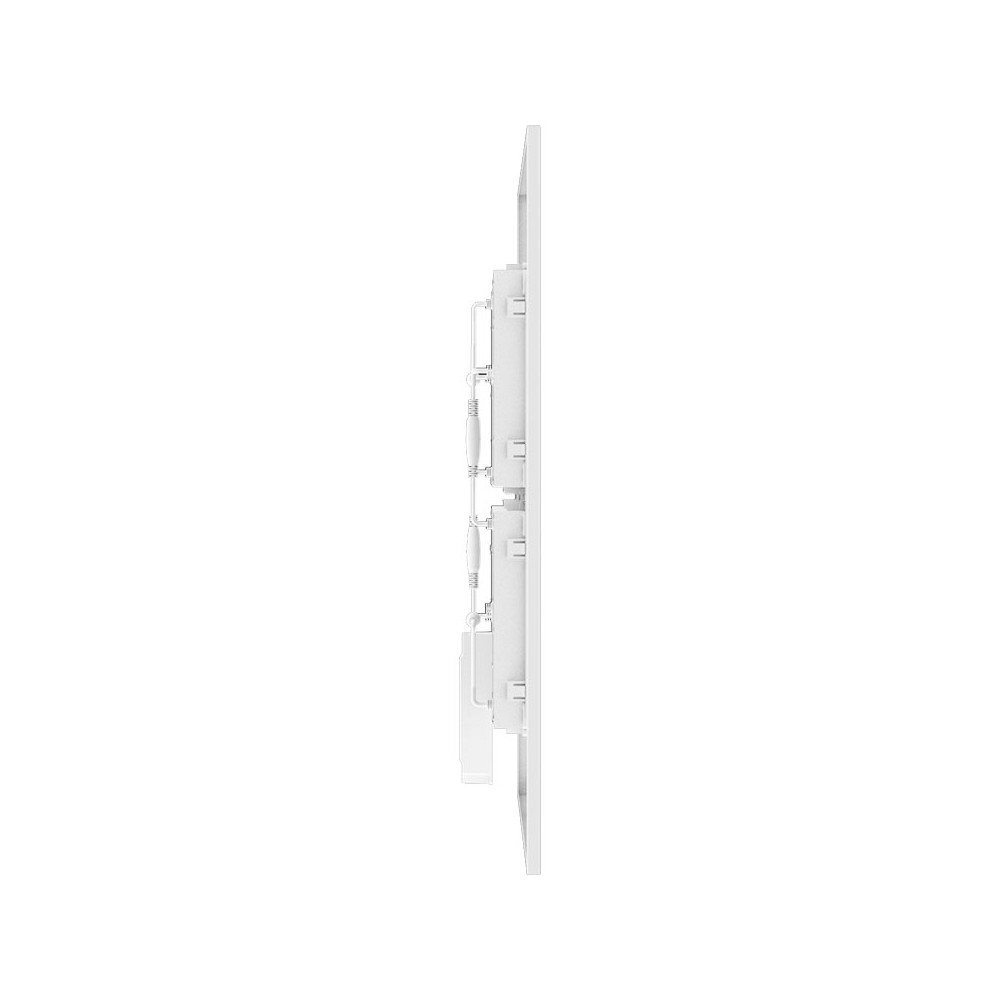

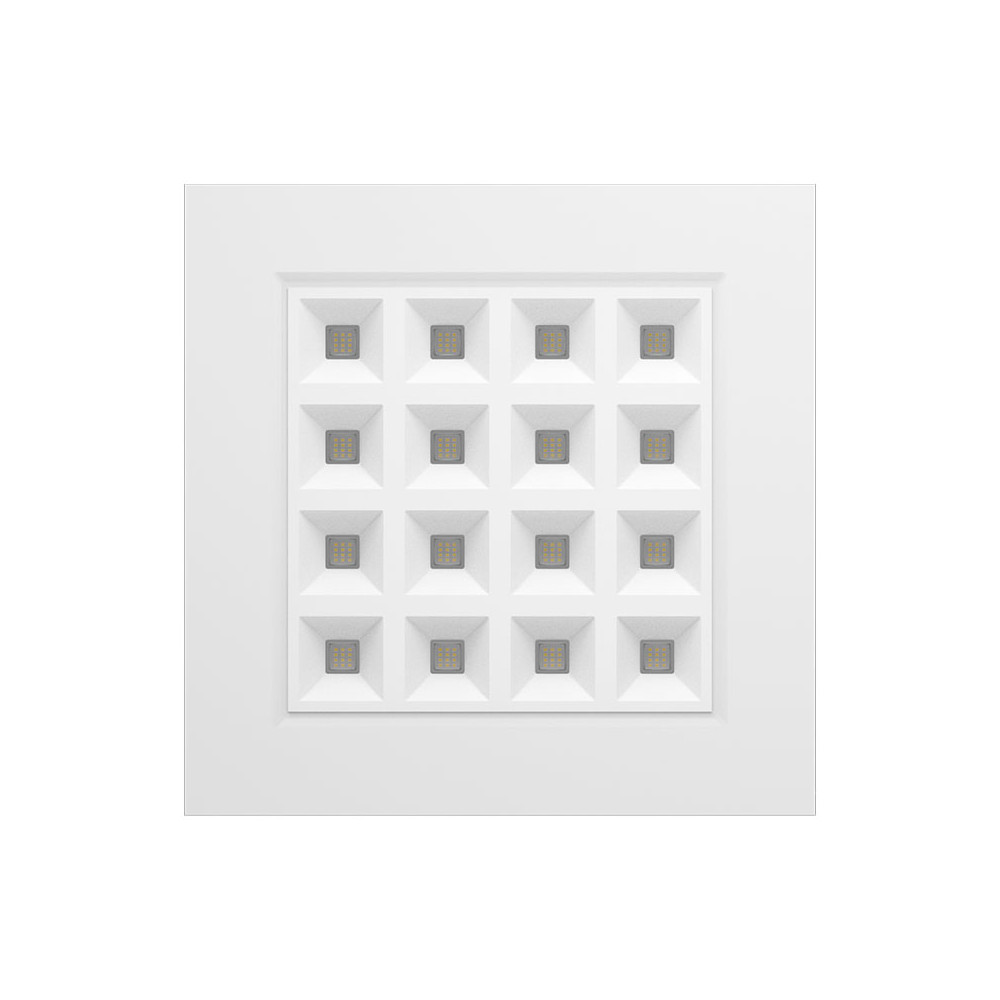

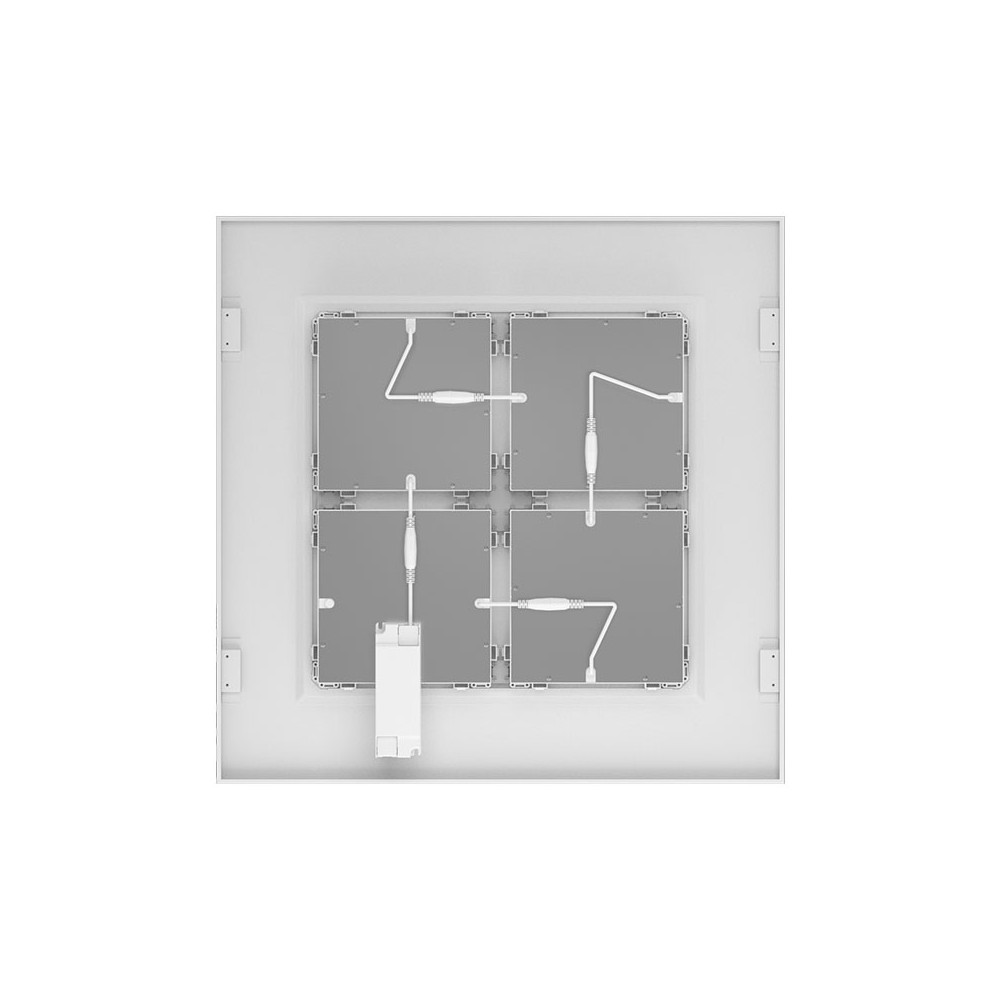

CLAREO Quadri Panel 600x600 25W 140lm/W DESIGN Without Driver

Panel Quadri CLAREO 600x600 25W 140lm/W DESIGN Sans Driver

The low-glare optical panel

Installation in suspended ceiling or as pendant. This product is particularly suitable for commercial buildings thanks to its UGR<16 optics.

Simple installation, panel placed in the suspended ceiling. Quick securing thanks to the metal clips already mounted on the Panel allowing the installation of a safety cable (not included).

Product guaranteed for 5 years for 60,000 hours of operation.

Key features:

Luminous efficacy: 140 lm/W
Unique and elegant design.
Visual comfort: Product suitable for precision work thanks to its UGR < 16 optics

Box contents: 1 Panel without driver

WARNING: Panel sold without power supply. Compatible drivers are available in the accessories below!

CLAREO Quadri Panel 600x600 25W 140lm/W DESIGN Without Driver

Pricing is only available to customers who are logged into their account and whose access request has been validated.

To request access, go here

The low-glare optical panel

Installation in suspended ceiling or as pendant. This product is particularly suitable for commercial buildings thanks to its UGR<16 optics.

Simple installation, panel placed in the suspended ceiling. Quick securing thanks to the metal clips already mounted on the Panel allowing the installation of a safety cable (not included).

Product guaranteed for 5 years for 60,000 hours of operation.

Key features:

Luminous efficacy: 140 lm/W
Unique and elegant design.
Visual comfort: Product suitable for precision work thanks to its UGR < 16 optics

Box contents: 1 Panel without driver

WARNING: Panel sold without power supply. Compatible drivers are available in the accessories below!

General characteristics

Lifetime	60 000 h
Brand	CLAREO
Range	DESIGN
Product family	Panels

Installation environment	Office
Quick installation	YES
Repairable	YES
Warranty	5 years

Electrical characteristics

Voltage	28-40 V DC
Current	Up to 600 mA
Power	25 W

Electrical class	Class III
Power range	0-25 W
EU energy class 2019/2015	D

Lighting characteristics

Technology	LED
Lumens output	3500 lm
Energy savings	- 40 %
Lumens efficiency	140 lm/W
Lifetime LXBY	L80B10

Diffuser	Transparent
Beam Angle	100 deg
Photobiological risk	GR1 - Low risk
IRC >	80
UGR <	16
Lumens range	3000-3999 lm

Physical characteristics and dimensions

Height	36 mm
Standard length	60 cm
Width	595 mm
Length	595 mm
Net weight	2.9 kg
Materials	Plastic
Waterproof	No

IP	IP40
IK	IK07
Product color	White
Working temperature	-20 °C to 40 °C
Standard panel dimensions	600 x 600
Detailed color	White
Installation mode	Recessed, Pendant, Surface-mounted
Type	SMD 2835
