The smart panel that combines detection, Bluetooth control and visual comfort

The Panel Detector SENSOR Bluetooth TECH 2 is the ideal solution for lighting projects requiring intelligent and automated management. Compatible with all types of false ceilings, it integrates perfectly into offices and demanding professional spaces.

With its high efficiency of 150 lm/W and its integrated presence and brightness detector, it allows lighting to be adjusted based on occupancy and natural light. Its commissioning, configuration and various operating modes are easily controlled via Bluetooth through the mobile app.

Its Prisma diffuser (UGR < 16) guarantees optimal visual comfort, even with prolonged use. Its CCT Switch 3000/4000/6000 K also offers great flexibility to adapt the color temperature to each ambiance.

With its lifespan L80B10 of 100,000 hours and its 7-year warranty, it is designed for the most intensive installations.

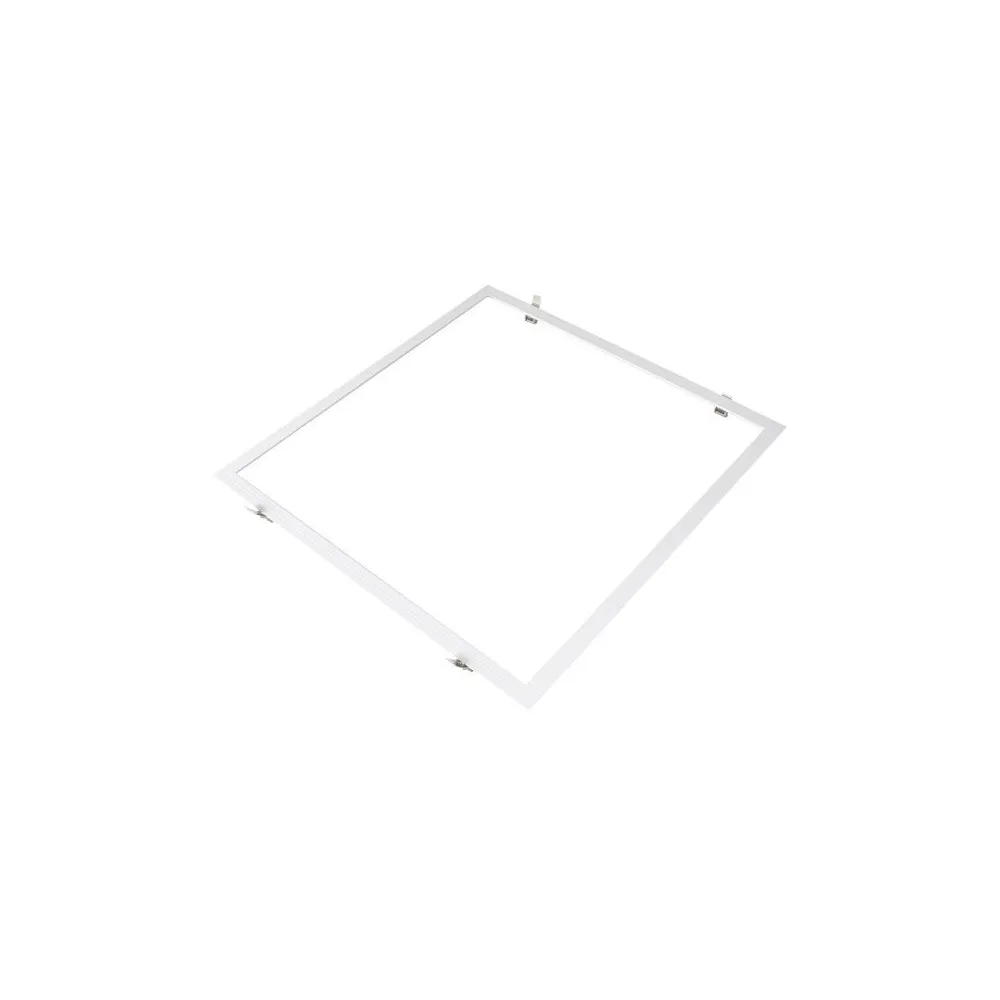

Box contents: 1 panel, 1 safety cable and 1 quarter-turn connector. Other installation methods are available as accessories, including the integration frame and the surface-mount frame with suspension kit.

Key highlights:

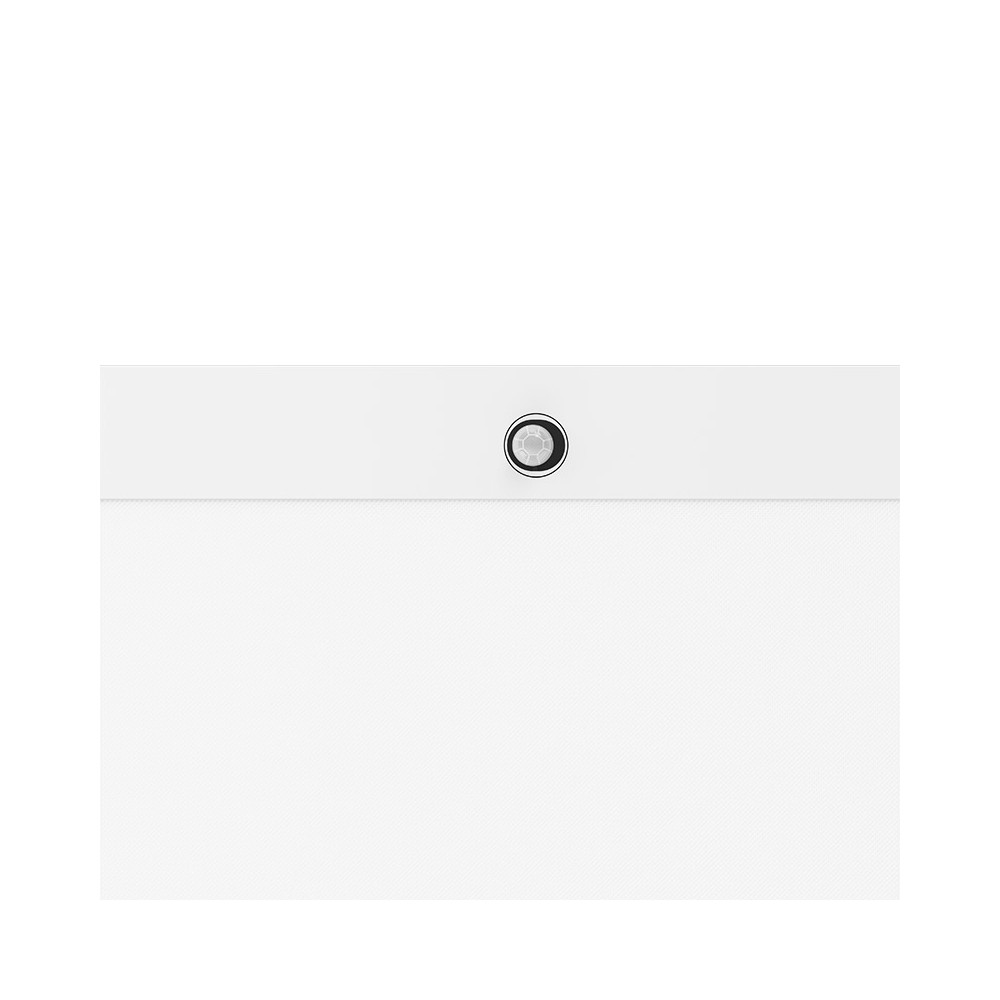

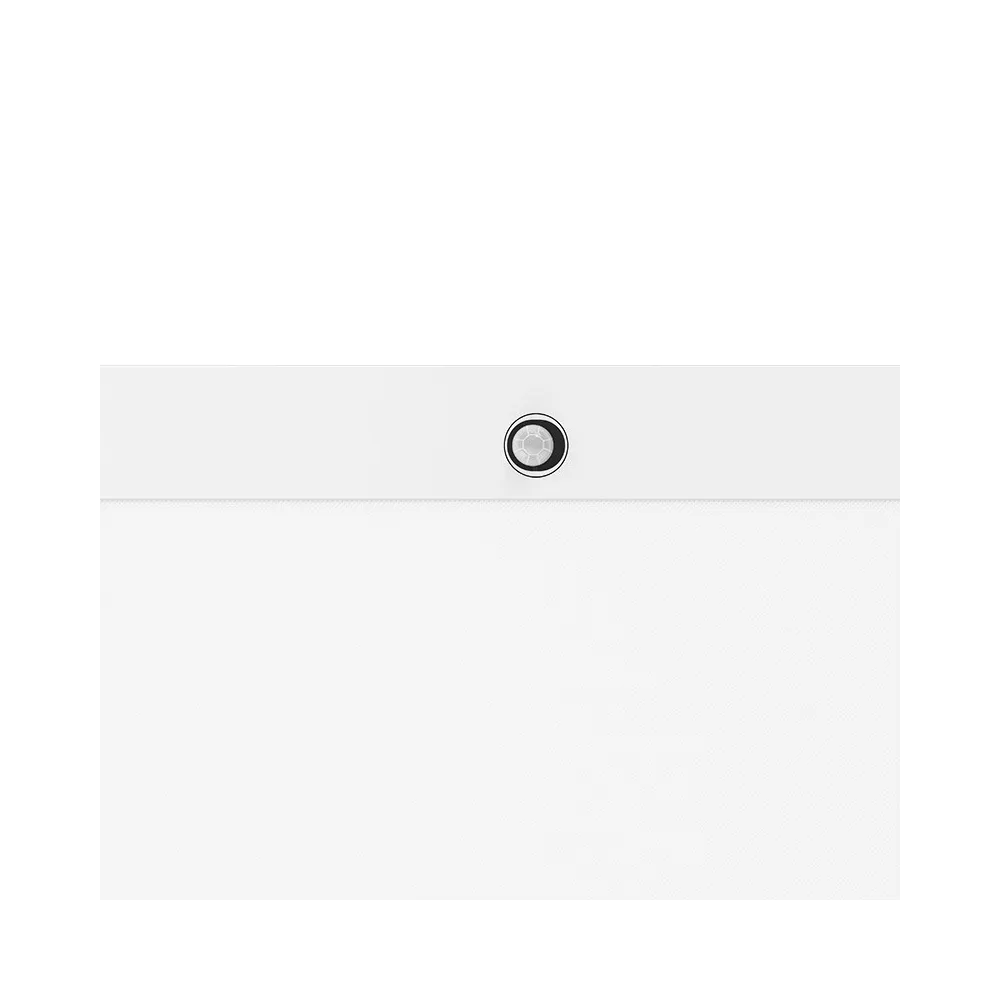

  • Integrated presence and brightness detector
  • Control and configuration via Bluetooth mobile app
  • Exceptional efficiency of 150 lm/W
  • CCT Switch 3000/4000/6000 K
  • 7-year warranty
Ref: PAN.9052T2

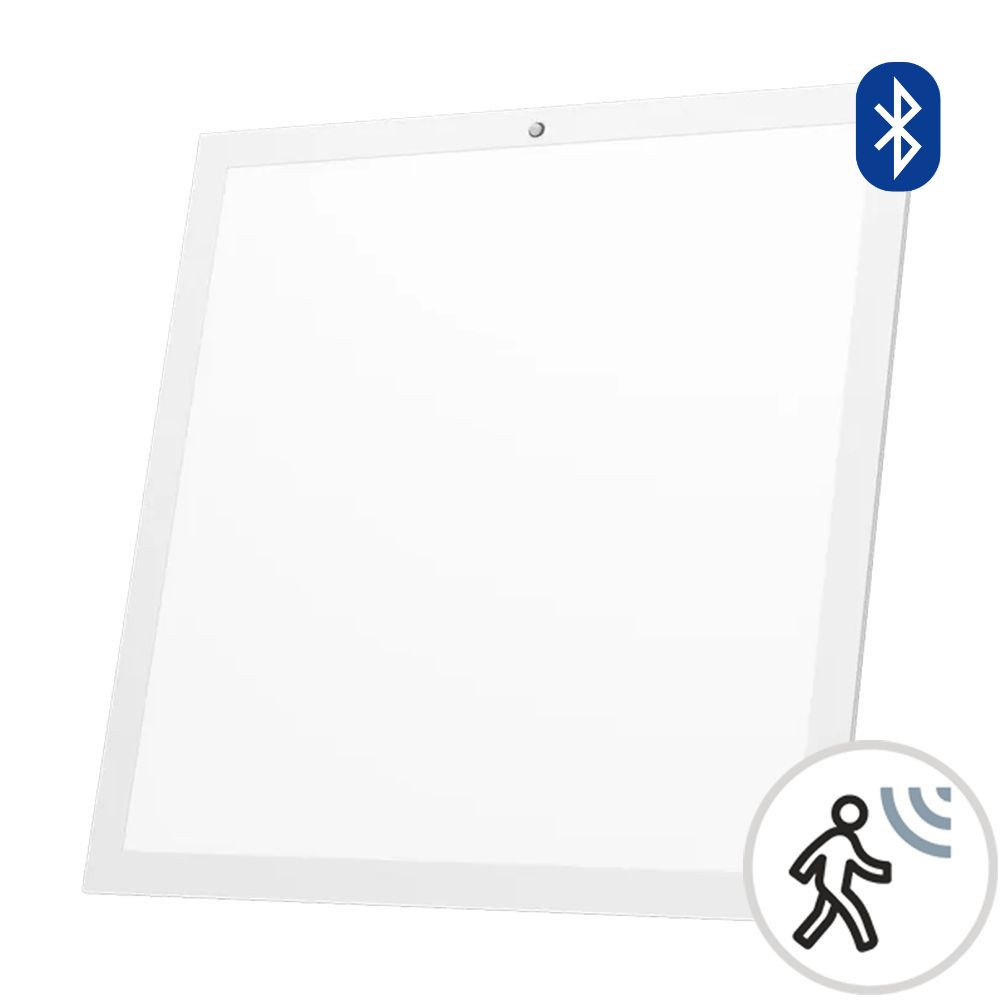

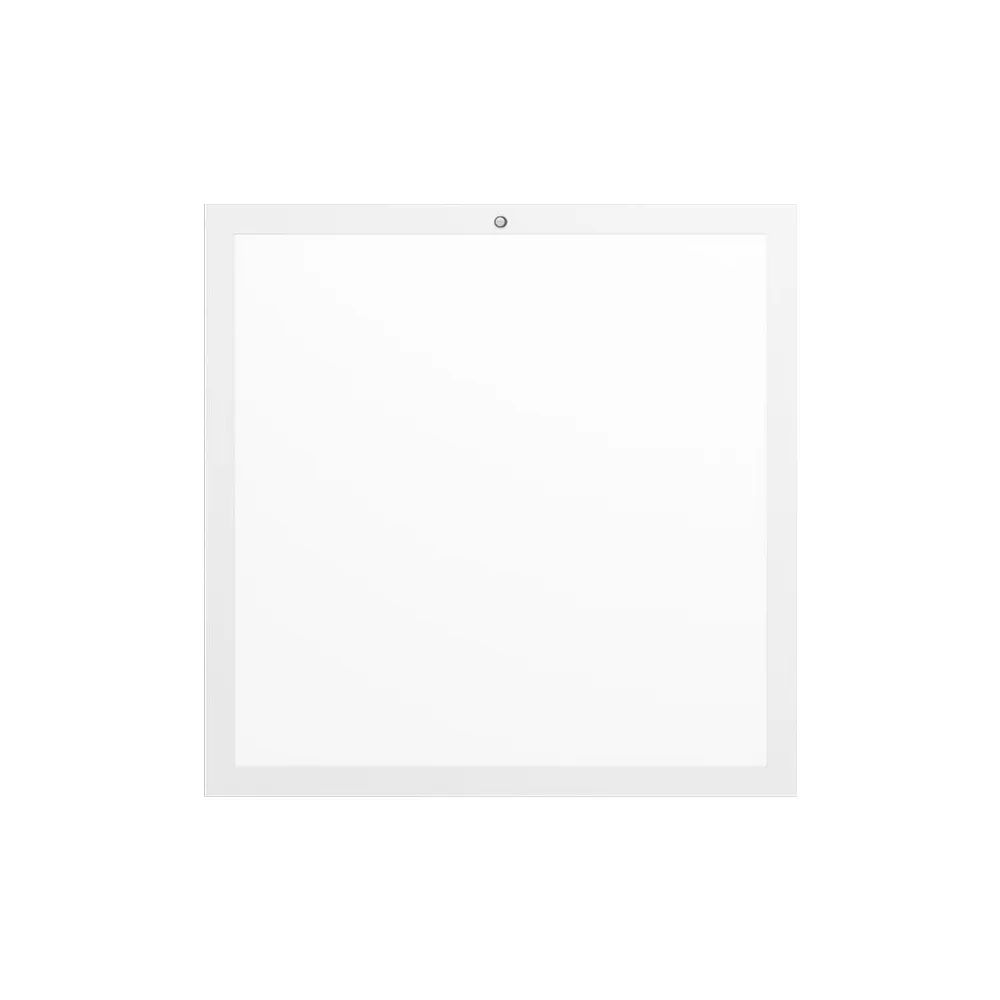

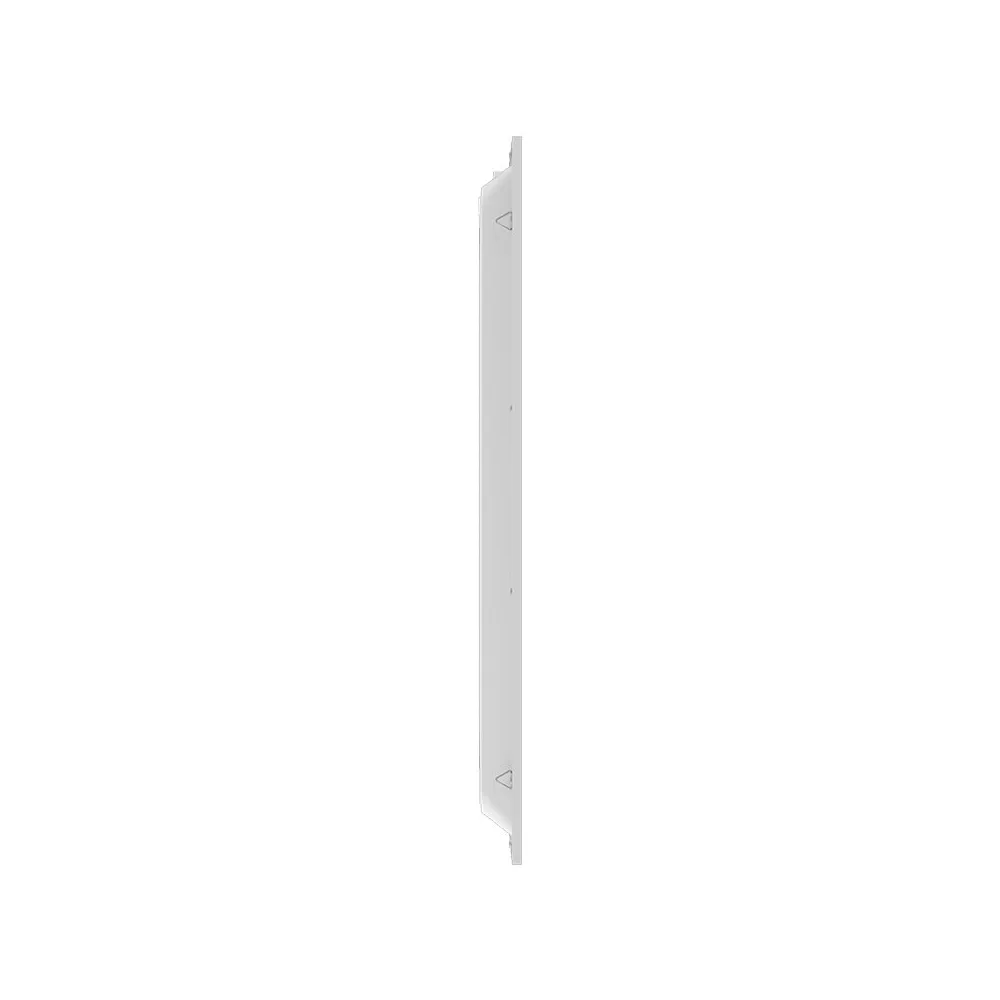

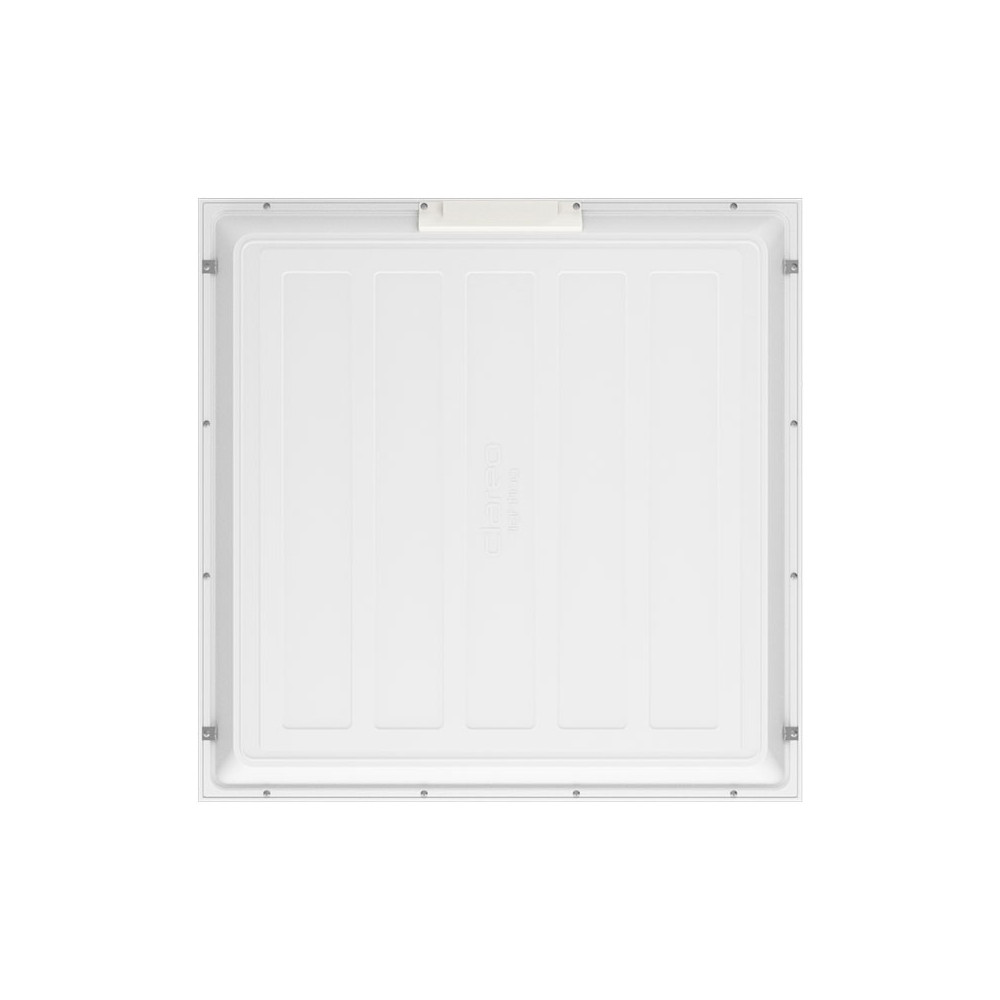

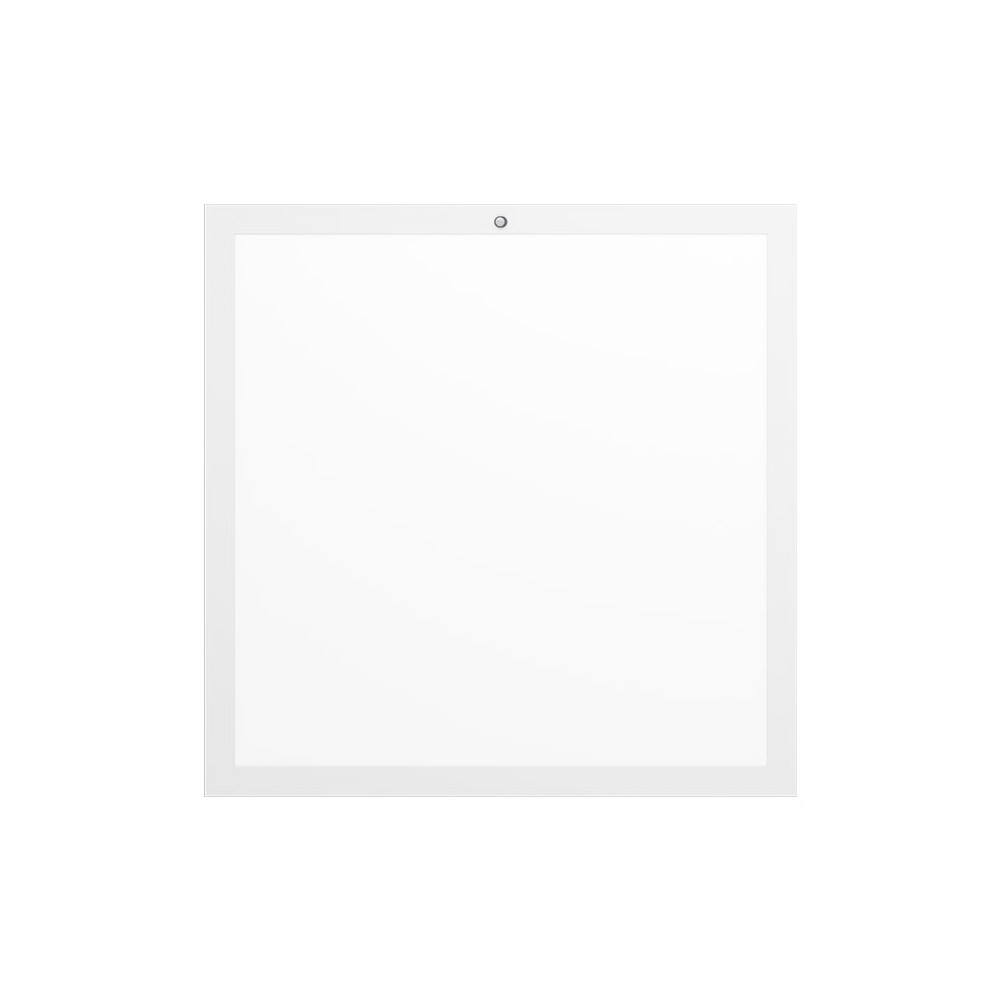

CLAREO 600x600 25W 150lm/W SENSOR Bluetooth TECH 2 Detector Panel With Driver

save_alt Download the technical sheet

Color

Switch 3000-4000-6000K

Angle

In stock, next-day delivery before 1 PM
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

The smart panel that combines detection, Bluetooth control and visual comfort

The Panel Detector SENSOR Bluetooth TECH 2 is the ideal solution for lighting projects requiring intelligent and automated management. Compatible with all types of false ceilings, it integrates perfectly into offices and demanding professional spaces.

With its high efficiency of 150 lm/W and its integrated presence and brightness detector, it allows lighting to be adjusted based on occupancy and natural light. Its commissioning, configuration and various operating modes are easily controlled via Bluetooth through the mobile app.

Its Prisma diffuser (UGR < 16) guarantees optimal visual comfort, even with prolonged use. Its CCT Switch 3000/4000/6000 K also offers great flexibility to adapt the color temperature to each ambiance.

With its lifespan L80B10 of 100,000 hours and its 7-year warranty, it is designed for the most intensive installations.

Box contents: 1 panel, 1 safety cable and 1 quarter-turn connector. Other installation methods are available as accessories, including the integration frame and the surface-mount frame with suspension kit.

Key highlights:

  • Integrated presence and brightness detector
  • Control and configuration via Bluetooth mobile app
  • Exceptional efficiency of 150 lm/W
  • CCT Switch 3000/4000/6000 K
  • 7-year warranty

General characteristics
Lifetime 100,000 h
Brand CLAREO
Range TECH
Product family Panels
Installation environment Office, Corridor, Corridor, School, Tertiary
Quick installation YES
Warranty 7 years
Electrical characteristics
Voltage 220-240 V AC
Power 25 W
Electrical class Class II
Facteur de puissance > 0,95
Taux de distorsion harmonique < 20 %
Sensor YES
EU energy class 2019/2015 B
Detector type PIR
Maximum ground detection diameter 6 m
Lighting characteristics
Technology LED
Lumens output 3750 lm
Energy savings - 40 %
Lumens efficiency 150 lm/W
Lifetime LXBY L80B10
Diffuser Prismatic
Beam Angle 90 deg
Photobiological risk GR0 - No risk
IRC > 80
UGR < 16
Physical characteristics and dimensions
Height 32 mm
Width 595 mm
Length 595 mm
Net weight 1.8 kg
Materials Aluminum
Waterproof No
IP IP20
IK IK03
Product color White
Working temperature -20 °C to 45 °C
Standard panel dimensions 600 x 600
Maximum installation height 3 m
Installation mode Recessed, Suspension with accessory, Suspension with accessory
Type SMD 2835
Standards and regulations
Standards CE, RoHS
Carbon footprint 16.8 kgCO2eq
