CLAREO High Lumen TECH LED Panel: High-intensity efficiency

Designed for environments requiring powerful and energy-efficient lighting, the new CLAREO High Lumen 190 lm/W TECH panel sets new performance standards.

With an exceptional output of 190 lm/W and a luminous flux ranging from 4180 to 6400 lumens depending on the associated driver, it delivers intense brightness while minimizing energy consumption, ideal for open spaces or technical areas.

Guaranteed for 7 years, this panel is built to last with an L80B10 lifespan of 80,000 hours.

Key highlights:

  • Exceptional output of 190 lm/W

  • Luminous flux up to 6400 lm

  • Color temperature 4000K

  • 7-year warranty

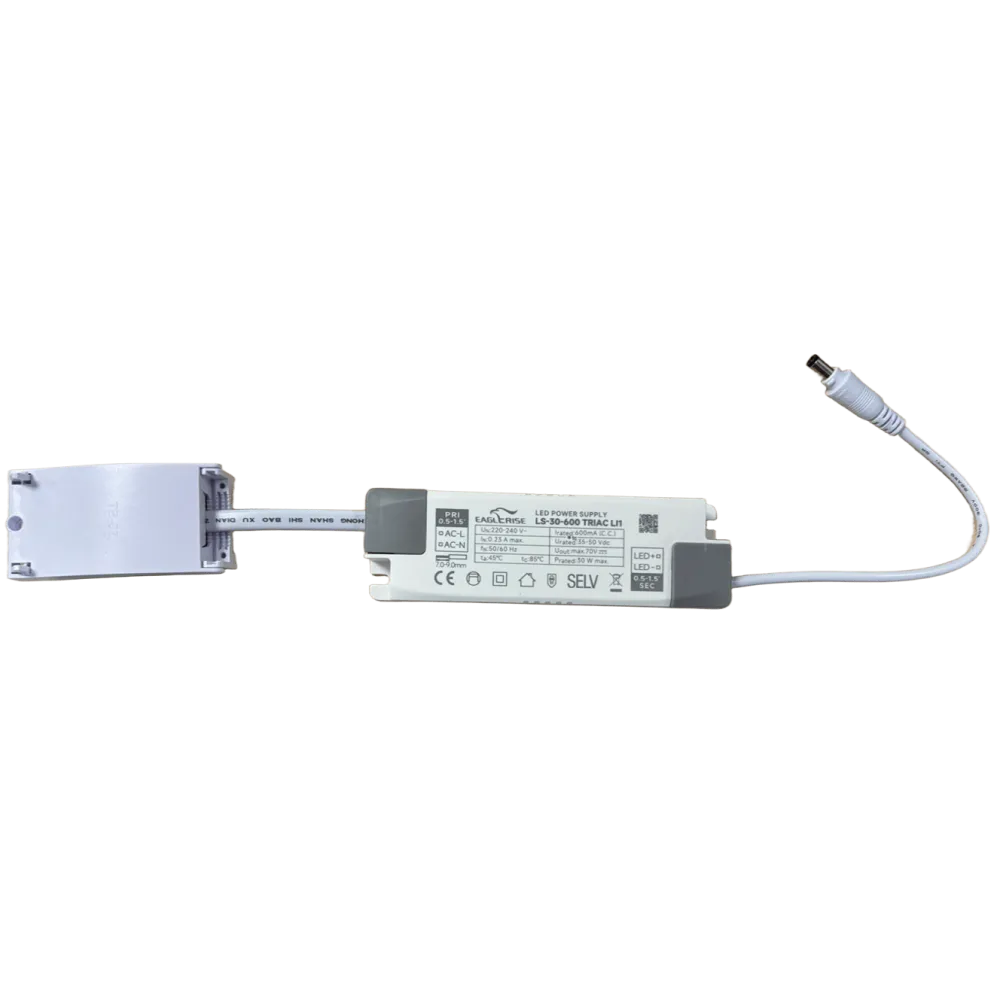

ATTENTION: Panel sold without power supply. Compatible drivers are available in the accessories section.



Ref: PAN.9374T1

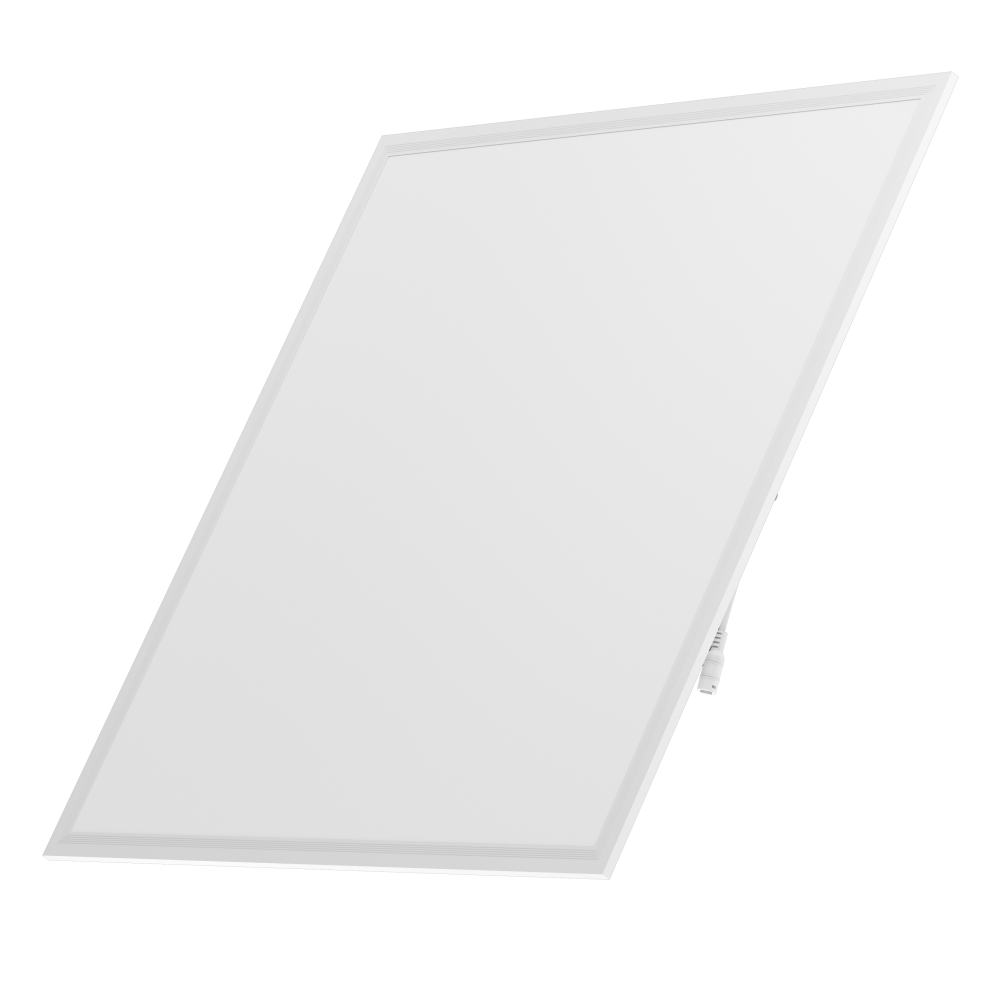

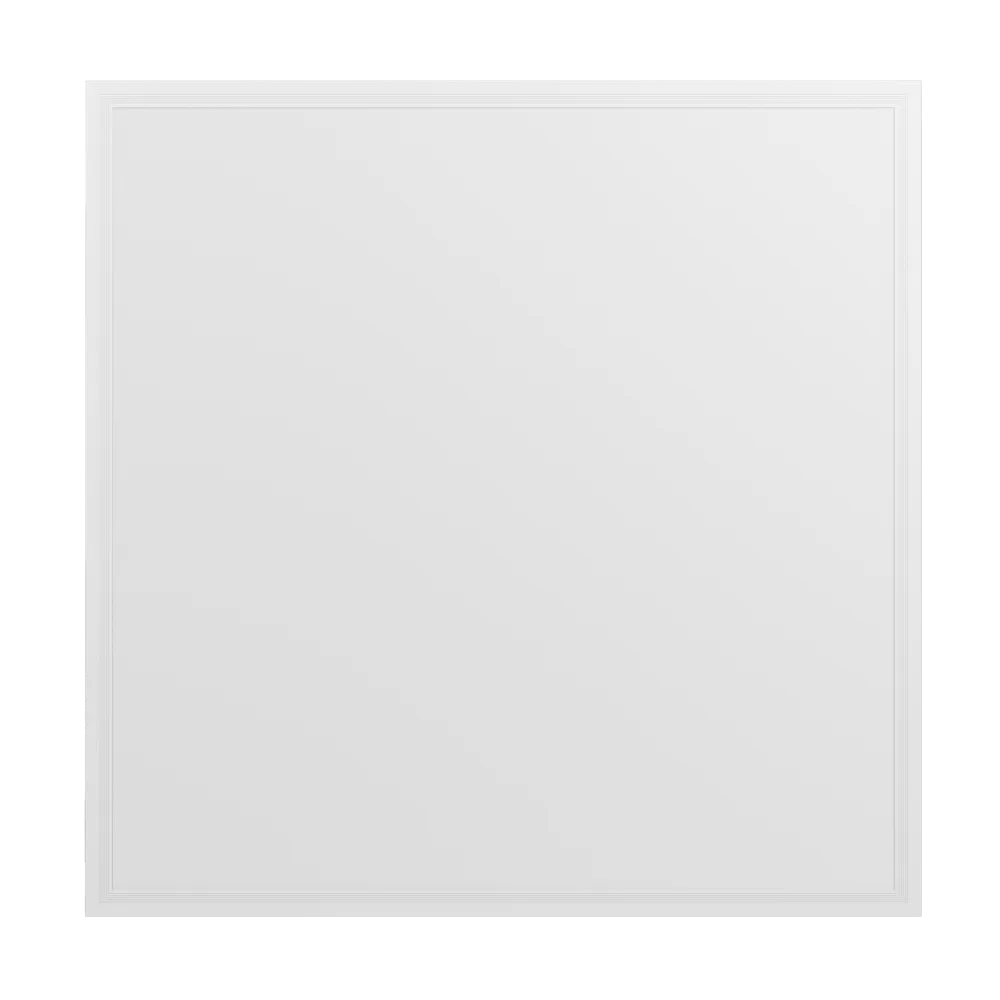

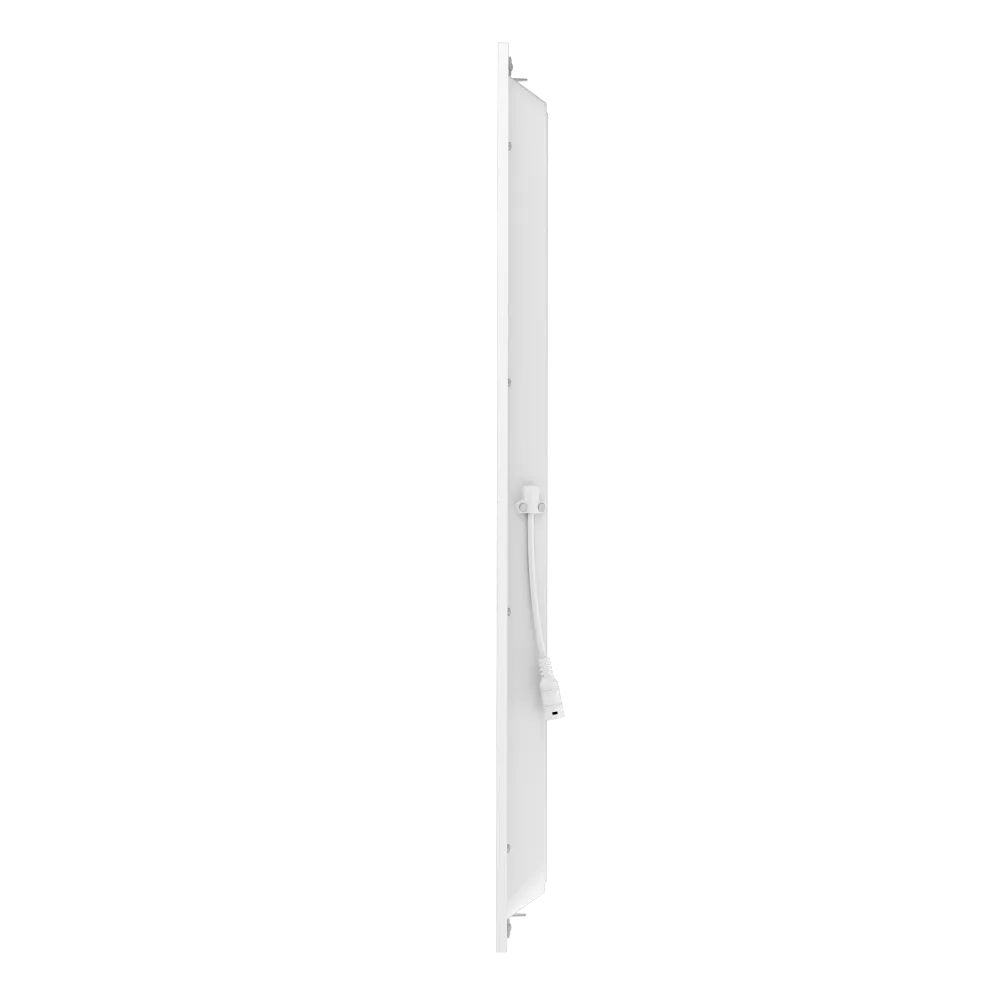

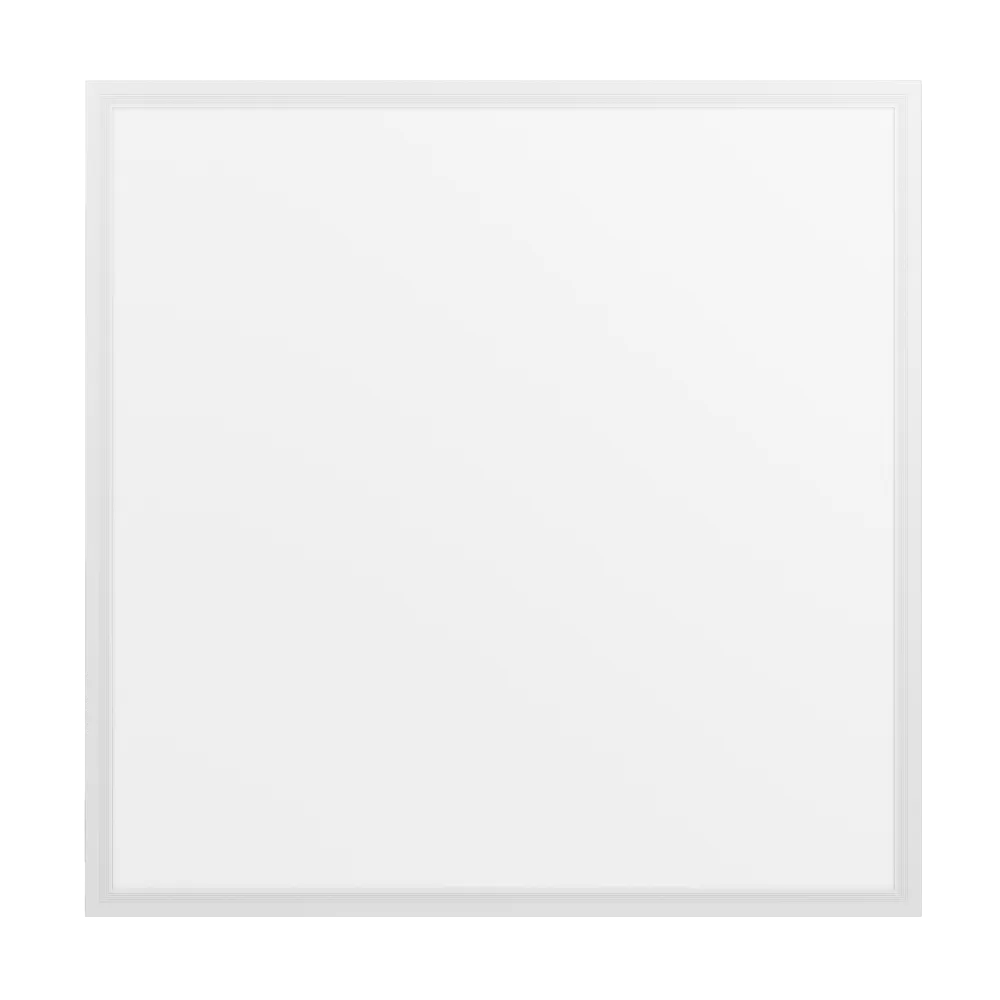

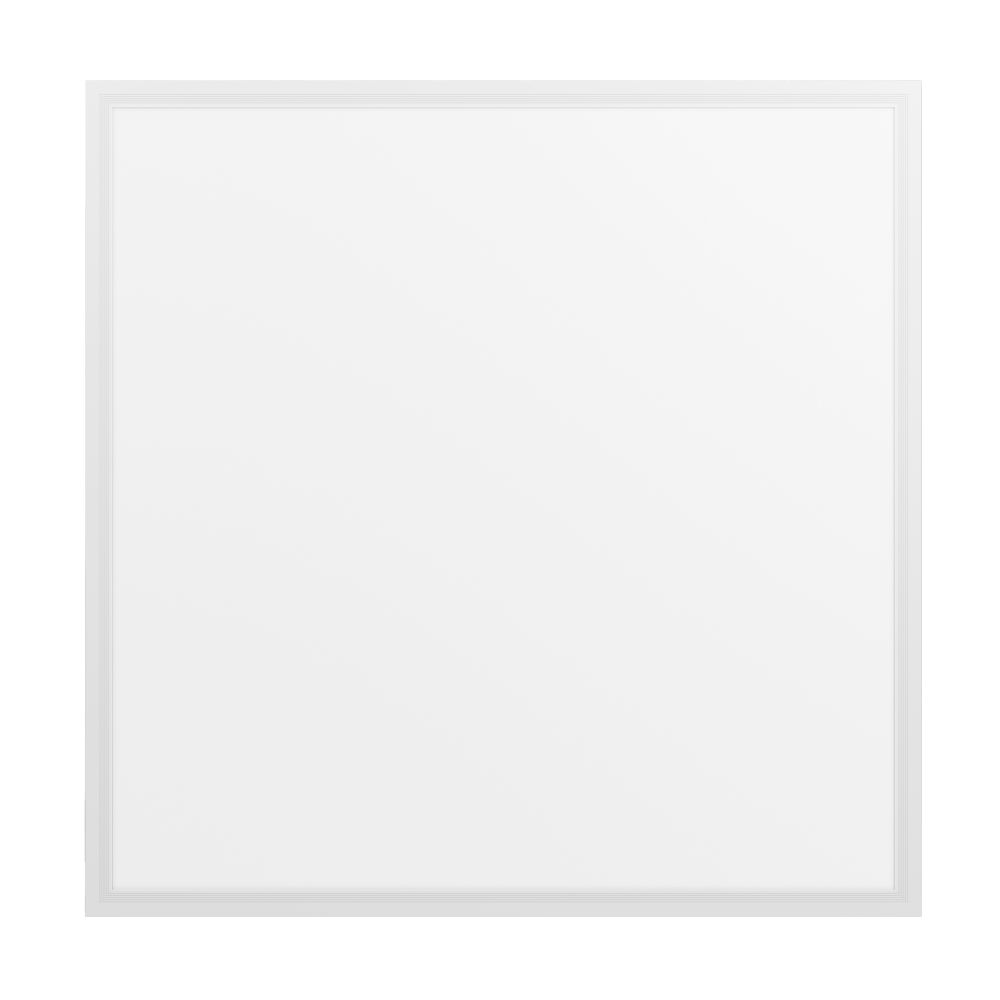

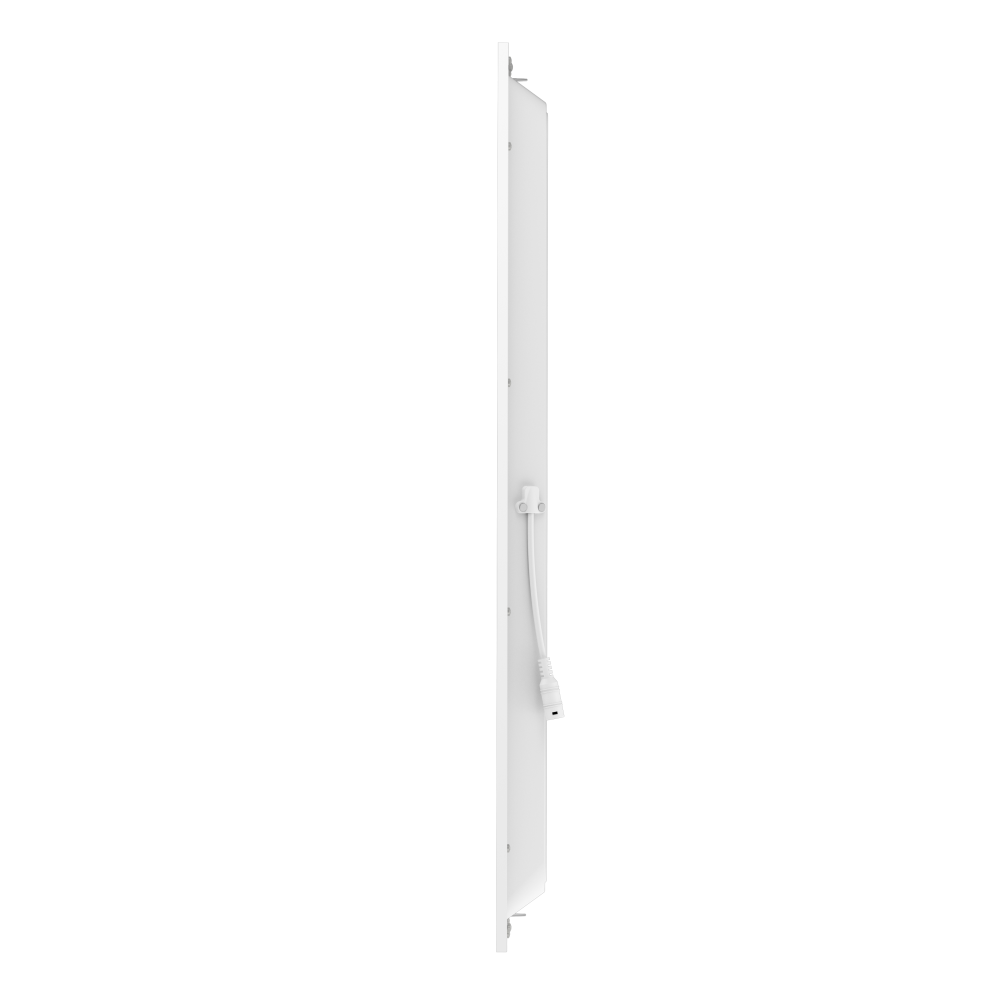

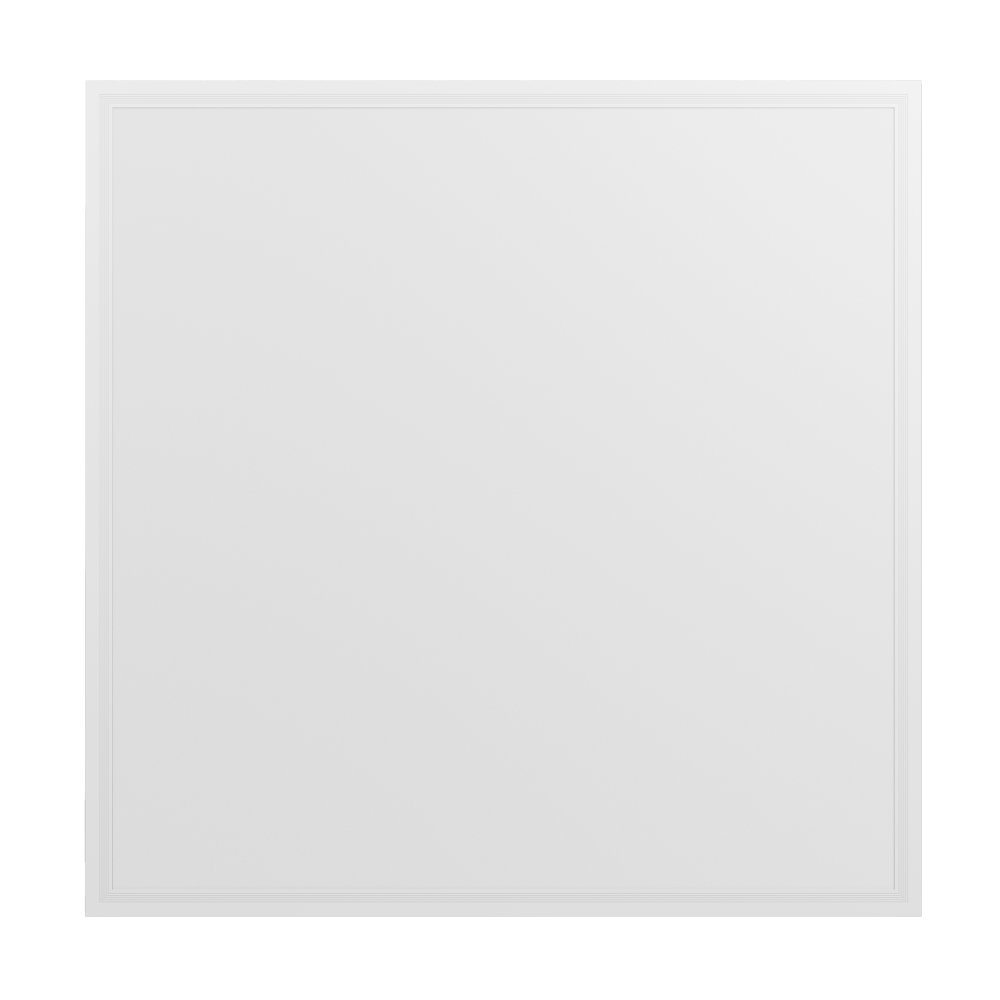

CLAREO High Lumen Panel 600x600 190lm/W TECH Without Driver

save_alt Download the technical sheet

Color

White neutral - 4000K

Angle

In stock, next day delivery before 1 PM
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

CLAREO High Lumen TECH LED Panel: High-intensity efficiency

Designed for environments requiring powerful and energy-efficient lighting, the new CLAREO High Lumen 190 lm/W TECH panel sets new performance standards.

With an exceptional output of 190 lm/W and a luminous flux ranging from 4180 to 6400 lumens depending on the associated driver, it delivers intense brightness while minimizing energy consumption, ideal for open spaces or technical areas.

Guaranteed for 7 years, this panel is built to last with an L80B10 lifespan of 80,000 hours.

Key highlights:

  • Exceptional output of 190 lm/W

  • Luminous flux up to 6400 lm

  • Color temperature 4000K

  • 7-year warranty

ATTENTION: Panel sold without power supply. Compatible drivers are available in the accessories section.



General characteristics
Lifetime 80,000 h
Brand CLAREO
Range TECH
Product family Panels
Installation environment Office
Quick installation YES
Warranty 7 years
Electrical characteristics
Current Up to 900 mA
Power 22 to 36 W
Electrical class Class III
EU energy class 2019/2015 A
Lighting characteristics
Technology LED
Lumens output 4180 - 6400 lm
Energy savings - 50 %
Lumens efficiency 190 lm/W
Lifetime LXBY L80B10
Diffuser Opale
Beam Angle 120 deg
Photobiological risk GR0 - No risk
IRC > 80
UGR < 19
SDCM < 3
Lumens range 4000-4999 lm
Physical characteristics and dimensions
Height 595 mm
Standard length 60 cm
Width 32 mm
Length 595 mm
Net weight 1,2 kg
Materials Metal
Waterproof No
IP IP44
IK IK03
Product color White
Cut-out 600x600 mm
Working temperature -25 °C to 45 °C
Installation mode Wall sconce, Pendant light with accessory, Surface-mounted fixture with accessory, Surface-mounted fixture with accessory, Surface-mounted fixture with accessory
Type SMD 2835
Standards and regulations
CEE BAT-EQ-127
Standards CE, ENEC, RoHS
Carbon footprint 52.1 kgCO2eq
