New CLAREO START 3 Pack 6 LED panel:

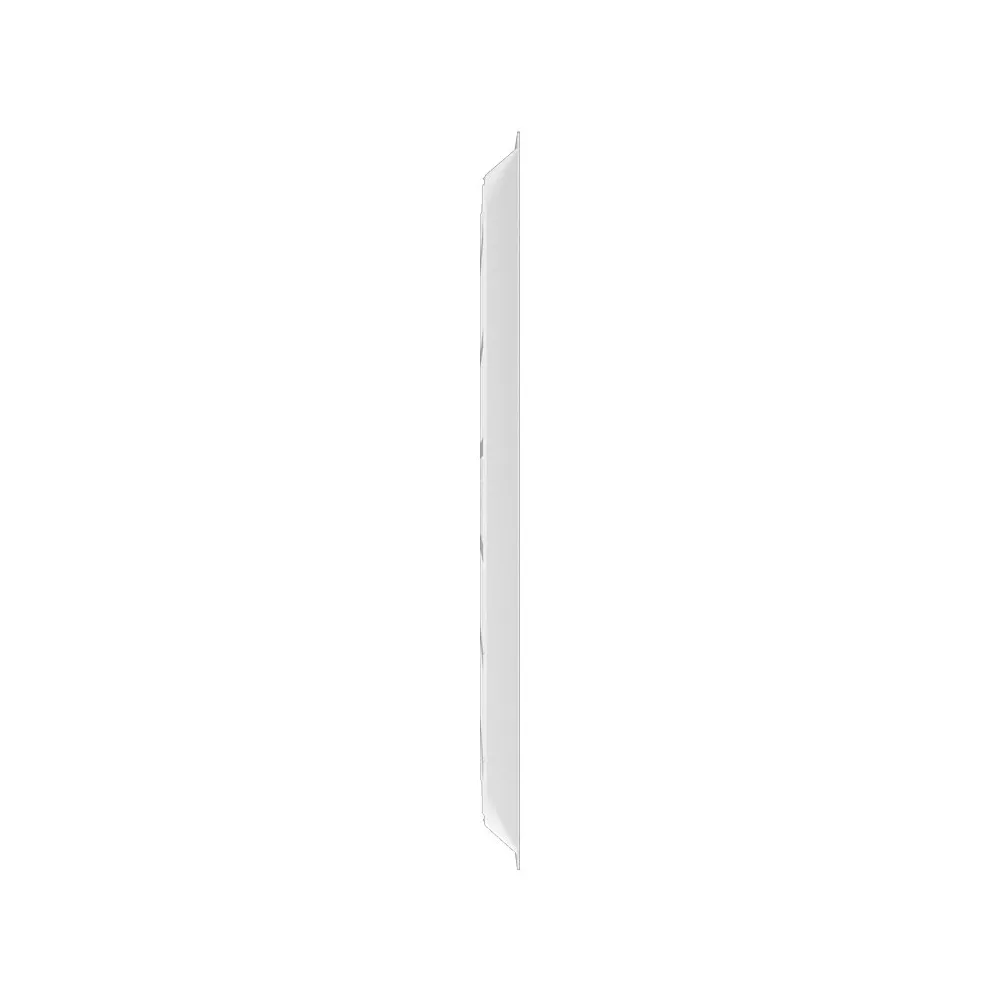

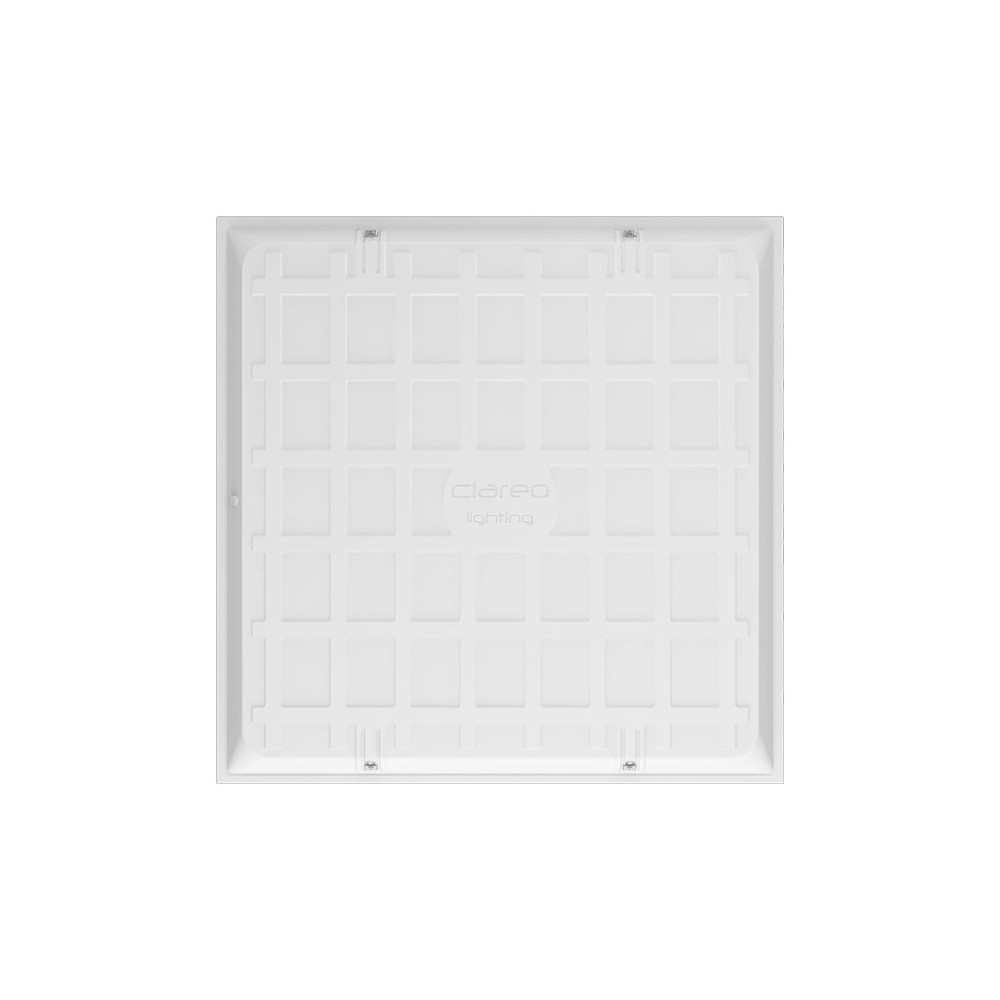

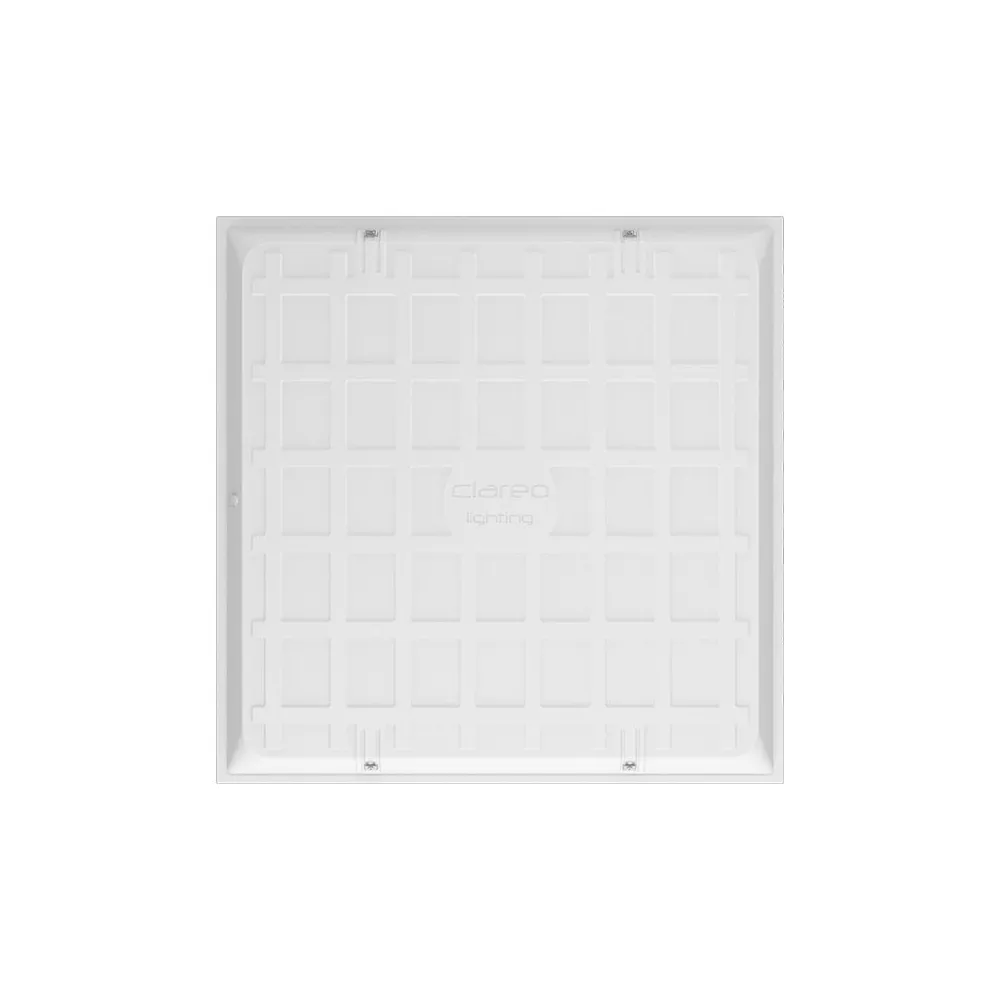

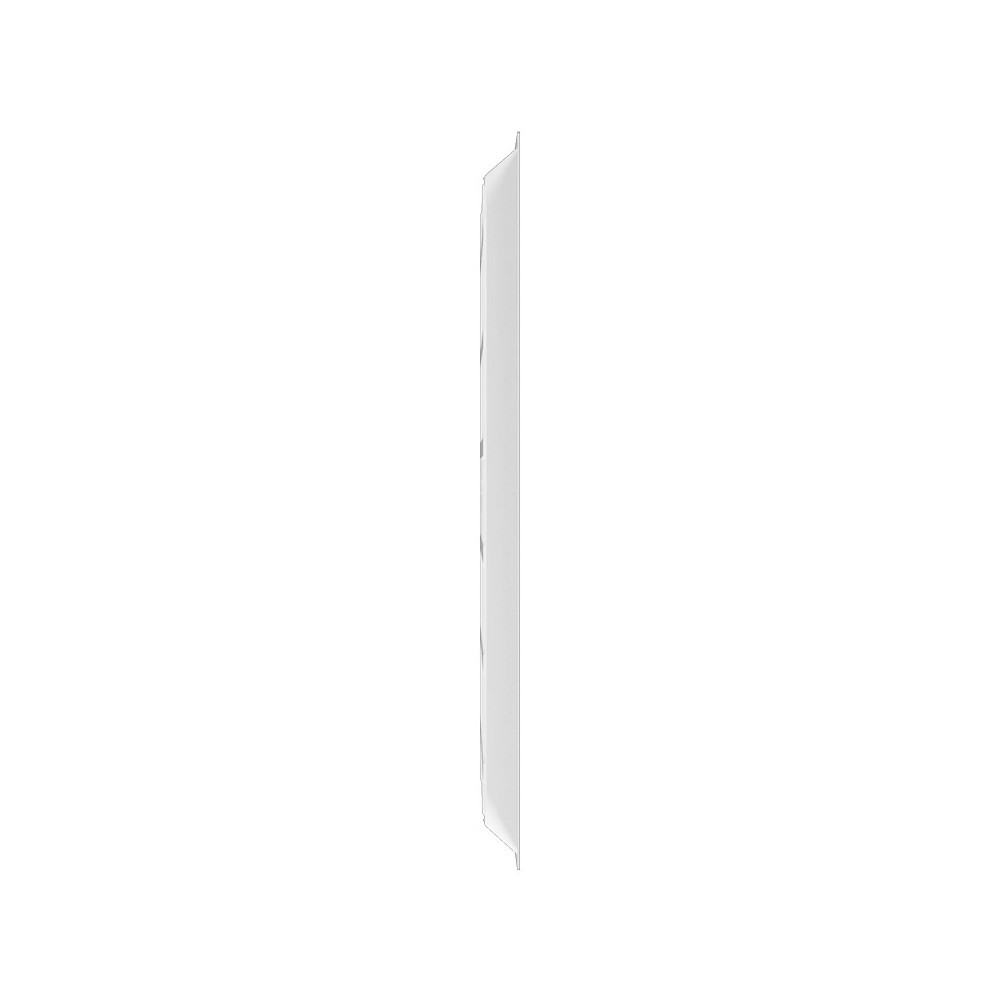

Thanks to SlimFold technology, the START 3 Panel is the first panel on the market to fold its back frame onto the diffuser, reducing material and height. With its ultra-thin 13mm edges, it integrates perfectly into any environment

Ideal installation compatible with all offices or rooms equipped with a suspended ceiling.

Designed for intensive use, with a 5-year warranty and L80B10 80,000 hours.

Box contents: 6 panels, 6 pre-wired ON/OFF drivers with quarter-turn connector and junction box, 6 DALI/PB drivers and 6 safety cables.

Key features:

  • Value for money
  • Recognized brand power supply EagleRise included
  • Long lifespan: 80,000 hours
  • Warranty: 5 years
  • UGR < 19
  • Junction box

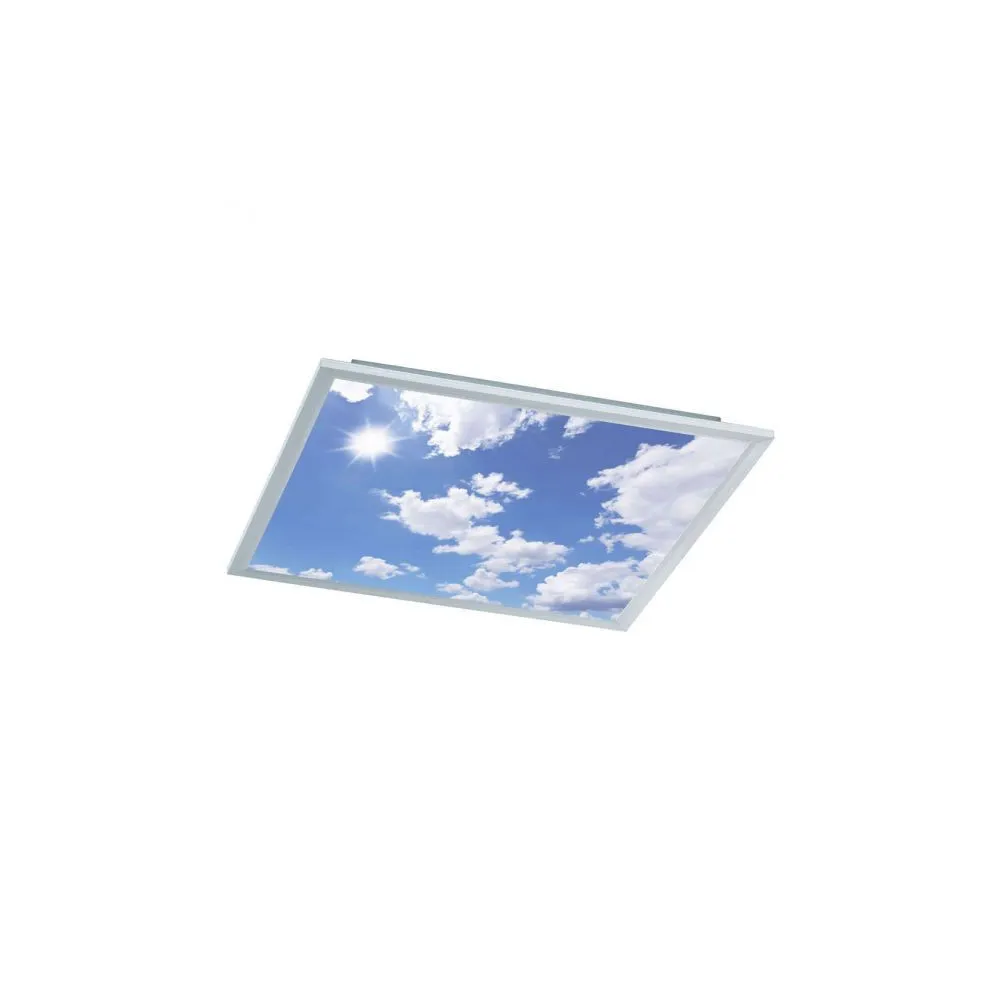

  • Compatible with screen-printed panel
  • Safety cables included

Please note, the pack also includes 6 ON/OFF drivers.

Quarter-turn connector to be unwired then rewired to DALI driver.

Ref: PAN.9587S3x6

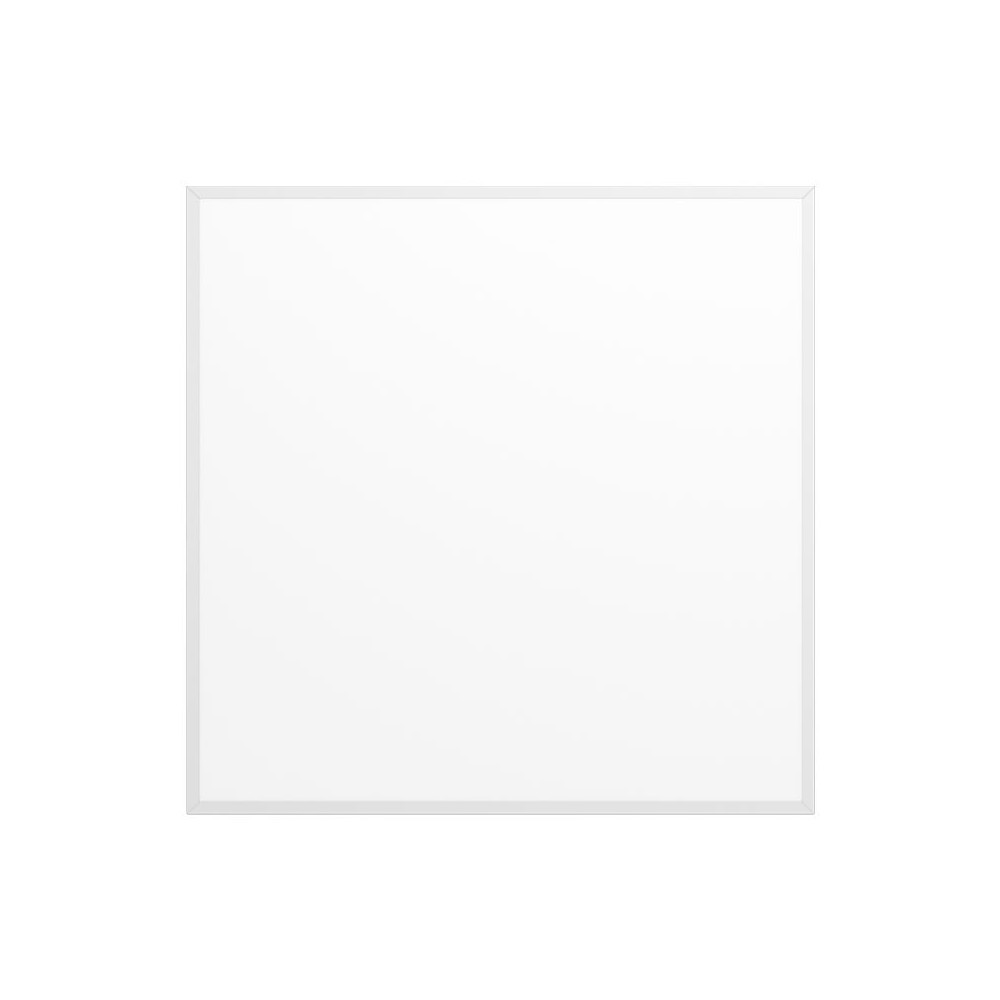

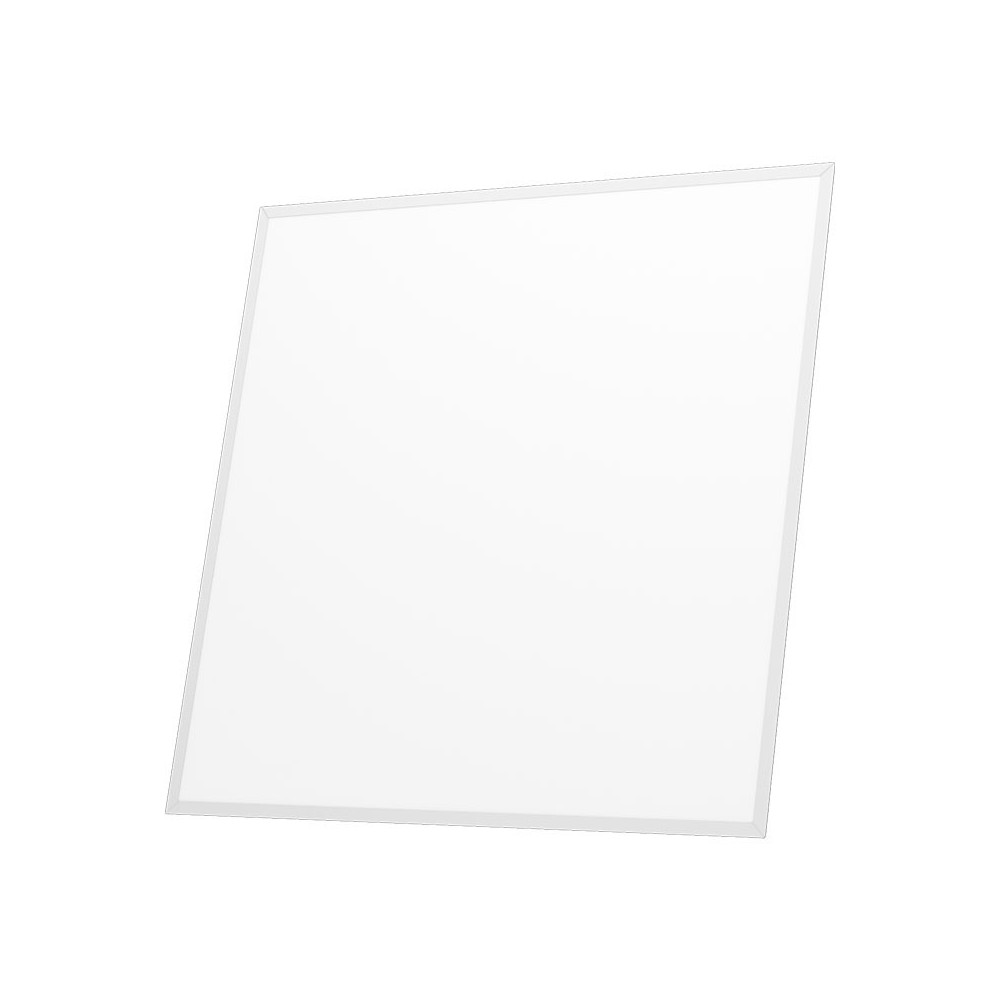

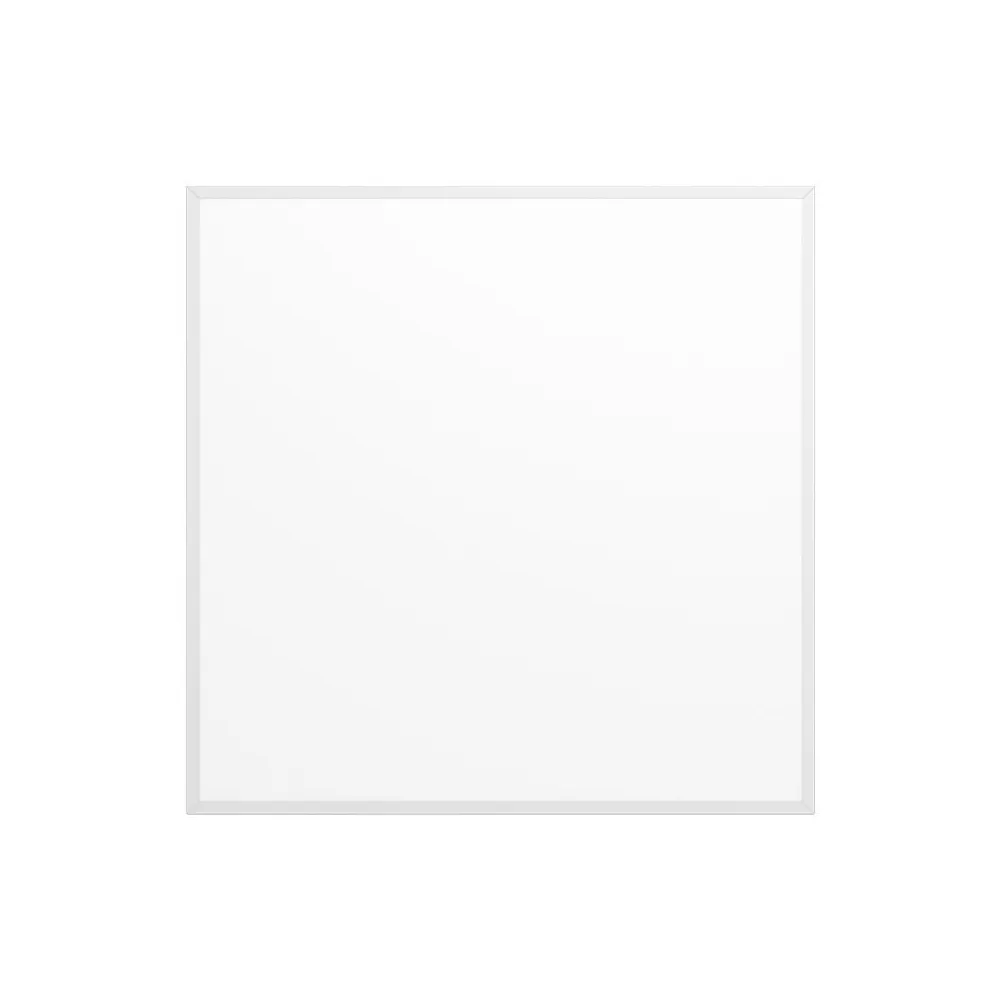

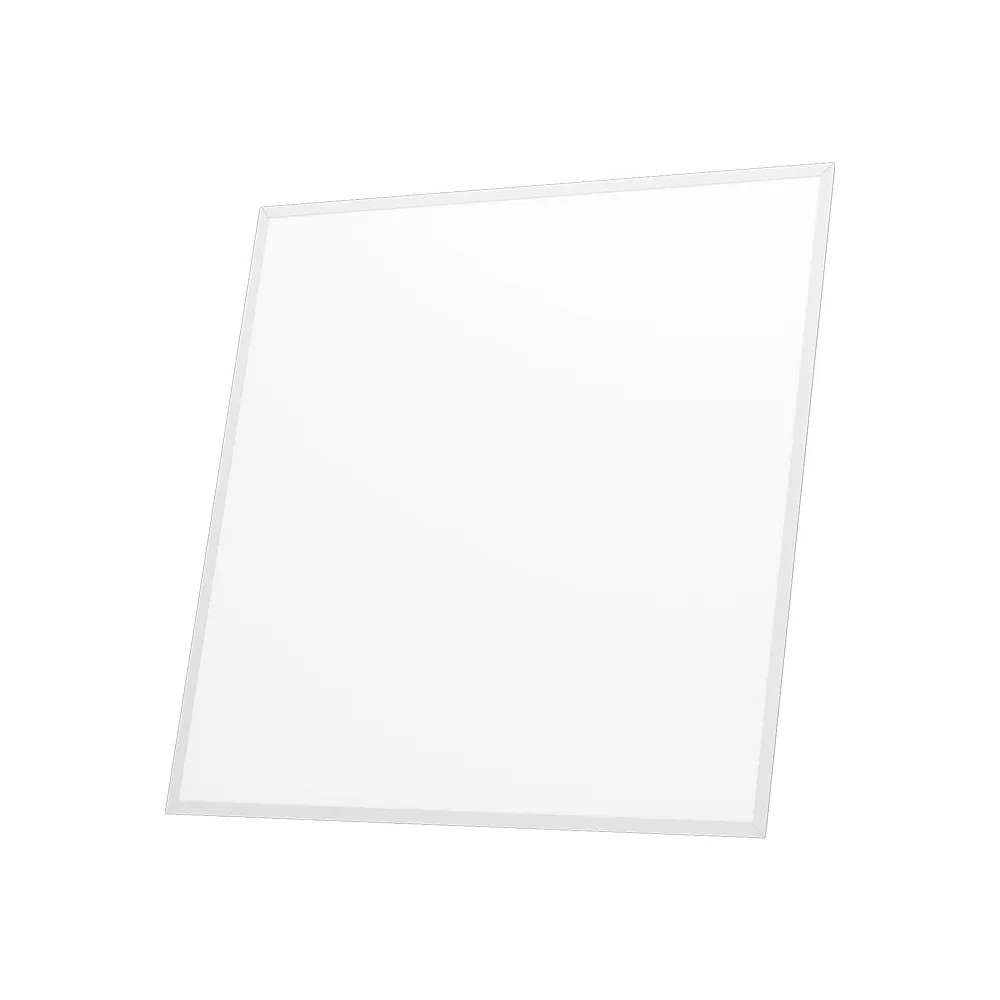

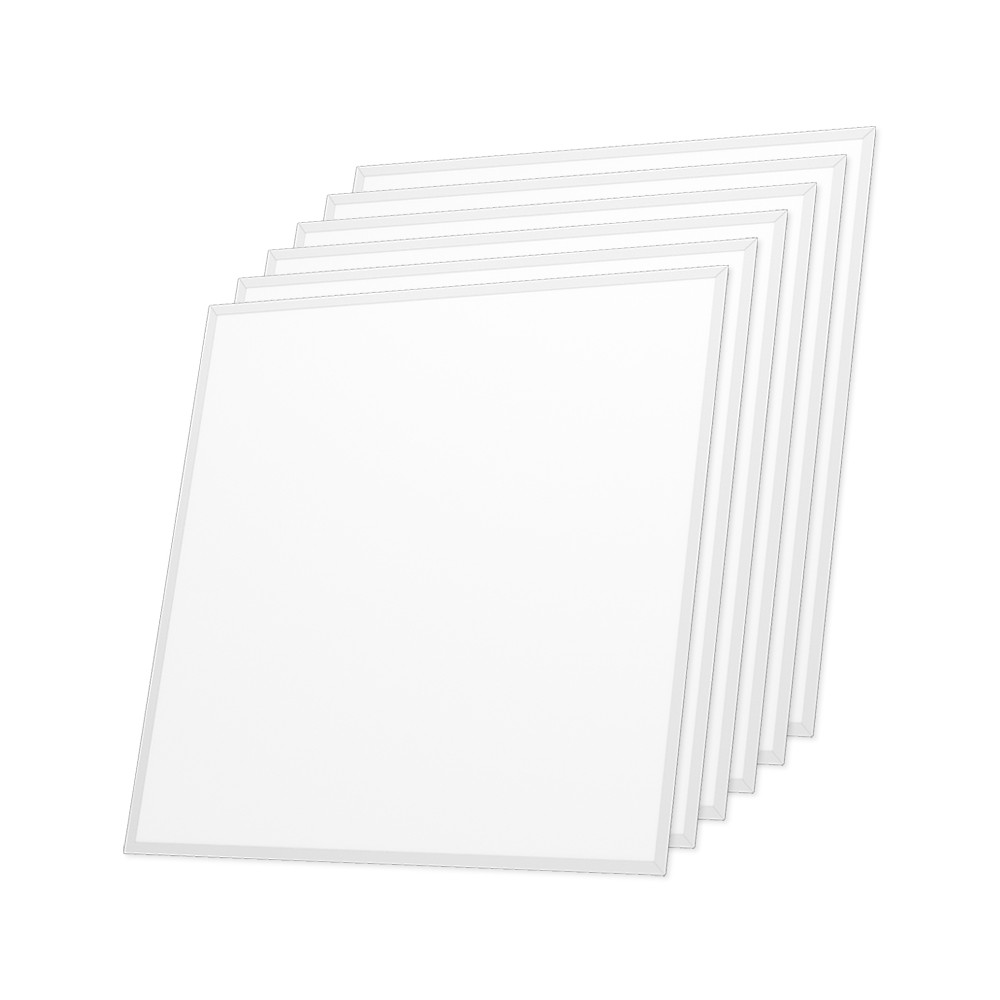

CLAREO 600x600 30W DALI START 3 Pack 6 Panel With Driver

save_alt Download the technical sheet

Color

White warm - 3000K

Angle

Diffuser

Driver

In stock, next day delivery before 1pm
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

General characteristics
Lifetime 80,000 h
Brand CLAREO
Range START
Product family Panels
Installation environment Office
Quick installation YES
Repairable YES
Warranty 5 years
Electrical characteristics
Voltage 220-240 V AC
Current Up to 900 mA
Power 30 W
Electrical class Class II
Dimmable DALI
Facteur de puissance > 0,95
Taux de distorsion harmonique < 6%
Power range 26-50 W
EU energy class 2019/2015 E
Lighting characteristics
Technology LED
Lumens output 3442 - 3600 lm
Energy savings - 30 %
Lumens efficiency 120 lm/W
Lifetime LXBY L80B10
Diffuser Opale
Beam Angle 120 deg
Photobiological risk GR0 - No risk
IRC > 80
UGR < 19
Lumens range 3000-3999 lm
Physical characteristics and dimensions
Height 28 mm
Standard length 60 cm
Width 595 mm
Length 595 mm
Materials Steel
Waterproof No
IP IP44
IK IK03
Product color White
Cut-out 600x600 mm
Working temperature -20 °C to 40 °C
Standard panel dimensions 600 x 600
Detailed color White
Type SMD 2835
Standards and regulations
Standards CE, RoHS
