Adjustable cardan downlight from the DESIGN range

Sold without driver. Driver to be selected as an accessory.

Simplified recessed installation in false ceiling, plaster ceiling or drywall, with quarter-turn connector between the luminaire and the driver.

Product guaranteed for 5 years with a lifespan of 45,000 hours in L80B10.

Sleek design with 1, 2 or 3 modules and 2 colors to choose from: black, white.

Temperature selector 3000 - 3500 - 4000 K integrated into the downlight.

Cardan system: adjustable at + / - 25° on a 360° axis.

Enhance your space with a CRI > 90.

Optical diffusion lens for a 36° angle.

Box contents: 1 Downlight, 1 pre-wired CCT switch, 1 wired male quarter-turn connector, 1 female quarter-turn connector.

Ref: DOW.101900

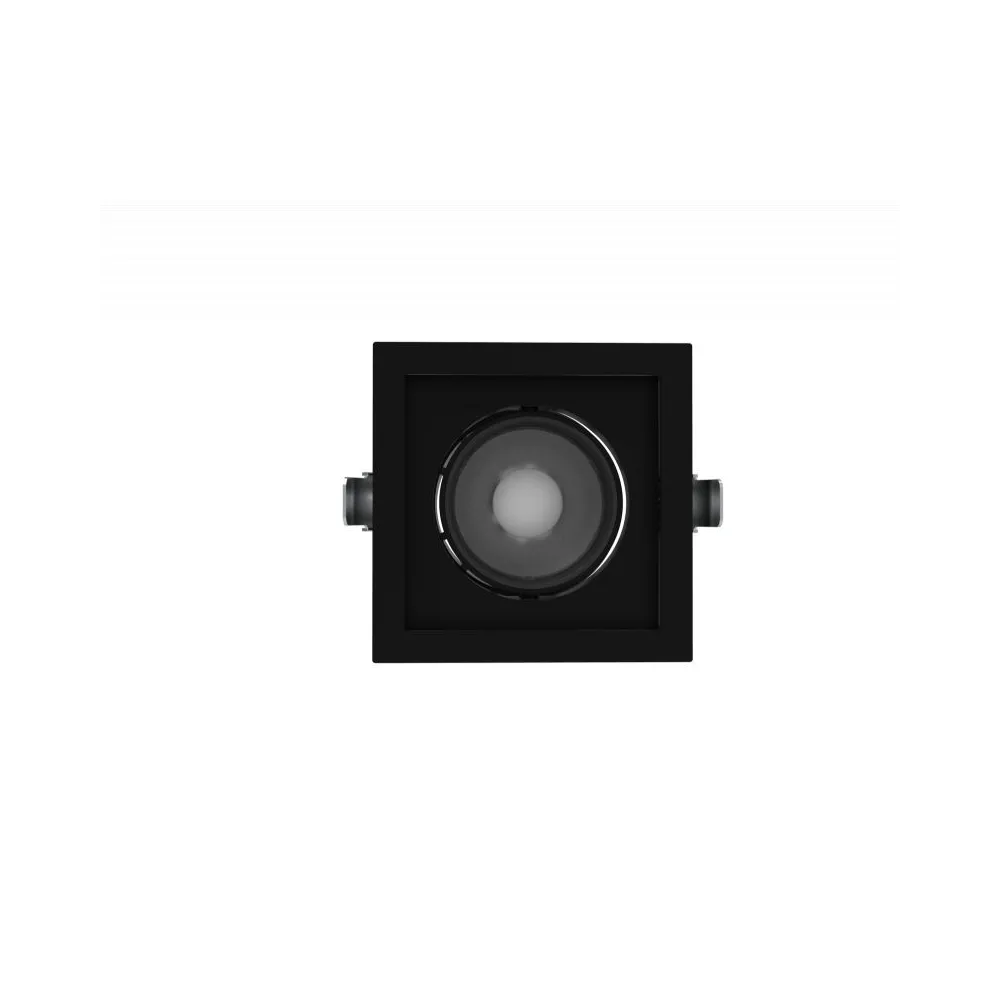

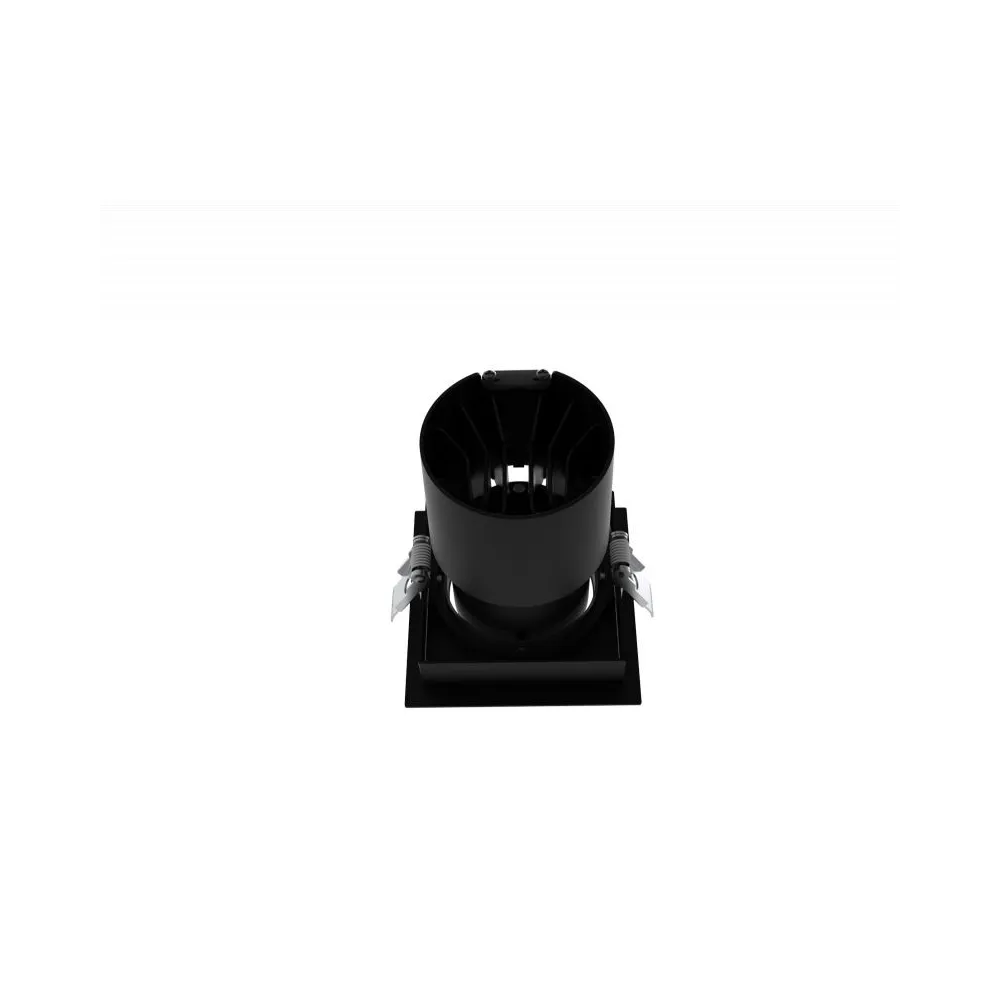

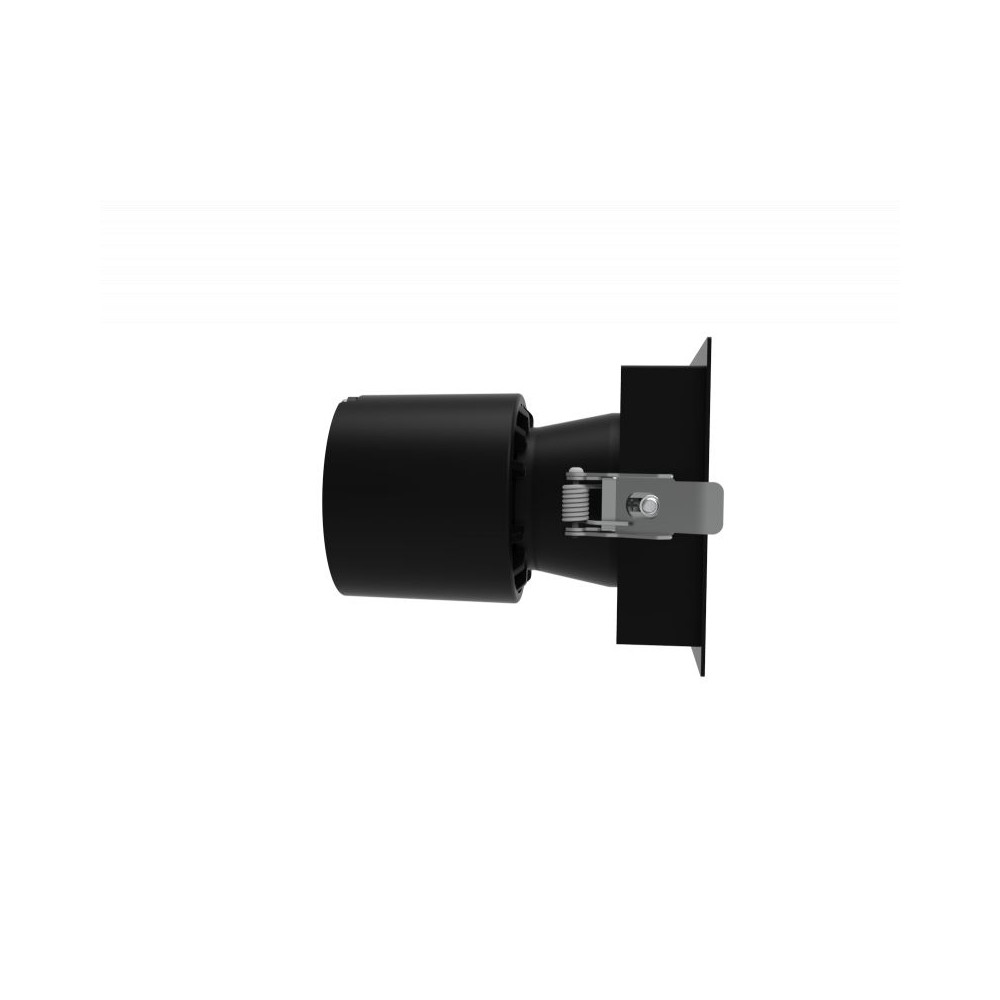

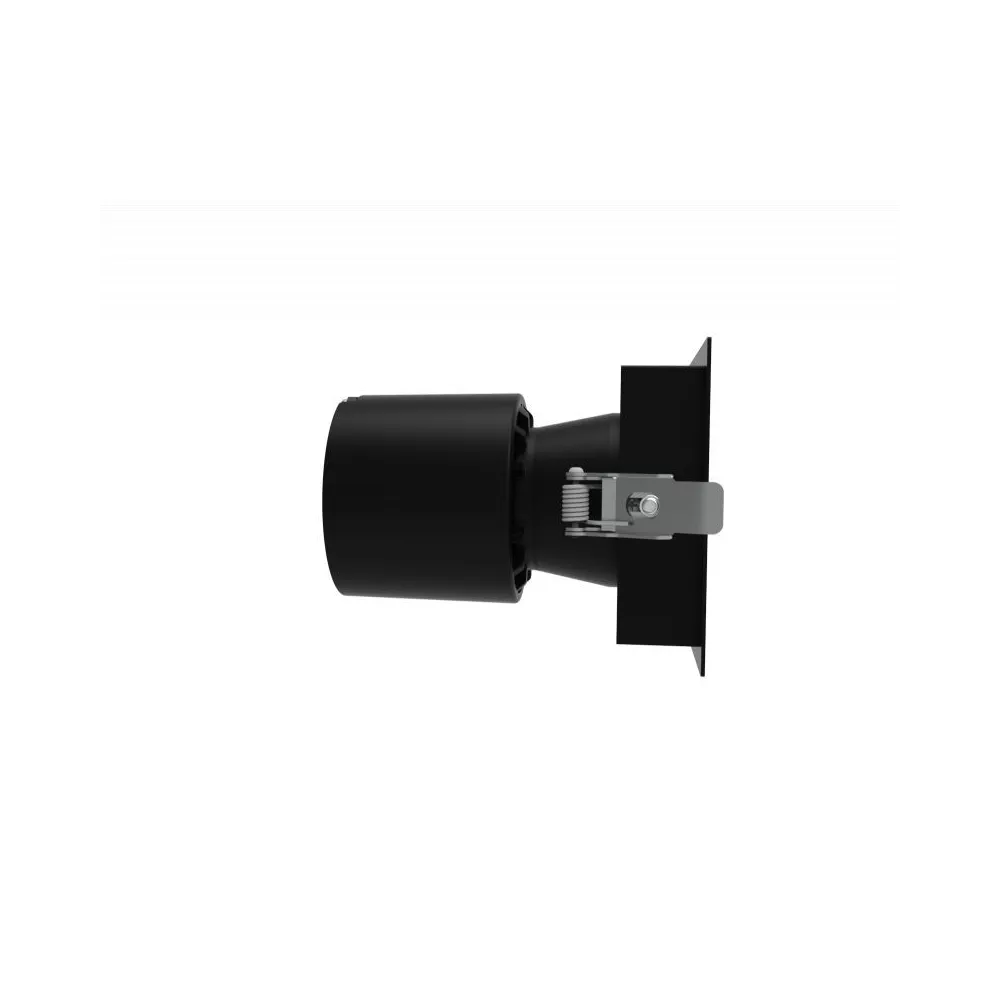

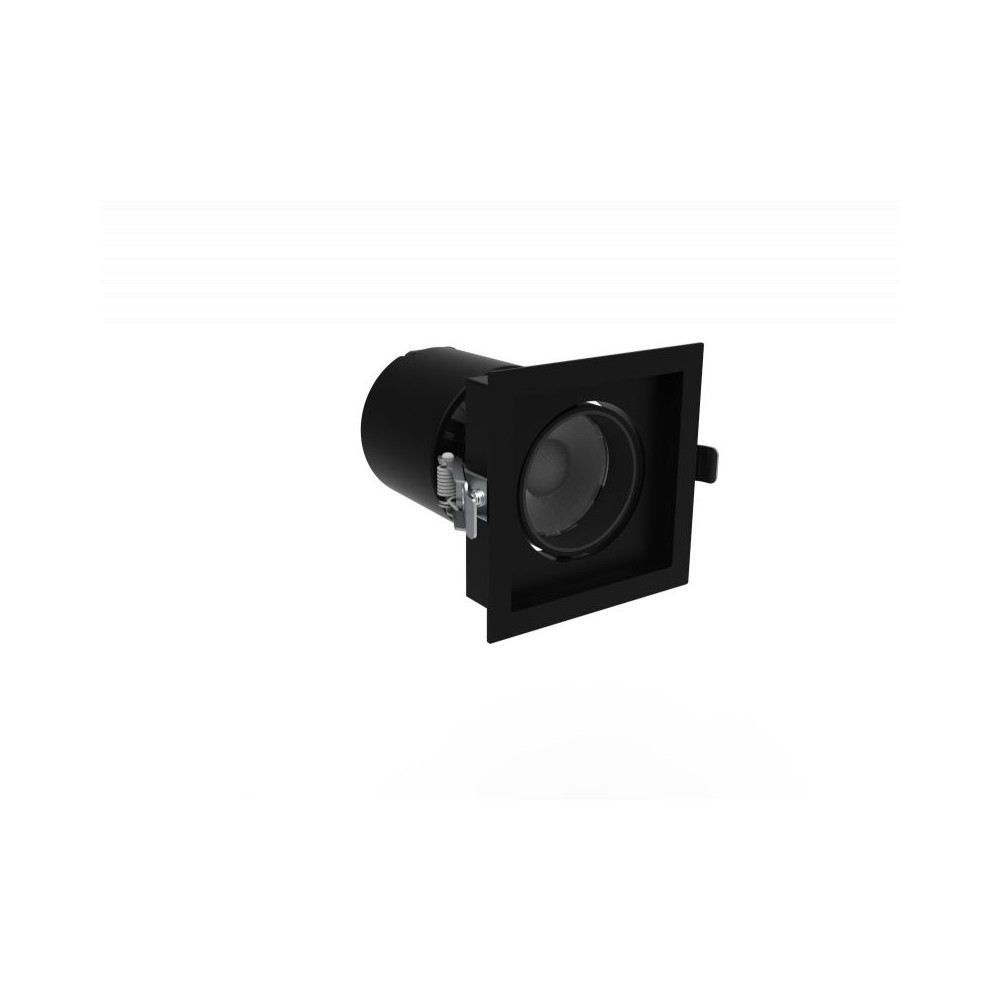

Adjustable DownRay CLAREO 30W SOLO DESIGN Black Without Driver

Energy savings - 10% Energy savings - 10%
Repairable Repairable
5 years Warranty 5 years Warranty
45,000 h 45,000 h
IP20 IP20
UGR < 19 UGR < 19
IRC > 90 IRC > 90
IK06 IK06
90 lm/W 90 lm/W
save_alt Download the technical sheet

Color

Switch 3000-3500-4000K

Angle

In stock, next day delivery before 1pm
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here
Sign in Sign up

General characteristics
Lifetime 45,000 h
Brand CLAREO
Range DESIGN
Product family Downlights
Repairable YES
Warranty 5 years
Electrical characteristics
Current Up to 700 mA
Power 30 W
Electrical class Class III
Power range 26-50 W
EU energy class 2019/2015 F
Lighting characteristics
Technology LED
Lumens output 2700 lm
Energy savings - 10%
Lumens efficiency 90 lm/W
Lifetime LXBY L80B10
Diffuser Prismatic
Beam Angle 36 deg
Photobiological risk GR1 - Low risk
IRC > 90
UGR < 19
Lumens range 2000-2999 lm
Physical characteristics and dimensions
Height 119 mm
Width 100 mm
Length 100 mm
Net weight 0.5 kg
Materials Aluminum
Waterproof No
IP IP20
IK IK06
Product color Black
Cut-out 90 x 90 mm
Working temperature -20 °C to 45 °C
Detailed color Black
Installation mode Recessed
Type COB
Standards and regulations
Standards CE, RoHS
