Adjustable gimbal downlight from the DESIGN range

Sold without driver. Driver to be chosen as an accessory.

Recessed installation in false ceiling, plaster ceiling or BA13, simplified with a quarter-turn connector between the luminaire and the driver.

Power from 10W to 30W depending on the selected driver.

Product guaranteed 5 years for a lifespan of 45,000 hours in L80B10.

Sleek design with 1, 2 or 3 modules and 2 colours to choose from: black, white.

3000 - 3500 - 4000 K temperature selector integrated into the downlight.

Gimbal system: adjustable at + / - 25° on a 360° axis.

Enhance your space with a CRI> 90.

Diffusion optical lens for a 36° angle.

Box contents: 1 Downlight, 1 pre-wired CCT switch, 1 wired male quarter-turn connector, 1 female quarter-turn connector.

Ref: DOW.101902

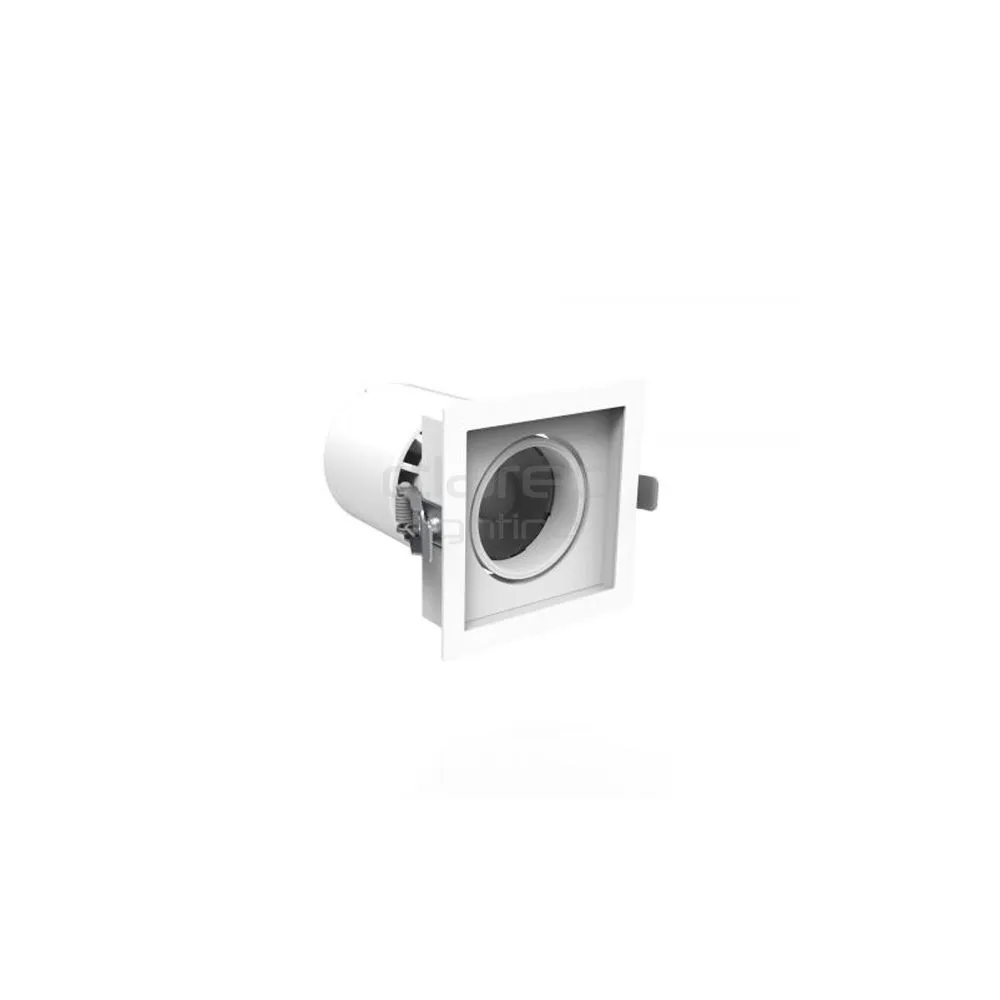

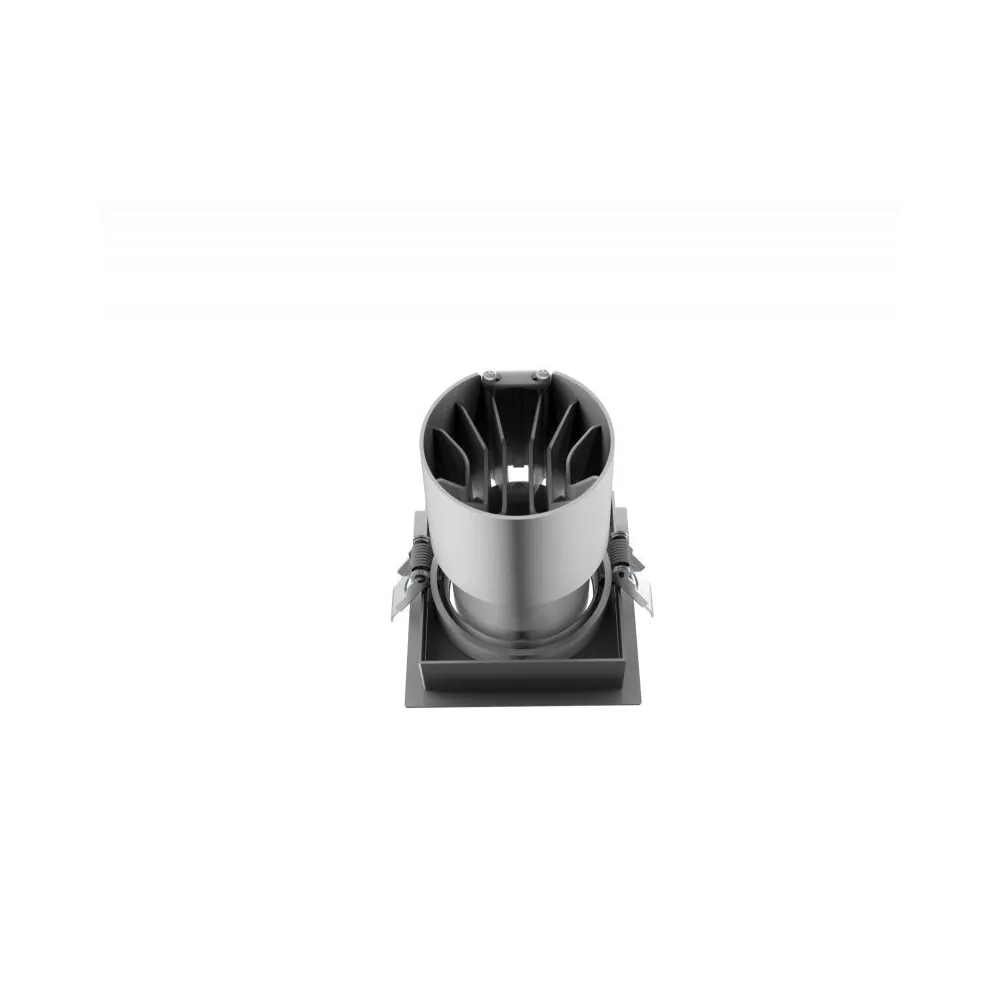

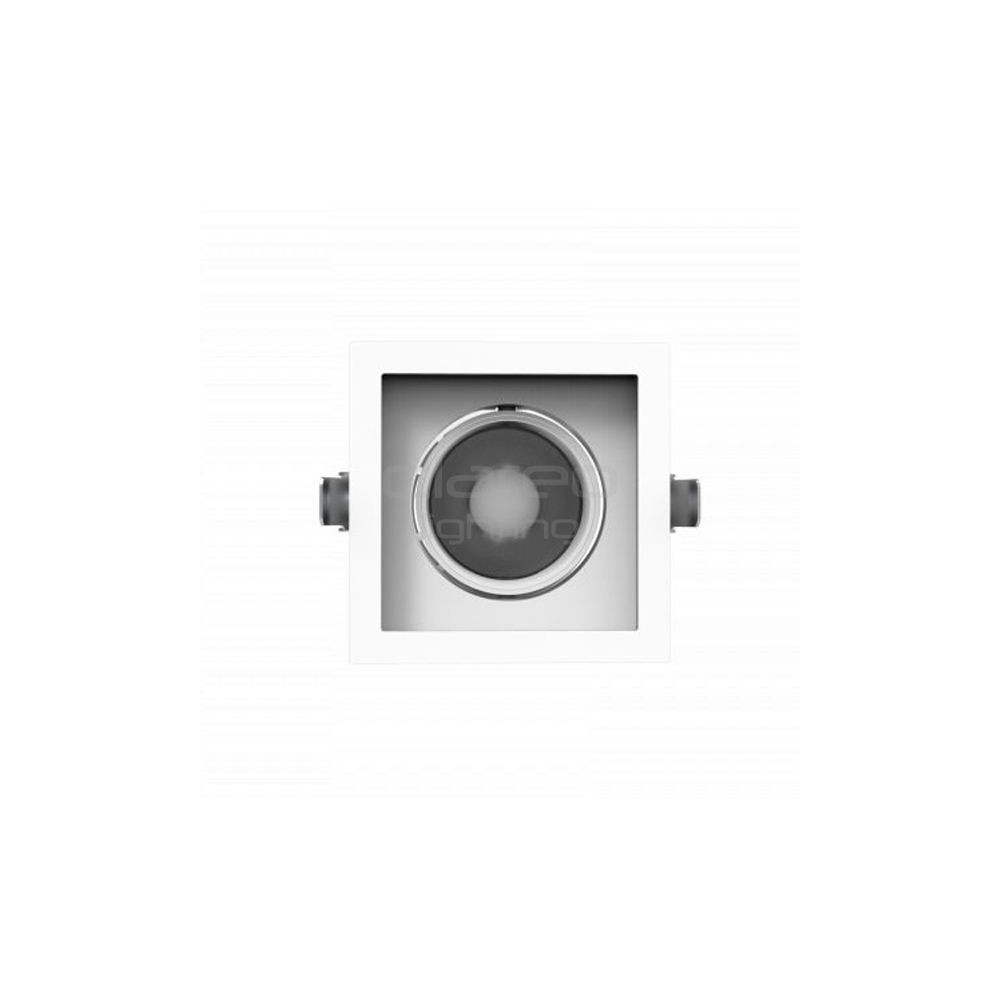

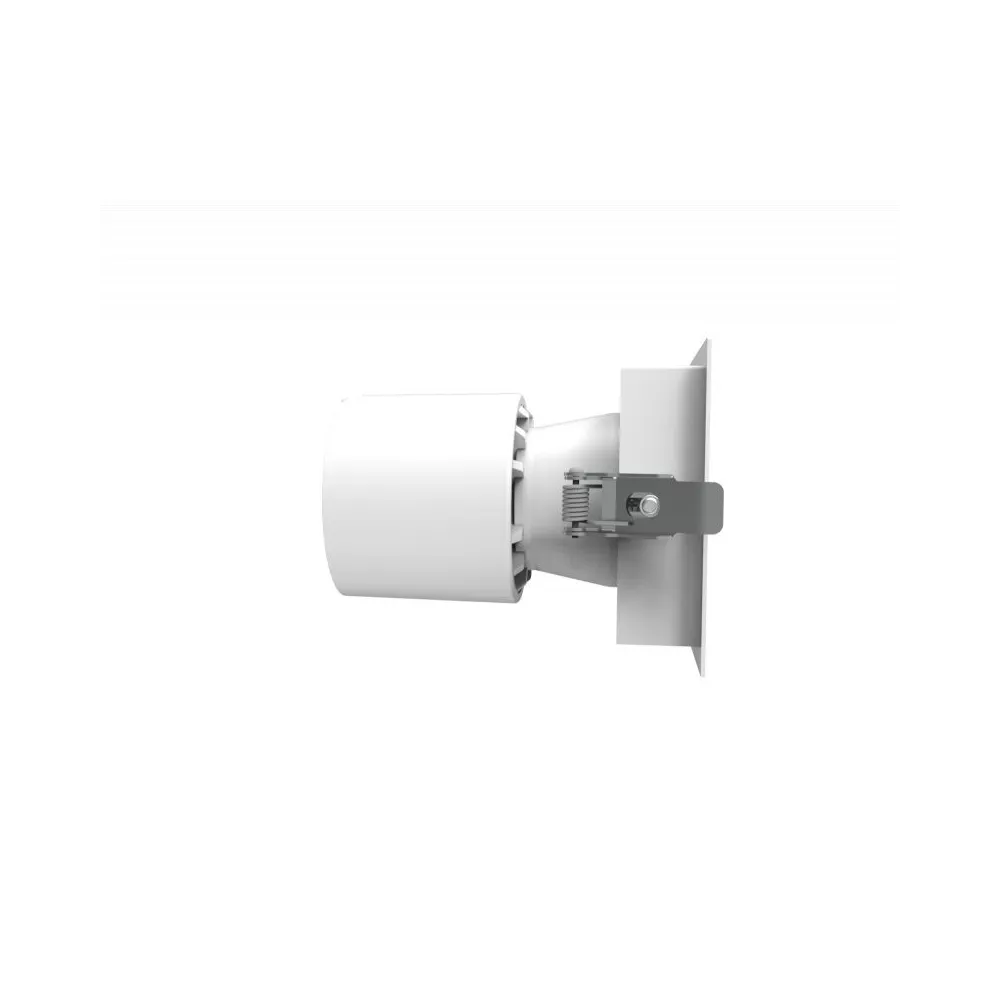

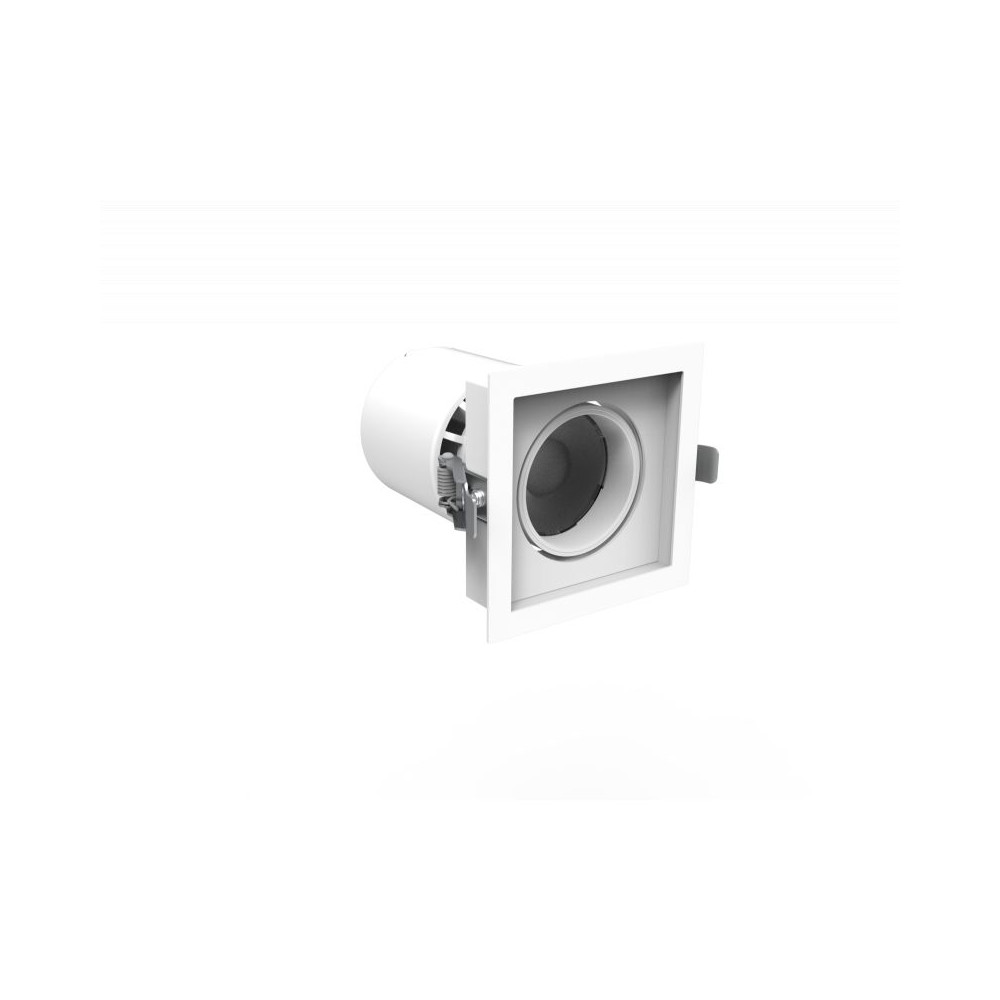

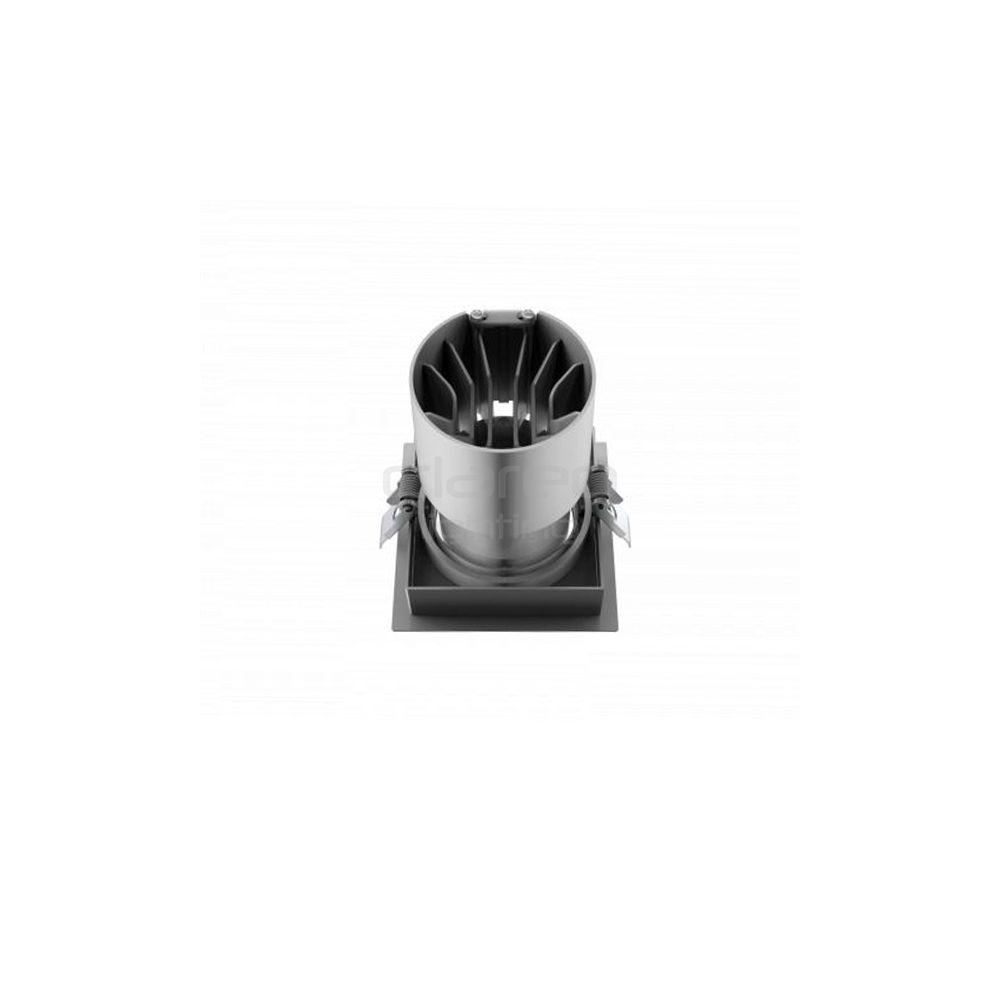

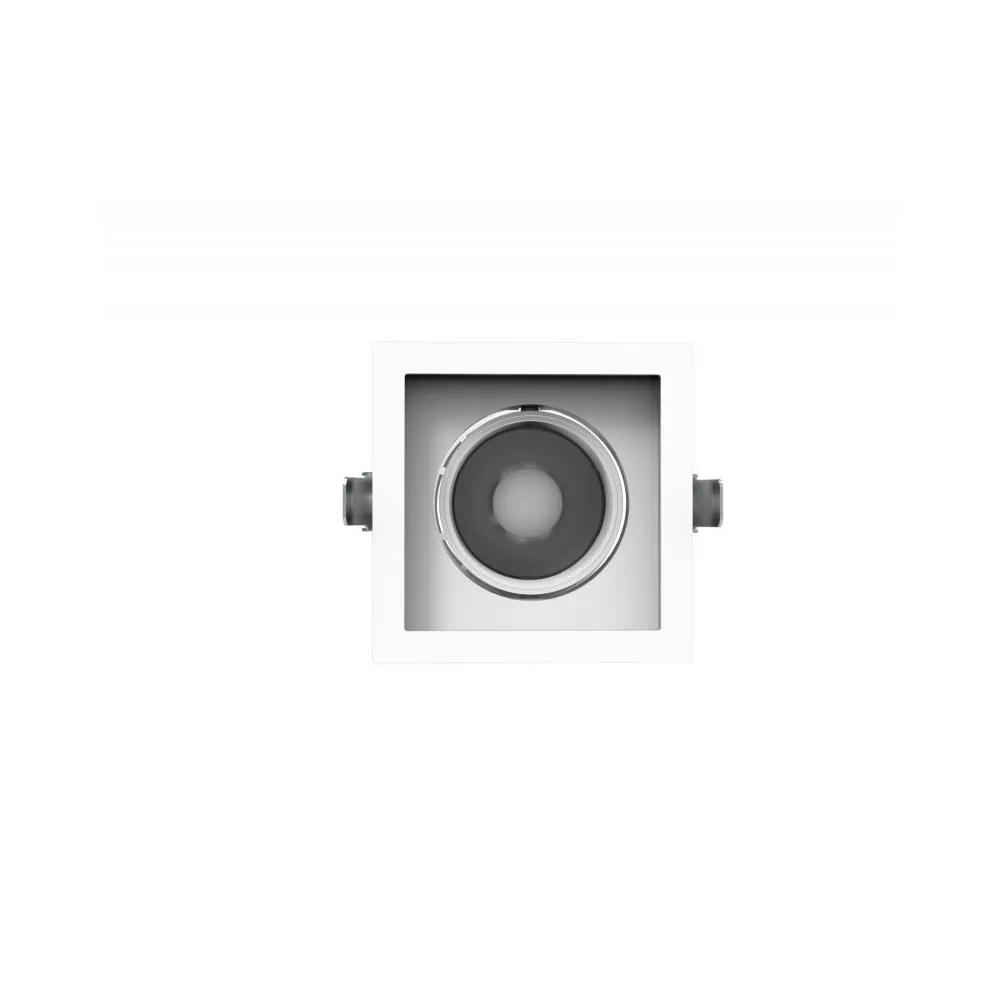

Adjustable DownRay CLAREO 30W SOLO DESIGN White Without Driver

save_alt Download the technical sheet

Color

Switch 3000-3500-4000K

Angle

In stock, next day delivery before 1pm
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

Adjustable gimbal downlight from the DESIGN range

Sold without driver. Driver to be chosen as an accessory.

Recessed installation in false ceiling, plaster ceiling or BA13, simplified with a quarter-turn connector between the luminaire and the driver.

Power from 10W to 30W depending on the selected driver.

Product guaranteed 5 years for a lifespan of 45,000 hours in L80B10.

Sleek design with 1, 2 or 3 modules and 2 colours to choose from: black, white.

3000 - 3500 - 4000 K temperature selector integrated into the downlight.

Gimbal system: adjustable at + / - 25° on a 360° axis.

Enhance your space with a CRI> 90.

Diffusion optical lens for a 36° angle.

Box contents: 1 Downlight, 1 pre-wired CCT switch, 1 wired male quarter-turn connector, 1 female quarter-turn connector.

General characteristics
Lifetime 45,000 h
Brand CLAREO
Range DESIGN
Product family Downlights
Installation environment Accent lighting, Point of sale
Repairable YES
Warranty 5 years
Electrical characteristics
Current Up to 700 mA
Power 30 W
Electrical class Class III
Power range 26-50 W
EU energy class 2019/2015 F
Lighting characteristics
Technology LED
Lumens output 2700 lm
Energy savings - 10%
Lumens efficiency 90 lm/W
Lifetime LXBY L80B10
Diffuser Transparent
Beam Angle 36 deg
Photobiological risk GR1 - Low risk
IRC > 90
UGR < 19
Lumens range 2000-2999 lm
Physical characteristics and dimensions
Height 119 mm
Width 100 mm
Length 100 mm
Net weight 0.5 kg
Materials Aluminum
Waterproof No
IP IP20
IK IK06
Product color White
Cut-out 90 x 90 mm
Working temperature -20 °C to 45 °C
Detailed color White
Installation mode Recessed
Type COB
Standards and regulations
Standards CE, RoHS
Carbon footprint 28 kgCO2eq

Filters:

Log in to access downloadable documents
Technical data sheets, IES files, installation instructions, certificates... are only downloadable for customers whose access has been validated. To request access, go here

Log in to access the prescription
To access the prescription text, you must have an account and log in.
