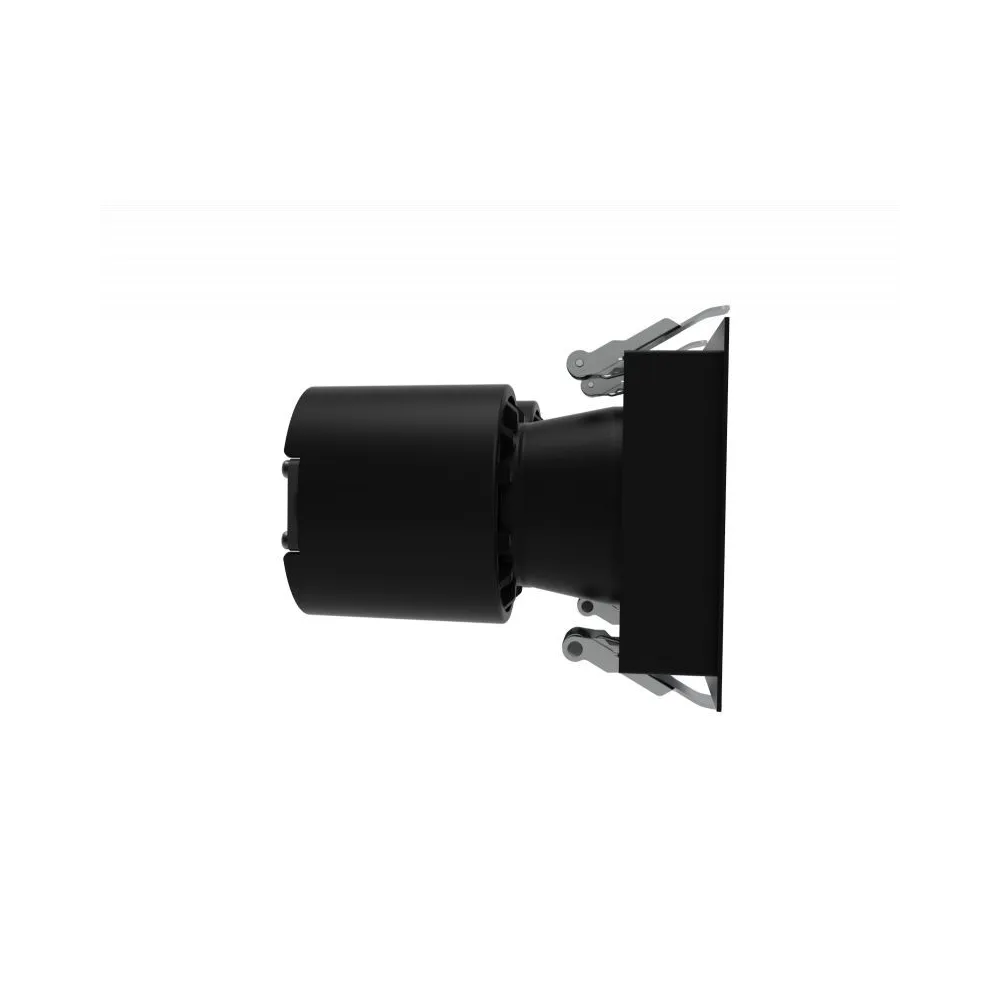

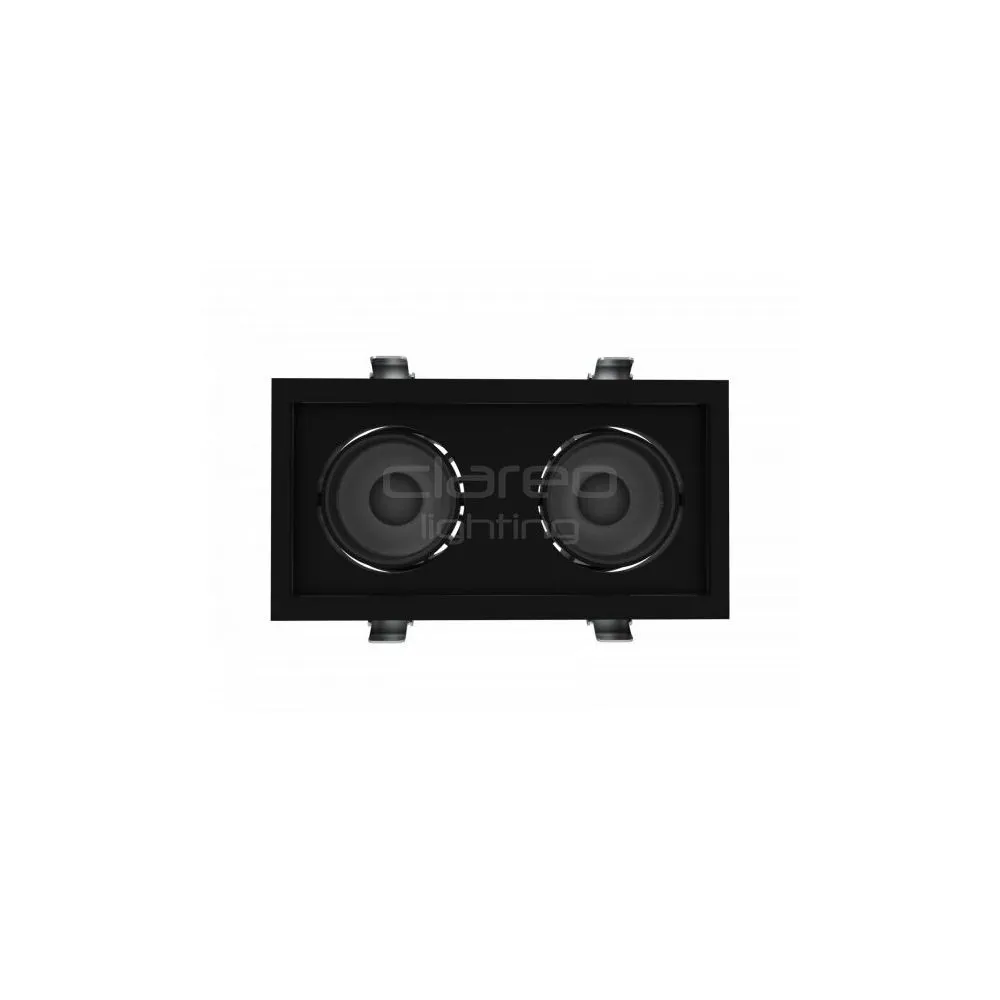

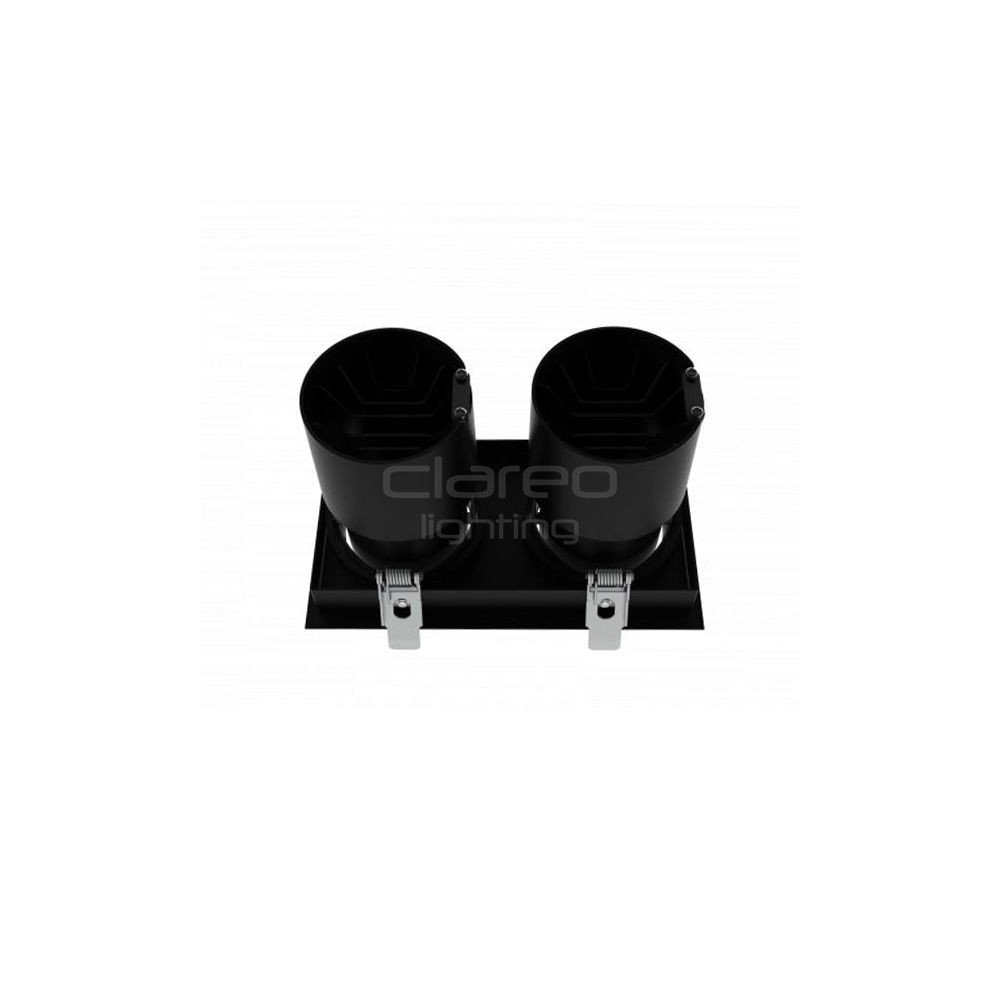

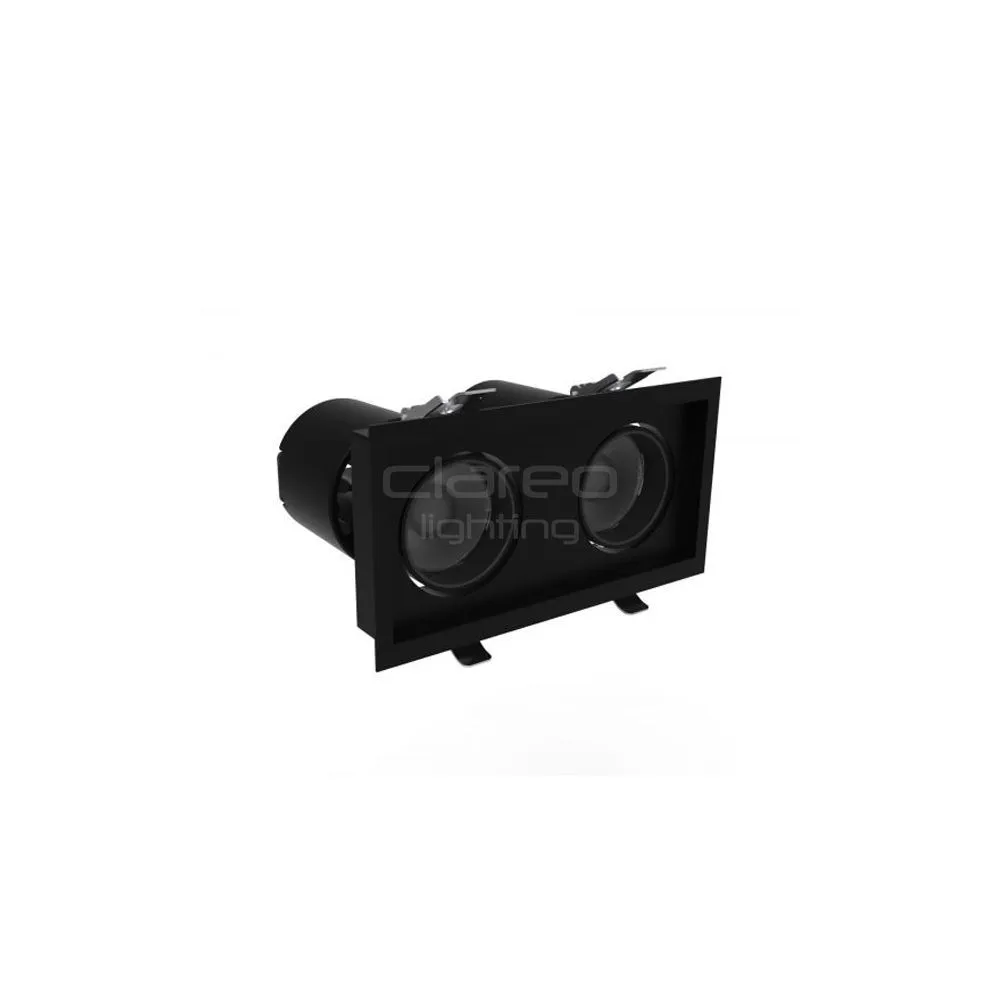

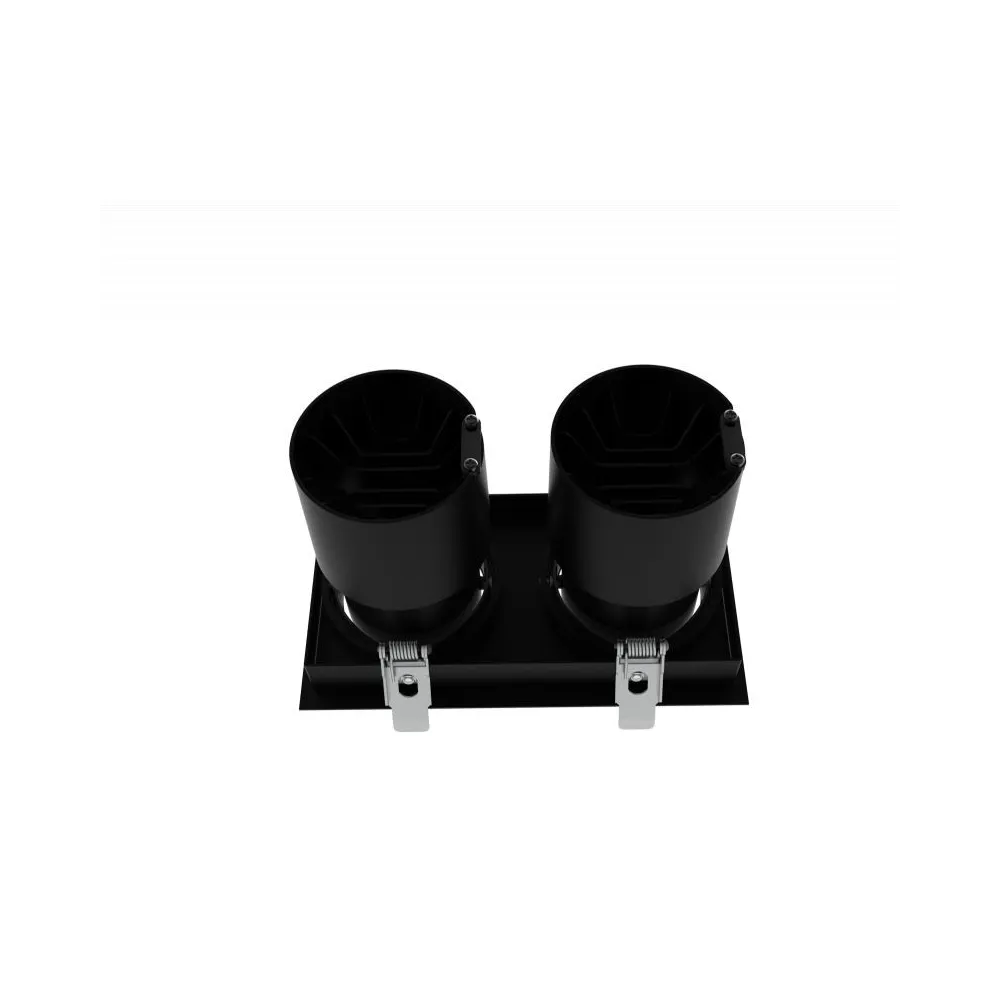

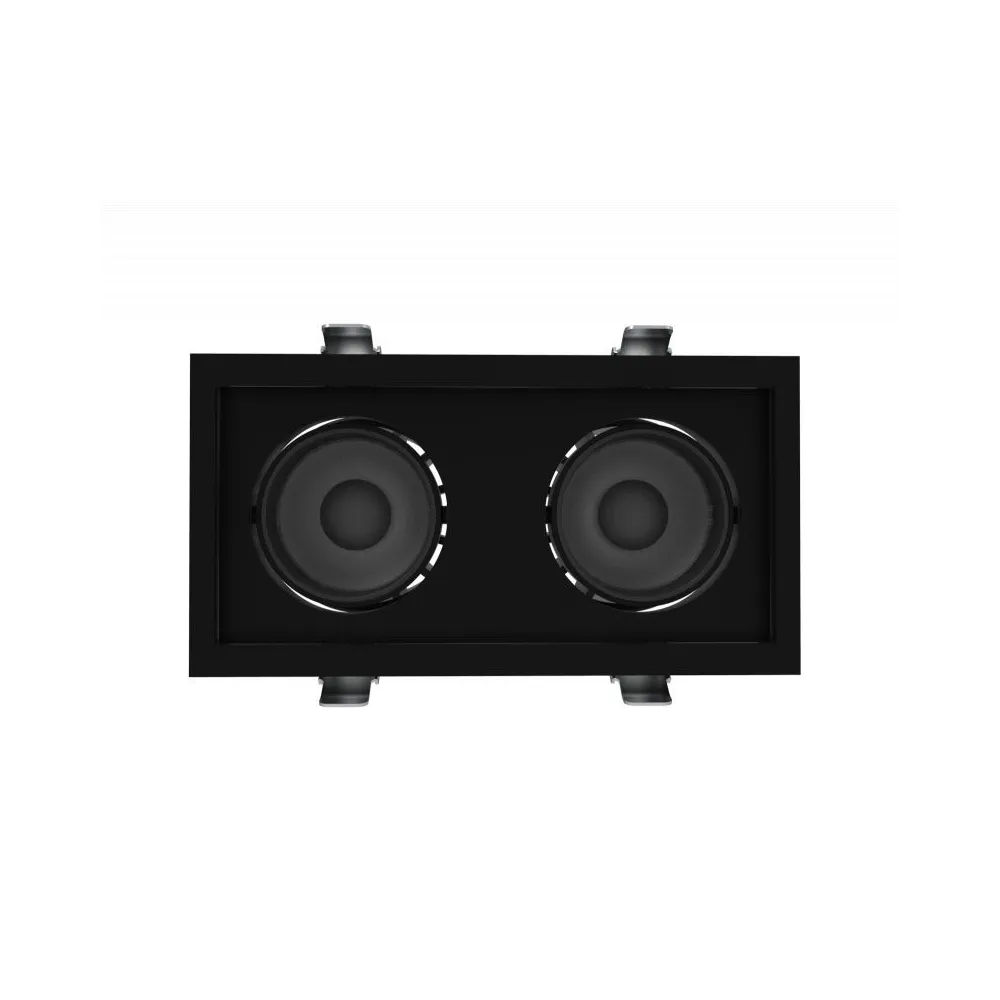

Adjustable gimbal downlight from the DESIGN range

Sold without driver. Driver to be chosen as an accessory : 10W : 250 mA - 20W : 500 mA - 30W : 750mA.

QUOTE 2 DRIVERS FOR THIS PRODUCT.

Recessed installation in a false ceiling, plaster ceiling or BA13, simplified with a quarter-turn connector between the luminaire and the driver.

Power from 10W to 30W depending on the selected driver (10W : 250 mA - 20W : 500 mA - 30W : 750mA).

Product guaranteed for 5 years for a lifespan of 45,000 hours in L80B10.

Sleek design with 1, 2 or 3 modules and 2 colors to choose from: black, white.

3000 - 3500 - 4000 K temperature selector integrated into the downlight.

Gimbal system: adjustable at + / - 25° on a 360° axis.

Enhance your space with a CRI> 90.

Diffusion optical lens for a 36° angle.

Box contents: 1 Downlight, 1 pre-wired CCT switch, 1 wired male quarter-turn connector, 1 female quarter-turn connector.

Ref: DOW.101904

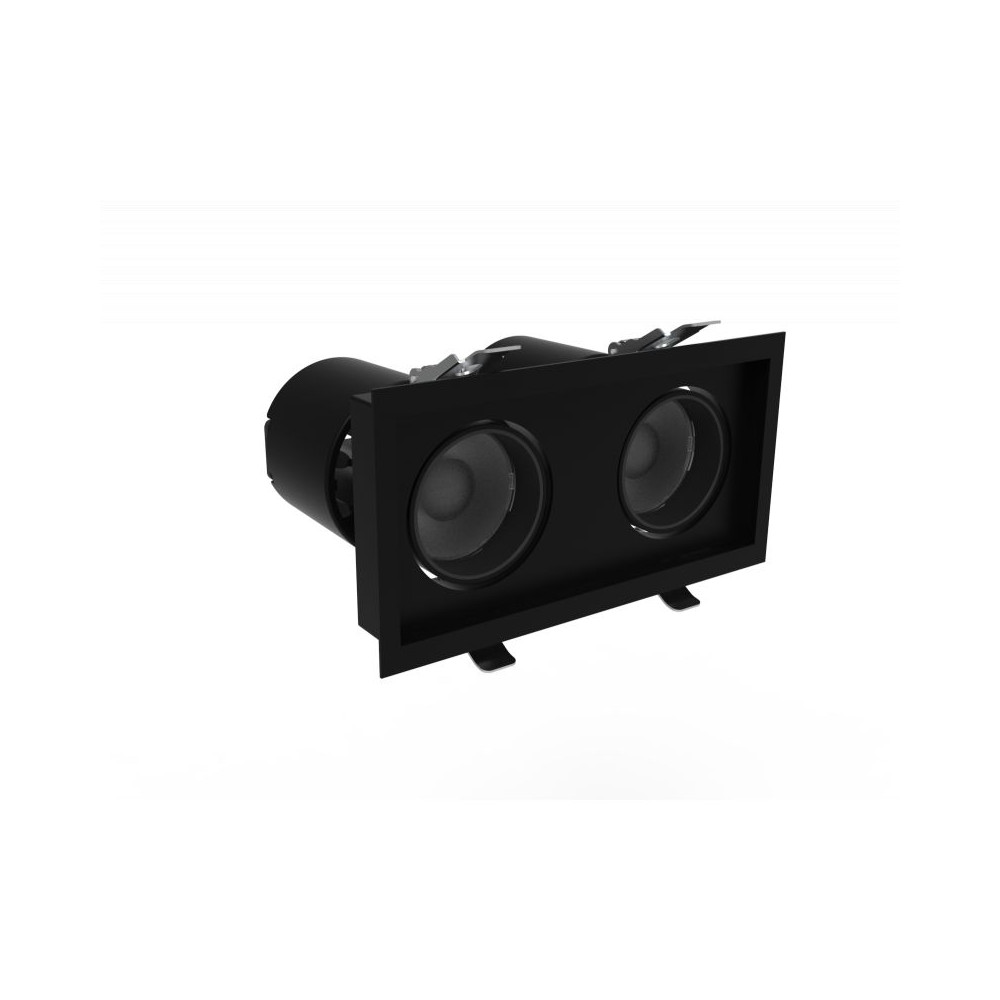

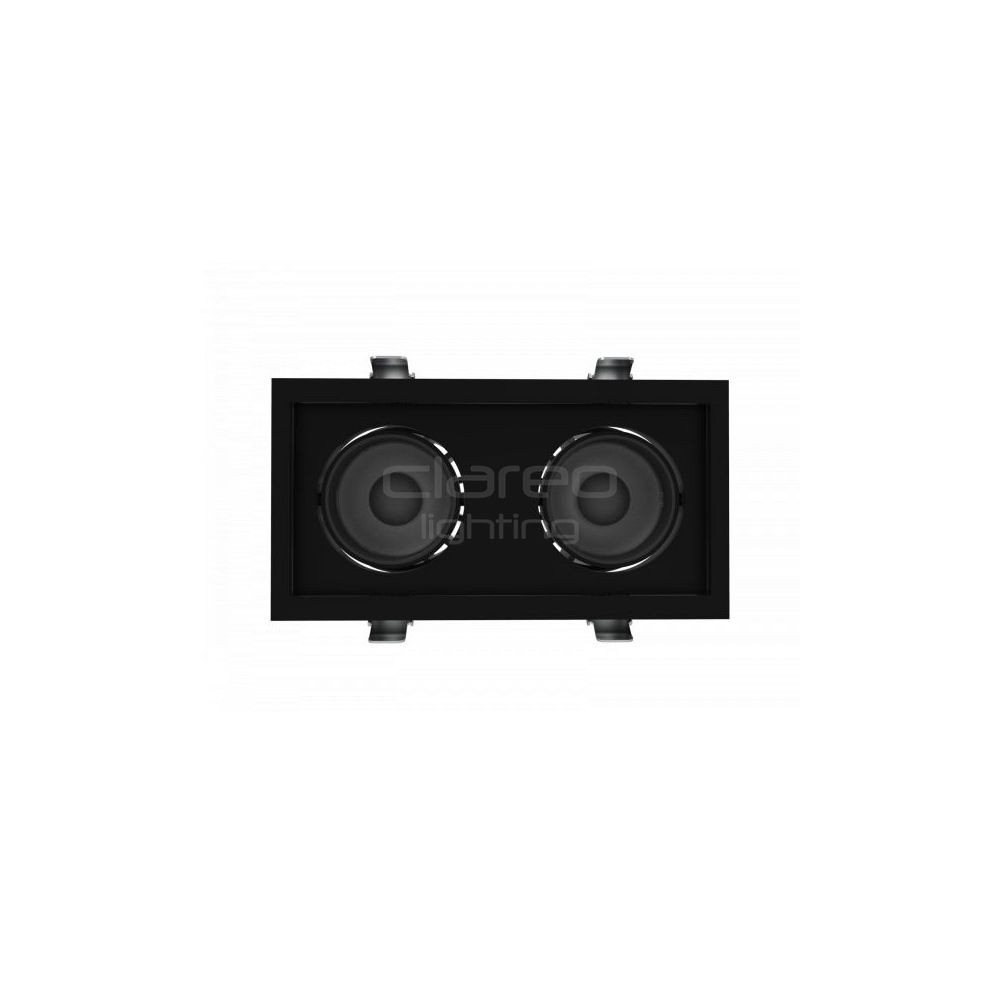

DownRay Adjustable CLAREO 2x10-30W DUO DESIGN Black Driverless

5400 lm 5400 lm
Energy savings - 10% Energy savings - 10%
Repairable Repairable
5 years Warranty 5 years Warranty
45,000 h 45,000 h
IP20 IP20
UGR < 19 UGR < 19
IRC > 90 IRC > 90
IK06 IK06
90 lm/W 90 lm/W
save_alt Download the technical sheet

Color

Switch 3000-3500-4000K

Angle

In stock, next-day delivery before 1 PM
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here
Sign in Sign up

Adjustable gimbal downlight from the DESIGN range

Sold without driver. Driver to be chosen as an accessory : 10W : 250 mA - 20W : 500 mA - 30W : 750mA.

QUOTE 2 DRIVERS FOR THIS PRODUCT.

Recessed installation in a false ceiling, plaster ceiling or BA13, simplified with a quarter-turn connector between the luminaire and the driver.

Power from 10W to 30W depending on the selected driver (10W : 250 mA - 20W : 500 mA - 30W : 750mA).

Product guaranteed for 5 years for a lifespan of 45,000 hours in L80B10.

Sleek design with 1, 2 or 3 modules and 2 colors to choose from: black, white.

3000 - 3500 - 4000 K temperature selector integrated into the downlight.

Gimbal system: adjustable at + / - 25° on a 360° axis.

Enhance your space with a CRI> 90.

Diffusion optical lens for a 36° angle.

Box contents: 1 Downlight, 1 pre-wired CCT switch, 1 wired male quarter-turn connector, 1 female quarter-turn connector.

General characteristics
Lifetime 45,000 h
Brand CLAREO
Range DESIGN
Product family Downlights
Installation environment Accent lighting, Point of sale
Repairable YES
Warranty 5 years
Electrical characteristics
Current Up to 1,400 mA
Power 2 x 30 W
Electrical class Class III
EU energy class 2019/2015 F
Lighting characteristics
Technology LED
Lumens output 5400 lm
Energy savings - 10%
Lumens efficiency 90 lm/W
Lifetime LXBY L80B10
Diffuser Transparent
Beam Angle 36 deg
Photobiological risk GR1 - Low risk
IRC > 90
UGR < 19
Physical characteristics and dimensions
Height 119 mm
Width 100 mm
Length 190 mm
Net weight 1 kg
Materials Aluminum
Waterproof No
IP IP20
IK IK06
Product color Black
Cut-out 180 x 90 mm
Working temperature -20 °C to 45 °C
Detailed color Black
Installation mode Recessed
Type COB
Standards and regulations
Standards CE, RoHS
Carbon footprint 28 kgCO2eq
