Adjustable cardan downlight from the DESIGN range

Sold without driver. Driver to be chosen as an accessory.

QUOTE 2 DRIVERS FOR THIS PRODUCT.

Simplified recessed installation in false ceilings, plaster ceilings or drywall, with a quarter-turn connection between the luminaire and the driver.

Product guaranteed for 5 years with a lifespan of 45,000 hours at L80B10.

Sleek design with 1, 2 or 3 modules and 2 color choices: black, white.

Temperature selector 3000 - 3500 - 4000 K integrated into the downlight.

Cardan system: adjustable to + / - 25° on a 360° axis.

Enhance your space with a CRI > 90.

Optical diffusion lens for a 36° angle.

Box contents: 1 Downlight, 1 pre-wired CCT switch, 1 wired male quarter-turn connector, 1 female quarter-turn connector.

Ref: DOW.101906

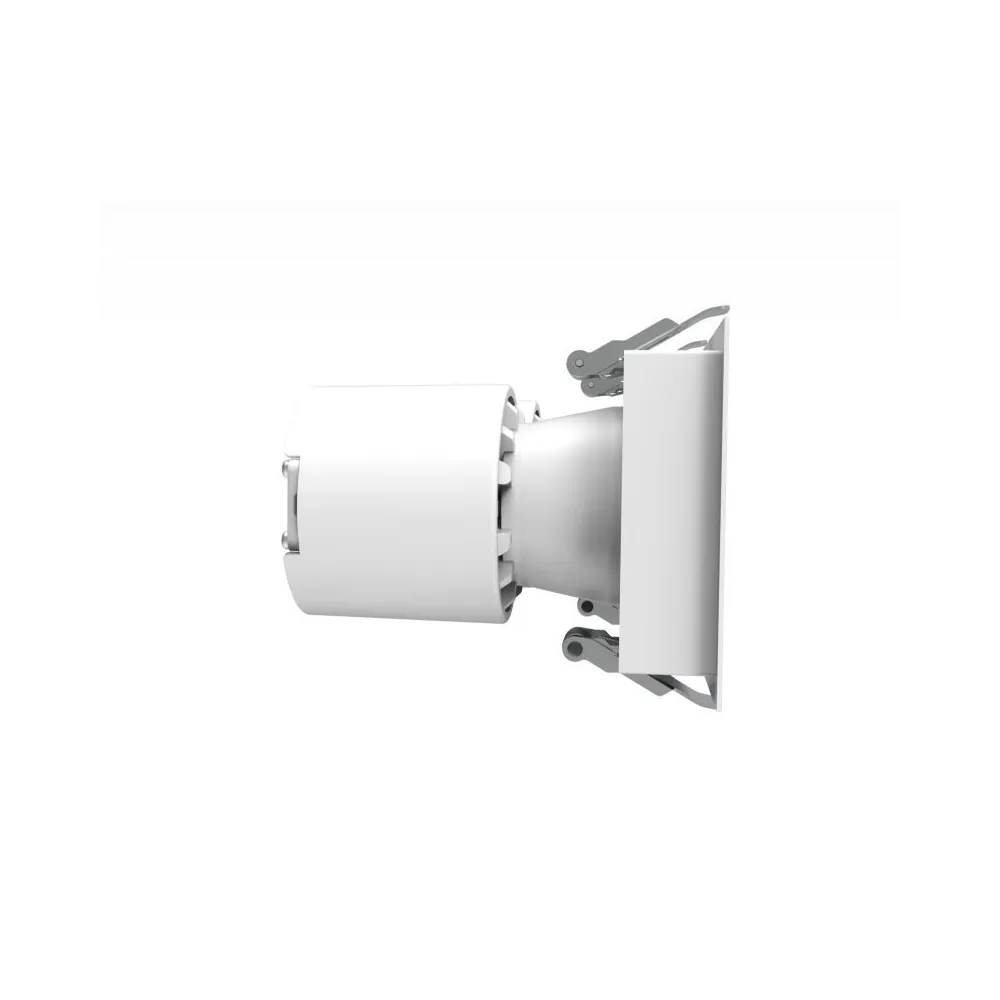

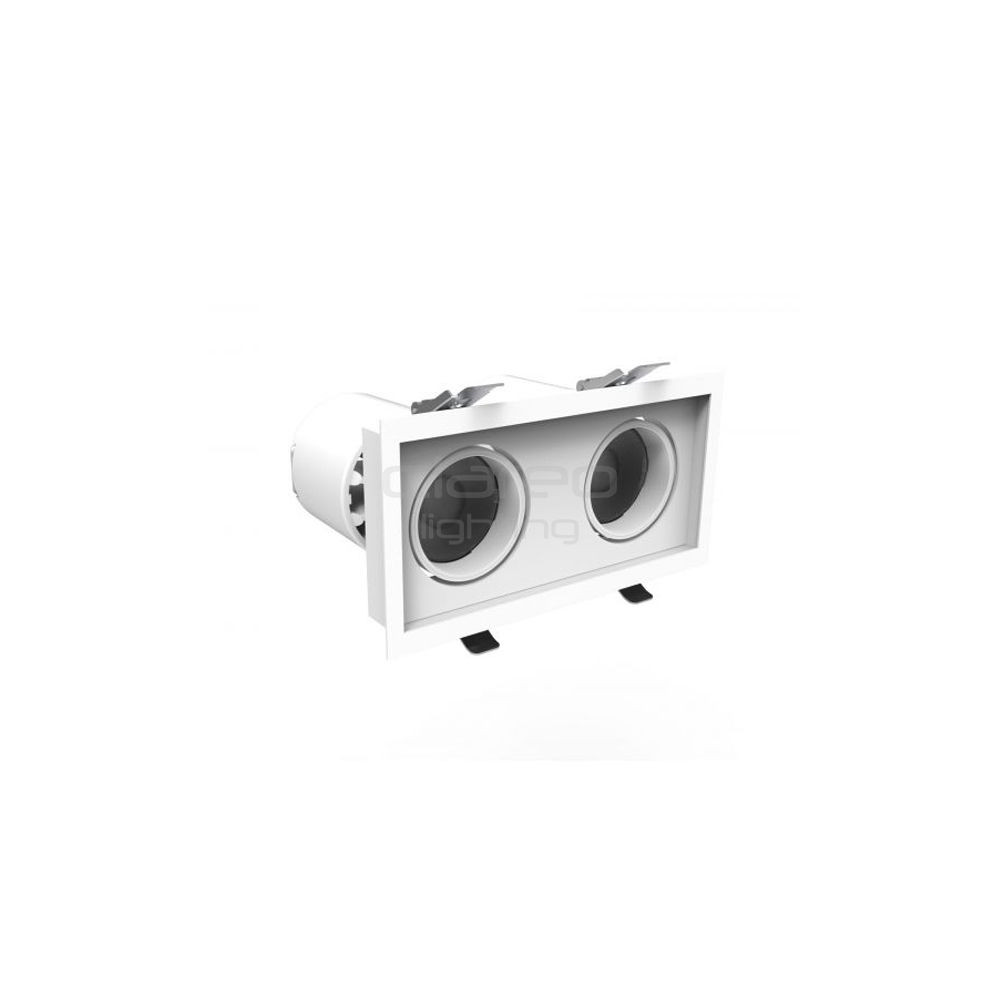

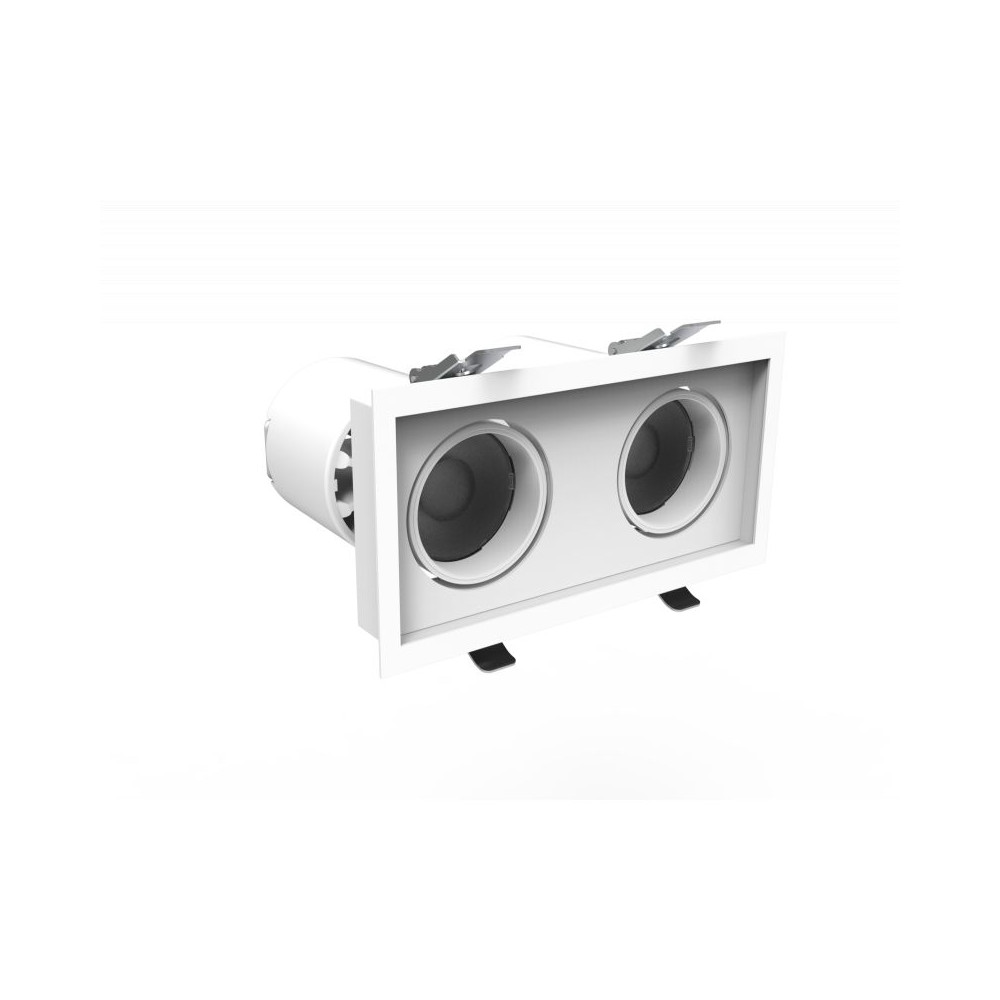

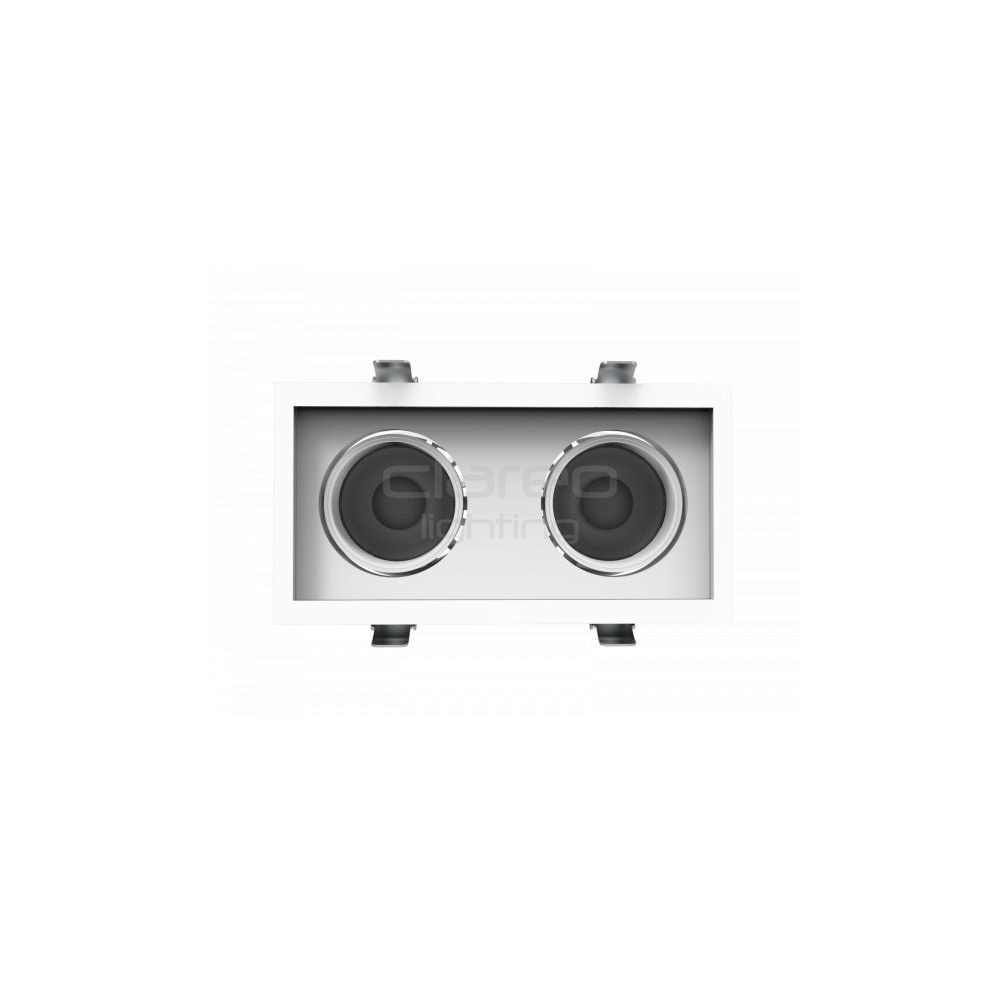

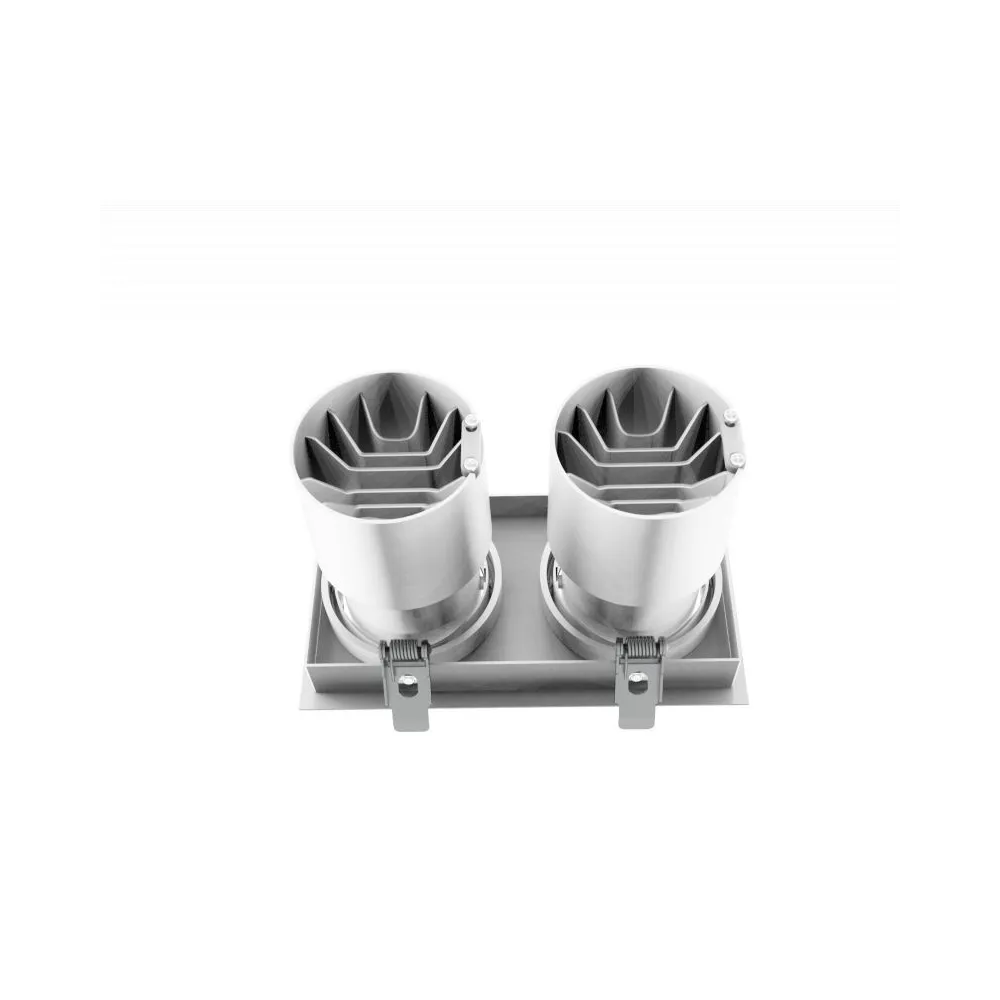

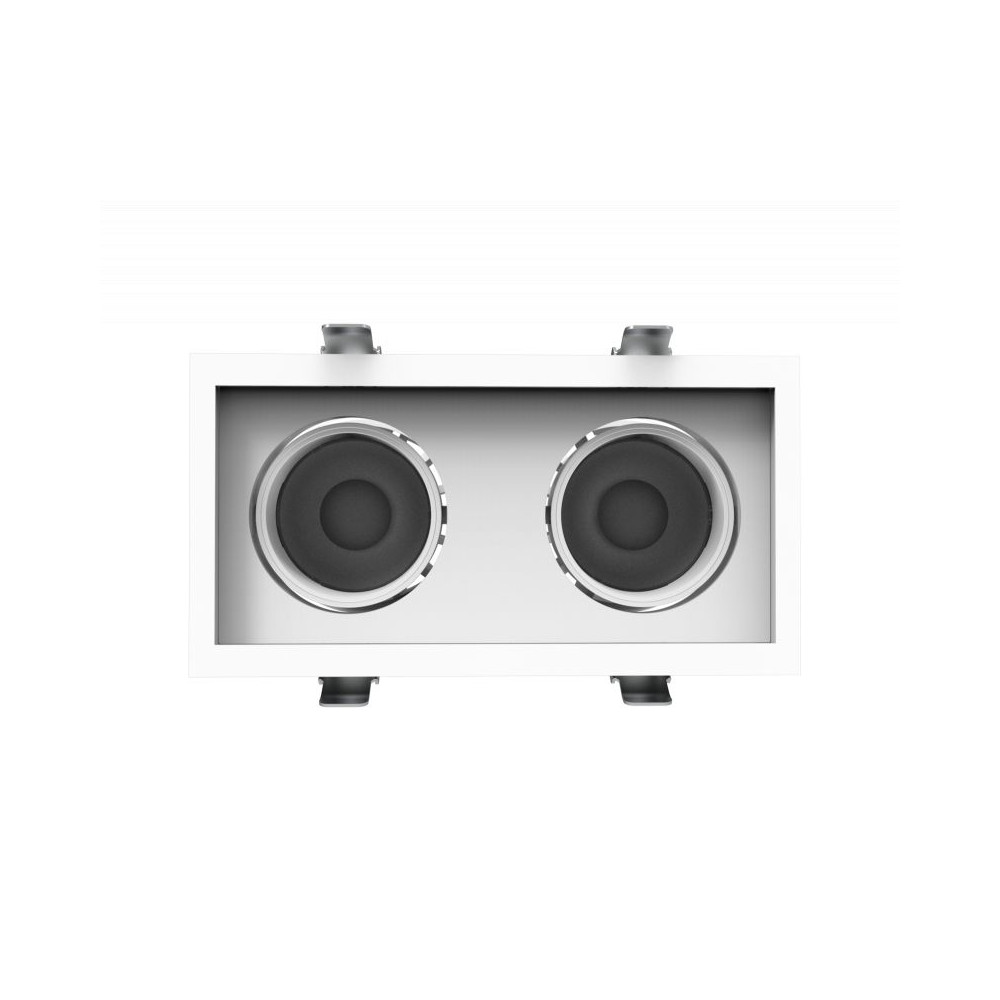

Adjustable DownRay CLAREO 2x30W DUO DESIGN White Without Driver

save_alt Download the technical sheet

Color

Switch 3000-3500-4000K

Angle

Currently out of stock
Available the week of 15/12/2025
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

General characteristics
Lifetime 45,000 h
Brand CLAREO
Range DESIGN
Product family Downlights
Installation environment Accent lighting, Point of sale
Repairable YES
Warranty 5 years
Electrical characteristics
Current Up to 1,400 mA
Power 2 x 30 W
Electrical class Class III
EU energy class 2019/2015 F
Lighting characteristics
Technology LED
Lumens output 5400 lm
Energy savings - 10%
Lumens efficiency 90 lm/W
Lifetime LXBY L80B10
Diffuser Prismatic
Beam Angle 36 deg
Photobiological risk GR1 - Low risk
IRC > 90
UGR < 19
Lumens range 5000-7499 lm
Physical characteristics and dimensions
Height 119 mm
Width 100 mm
Length 190 mm
Net weight 1 kg
Materials Aluminum
Waterproof No
IP IP20
IK IK06
Product color White
Cut-out 180 x 90 mm
Working temperature -20 °C to 45 °C
Detailed color White
Installation mode Recessed
Type COB
Standards and regulations
Standards CE, RoHS
