Adjustable gimbal downlight from the DESIGN range

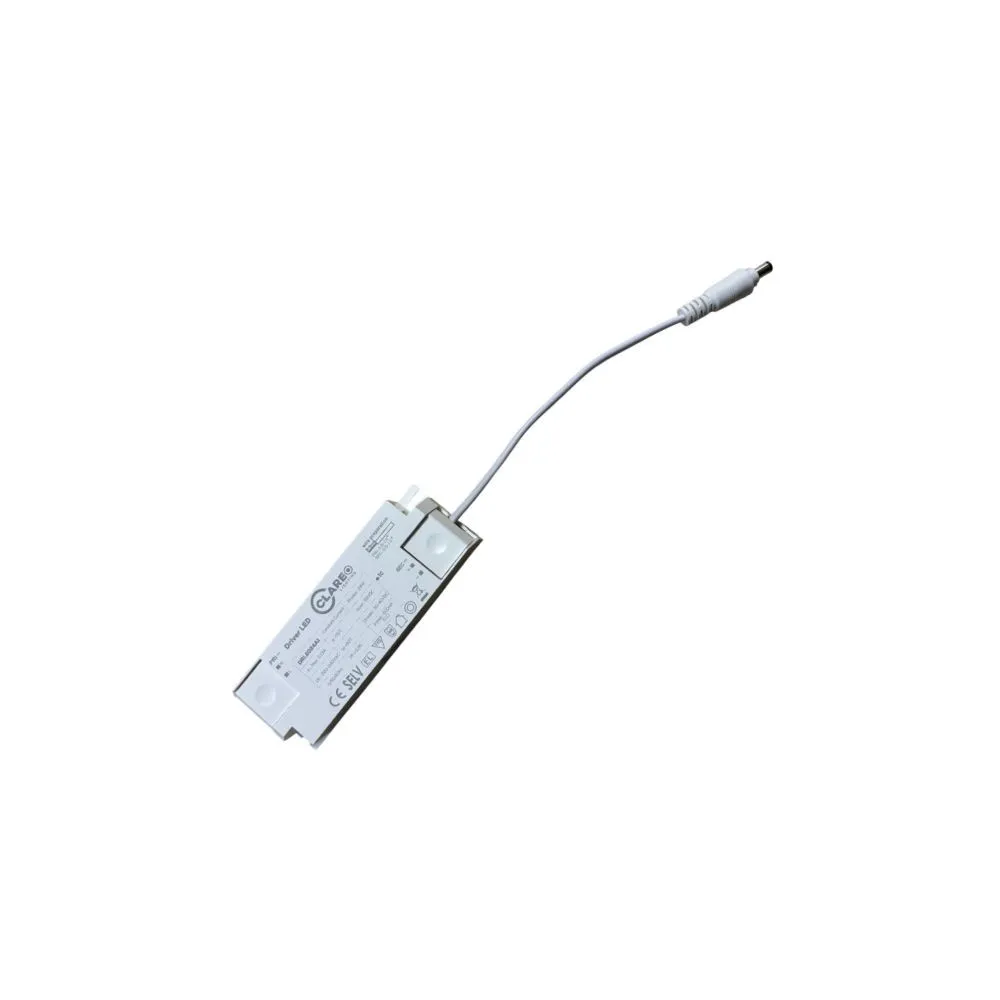

Sold without driver. Driver to be chosen as accessory.

QUOTE 3 DRIVERS FOR THIS PRODUCT.

Simplified recessed installation in false ceiling, staff ceiling or BA13, with quarter-turn connection between luminaire and driver.

Product guaranteed 5 years for a lifespan of 45,000 hours in L80B10.

Clean design with 1, 2 or 3 modules and 2 color choices: black, white.

Temperature selector 3000 - 3500 - 4000 K integrated into the downlight.

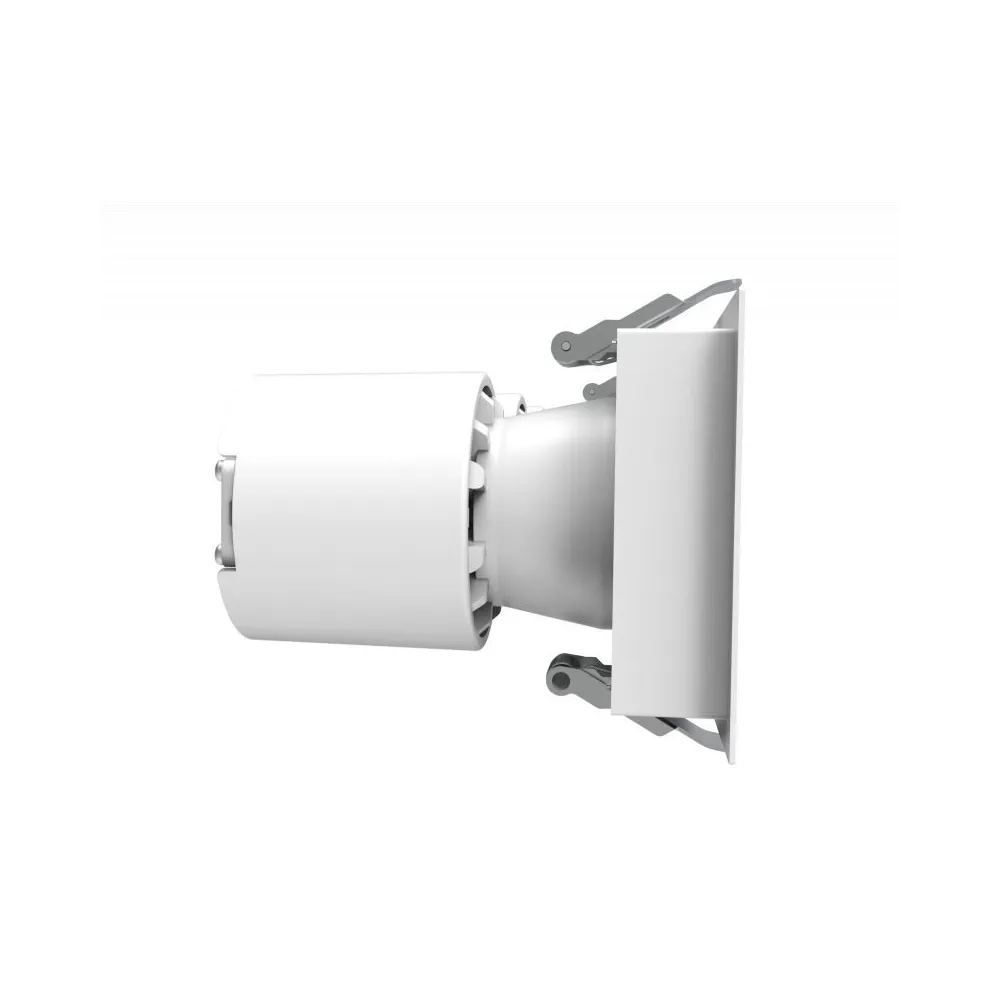

Gimbal system: adjustable to + / - 25° on a 360° axis.

Enhancement of your space thanks to a CRI > 90.

Optical diffusion lens for a 36° angle.

Box contents: 1 Downlight, 1 pre-wired CCT switch, 1 wired male quarter-turn connector, 1 female quarter-turn connector.

Ref: DOW.101910

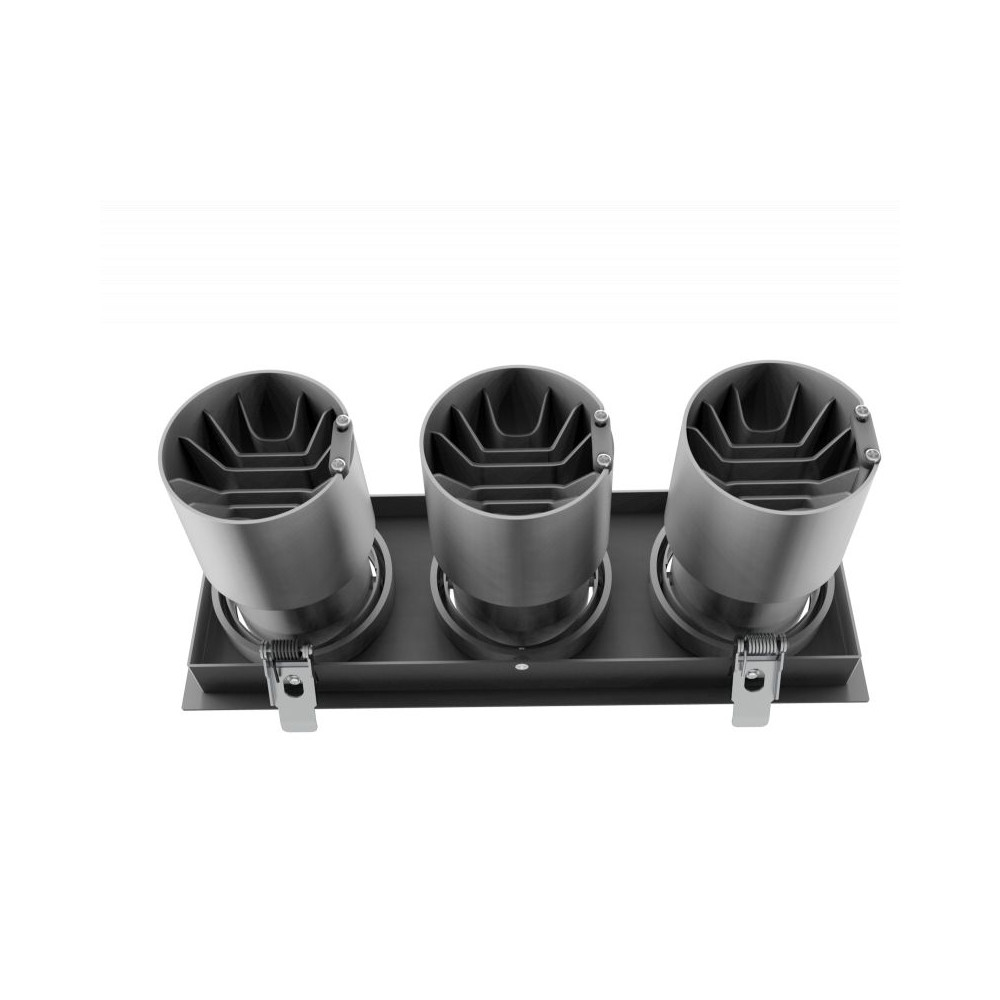

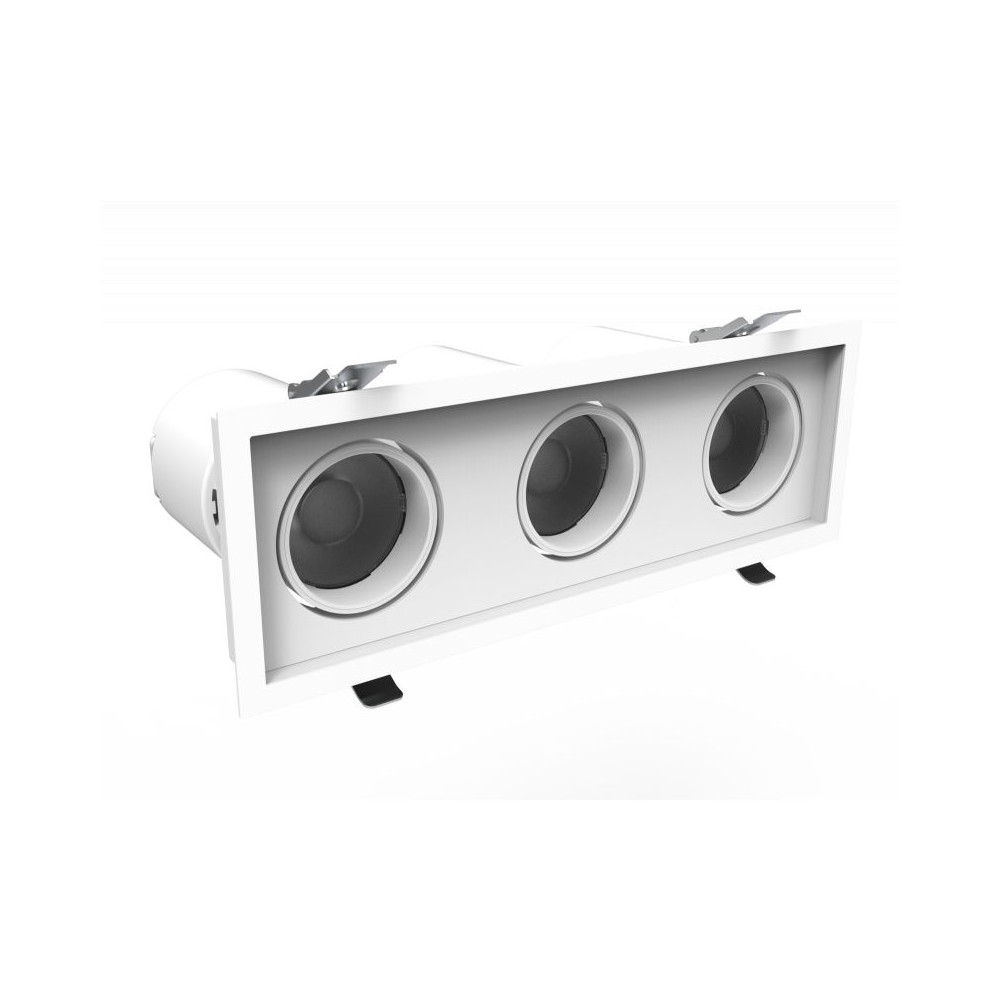

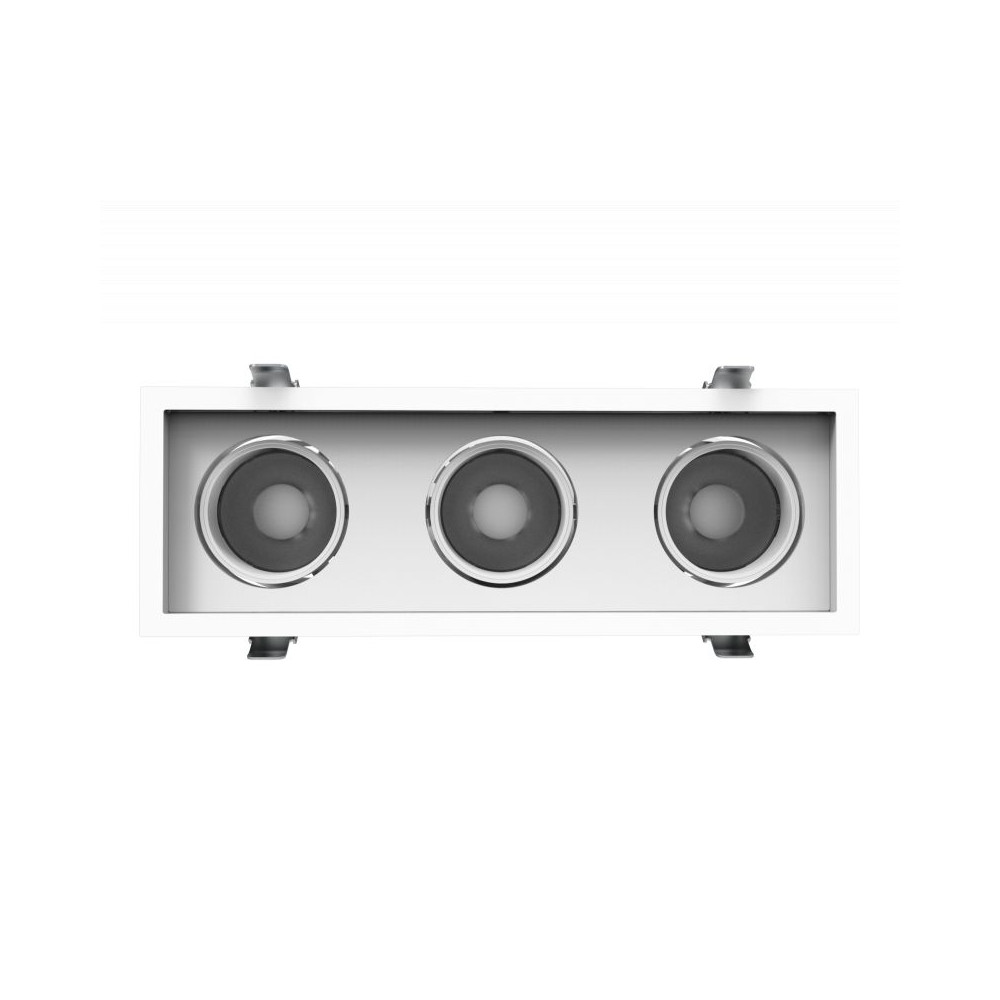

DownRay Adjustable CLAREO 3x30W TRIO DESIGN White Without Driver

Energy savings - 10% Energy savings - 10%
Repairable Repairable
5 years Warranty 5 years Warranty
45,000 h 45,000 h
IP20 IP20
UGR < 19 UGR < 19
IRC > 90 IRC > 90
IK06 IK06
90 lm/W 90 lm/W
save_alt Download the technical sheet

Color

Switch 3000-3500-4000K

Angle

In stock, next day delivery before 1 PM
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here
Sign in Sign up

General characteristics
Lifetime 45,000 h
Brand CLAREO
Range DESIGN
Product family Downlights
Repairable YES
Warranty 5 years
Electrical characteristics
Current Up to 2,100 mA
Power 3 x 30 W
Electrical class Class III
EU energy class 2019/2015 F
Lighting characteristics
Technology LED
Lumens output 8100 lm
Energy savings - 10%
Lumens efficiency 90 lm/W
Lifetime LXBY L80B10
Diffuser Prismatic
Beam Angle 36 deg
Photobiological risk GR1 - Low risk
IRC > 90
UGR < 19
Lumens range 7500-9999 lm
Physical characteristics and dimensions
Height 119 mm
Standard length 30 cm
Width 100 mm
Length 290 mm
Net weight 1.4 kg
Materials Aluminum
Waterproof No
IP IP20
IK IK06
Product color White
Cut-out 280 x 90 mm
Working temperature -20 °C to 45 °C
Detailed color White
Installation mode Recessed
Type COB
Standards and regulations
Standards CE, RoHS
