Adjustable cardan downlight from the DESIGN range

Sold without driver. Driver to be chosen as an accessory.

QUOTE 2 DRIVERS FOR THIS PRODUCT.

Simplified installation in false ceilings, plaster ceilings or drywall, with a quarter-turn connection between the luminaire and the driver.

Product guaranteed for 5 years with a lifespan of 45,000 hours at L80B10.

Sleek design with 1, 2 or 3 modules and 2 color choices: black, white.

3000 - 3500 - 4000 K temperature selector integrated into the downlight.

Cardan system: adjustable to + / - 25° on a 360° axis.

Enhance your space with a CRI > 90.

Optical diffusion lens for a 36° angle.

Box contents: 1 Downlight, 1 pre-wired CCT switch, 1 wired male quarter-turn connector, 1 female quarter-turn connector.

Ref: DOW.101916

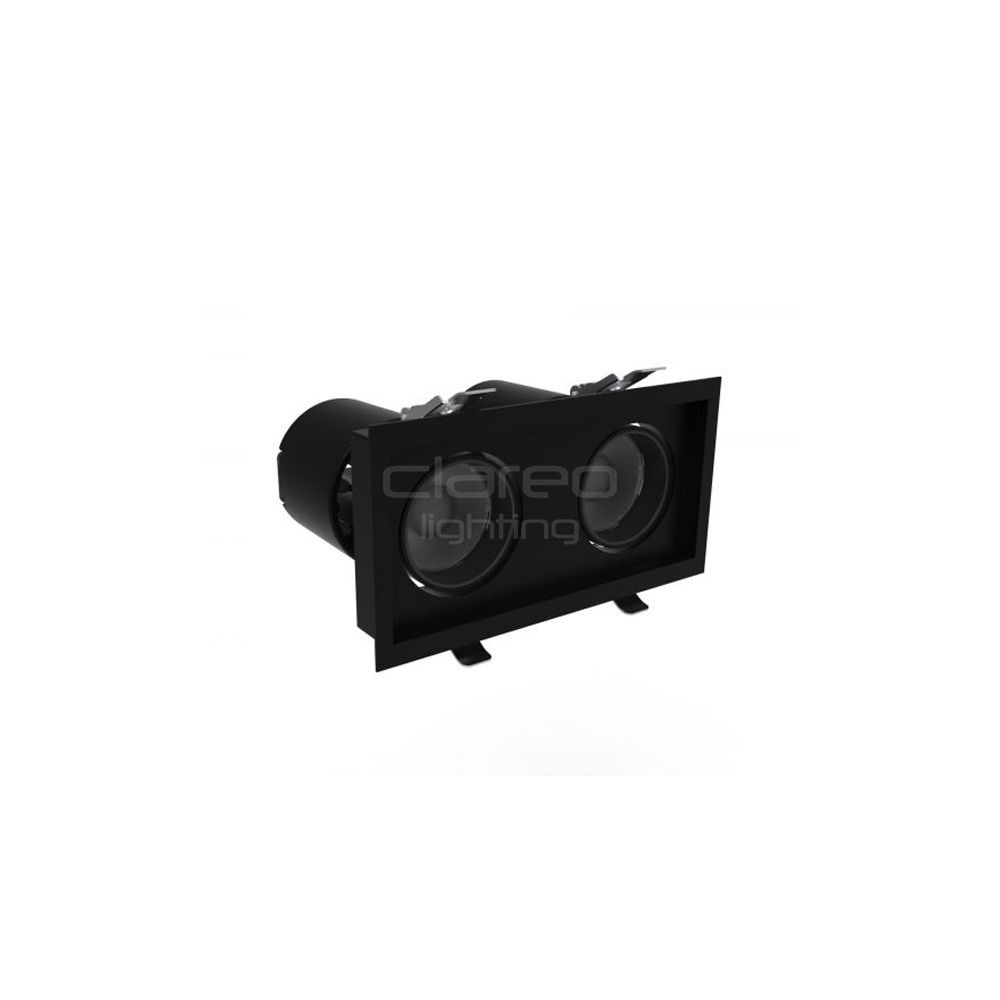

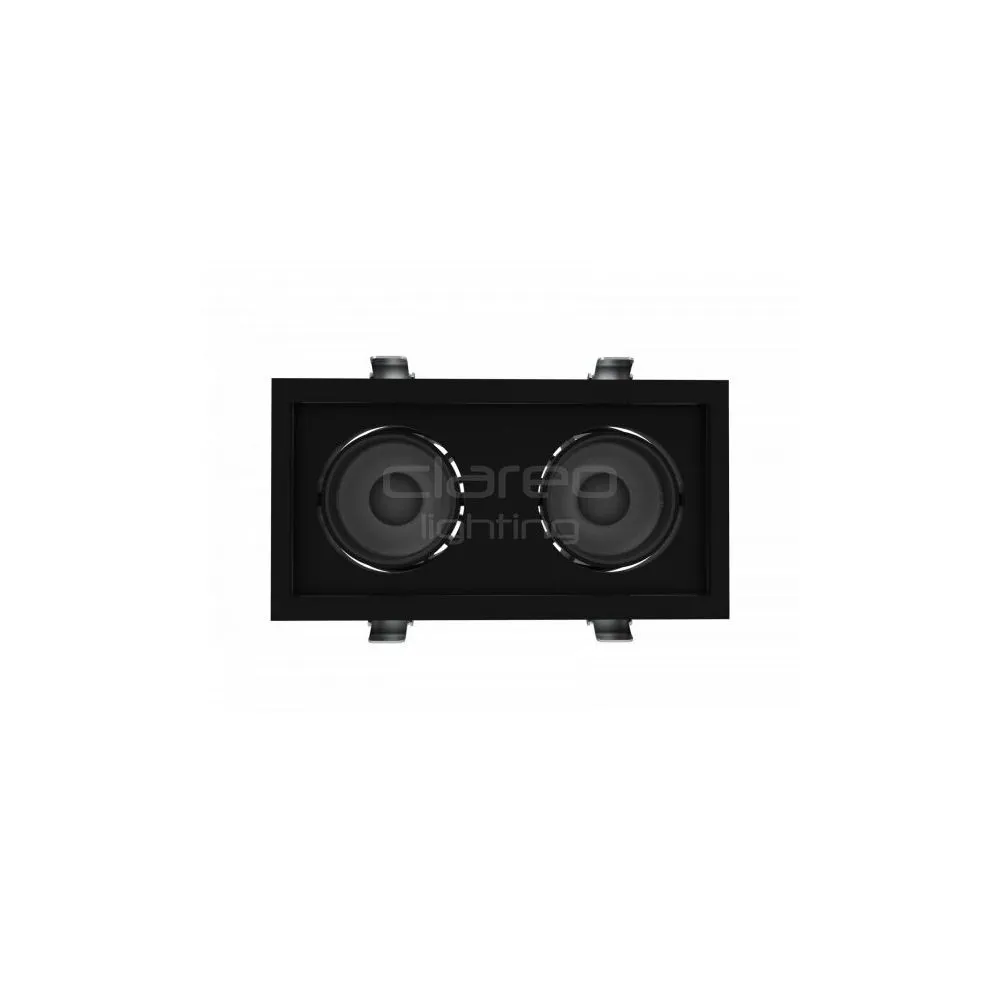

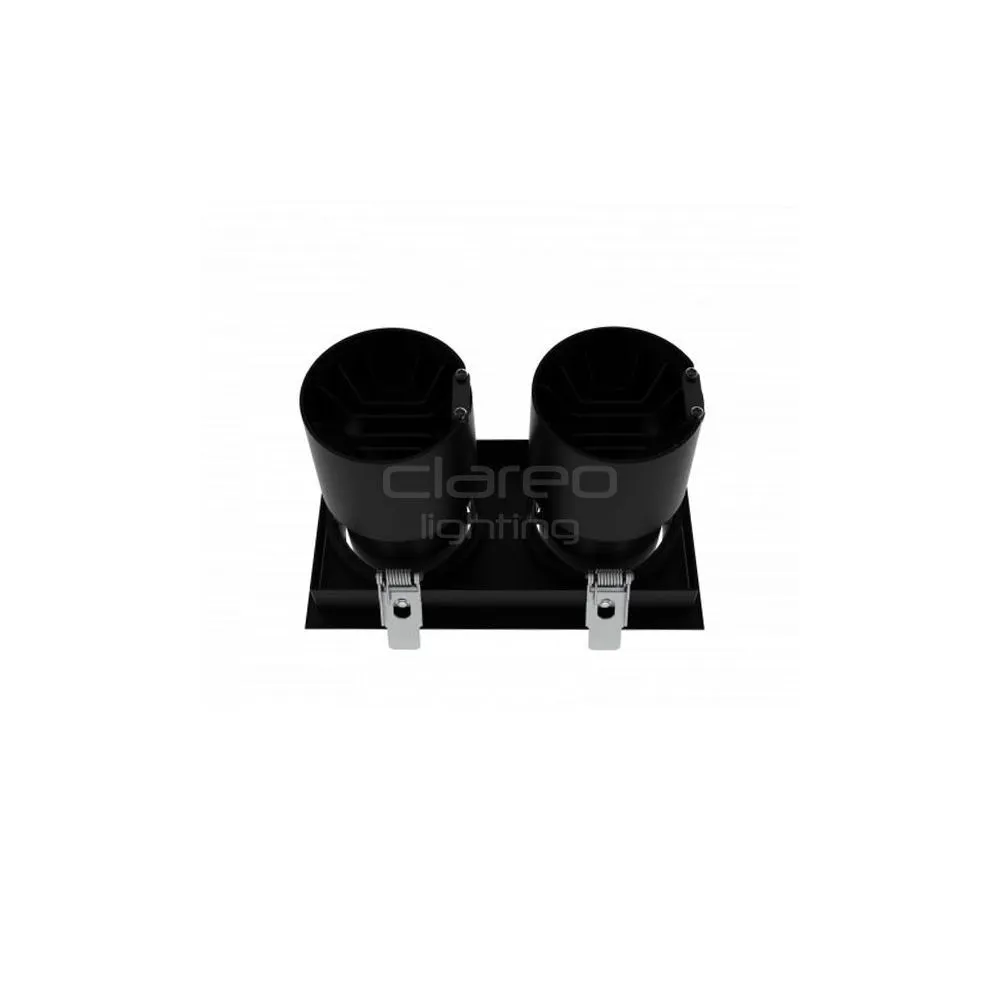

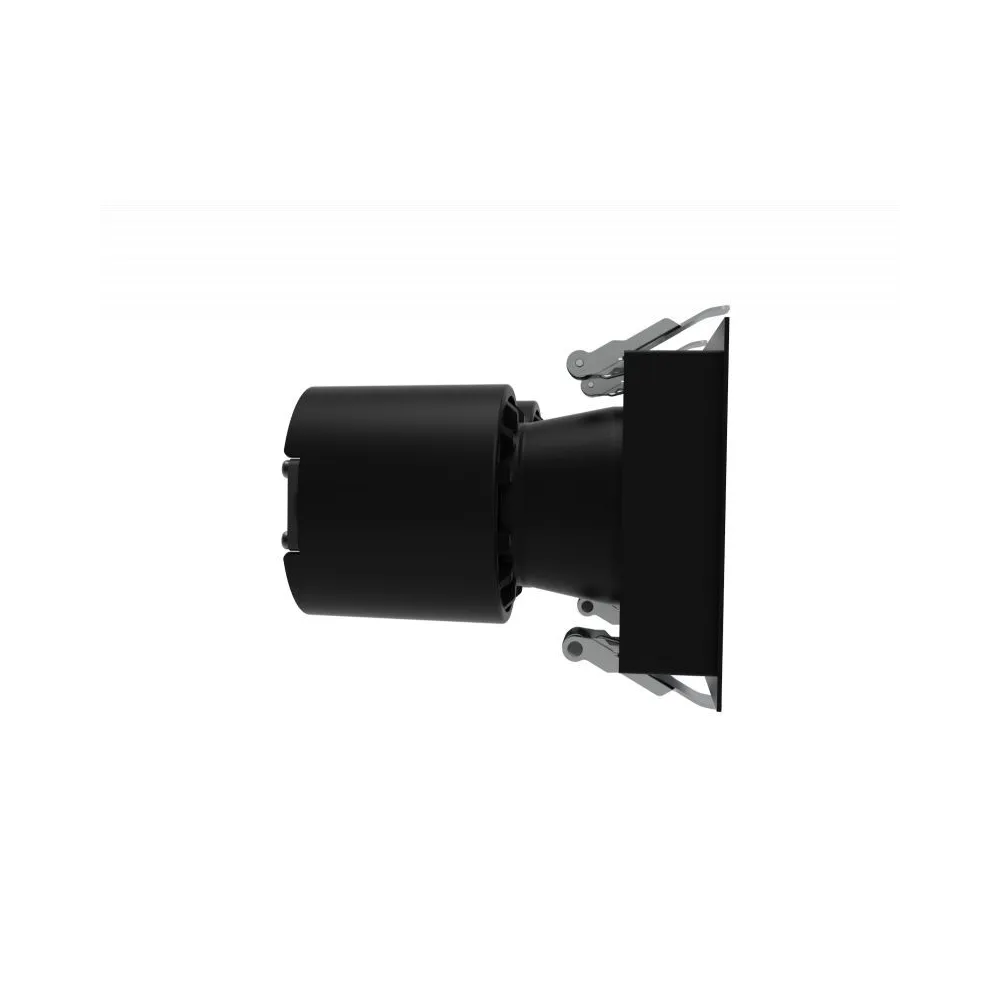

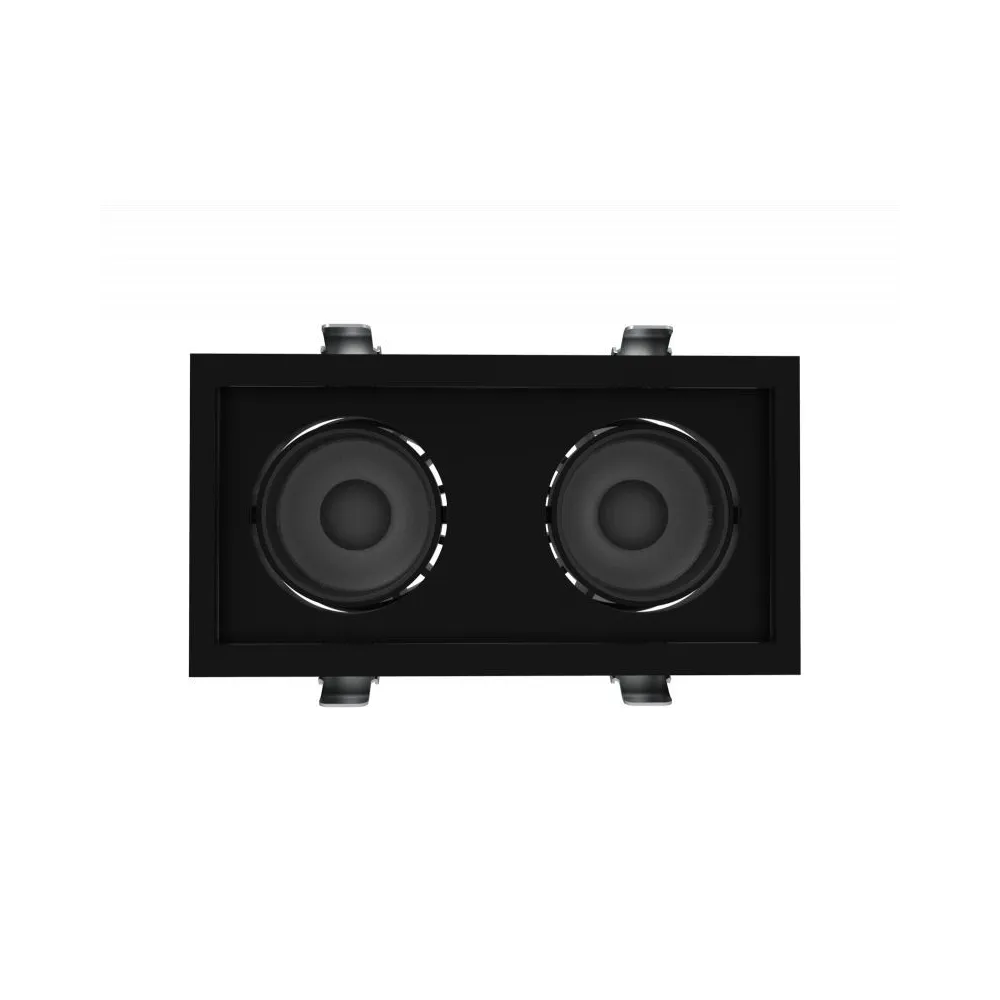

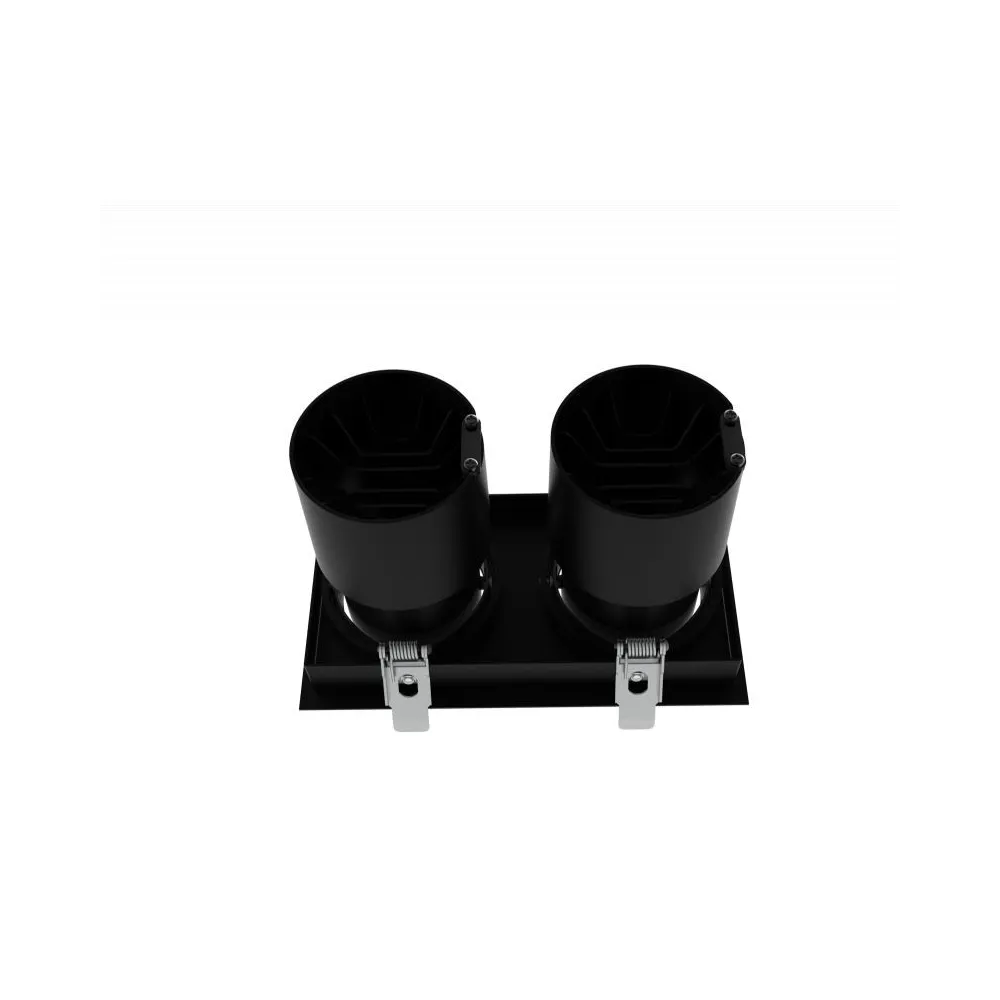

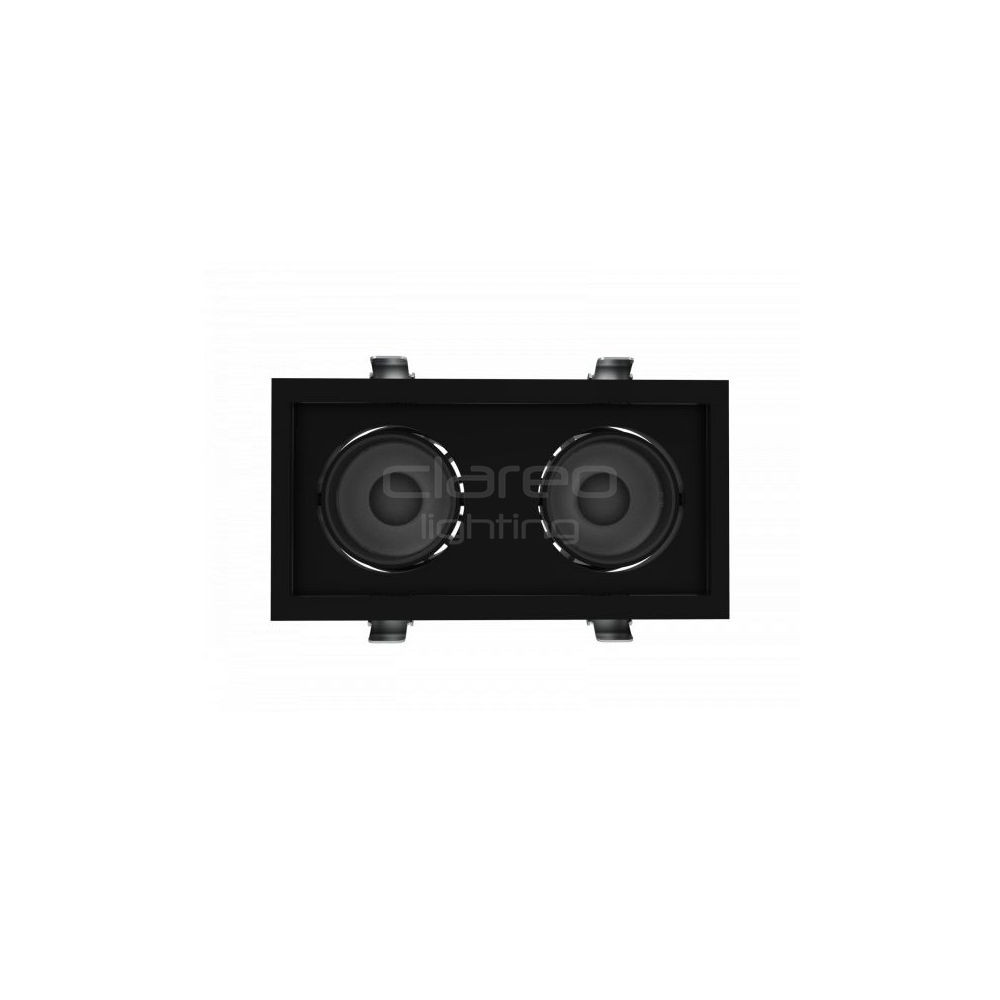

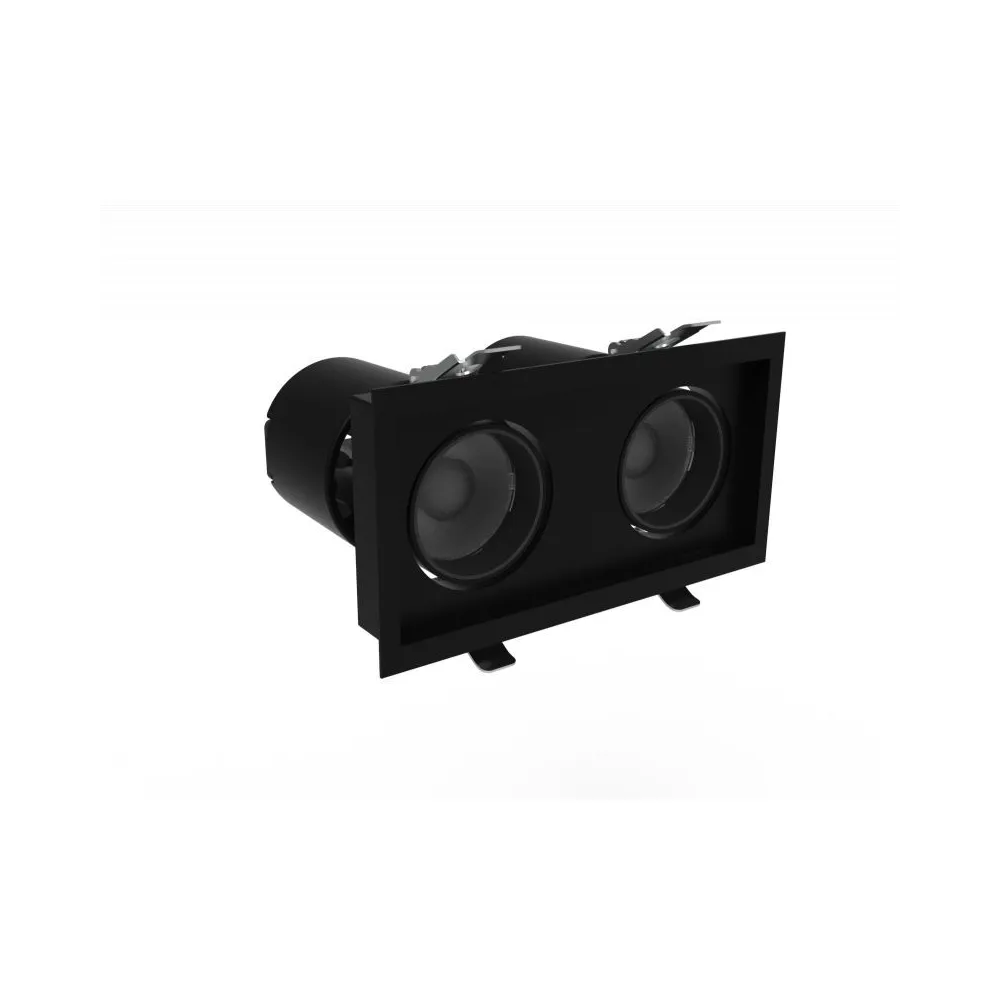

Adjustable DownRay CLAREO 2x20W DUO DESIGN Black Without Driver

Energy savings - 10% Energy savings - 10%
Repairable Repairable
5 years Warranty 5 years Warranty
45,000 h 45,000 h
IP20 IP20
UGR < 19 UGR < 19
IRC > 90 IRC > 90
IK06 IK06
90 lm/W 90 lm/W
save_alt Download the technical sheet

Color

Switch 3000-3500-4000K

Angle

Currently out of stock
Available the week of 15/12/2025
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here
Sign in Sign up

General characteristics
Lifetime 45,000 h
Brand CLAREO
Range DESIGN
Product family Downlights
Installation environment Accent lighting, Point of sale
Repairable YES
Warranty 5 years
Electrical characteristics
Current Up to 1,000 mA
Power 2 x 20 W
Electrical class Class III
EU energy class 2019/2015 F
Lighting characteristics
Technology LED
Lumens output 3600 lm
Energy savings - 10%
Lumens efficiency 90 lm/W
Lifetime LXBY L80B10
Diffuser Prismatic
Beam Angle 36 deg
Photobiological risk GR1 - Low risk
IRC > 90
UGR < 19
Lumens range 3000-3999 lm
Physical characteristics and dimensions
Height 119 mm
Width 100 mm
Length 190 mm
Net weight 1 kg
Materials Aluminum
Waterproof No
IP IP20
IK IK06
Product color Black
Cut-out 180 x 90 mm
Working temperature -20 °C to 45 °C
Detailed color Black
Installation mode Recessed
Type COB
Standards and regulations
Standards CE, RoHS
