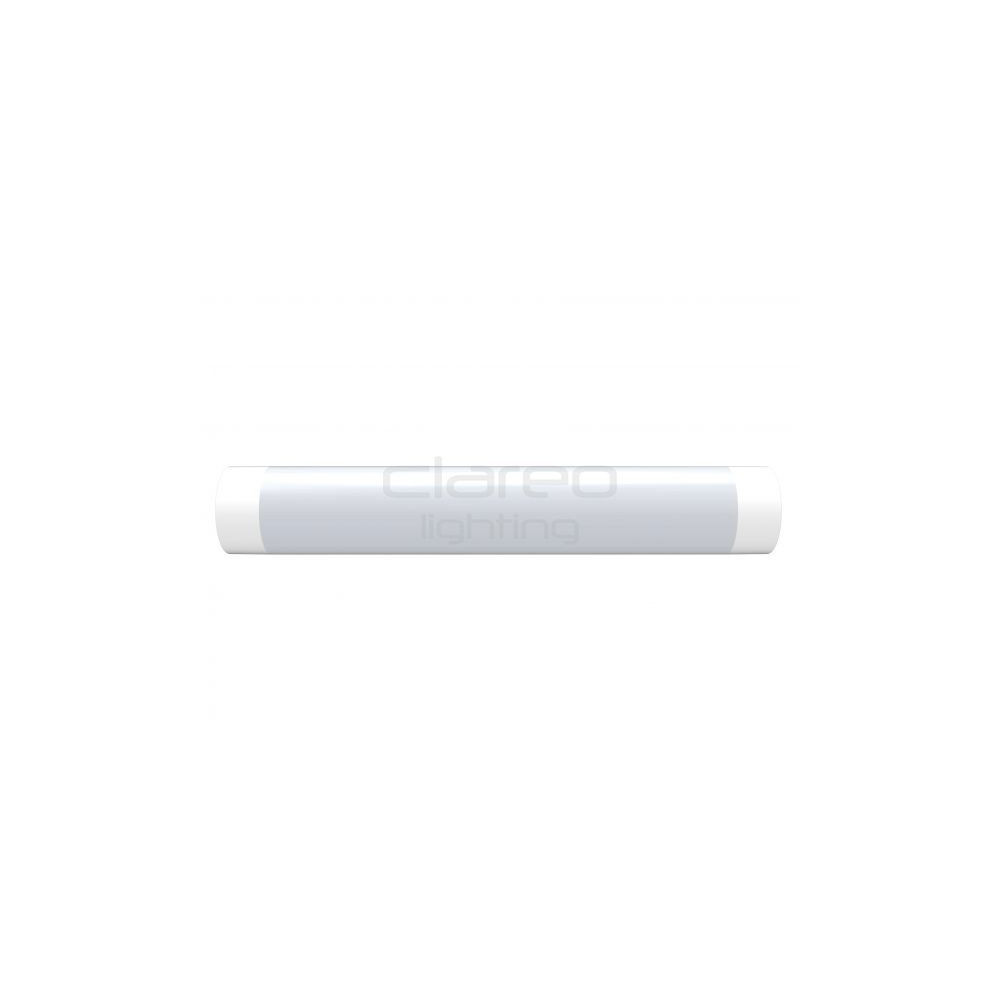

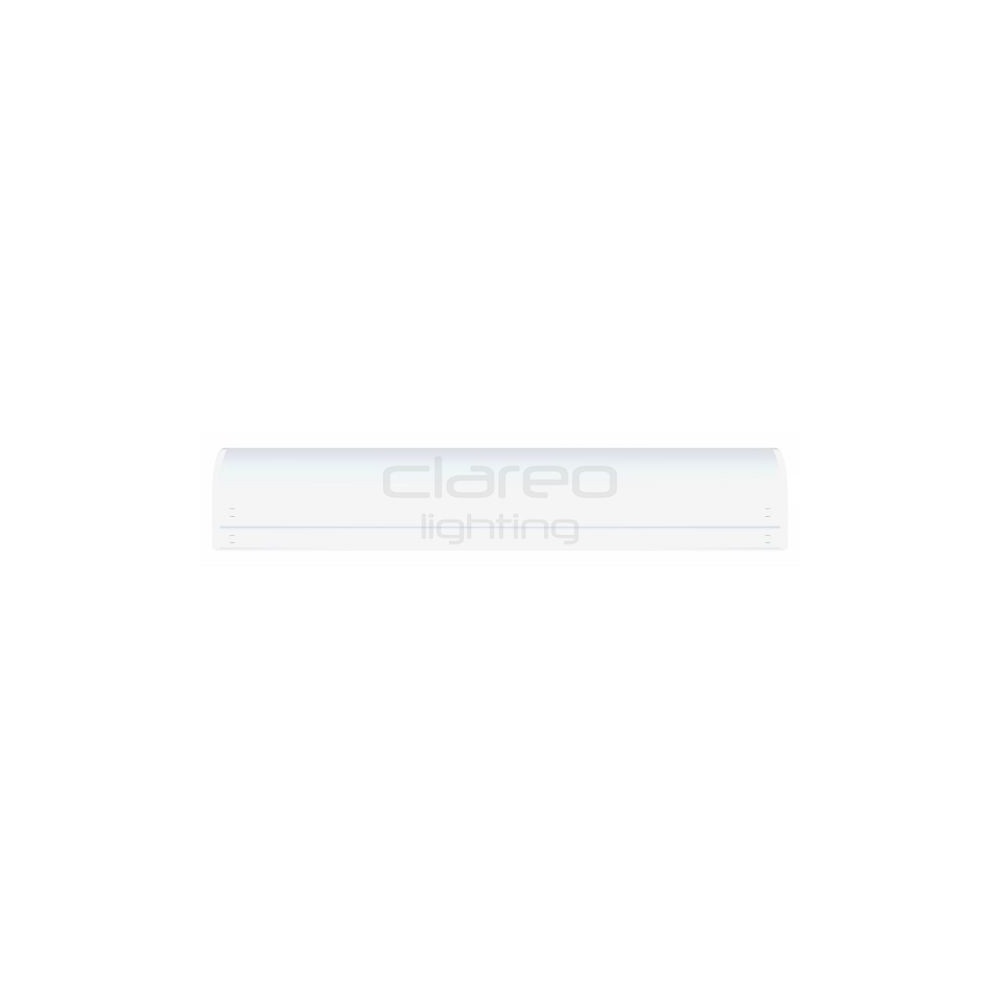

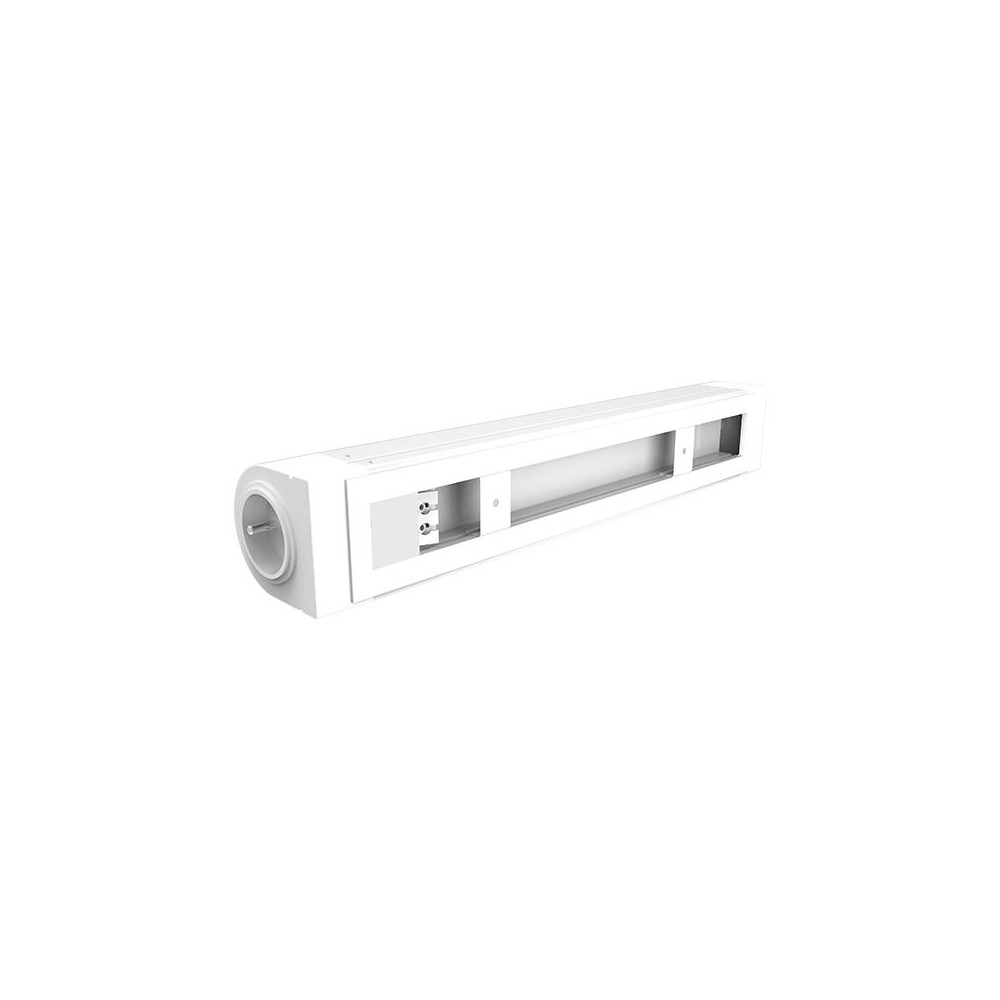

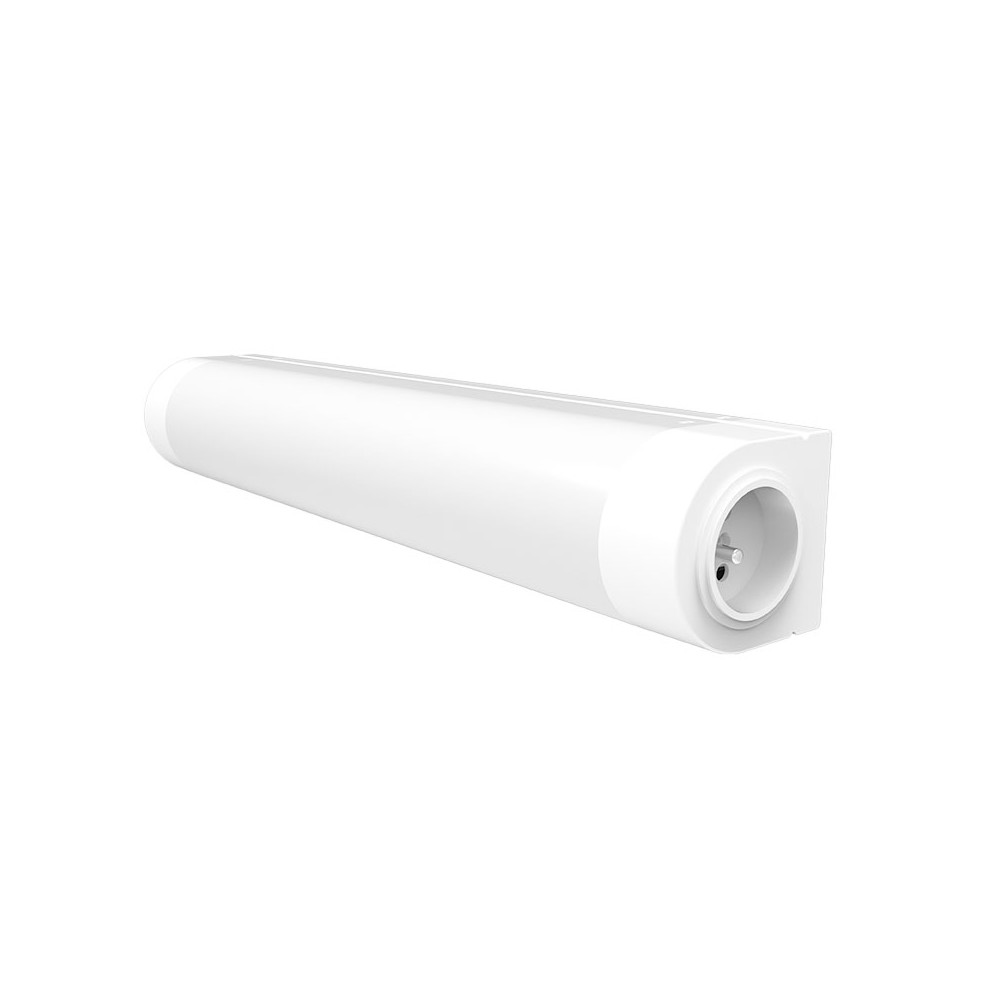

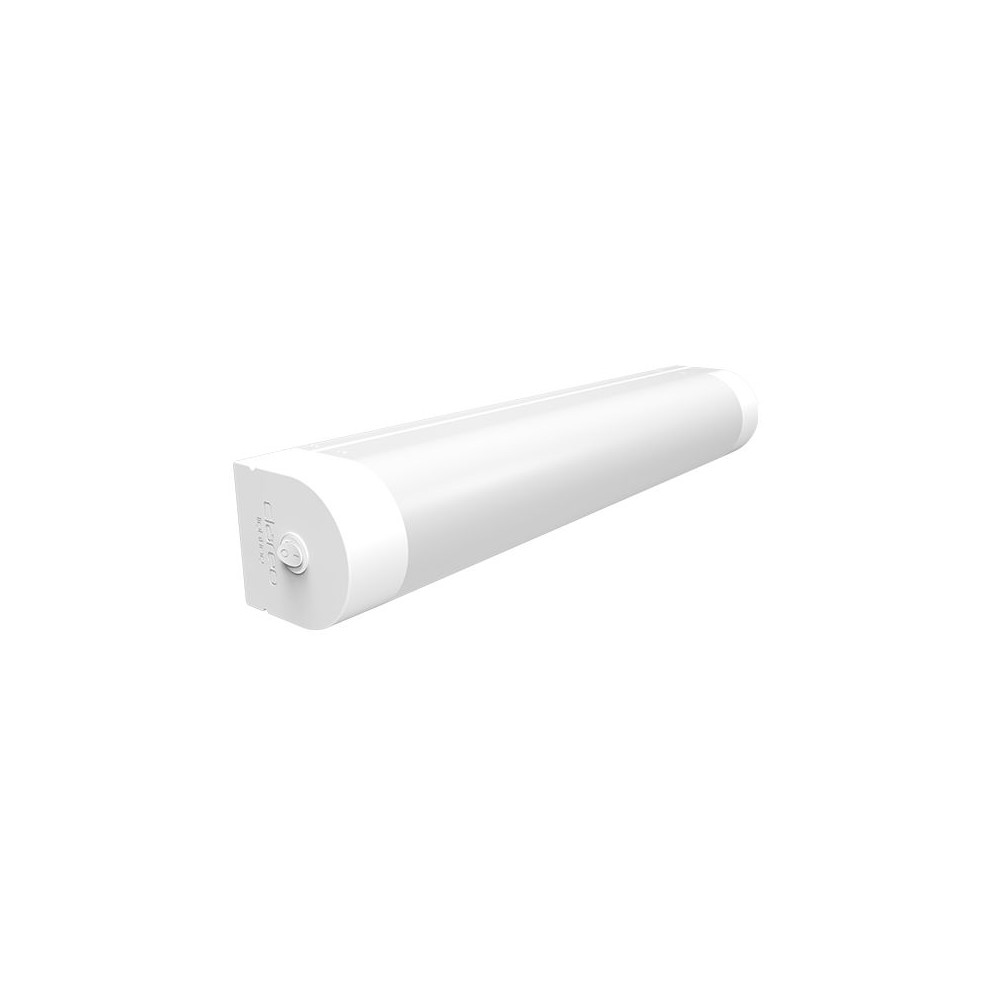

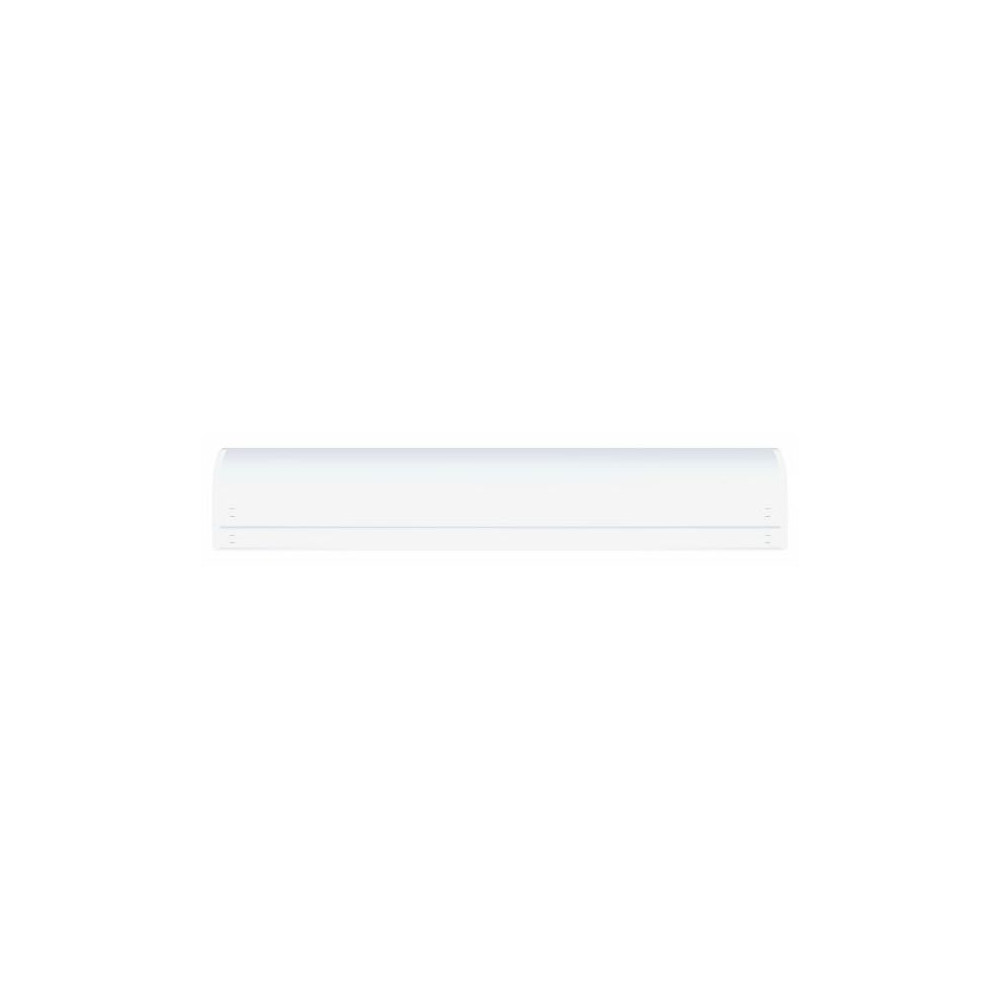

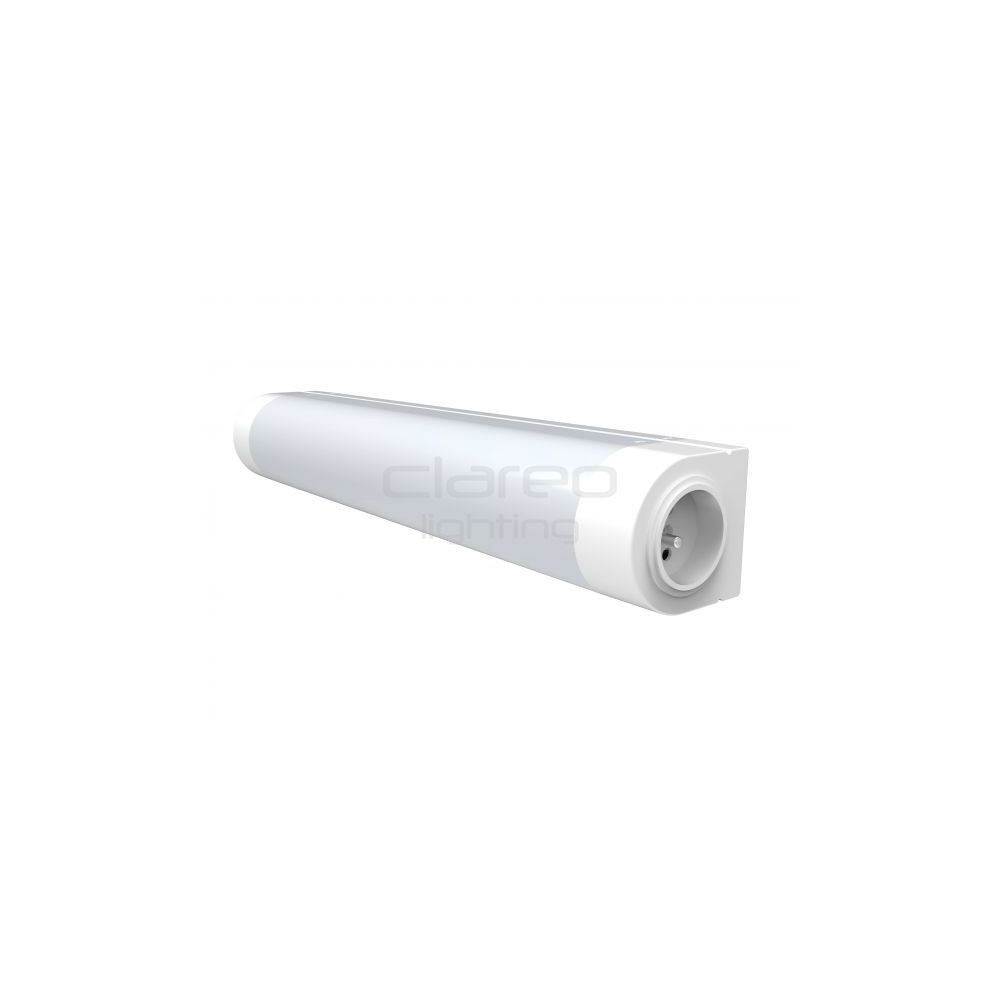

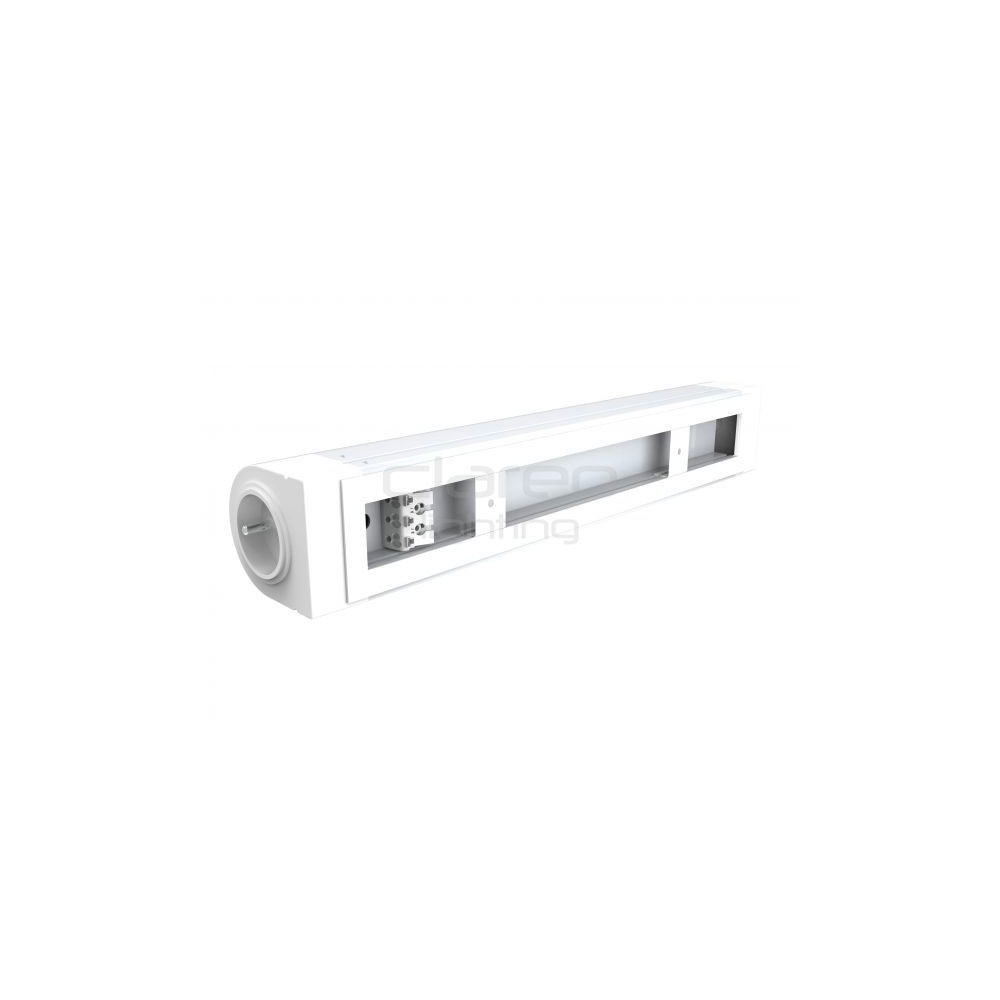

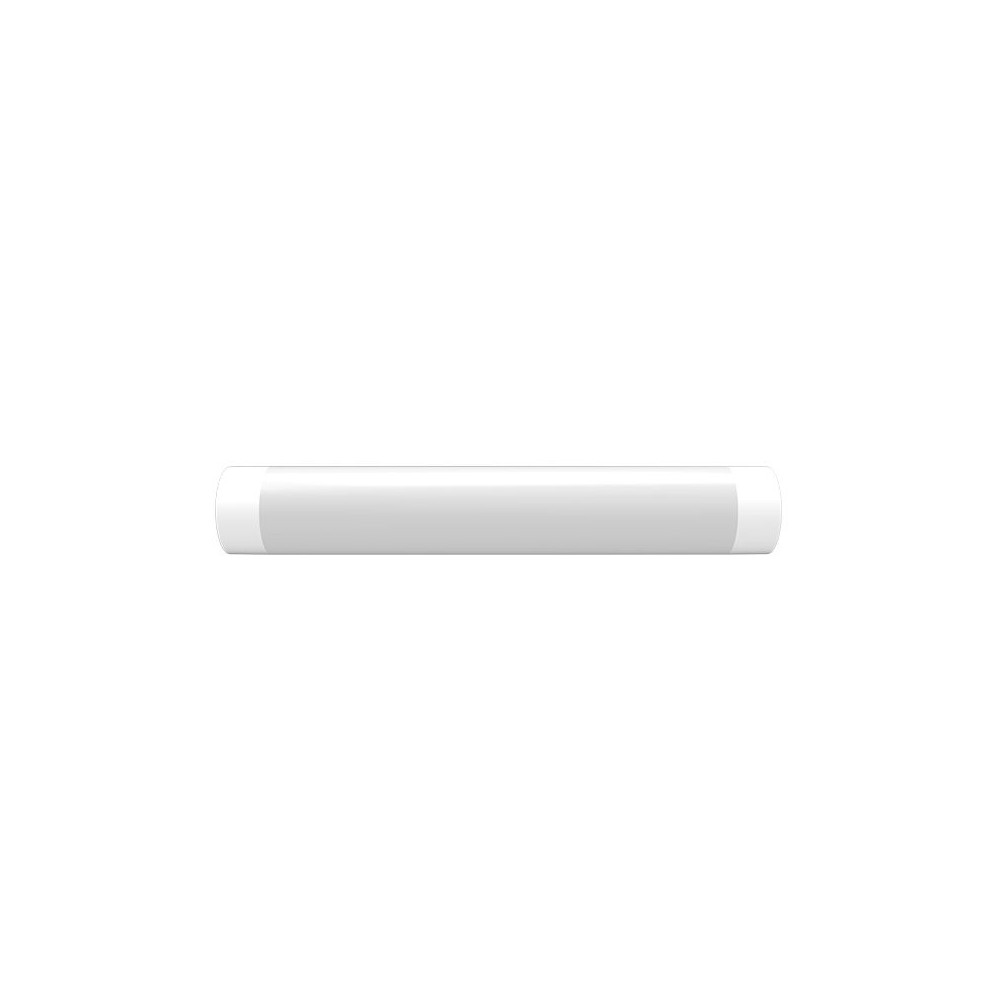

CLAREO 45cm 7W START Bathroom Light Bar with Switch and Socket

CLAREO Bathroom Batten Light with Switch and Outlet 45cm 7W EASY

LED lighting for your bathrooms

The Bathroom Strip Light START is the ideal solution for your lighting projects in wet areas: bathrooms, shower rooms, and sanitary facilities. Combining an integrated driver and simplified installation, it meets the needs of both new installations and relamping.

Compatible as a wall light, its opal diffuser and 120° diffusion angle provide uniform and comfortable lighting to effectively cover any space.

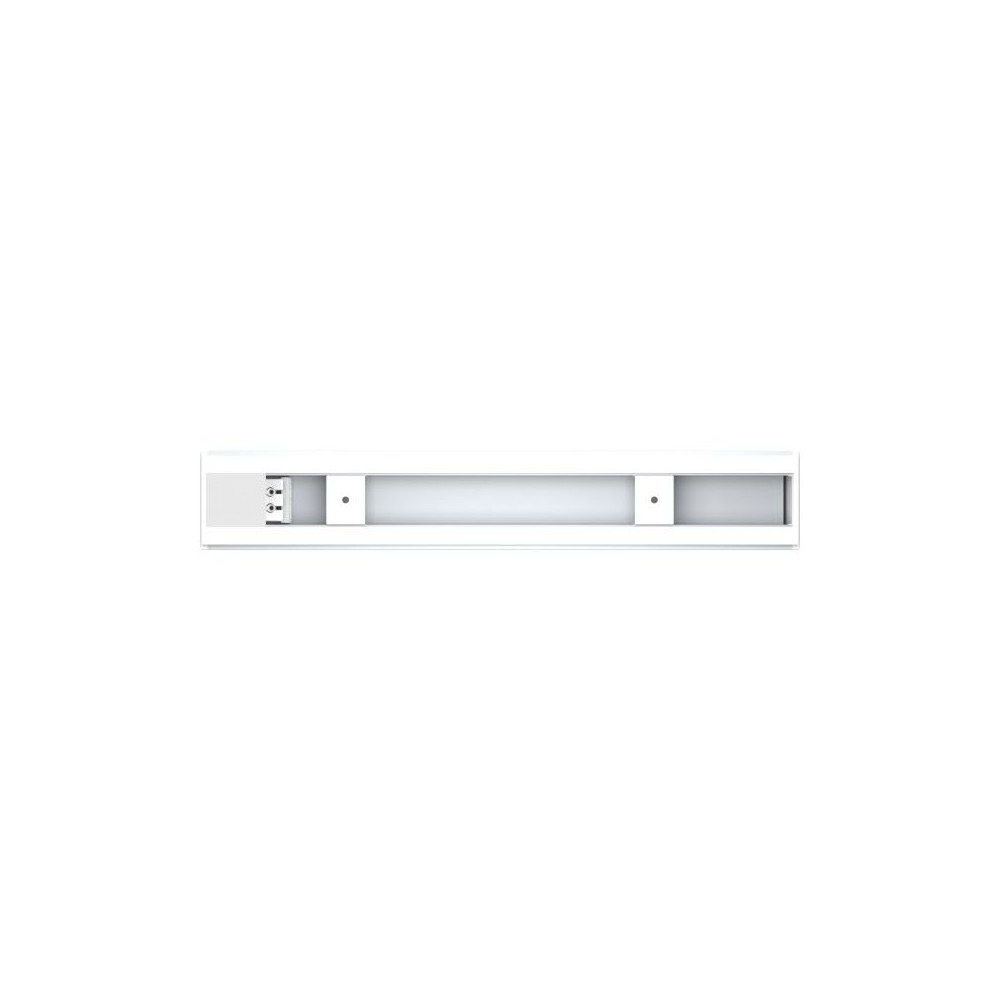

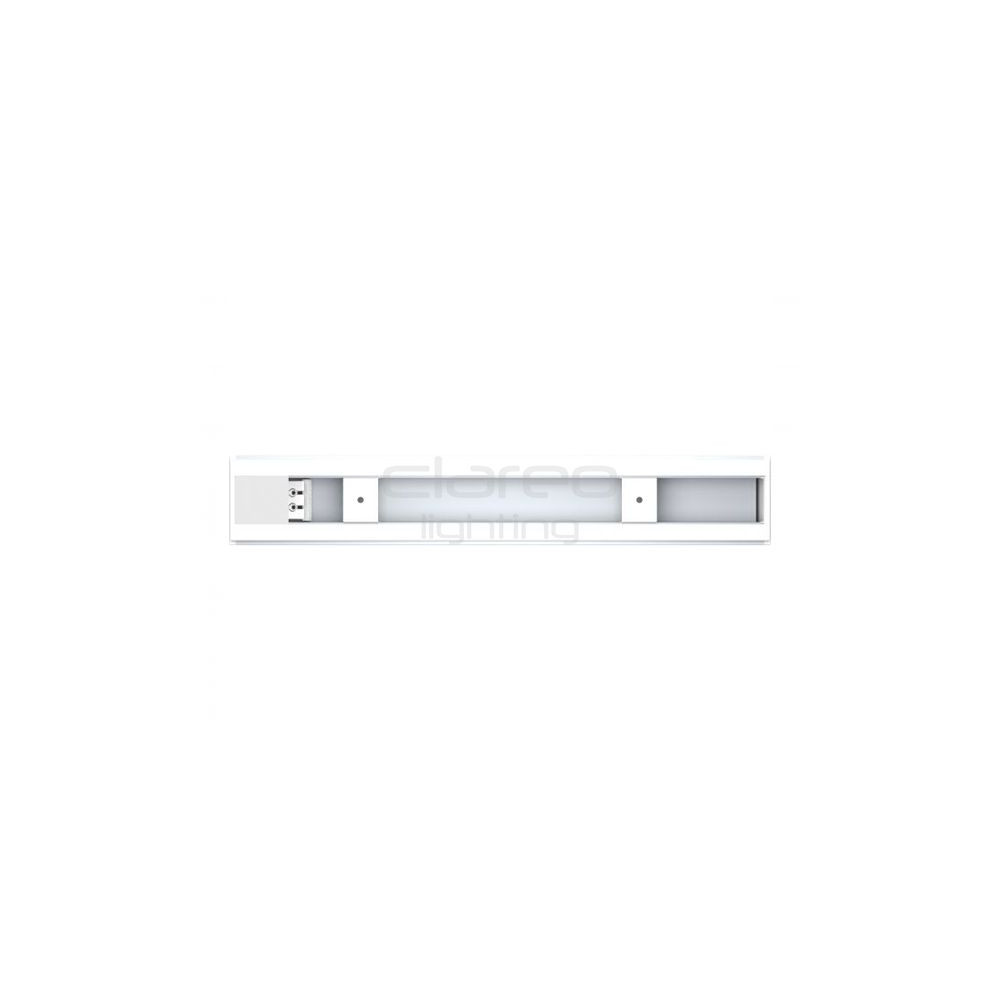

Its simple and quick installation, thanks to its integrated driver and push-in terminal block, allows for straightforward implementation without any external modification, and its clean, minimalist design fits into any environment.

Its 3-year warranty and lifespan of L80B10 50,000 hours ensure reliability and peace of mind.

Box contents: 1 Strip light, 2 M4 30 mm screws, 2 wall plugs, 2 inner mounting clips, 2 outer mounting clips

Key highlights:

Efficacy of 130 lm/W
Integrated driver
IP20/IK07 protection
Universal length: 45 cm
3-year warranty

CLAREO 45cm 7W START Bathroom Light Bar with Switch and Socket

Pricing is only available to customers who are logged into their account and whose access request has been validated.

To request access, go here

LED lighting for your bathrooms

Compatible as a wall light, its opal diffuser and 120° diffusion angle provide uniform and comfortable lighting to effectively cover any space.

Its 3-year warranty and lifespan of L80B10 50,000 hours ensure reliability and peace of mind.

Box contents: 1 Strip light, 2 M4 30 mm screws, 2 wall plugs, 2 inner mounting clips, 2 outer mounting clips

Key highlights:

Efficacy of 130 lm/W
Integrated driver
IP20/IK07 protection
Universal length: 45 cm
3-year warranty

General characteristics

Lifetime	50 000 h
Brand	CLAREO
Range	START

Product family	Triproofs
Installation environment	Residential
Quick installation	YES
Warranty	3 years

Electrical characteristics

Voltage	230 V AC
Power	7 W
Electrical class	Class I

Facteur de puissance >	0,9
Taux de distorsion harmonique <	15%
Power range	0-25 W
EU energy class 2019/2015	D

Lighting characteristics

Technology	LED
Lumens output	890 - 960 lm
Energy savings	- 40 %
Lumens efficiency	140 lm/W
Lifetime LXBY	L80B10

Diffuser	Opale
Beam Angle	120 deg
Photobiological risk	GR0 - No risk
IRC >	80
UGR <	25
Lumens range	800-1099 lm

Physical characteristics and dimensions

Height	70 mm
Standard length	45 cm
Width	65 mm
Length	450 mm
Net weight	0.4 kg
Materials	Polycarbonate
Waterproof	No

IP	IP20
IK	IK07
Product color	White
Working temperature	-20 °C to 40 °C
Detailed color	White
Installation mode	Wall light
Type	SMD 2835

Standards and regulations

Standards	CE, RoHS

Carbon footprint	18.4 kgCO2eq
