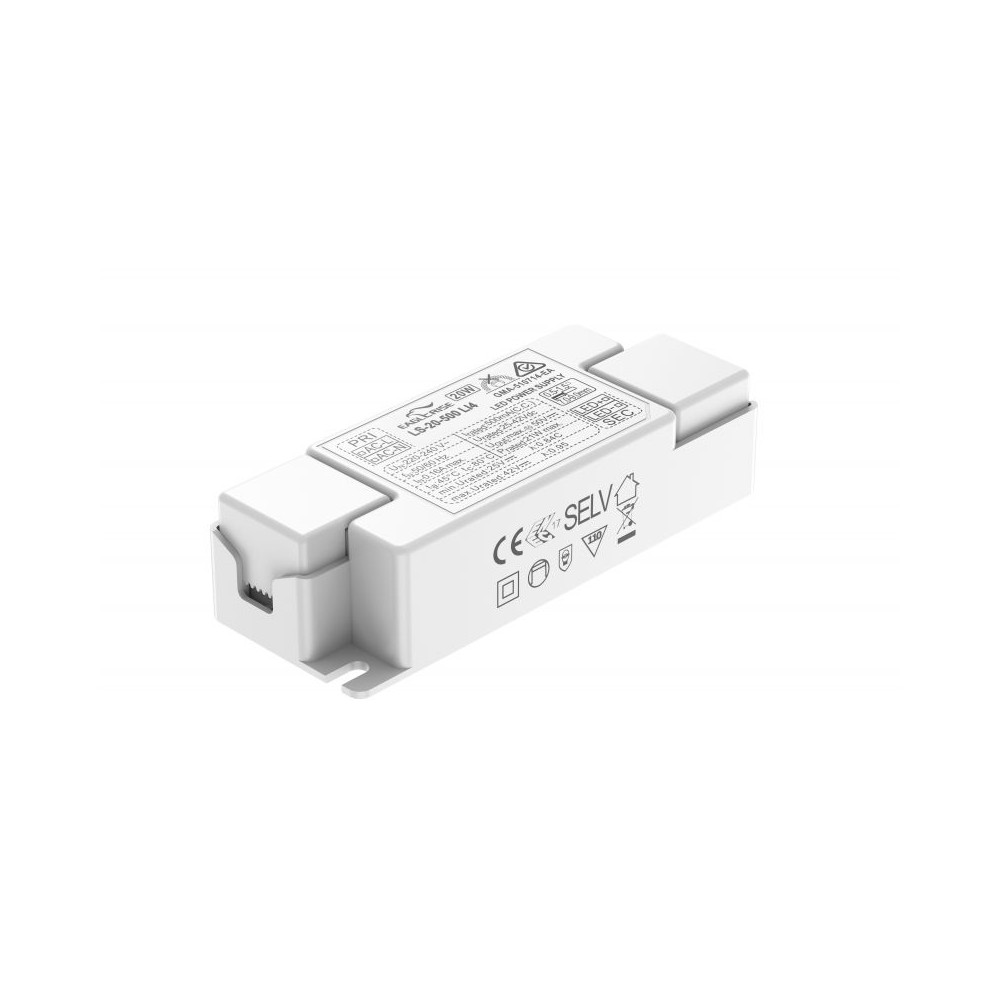

EagleRise 20W LED driver, 500 mA constant current output.
This flicker-free driver is pre-wired with a loop-through connection box and a quarter-turn connector for quick connection to our panels and downlights.
Dimmable: No
Key features:
- Loop-through box, push-wire terminal
- Efficiency: 85%
- 5-year warranty
- Power factor > 0.95 - THD < 20%
EagleRise 20W LED driver, 500 mA constant current output.
This flicker-free driver is pre-wired with a loop-through connection box and a quarter-turn connector for quick connection to our panels and downlights.
Dimmable: No
Key features:
- Loop-through box, push-wire terminal
- Efficiency: 85%
- 5-year warranty
- Power factor > 0.95 - THD < 20%
| Brand | EAGLERISE |
|---|---|
| Range | ADVANCE |
| Product family | Drivers |
|---|---|
| Warranty | 7 years |
| Current | 500 mA |
|---|---|
| Power | 20 W |
| Electrical class | Class II |
| Dimmable | ON/OFF |
|---|---|
| Facteur de puissance > | 0,95 |
| Taux de distorsion harmonique < | 20 % |
| Technology | LED |
|---|
| Height | 25 mm |
|---|---|
| Width | 38 mm |
| Length | 100 mm |
| Net weight | 0.1 kg |
| Materials | Plastic |
|---|---|
| Waterproof | No |
| IP | IP20 |
| Product color | White |
| Detailed color | White |
