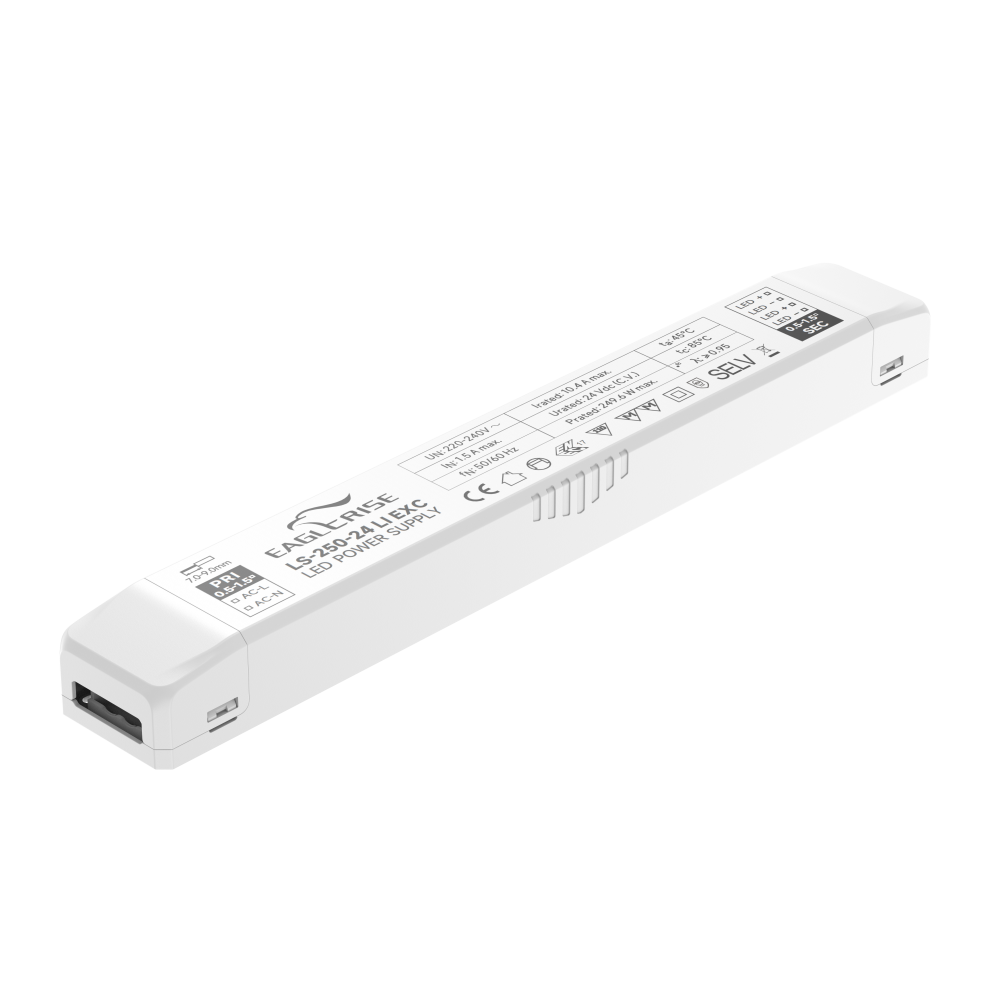

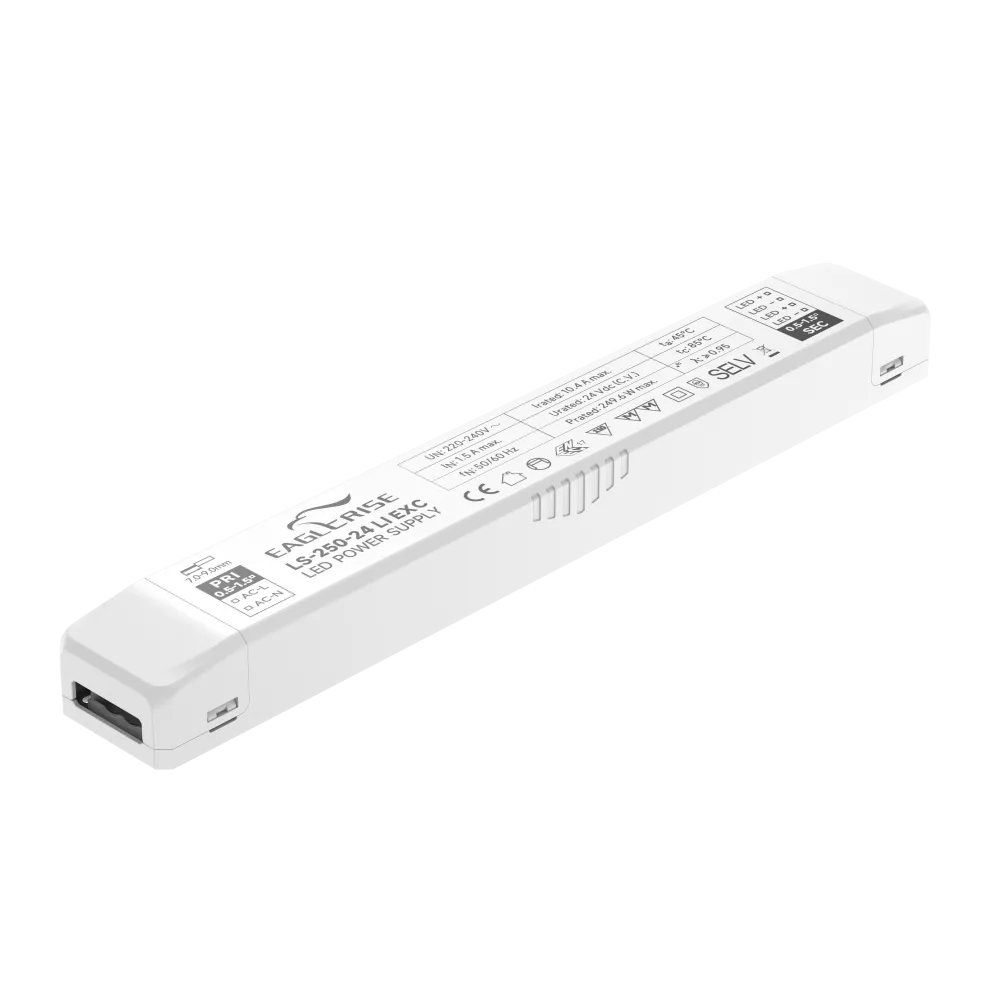

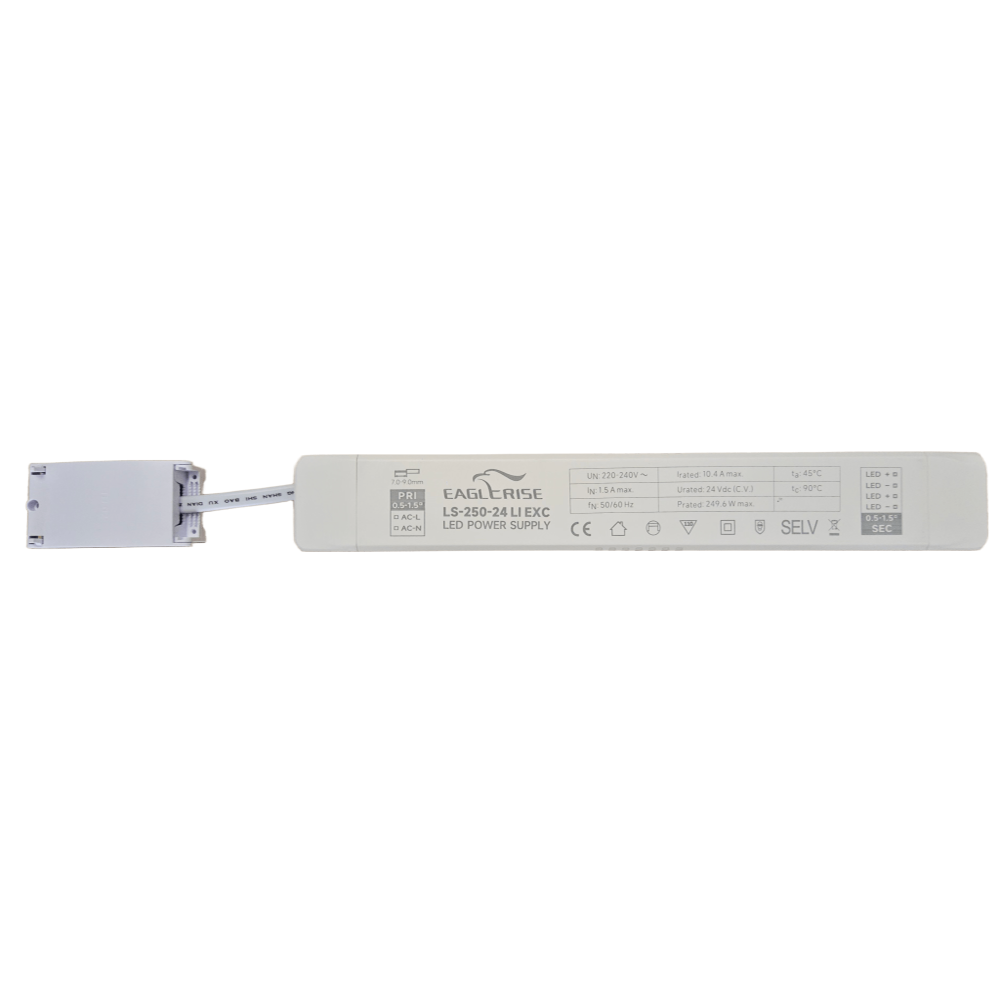

ON/OFF Daisy-chainable Driver EagleRise 24VDC 250W LS-250-24 LI EXC

LED power supply with constant voltage of 250 W, with universal AC input 220-240 VAC. This driver with very high efficiency of 93%, comes with a 7-year warranty.

It can power constant voltage 24 VDC luminaires such as our StripLED ADVANCE 2 LED strip range

Daisy-chainable on the secondary side (+ and -). Possible to wire 2 strips on the secondary side.

Fully insulated plastic housing IP20, it provides protection against overheating, overvoltage and current surges.

Standards: lighting

Dimmable: no

ON/OFF Daisy-chainable Driver EagleRise 24VDC 250W LS-250-24 LI EXC

Pricing is only available to customers who are logged into their account and whose access request has been validated.

To request access, go here

LED power supply with constant voltage of 250 W, with universal AC input 220-240 VAC. This driver with very high efficiency of 93%, comes with a 7-year warranty.

It can power constant voltage 24 VDC luminaires such as our StripLED ADVANCE 2 LED strip range

Daisy-chainable on the secondary side (+ and -). Possible to wire 2 strips on the secondary side.

Fully insulated plastic housing IP20, it provides protection against overheating, overvoltage and current surges.

Standards: lighting

Dimmable: no

General characteristics

Lifetime	50 000 h
Brand	EAGLERISE

Range	ADVANCE
Product family	Drivers
Warranty	7 years

Electrical characteristics

Voltage	198-264 V AC / 24-24 V DC
Power	250 W

Electrical class	Class II
Dimmable	ON/OFF

Physical characteristics and dimensions

Height	30 mm
Width	45 mm
Length	318 mm
Net weight	0.6 kg

Waterproof	No
IP	IP20
Product color	White
Working temperature	-20 °C to 45 °C

Standards and regulations

Carbon footprint	0,9 kgCO2eq
