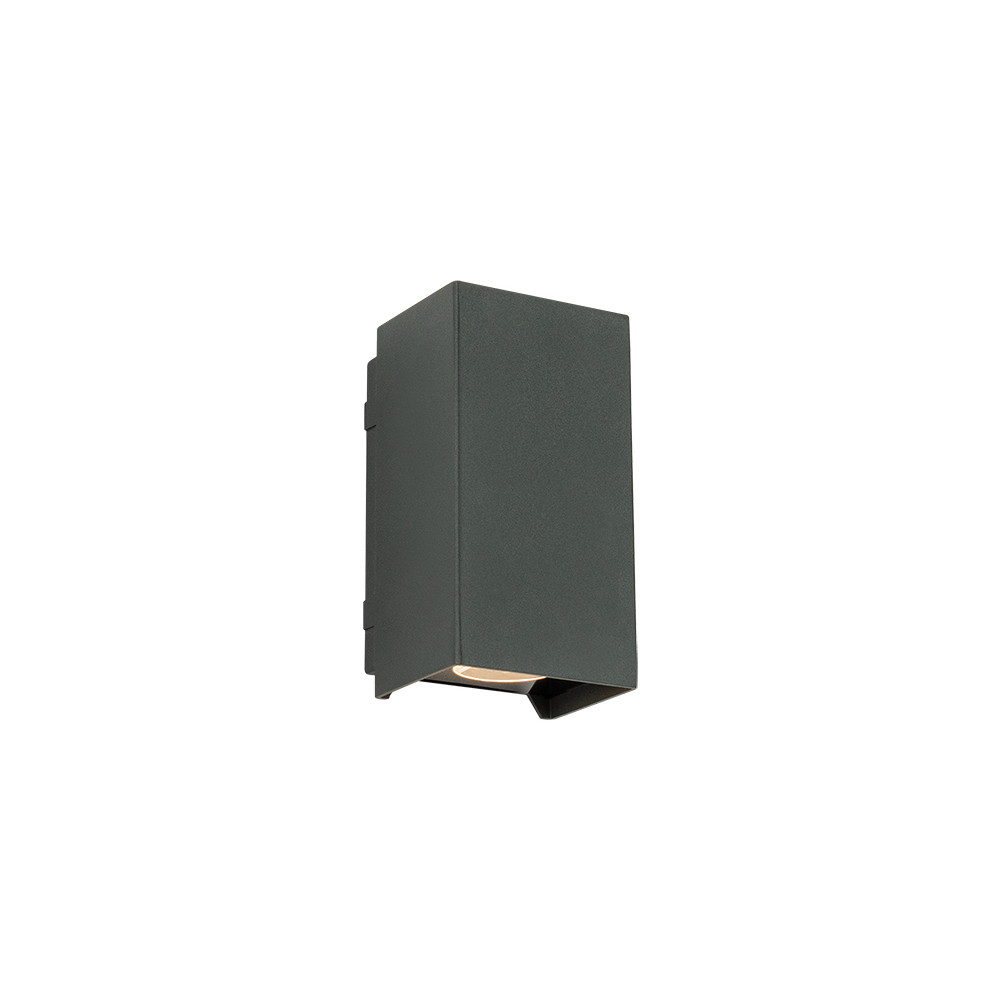

ZAMBELIS DESIGN Graphite IP65 Outdoor Wall Light: the ultra-precise up-down spot with a razor-sharp 6° beam

The ZAMBELIS DESIGN E412 Outdoor Wall Light in graphite finish is a precision lighting tool for the most demanding lighting designers. Its slender body in graphite aluminum and glass, measuring 130 x 70 mm, concentrates its light into two direct and indirect beams of an extraordinarily narrow angle of 6.5°, projecting two near-laser lines of light upward and downward along the façade, for architectural accentuation effects of surgical precision.

With a CRI above 90, these beams reveal the nuances of façade materials and textures with exceptional fidelity. Its IP65 protection, IK04 impact resistance, and operating range of -35°C to 50°C make it a durable and reliable lighting instrument.

Key highlights:

  • Ultra-narrow 6.5° up-down beam, razor-thin line-of-light effect on the façade
  • CRI above 90 for faithful rendering of exterior materials
  • Graphite aluminum body 130 x 70 mm, IP65 protection
  • 3-year warranty
Ref: ZAM.E412

Outdoor Wall Light ZAMBELIS 2x3W Direct/Indirect IP65 DESIGN Graphite E412

save_alt Download the technical sheet

Color

White warm - 3000K

Angle

Diffuser

Driver

In stock, next-day delivery before 1 PM
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

ZAMBELIS DESIGN Graphite IP65 Outdoor Wall Light: the ultra-precise up-down spot with a razor-sharp 6° beam

The ZAMBELIS DESIGN E412 Outdoor Wall Light in graphite finish is a precision lighting tool for the most demanding lighting designers. Its slender body in graphite aluminum and glass, measuring 130 x 70 mm, concentrates its light into two direct and indirect beams of an extraordinarily narrow angle of 6.5°, projecting two near-laser lines of light upward and downward along the façade, for architectural accentuation effects of surgical precision.

With a CRI above 90, these beams reveal the nuances of façade materials and textures with exceptional fidelity. Its IP65 protection, IK04 impact resistance, and operating range of -35°C to 50°C make it a durable and reliable lighting instrument.

Key highlights:

  • Ultra-narrow 6.5° up-down beam, razor-thin line-of-light effect on the façade
  • CRI above 90 for faithful rendering of exterior materials
  • Graphite aluminum body 130 x 70 mm, IP65 protection
  • 3-year warranty

General characteristics
Lifetime 30,000 h
Brand ZAMBELIS
Range DESIGN
Product family Wall and ceiling lights
Installation environment Exterior
Warranty 3 years
Electrical characteristics
Voltage 220-240 V AC
Current 550 mA
Power 2x3 W
Electrical class Class I
EU energy class 2019/2015 G
Lighting characteristics
Technology LED
Lumens output 350 lm
Lifetime LXBY L70B50
Beam Angle 6 deg
IRC > 90
Physical characteristics and dimensions
Height 130 mm
Width 70 mm
Length 62 mm
Net weight 0.3 kg
Materials Aluminum
Waterproof YES
IP IP65
IK IK04
Product color Gray
Working temperature -35 °C to 50 °C
Detailed color Graphite
Installation mode Wall light
Standards and regulations
Carbon footprint 43.2 kgCO2eq
