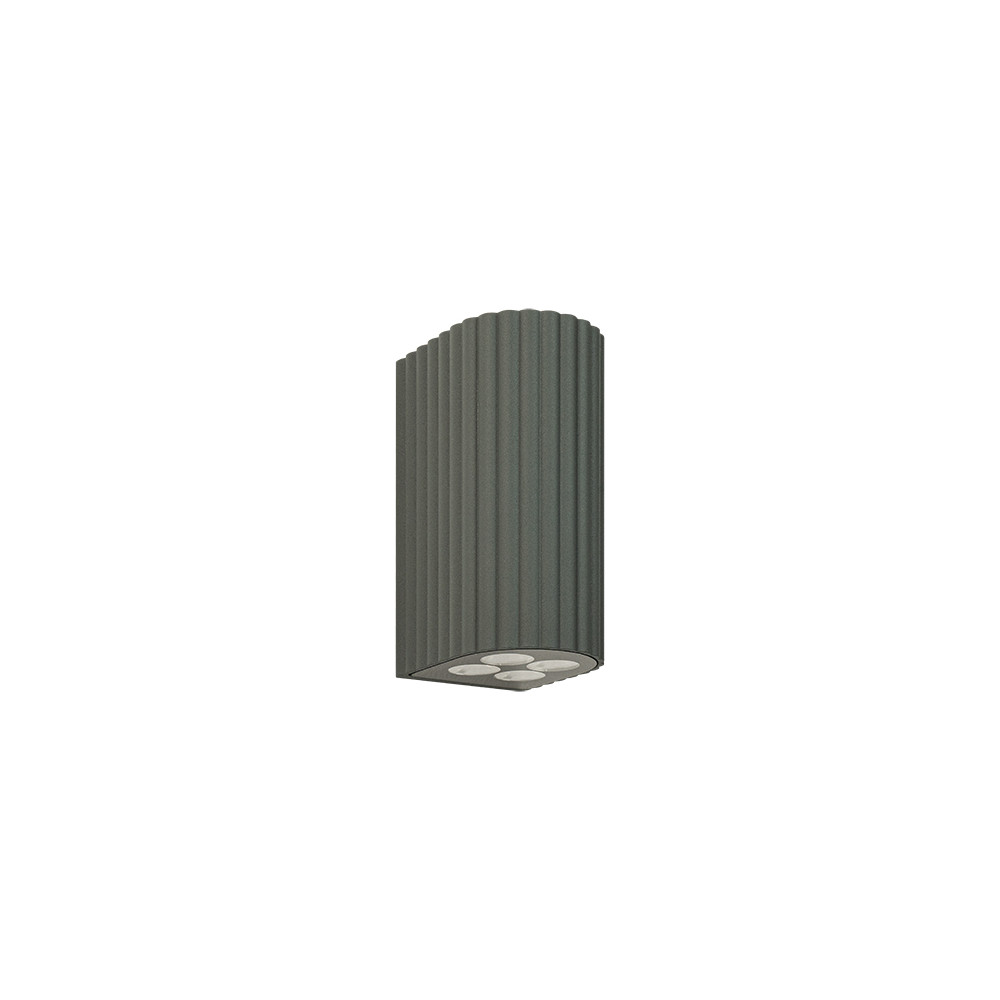

Outdoor Wall Light 8x1W Direct/Indirect IP54 ZAMBELIS DESIGN Graphite E422 FS

Outdoor Wall Light ZAMBELIS DESIGN Graphite: eight LED sources in direct and indirect diffusion for sculptural façade lighting

The Outdoor Wall Light ZAMBELIS DESIGN Graphite E422 multiplies architectural impact thanks to its 8 LED sources (8x1W) with glass optics arranged in simultaneous direct and indirect diffusion, creating subtle lighting effects downward and toward the façade. Its body in graphite finish aluminium (160 x 76 x 90 mm) offers a confident vertical presence while integrating discreetly into contemporary architectural projects.

Its concentrated 10° beam and flux of 560 lm at 3000K allow precise accentuation of façade elements, columns or porticos. Its IP54 / IK05 protection and operating range of -35°C to 50°C guarantee robustness in exposed outdoor environments. Lifespan of 30,000 hours, 3-year warranty.

Key highlights:

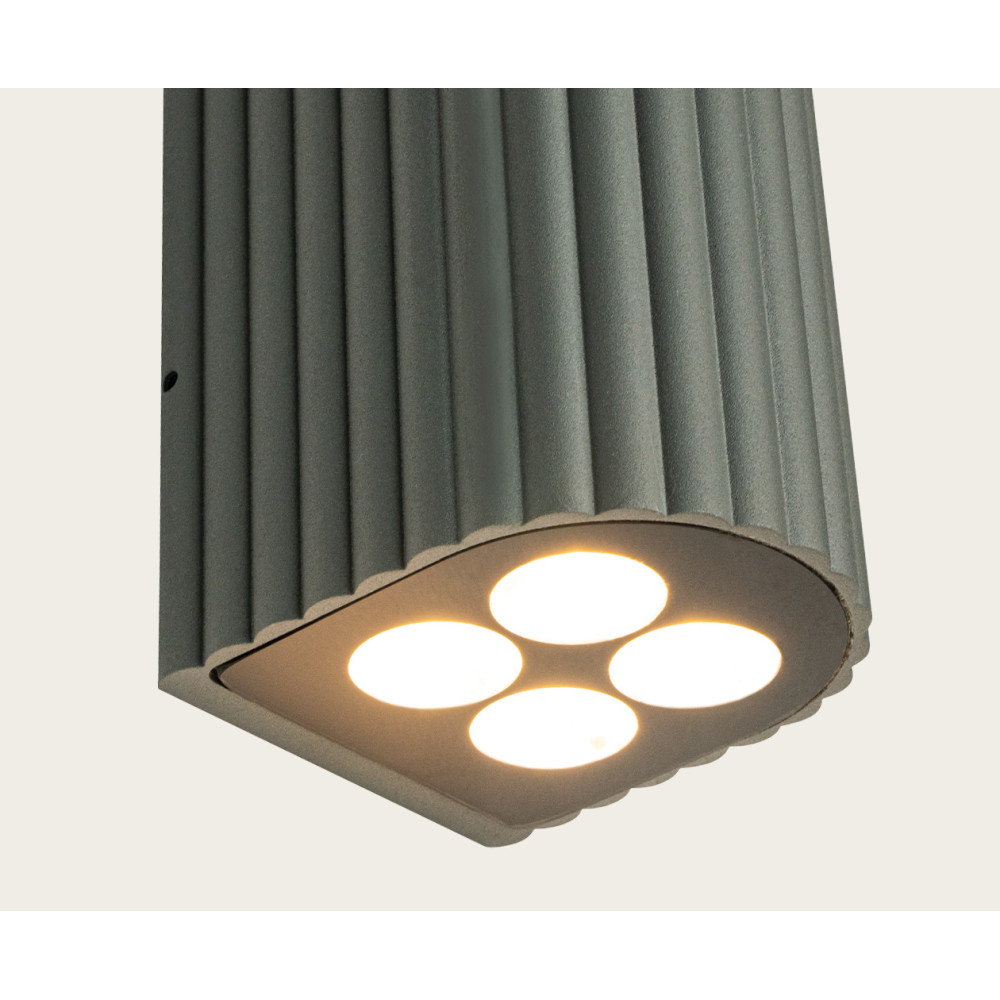

8 LED sources with glass optics in direct and indirect diffusion for an architectural ambient effect
Ultra-concentrated 10° beam for precise accentuation of architectural elements
Understated and durable graphite aluminium finish
3-year warranty

Outdoor Wall Light 8x1W Direct/Indirect IP54 ZAMBELIS DESIGN Graphite E422

Pricing is only available to customers who are logged into their account and whose access request has been validated.

To request access, go here

Outdoor Wall Light ZAMBELIS DESIGN Graphite: eight LED sources in direct and indirect diffusion for sculptural façade lighting

Key highlights:

8 LED sources with glass optics in direct and indirect diffusion for an architectural ambient effect
Ultra-concentrated 10° beam for precise accentuation of architectural elements
Understated and durable graphite aluminium finish
3-year warranty

General characteristics

Lifetime	30,000 h
Brand	ZAMBELIS
Range	DESIGN

Product family	Wall and ceiling lights
Installation environment	Exterior
Warranty	3 years

Electrical characteristics

Voltage	220-240 V AC
Current	300 mA

Power	8x1 W
Electrical class	Class I
EU energy class 2019/2015	E

Lighting characteristics

Technology	LED
Lumens output	560 lm

Lifetime LXBY	L70B50
Beam Angle	10 deg
IRC >	85

Physical characteristics and dimensions

Height	160 mm
Width	76 mm
Length	90 mm
Net weight	0.6 kg
Materials	Aluminum
Waterproof	YES

IP	IP54
IK	IK05
Product color	Gray
Working temperature	-35 °C to 50 °C
Detailed color	Graphite
Installation mode	Wall light

Standards and regulations

Carbon footprint	36 kgCO2eq

Technical data sheets, IES files, installation instructions, certificates... are only downloadable for customers whose access has been validated. To request access, go here
