Outdoor Wall Light ZAMBELIS 10W IP65 DESIGN Graphite E417

ZAMBELIS DESIGN Graphite IP65 Outdoor Wall Light: the horizontal prism with opal diffuser for your façades

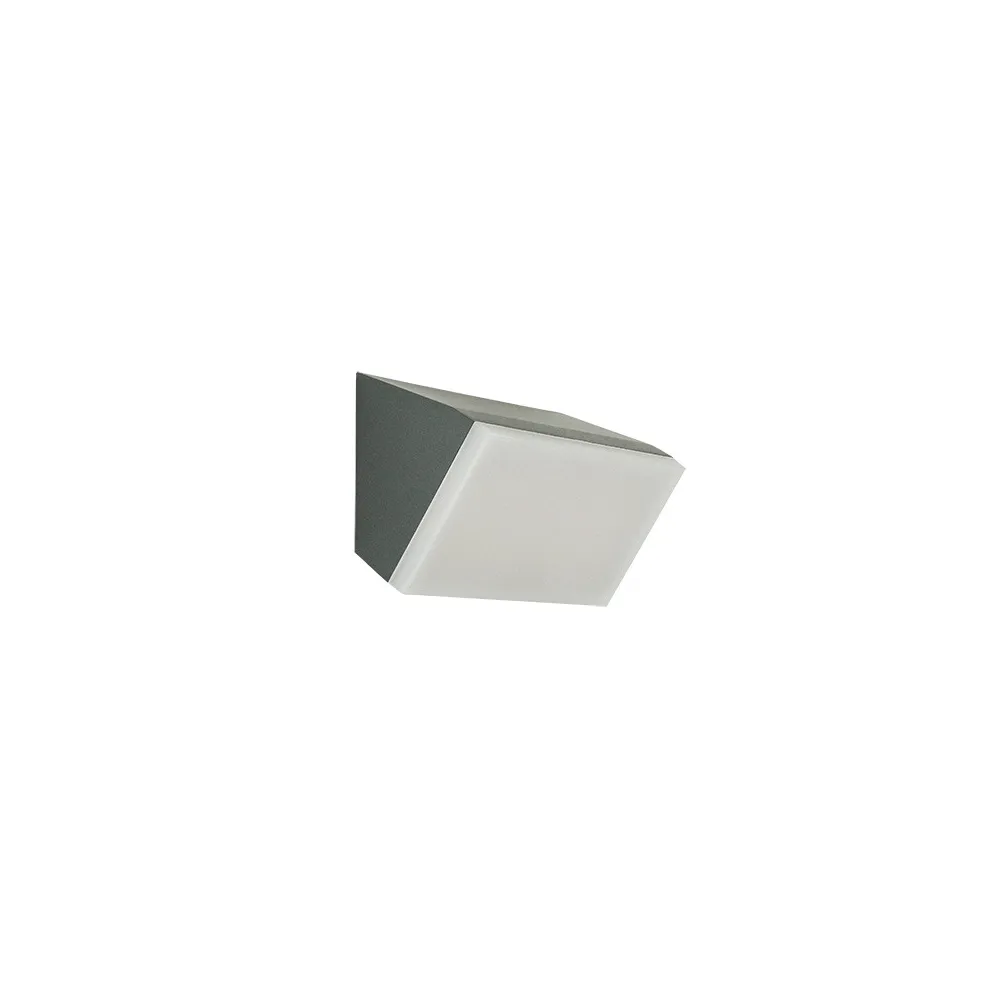

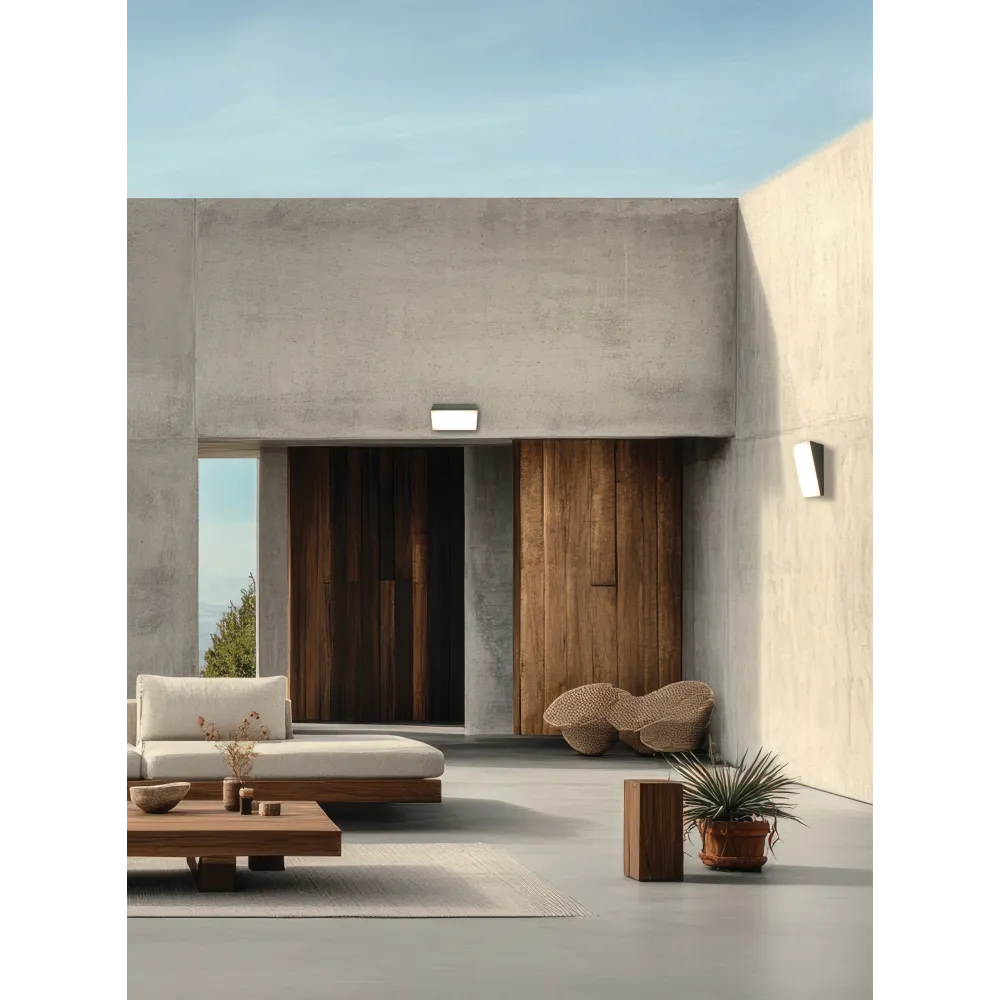

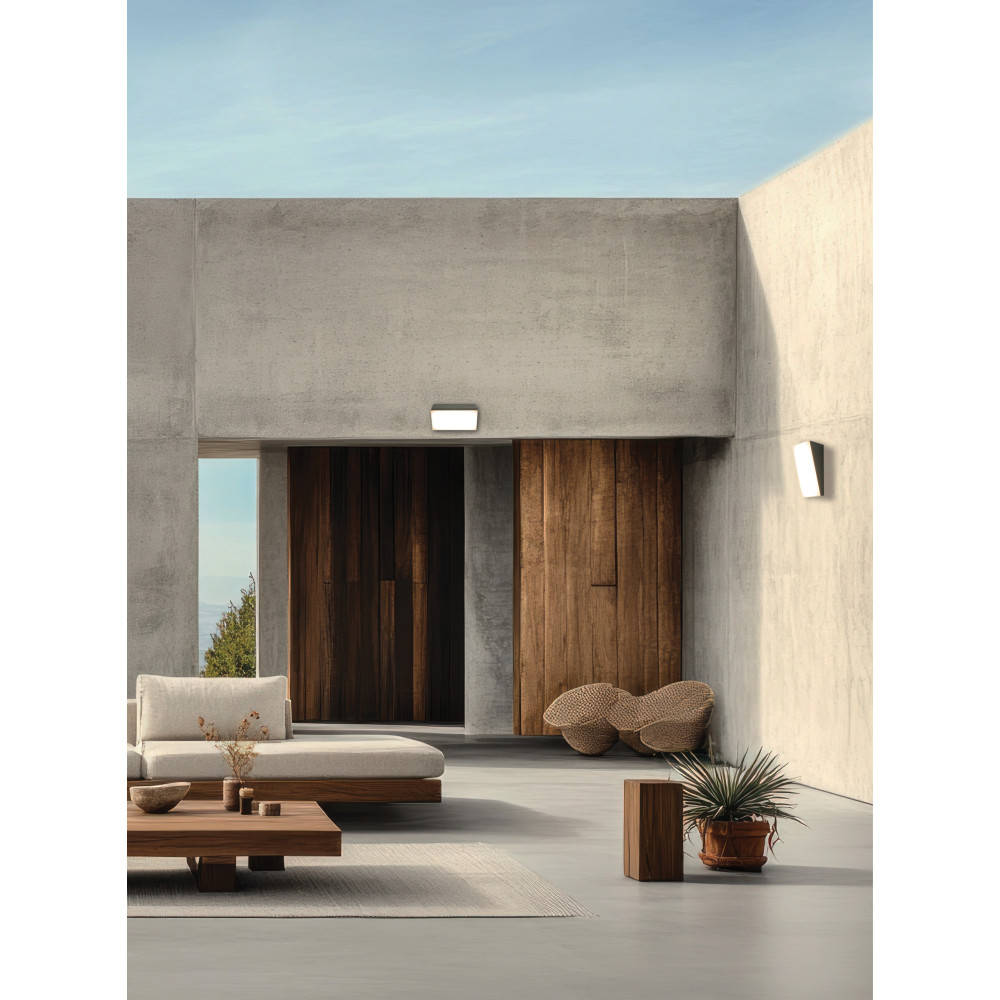

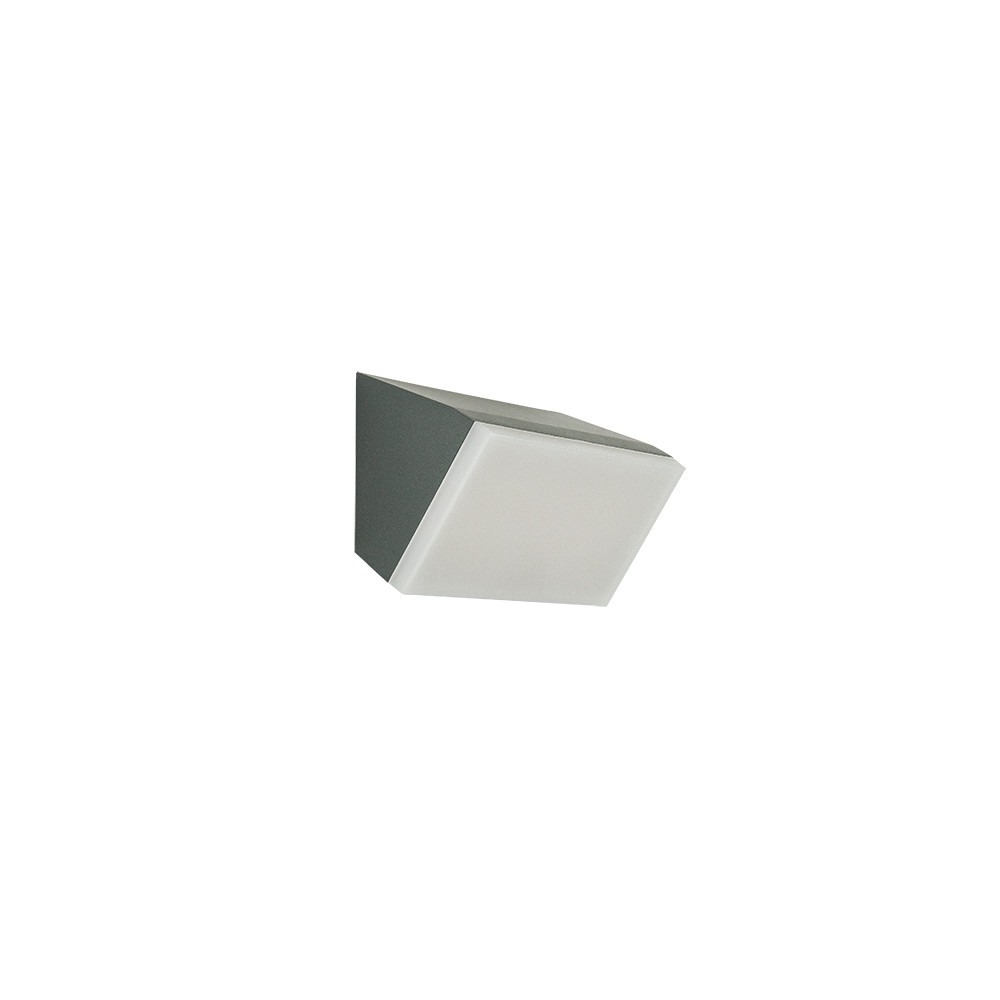

The ZAMBELIS DESIGN E417 Outdoor Wall Light in graphite finish shares the same architectural spirit as the E416, reimagined in a wide, grazing horizontal format. Its graphite aluminium body measuring 180 mm wide by 90 mm high integrates an opal diffuser across its entire face, delivering 360° light diffusion in a horizontal band that dresses the façade with a soft, contemporary line of light — ideal for hotels, restaurants, and outdoor architectural spaces.

Its IP65 protection and IK04 impact resistance, combined with an operating range of -35°C to 50°C, ensure its reliability in all conditions.

Key highlights:

Horizontal graphite aluminium prism 180 x 90 mm, opal diffuser, 360° diffusion
10W / 1115 lm, 3000K, range -35°C to 50°C
Protection IP65
3-year warranty

Outdoor Wall Light ZAMBELIS 10W IP65 DESIGN Graphite E417

Pricing is only available to customers who are logged into their account and whose access request has been validated.

To request access, go here

ZAMBELIS DESIGN Graphite IP65 Outdoor Wall Light: the horizontal prism with opal diffuser for your façades

Its IP65 protection and IK04 impact resistance, combined with an operating range of -35°C to 50°C, ensure its reliability in all conditions.

Key highlights:

Horizontal graphite aluminium prism 180 x 90 mm, opal diffuser, 360° diffusion
10W / 1115 lm, 3000K, range -35°C to 50°C
Protection IP65
3-year warranty

General characteristics

Lifetime	30,000 h
Brand	ZAMBELIS
Range	DESIGN

Product family	Wall and ceiling lights
Installation environment	Exterior
Warranty	3 years

Electrical characteristics

Voltage	220-240 V AC
Current	250 mA

Power	10 W
Electrical class	Class I
EU energy class 2019/2015	D

Lighting characteristics

Technology	LED
Lumens output	1115 lm
Lifetime LXBY	L70B50

Diffuser	Opale
Beam Angle	360 deg
IRC >	80

Physical characteristics and dimensions

Height	90 mm
Width	180 mm
Length	90 mm
Net weight	0.4 kg
Materials	Aluminum
Waterproof	YES

IP	IP65
IK	IK04
Product color	Gray
Working temperature	-35 °C to 50 °C
Detailed color	Graphite
Installation mode	Wall light

Standards and regulations

Carbon footprint	22.6 kgCO2eq

Technical data sheets, IES files, installation instructions, certificates... are only downloadable for customers whose access has been validated. To request access, go here
