MiniRay CLAREO 8W STARTClip RT2020 TECH: the innovative MiniRay ideal for housing

Quick and easy installation thanks to its STARTClip system and integrated junction box.

Recessed spotlight compatible with all types of installation (Staff, Drywall, Suspended ceiling tiles, etc.).

Recessed diameter compatible with the majority of existing products on the market.

- Time-saving: Innovative STARTClip system for simplified ceiling installation

- Product compatible with RT2012 BBC and RT2020 BEPOS thanks to its air-tight seal

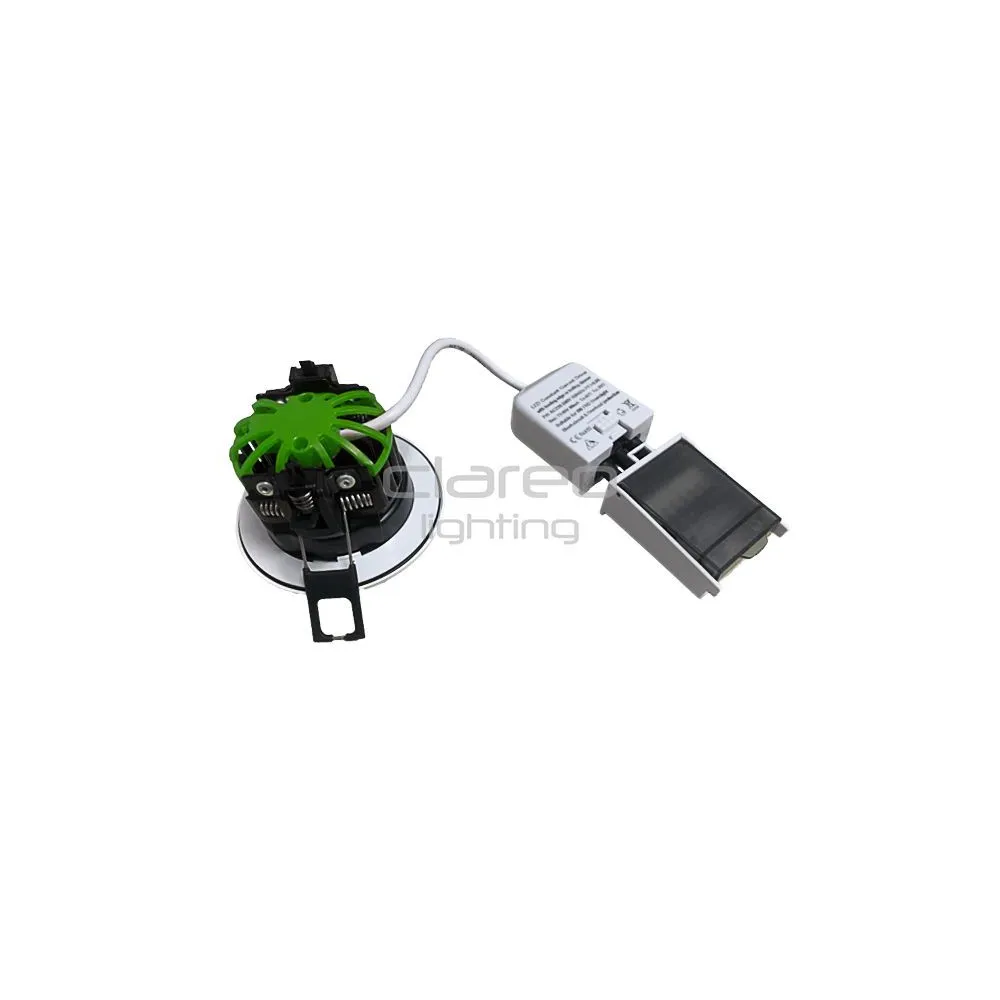

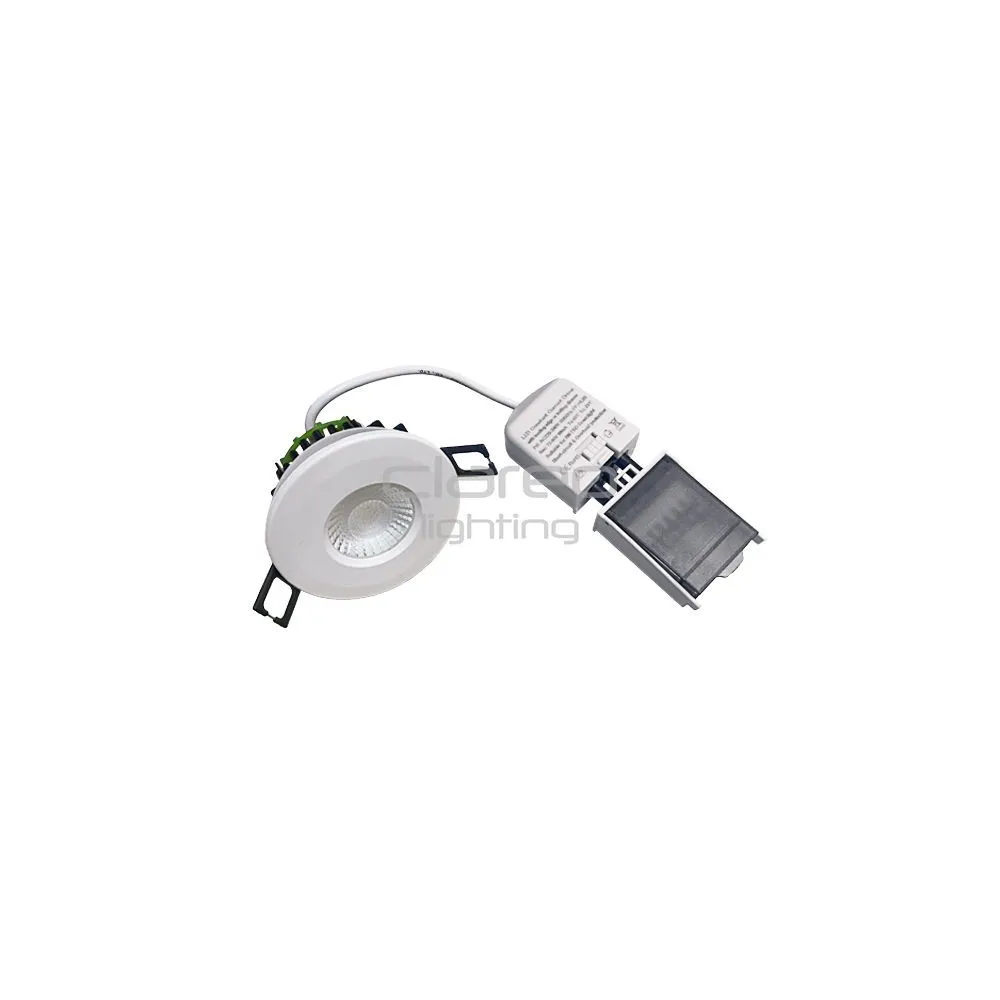

- Easy handling: Two-part junction box with lever system

- For all projects: Color temperature selector 2700 / 3000 / 4000 / 6000 K (adjustable from the front)

- Ideal for housing: Can be covered with any type of insulating material and Fire resistant

Product guaranteed for 7 years for 50,000 hours of operation.

Interchangeable trims: White RAL 9003 (supplied as standard with the product), black RAL 9005, chrome.

Box contents: 1 MiniRay + 1 junction box + 1 white trim

Key features:

• Quality-price ratio

• Compatible with RT2020 BEPOS

• Temperature selector 2700-3000-4000-6000 K

• Coverable and Fire resistant

• IP65, can be installed in volume 2

• Passes the 850°C glow wire test

Ref: DOW.102222

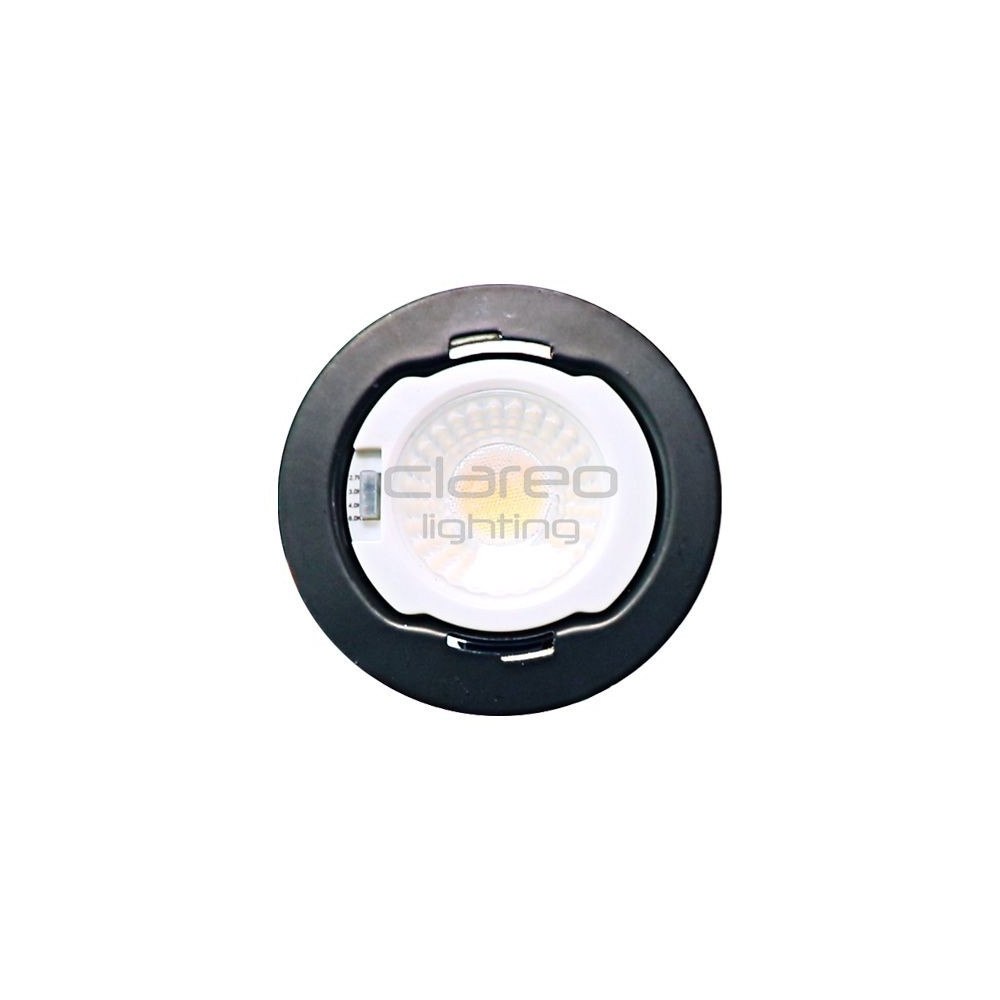

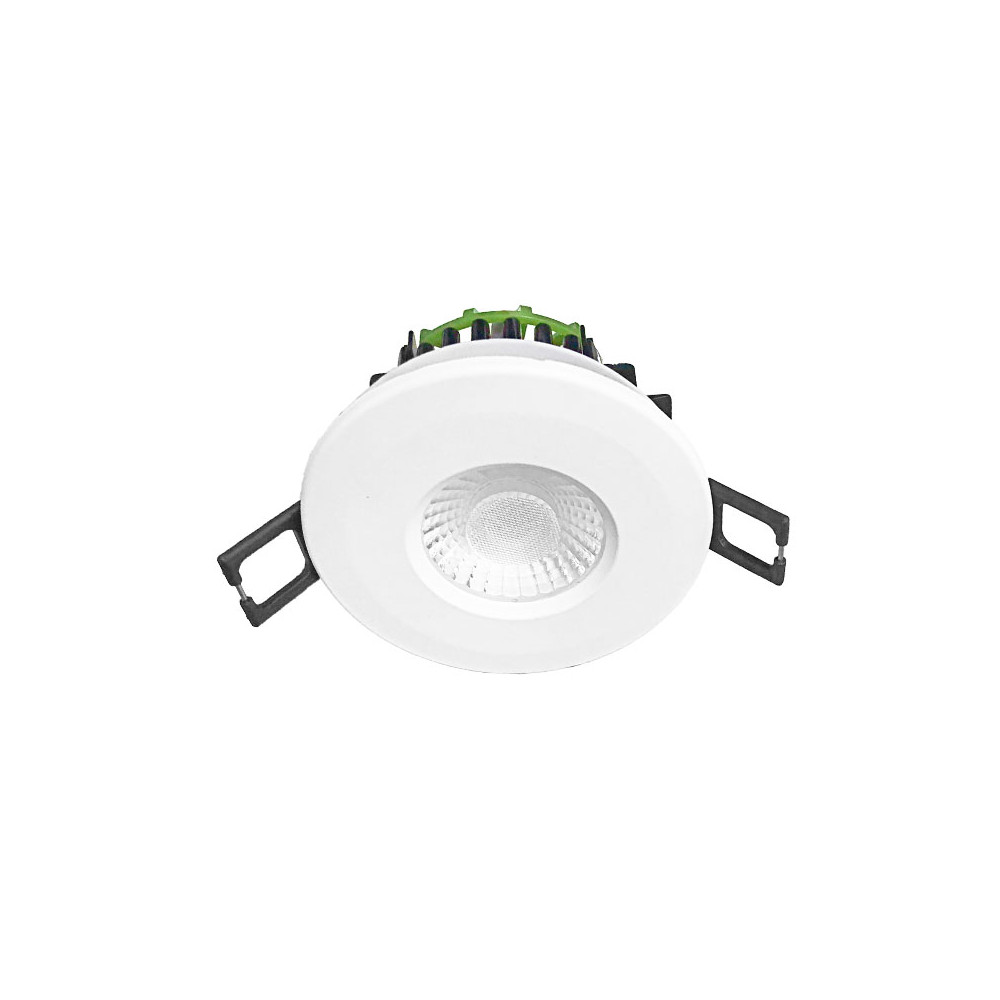

MiniRay CLAREO 8W EasyClip RT2020 TECH

save_alt Download the technical sheet

Color

Switch 2700-3000-4000-6000K

Angle

In stock, next day delivery before 1 PM
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

General characteristics
Lifetime 50 000 h
Brand CLAREO
Range TECH
Product family Downlights Mini
Repairable YES
Warranty 7 years
Electrical characteristics
Voltage 200-240 V AC
Power 8 W
Electrical class Class II
Dimmable PHASE (TRIAC)
Facteur de puissance > 0.8
Taux de distorsion harmonique < 40%
Power range 0-25 W
EU energy class 2019/2015 F
Lighting characteristics
Technology LED
Lumens output 800 lm
Energy savings - 20 %
Lumens efficiency 100 lm/W
Lifetime LXBY L80B10
Diffuser Opale
Beam Angle 60°
Photobiological risk GR0 - No risk
IRC > 80
UGR < 25
Lumens range 800-1099 lm
Physical characteristics and dimensions
Diameter 88 mm
Height 60 mm
Net weight 0.3 kg
Materials Aluminum
Waterproof YES
IP IP65
IK IK02
Product color White
Diameter range 51-100 mm
Cut-out 67 mm
Working temperature -25 °C to 40 °C
Detailed color White
Installation mode Recessed
Type SMD 2835
Standards and regulations
Standards CE, RoHS
