New ultra-slim downlight ADVANCE 2

Ultra-slim, you can install this downlight anywhere, even in places with very low false ceiling height. This product is compatible with various existing installations (False ceiling tiles, Staff, Drywall, etc.).

Thanks to the wide range of recessed diameters compatible with most existing products on the market, this downlight is ideal for both new installations and relamping.

This product is equipped with a polycarbonate diffuser and a high-performance PMMA LGP, all combined with an aluminum housing for optimal heat dissipation. This ultra-slim downlight has a lifespan of 60,000 hours and comes with a 7-year warranty.

Box contents: 1 pre-wired DownRay Flat with male quarter-turn connector and 1 female quarter-turn connector.

accessories: dimmable drivers.

Key features:

- Excellent value for money

- Reliability and durability, 7-year warranty

- Ultra-slim design

- PMMA diffuser

Ref: DOW.8930

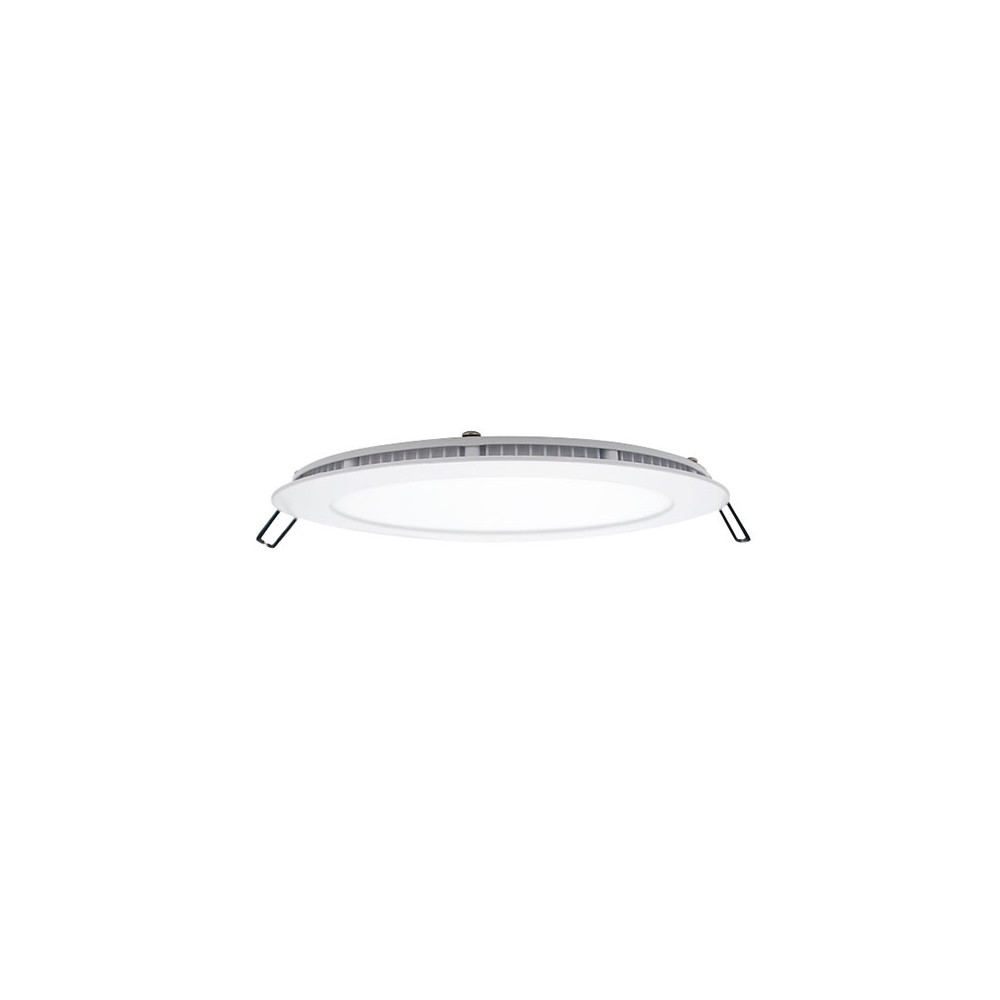

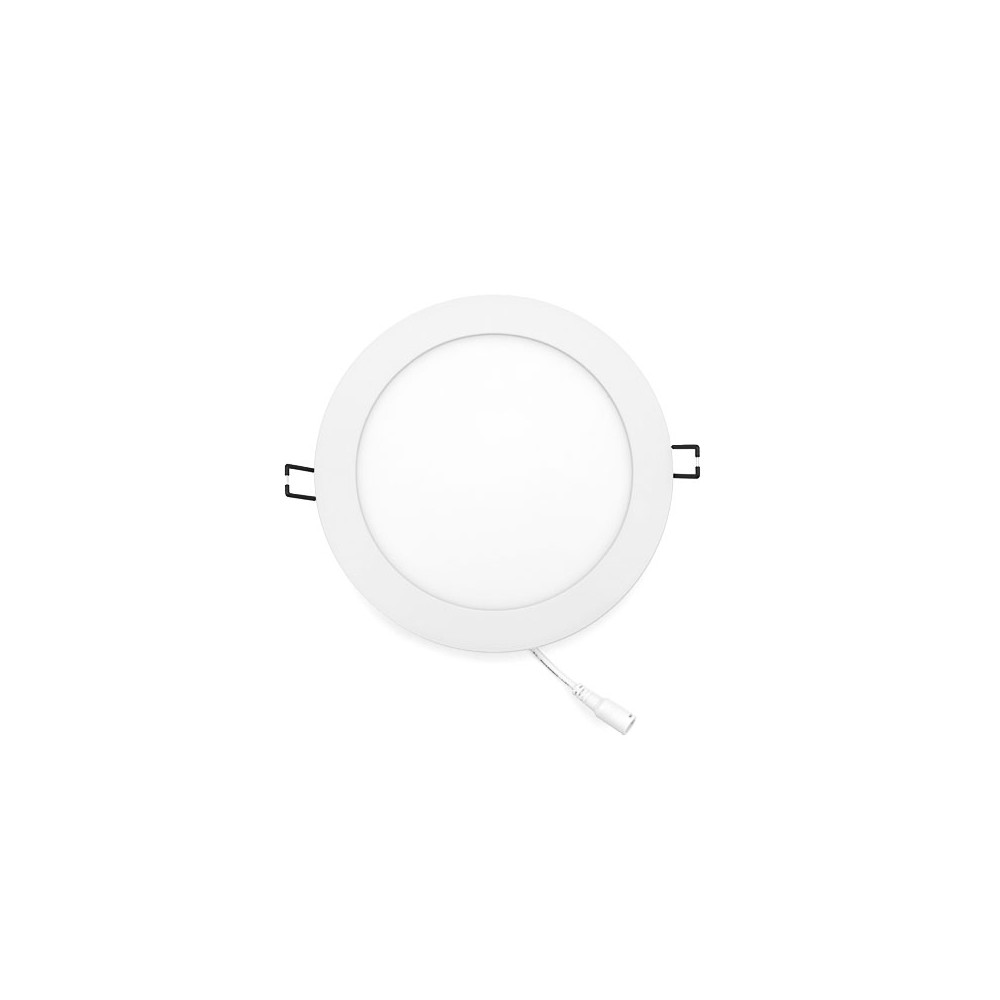

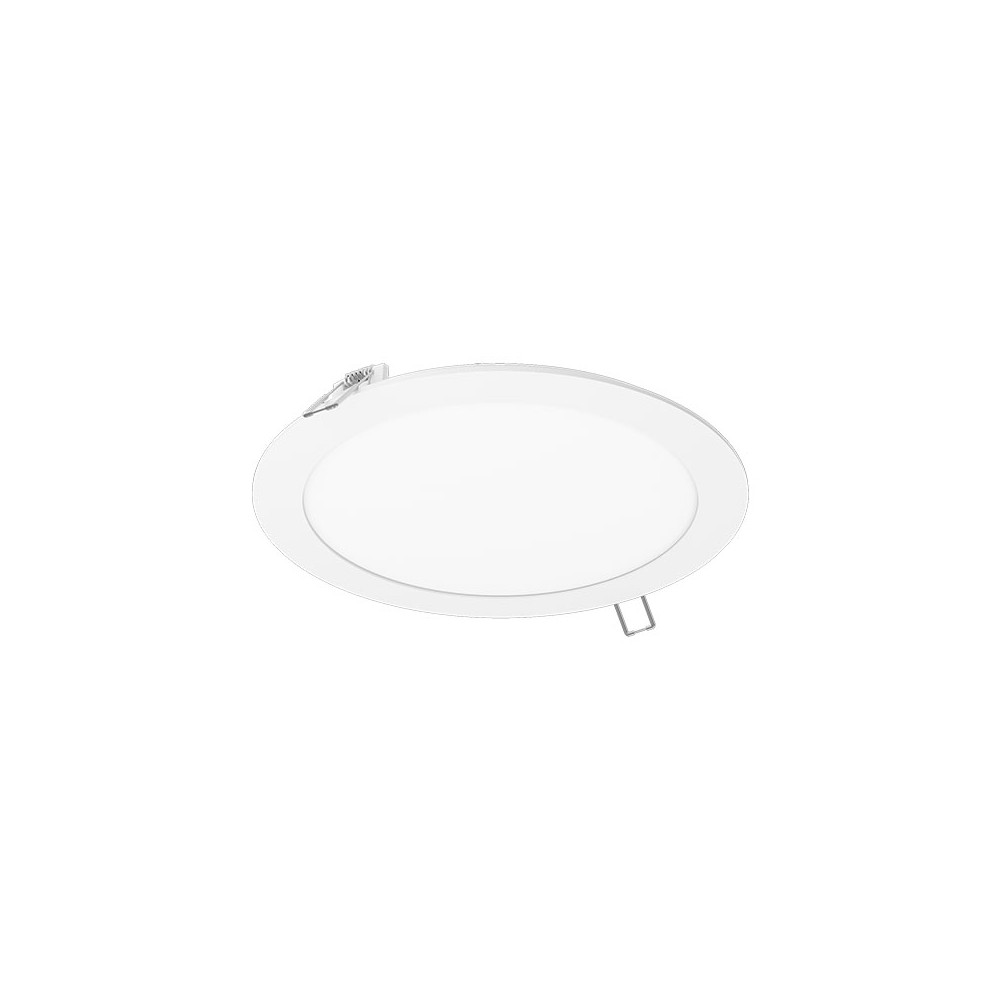

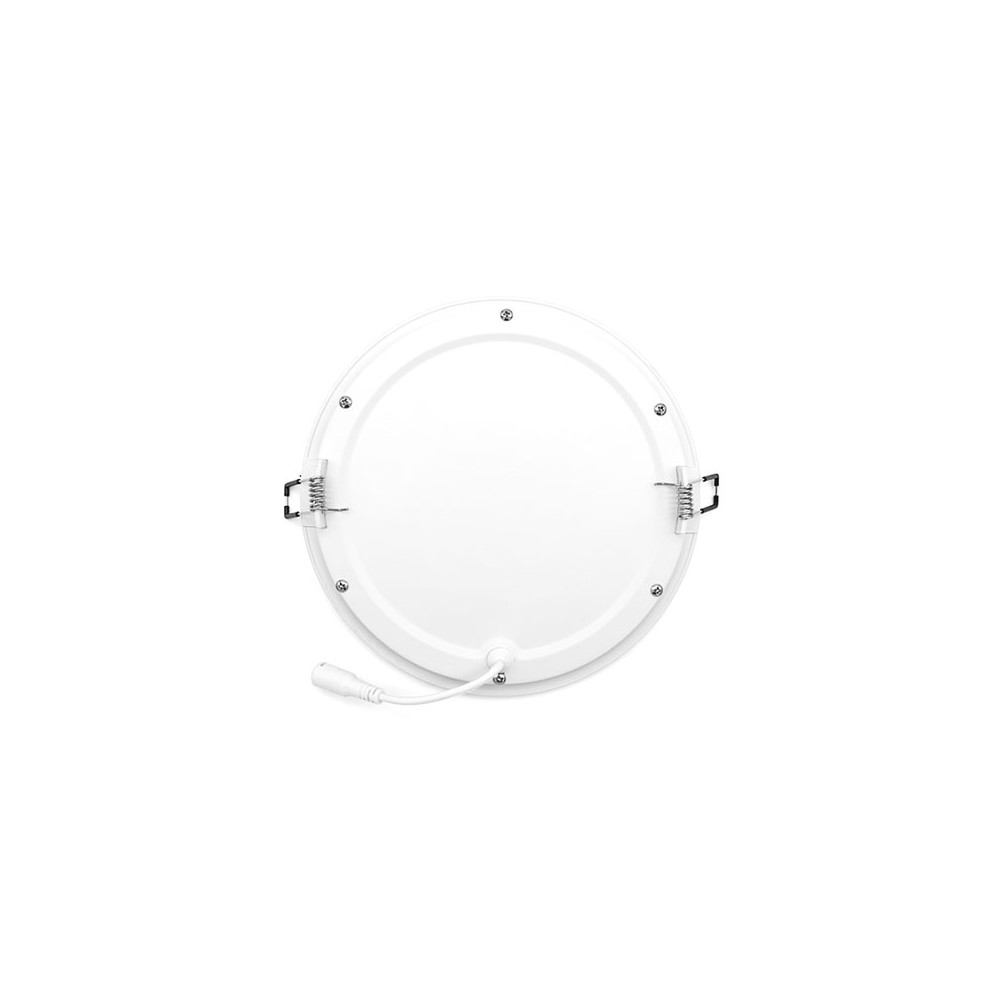

DownRay Flat CLAREO 15W ADVANCE 2 Without Driver

save_alt Download the technical sheet

Color

White neutral - 4000K

Angle

In stock, next day delivery before 1pm
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

General characteristics
Lifetime 60 000 h
Brand CLAREO
Range ADVANCE
Product family Downlights
Installation environment Point of sale, Hotel, Office
Quick installation YES
Repairable YES
Warranty 7 years
Electrical characteristics
Voltage 33-38 V DC
Current Up to 350 mA
Power 15 W
Electrical class Class III
Power range 0-25 W
EU energy class 2019/2015 G
Lighting characteristics
Technology LED
Lumens output 1100 - 1250 lm
Lumens efficiency 80 lm/W
Lifetime LXBY L80B10
Diffuser Opale
Beam Angle 120 deg
Photobiological risk GR0 - No risk
IRC > 80
UGR < 25
Lumens range 1100-1599 lm
Physical characteristics and dimensions
Diameter 200 mm
Height 21 mm
Net weight 0.6 kg
Materials Aluminum
Waterproof No
IP IP44
IK IK07
Product color White
Diameter range 151-200 mm
Cut-out 185 mm
Working temperature -20 °C to 45 °C
Detailed color White
Installation mode Recessed
Type SMD 2835
Standards and regulations
Standards CE, RoHS
