New ADVANCE 2 extra-flat downlight

This ultra-thin downlight can be easily installed anywhere, even if your plenum height is very low. It is also compatible with all types of installation (drywall, suspended ceiling, ceiling tiles, etc.)

Its wide range of recessed diameters, compatible with most existing products on the market, makes it an ideal product for both relamping projects and new installations.

This extra-flat downlight is equipped with an aluminum housing for optimal heat dissipation, combined with a polycarbonate diffuser and a high-performance PMMA LGP.

This product has a long lifespan of 60,000 hours and comes with a 7-year warranty.

Box contents: 1 pre-wired DownRay Flat with male quarter-turn connector and 1 female quarter-turn connector.

accessories: dimmable drivers.

Key features:

- Excellent value for money

- Reliability and durability, 7-year warranty

- Ultra-thin design

- PMMA diffuser

Ref: DOW.8934

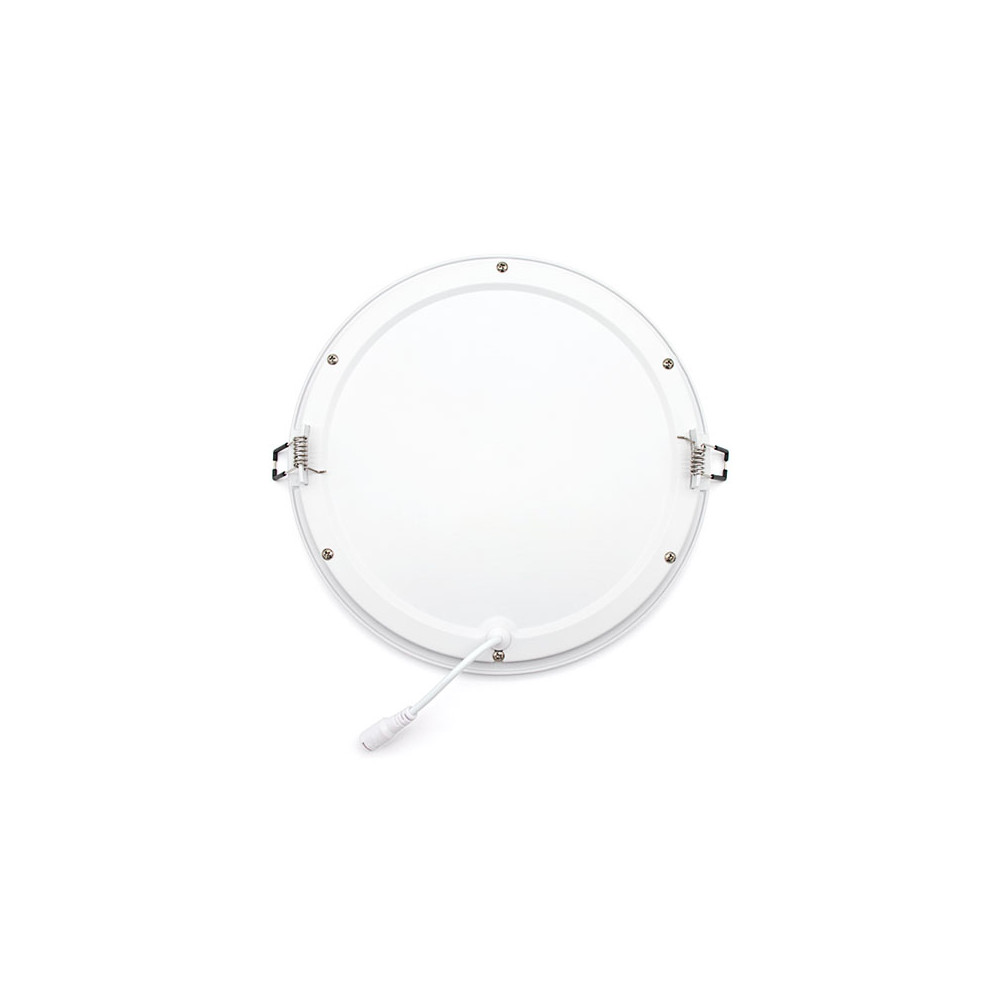

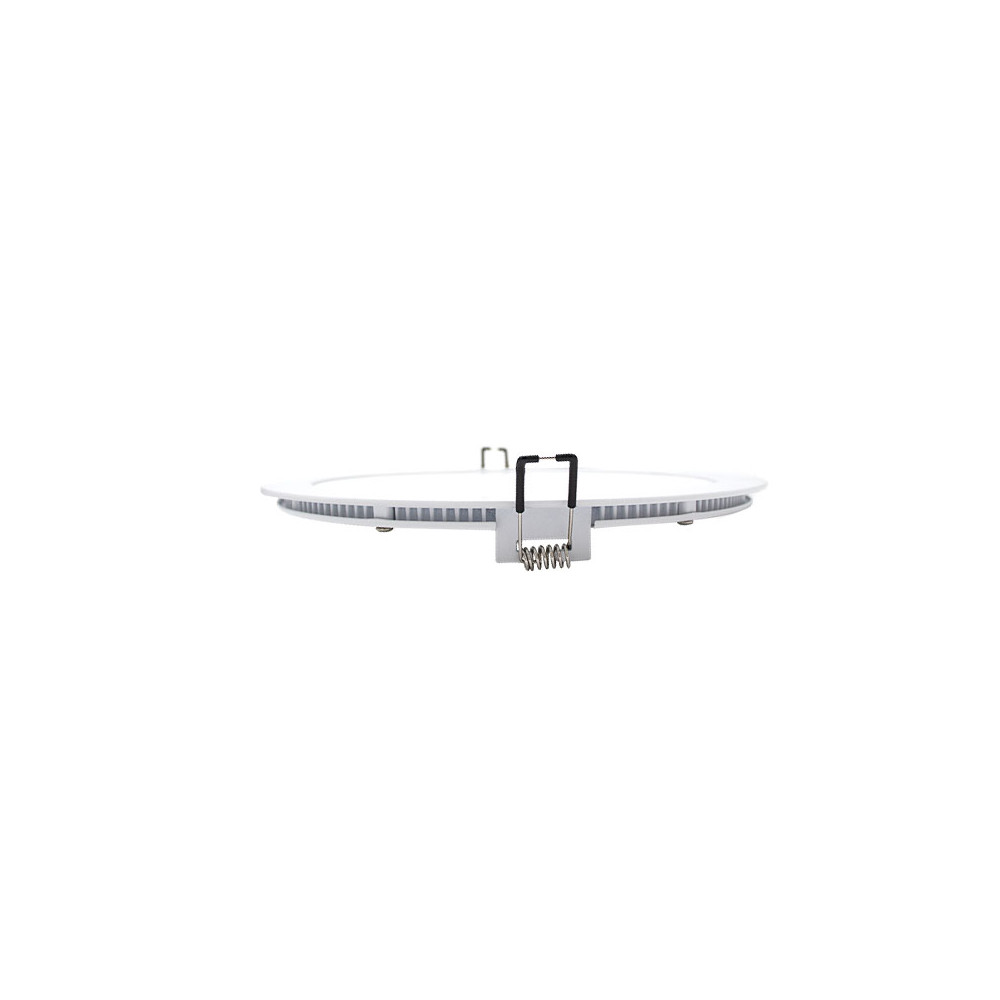

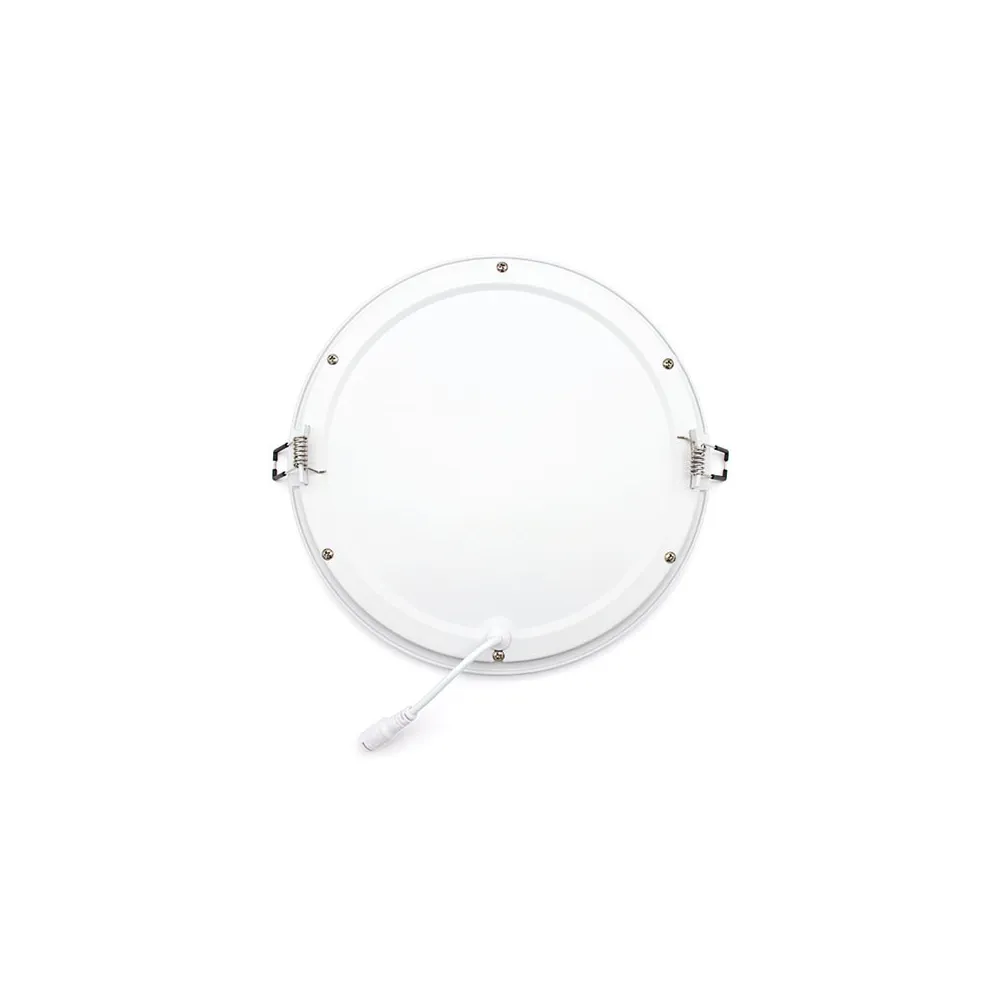

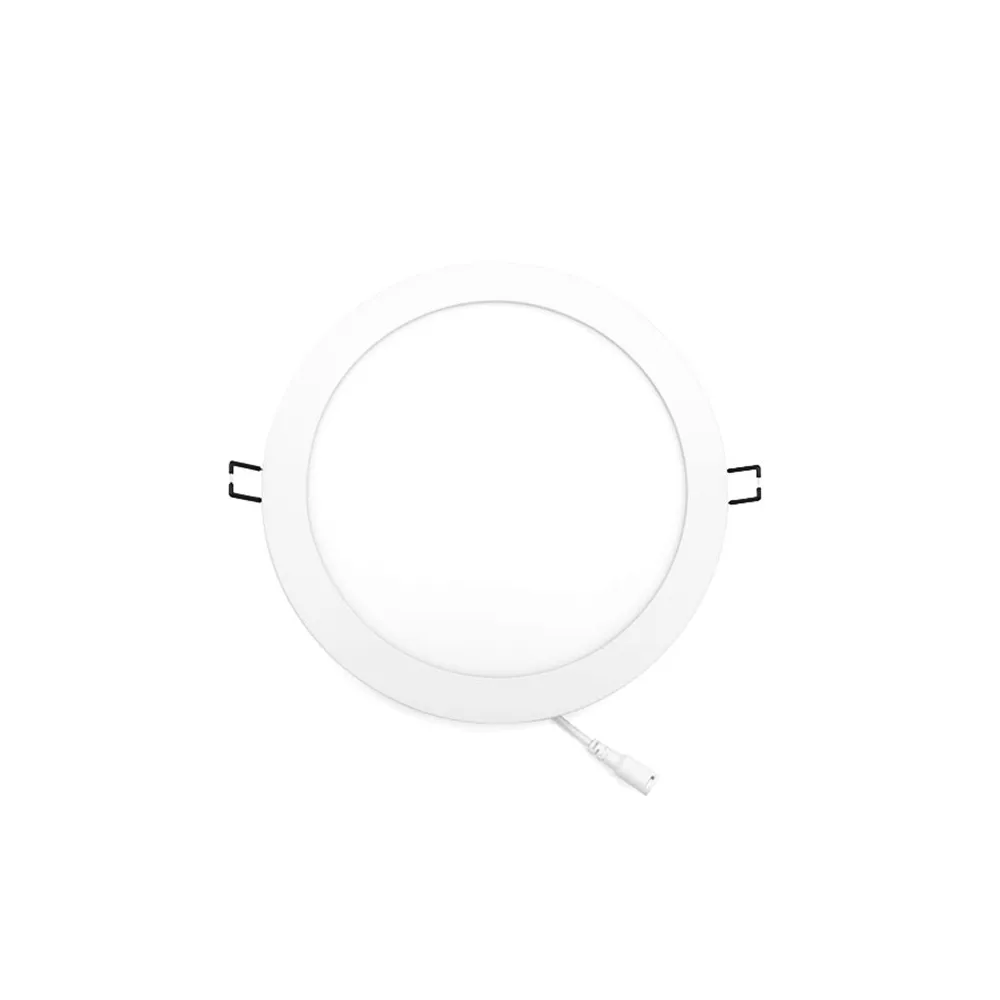

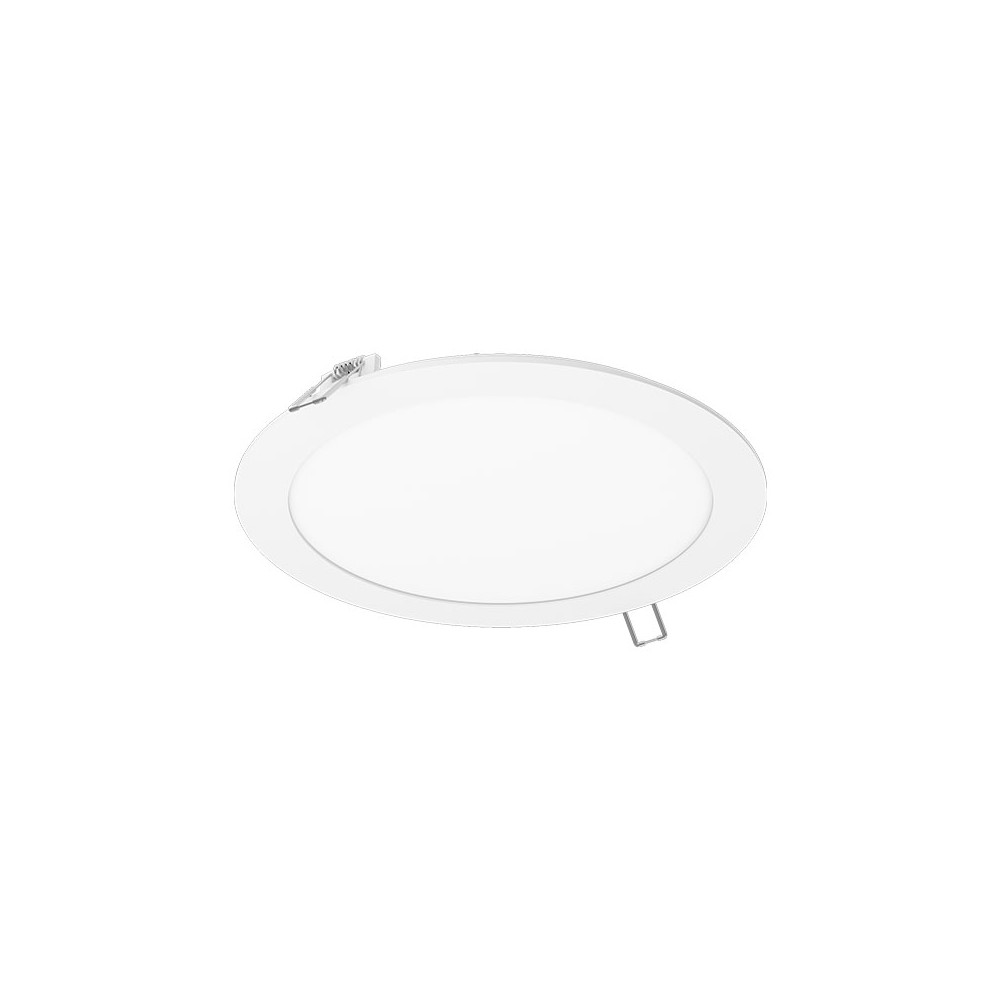

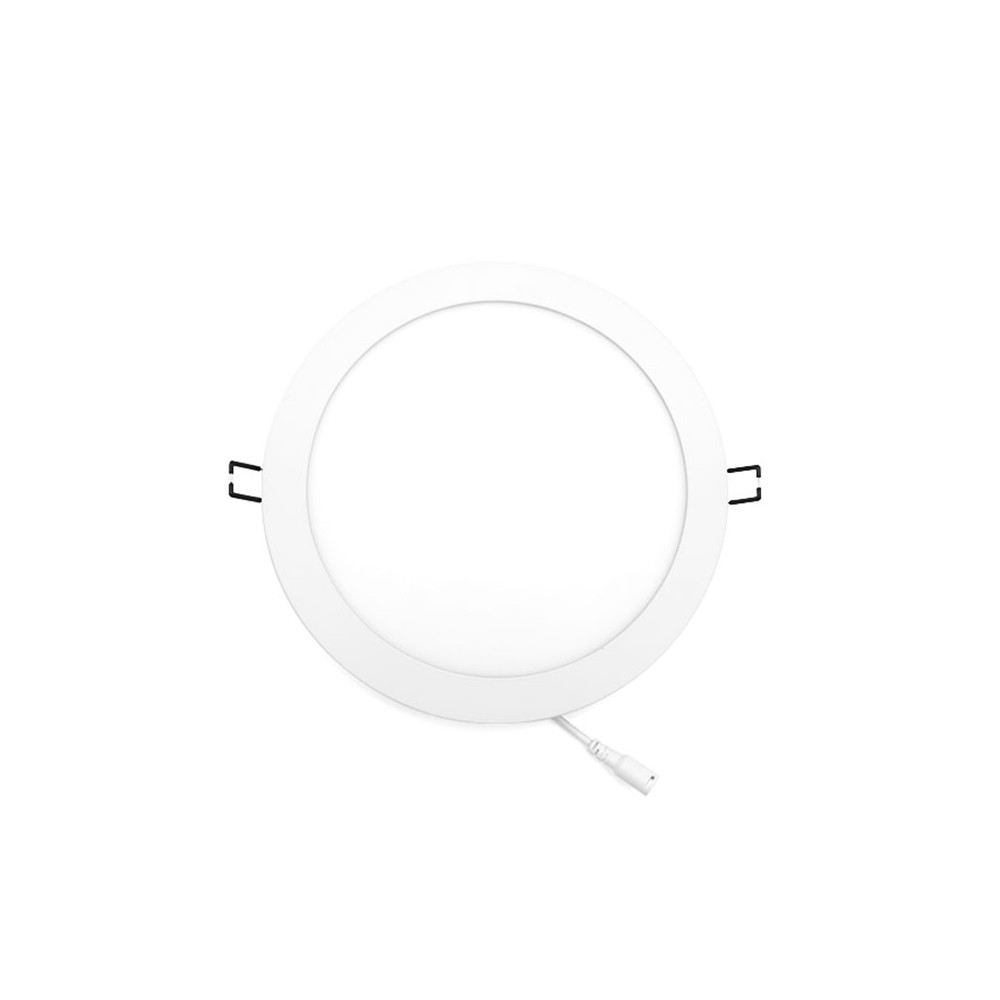

DownRay Flat CLAREO 20W ADVANCE 2 Without Driver

save_alt Download the technical sheet

Color

White neutral - 4000K

Angle

In stock, next day delivery before 1 PM
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

General characteristics
Lifetime 60 000 h
Brand CLAREO
Range ADVANCE
Product family Downlights
Installation environment Point of sale, Hotel, Office
Quick installation YES
Repairable YES
Warranty 7 years
Electrical characteristics
Voltage 33-38 V DC
Current Up to 500 mA
Power 20 W
Electrical class Class III
Power range 0-25 W
EU energy class 2019/2015 F
Lighting characteristics
Technology LED
Lumens output 1590 - 1780 lm
Energy savings - 10%
Lumens efficiency 90 lm/W
Lifetime LXBY L80B10
Diffuser Opale
Beam Angle 120 deg
Photobiological risk GR0 - No risk
IRC > 80
UGR < 24
Lumens range 1600-1999 lm
Physical characteristics and dimensions
Diameter 238 mm
Height 21 mm
Net weight 0.8 kg
Materials Aluminum
Waterproof No
IP IP44
IK IK07
Product color White
Diameter range 201-250 mm
Cut-out 225 mm
Working temperature -20 °C to 45 °C
Detailed color White
Installation mode Recessed
Type SMD 2835
Standards and regulations
Standards CE, RoHS
