New DownRay Slim ADVANCE

This flat downlight can be installed in all locations, even those with low plenum height. Compatible with all types of installation (Staff, Drywall, Suspended ceiling tiles, etc.)

Ideal for new installations as well as relamping, thanks to the wide range of recessed diameters, compatible with most existing products on the market.

This slim downlight is equipped with an opal polycarbonate diffuser and a particularly resistant plastic (PA) structure. 60,000 hours lifespan and 7-year warranty.

Box contents: 1 DownRay Slim pre-wired with the male quarter-turn connector and 1 female quarter-turn connector included in the box.

accessories: dimmable drivers and ON/OFF drivers.

Key features:

- Excellent value for money

- Reliability and durability, 7-year warranty

- Flat design

- Opal polycarbonate diffuser

Ref: DOW.101800

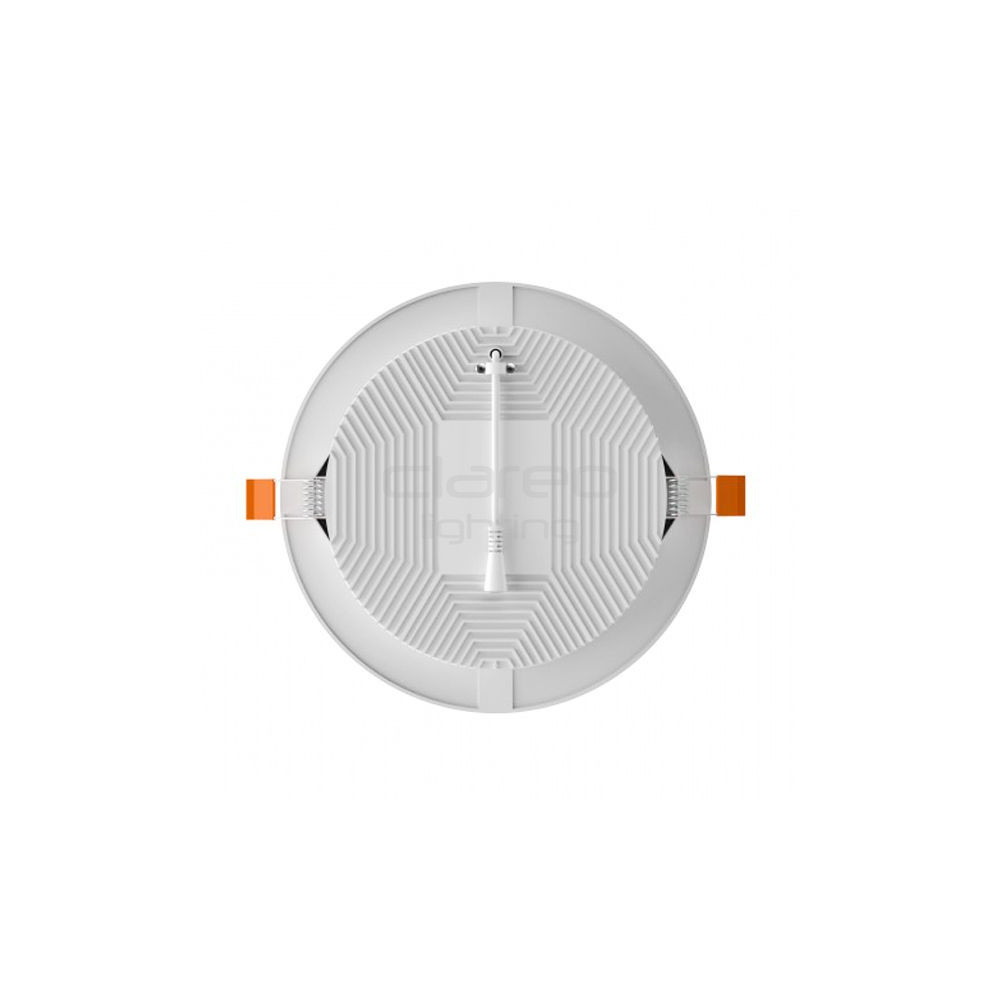

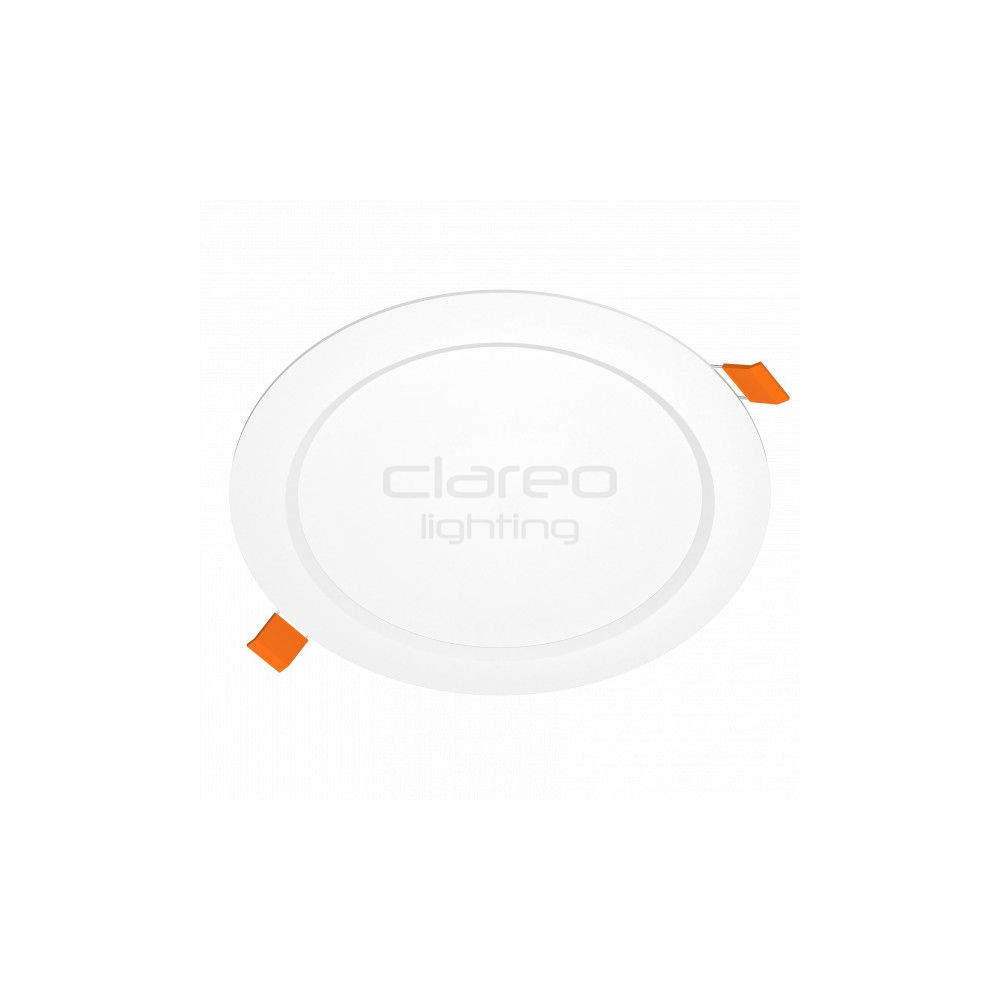

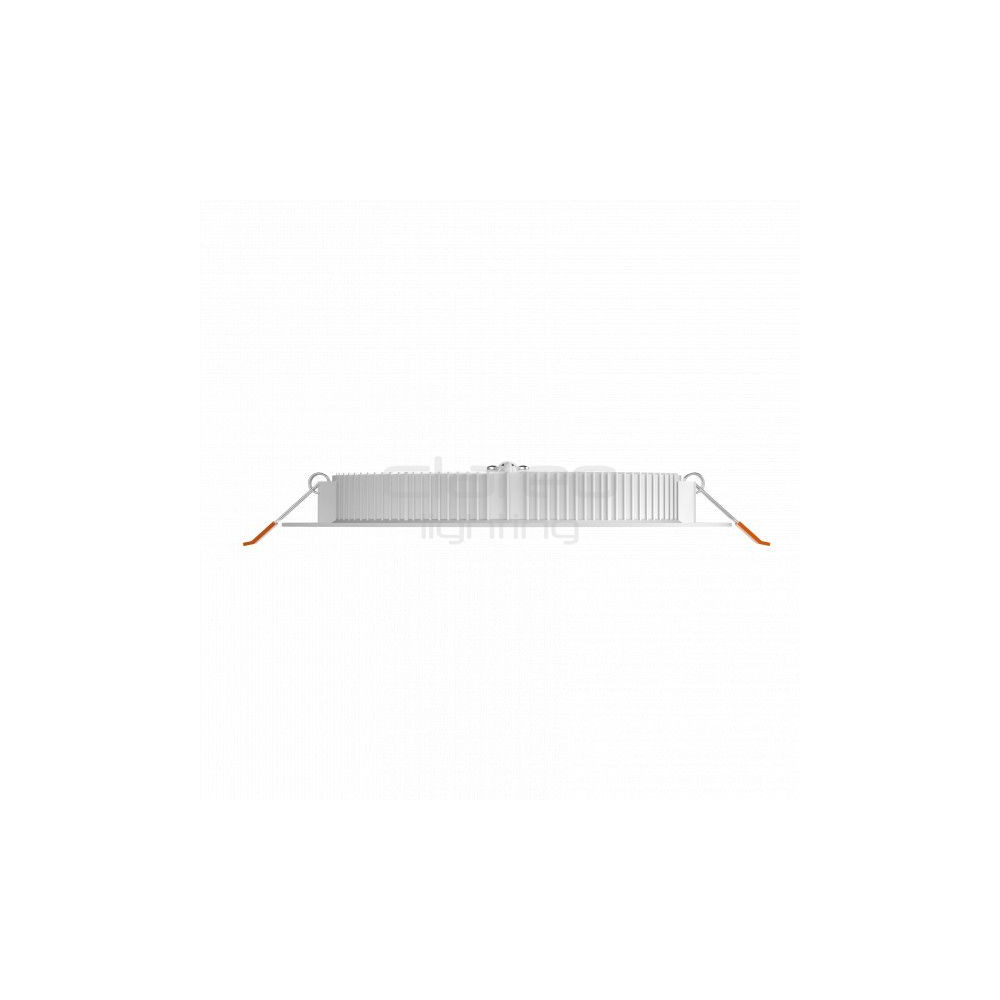

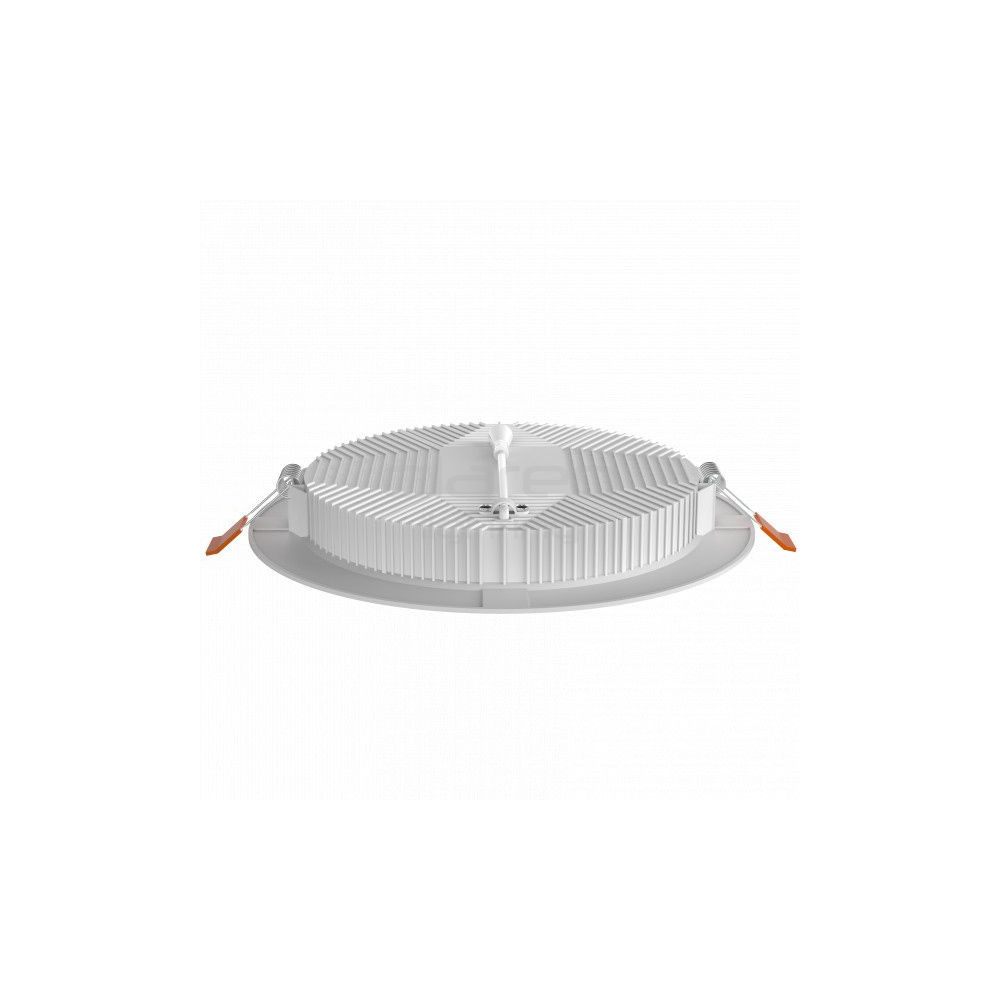

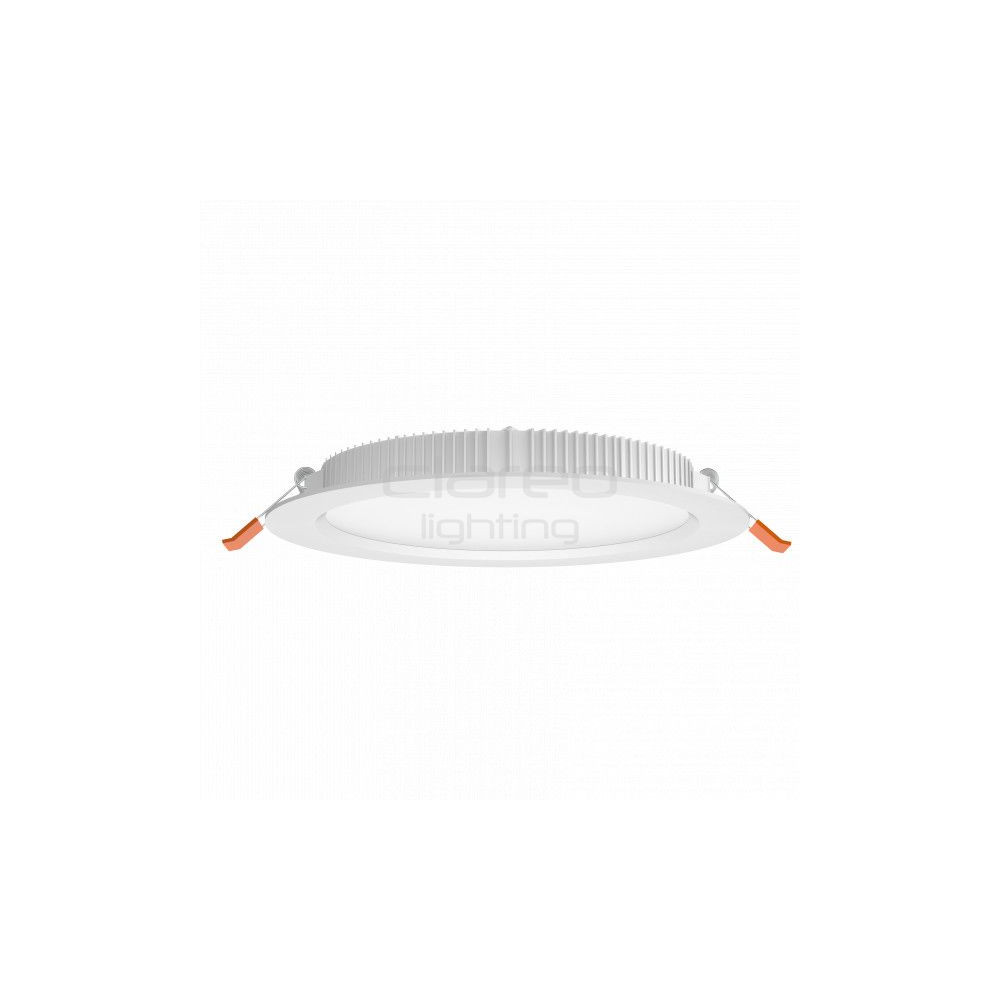

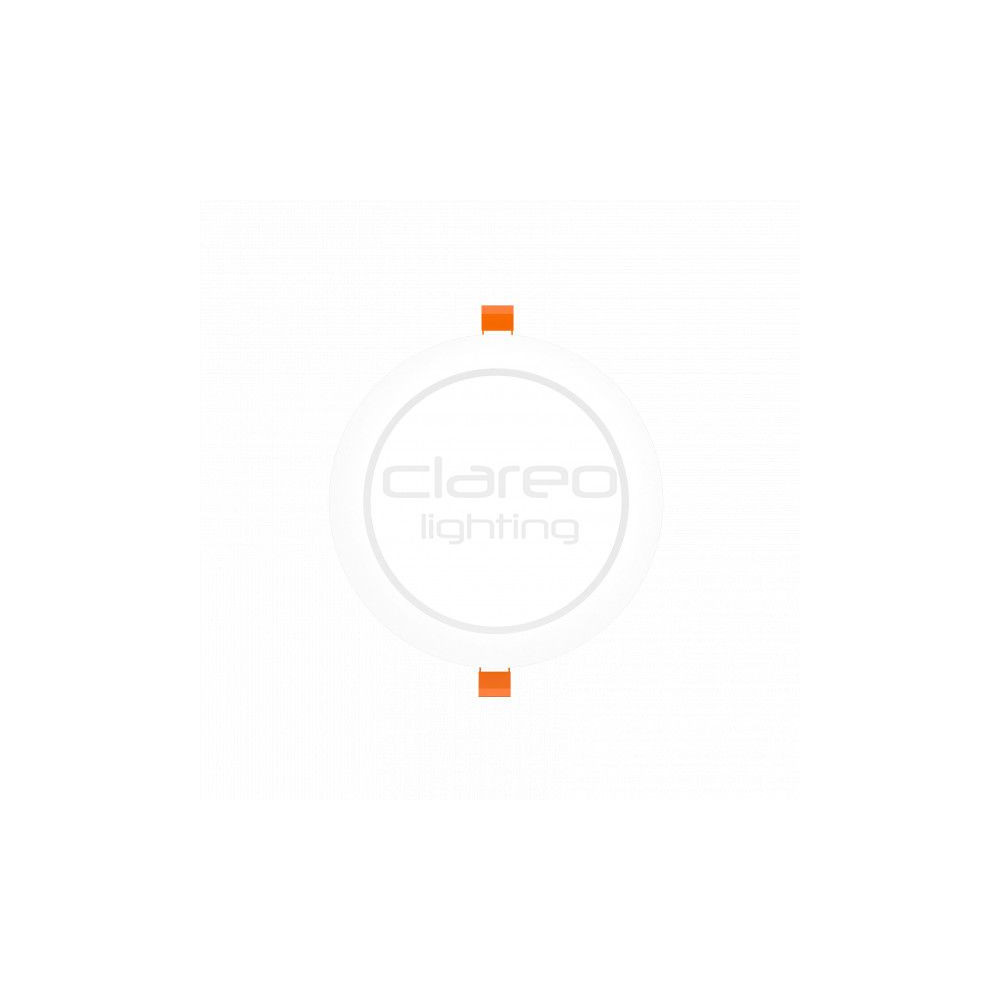

DownRay Slim CLAREO 20W ADVANCE Without Driver

save_alt Download the technical sheet

Color

White neutral - 4000K
In stock, next day delivery before 1 PM
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

General characteristics
Lifetime 60 000 h
Brand CLAREO
Range ADVANCE
Product family Downlights
Installation environment Point of sale, Hotel, Office
Quick installation YES
Repairable YES
Warranty 7 years
Electrical characteristics
Voltage 25-42 V DC
Current Up to 500 mA
Power 20 W
Electrical class Class III
Power range 0-25 W
EU energy class 2019/2015 F
Lighting characteristics
Technology LED
Lumens output 1860 - 2064 lm
Energy savings - 20 %
Lumens efficiency 100 lm/W
Lifetime LXBY L80B10
Diffuser Opale
Photobiological risk GR0 - No risk
IRC > 80
UGR < 25
Lumens range 2000-2999 lm
Physical characteristics and dimensions
Diameter 190 mm
Height 28 mm
Net weight 0.2 kg
Materials Thermoplastic polyamide
Waterproof No
IP IP44
IK IK02
Product color White
Diameter range 151-200 mm
Cut-out 160 mm
Working temperature -20 °C to 45 °C
Detailed color White
Installation mode Recessed
Type SMD 2835
Standards and regulations
Standards CE, RoHS
