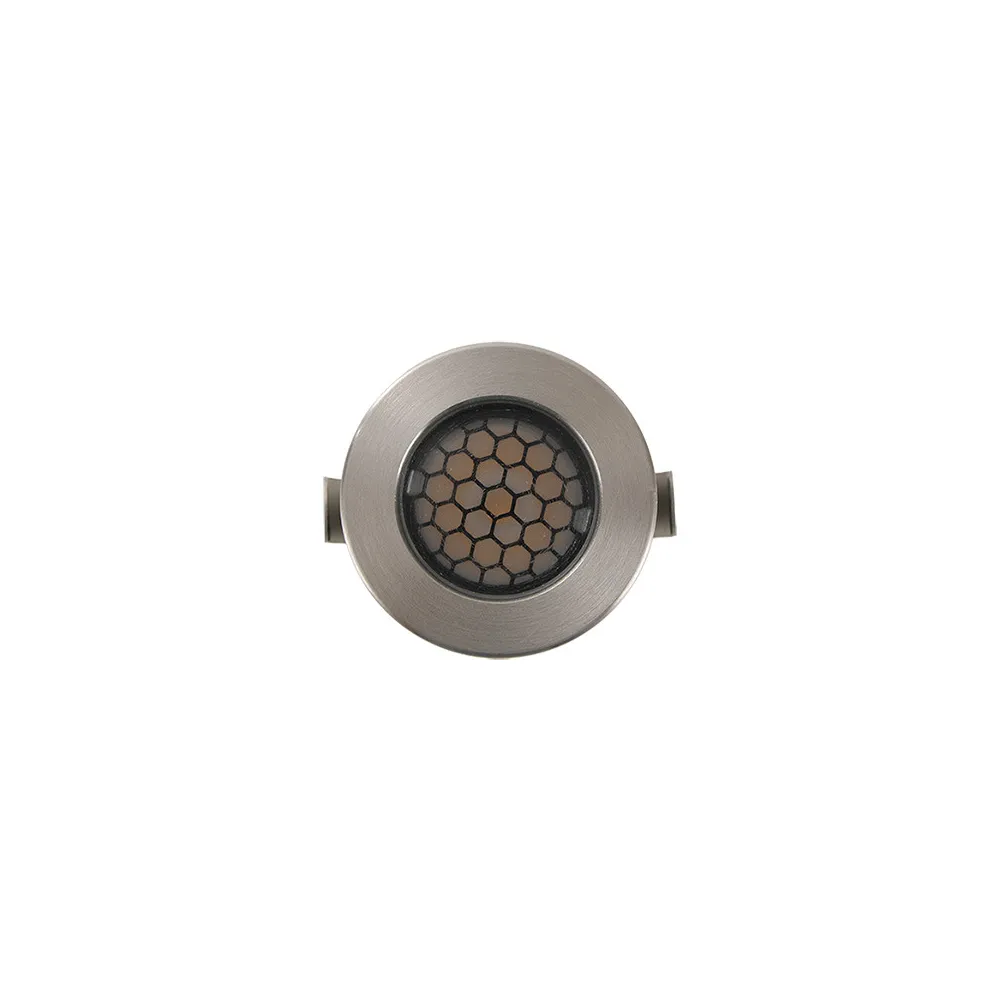

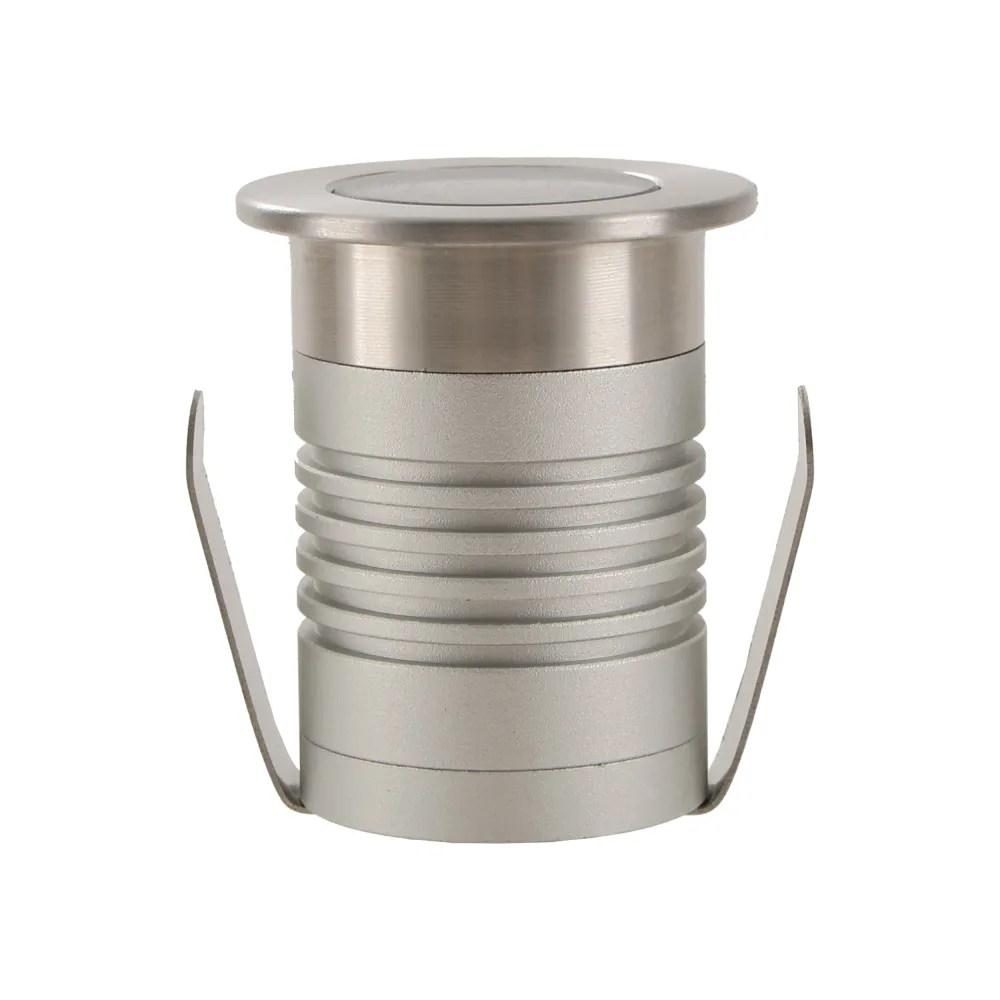

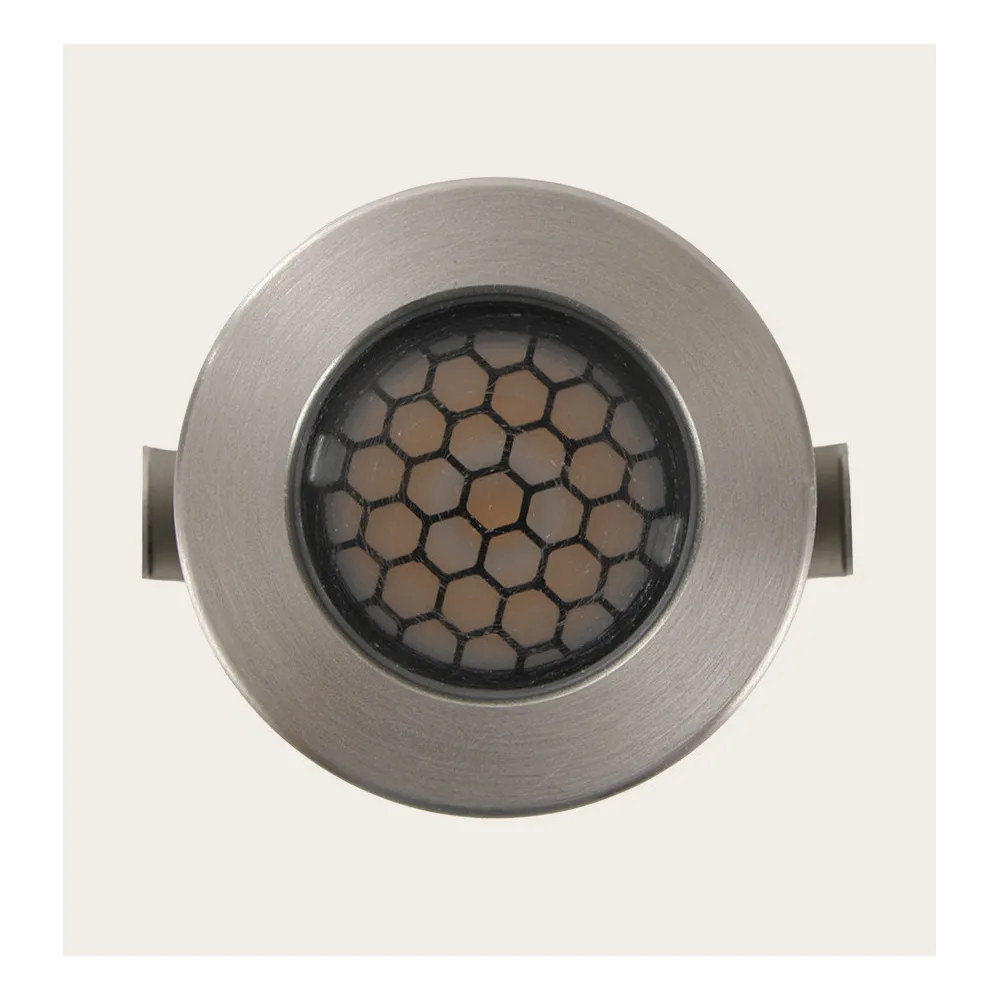

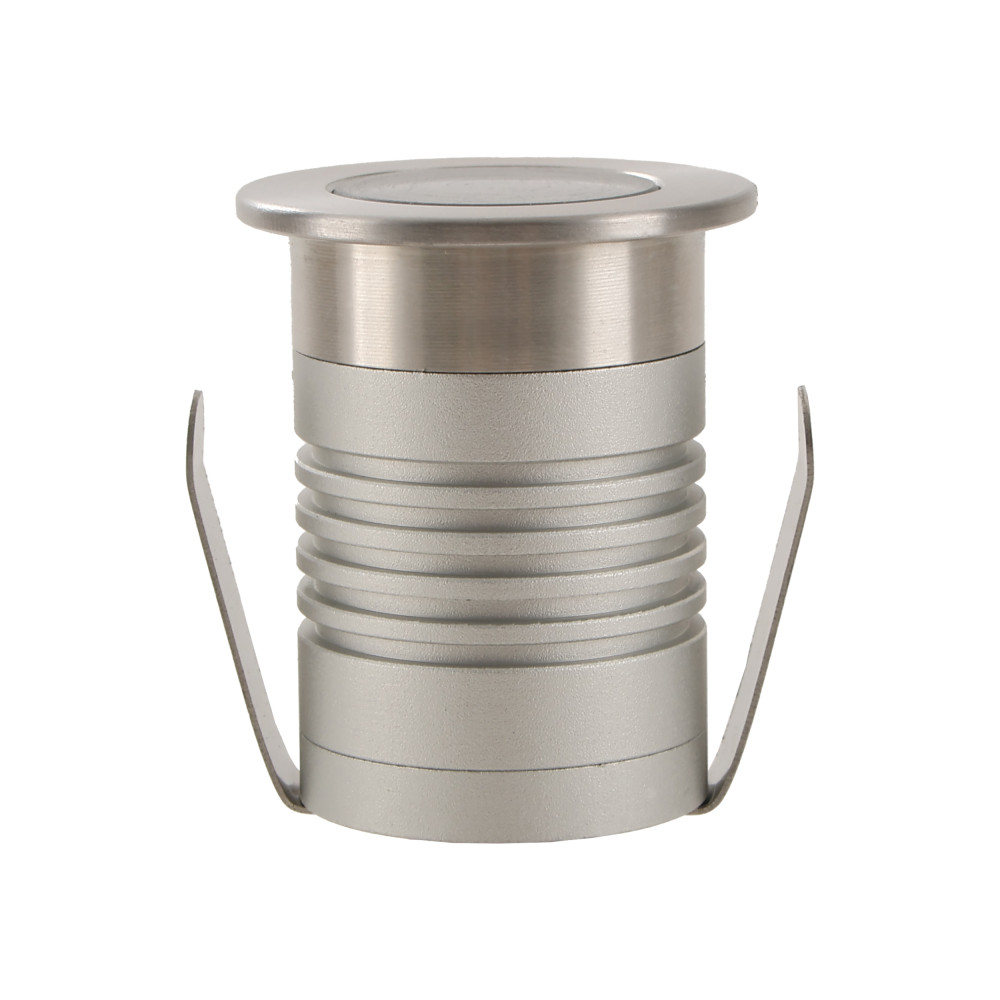

Designer In-Ground Recessed Light by Zambelis
Color: Stainless Steel
Materials: Stainless steel
Warranty: 3 years
Integrated LED
Use: Outdoor
Designer In-Ground Recessed Light by Zambelis
Color: Stainless Steel
Materials: Stainless steel
Warranty: 3 years
Integrated LED
Use: Outdoor
General characteristics
| Lifetime | 30,000 h |
|---|---|
| Brand | ZAMBELIS |
| Range | DESIGN |
| Product family | Ground lighting |
|---|---|
| Installation environment | Exterior |
| Warranty | 3 years |
Electrical characteristics
| Voltage | 24 V DC |
|---|---|
| Power | 1 W |
| Electrical class | Class I |
|---|---|
| EU energy class 2019/2015 | F |
Lighting characteristics
| Technology | LED |
|---|---|
| Lumens output | 51 - 57 lm |
| Lifetime LXBY | L70B50 |
| Diffuser | Honeycomb |
|---|---|
| Beam Angle | 15 deg |
| IRC > | 80 |
Physical characteristics and dimensions
| Diameter | 35 mm |
|---|---|
| Height | 52 mm |
| Net weight | 0.2 kg |
| Materials | Stainless steel |
| Waterproof | YES |
| IP | IP67 |
| IK | IK08 |
|---|---|
| Product color | Gray |
| Cut-out | ⌀35 x H70 mm |
| Working temperature | -35 °C to 50 °C |
| Detailed color | Stainless Steel |
| Installation mode | Recessed |
Standards and regulations
| Carbon footprint | 44,2 kgCO2eq |
|---|
