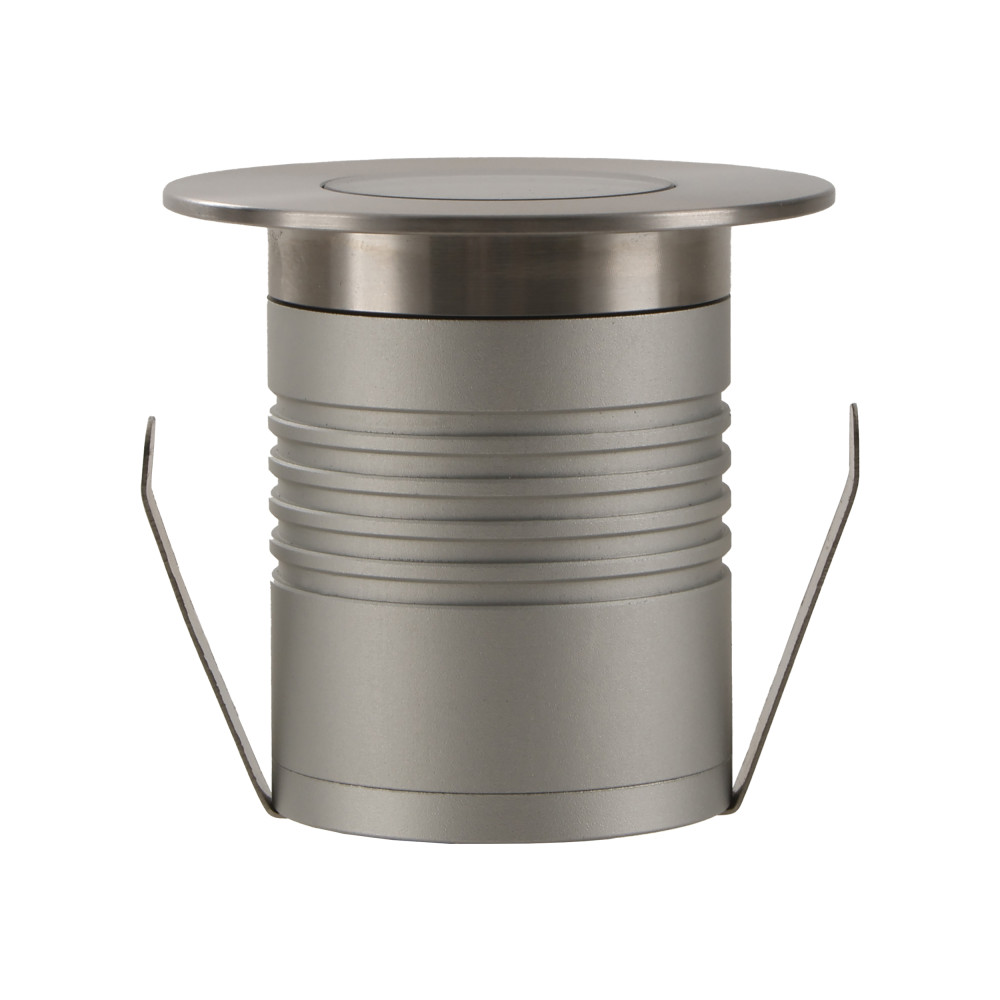

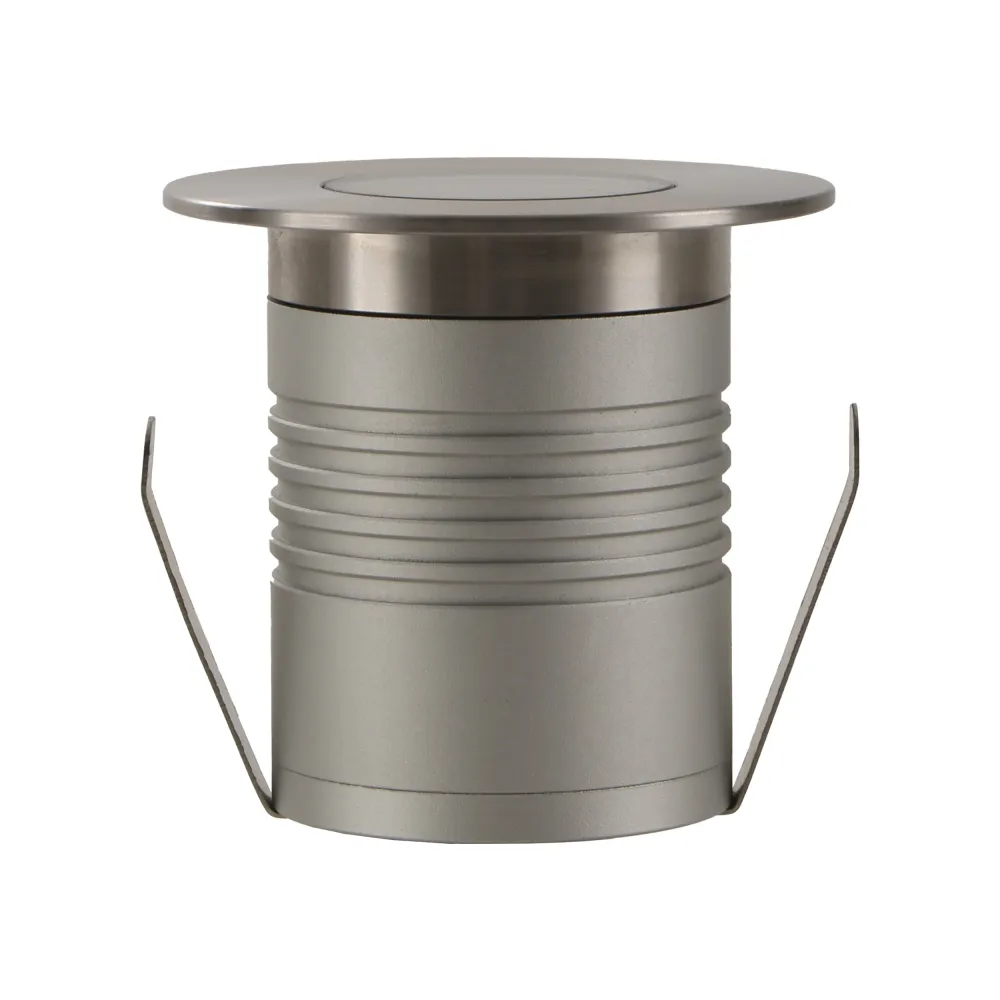

ZAMBELIS DESIGN Stainless Steel 24V Recessed Floor Light: concentrated 10° beam to highlight architectural details

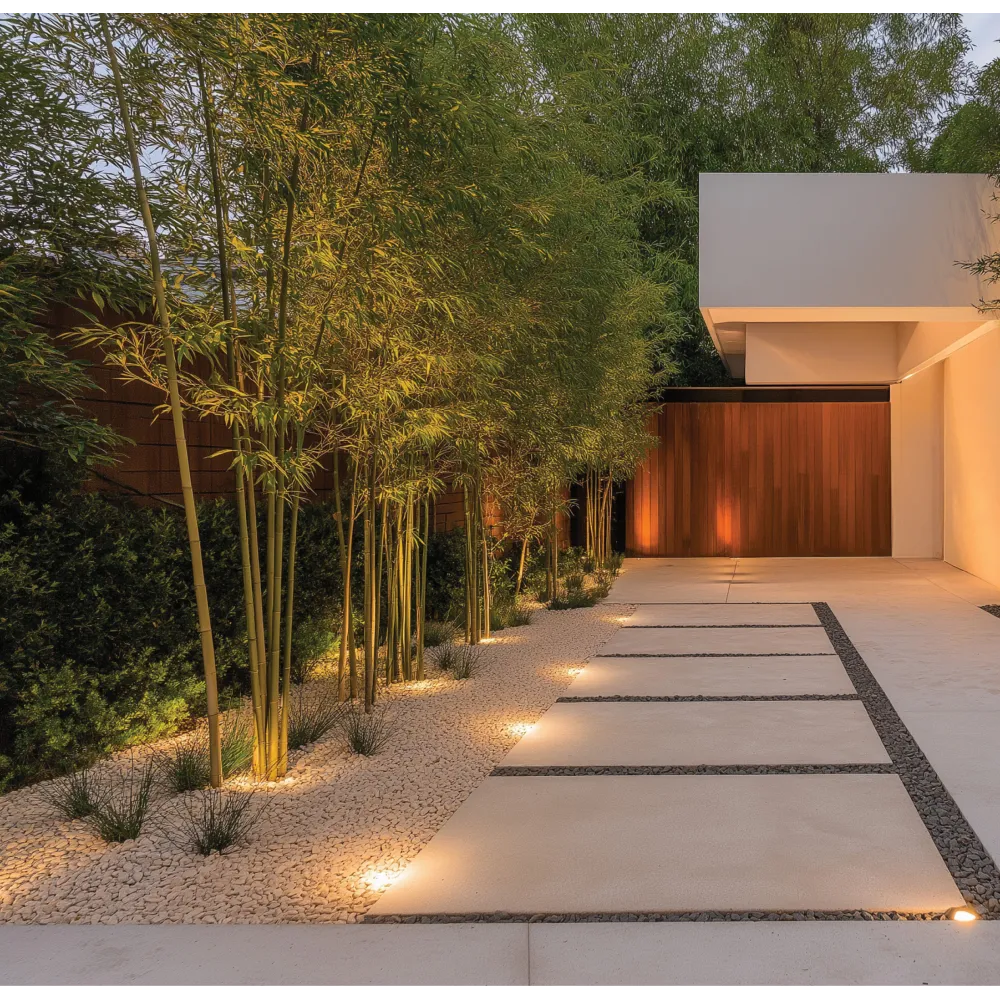

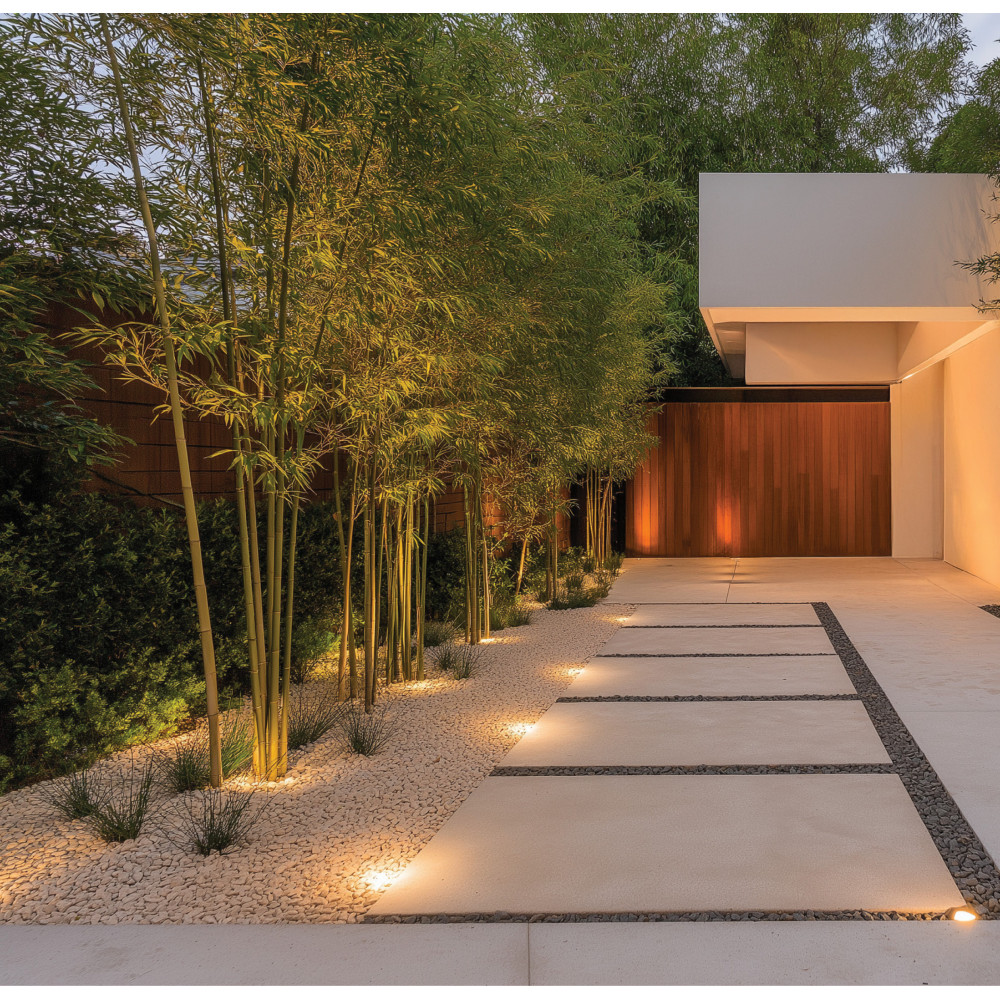

The ZAMBELIS DESIGN Stainless Steel E506 recessed floor light in stainless steel is designed for highly directional floor lighting, with an ultra-concentrated beam at 10°. Powered by 24V DC, it delivers 3W for 230 lm in warm light at 3,000 K. Its honeycomb diffuser precisely concentrates the light to highlight vegetation, surfaces, or architectural elements. This very narrow beam sets it apart from its counterpart E505 (24°), for applications requiring more pinpoint illumination.

IP67 protection, IK08 impact resistance, diameter Ø 45 mm. Lifespan 30,000 hours.

Accessories: 24V DC driver not included, available as an accessory.

Key features:

  • Ultra-concentrated 10° beam for pinpoint highlighting

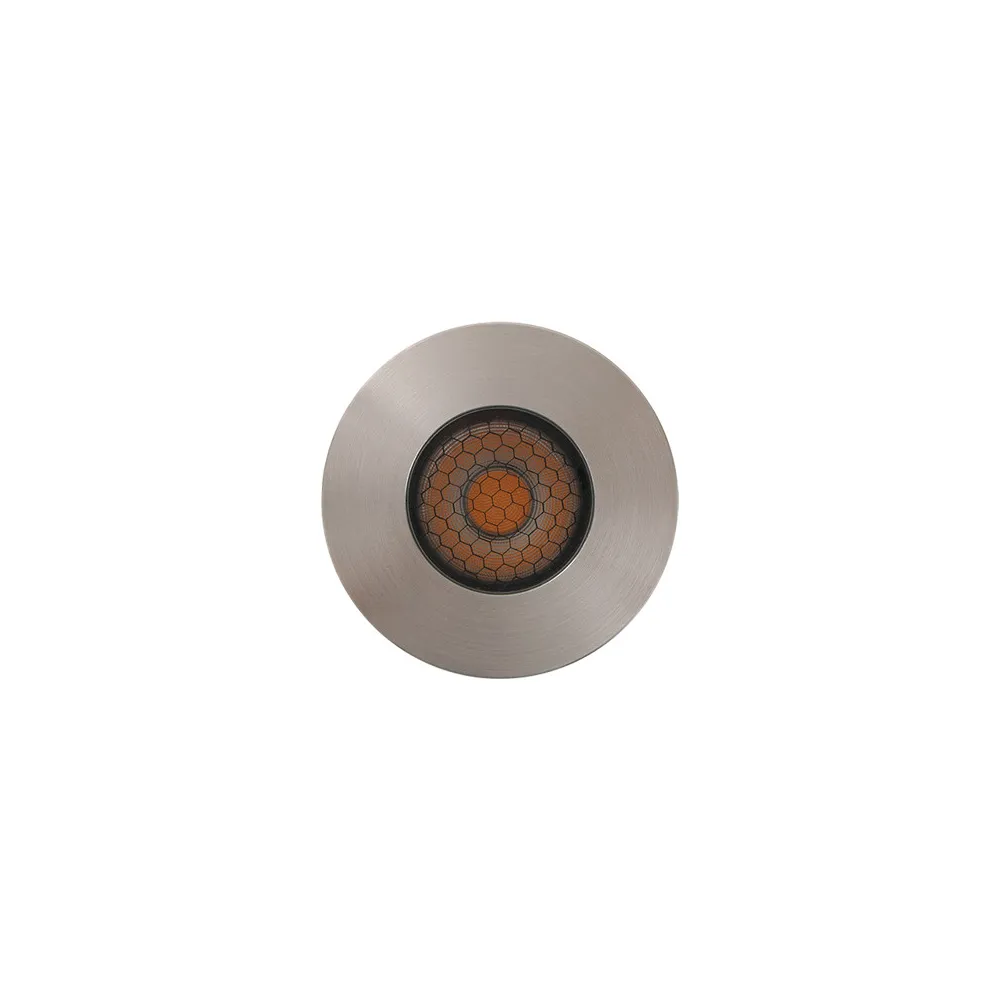

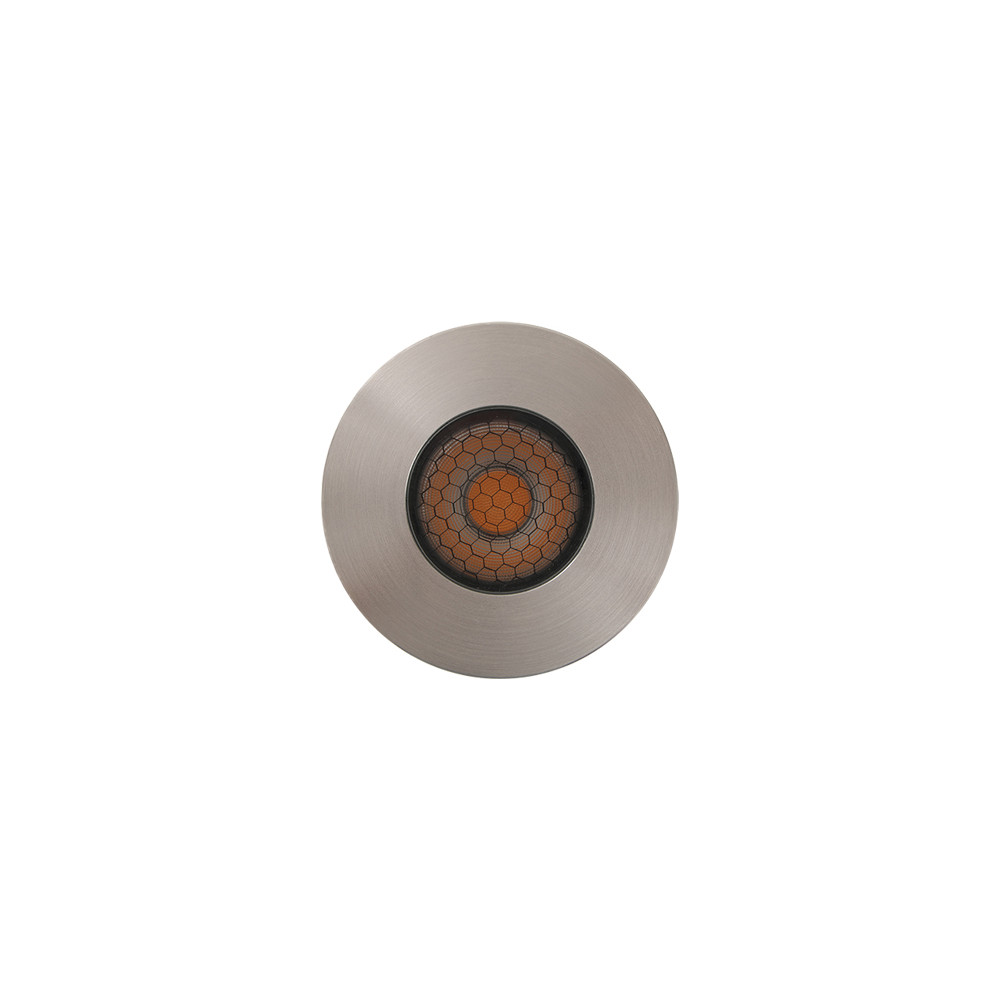

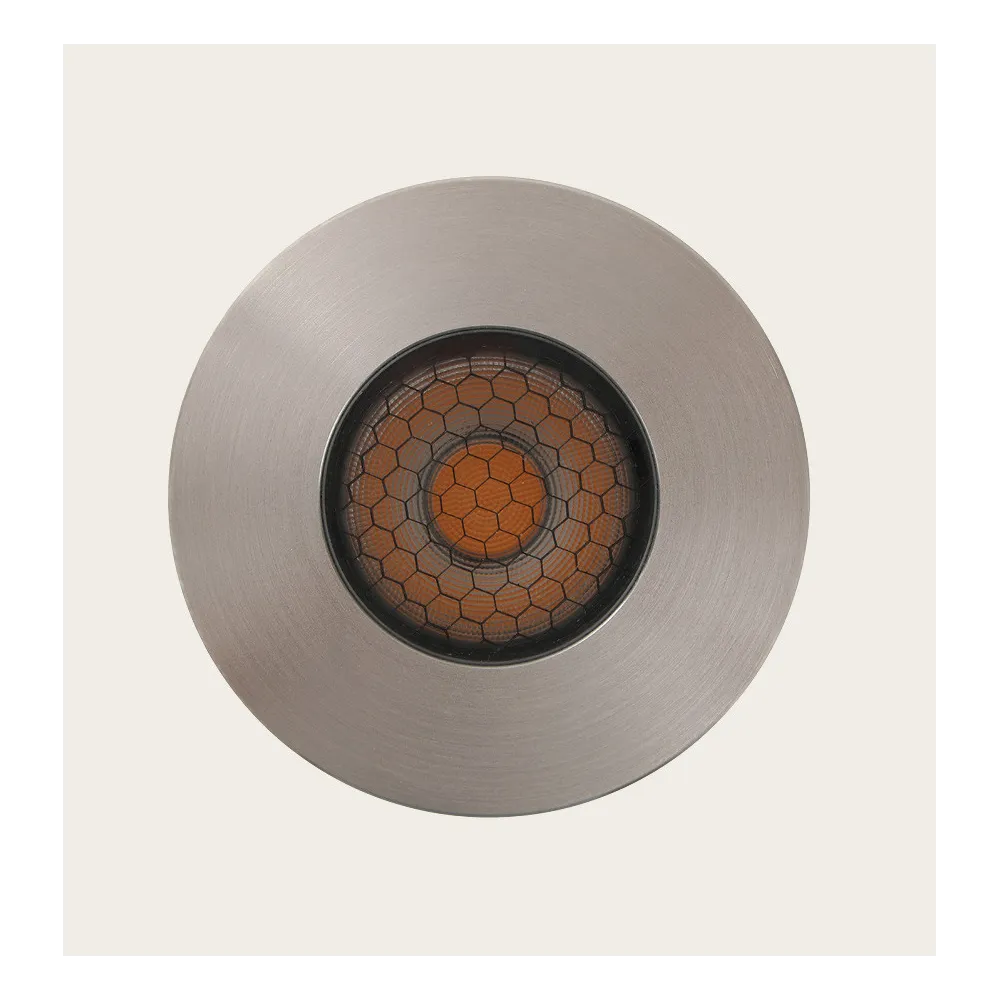

  • Anti-glare honeycomb diffuser, 3,000 K
  • IP67 protection, IK08 impact resistance
  • 24V DC supply, low voltage
  • 3-year warranty
Ref: ZAM.E506

Recessed Floor Light ZAMBELIS D45 3W 24V 10° IP67 DESIGN Stainless Steel Driverless

save_alt Download the technical sheet

Color

White warm - 3000K

Angle

Currently out of stock
Delivery: contact us
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

ZAMBELIS DESIGN Stainless Steel 24V Recessed Floor Light: concentrated 10° beam to highlight architectural details

The ZAMBELIS DESIGN Stainless Steel E506 recessed floor light in stainless steel is designed for highly directional floor lighting, with an ultra-concentrated beam at 10°. Powered by 24V DC, it delivers 3W for 230 lm in warm light at 3,000 K. Its honeycomb diffuser precisely concentrates the light to highlight vegetation, surfaces, or architectural elements. This very narrow beam sets it apart from its counterpart E505 (24°), for applications requiring more pinpoint illumination.

IP67 protection, IK08 impact resistance, diameter Ø 45 mm. Lifespan 30,000 hours.

Accessories: 24V DC driver not included, available as an accessory.

Key features:

  • Ultra-concentrated 10° beam for pinpoint highlighting
  • Anti-glare honeycomb diffuser, 3,000 K
  • IP67 protection, IK08 impact resistance
  • 24V DC supply, low voltage
  • 3-year warranty

General characteristics
Lifetime 30,000 h
Brand ZAMBELIS
Range DESIGN
Product family Ground lighting
Installation environment Exterior
Warranty 3 years
Electrical characteristics
Voltage 24 V DC
Power 3 W
Electrical class Class I
EU energy class 2019/2015 G
Lighting characteristics
Technology LED
Lumens output 218 - 230 lm
Lifetime LXBY L70B50
Diffuser Honeycomb
Beam Angle 10 deg
IRC > 80
Physical characteristics and dimensions
Diameter 45 mm
Height 56 mm
Net weight 0.2 kg
Materials Stainless steel
Waterproof YES
IP IP67
IK IK08
Product color Gray
Cut-out ⌀44 x H75 mm
Working temperature -35 °C to 50 °C
Detailed color Stainless Steel
Installation mode Recessed
Standards and regulations
Carbon footprint 32,9 kgCO2eq
