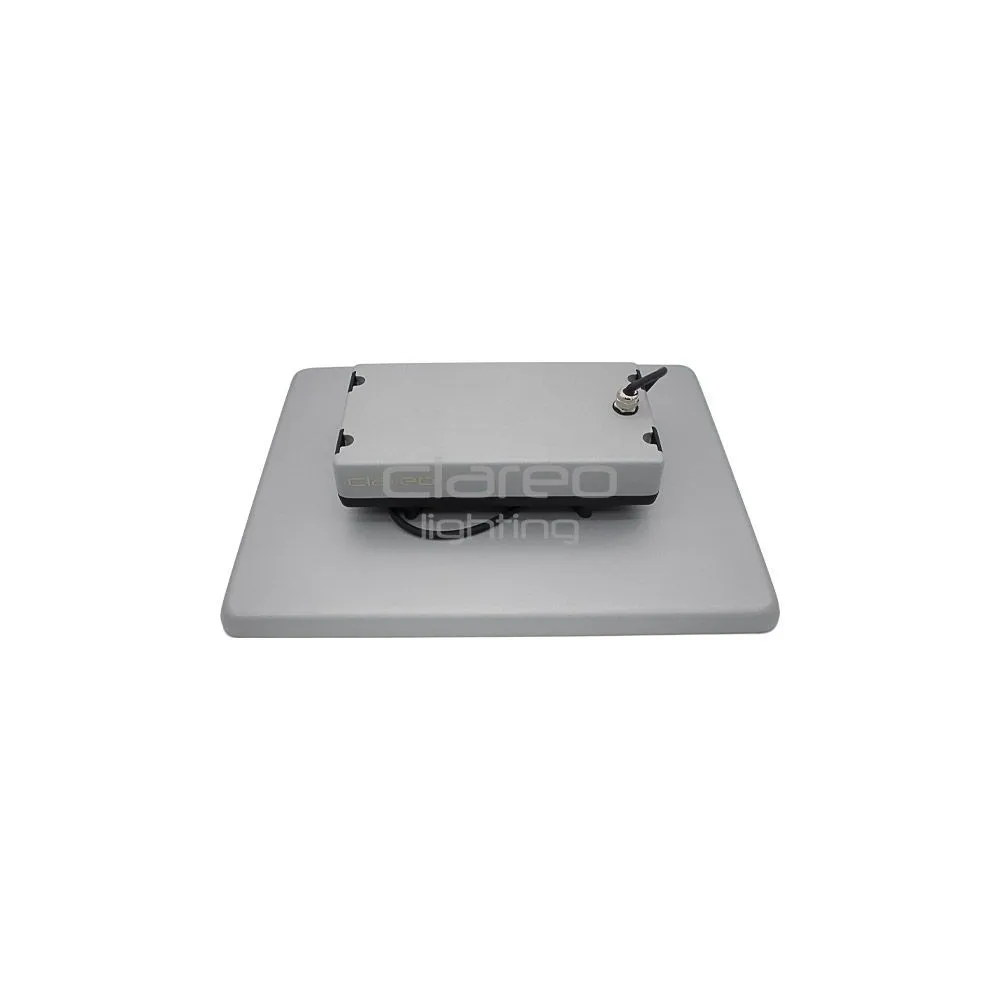

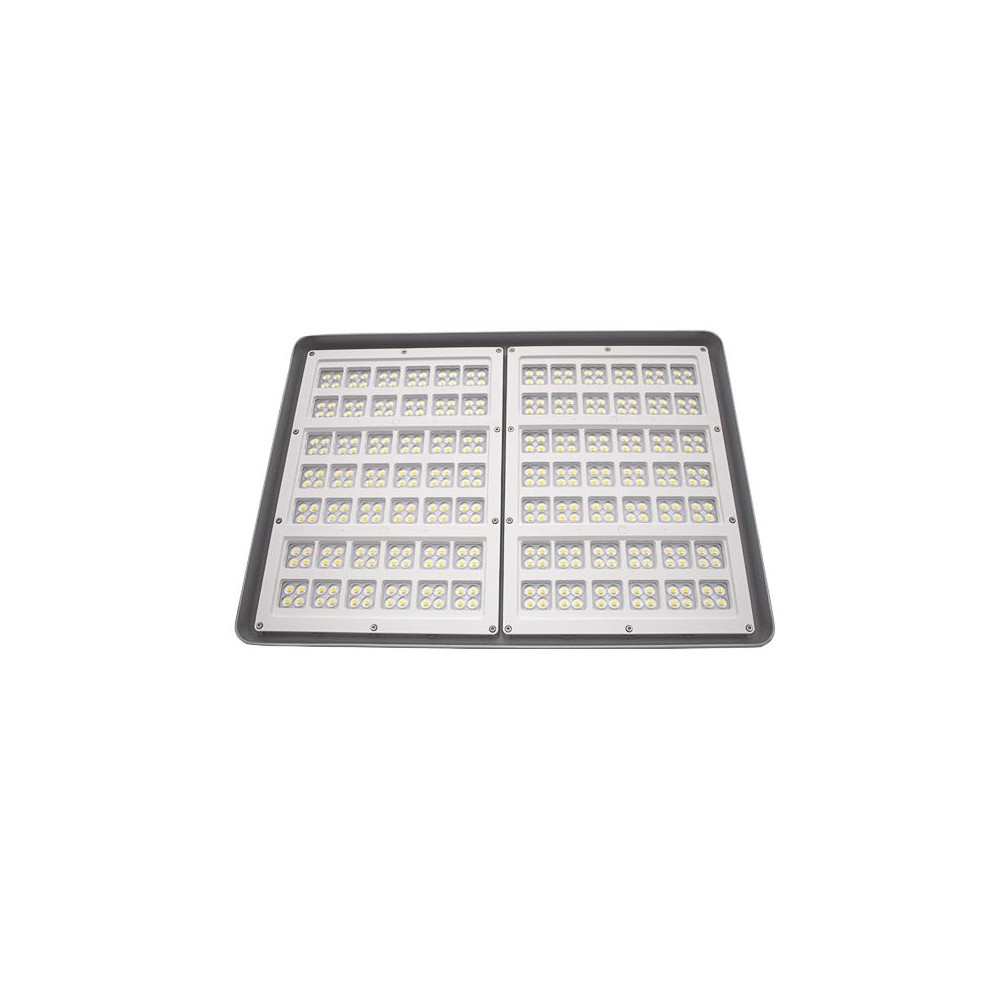

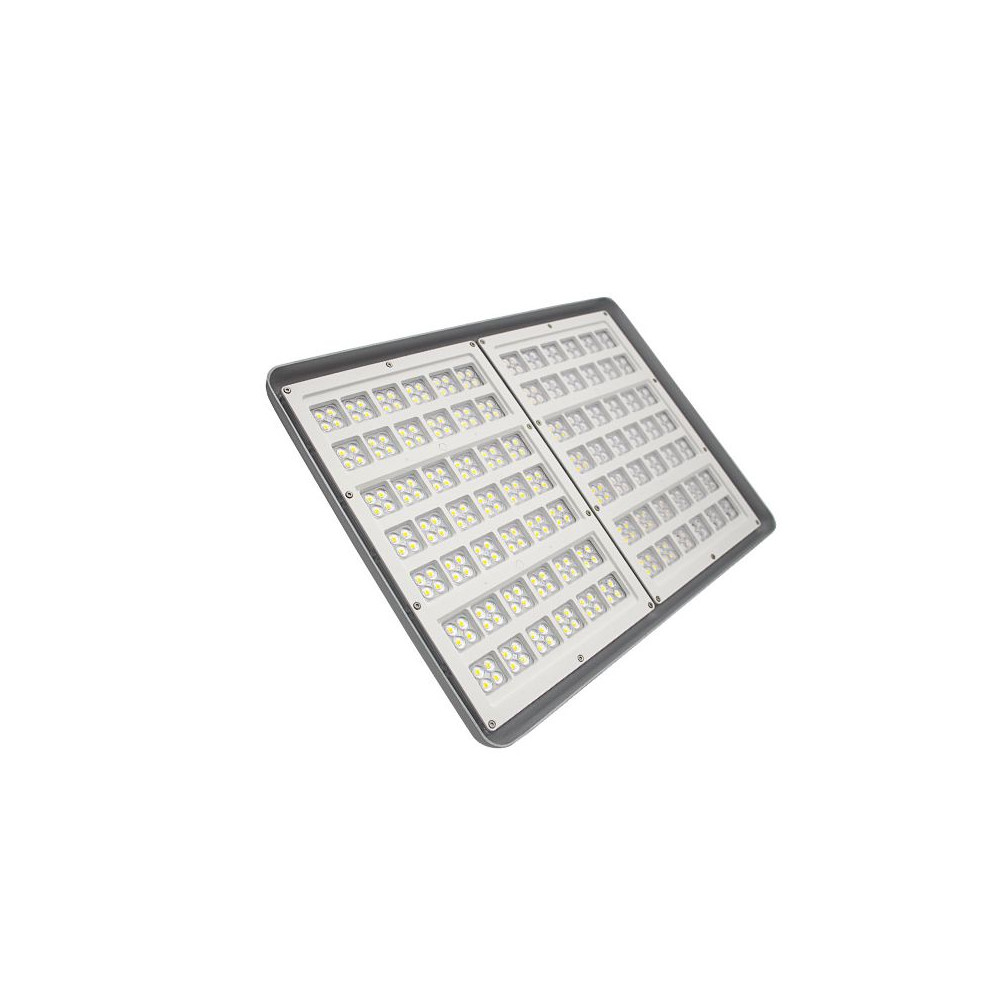

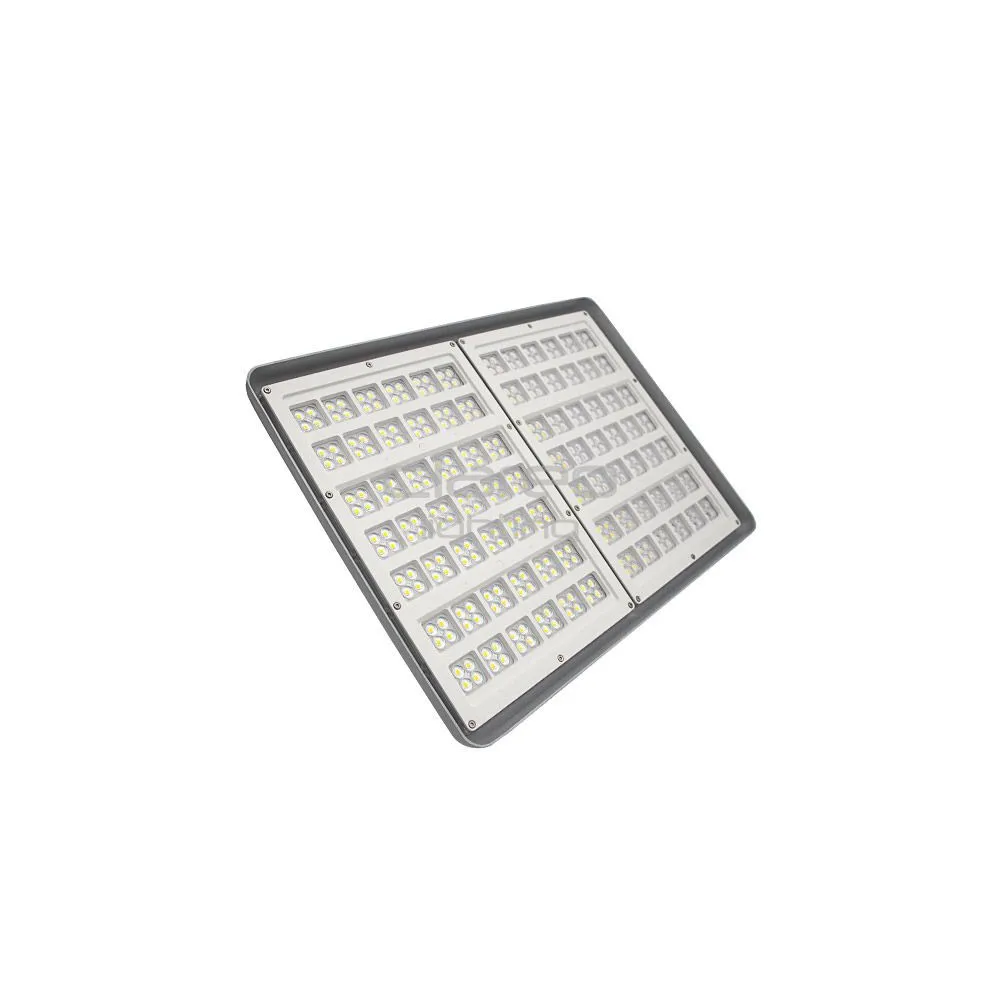

CLAREO Low Luminance HighBay from the TECH Range.

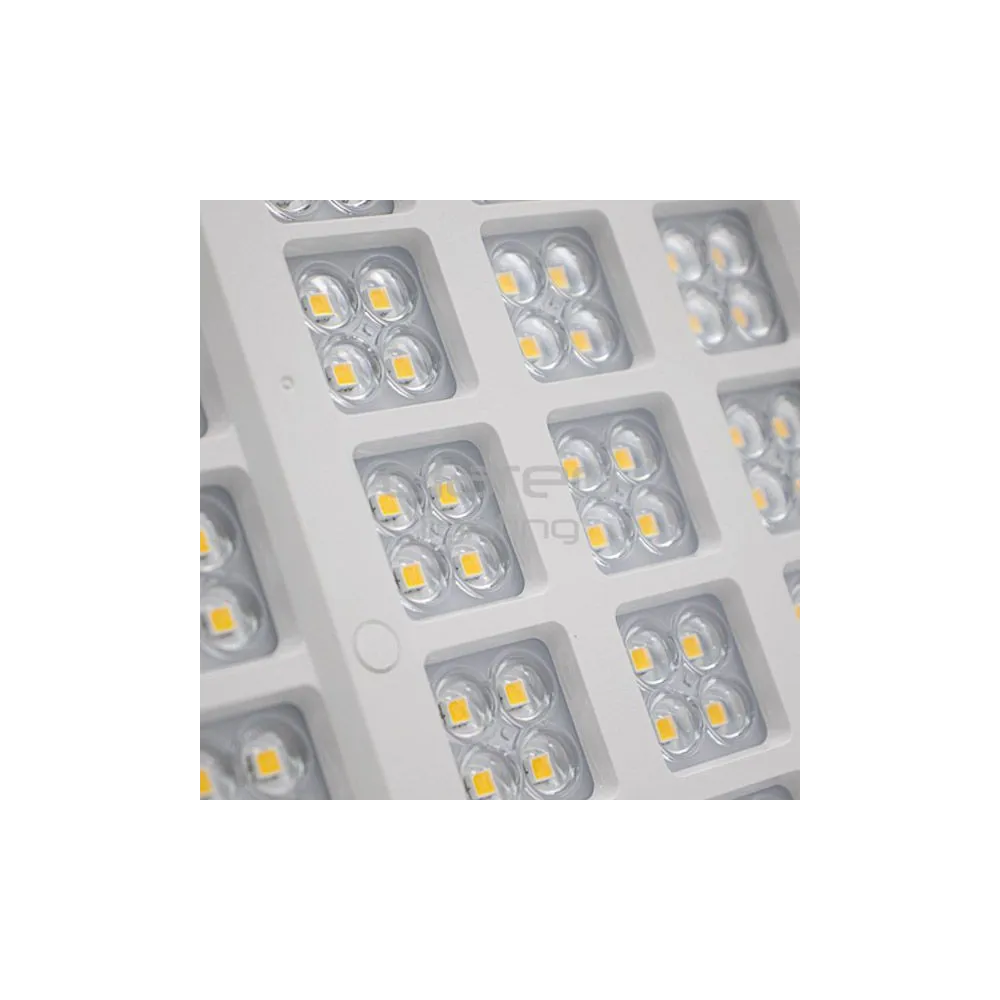

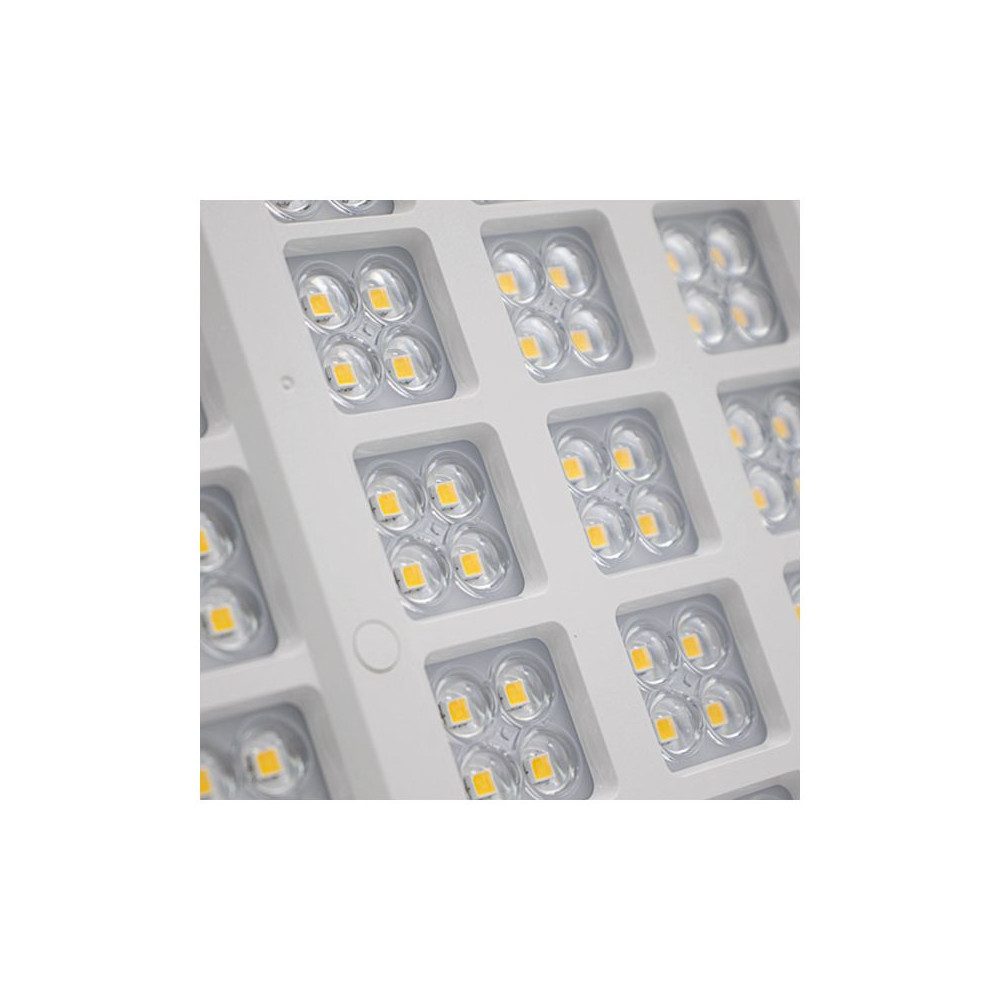

Equipped with Cree LED, this HighBay has a ratio of over 160 lm/W and a lifetime of L90B10 50,000 hours, all with a 7-year warranty.

Its 80° oriented lenses achieve a UGR < 21.

This 24,000 lumens HighBay rated IP65/IK10 is designed for high-height installation. Product delivered with 0.8m cable.

Several installation modes are available as accessories.

Variable: Dali optional

Key features:

- Value for money

- Lifetime

- Low UGR

Ref: HBA.100336

CLAREO Low Luminance HighBay 150W 160LM/W TECH

24000 lm 24000 lm
Energy savings - 50 % Energy savings - 50 %
Repairable Repairable
7 years Warranty 7 years Warranty
160 lm/W 160 lm/W
IP65 IP65
IK10 IK10
50 000 h 50 000 h
UGR < 21 UGR < 21
IRC > 80 IRC > 80
save_alt Download the technical sheet

Color

White neutral - 4000K

Angle

Driver

In stock, next day delivery before 1pm
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here
Sign in Sign up

General characteristics
Lifetime 50 000 h
Brand CLAREO
Range TECH
Product family HighBays
Installation environment Point of sale
Quick installation YES
Repairable YES
Warranty 7 years
Electrical characteristics
Voltage 100-305 V AC
Power 150 W
Electrical class Class I
Dimmable Yes : depending on the reference
Facteur de puissance > 0,95
Taux de distorsion harmonique < 15%
Power range 121-180 W
EU energy class 2019/2015 C
Max power 150 W Max
Lighting characteristics
Technology LED
Lumens output 24000 lm
Energy savings - 50 %
Lumens efficiency 160 lm/W
Lifetime LXBY L90B10
Diffuser Transparent
Beam Angle 80 deg
Photobiological risk GR1 - Low risk
IRC > 80
UGR < 21
SDCM < 3
Lumens range 15000-24999 lm
Physical characteristics and dimensions
Height 120 mm
Standard length 50 cm
Width 362 mm
Length 487 mm
Net weight 6.2 kg
Materials Aluminum
Waterproof YES
IP IP65
IK IK10
Product color Gray
Working temperature -40 °C to 50 °C
Detailed color Gray
Installation mode Surface mounted, Pendant
Type SMD 3030
Standards and regulations
Standards CE, RoHS

Log in to access downloadable documents
Technical data sheets, IES files, installation instructions, certificates... are only downloadable for customers whose access has been validated. To request access, go here
Sign in Sign up

Log in to access the prescription
To access the prescription text, you must have an account and log in.
Sign in Sign up
compare_arrows Compare
