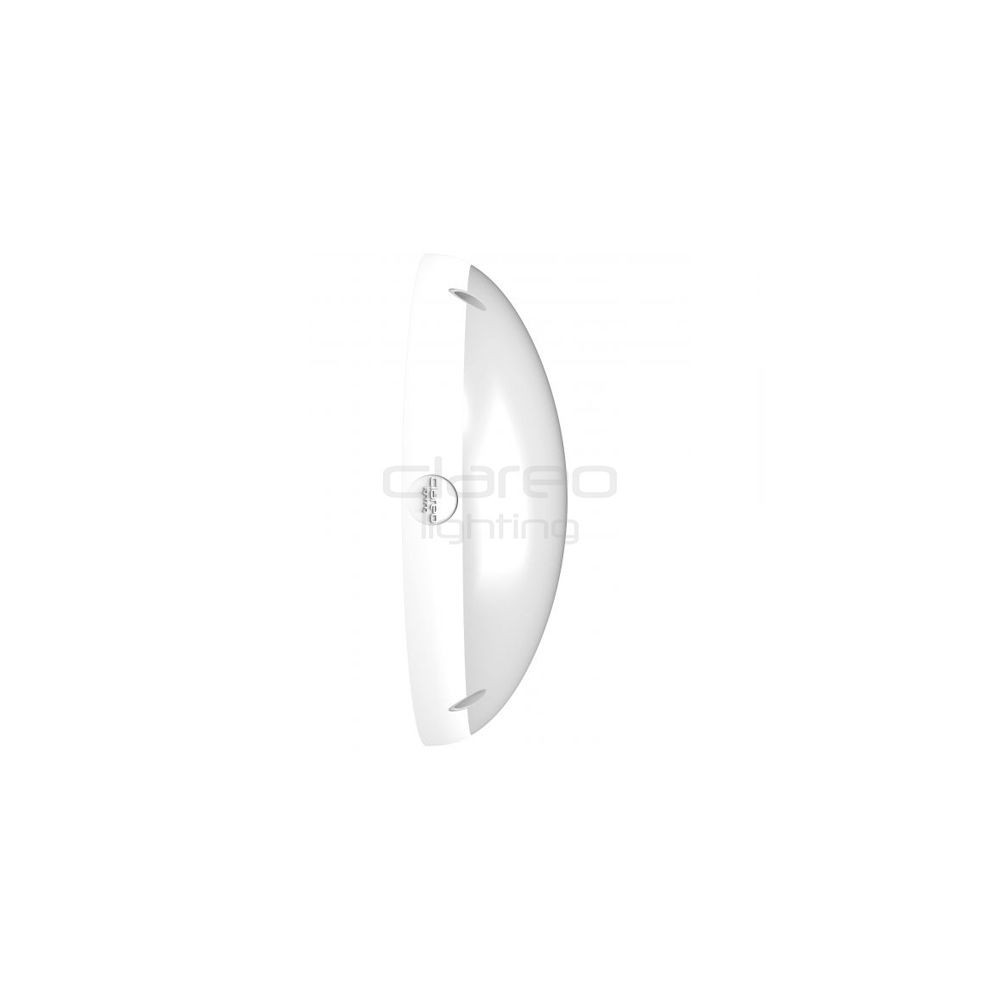

DomeLED Detector CLAREO 18W Anti-vandal START Pack 6 FS

DomeLED Détecteur CLAREO 18W Anti-vandale EASY Pack 6

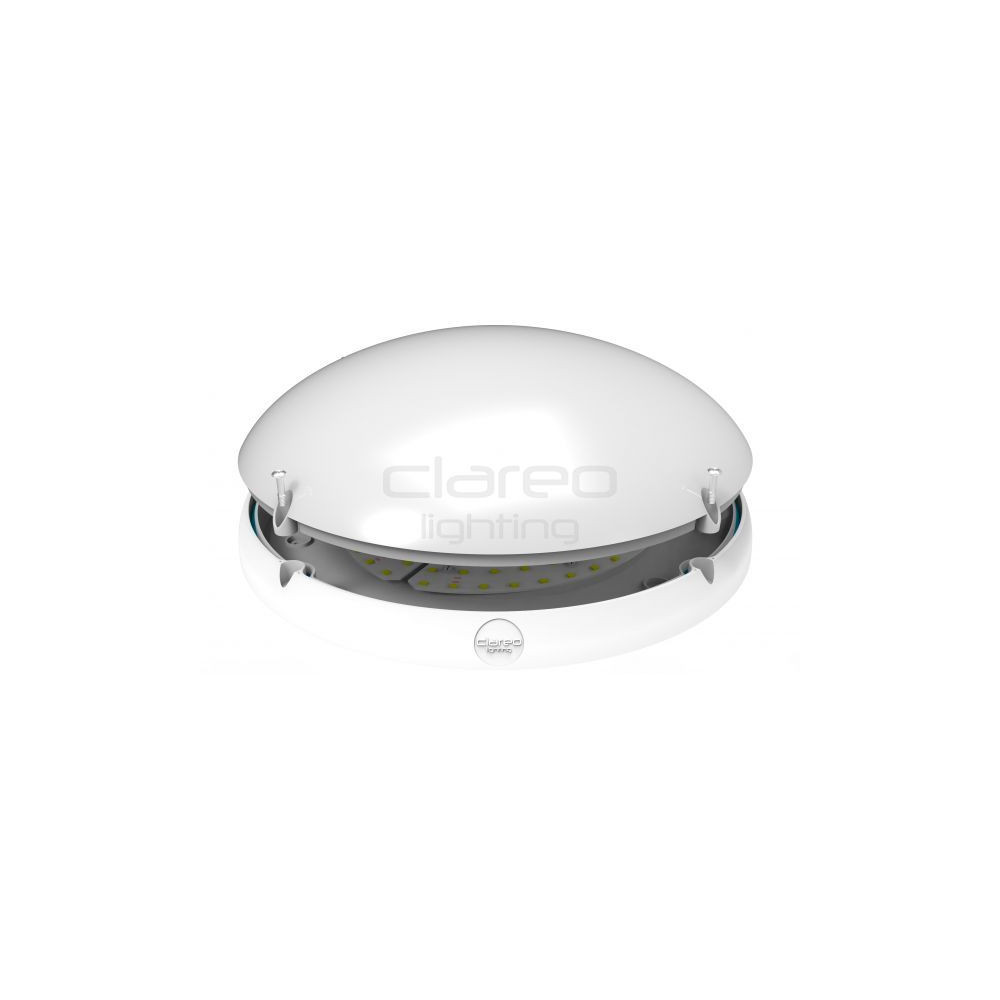

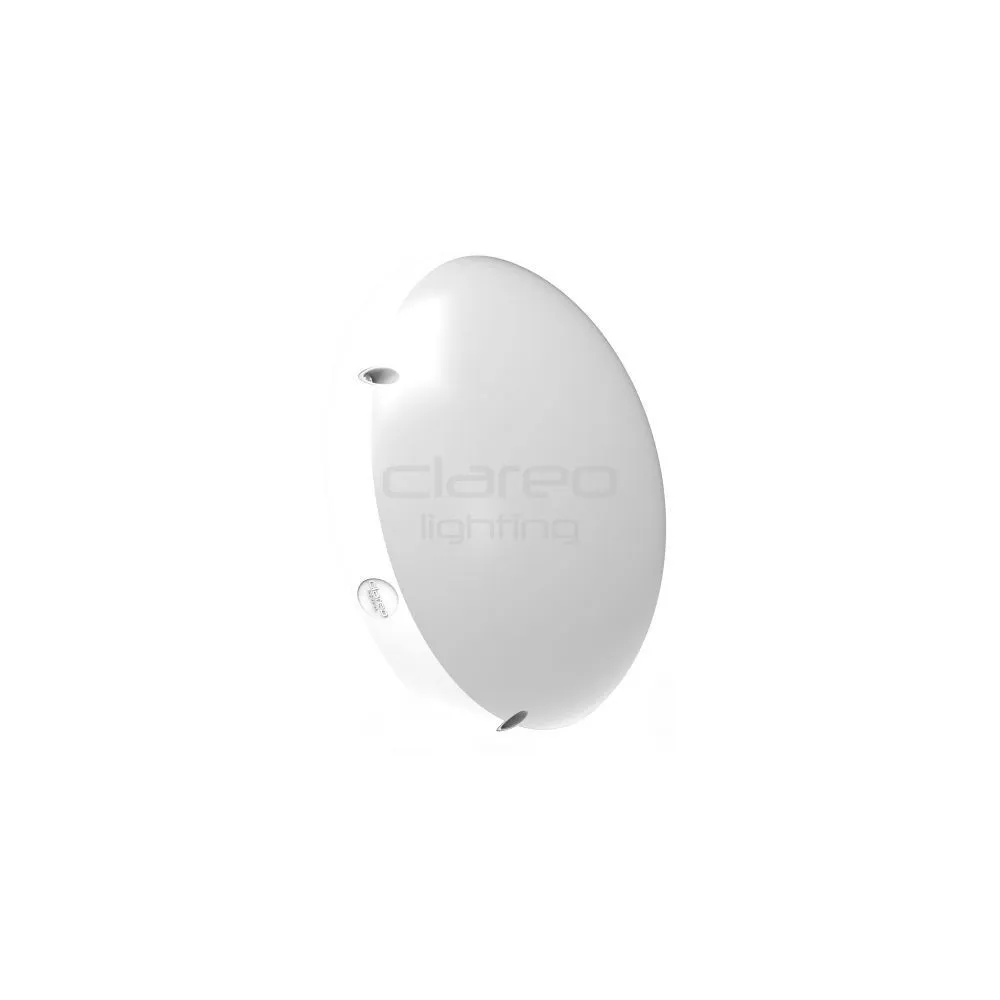

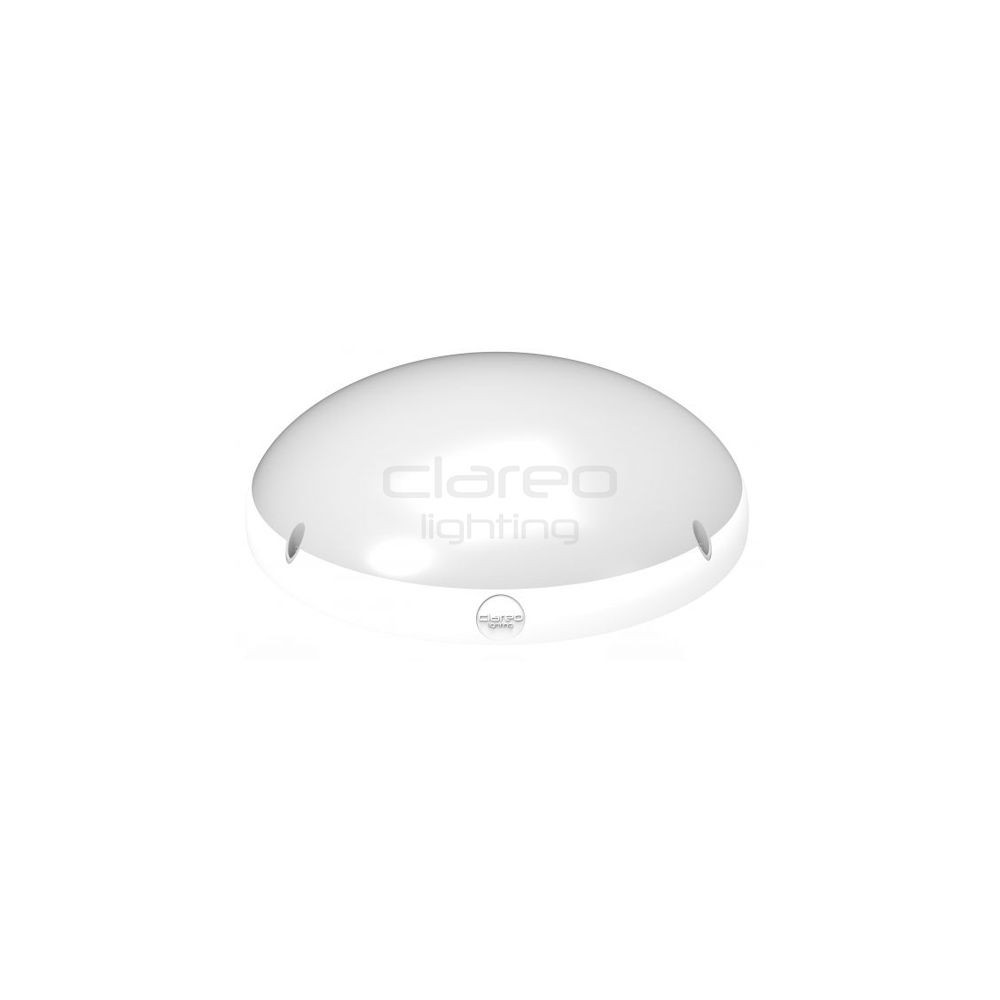

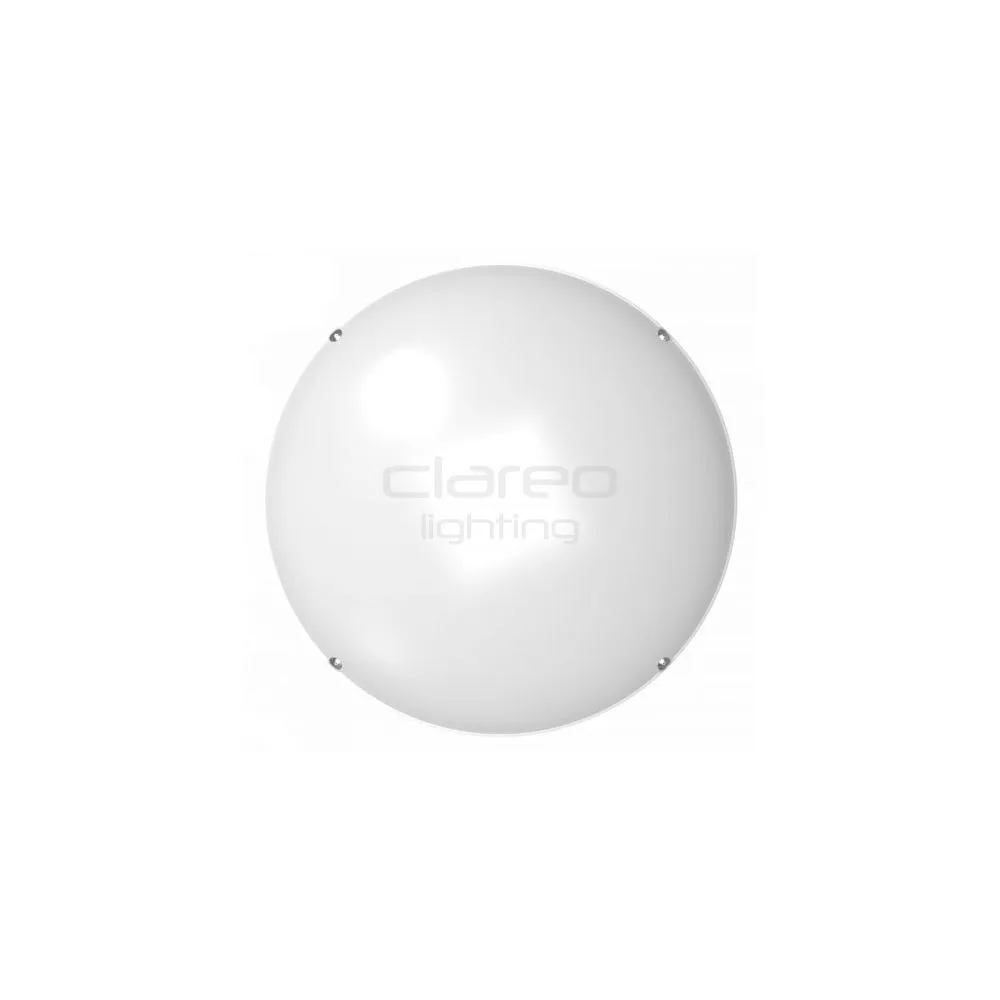

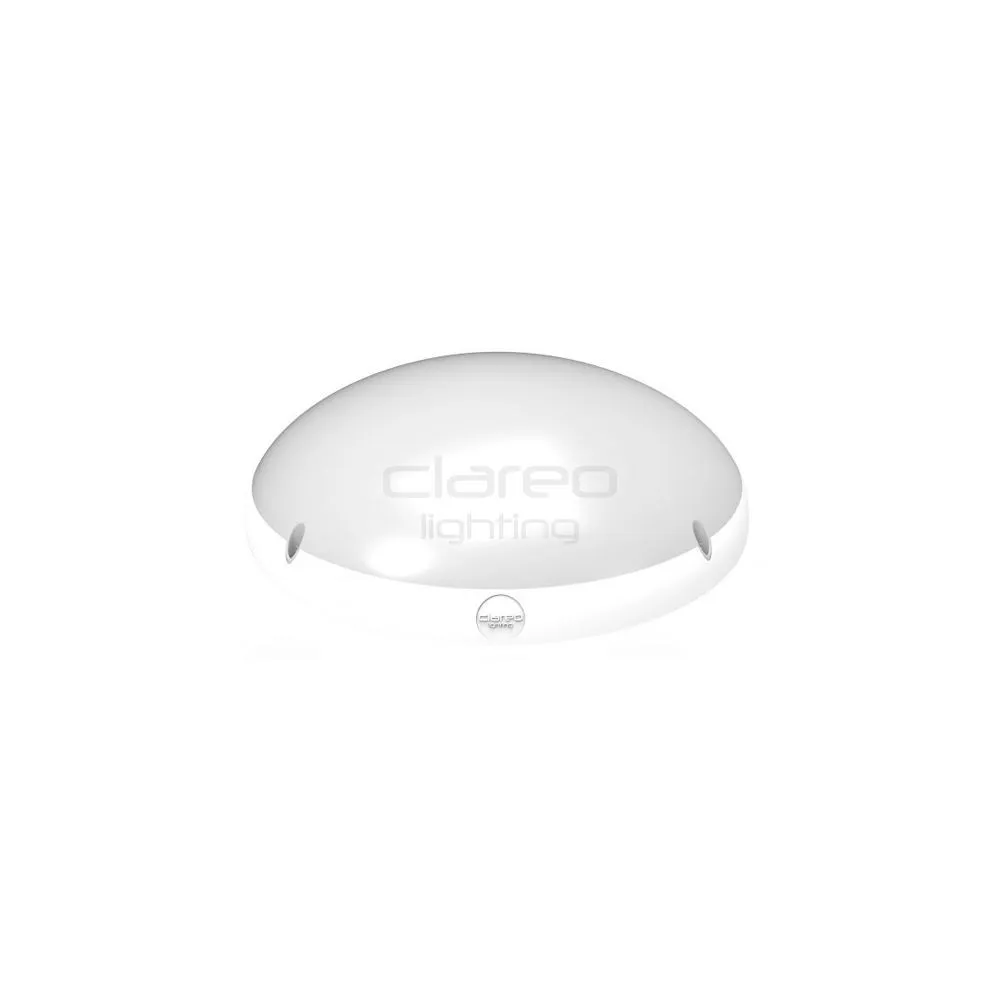

1500 lm anti-vandal bulkhead with detection

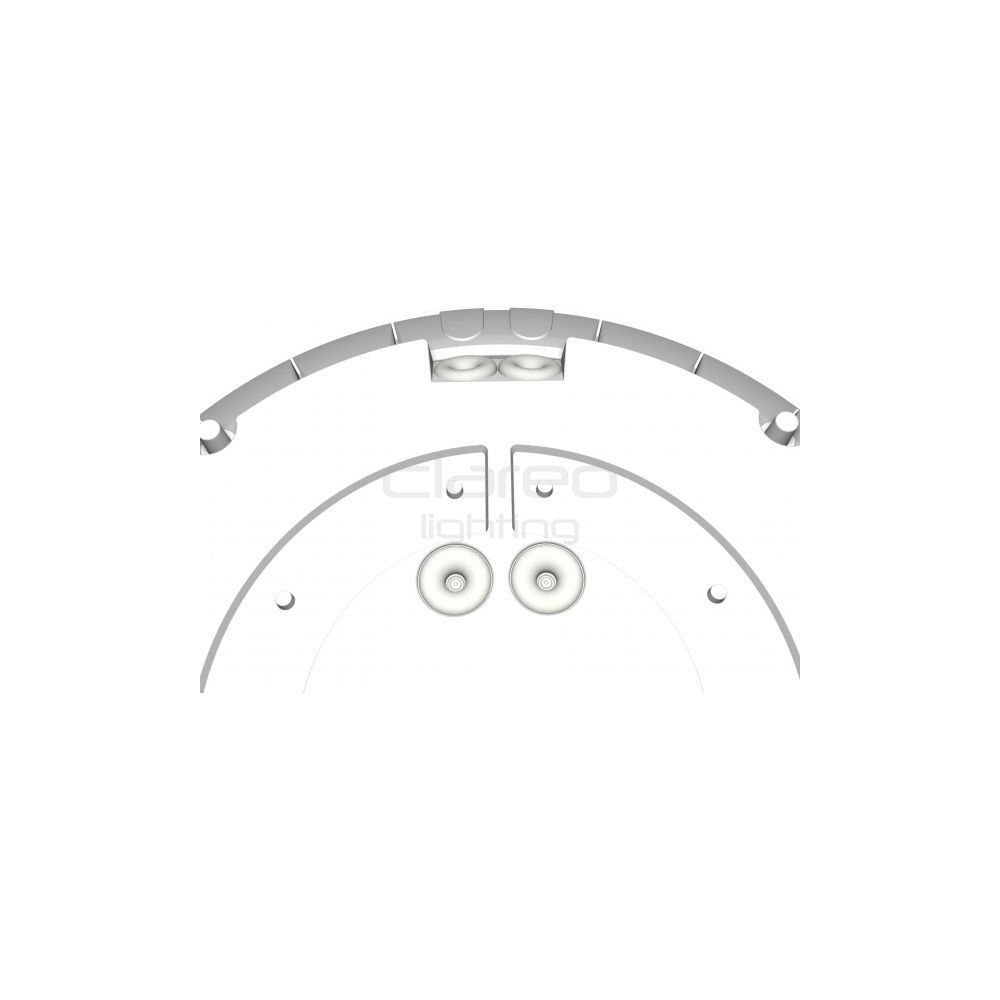

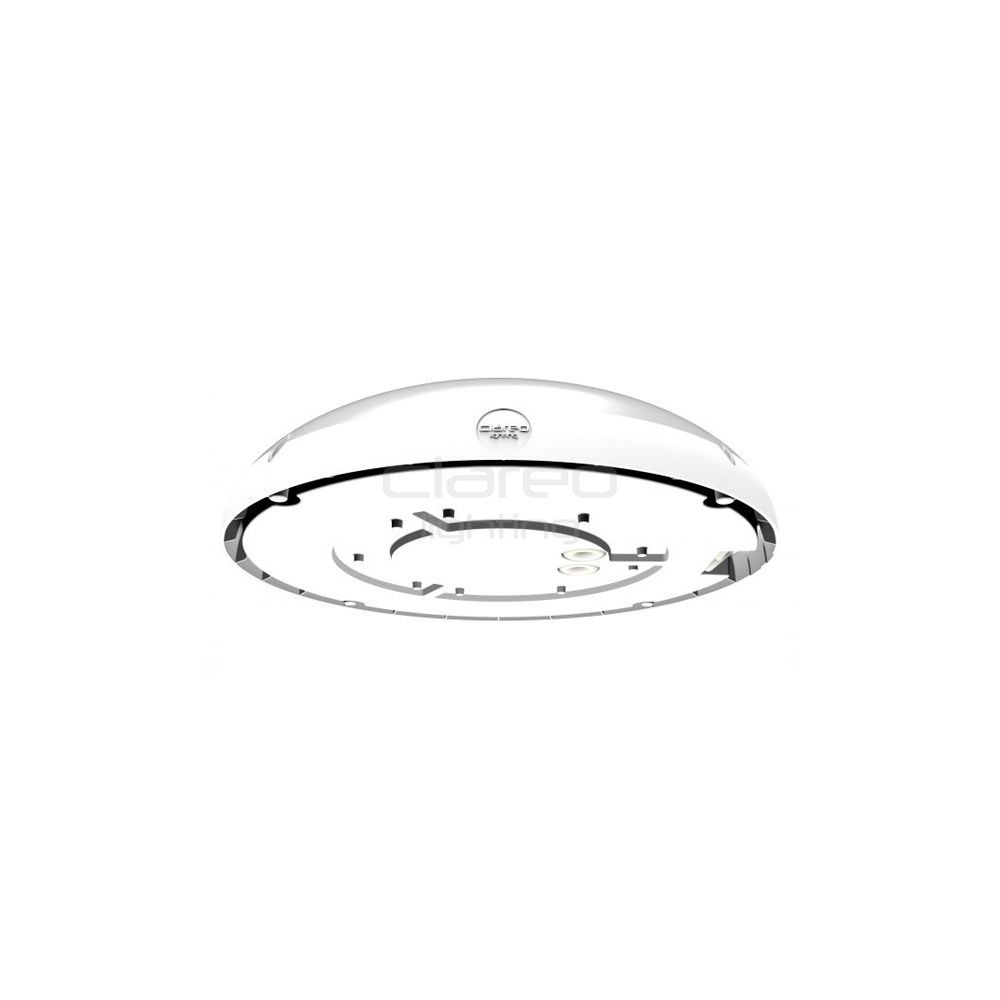

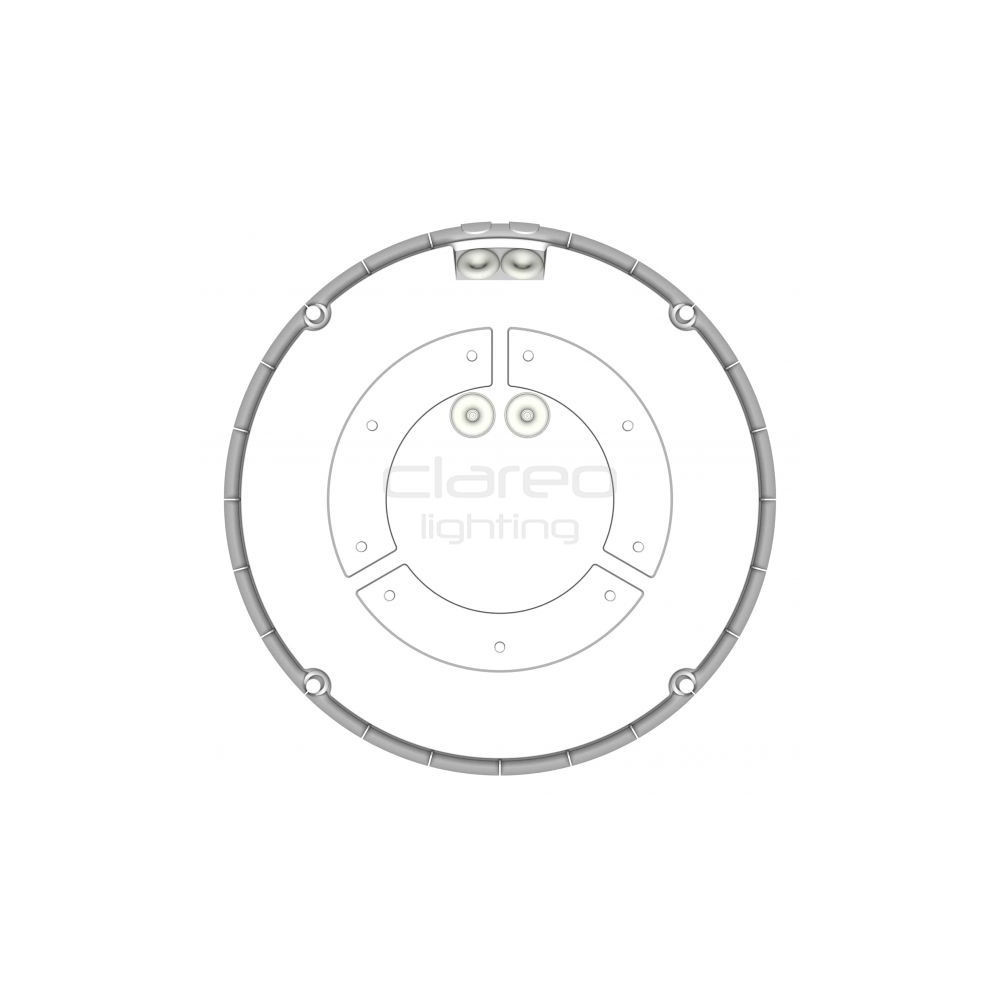

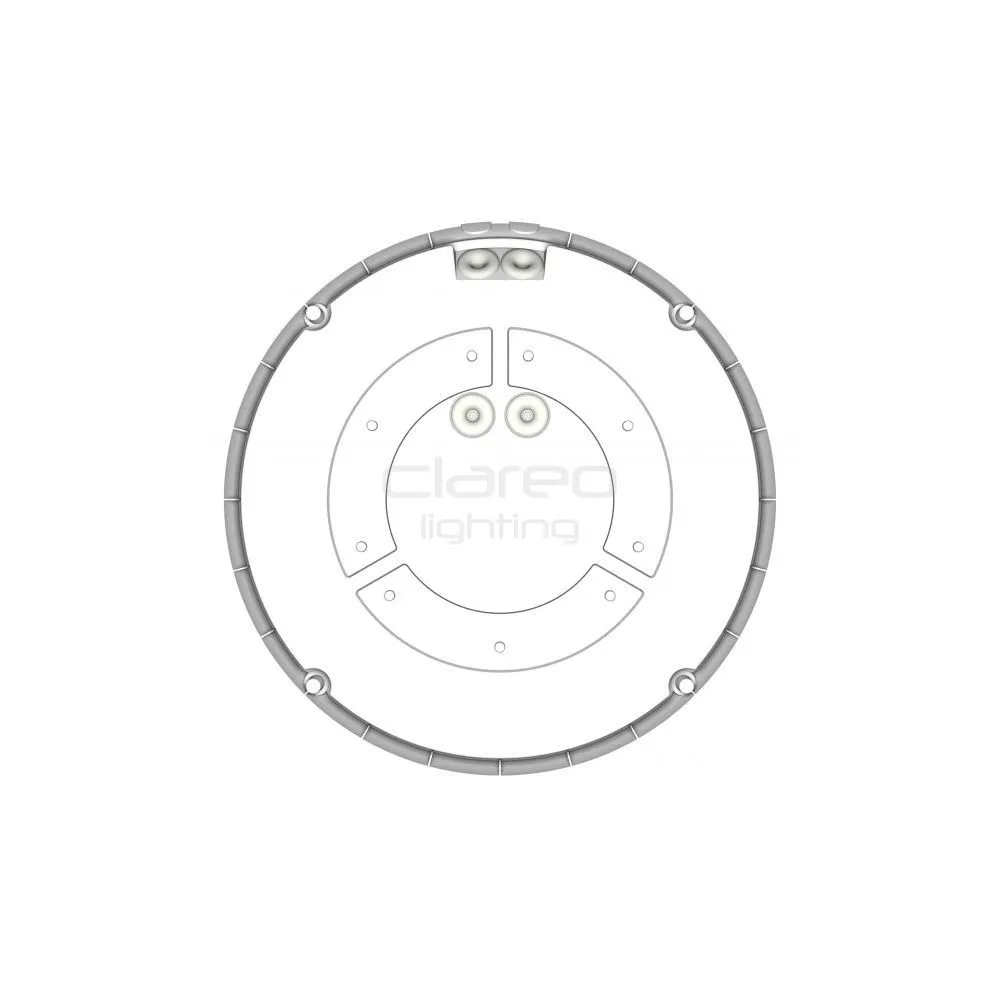

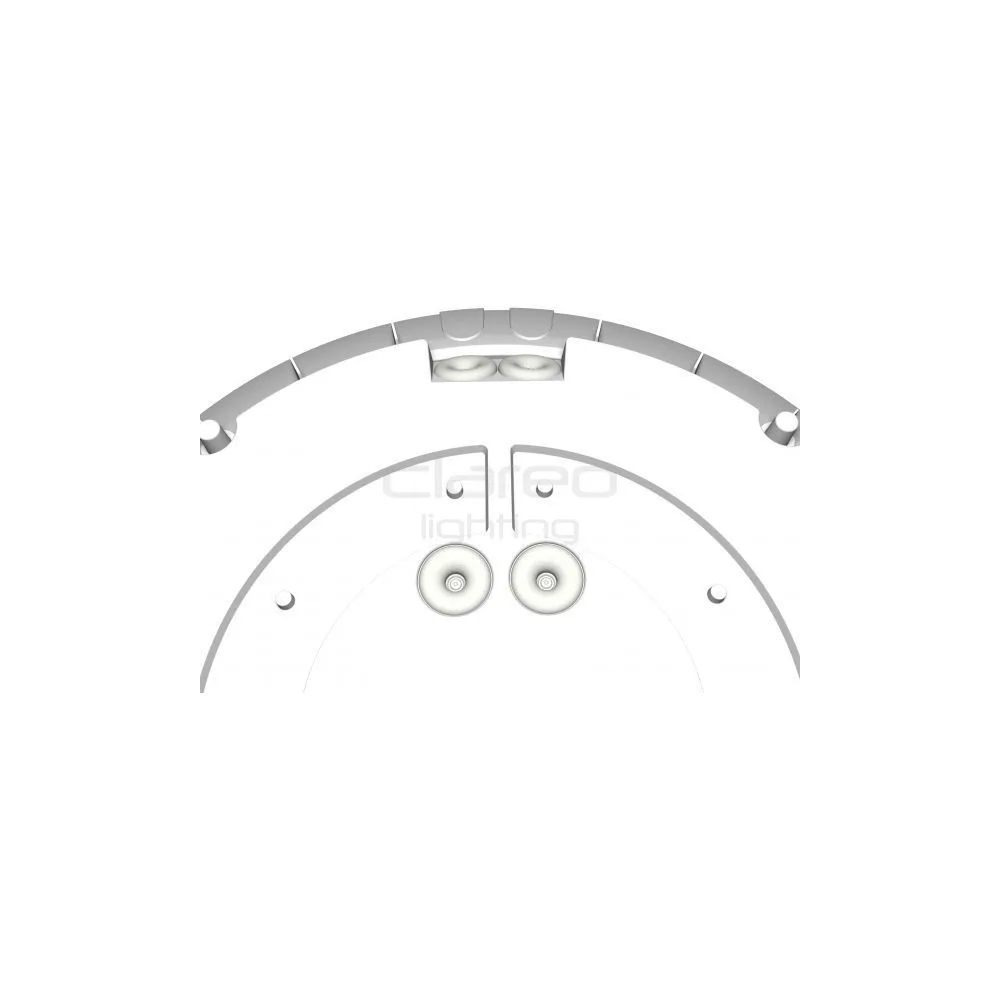

This product features a double cable entry to allow electrical connection from the bottom or the side. Removable terminal block.

Adjustable high-frequency detector (range, hold time, twilight detection).

Series connection possible without exceeding 91 bulkheads. No master-slave.

Ultra-resistant: Anti-tear, anti-vandal, IP65 and IK10.

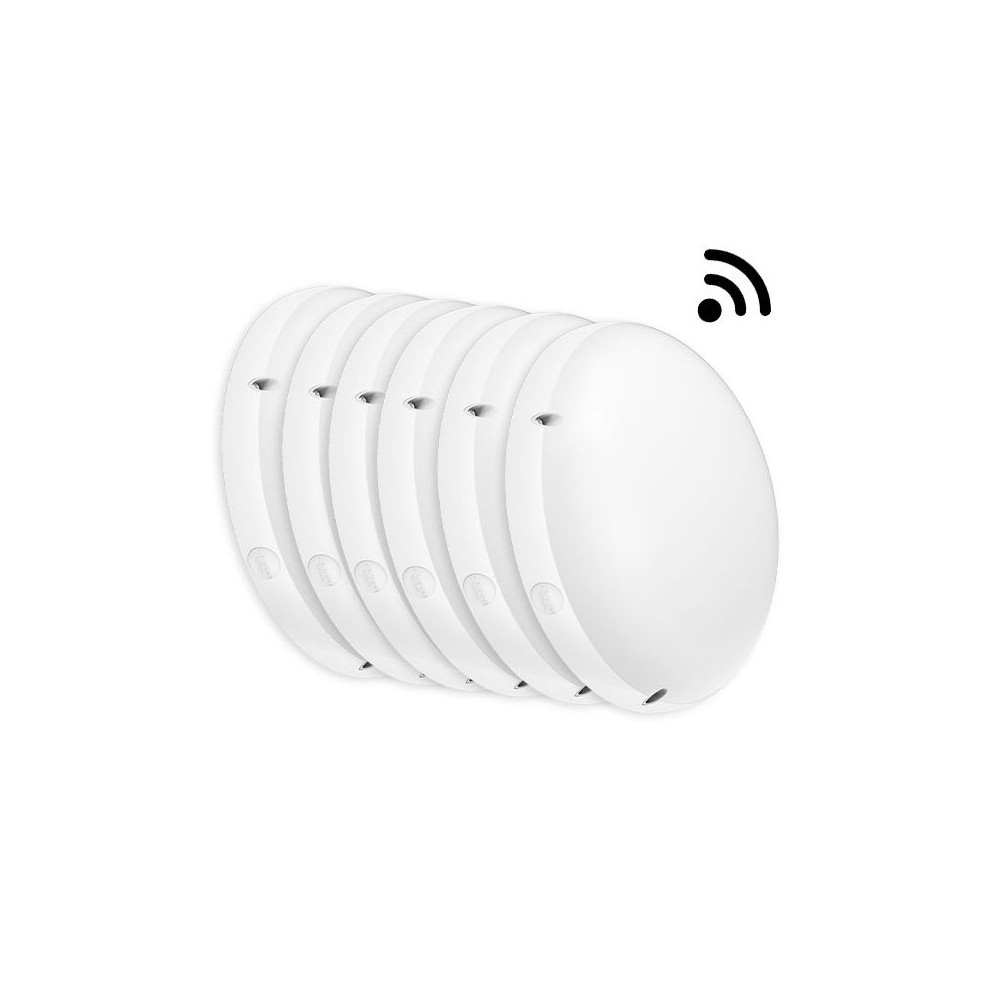

Box contents: 6 DomeLEDs Detector START with 1 anti-vandal screwdriver head, 4 torx screws, 3 mounting screws, 3 wall plugs, 3 mounting seals, 2 cable ties and 4 screws for cable ties.

Key features:

- Anti-tear housing

- Universal diameter: 300 mm

- IP65 / IK10

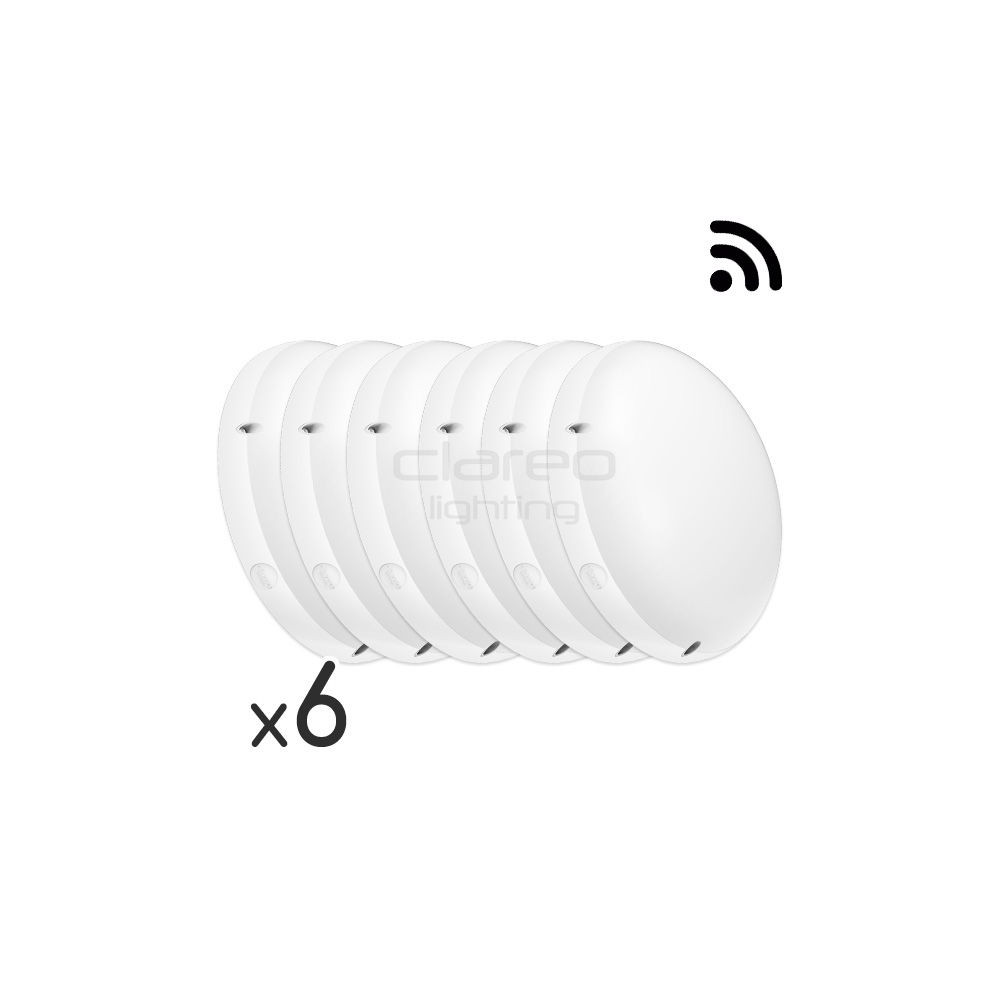

- Sold in pack of 6: low environmental impact

CLAREO DomeLED with Sensor 18W Vandal-Resistant START Pack of 6

Pricing is only available to customers who are logged into their account and whose access request has been validated.

To request access, go here

1500 lm anti-vandal bulkhead with detection

This product features a double cable entry to allow electrical connection from the bottom or the side. Removable terminal block.

Adjustable high-frequency detector (range, hold time, twilight detection).

Series connection possible without exceeding 91 bulkheads. No master-slave.

Ultra-resistant: Anti-tear, anti-vandal, IP65 and IK10.

Box contents: 6 DomeLEDs Detector START with 1 anti-vandal screwdriver head, 4 torx screws, 3 mounting screws, 3 wall plugs, 3 mounting seals, 2 cable ties and 4 screws for cable ties.

Key features:

- Anti-tear housing

- Universal diameter: 300 mm

- IP65 / IK10

- Sold in pack of 6: low environmental impact

General characteristics

Lifetime	80,000 h
Brand	CLAREO
Range	START

Product family	Bulkhead lights
Installation environment	Residential
Warranty	3 years

Electrical characteristics

Power	18 W
Electrical class	Class II
Facteur de puissance >	0,9

Taux de distorsion harmonique <	20 %
Sensor	YES
EU energy class 2019/2015	G

Lighting characteristics

Technology	LED
Lumens output	1500 lm
Lumens efficiency	83 lm/W
Lifetime LXBY	L80B10

Diffuser	Opale
Photobiological risk	GR1 - Low risk
IRC >	80
UGR <	25

Physical characteristics and dimensions

Diameter	300 mm
Height	85 mm
Net weight	4 kg
Materials	Polycarbonate and polypropylene

Waterproof	YES
IP	IP65
IK	IK10
Product color	White
Detailed color	White

Standards and regulations

Carbon footprint	30,2 kgCO2eq
