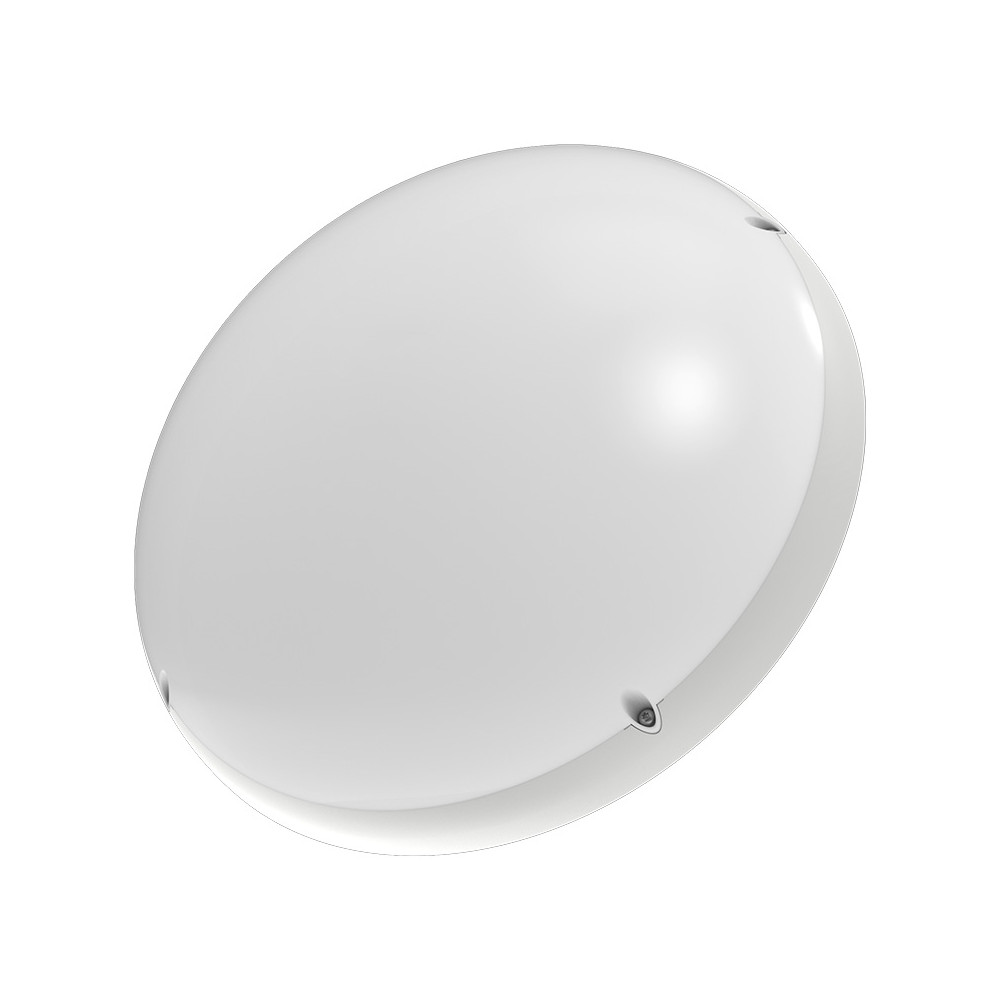

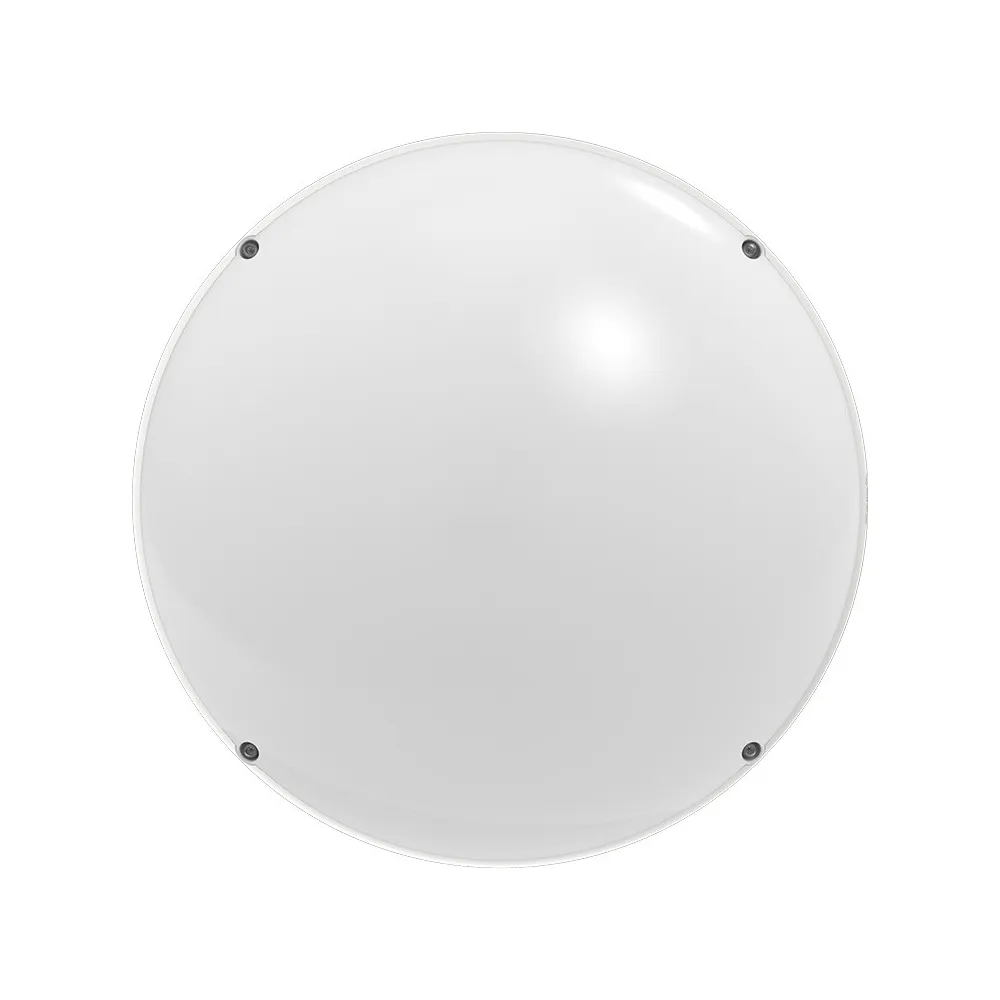

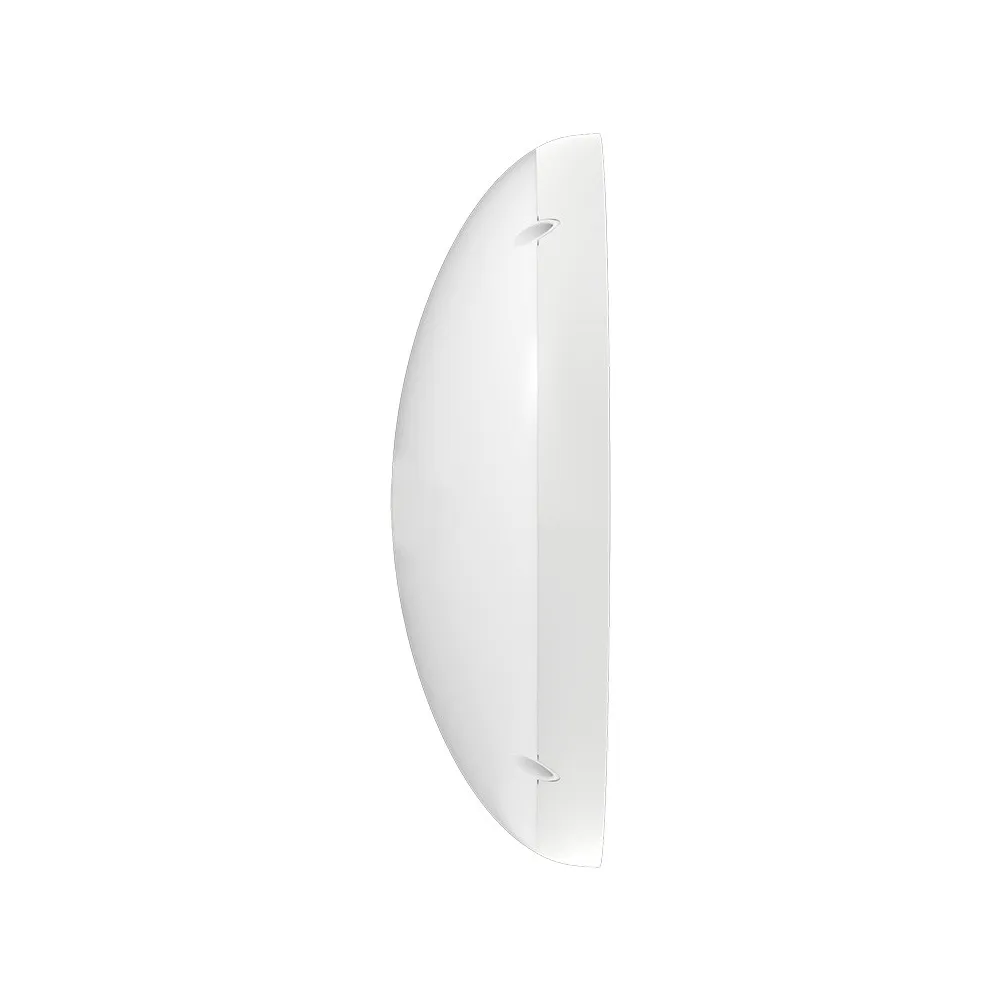

DomeLED CLAREO 12W Vandal-proof ADVANCE 2

PEP certified

1200 lm anti-vandal bulkhead light for residential use

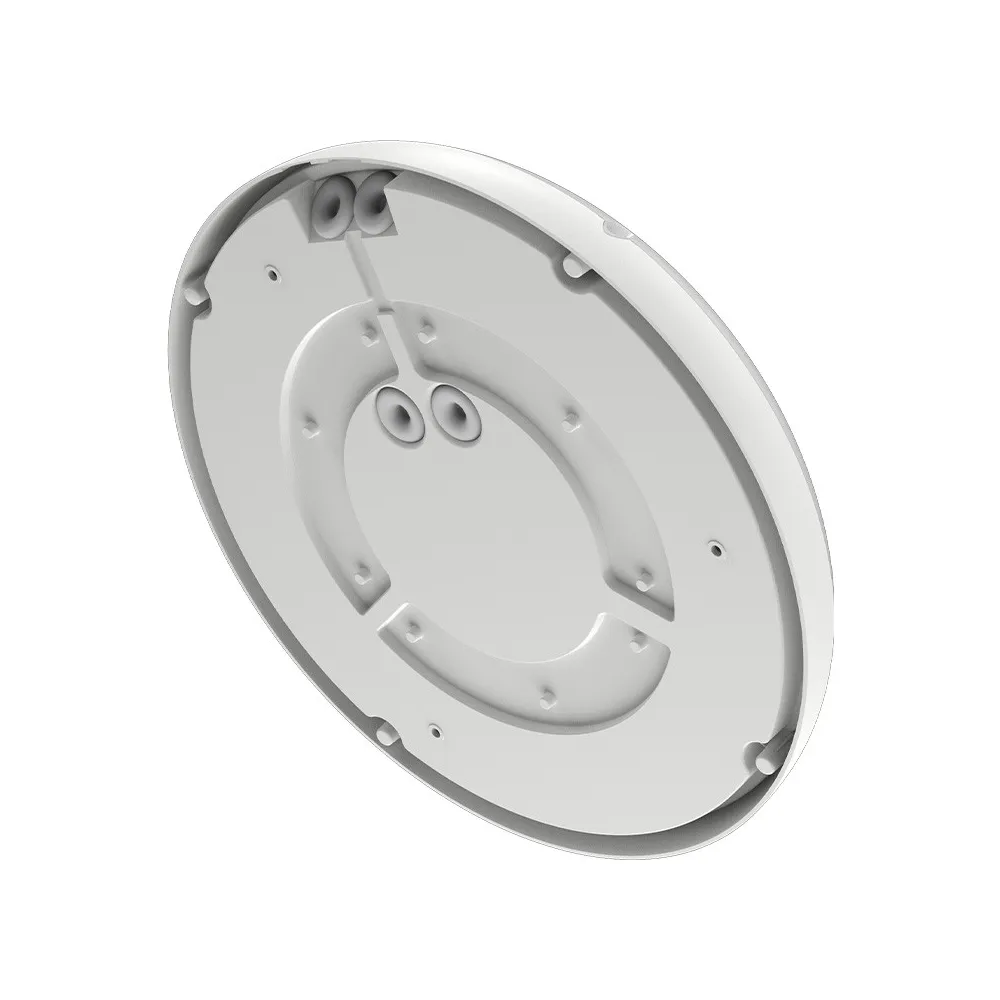

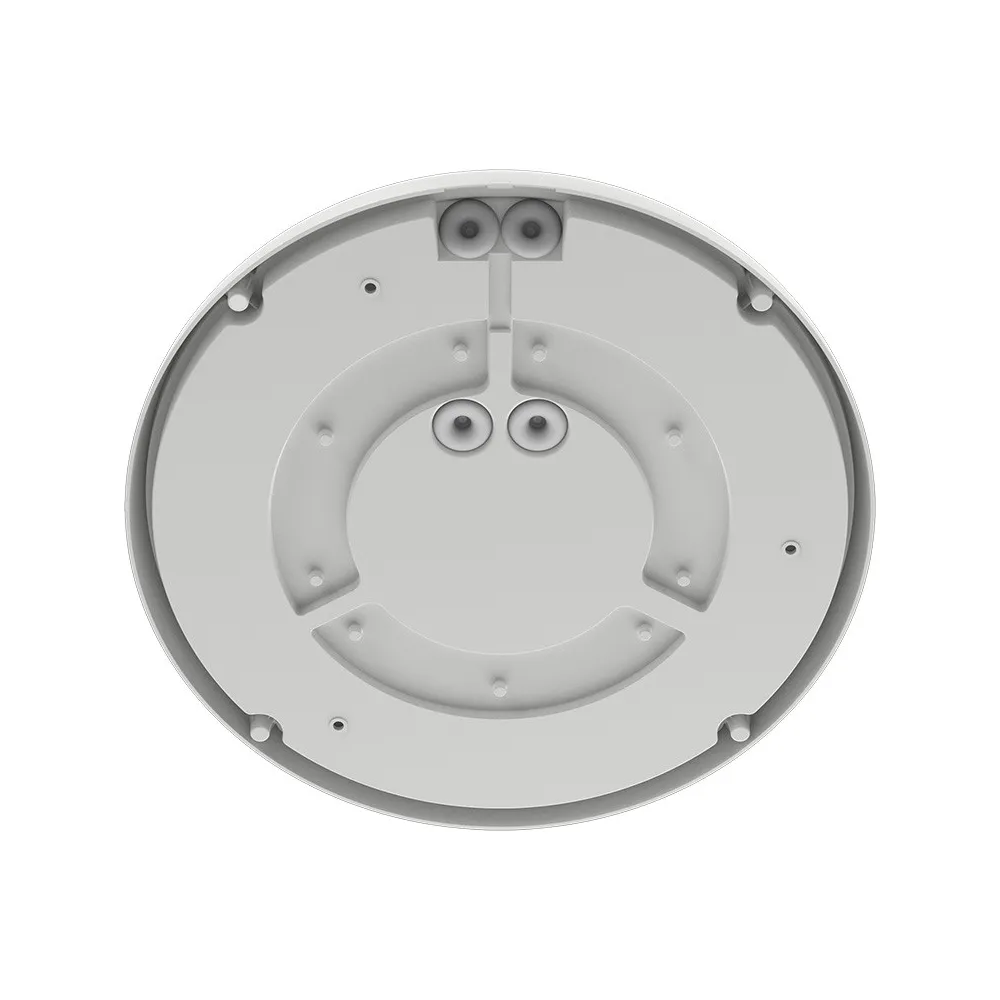

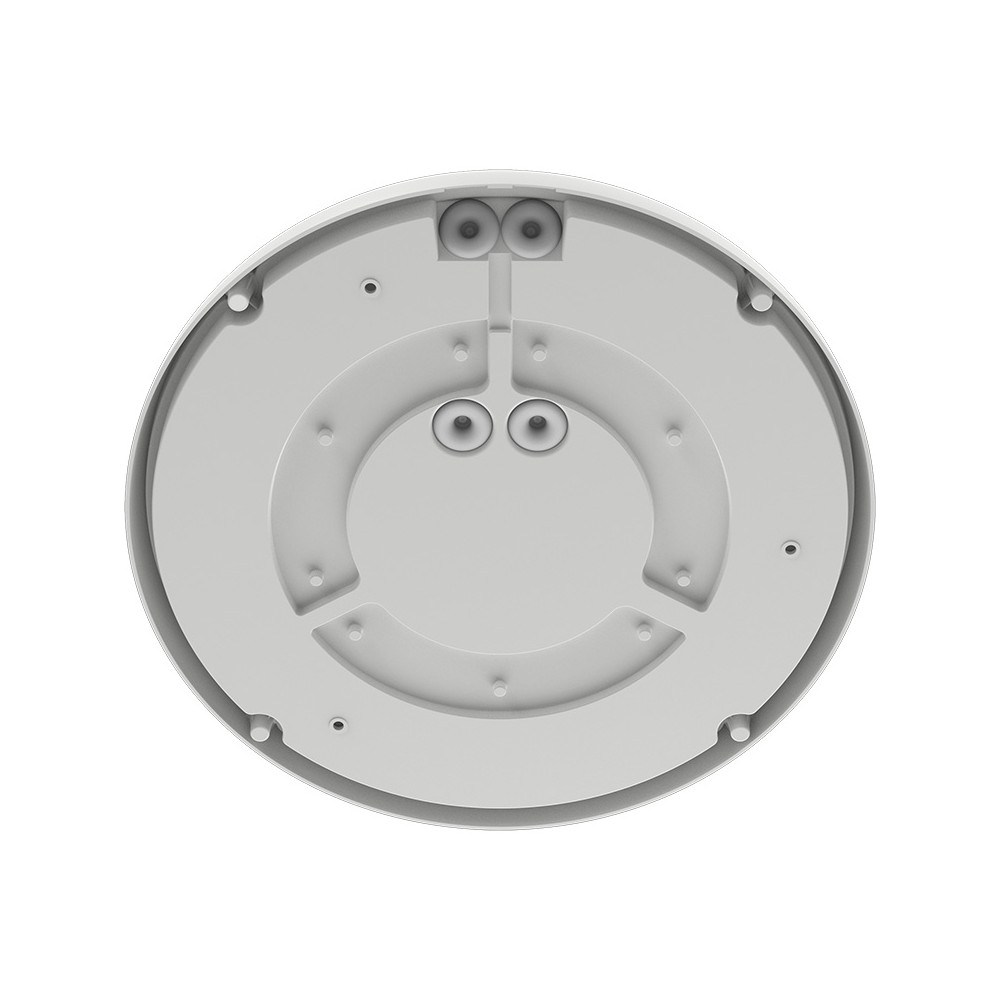

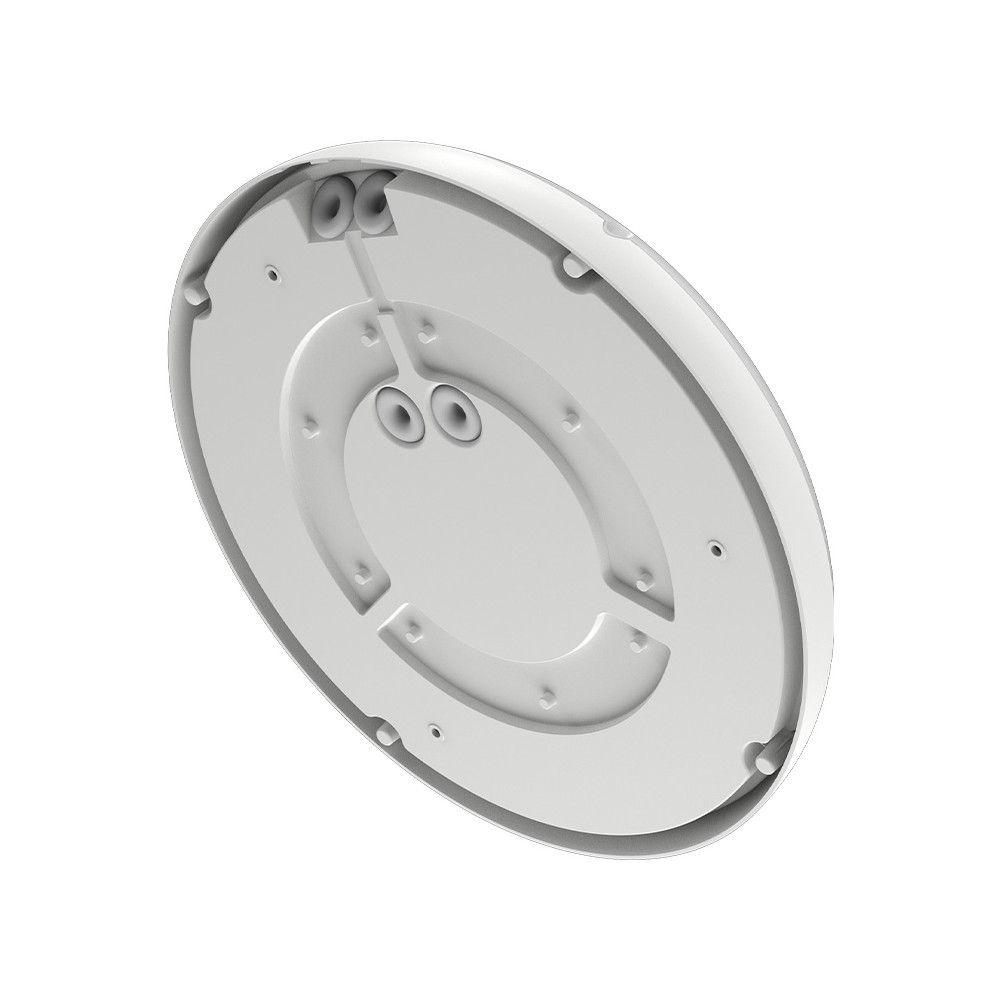

This product features a double cable entry to allow electrical connection from below or from the side. Loop-through terminal block.

Series connection possible without exceeding 91 bulkhead lights.

Ultra resistant: Anti-tear, anti-vandal, anti-UV, IP65 and IK10.

Box contents: 1 DomeLED ADVANCE 2 with 1 anti-vandal screwdriver head, 2 connection terminals, 4 torx screws, 3 mounting screws, 3 plugs, 3 mounting seals, 2 cable ties and 4 screws for cable ties.

Notable features:

- Anti-tear housing

- Universal diameter: 300 mm

- IP65 / IK10

- Long lifespan

DomeLED CLAREO 12W Vandal-proof ADVANCE 2

Pricing is only available to customers who are logged into their account and whose access request has been validated.

To request access, go here

1200 lm anti-vandal bulkhead light for residential use

This product features a double cable entry to allow electrical connection from below or from the side. Loop-through terminal block.

Series connection possible without exceeding 91 bulkhead lights.

Ultra resistant: Anti-tear, anti-vandal, anti-UV, IP65 and IK10.

Box contents: 1 DomeLED ADVANCE 2 with 1 anti-vandal screwdriver head, 2 connection terminals, 4 torx screws, 3 mounting screws, 3 plugs, 3 mounting seals, 2 cable ties and 4 screws for cable ties.

Notable features:

- Anti-tear housing

- Universal diameter: 300 mm

- IP65 / IK10

- Long lifespan

General characteristics

Lifetime	90,000 h
Brand	CLAREO
Range	ADVANCE
Product family	Bulkhead lights

Installation environment	Residential, Commercial
Quick installation	YES
Repairable	YES
Warranty	5 years

Electrical characteristics

Voltage	220-240 V AC
Power	12 W
Electrical class	Class II

Facteur de puissance >	0,9
Taux de distorsion harmonique <	20 %
Power range	0-25 W
EU energy class 2019/2015	F

Lighting characteristics

Technology	LED
Lumens output	1200 lm
Energy savings	- 20 %
Lumens efficiency	100 lm/W
Lifetime LXBY	L80B10

Diffuser	Opale
Photobiological risk	GR0 - No risk
IRC >	80
UGR <	25.1
Lumens range	1100-1599 lm

Physical characteristics and dimensions

Diameter	300 mm
Height	85 mm
Net weight	0.6 kg
Materials	Polycarbonate
Waterproof	YES
IP	IP65

IK	IK10
Product color	White
Diameter range	251-300 mm
Working temperature	-20 °C to 40 °C
Detailed color	White
Installation mode	Surface-mounted, Wall light
Type	SMD 2835

Standards and regulations

Standards	CE, RoHS
