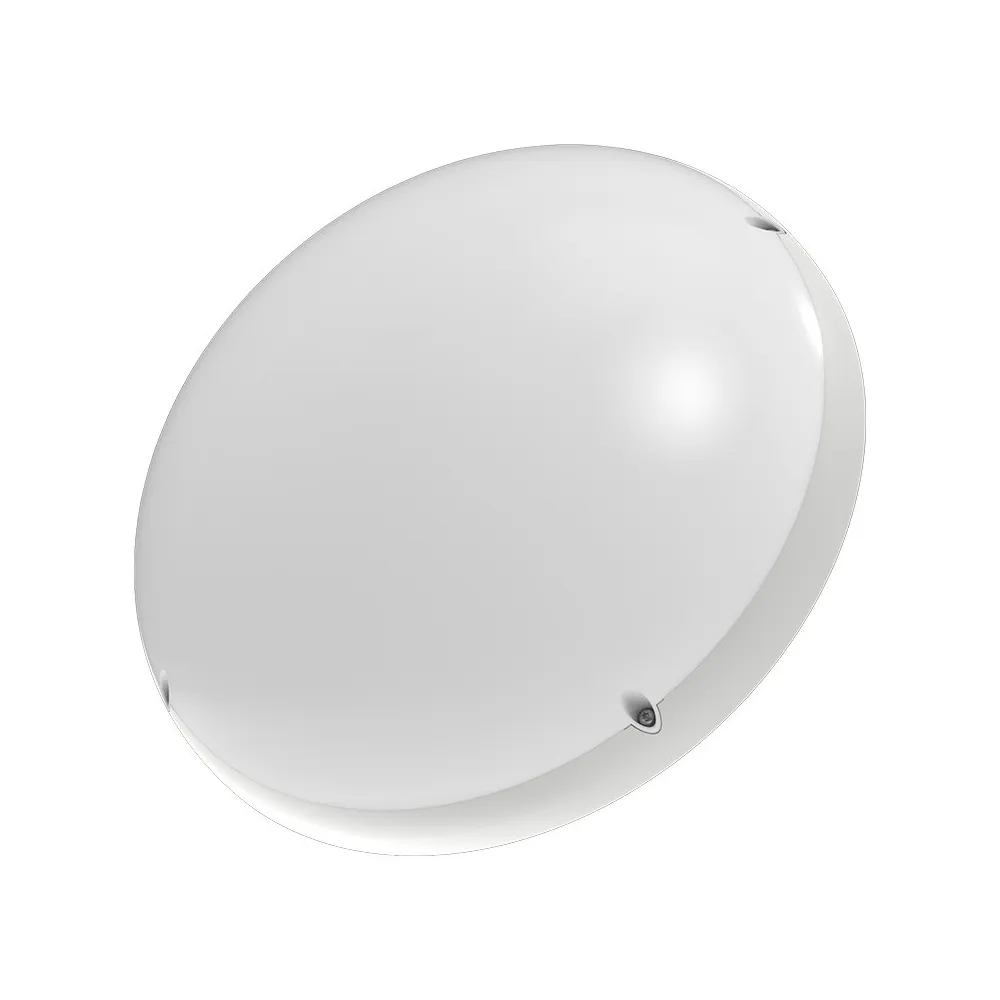

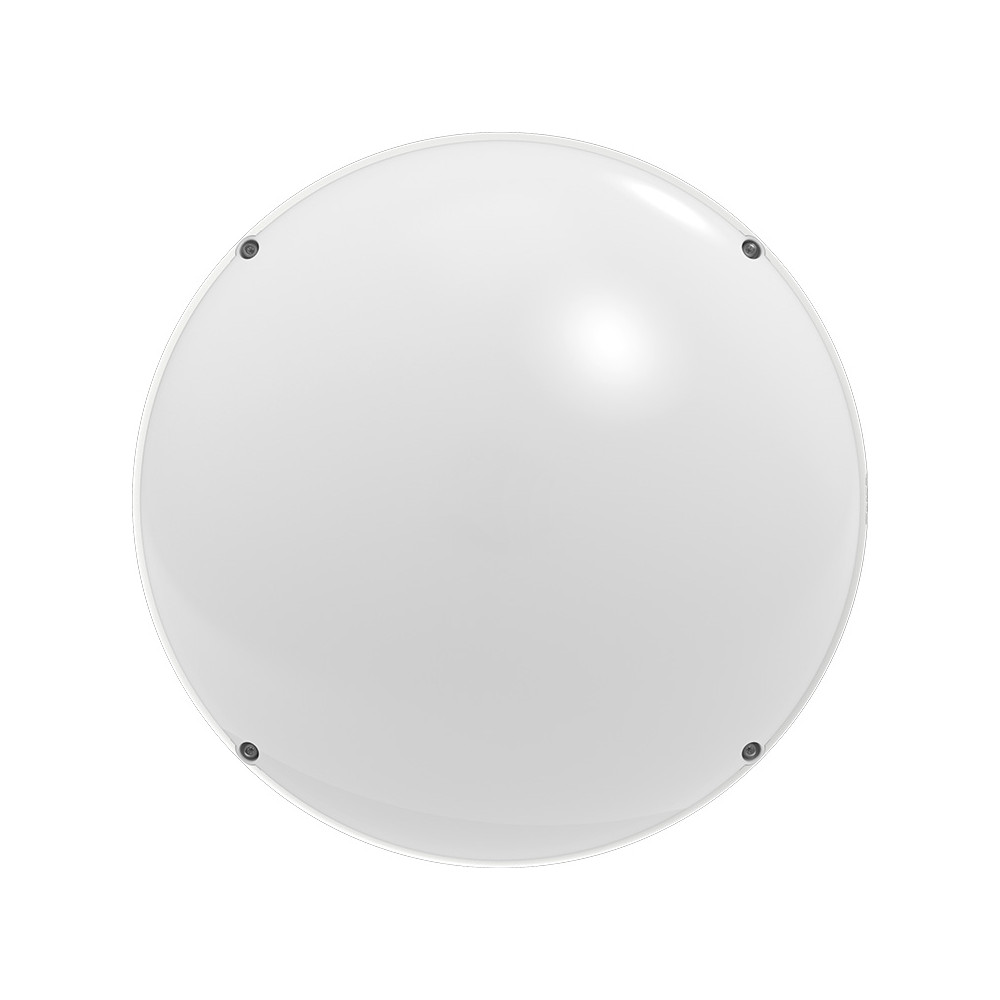

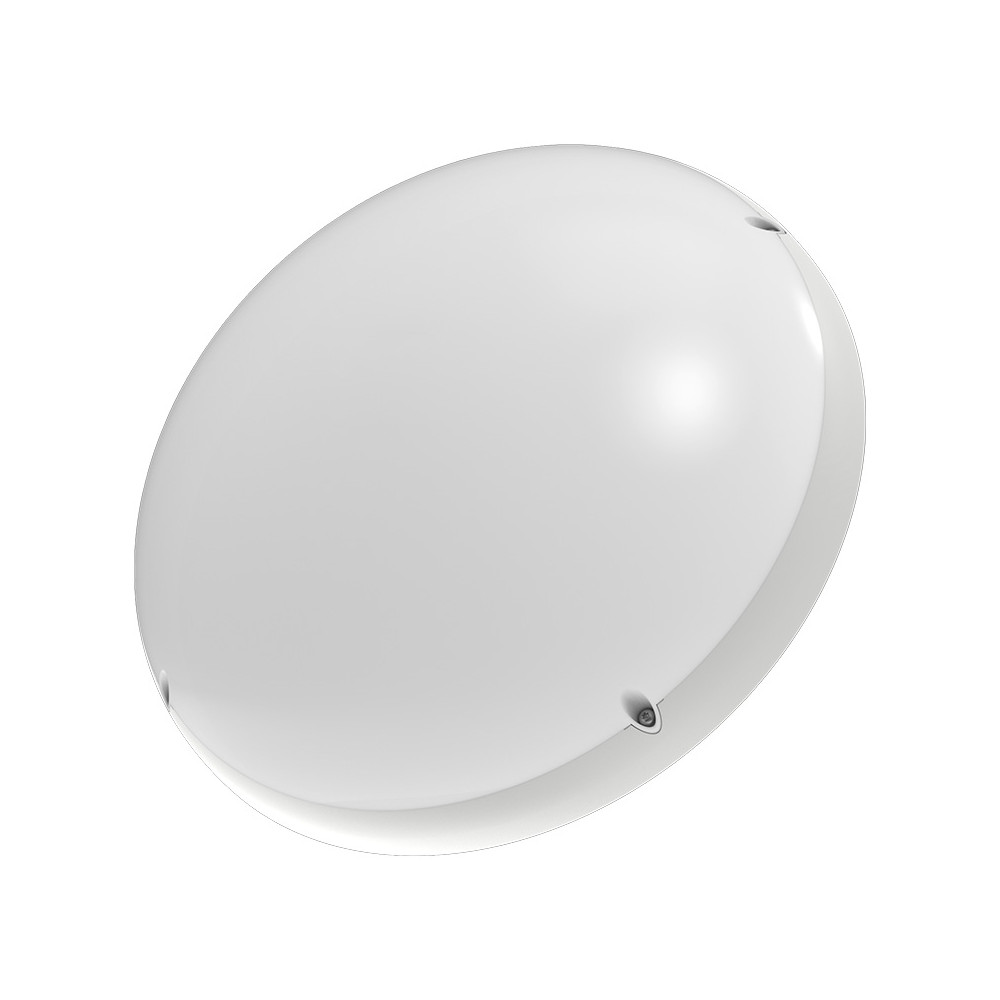

2700 lm anti-vandal dome light for residential use

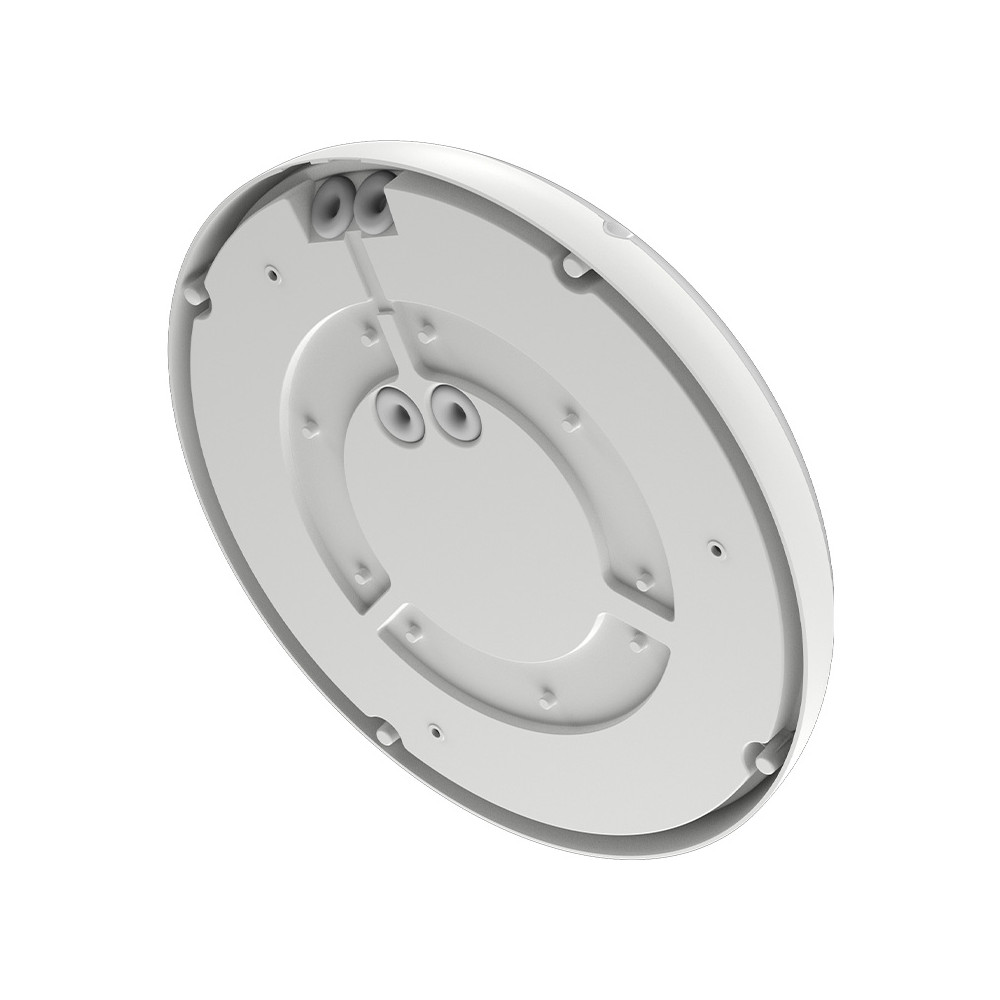

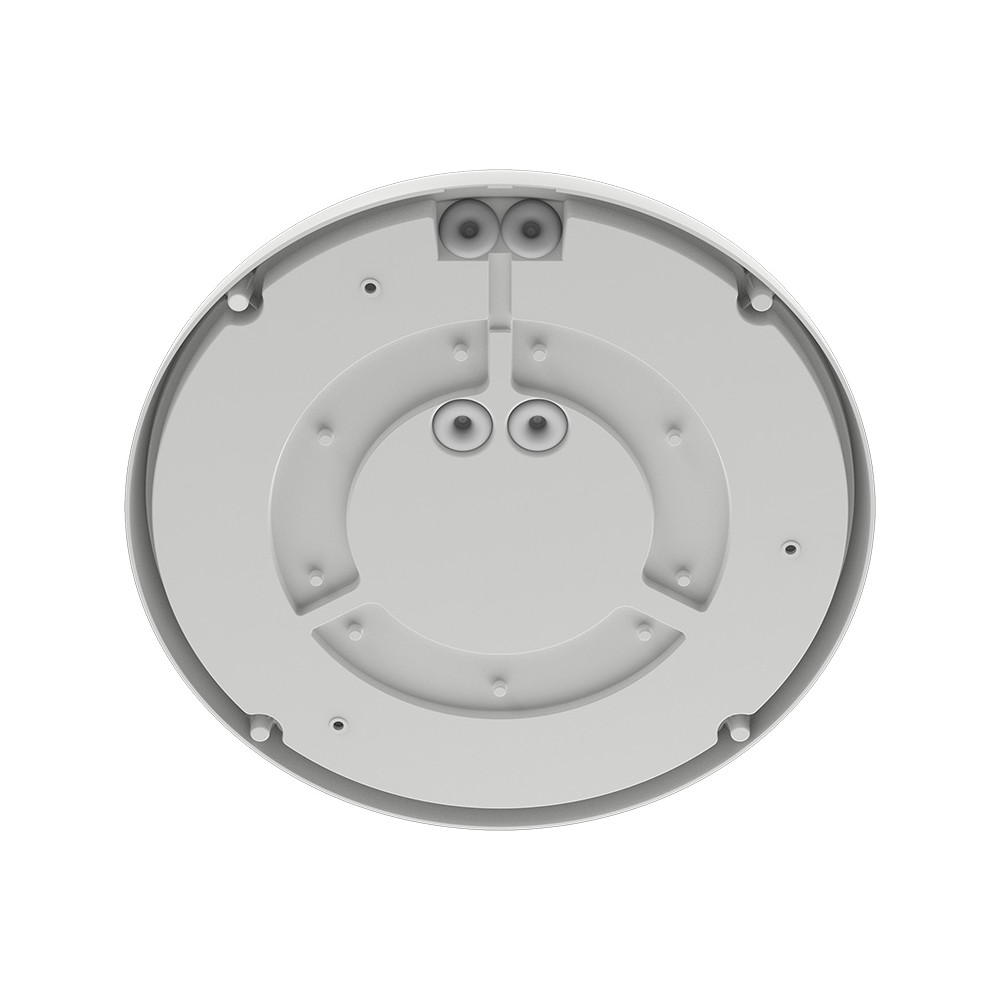

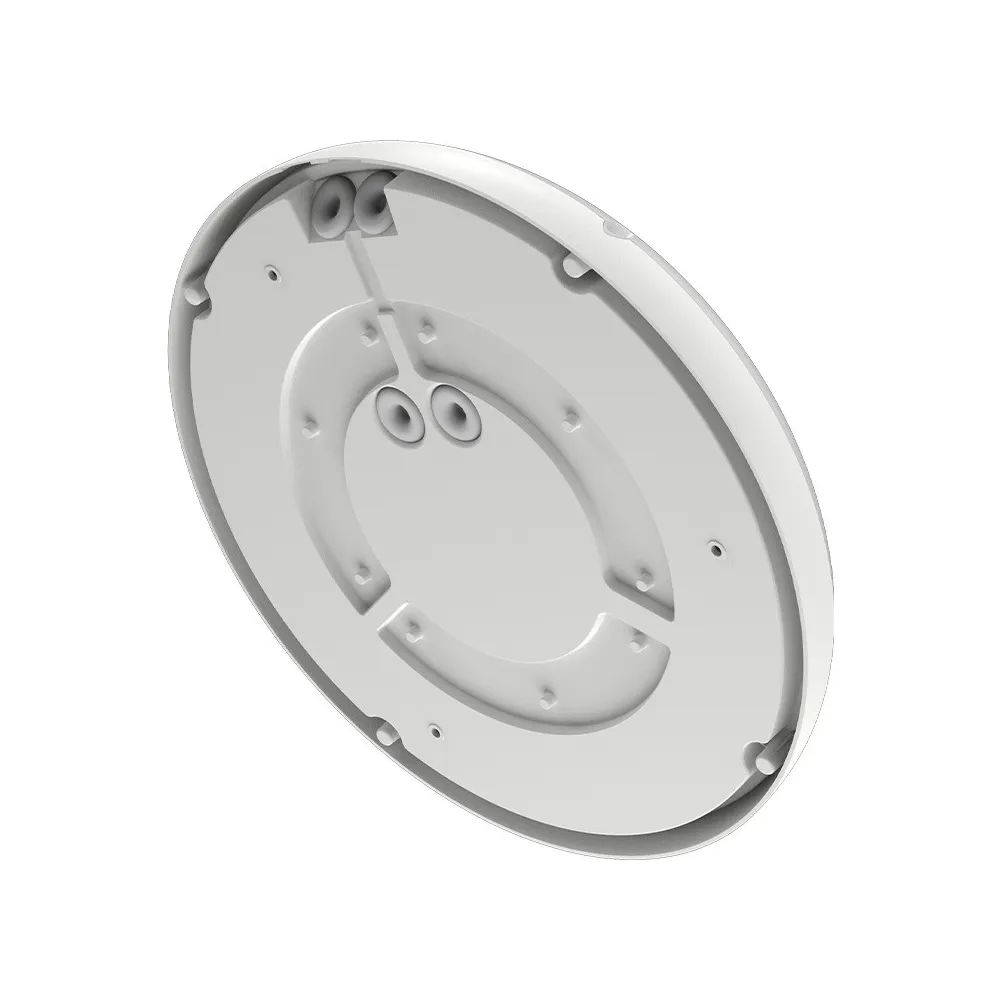

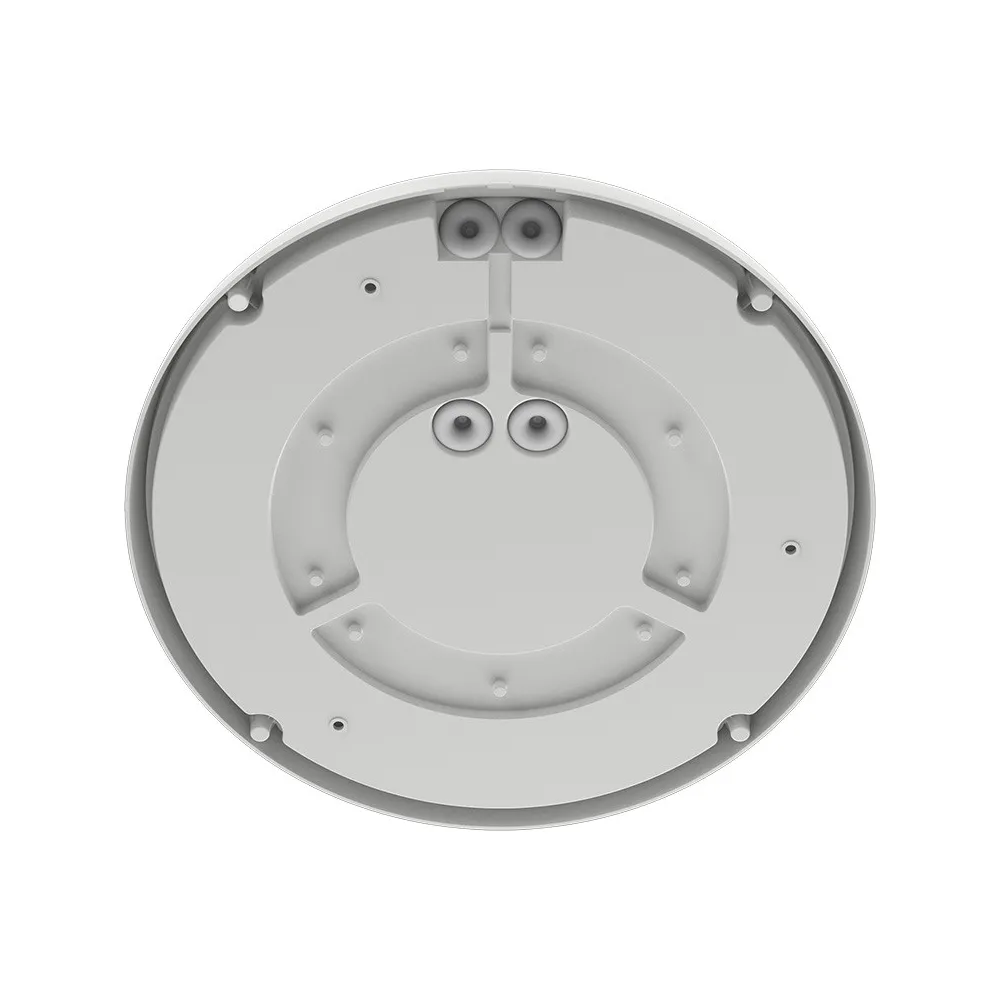

This product has a double cable entry to allow electrical connection from below or from the side. Re-pluggable terminal block.

Series connection possible without exceeding 91 dome lights. No master-slave.

Ultra-resistant: Anti-tear, anti-vandal, IP65 and IK10.

Box contents: 6 DomeLEDs START 2 with 1 anti-vandal screwdriver head, 4 torx screws, 3 mounting screws, 3 wall plugs, 3 mounting seals, 1 cable clamp and 2 screws for cable clamp.

Notable points:

- Anti-tear housing

- Universal diameter: 300 mm

- IP65 / IK10

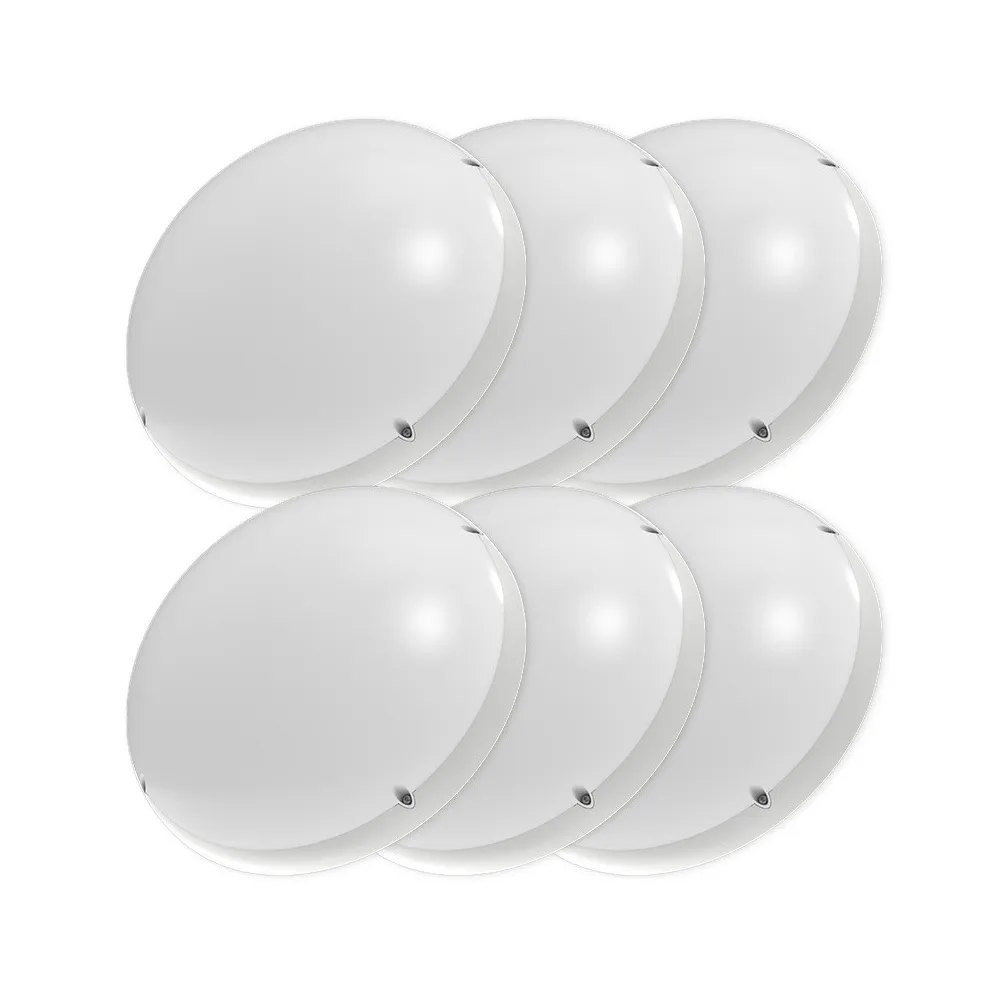

- Sold in pack of 6: low environmental impact

Ref: HUB.6099E2x6

DomeLED CLAREO 24W Anti-vandal START 2 Pack 6

2700 lm 2700 lm
Energy savings - 30 % Energy savings - 30 %
Repairable Repairable
5 years Warranty 5 years Warranty
IP65 IP65
IK10 IK10
50 000 h 50 000 h
115 lm/W 115 lm/W
UGR < 25 UGR < 25
IRC > 80 IRC > 80
save_alt Download the technical sheet

Color

White warm - 3000K
In stock, delivery next day before 1 PM
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here
Sign in Sign up

General characteristics
Lifetime 50 000 h
Brand CLAREO
Range START
Product family Bulkhead lights
Installation environment Residential, Commercial
Quick installation YES
Repairable YES
Warranty 5 years
Electrical characteristics
Voltage 220-240 V AC
Power 24 W
Electrical class Class II
Facteur de puissance > 0,9
Taux de distorsion harmonique < 20 %
Power range 0-25 W
EU energy class 2019/2015 E
Lighting characteristics
Technology LED
Lumens output 2700 lm
Energy savings - 30 %
Lumens efficiency 115 lm/W
Lifetime LXBY L80B10
Diffuser Opale
Photobiological risk GR0 - No risk
IRC > 80
UGR < 25
Lumens range 2000-2999 lm
Physical characteristics and dimensions
Diameter 300 mm

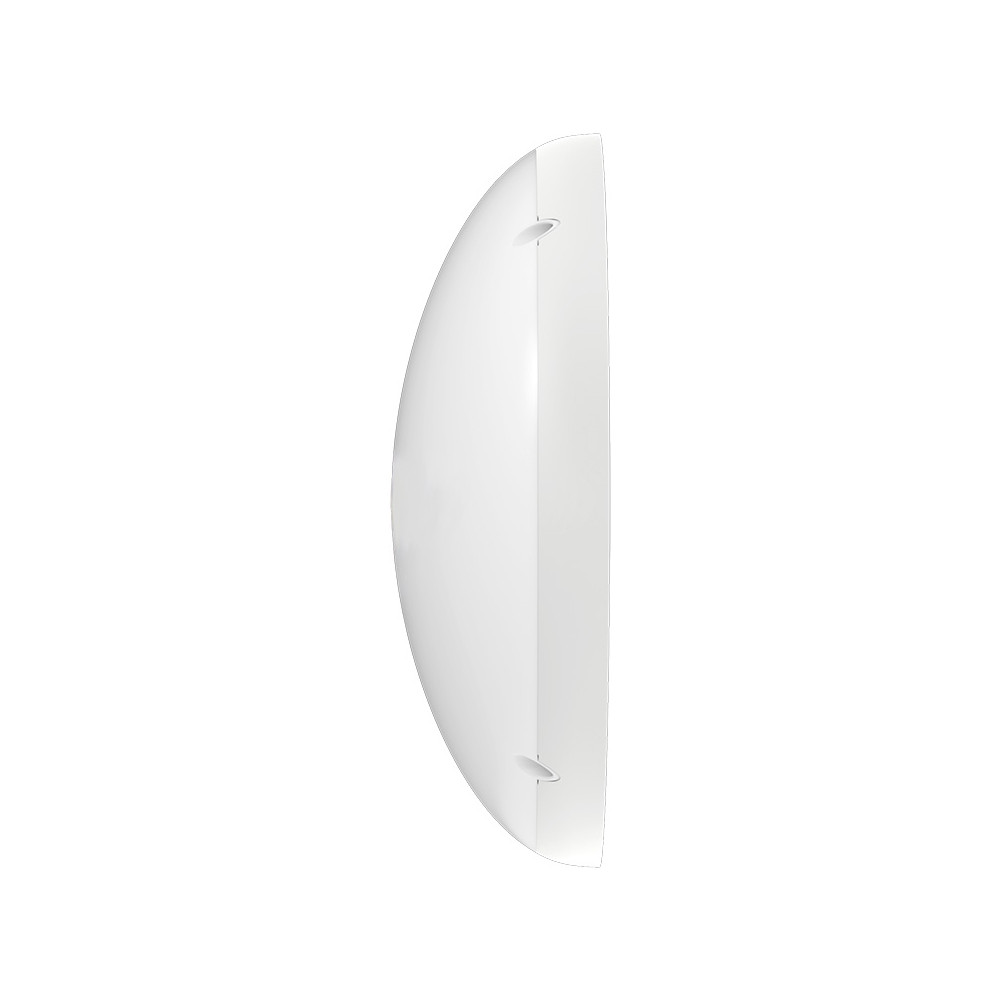

Height 85 mm
Net weight 3.7 kg
Materials Polycarbonate
Waterproof YES
IP IP65
IK IK10
Product color White
Diameter range 251-300 mm
Working temperature -20 °C to 40 °C
Detailed color White
Installation mode Surface-mounted, Wall light
Type SMD 2835
Standards and regulations
Standards CE, RoHS
