The essential anti-vandal bulkhead light for residential use

The DomeLED START 2 is the essential solution for your residential and commercial lighting projects requiring maximum robustness: stairwells, car parks, common areas or other zones at risk of vandalism. Combining exceptional resistance and light performance, it meets reliability and safety needs.

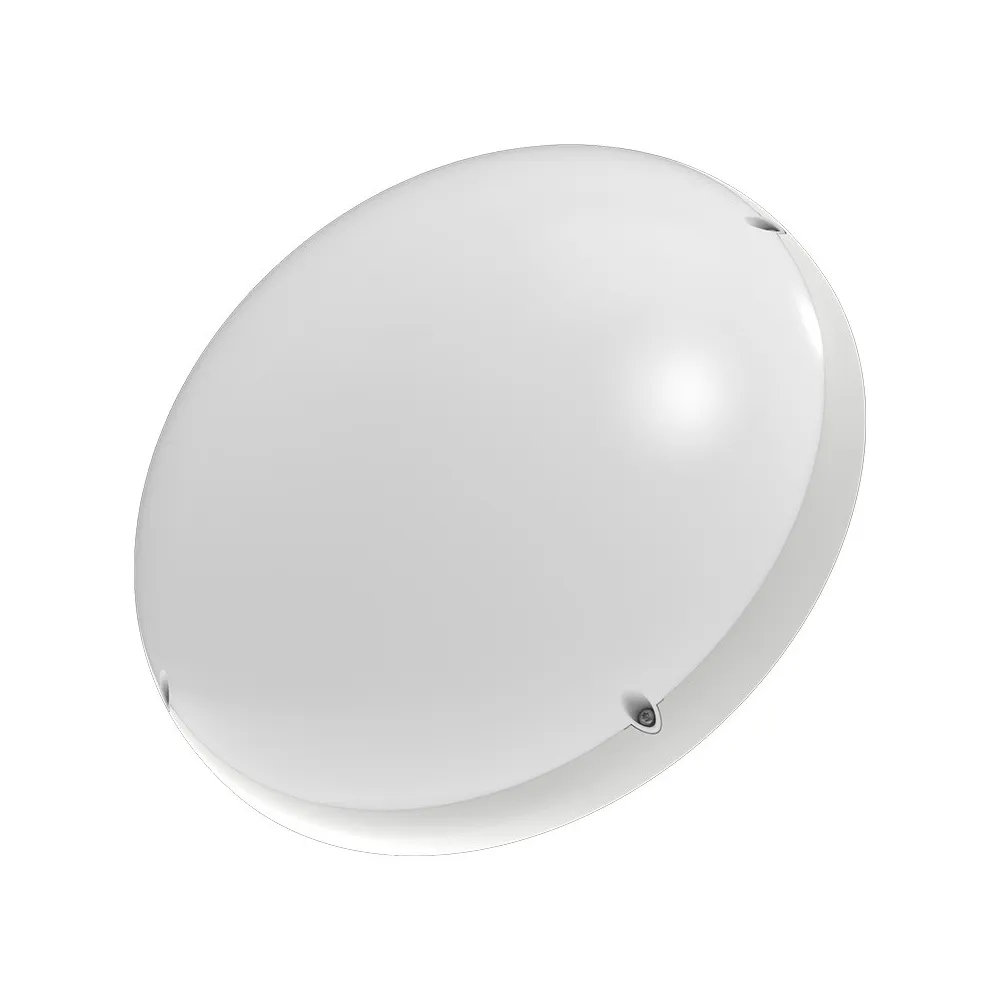

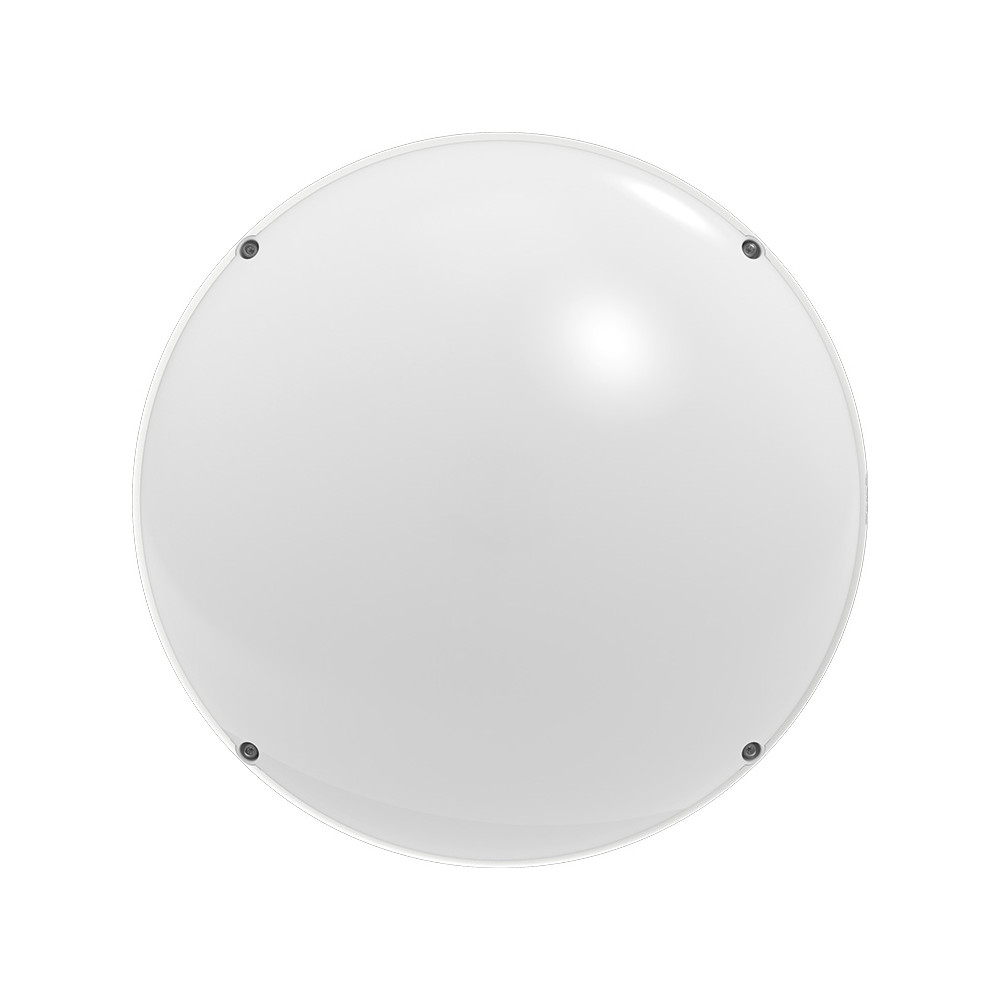

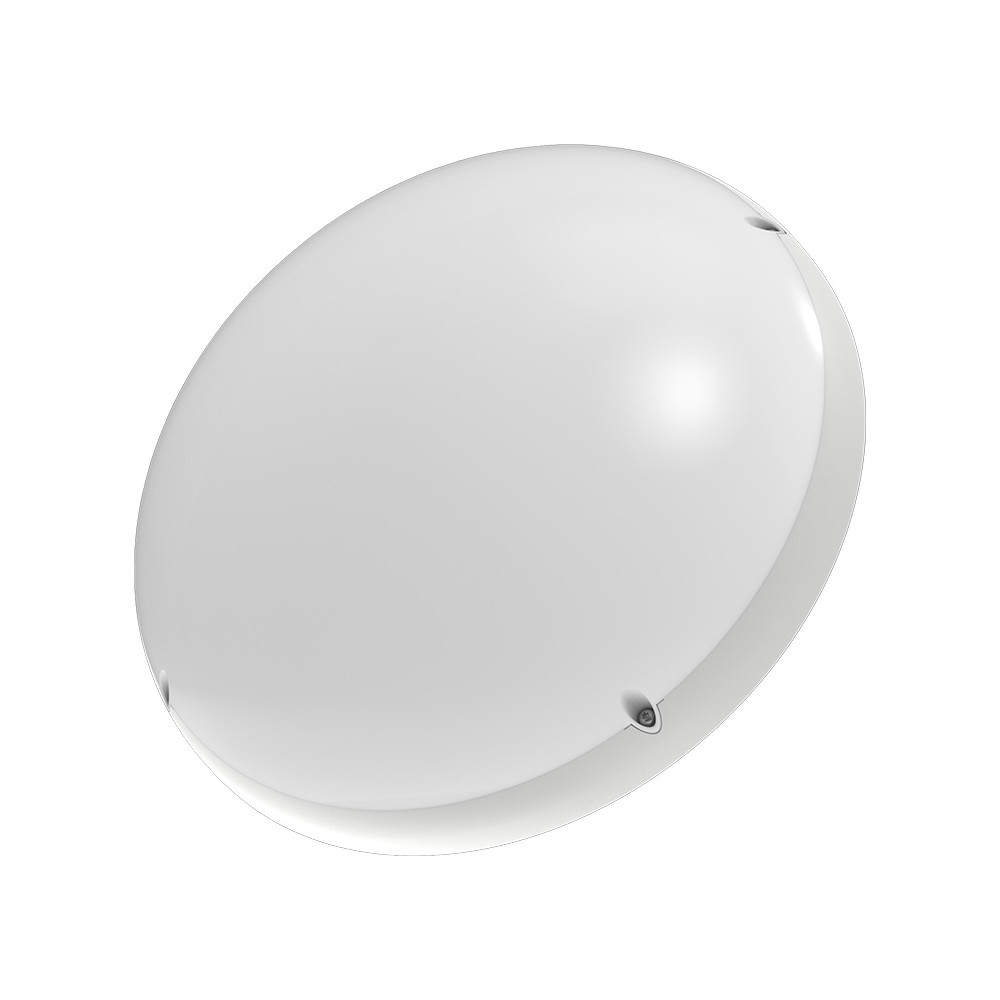

Ultra-resistant, its polycarbonate housing with anti-pull design and torx anti-vandal screws guarantee maximum protection against vandalism. Its IP65/IK10 protection also ensures resistance to impacts and water, even in the most demanding environments.

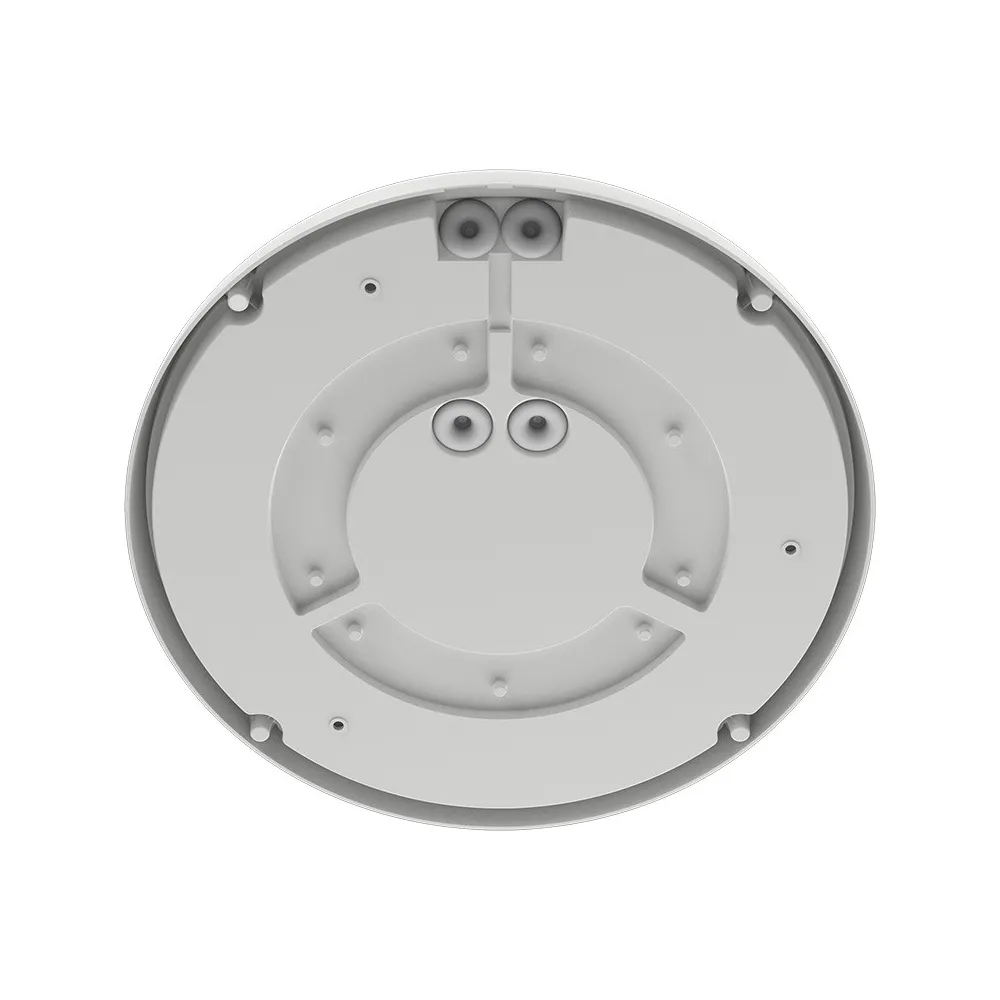

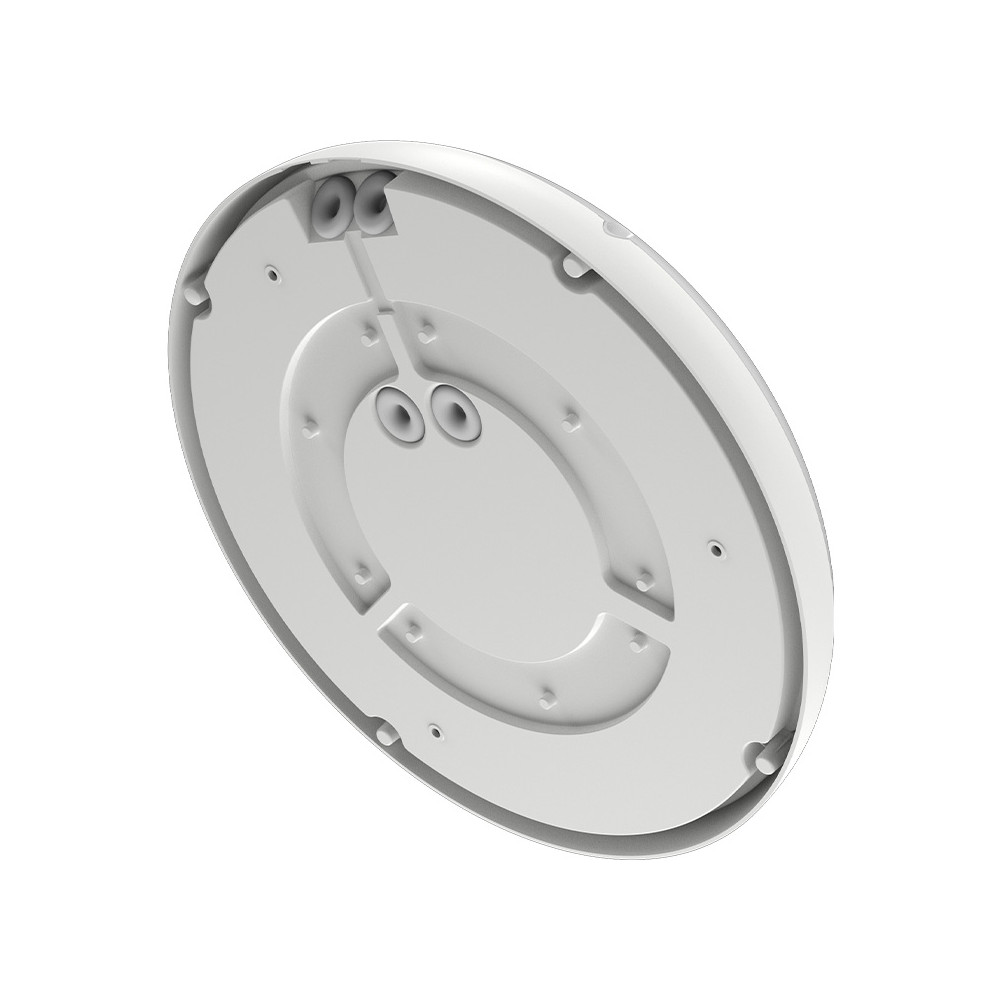

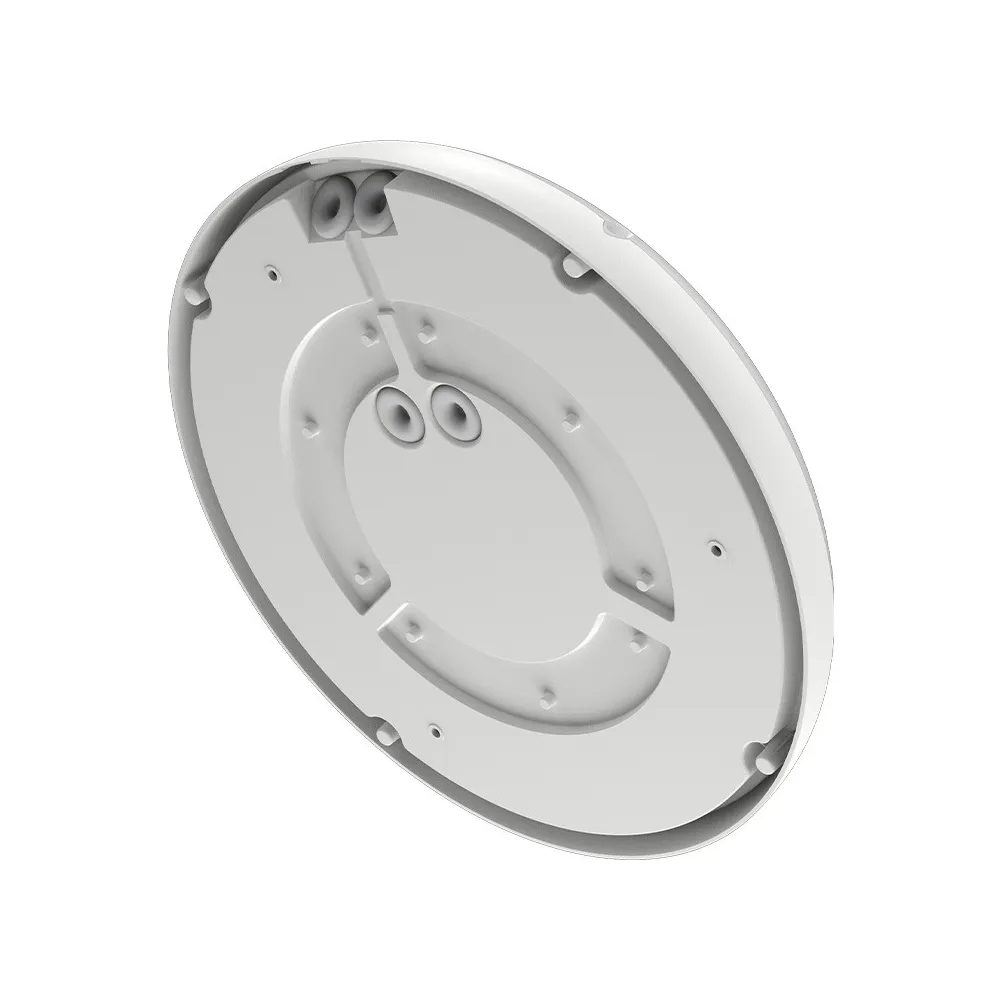

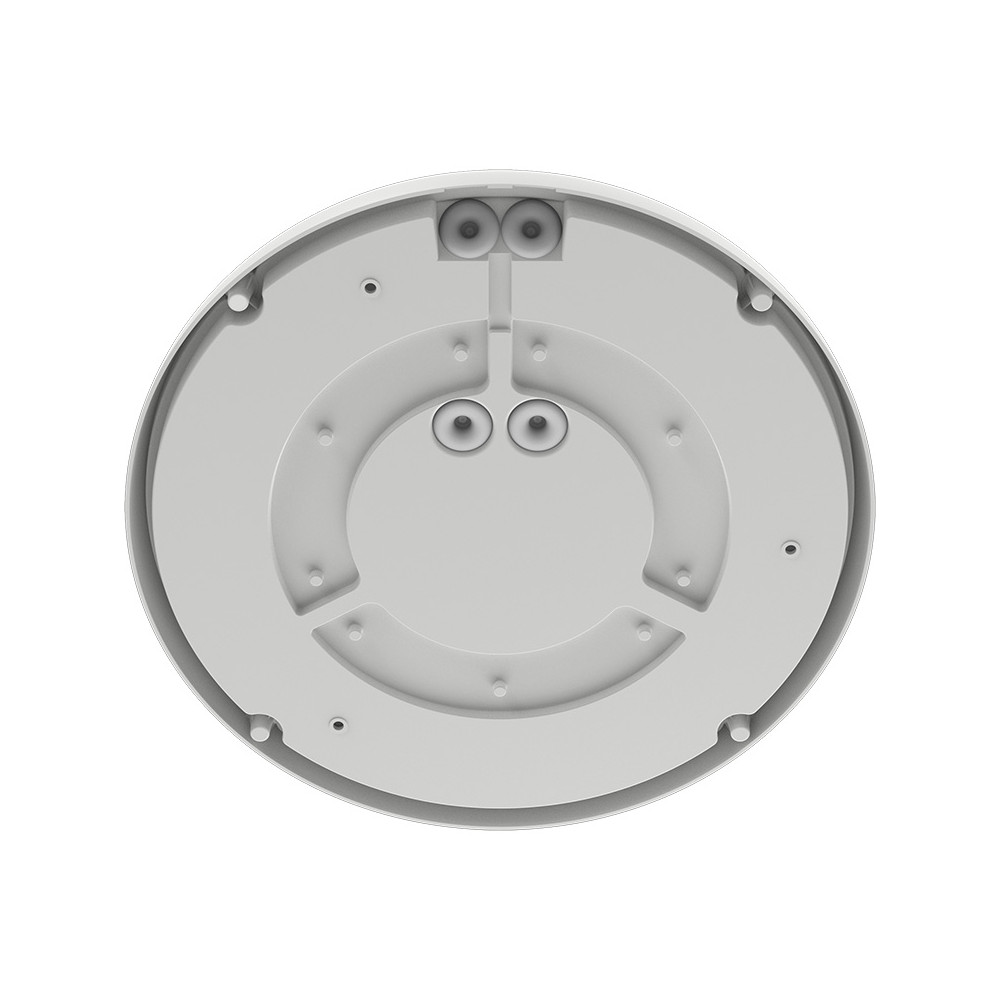

Its dual cable entry (from below or from the side) and its daisy-chain push-in terminal block allow for quick and flexible installation. Daisy-chainable up to 91 bulkhead lights in series, it reduces wiring costs for your large-scale installations.

Its L80B10 lifespan of 50,000 hours and its 5-year warranty also reflect its long-term reliability.

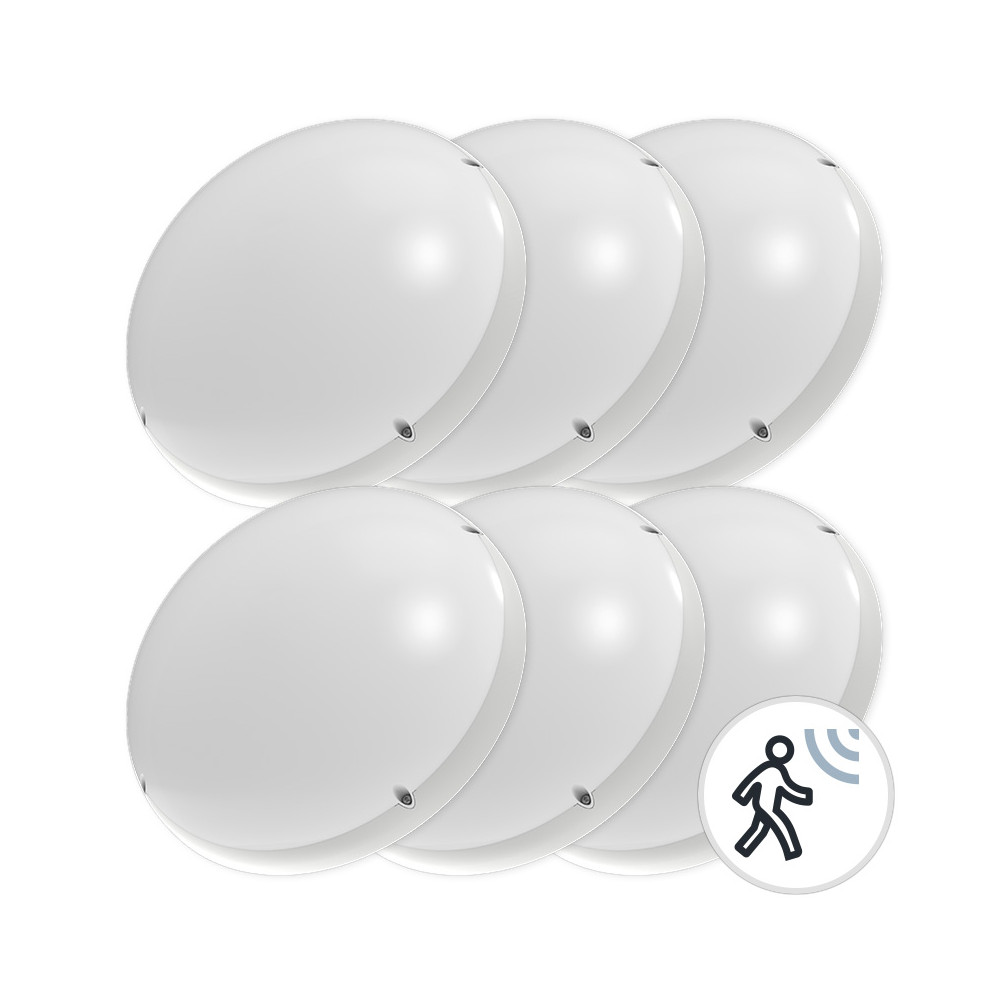

Box contents: 6 DomeLED START 2, 1 anti-vandal screwdriver bit, 4 torx screws, 3 mounting screws, 3 wall plugs, 3 mounting gaskets, 1 cable clamp, 2 screws for cable clamp

Key features:

  • IP65/IK10
  • Universal diameter of 300mm
  • Daisy-chainable up to 91 bulkhead lights in series
  • Pack of 6
  • 5-year warranty


Ref: HUB.6103E2x6

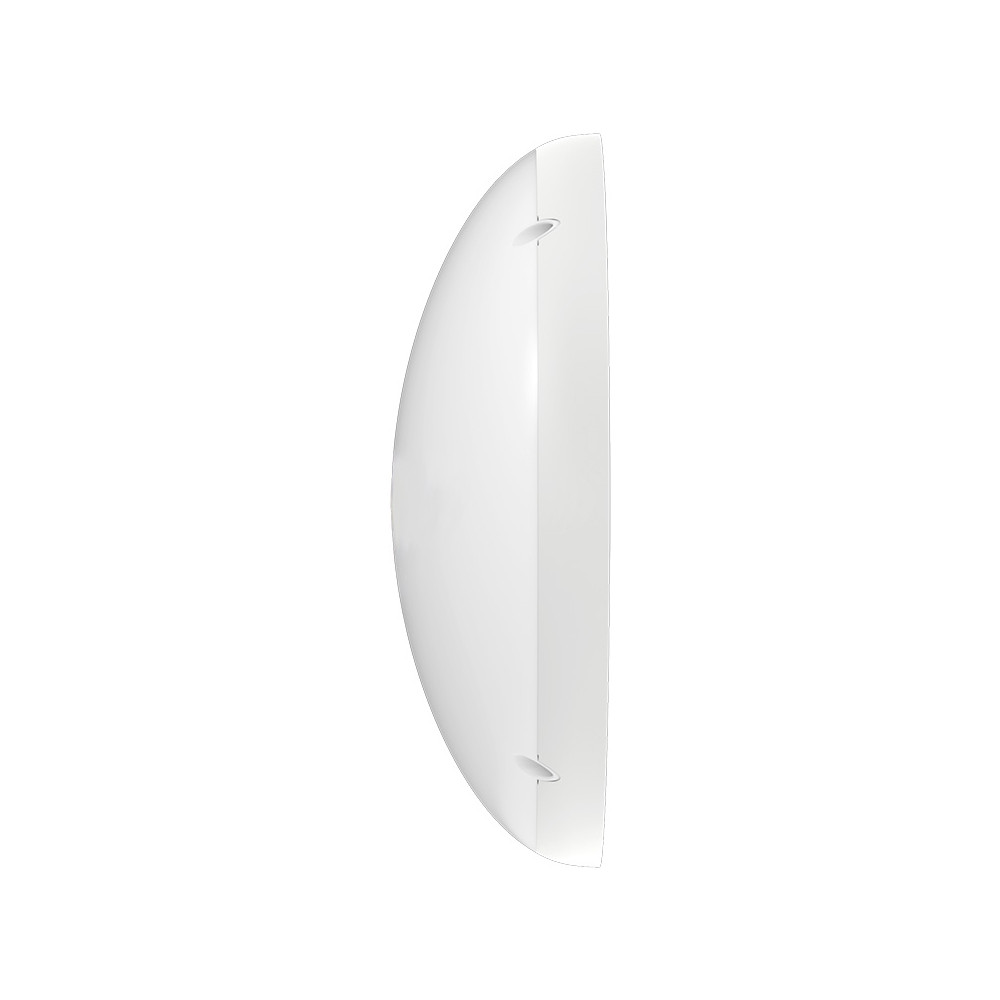

DomeLED Motion Detector CLAREO 24W Vandal-proof START 2 Pack 6

save_alt Download the technical sheet

Color

White neutral - 4000K
In stock, next day delivery before 1pm
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

The essential anti-vandal bulkhead light for residential use

The DomeLED START 2 is the essential solution for your residential and commercial lighting projects requiring maximum robustness: stairwells, car parks, common areas or other zones at risk of vandalism. Combining exceptional resistance and light performance, it meets reliability and safety needs.

Ultra-resistant, its polycarbonate housing with anti-pull design and torx anti-vandal screws guarantee maximum protection against vandalism. Its IP65/IK10 protection also ensures resistance to impacts and water, even in the most demanding environments.

Its dual cable entry (from below or from the side) and its daisy-chain push-in terminal block allow for quick and flexible installation. Daisy-chainable up to 91 bulkhead lights in series, it reduces wiring costs for your large-scale installations.

Its L80B10 lifespan of 50,000 hours and its 5-year warranty also reflect its long-term reliability.

Box contents: 6 DomeLED START 2, 1 anti-vandal screwdriver bit, 4 torx screws, 3 mounting screws, 3 wall plugs, 3 mounting gaskets, 1 cable clamp, 2 screws for cable clamp

Key features:

  • IP65/IK10
  • Universal diameter of 300mm
  • Daisy-chainable up to 91 bulkhead lights in series
  • Pack of 6
  • 5-year warranty


General characteristics
Lifetime 50 000 h
Brand CLAREO
Range START
Product family Bulkhead lights
Installation environment Residential, Commercial
Quick installation YES
Repairable YES
Warranty 5 years
Electrical characteristics
Voltage 220-240 V AC
Power 24 W
Electrical class Class II
Facteur de puissance > 0,9
Taux de distorsion harmonique < 20 %
Power range 0-25 W
Sensor YES
EU energy class 2019/2015 E
Detector type High frequency, Motion
Maximum ground detection diameter 10 m
Lighting characteristics
Technology LED
Lumens output 2700 lm
Energy savings - 30 %
Lumens efficiency 115 lm/W
Lifetime LXBY L80B10
Diffuser Opale
Photobiological risk GR0 - No risk
IRC > 80
UGR < 25
Lumens range 2000-2999 lm
Physical characteristics and dimensions
Diameter 300 mm
Height 85 mm
Net weight 4 kg
Materials Polycarbonate
Waterproof YES
IP IP65
IK IK10
Product color White
Diameter range 251-300 mm
Working temperature -20 °C to 40 °C
Detailed color White
Maximum installation height 6 m
Installation mode Surface-mounted, Wall light
Type SMD 2835
Standards and regulations
CEE BAR-EQ-110
Standards CE, RoHS
Carbon footprint 22.6 kgCO2eq
