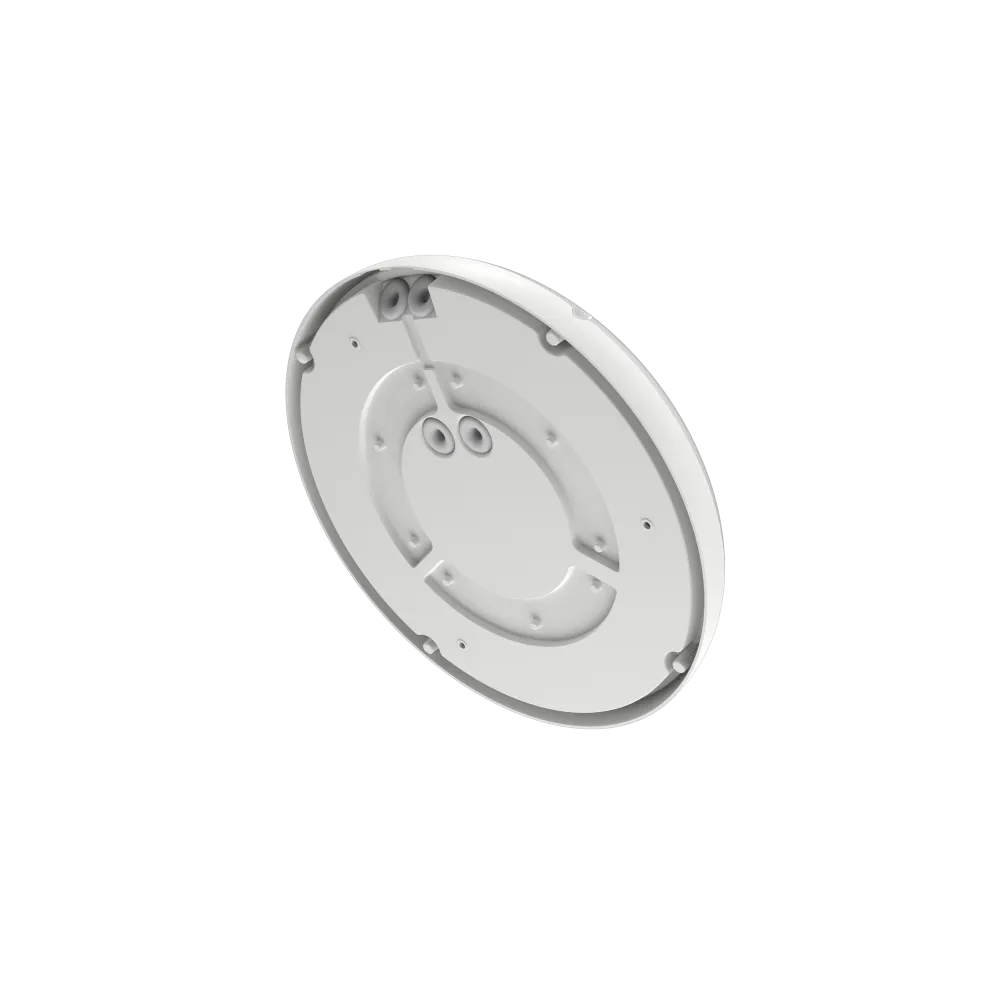

2000 lm vandal-proof bulkhead with PIR detection for residential use

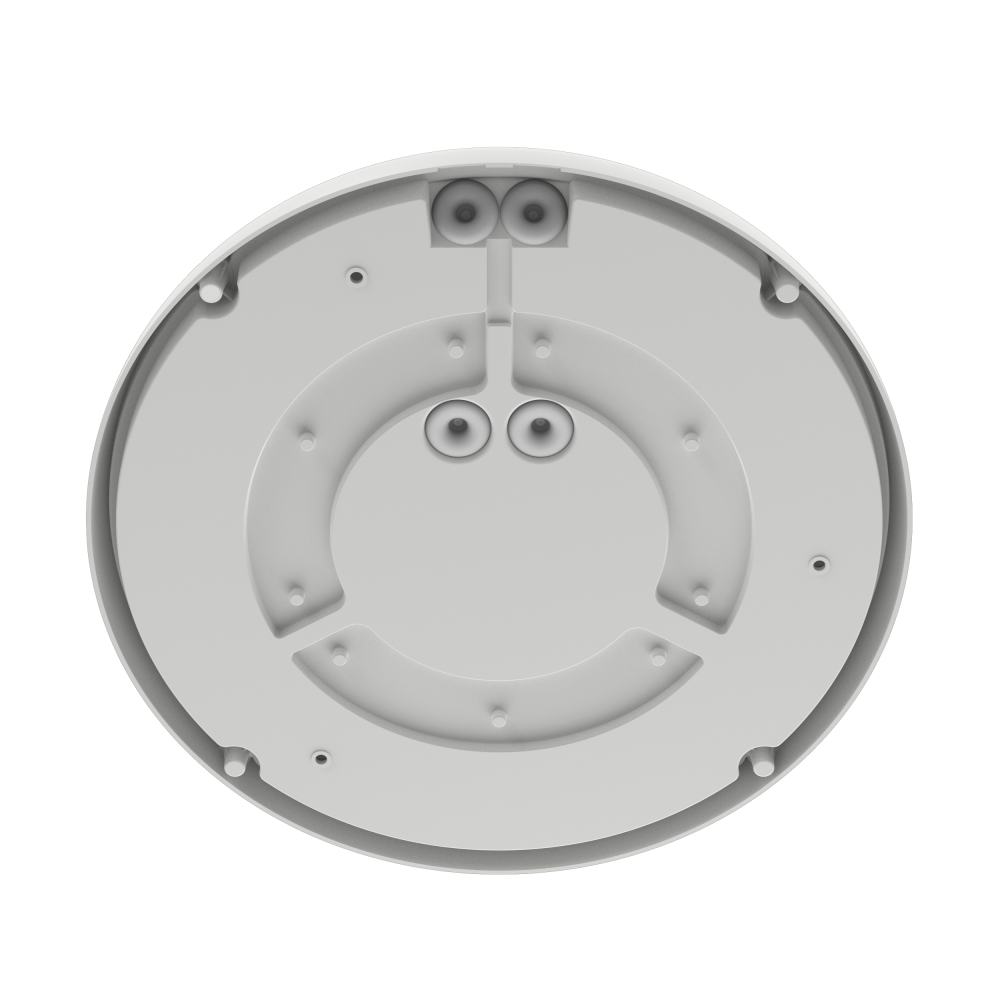

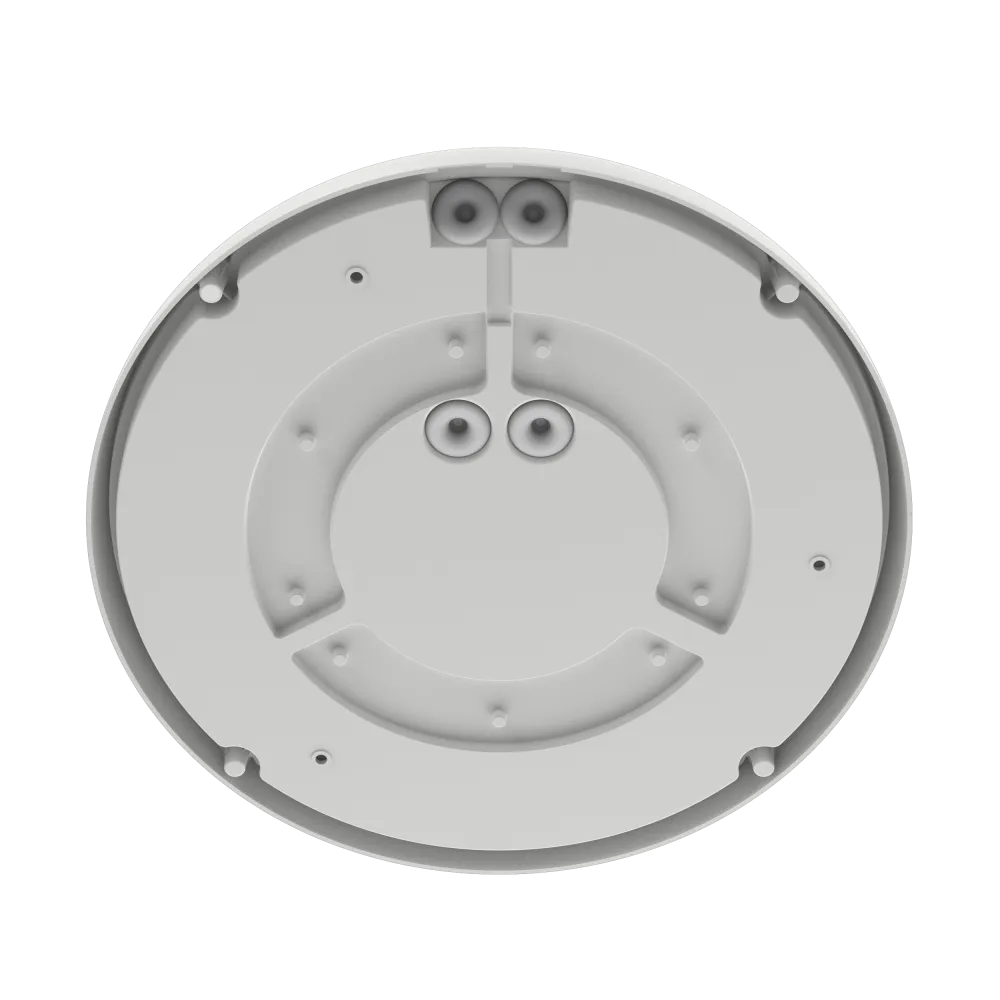

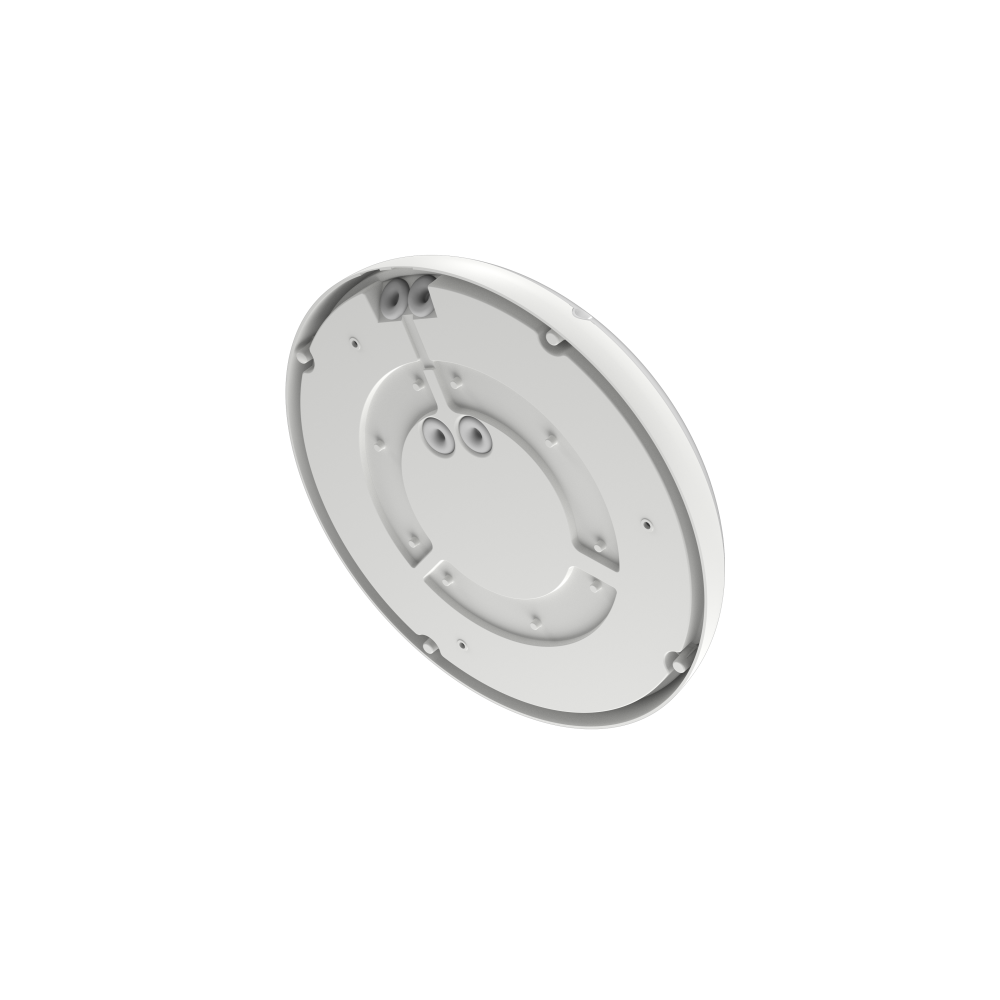

This product features a dual cable entry to allow electrical connection from below or from the side. Pluggable terminal block.

Series connection possible up to 91 bulkheads.

Ultra resistant: Anti-tear, vandal-proof, UV-resistant, IP65 and IK10.

Integrated adjustable PIR motion detector: Hold time - Twilight threshold - Detection sensitivity

Box contents: 1 DomeLED PIR Detector ADVANCE 2 with 1 vandal-proof screwdriver head, 2 connection terminals, 4 torx screws, 3 mounting screws, 3 wall plugs, 3 mounting seals, 2 cable ties and 4 cable tie screws.

Key features:

- Anti-tear housing

- Universal diameter: 300 mm

- IP65 / IK10

- Long service life

- PIR detector with 3 settings



Ref: HUB.6110A2

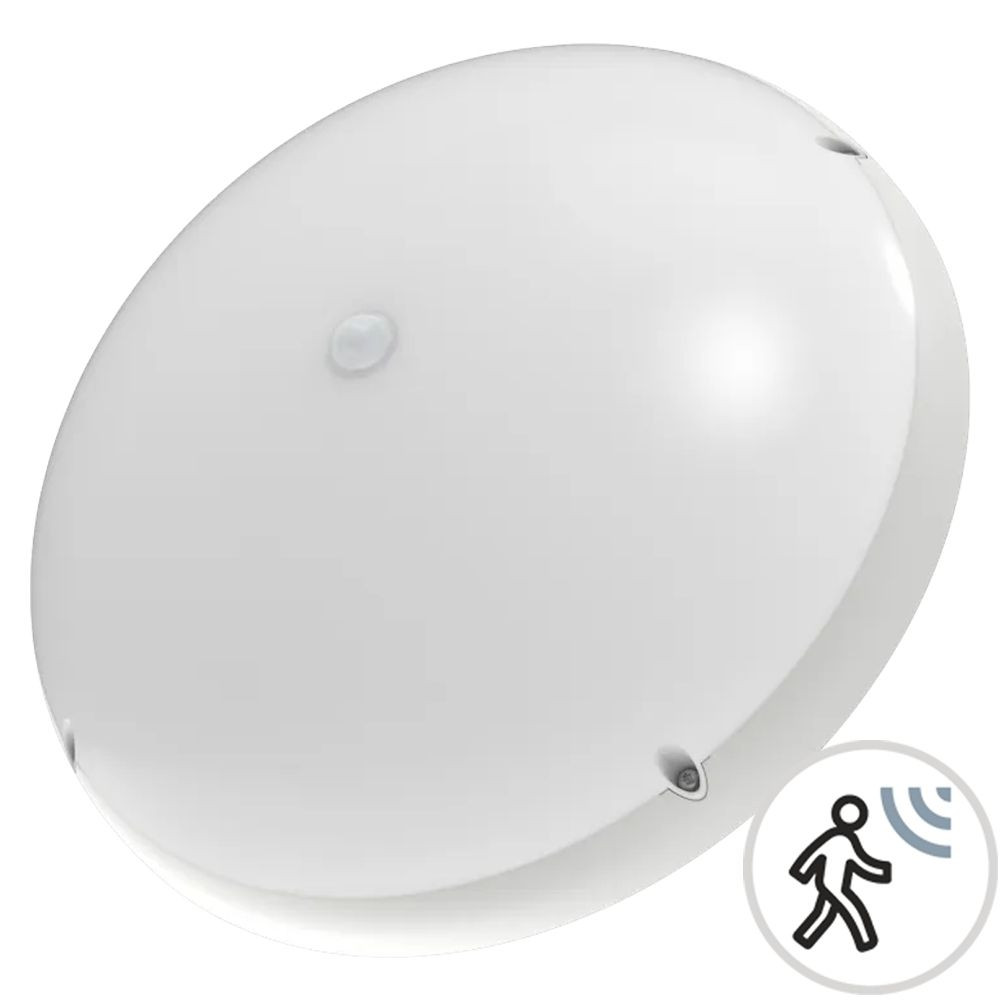

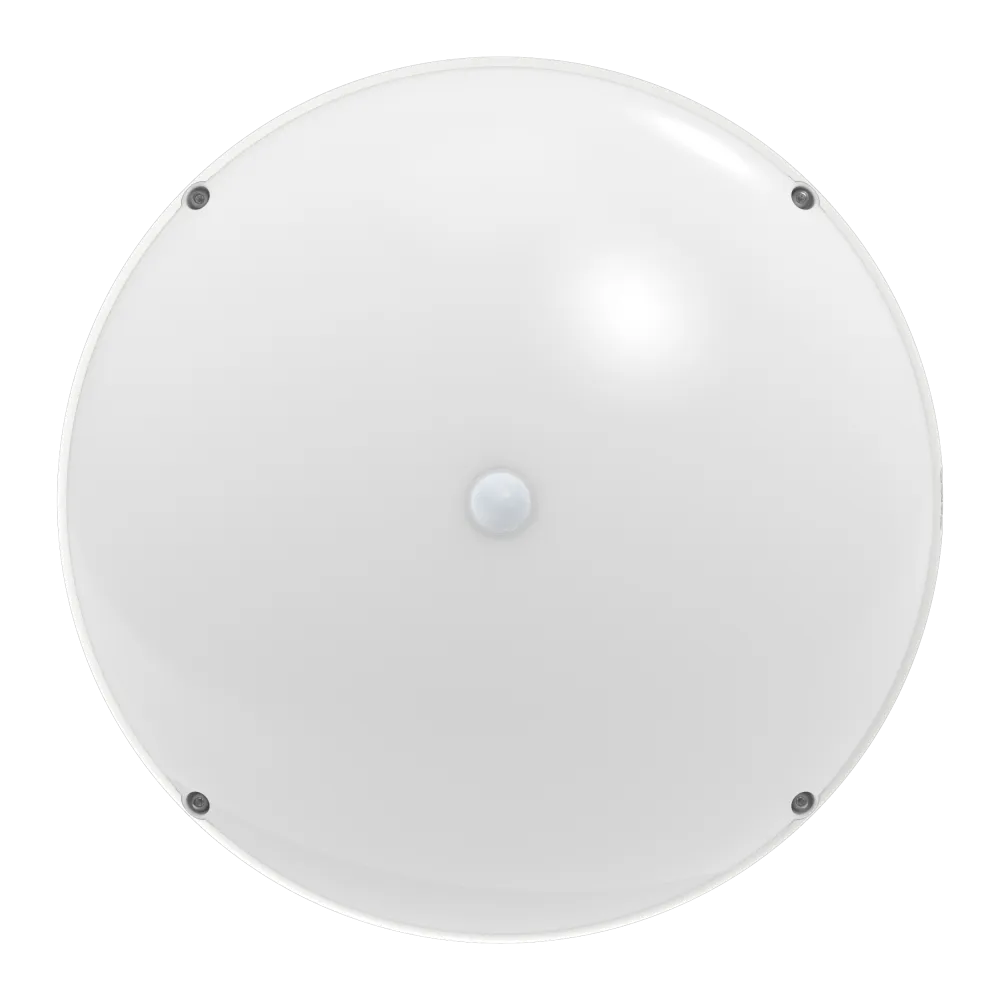

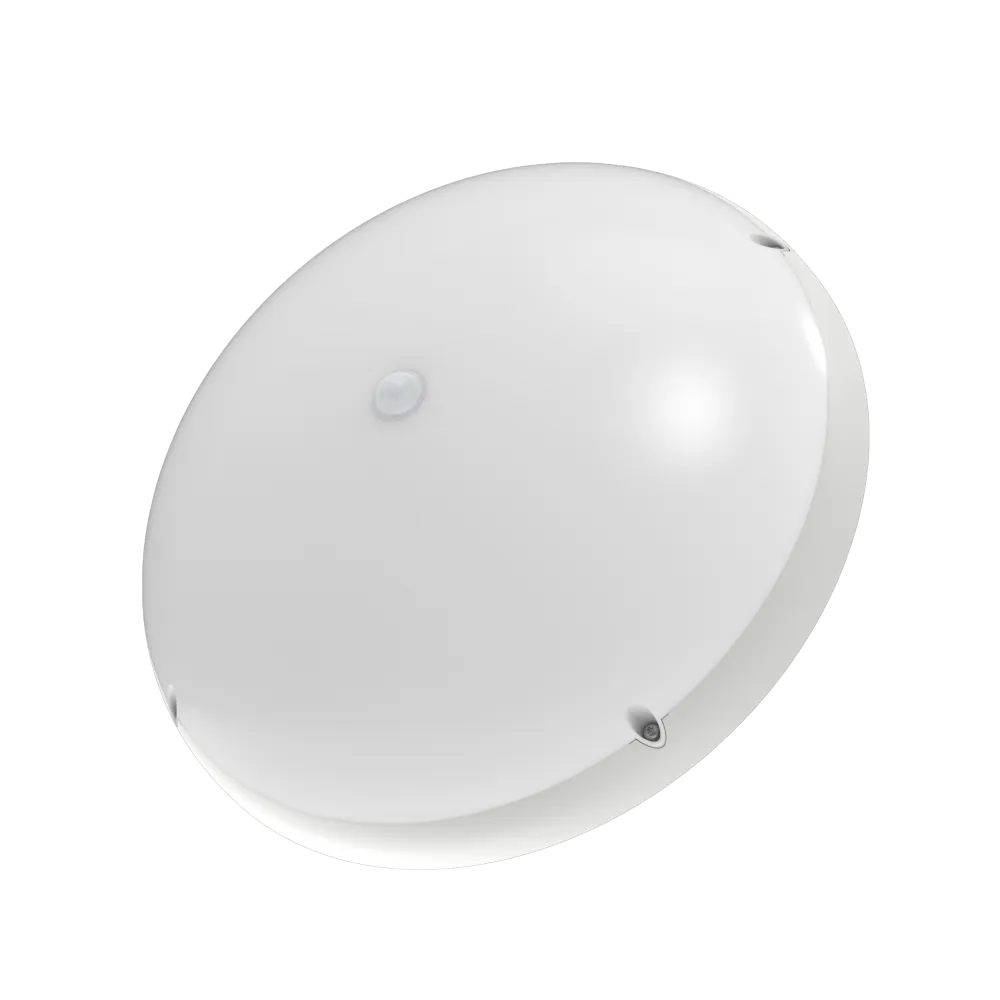

DomeLED PIR Detector CLAREO 18W Vandal-proof ADVANCE 2

1980 lm 1980 lm
Energy savings - 20 % Energy savings - 20 %
BAR-EQ-110 CEE BAR-EQ-110 CEE
5 years Warranty 5 years Warranty
IP65 IP65
IK07 IK07
90,000 h 90,000 h
110 lm/W 110 lm/W
Sensor YES Sensor YES
UGR < 24 UGR < 24
IRC > 80 IRC > 80
save_alt Download the technical sheet

Color

White warm - 3000K

Angle

Diffuser

In stock, next day delivery before 1pm
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here
Sign in Sign up

General characteristics
Lifetime 90,000 h
Brand CLAREO
Range ADVANCE
Product family Bulkhead lights
Installation environment Residential, Home, Decorative
Warranty 5 years
Electrical characteristics
Voltage 220-240 V AC
Current 80 mA
Power 18 W
Electrical class Class II
Facteur de puissance > 0,9
Taux de distorsion harmonique < 15%
Power range 0-25 W
Sensor YES
EU energy class 2019/2015 D
Detector type PIR
Maximum ground detection diameter 10 m
Lighting characteristics
Technology LED
Lumens output 1980 lm
Energy savings - 20 %
Lumens efficiency 110 lm/W
Diffuser Opale
Beam Angle 120 deg
Photobiological risk GR0 - No risk
IRC > 80
UGR < 24
Lumens range 1600-1999 lm
Physical characteristics and dimensions
Diameter 300 mm

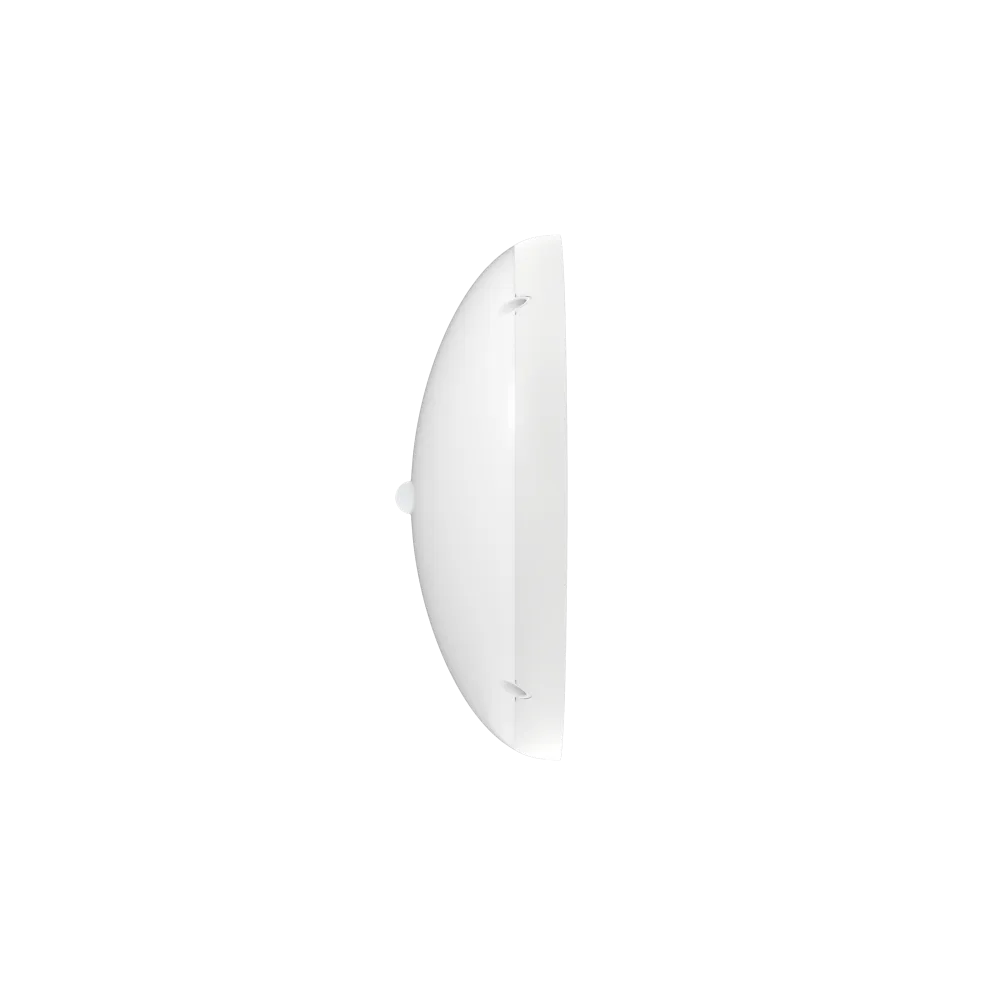

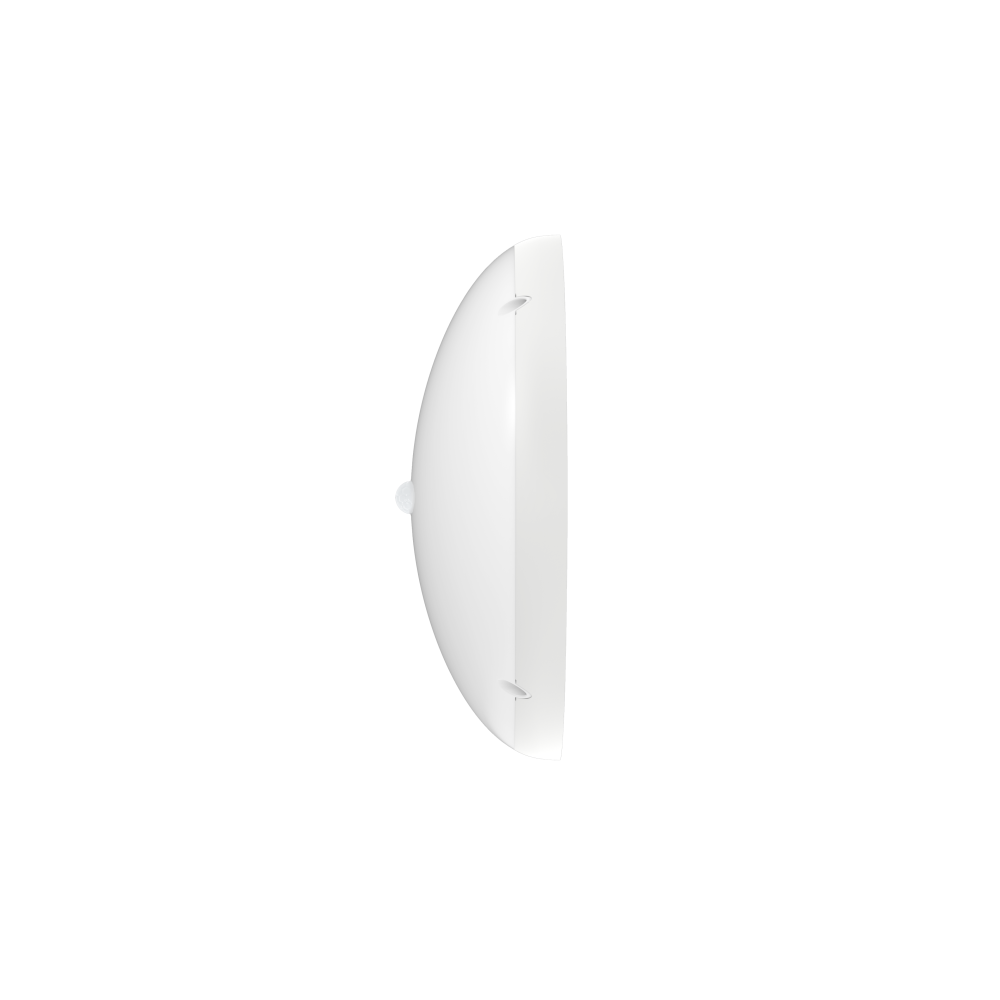

Height 91 mm
Net weight 0.6 kg
Materials Polycarbonate and polypropylene
Waterproof YES
IP IP65
IK IK07
Product color White
Diameter range 251-300 mm
Working temperature -20 °C to 40 °C
Detailed color White
Maximum installation height 3 m
Installation mode Surface mount
Standards and regulations
CEE BAR-EQ-110
Standards RoHS, CE
