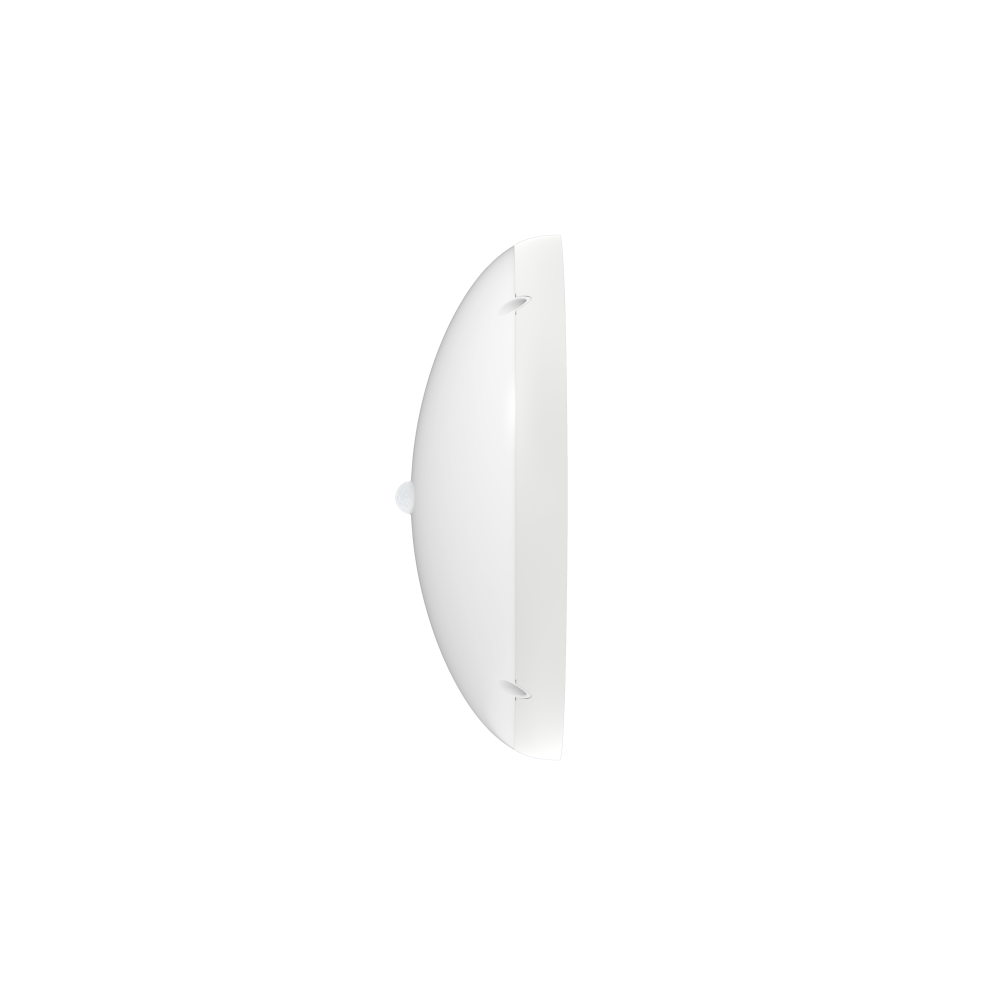

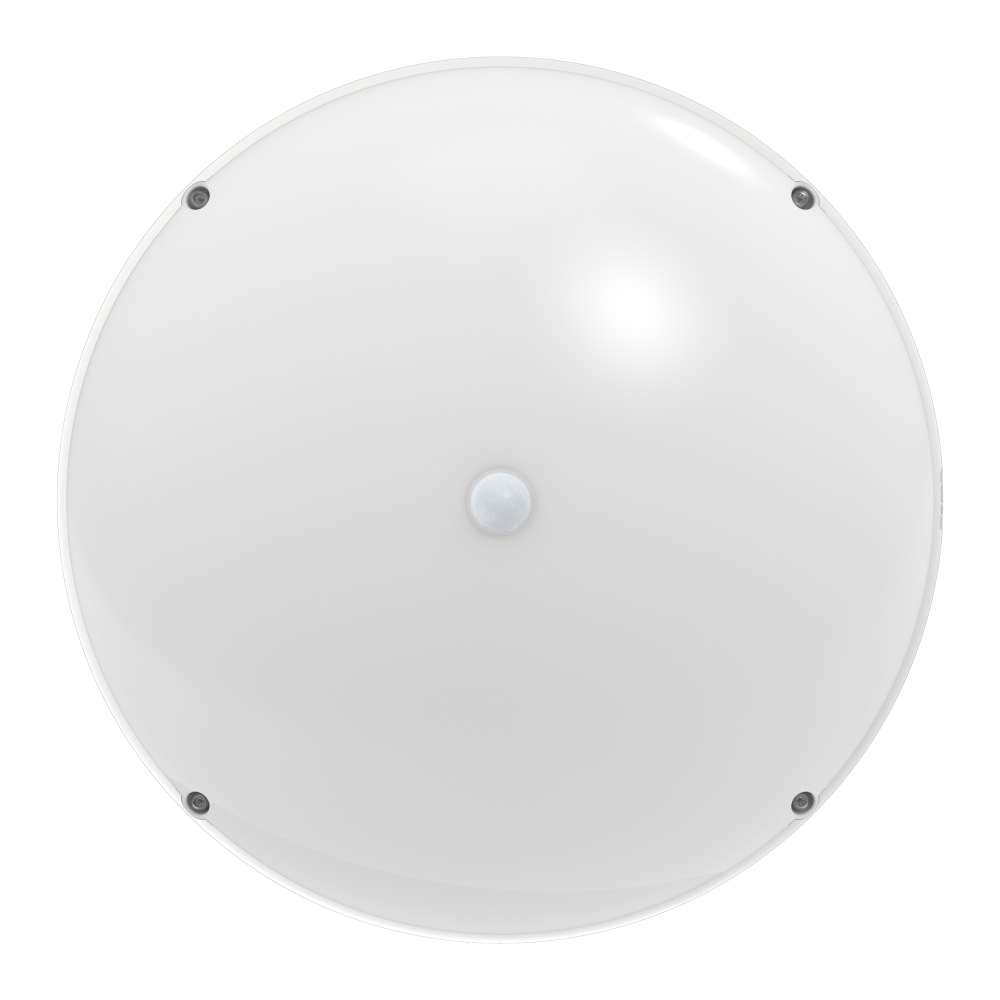

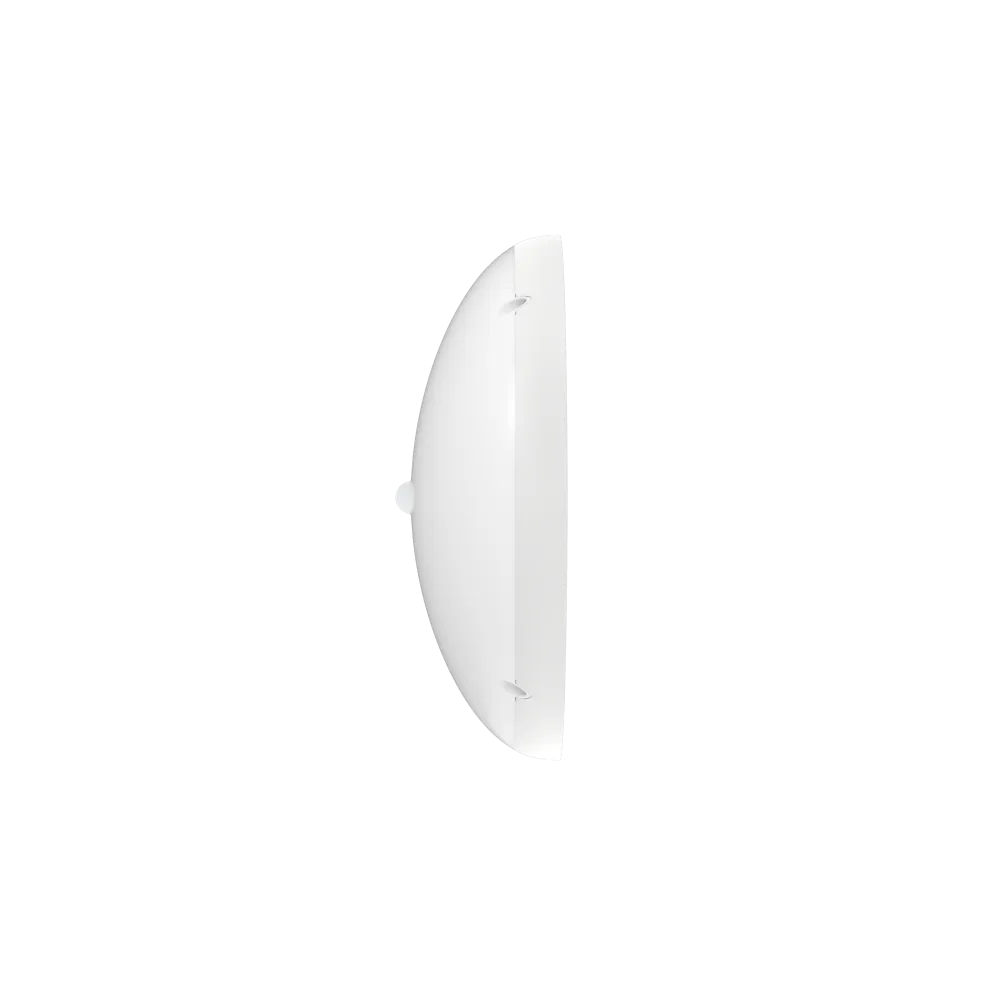

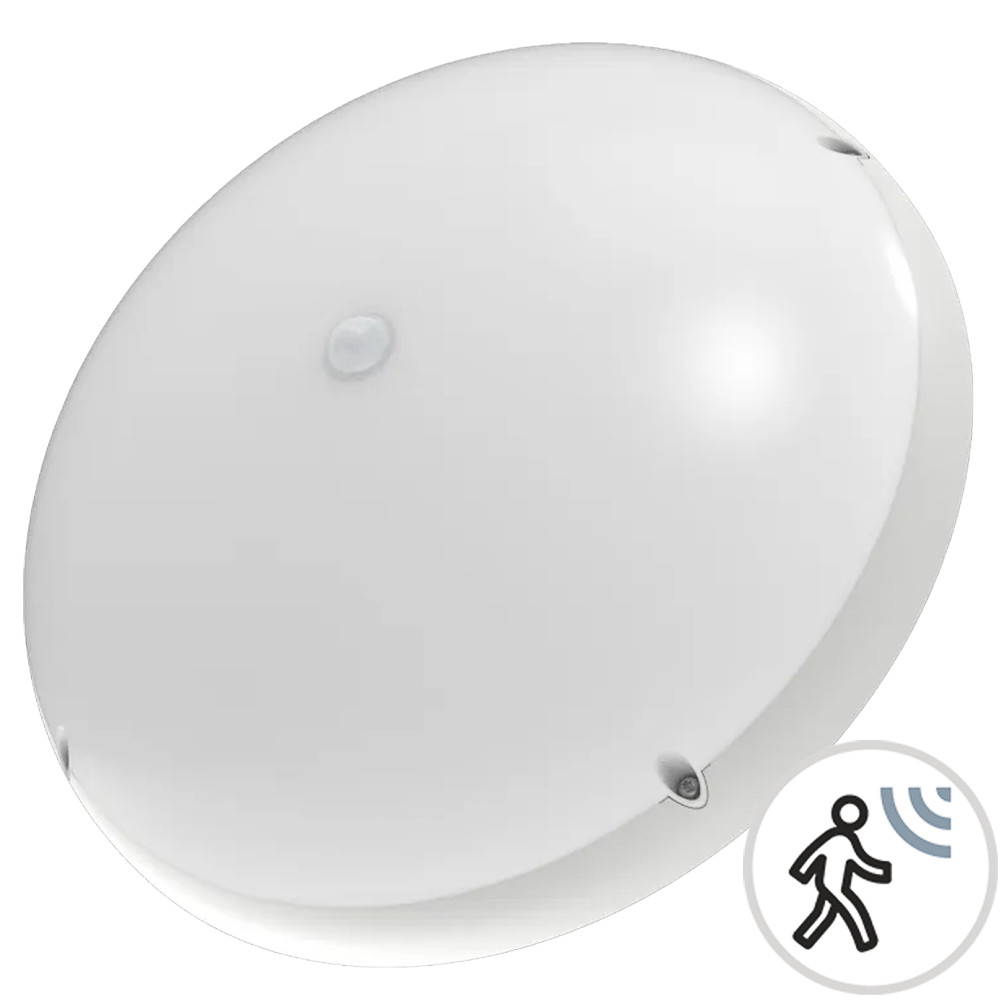

DomeLED PIR Detector CLAREO 24W Vandal-proof ADVANCE 2

2640 lm vandal-proof bulkhead with PIR detection for residential use

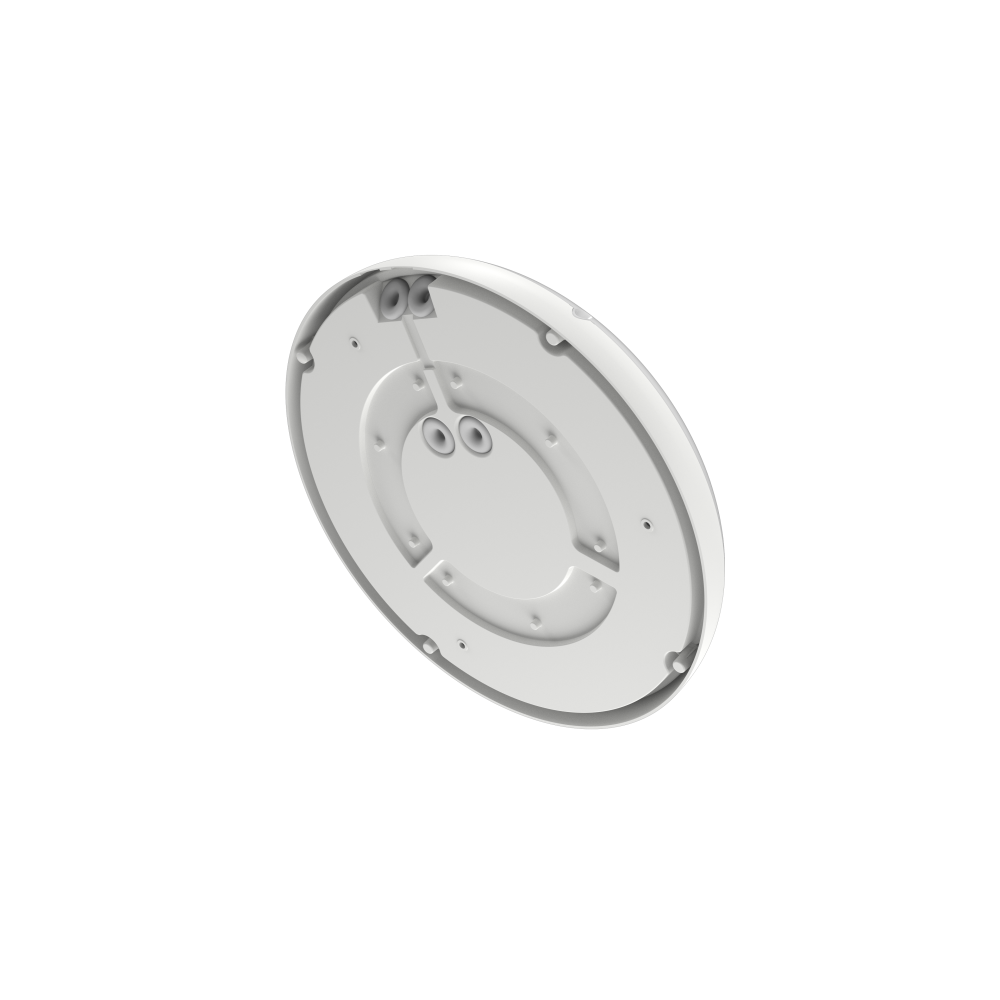

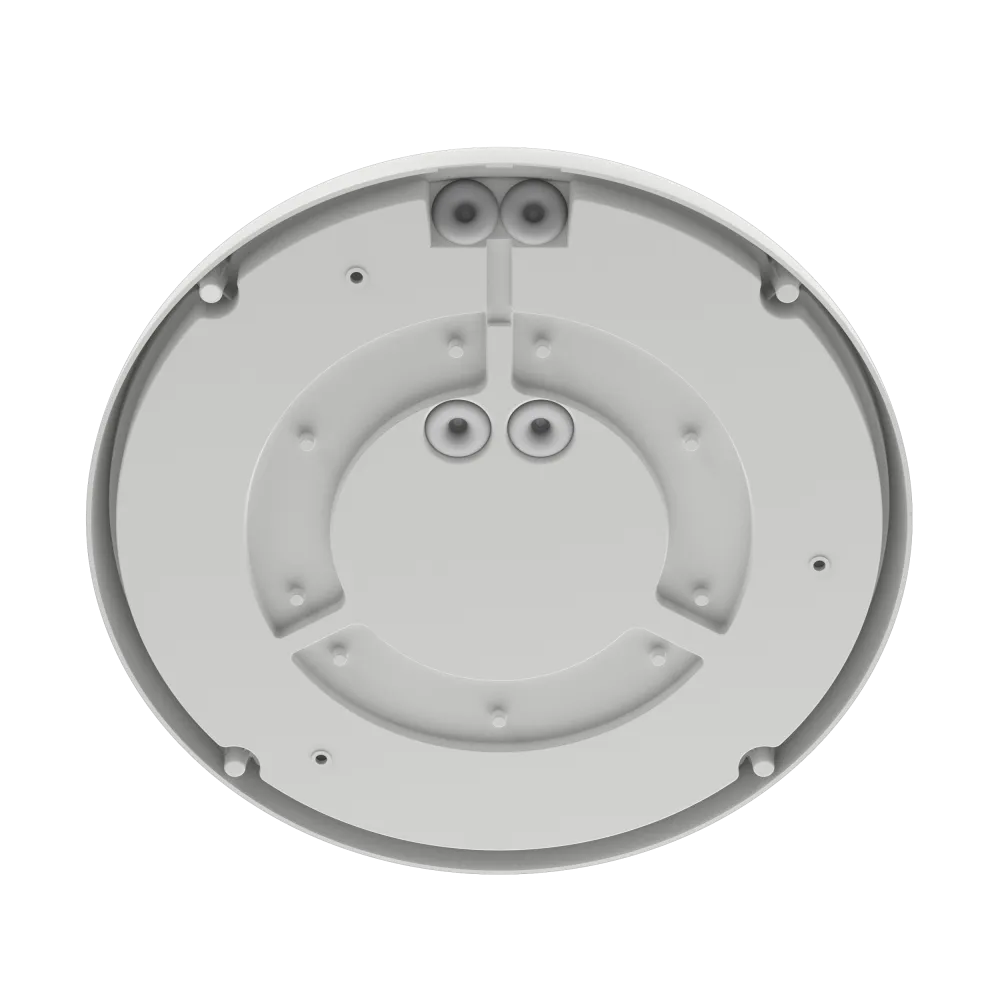

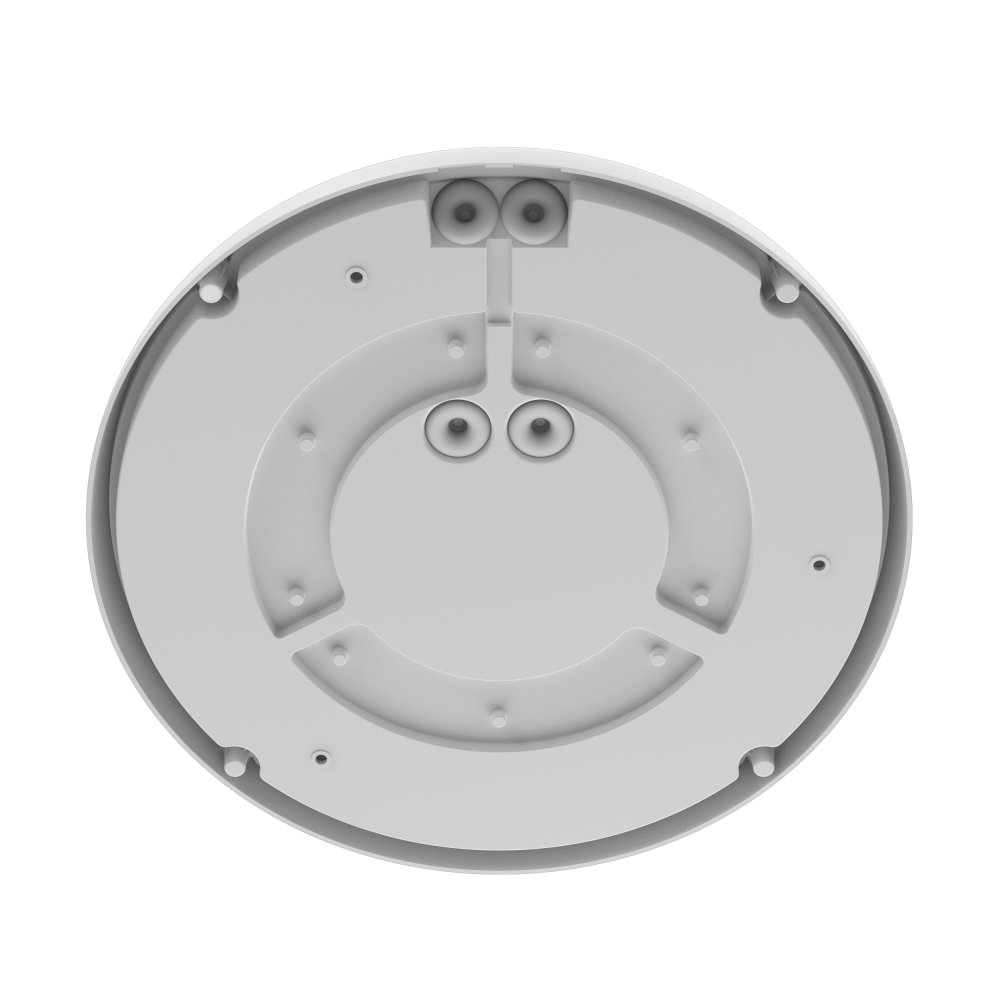

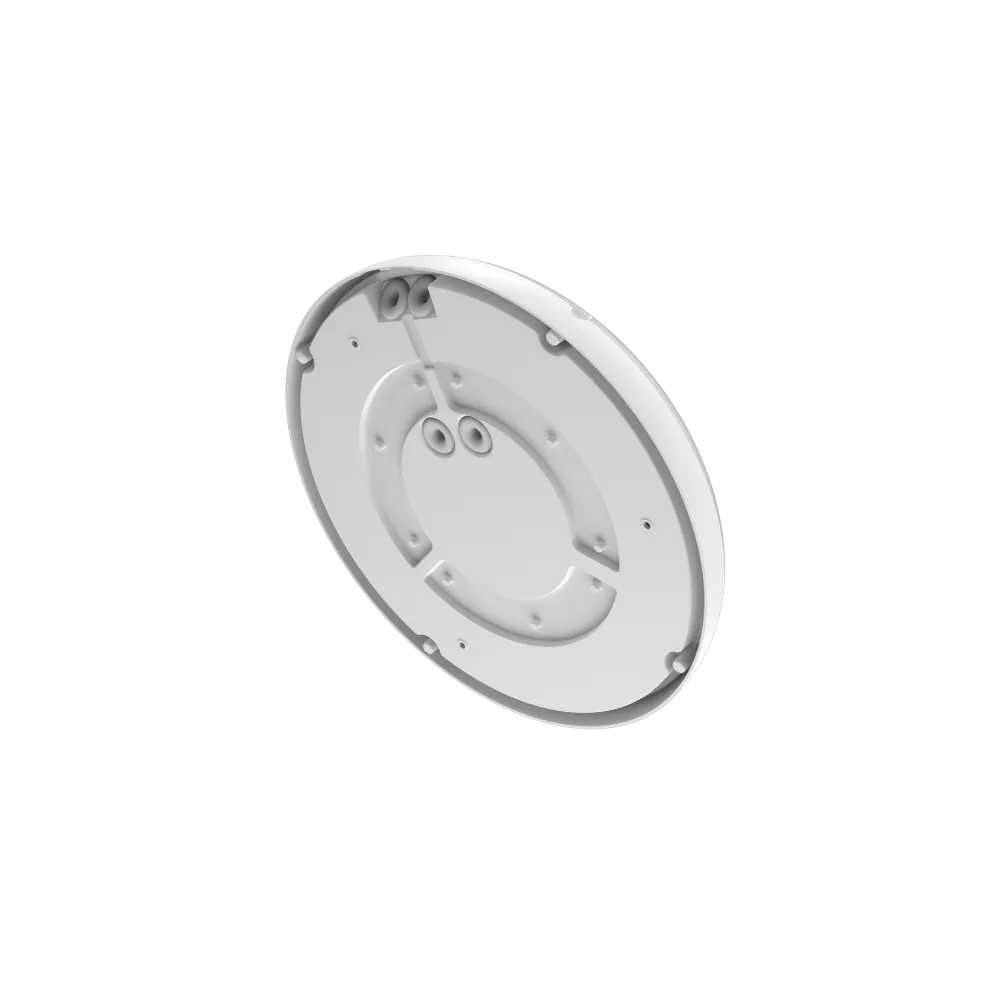

This product features a dual cable entry to allow electrical connection from below or from the side. Re-pluggable terminal block.

Series connection possible up to 91 bulkheads.

Ultra resistant: Anti-pull, vandal-proof, UV resistant, IP65 and IK10.

Adjustable integrated PIR motion detector: Hold time - Twilight threshold - Detection sensitivity

Box contents: 1 DomeLED PIR Detector ADVANCE 2 with 1 vandal-proof screwdriver head, 2 terminal blocks, 4 torx screws, 3 mounting screws, 3 wall plugs, 3 mounting seals, 2 cable ties and 4 cable tie screws.

Key features:

- Anti-pull housing

- Universal diameter: 300 mm

- IP65 / IK10

- Long service life

- PIR detector 3 settings

DomeLED PIR Detector CLAREO 24W Vandal-proof ADVANCE 2

Pricing is only available to customers who are logged into their account and whose access request has been validated.

To request access, go here

2640 lm vandal-proof bulkhead with PIR detection for residential use

This product features a dual cable entry to allow electrical connection from below or from the side. Re-pluggable terminal block.

Series connection possible up to 91 bulkheads.

Ultra resistant: Anti-pull, vandal-proof, UV resistant, IP65 and IK10.

Adjustable integrated PIR motion detector: Hold time - Twilight threshold - Detection sensitivity

Key features:

- Anti-pull housing

- Universal diameter: 300 mm

- IP65 / IK10

- Long service life

- PIR detector 3 settings

General characteristics

Lifetime	90,000 h
Brand	CLAREO
Range	ADVANCE

Product family	Bulkhead lights
Installation environment	Residential, Home, Decorative
Warranty	5 years

Electrical characteristics

Voltage	220-240 V AC
Current	110 mA
Power	24 W
Electrical class	Class II
Facteur de puissance >	0,9

Taux de distorsion harmonique <	15%
Power range	0-25 W
Sensor	YES
EU energy class 2019/2015	D
Detector type	PIR

Lighting characteristics

Technology	LED
Lumens output	2640 lm
Energy savings	- 20 %
Lumens efficiency	110 lm/W
Diffuser	Opale

Beam Angle	120 deg
Photobiological risk	GR0 - No risk
IRC >	80
UGR <	24
Lumens range	2000-2999 lm

Physical characteristics and dimensions

Diameter	300 mm
Height	91 mm
Net weight	0.6 kg
Materials	Polycarbonate and polypropylene
Waterproof	YES
IP	IP65

IK	IK07
Product color	White
Diameter range	251-300 mm
Working temperature	-20 °C to 40 °C
Detailed color	White
Installation mode	Surface mount

Standards and regulations

CEE	BAR-EQ-110

Standards	CE, RoHS

Technical data sheets, IES files, installation instructions, certificates... are only downloadable for customers whose access has been validated. To request access, go here
