The intelligent compact anti-vandal bulkhead light for residential use

The DomeLED HF Motion Detector Anti-Vandal ADVANCE 2 is the ideal solution for your residential and tertiary lighting projects requiring robustness and reliability: stairwells, parking lots, common areas or other zones at risk of vandalism.

Its polycarbonate housing with anti-pull design and Torx anti-vandal screws provide maximum protection against vandalism. Its IP65/IK10 protection and anti-UV treatment also ensure resistance in the most demanding environments.

Its integrated High-Frequency motion detector with pre-off warning helps optimize energy savings in high-traffic areas. With an efficiency of 100 lm/W and a power output of 12 W, it is daisy-chainable up to 91 fixtures in series, thus reducing wiring costs.

Its universal diameter of 300 mm facilitates the replacement of older installations, and its 5-year warranty as well as its lifetime L80B10 of 90,000 hours testify to its long-term reliability.

Box contents: 1 DomeLED ADVANCE 2, 1 anti-vandal screwdriver bit, 2 connection terminals, 4 Torx screws, 3 mounting screws, 3 wall plugs, 3 mounting gaskets, 2 cable clamps, 4 cable clamp screws.

Key features:

  • IP65/IK10
  • Daisy-chainable up to 91 fixtures in series
  • Universal diameter of 300 mm
  • Complete kit
  • 5-year warranty

PEP 15h18 (1).png

Ref: HUB.6012A2

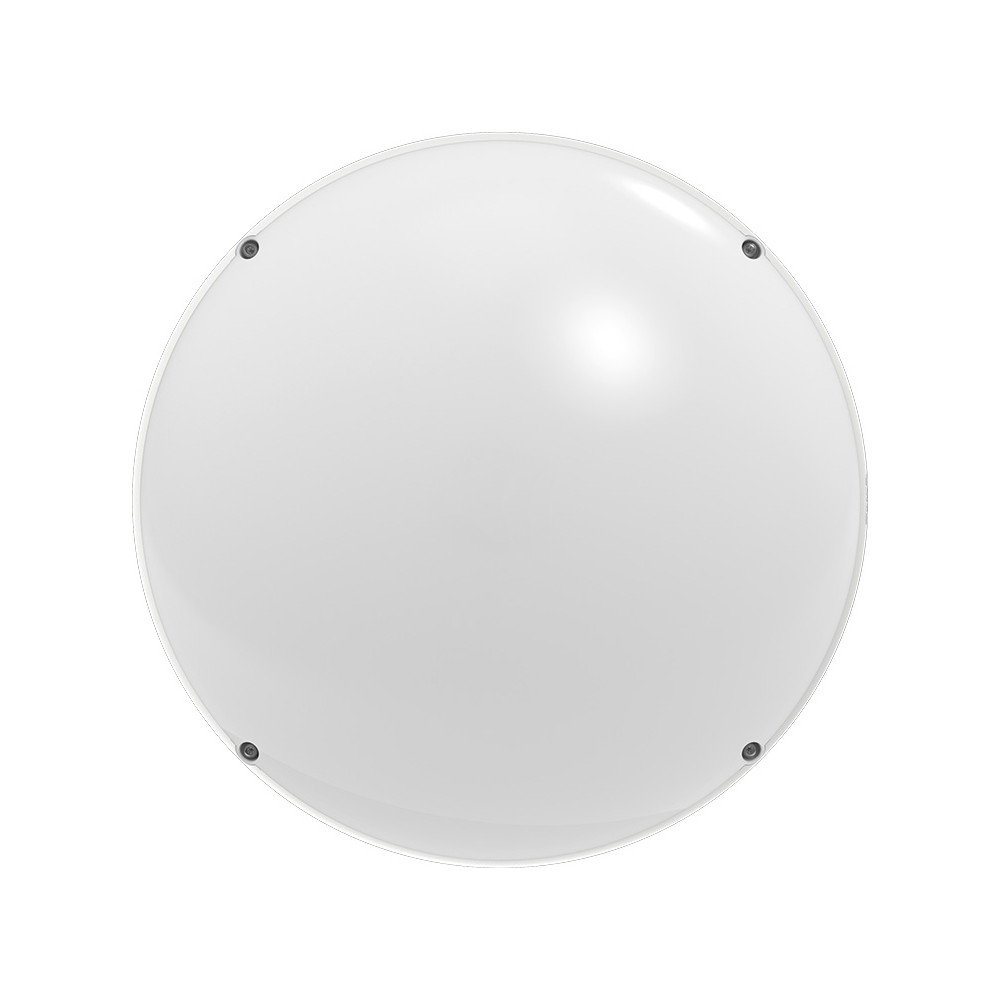

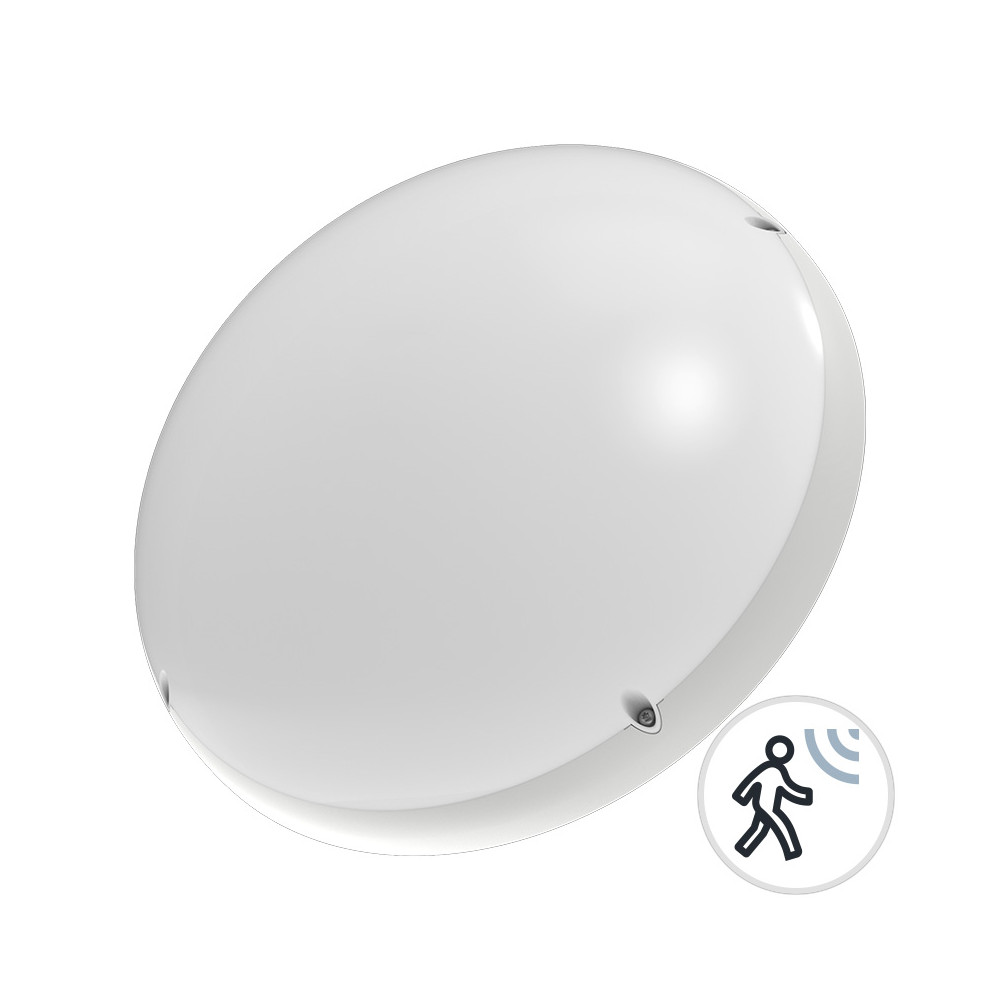

DomeLED HF Detector CLAREO 12W Vandal-proof ADVANCE 2

save_alt Download the technical sheet

Color

White neutral - 4000K
In stock, delivery next day before 1pm
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

The intelligent compact anti-vandal bulkhead light for residential use

The DomeLED HF Motion Detector Anti-Vandal ADVANCE 2 is the ideal solution for your residential and tertiary lighting projects requiring robustness and reliability: stairwells, parking lots, common areas or other zones at risk of vandalism.

Its polycarbonate housing with anti-pull design and Torx anti-vandal screws provide maximum protection against vandalism. Its IP65/IK10 protection and anti-UV treatment also ensure resistance in the most demanding environments.

Its integrated High-Frequency motion detector with pre-off warning helps optimize energy savings in high-traffic areas. With an efficiency of 100 lm/W and a power output of 12 W, it is daisy-chainable up to 91 fixtures in series, thus reducing wiring costs.

Its universal diameter of 300 mm facilitates the replacement of older installations, and its 5-year warranty as well as its lifetime L80B10 of 90,000 hours testify to its long-term reliability.

Box contents: 1 DomeLED ADVANCE 2, 1 anti-vandal screwdriver bit, 2 connection terminals, 4 Torx screws, 3 mounting screws, 3 wall plugs, 3 mounting gaskets, 2 cable clamps, 4 cable clamp screws.

Key features:

  • IP65/IK10
  • Daisy-chainable up to 91 fixtures in series
  • Universal diameter of 300 mm
  • Complete kit
  • 5-year warranty

PEP 15h18 (1).png

General characteristics
Lifetime 90,000 h
Brand CLAREO
Range ADVANCE
Product family Bulkhead lights
Installation environment Residential, Commercial
Quick installation YES
Repairable YES
Warranty 5 years
Electrical characteristics
Voltage 220-240 V AC
Power 12 W
Electrical class Class II
Facteur de puissance > 0,9
Taux de distorsion harmonique < 20 %
Power range 0-25 W
Sensor YES
EU energy class 2019/2015 F
Detector type High frequency, Motion
Maximum ground detection diameter 12 m
Lighting characteristics
Technology LED
Lumens output 1200 lm
Energy savings - 20 %
Lumens efficiency 100 lm/W
Lifetime LXBY L80B10
Diffuser Opale
Photobiological risk GR0 - No risk
IRC > 80
UGR < 25
Lumens range 1100-1599 lm
Physical characteristics and dimensions
Diameter 300 mm
Height 85 mm
Net weight 0.7 kg
Materials Polycarbonate
Waterproof YES
IP IP65
IK IK10
Product color White
Diameter range 251-300 mm
Working temperature -20 °C to 40 °C
Detailed color White
Maximum installation height 6 m
Installation mode Surface-mounted, Wall light
Type SMD 2835
Standards and regulations
CEE BAR-EQ-110
Standards CE, RoHS
Carbon footprint 16.9 kgCO2eq
