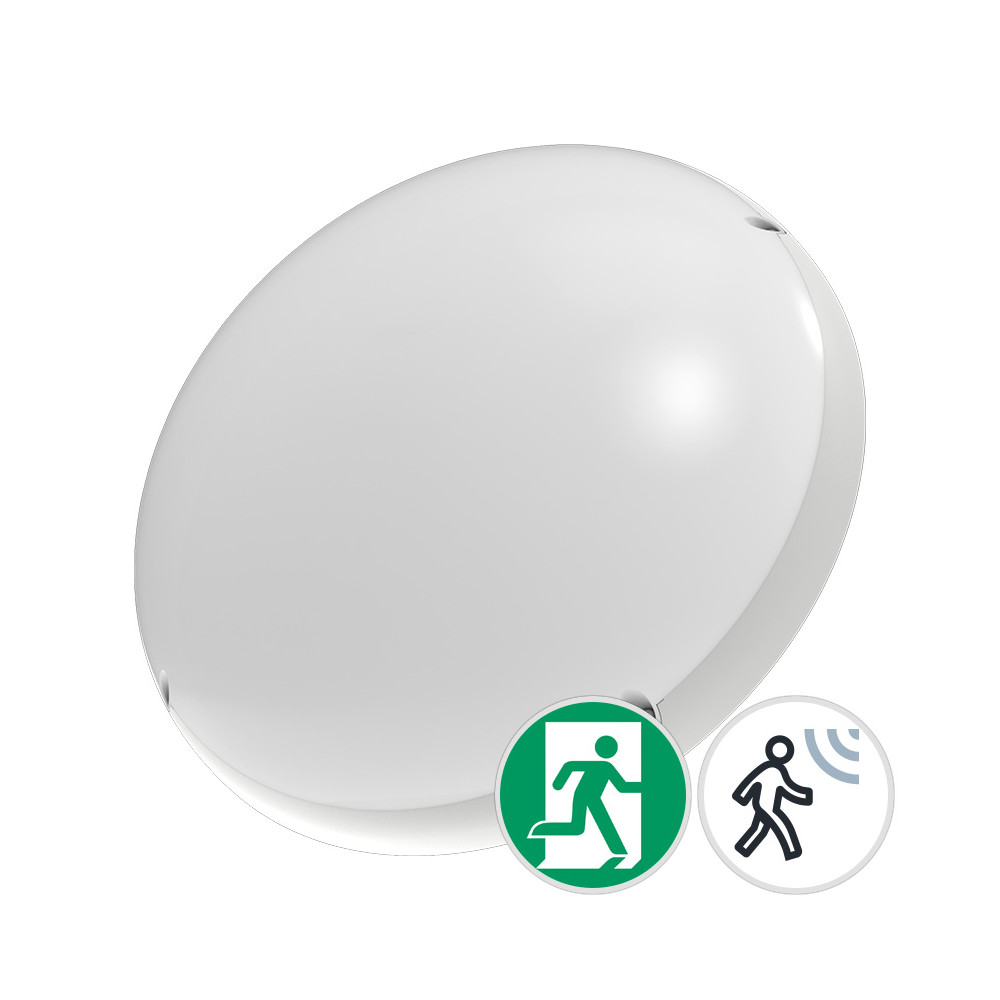

DomeLED Emergency HF Detector CLAREO 18W Anti-vandal ADVANCE 2

2000 lm anti-vandal emergency bulkhead with HF detection for residential use

This product has a dual cable entry to allow electrical connection from below or from the side. Removable terminal block.

Series connection possible up to 91 bulkheads.

Ultra resistant: Anti-pull, anti-vandal, UV-resistant, IP65 and IK10.

Integrated 3-hour LiFePO4 battery.

Integrated adjustable HF motion detector with switch-off warning.

Box contents: 1 DomeLED Detector ADVANCE 2 with 1 anti-vandal screwdriver head, 2 connection terminal blocks, 4 torx screws, 3 mounting screws, 3 wall plugs, 3 mounting seals, 2 cable clamps and 4 cable clamp screws.

Key features:

- Anti-pull housing

- Universal diameter: 300 mm

- IP65 / IK10

- Long lifespan

- Adjustable HF motion detector

DomeLED Emergency HF Detector CLAREO 18W Anti-vandal ADVANCE 2

Pricing is only available to customers who are logged into their account and whose access request has been validated.

To request access, go here

2000 lm anti-vandal emergency bulkhead with HF detection for residential use

This product has a dual cable entry to allow electrical connection from below or from the side. Removable terminal block.

Series connection possible up to 91 bulkheads.

Ultra resistant: Anti-pull, anti-vandal, UV-resistant, IP65 and IK10.

Integrated 3-hour LiFePO4 battery.

Integrated adjustable HF motion detector with switch-off warning.

Key features:

- Anti-pull housing

- Universal diameter: 300 mm

- IP65 / IK10

- Long lifespan

- Adjustable HF motion detector

General characteristics

Lifetime	90,000 h
Brand	CLAREO
Range	ADVANCE
Product family	Bulkhead lights

Installation environment	Residential, Commercial
Quick installation	YES
Repairable	YES
Warranty	5 years

Electrical characteristics

Voltage	220-240 V AC
Power	18 W
Electrical class	Class II
Facteur de puissance >	0,9
Taux de distorsion harmonique <	20 %

Power range	0-25 W
Sensor	YES
EU energy class 2019/2015	E
Detector type	High frequency, Motion
Maximum ground detection diameter	12 m

Lighting characteristics

Technology	LED
Lumens output	2000 lm
Energy savings	- 20 %
Lumens efficiency	110 lm/W
Lifetime LXBY	L80B10

Diffuser	Opale
Photobiological risk	GR0 - No risk
IRC >	80
UGR <	25
Lumens range	2000-2999 lm

Physical characteristics and dimensions

Diameter	300 mm
Height	85 mm
Net weight	0.7 kg
Materials	Polycarbonate
Waterproof	YES
IP	IP65
IK	IK10

Product color	White
Diameter range	251-300 mm
Working temperature	-20 °C to 40 °C
Detailed color	White
Maximum installation height	6 m
Installation mode	Surface-mounted, Wall light
Type	SMD 2835

Standards and regulations

CEE	BAR-EQ-110

Standards	CE, RoHS

CLAREO

Asymmetric Cap CLAREO for DomeLED ADVANCE 2

In stock, delivery next day before 1 PM

Technical data sheets, IES files, installation instructions, certificates... are only downloadable for customers whose access has been validated. To request access, go here

To access the prescription text, you must have an account and log in.

DomeLED Emergency HF Detector CLAREO 18W Anti-vandal ADVANCE 2

Description

Features

Other accessories compatible with this product

Asymmetric Cap CLAREO for DomeLED ADVANCE 2

Downloads

Prescription
