MiniRay START CLAREO: the all-in-one spot/cup/socket triptych!

This recessed LED spotlight is perfect for any ceiling installation.

Thanks to its integrated driver and quick terminal block, this product is easy to install.

Its recessed diameter is compatible with most existing products on the market.

With its IP44 rating from below, this recessed LED spotlight can be installed in humid environments.

Simple and sleek design.

For optimal visual comfort, this product features very low luminance with a recessed lens.

Box contents: 10 MiniRays with integrated driver.

Key features:

  • Value for money
  • Easy installation with integrated driver
  • IP44 protection rating from below
  • Narrow anti-glare trim
  • Deep-set lens for optimal visual comfort
Ref: DOW.8842

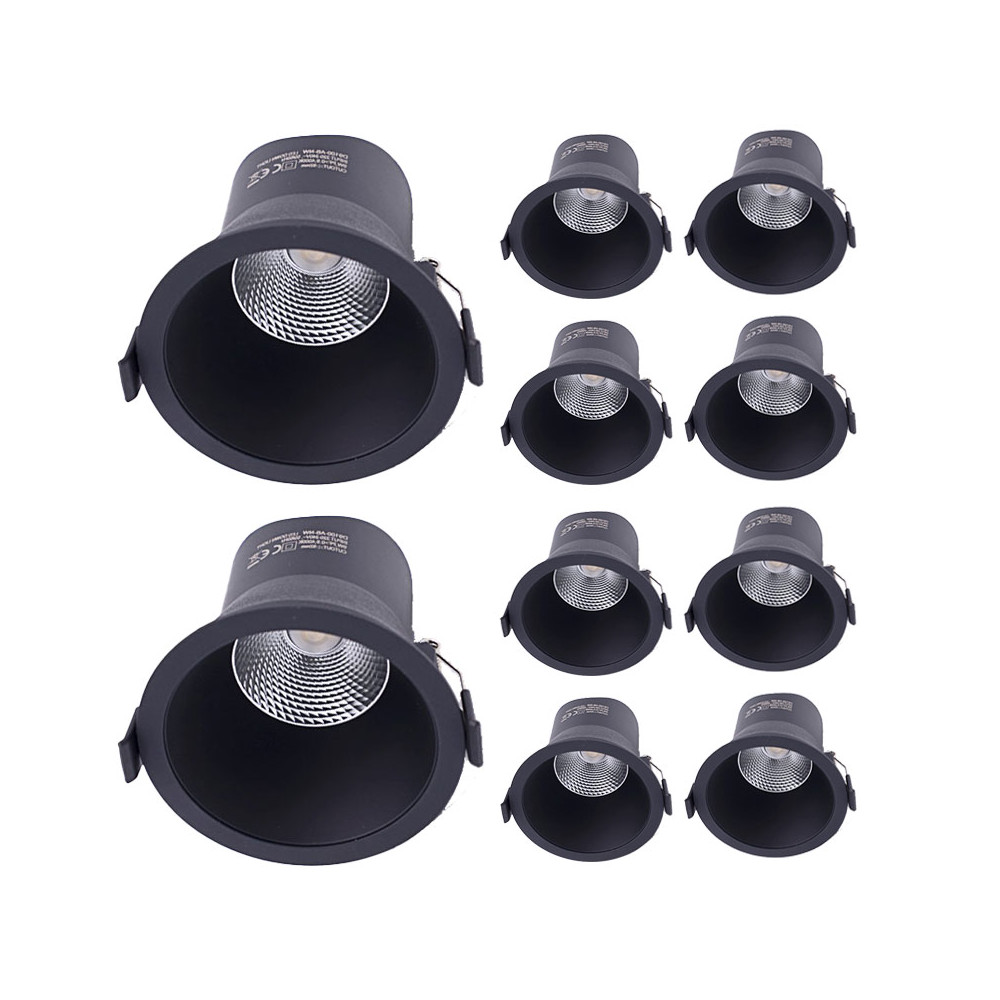

MiniRay CLAREO 6W IP44 START Black Pack 10

5 years Warranty 5 years Warranty
30,000 h 30,000 h
IP44 IP44
UGR < 19 UGR < 19
IRC > 80 IRC > 80
IK03 IK03
72 lm/W 72 lm/W
save_alt Download the technical sheet

Color

White neutral - 4000K
In stock, next day delivery before 1 PM
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here
Sign in Sign up

General characteristics
Lifetime 30,000 h
Brand CLAREO
Range START
Product family Downlights Mini
Installation environment Point of sale, Hotel, Office
Warranty 5 years
Electrical characteristics
Voltage 220-240 V AC
Power 6 W
Electrical class Class II
Dimmable Yes : depending on the reference
Facteur de puissance > 0.5
Taux de distorsion harmonique < 20 %
Power range 0-25 W
EU energy class 2019/2015 G
Lighting characteristics
Technology LED
Lumens output 420 - 430 lm
Lumens efficiency 72 lm/W
Lifetime LXBY L70B10
Diffuser Opale
Beam Angle 40 deg
Photobiological risk GR1 - Low risk
IRC > 80
UGR < 19
Lumens range 250-499 lm
Physical characteristics and dimensions
Diameter 81 mm
Height 79 mm
Net weight 1.3 kg
Materials Polycarbonate
Waterproof No
IP IP44
IK IK03
Product color Black
Diameter range 51-100 mm
Cut-out 68 mm
Working temperature -20 °C to 40 °C
Detailed color Black
Installation mode Recessed
Type SMD 2835
Standards and regulations
Standards CE, RoHS
