MiniRay START CLAREO: the all-in-one spotlight/cup/socket triptych!

This recessed LED spotlight with integrated driver and quick terminal block is ideal for any ceiling installation.

Its recessed diameter is compatible with a large number of existing products on the market.

With an IP44 protection rating from below, its installation is suitable for humid environments.

Simple and sleek design.

For optimal visual comfort, this very low luminance product has been designed with a recessed lens.

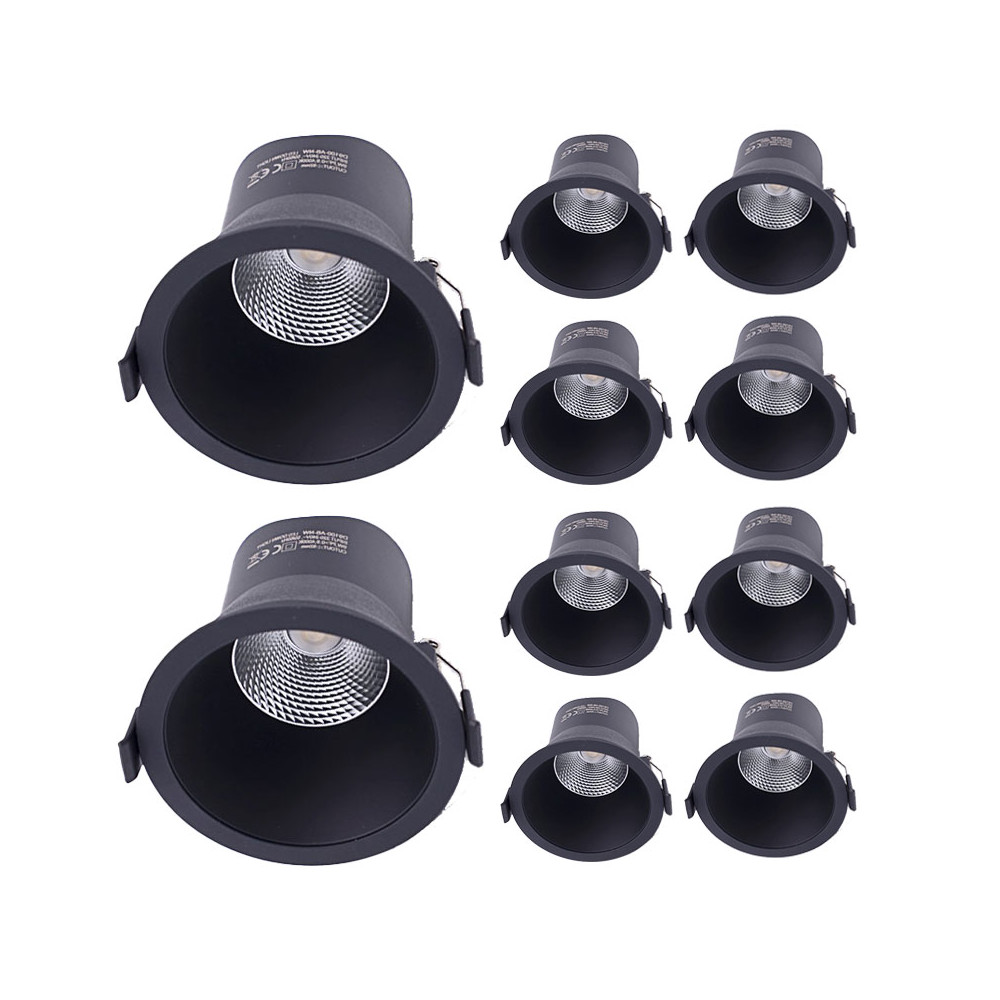

Box contents: 10 MiniRay with integrated driver

Key features:

  • Value for money
  • Easy installation with integrated driver
  • IP44 protection rating from below
  • Narrow anti-glare trim
  • Deep lens for optimal visual comfort
Ref: DOW.8850

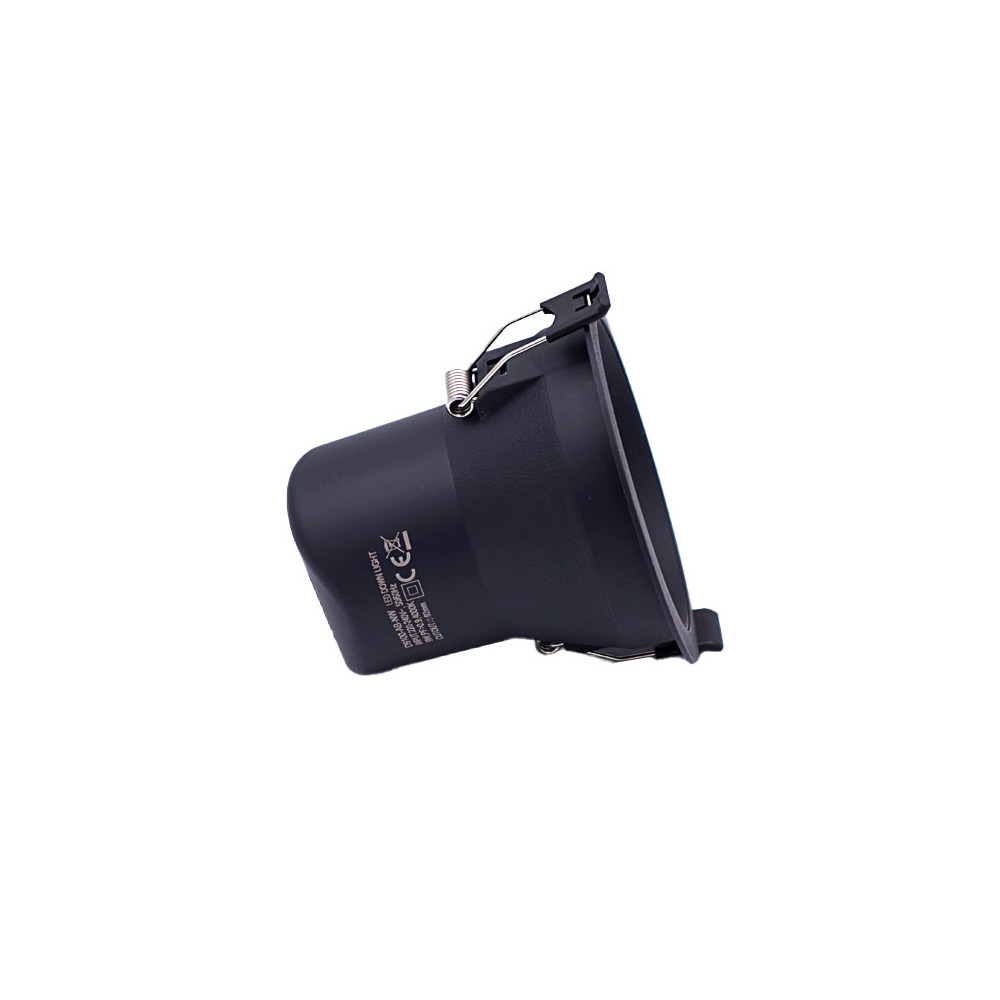

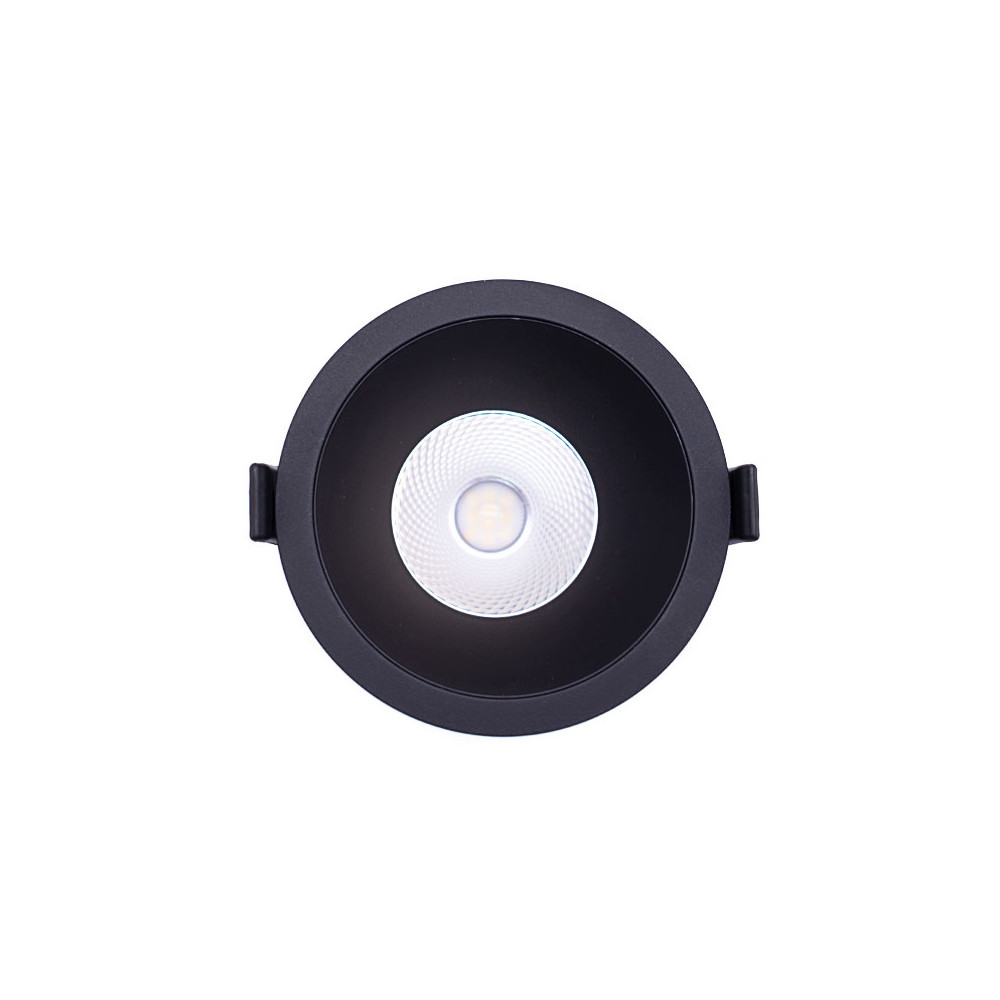

MiniRay CLAREO 9W IP44 START Black Pack 10

5 years Warranty 5 years Warranty
30,000 h 30,000 h
IP44 IP44
UGR < 20 UGR < 20
IRC > 80 IRC > 80
IK03 IK03
64 lm/W 64 lm/W
save_alt Download the technical sheet

Color

White neutral - 4000K
In stock, delivery next day before 1pm
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here
Sign in Sign up

General characteristics
Lifetime 30,000 h
Brand CLAREO
Range START
Product family Downlights Mini
Installation environment Point of sale, Hotel, Office
Warranty 5 years
Electrical characteristics
Voltage 220-240 V AC
Power 9 W
Electrical class Class II
Facteur de puissance > 0.5
Taux de distorsion harmonique < 20 %
Power range 0-25 W
EU energy class 2019/2015 G
Lighting characteristics
Technology LED
Lumens output 550 - 580 lm
Lumens efficiency 64 lm/W
Lifetime LXBY L70B10
Diffuser Opale
Beam Angle 40 deg
Photobiological risk GR1 - Low risk
IRC > 80
UGR < 20
Lumens range 500-799 lm
Physical characteristics and dimensions
Diameter 103 mm
Height 91 mm
Net weight 1.6 kg
Materials Polycarbonate
Waterproof No
IP IP44
IK IK03
Product color Black
Diameter range 101-150 mm
Cut-out 90 mm
Working temperature -20 °C to 40 °C
Detailed color Black
Installation mode Recessed
Type SMD 2835
Standards and regulations
Standards CE, RoHS
