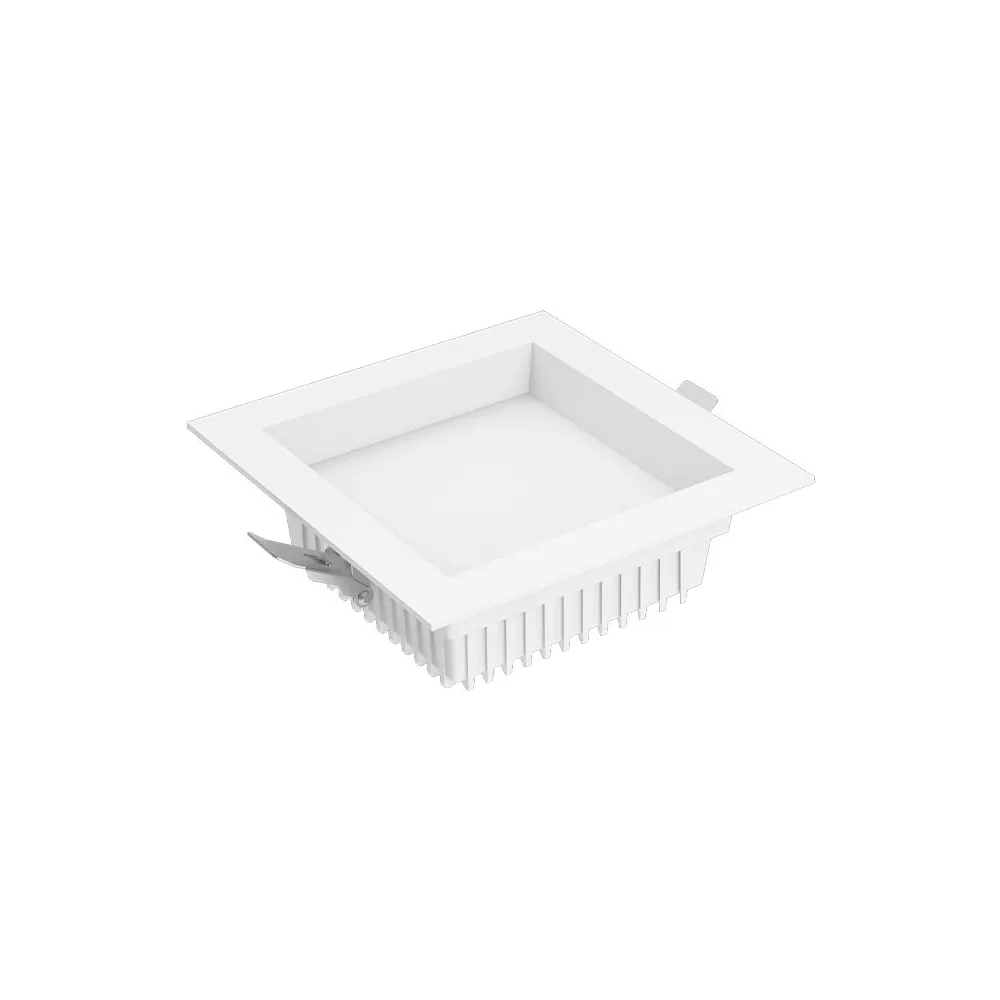

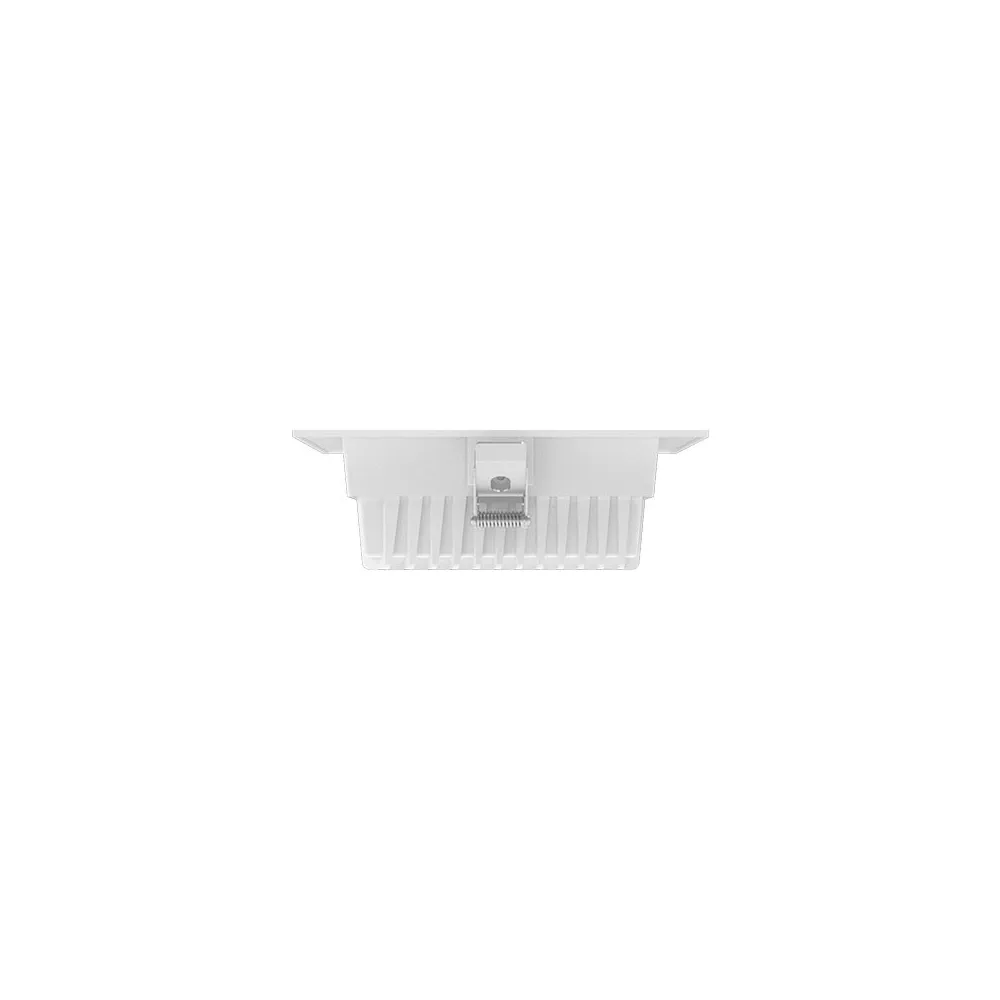

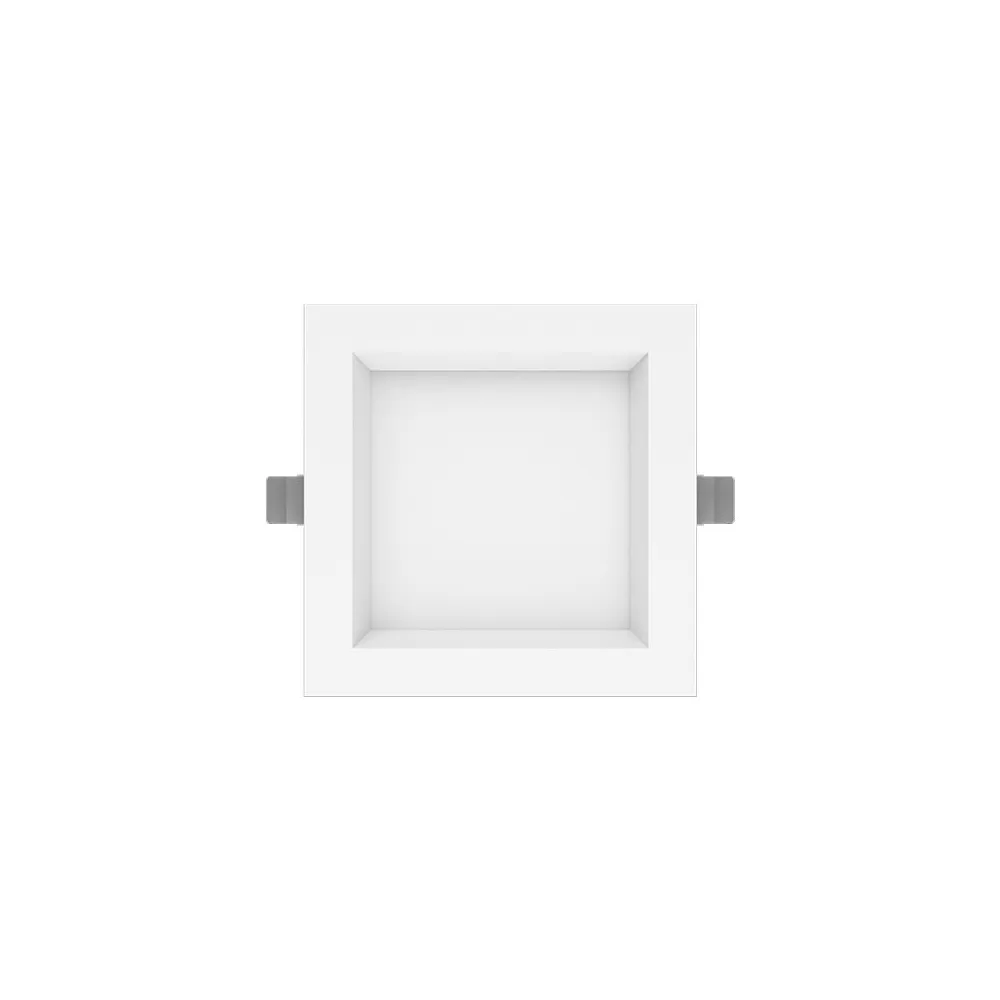

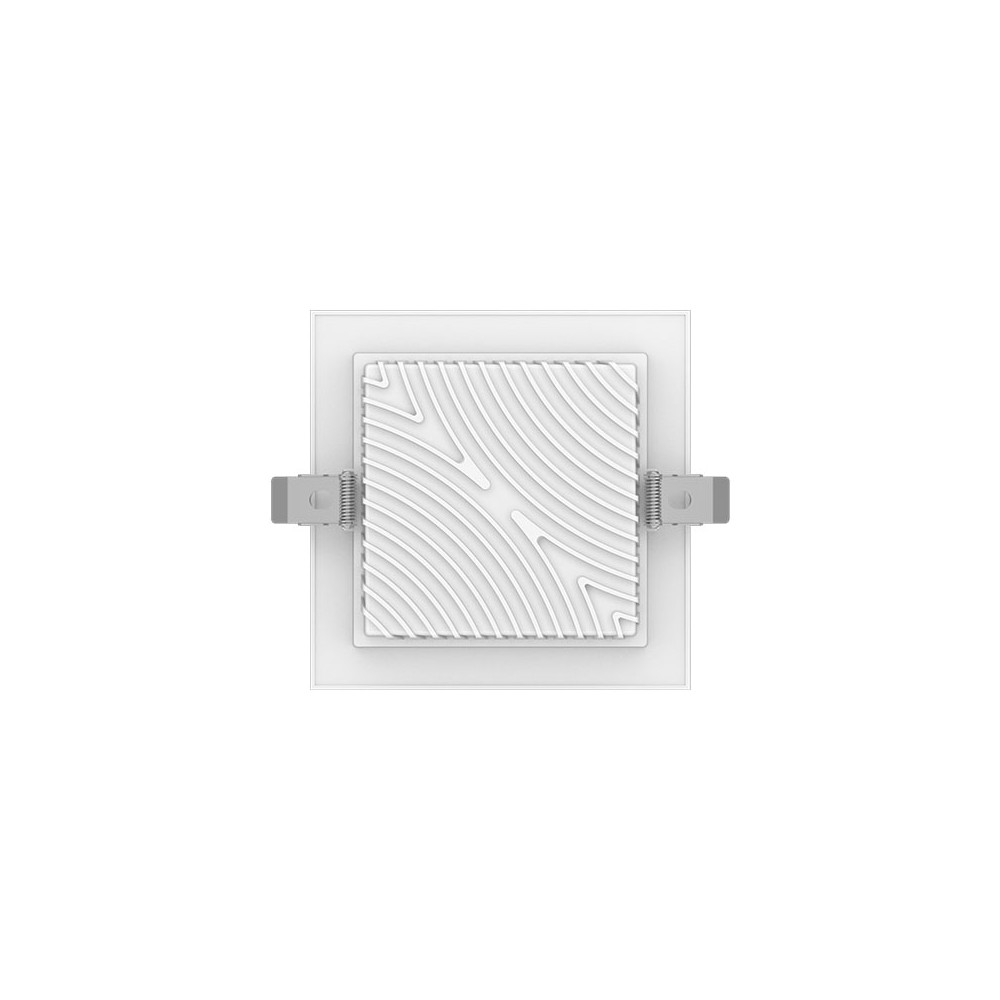

The New DownRay Square ADVANCE!

This square DownRay is perfect for all locations, for installation at low/medium height such as offices, corridors, counters or restaurants.

Easy to install, it is compatible with all types of installations (Staff, Drywall, Suspended ceiling tiles, etc.).

7-year warranty lighting fixture.

Box contents: 1 Square DownRay pre-wired with the male quarter-turn connector and 1 female quarter-turn connector included.

Accessories: Dimmable Drivers or ON/OFF Drivers.

Key features:

  • Excellent value for money
  • Very long lifespan
  • Backlight technology
  • Made of aluminum for optimal heat dissipation
Ref: DOW.101680

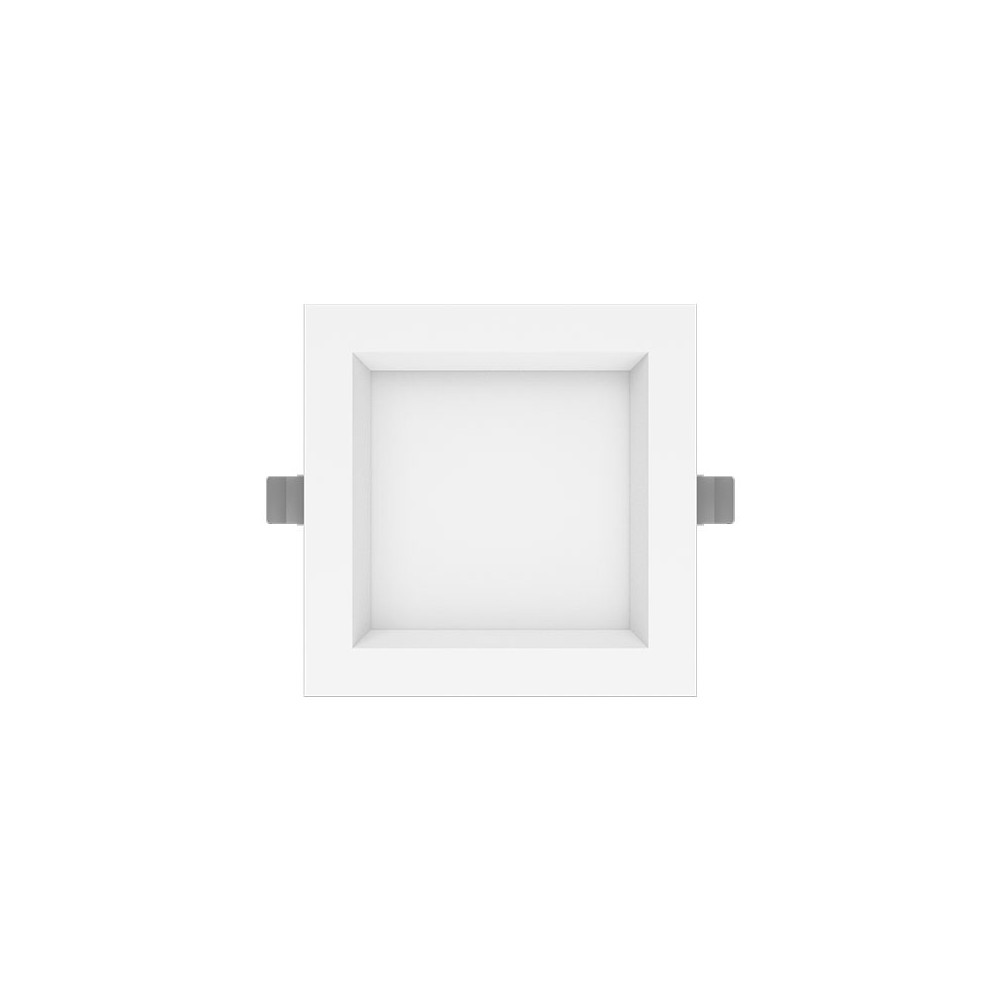

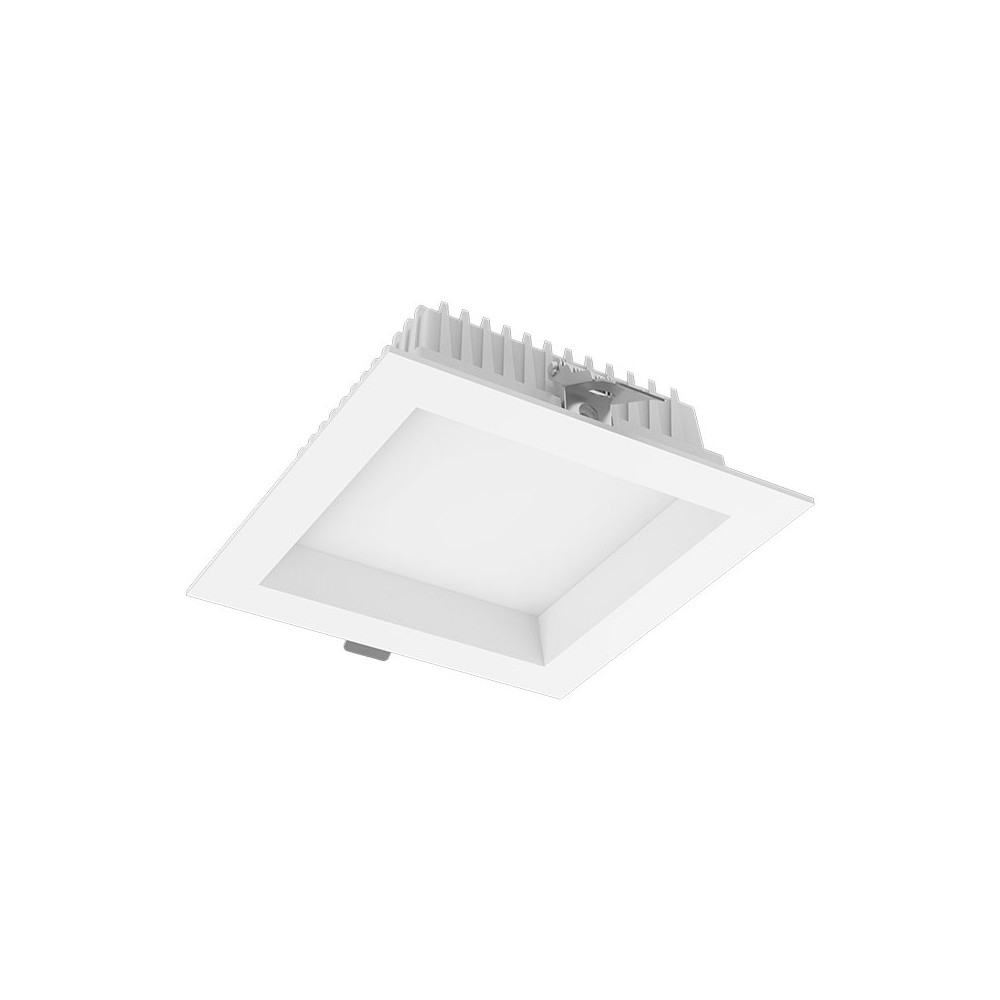

DownRay Square CLAREO 10W ADVANCE Without Driver

Energy savings - 30 % Energy savings - 30 %
Repairable Repairable
IND-BA-116 CEE IND-BA-116 CEE
7 years Warranty 7 years Warranty
70 000 h 70 000 h
IP20 IP20
UGR < 25 UGR < 25
IRC > 80 IRC > 80
IK02 IK02
115 lm/W 115 lm/W
save_alt Download the technical sheet

Color

Switch 3000-3500-4000K

Angle

In stock, next day delivery before 1 PM
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here
Sign in Sign up

General characteristics
Lifetime 70 000 h
Brand CLAREO
Range ADVANCE
Product family Downlights
Installation environment Retail, Office, Residential
Repairable YES
Warranty 7 years
Electrical characteristics
Voltage 25-42 V DC
Current Up to 600 mA
Power 10 W
Electrical class Class III
Dimmable Depending on driver
Power range 0-25 W
EU energy class 2019/2015 E
Lighting characteristics
Technology LED
Energy savings - 30 %
Lumens efficiency 115 lm/W
Lifetime LXBY L80B10
Diffuser Opale
Photobiological risk GR0 - No risk
IRC > 80
UGR < 25
Physical characteristics and dimensions
Height 56 mm
Width 167 mm
Length 167 mm
Materials Aluminum
Waterproof No
IP IP20
IK IK02
Product color White
Cut-out 145 x 145 mm
Working temperature -20 °C to 45 °C
Detailed color White
Installation mode Recessed
Type SMD 2835
Standards and regulations
CEE IND-BA-116
Standards CE, RoHS
