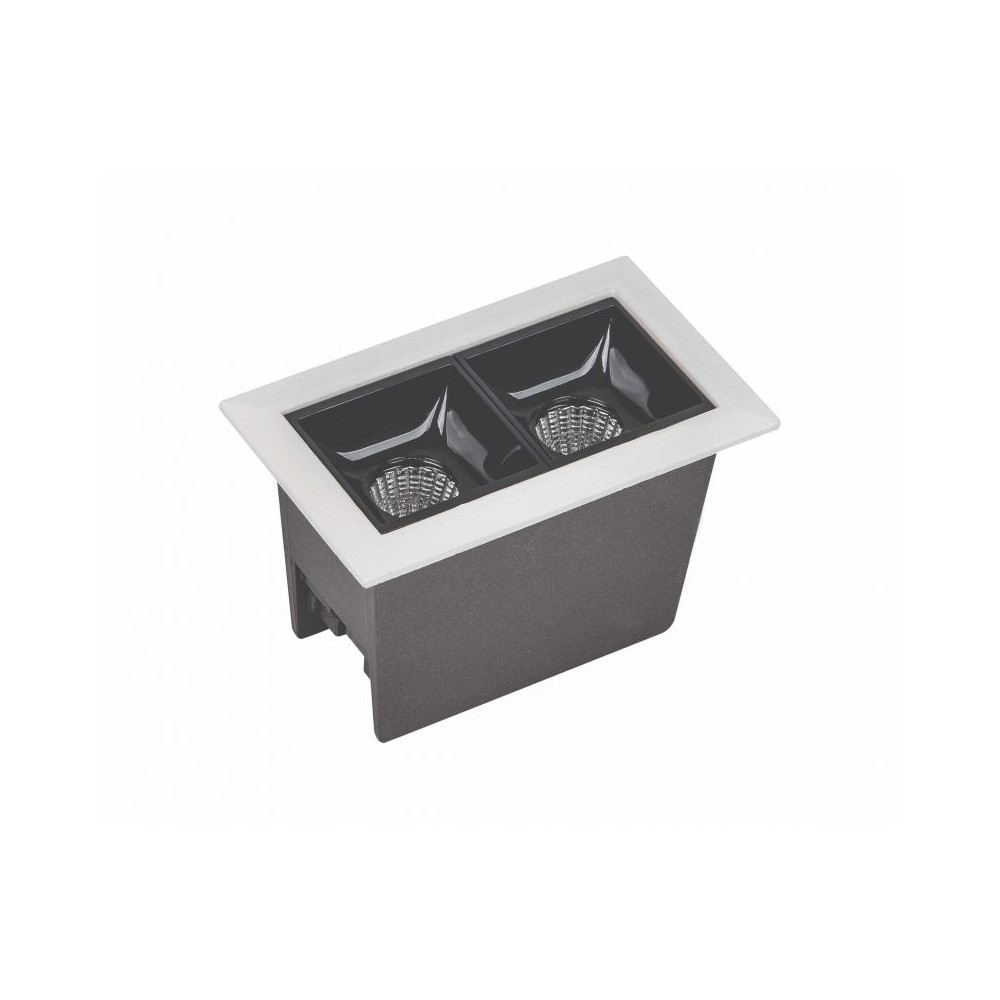

DownRay ZAMBELIS 5W DESIGN White Sanded With Driver S085

Recessed Grid Spot ZAMBELIS DESIGN Sand White and Black 5W: refined two-tone for discreet, glare-free lighting

The Recessed Grid Spot ZAMBELIS DESIGN S085 is a compact linear-format recessed luminaire in aluminum, combining a sand white frame with a black grid reflector. This signature two-tone look creates a contemporary and refined aesthetic, integrating elegantly into the light ceilings of boutiques, hotels, restaurants and architectural reception spaces. The anti-glare grid promotes intimate and comfortable lighting.

With 5W for 350 lm at 3000K (warm white) and a 30° beam angle, this spot concentrates light with precision to create targeted illuminated zones. Its CRI 90 ensures faithful color rendering, and its UGR below 18 guarantees optimal visual comfort. Lifespan: 50,000 hours.

This luminaire incorporates an included On-Off 600mA driver. Cutout: 65 x 35 mm, recessing depth: 55 mm.

Notable features:

Signature two-tone: sand white frame and black anti-glare grid reflector
UGR < 18 for optimal visual comfort
CRI 90 for faithful and natural color rendering
3-year warranty

DownRay ZAMBELIS 5W DESIGN Sand White and Black With Driver S085

Pricing is only available to customers who are logged into their account and whose access request has been validated.

To request access, go here

Recessed Grid Spot ZAMBELIS DESIGN Sand White and Black 5W: refined two-tone for discreet, glare-free lighting

This luminaire incorporates an included On-Off 600mA driver. Cutout: 65 x 35 mm, recessing depth: 55 mm.

Notable features:

Signature two-tone: sand white frame and black anti-glare grid reflector
UGR < 18 for optimal visual comfort
CRI 90 for faithful and natural color rendering
3-year warranty

General characteristics

Lifetime	50 000 h
Brand	ZAMBELIS
Range	DESIGN

Product family	Downlights Mini
Installation environment	Reception, Point of Sale, Architectural
Warranty	3 years

Electrical characteristics

Voltage	220-230 V AC / 5-10 V DC
Current	600 mA

Power	5 W
Electrical class	Class II
EU energy class 2019/2015	G

Lighting characteristics

Technology	LED
Lumens output	350 lm
Lumens efficiency	70 lm/W

Lifetime LXBY	L80B50
Beam Angle	30 deg
IRC >	90
UGR <	18

Physical characteristics and dimensions

Height	50 mm
Width	45 mm
Length	75 mm
Net weight	0.3 kg
Materials	Aluminum

Waterproof	No
IP	IP20
Product color	White
Cut-out	L65 x W35 x H55 mm
Detailed color	Sandy White and Black
Installation mode	Recessed

Standards and regulations

Standards	CE, RoHS

Carbon footprint	36 kgCO2eq
