PEP certified

The new DownRay Low Glare ADVANCE 2

This LED recessed light is installed in suspended ceilings.

Installation compatible in humid environments (IP44 from below).

Product guaranteed 7 years for 60,000 hours of operation.

Available with opal or transparent diffuser, this downlight features low glare optics ensuring minimal glare.

Notable features:

  • A competitive price
  • IP44 protection rating from below
  • Energy efficiency up to 120 lm/W

Delivered without power supply, please choose one from the product accessories on this page

Ref: DOW.105929

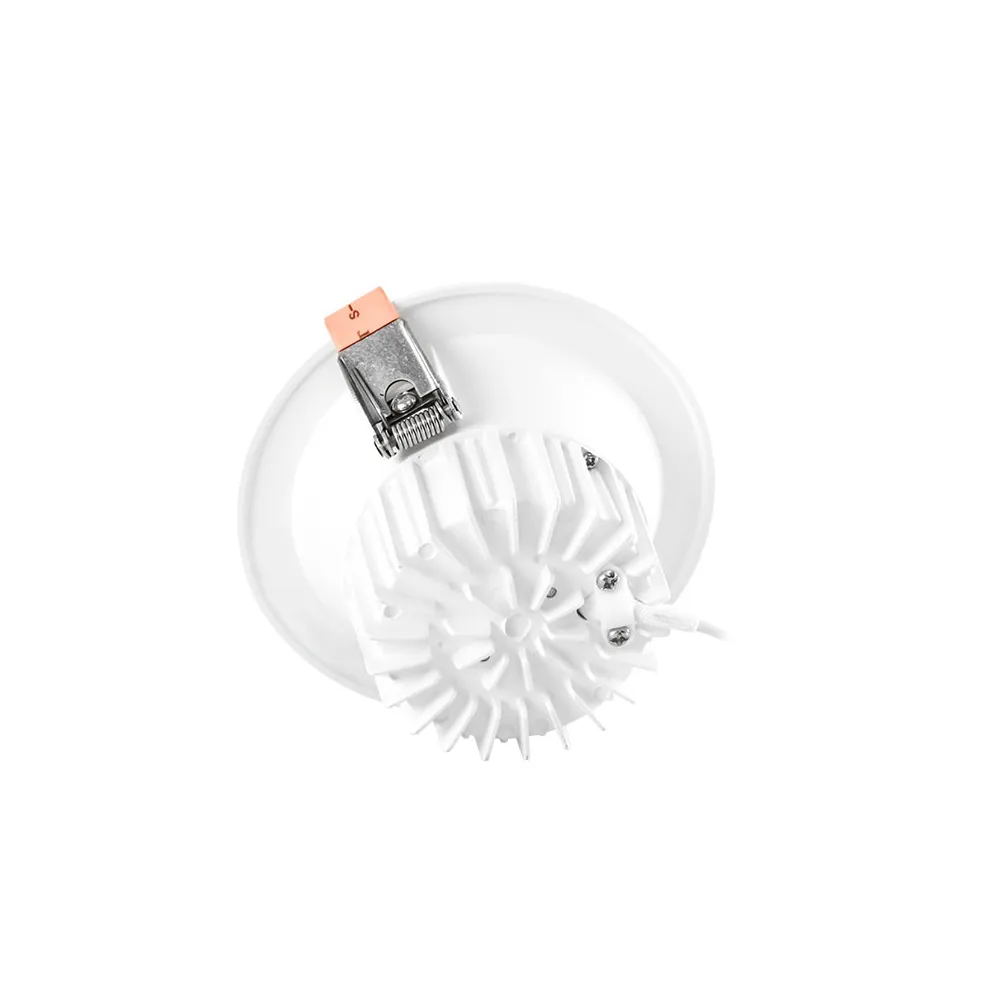

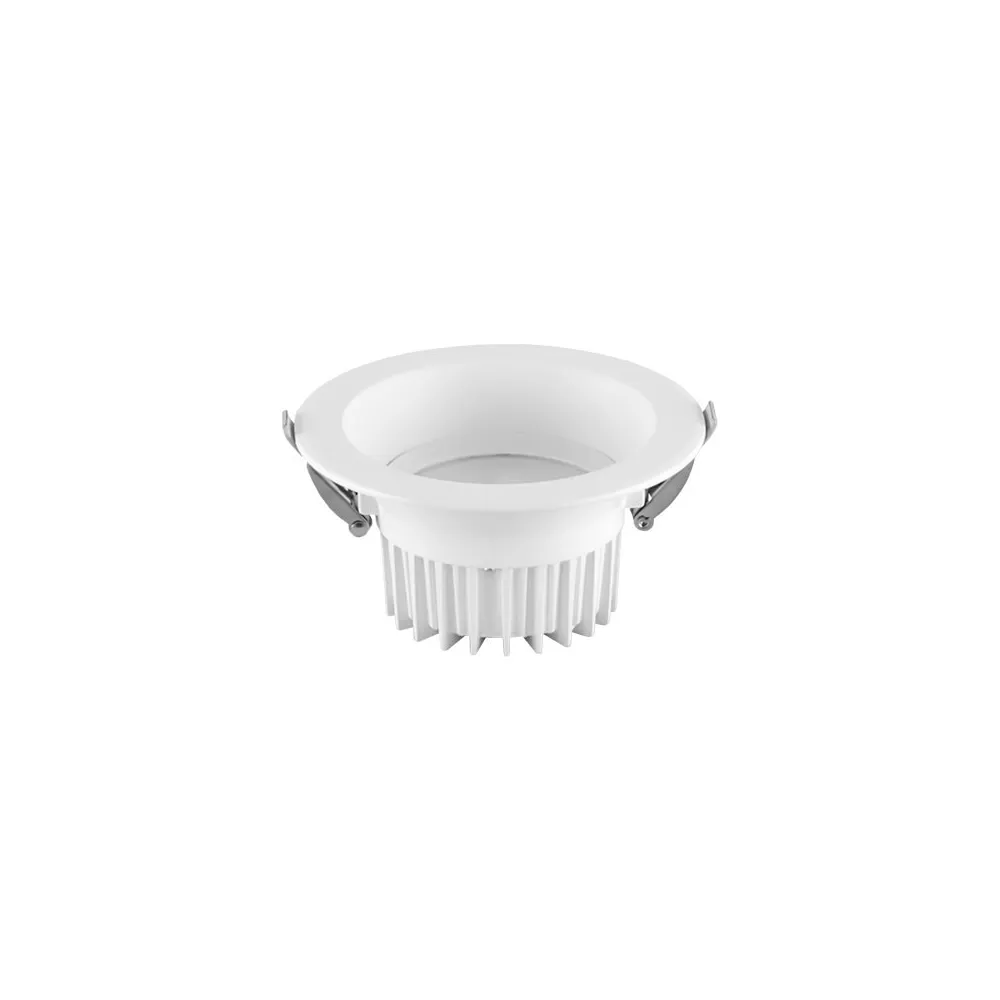

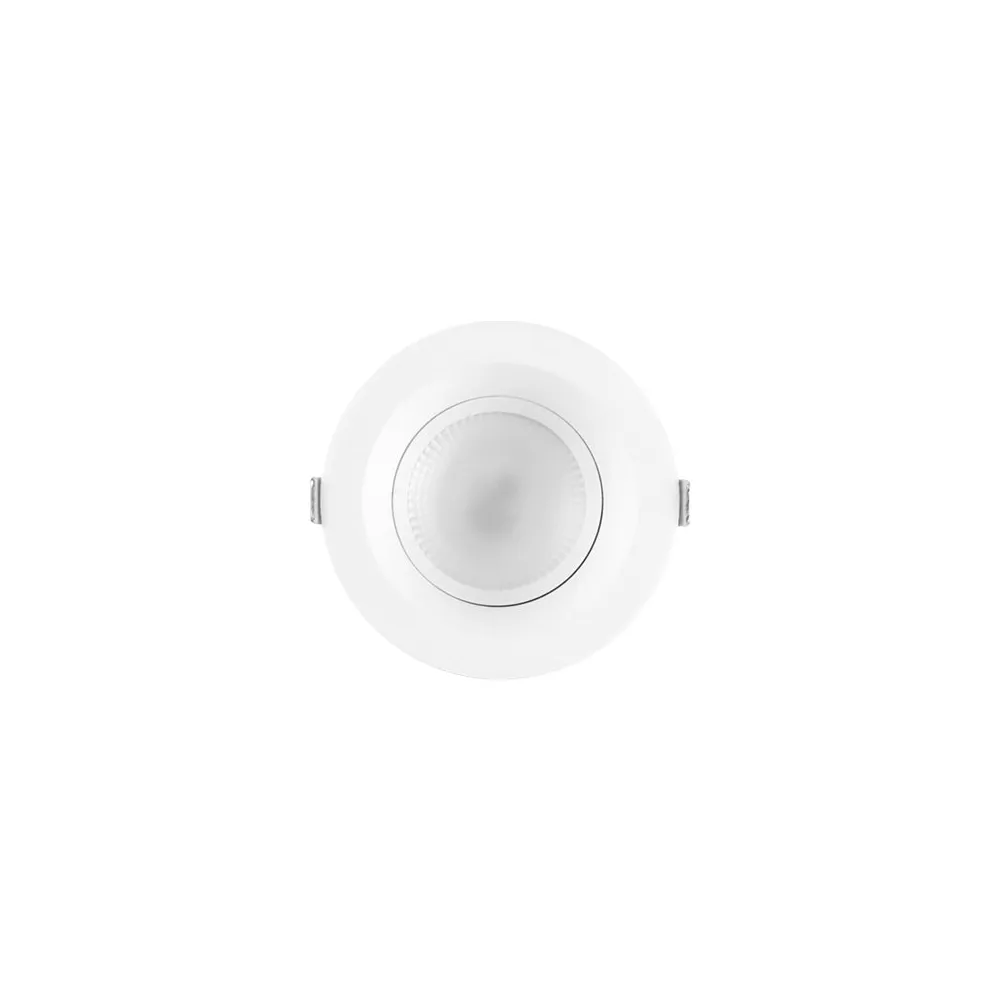

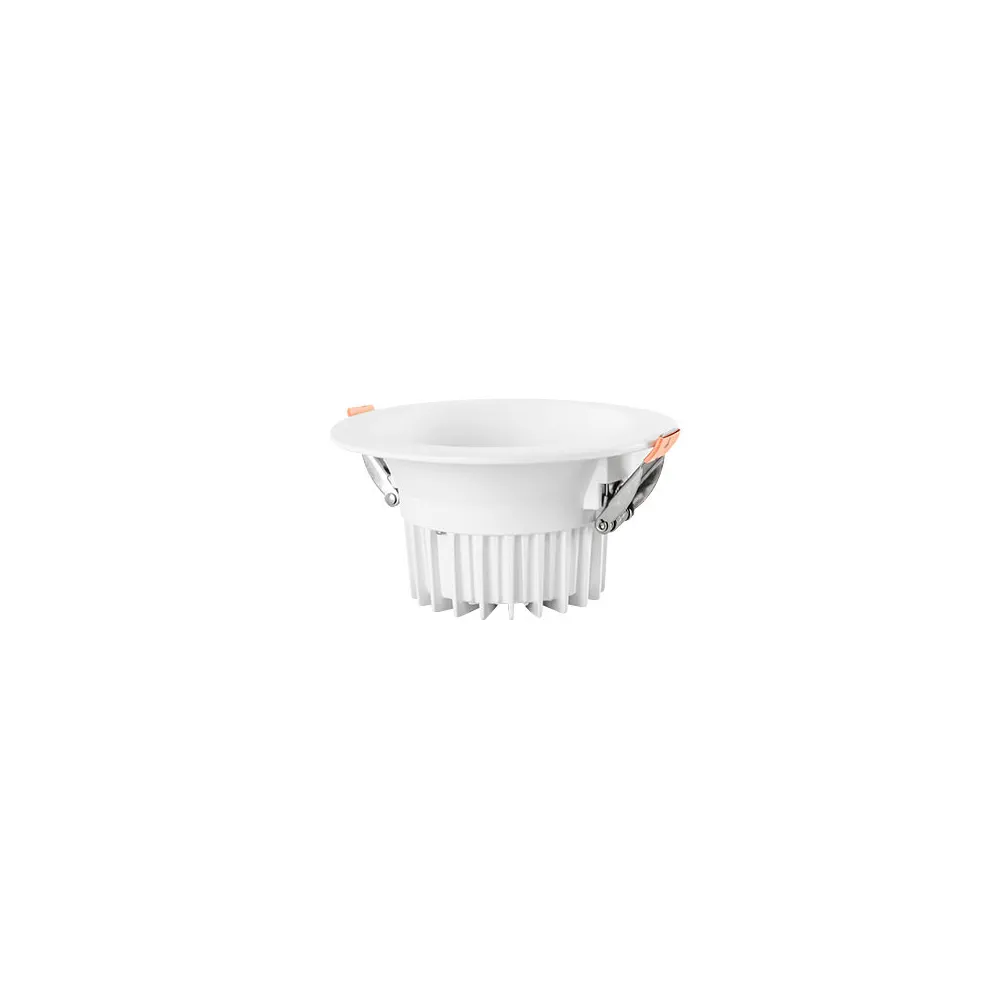

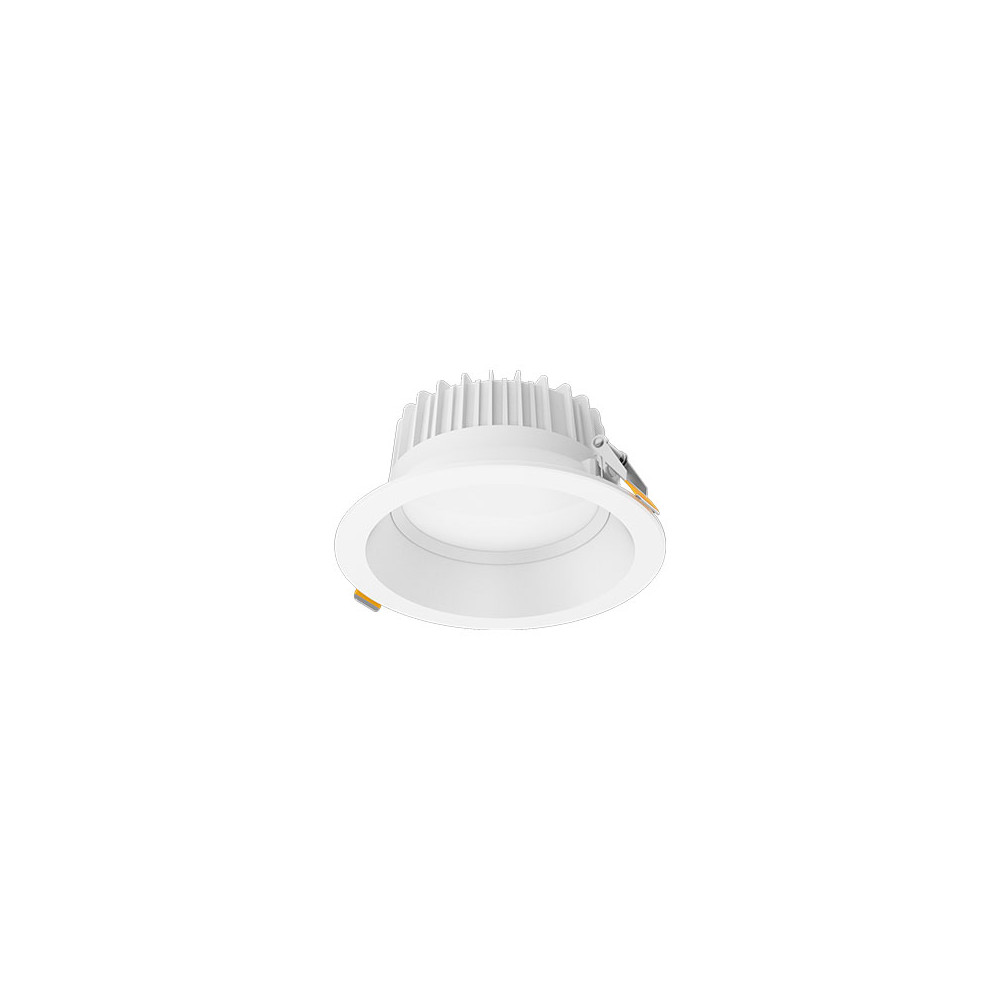

DownRay Low Luminance CLAREO 10W 110lm/W ADVANCE 2 Without Driver

1060 - 1069 lm 1060 - 1069 lm
Energy savings - 20 % Energy savings - 20 %
Repairable Repairable
7 years Warranty 7 years Warranty
60 000 h 60 000 h
IP44 IP44
UGR < 19 UGR < 19
IRC > 80 IRC > 80
IK04 IK04
110 lm/W 110 lm/W

Color

White neutral - 4000K

Angle

Diffuser

In stock, next day delivery before 1pm
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here
Sign in Sign up

General characteristics
Lifetime 60 000 h
Brand CLAREO
Range ADVANCE
Product family Downlights
Installation environment Point of sale, Hotel, Office
Quick installation YES
Repairable YES
Warranty 7 years
Electrical characteristics
Voltage 35 V DC
Current Up to 250 mA
Power 10 W
Electrical class Class III
Power range 0-25 W
EU energy class 2019/2015 E
Lighting characteristics
Technology LED
Lumens output 1060 - 1069 lm
Energy savings - 20 %
Lumens efficiency 110 lm/W
Lifetime LXBY L80B10
Diffuser Opal, Transparent
Beam Angle 55 deg
Photobiological risk GR0 - No risk
IRC > 80
UGR < 19
Lumens range 800-1099 lm
Physical characteristics and dimensions
Diameter 118 mm
Height 60 mm
Net weight 0.2 kg
Materials Aluminum
Waterproof YES
IP IP44
IK IK04
Product color White
Diameter range 101-150 mm
Cut-out 100 mm
Working temperature -20 °C to 45 °C
Detailed color White
Installation mode Recessed
Type COB
Standards and regulations
Standards CE, RoHS, ENEC
