PEP certified

The new DownRay Low Luminance ADVANCE 2

This LED recessed light installs in suspended ceiling.

Installation compatible in humid environment (IP44 from below).

Product guaranteed 7 years for 60,000 hours of operation.

Available with opal or transparent diffuser, this downlight has low luminance optics ensuring minimal glare.

Notable features:

  • A competitive price
  • IP44 protection rating from below
  • Energy efficiency up to 120 lm/W

Delivered without power supply, please choose one from the product accessories on this page

Ref: DOW.105943

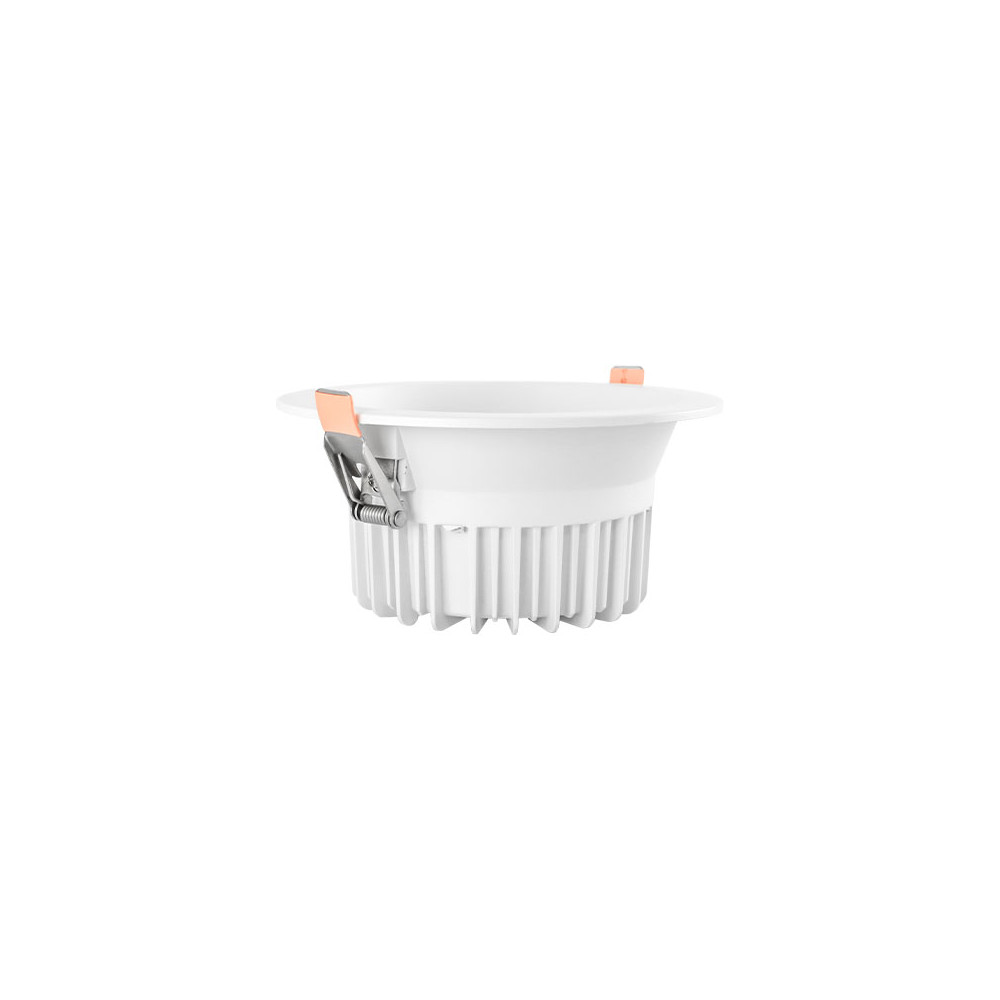

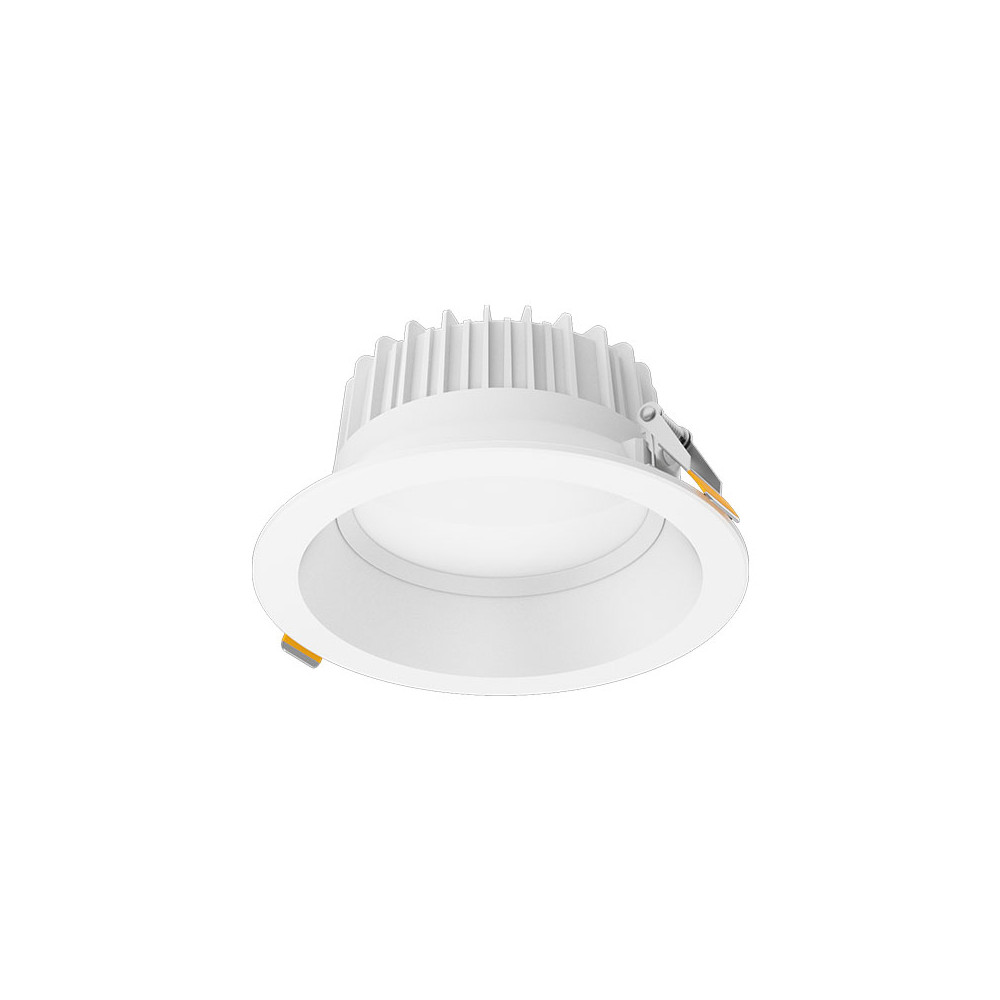

DownRay Low Luminance CLAREO 19W 120lm/W ADVANCE 2 Without Driver

2124 - 2242 lm 2124 - 2242 lm
Energy savings - 30 % Energy savings - 30 %
Repairable Repairable
7 years Warranty 7 years Warranty
60 000 h 60 000 h
IP44 IP44
UGR < 19 UGR < 19
IRC > 80 IRC > 80
IK04 IK04
120 lm/W 120 lm/W
save_alt Download the technical sheet

Color

White neutral - 4000K

Angle

Diffuser

In stock, next day delivery before 1 PM
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here
Sign in Sign up

General characteristics
Lifetime 60 000 h
Brand CLAREO
Range ADVANCE
Product family Downlights
Installation environment Point of sale, Hotel, Office
Quick installation YES
Repairable YES
Warranty 7 years
Electrical characteristics
Voltage 35 V DC
Current Up to 500 mA
Power 19 W
Electrical class Class III
Power range 0-25 W
EU energy class 2019/2015 E
Lighting characteristics
Technology LED
Lumens output 2124 - 2242 lm
Energy savings - 30 %
Lumens efficiency 120 lm/W
Lifetime LXBY L80B10
Diffuser Opal, Transparent
Beam Angle 65 deg
Photobiological risk GR0 - No risk
IRC > 80
UGR < 19
Lumens range 2000-2999 lm
Physical characteristics and dimensions
Diameter 170 mm
Height 86 mm
Net weight 0.6 kg
Materials Aluminum
Waterproof YES
IP IP44
IK IK04
Product color White
Diameter range 151-200 mm
Cut-out 150 mm
Working temperature -20 °C to 45 °C
Detailed color White
Installation mode Recessed
Type COB
Standards and regulations
Standards CE, RoHS, ENEC
