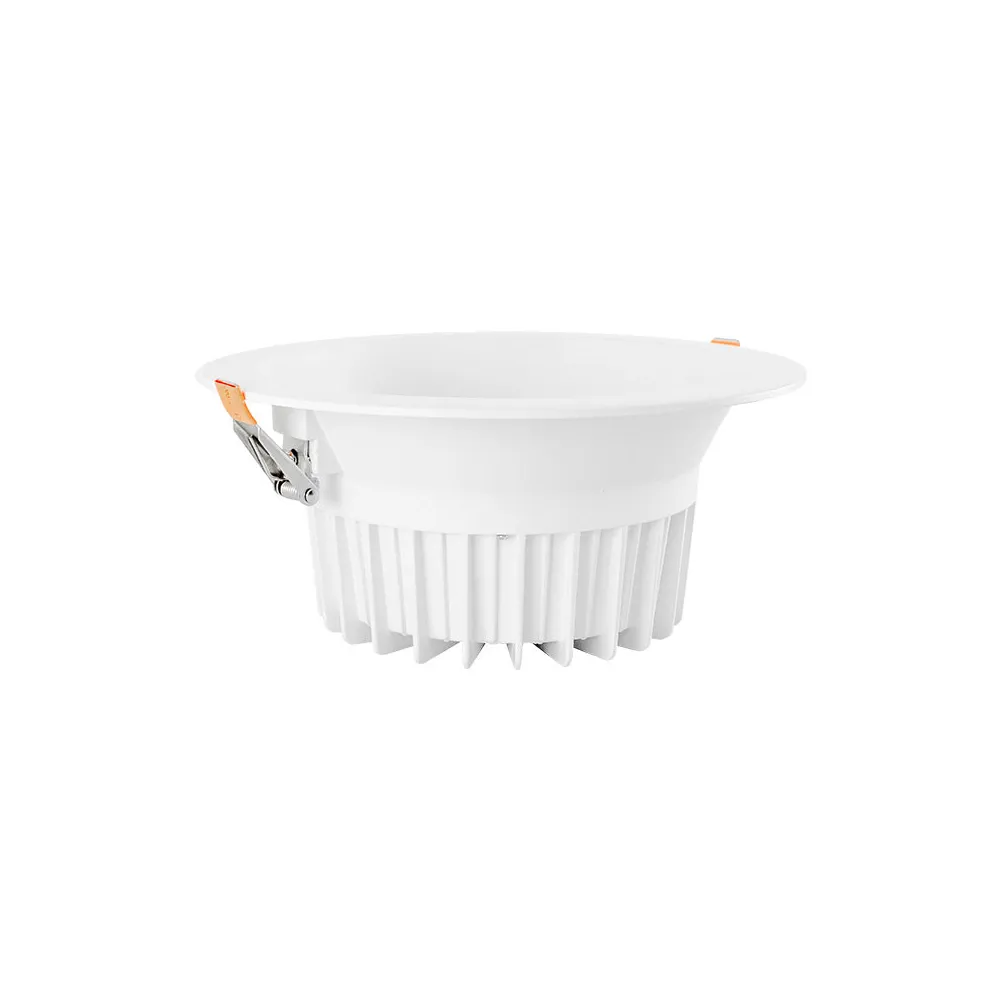

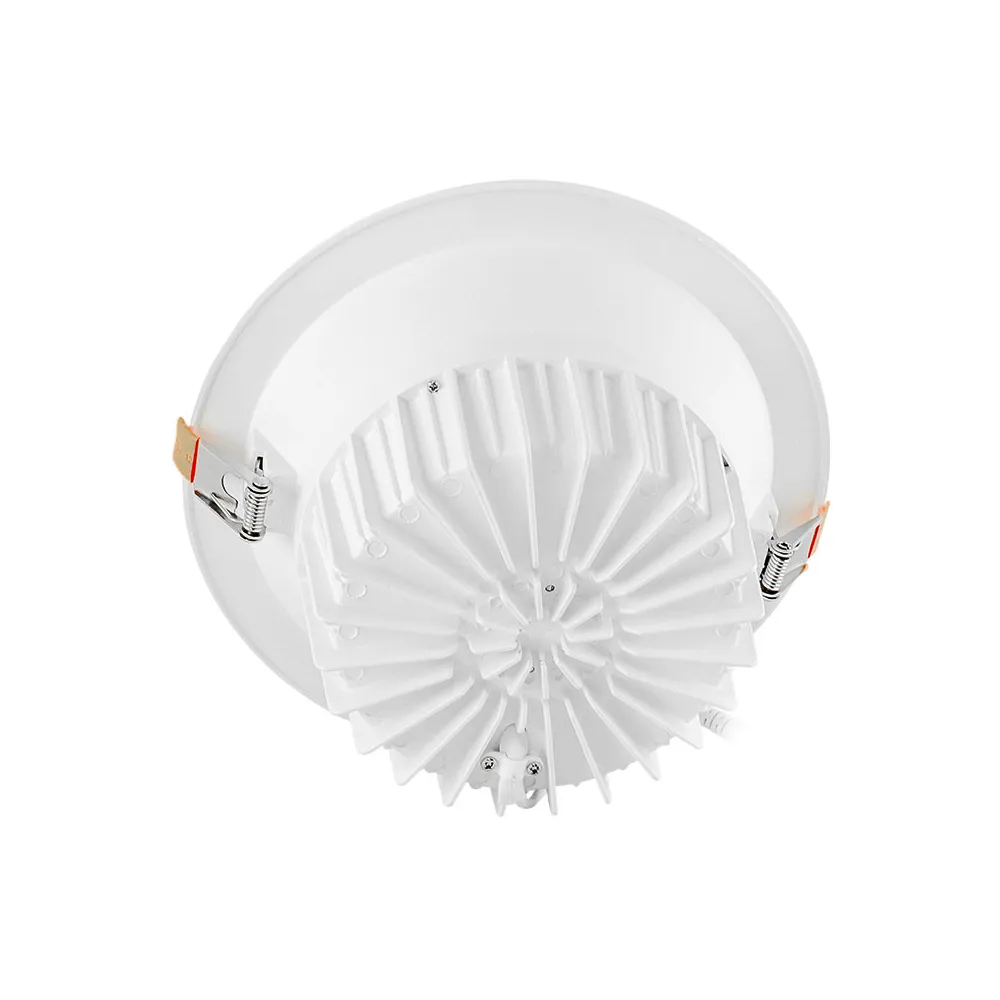

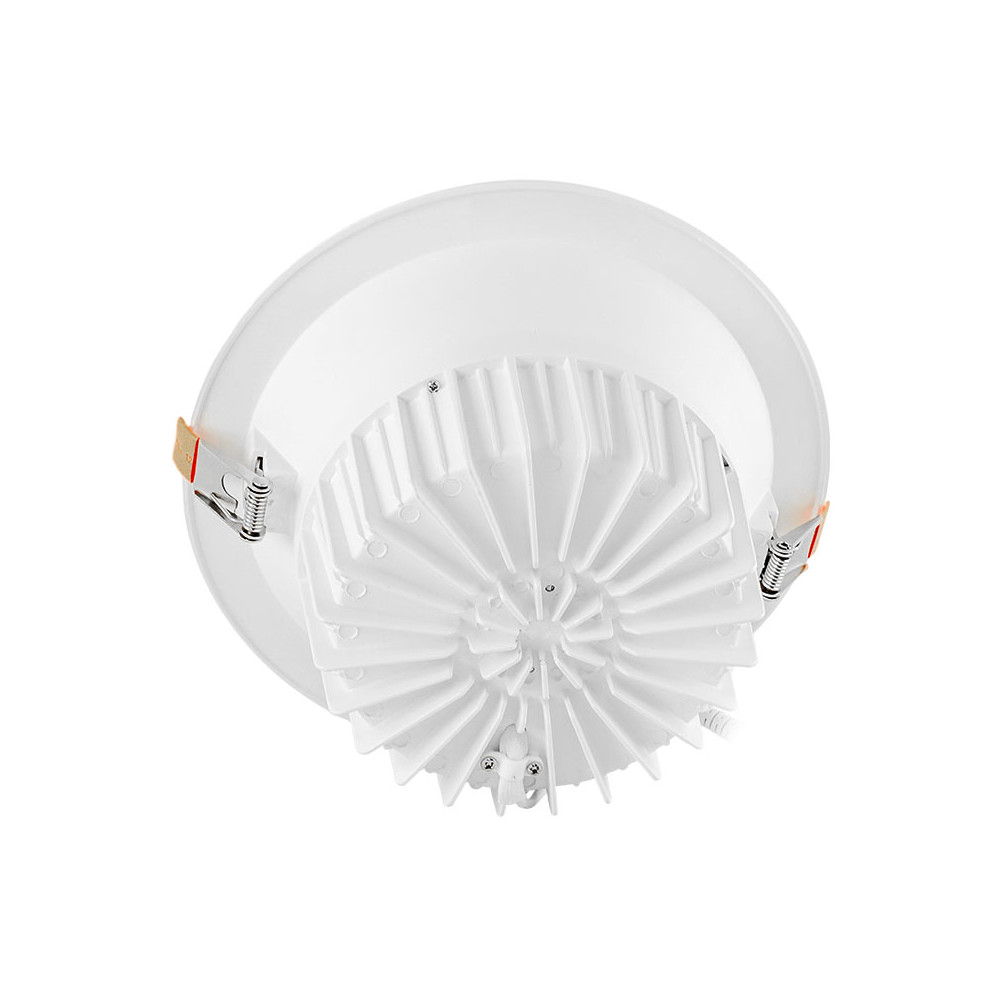

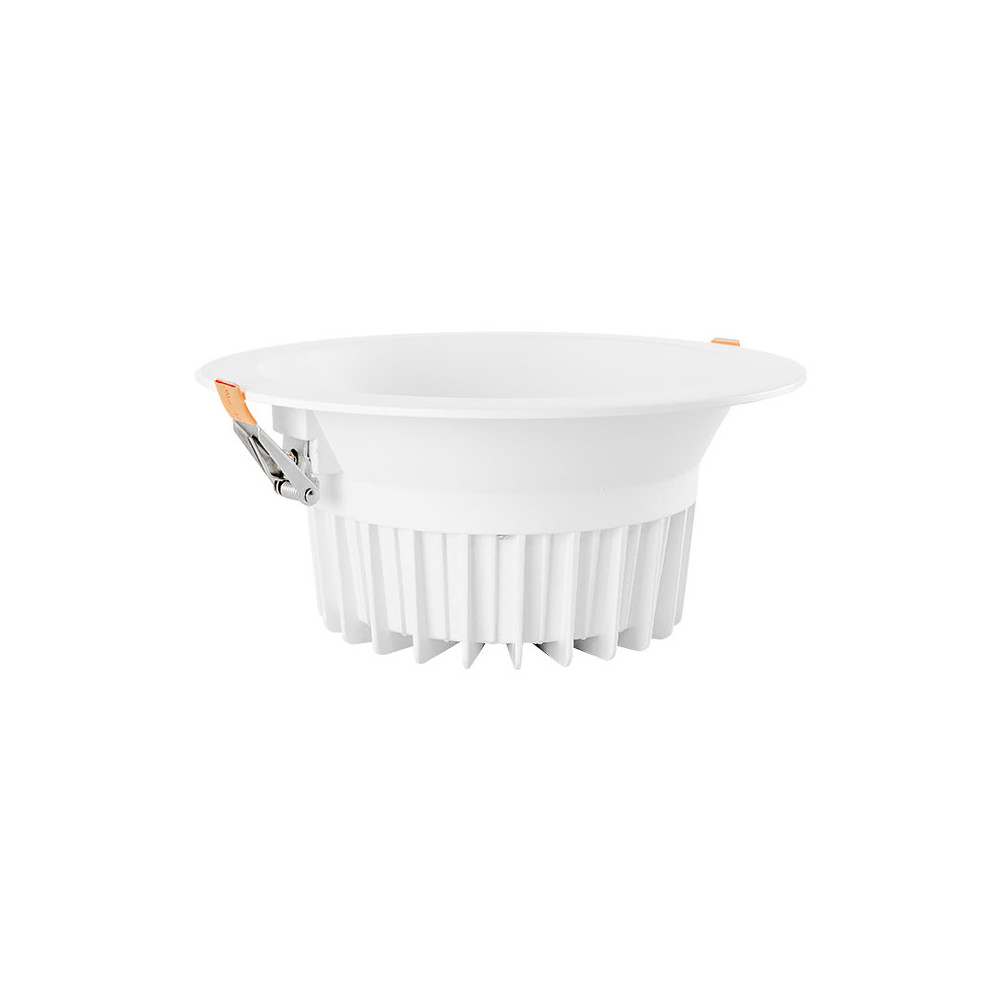

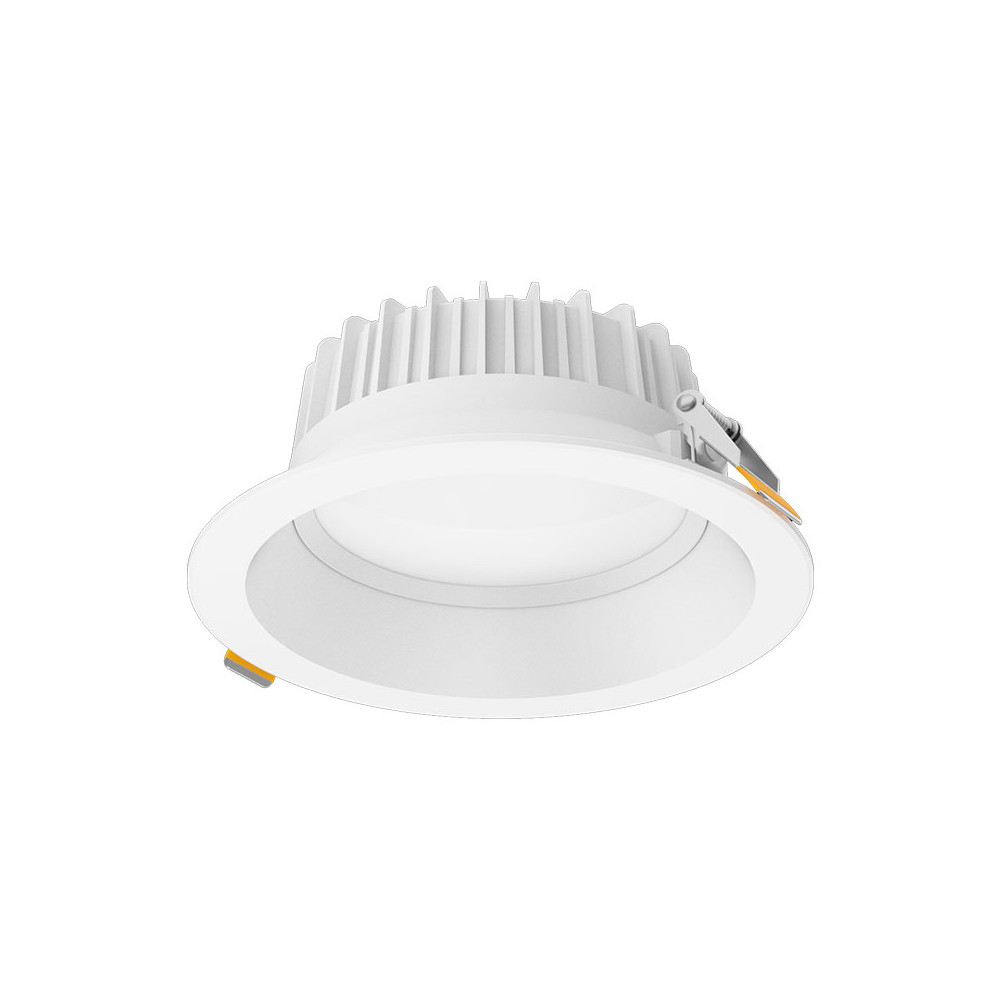

The new DownRay Low Luminance ADVANCE 2

This LED recessed light installs in suspended ceiling.

Installation compatible in humid environment (IP44 from below).

Product guaranteed 7 years for 60,000 hours of operation.

Available with opal or transparent diffuser, this downlight has low luminance optics ensuring minimal glare.

Notable features:

  • A competitive price
  • IP44 protection rating from below
  • Energy efficiency up to 120 lm/W

Delivered without power supply, please choose one from the product accessories on this page

Ref: DOW.105957

DownRay Low Luminance CLAREO 27W 120lm/W ADVANCE 2 Without Driver

2911 - 3165 lm 2911 - 3165 lm
Energy savings - 30 % Energy savings - 30 %
Repairable Repairable
7 years Warranty 7 years Warranty
60 000 h 60 000 h
IP44 IP44
UGR < 19 UGR < 19
IRC > 80 IRC > 80
IK04 IK04
130 lm/W 130 lm/W
save_alt Download the technical sheet

Color

White neutral - 4000K

Angle

Diffuser

In stock, next day delivery before 1 PM
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here
Sign in Sign up

General characteristics
Lifetime 60 000 h
Brand CLAREO
Range ADVANCE
Product family Downlights
Installation environment Point of sale, Hotel, Office
Quick installation YES
Repairable YES
Warranty 7 years
Electrical characteristics
Voltage 35 V DC
Current Up to 700 mA
Power 27 W
Electrical class Class III
Power range 26-50 W
EU energy class 2019/2015 E
Lighting characteristics
Technology LED
Lumens output 2911 - 3165 lm
Energy savings - 30 %
Lumens efficiency 130 lm/W
Lifetime LXBY L80B10
Diffuser Opal, Transparent
Beam Angle 45 deg
Photobiological risk GR0 - No risk
IRC > 80
UGR < 19
Lumens range 3000-3999 lm
Physical characteristics and dimensions
Diameter 230 mm
Height 102 mm
Net weight 0.8 kg
Materials Aluminum
Waterproof YES
IP IP44
IK IK04
Product color White
Diameter range 201-250 mm
Cut-out 200 mm
Working temperature -20 °C to 45 °C
Detailed color White
Installation mode Recessed
Type COB
Standards and regulations
Standards CE, RoHS, ENEC
