New waterproof LED recessed light from CLAREO Lighting.

Suitable for any false ceiling installation, this downlight can be installed both outdoors and in damp areas thanks to its cable gland and guaranteed IP65 waterproof rating.

Typical installation locations: shops, residential, hospitality ...

Advantage(s): Cable gland to ensure waterproofing, dimmable in 1-10V or DALI, wide 90° diffusion angle

Delivered without power supply, please choose one from the product accessories on this page

Ref: DOW.6996

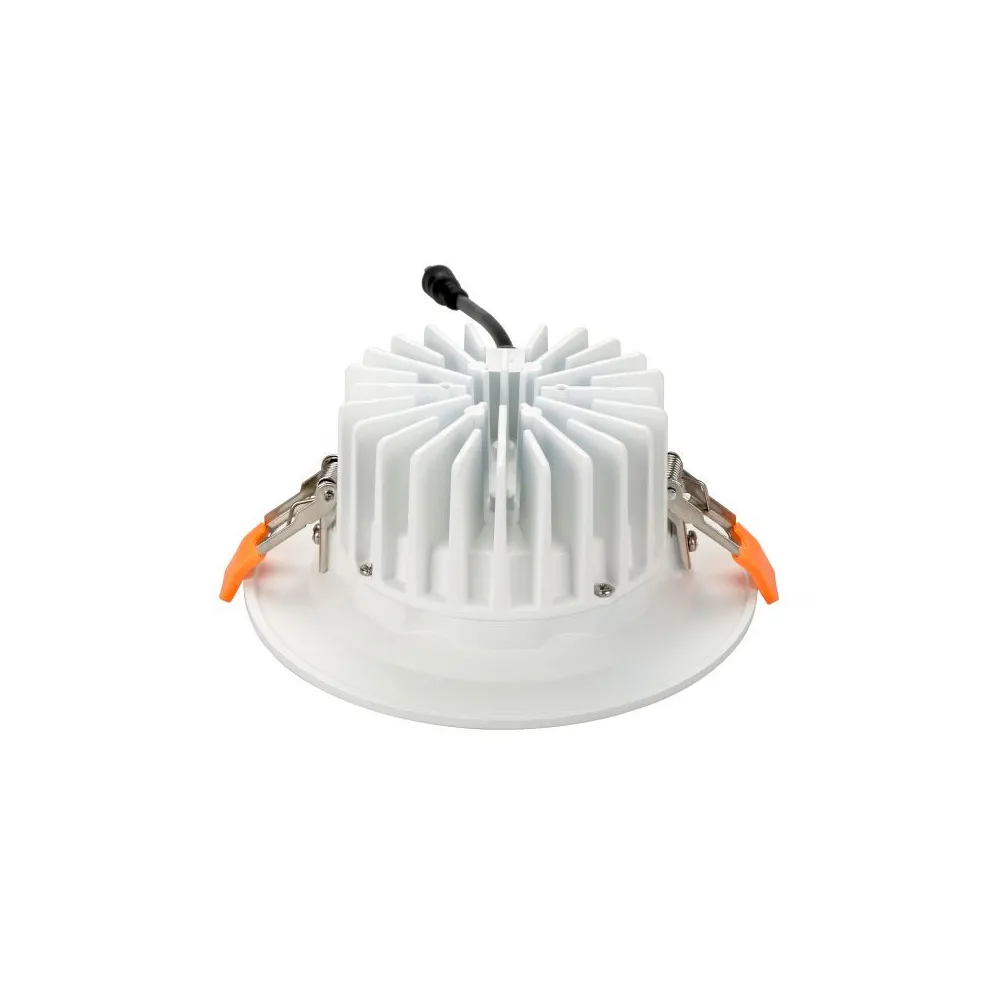

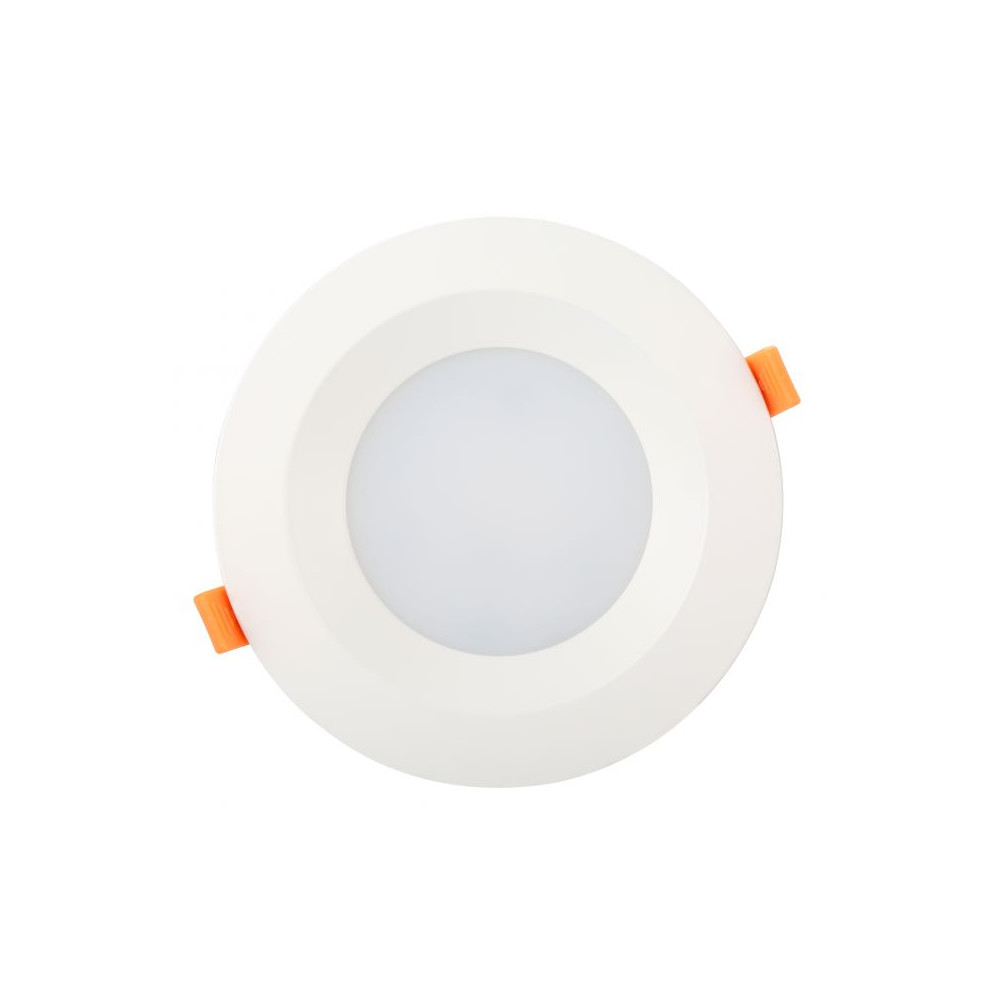

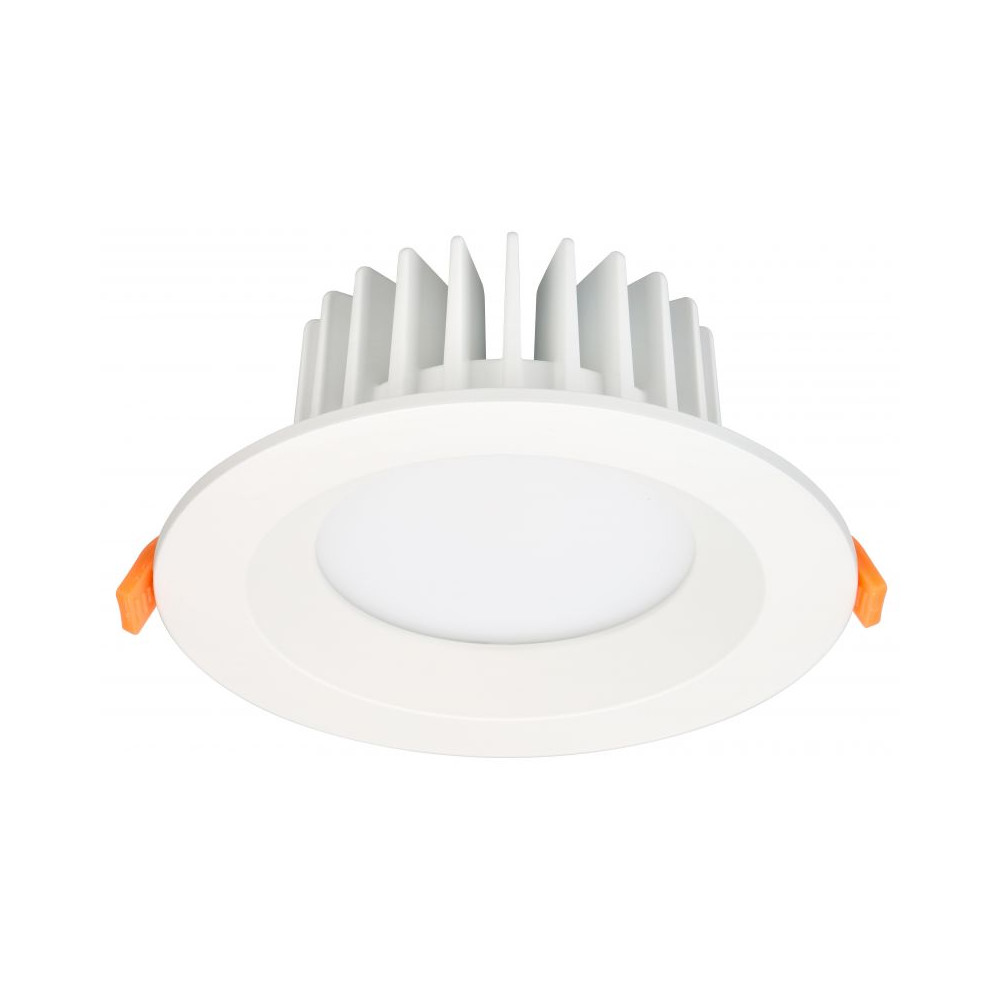

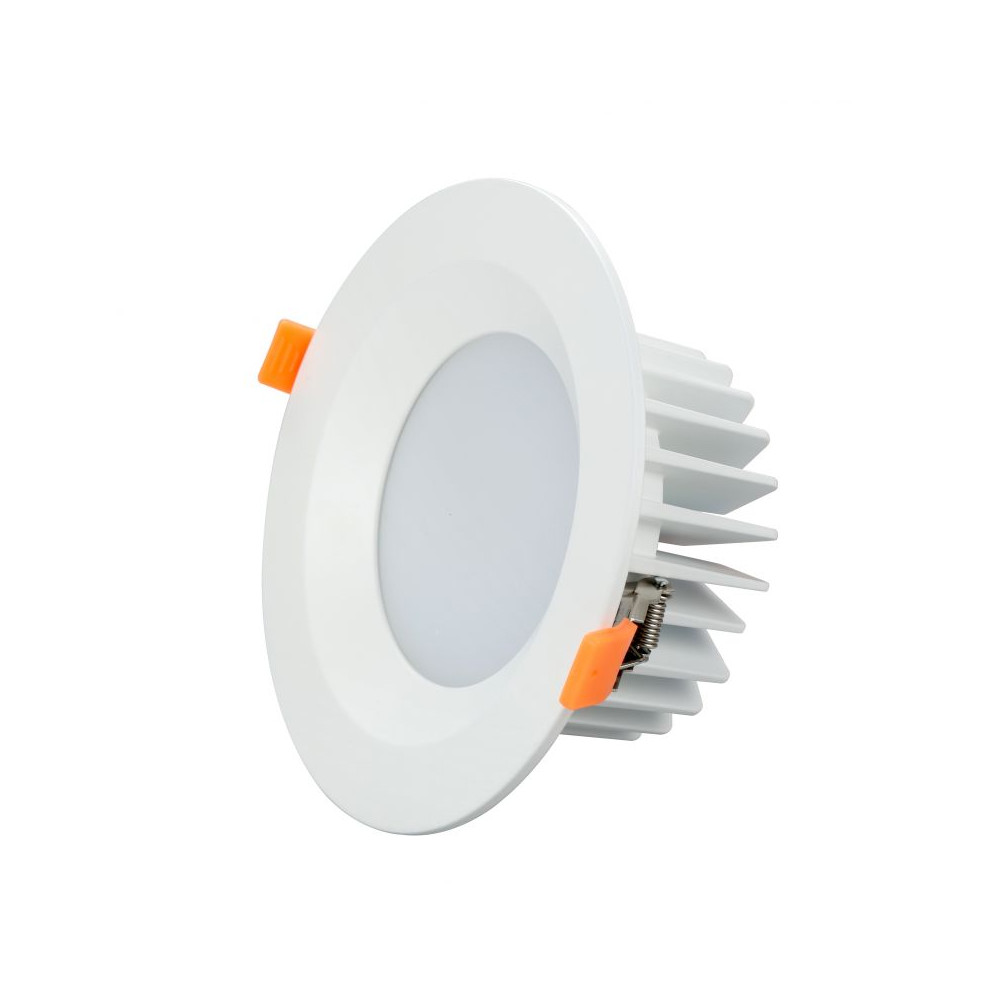

Waterproof DownRay CLAREO 11W ADVANCE Without Driver

1020 lm 1020 lm
Energy savings - 10% Energy savings - 10%
Repairable Repairable
7 years Warranty 7 years Warranty
60 000 h 60 000 h
IP65 IP65
UGR < 25 UGR < 25
IRC > 80 IRC > 80
IK04 IK04
92 lm/W 92 lm/W
save_alt Download the technical sheet

Color

White neutral - 4000K

Angle

In stock, next day delivery before 1 PM
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here
Sign in Sign up

New waterproof LED recessed light from CLAREO Lighting.

Suitable for any false ceiling installation, this downlight can be installed both outdoors and in damp areas thanks to its cable gland and guaranteed IP65 waterproof rating.

Typical installation locations: shops, residential, hospitality ...

Advantage(s): Cable gland to ensure waterproofing, dimmable in 1-10V or DALI, wide 90° diffusion angle

Delivered without power supply, please choose one from the product accessories on this page

General characteristics
Lifetime 60 000 h
Brand CLAREO
Range ADVANCE
Product family Downlights
Installation environment Bathroom, Sanitary, Hotel
Quick installation YES
Repairable YES
Warranty 7 years
Electrical characteristics
Voltage 23-40 V DC
Current Up to 250 mA
Power 11 W
Electrical class Class III
Power range 0-25 W
EU energy class 2019/2015 F
Lighting characteristics
Technology LED
Lumens output 1020 lm
Energy savings - 10%
Lumens efficiency 92 lm/W
Lifetime LXBY L80B10
Diffuser Opale
Beam Angle 90 deg
Photobiological risk GR0 - No risk
IRC > 80
UGR < 25
Lumens range 800-1099 lm
Physical characteristics and dimensions
Diameter 155 mm
Height 67 mm
Net weight 0.6 kg
Materials Aluminum
Waterproof YES
IP IP65
IK IK04
Product color White
Diameter range 151-200 mm
Cut-out 120 mm
Working temperature -20 °C to 45 °C
Detailed color White
Installation mode Recessed
Type SMD 2835
Standards and regulations
Standards CE, RoHS
