MiniRay RE2020 ADVANCE 2: Compact, durable and certified lighting for the buildings of tomorrow

The MiniRay RE2020 ADVANCE 2 stands out as the ideal solution for projects requiring energy performance, durability and regulatory compliance.
RE2020 BEPOS certified, it perfectly meets the standards of positive energy buildings, offering efficient lighting while controlling environmental impact.

Thanks to its IP65 protection and IK08 resistance, it is designed to withstand indoor and outdoor environments, guaranteeing robustness and longevity.
Its CCT Switch (2700- 3000- 4000-5700K) and Power Switch (5/8W) allow precise adaptation of the lighting to project needs, for maximum flexibility.

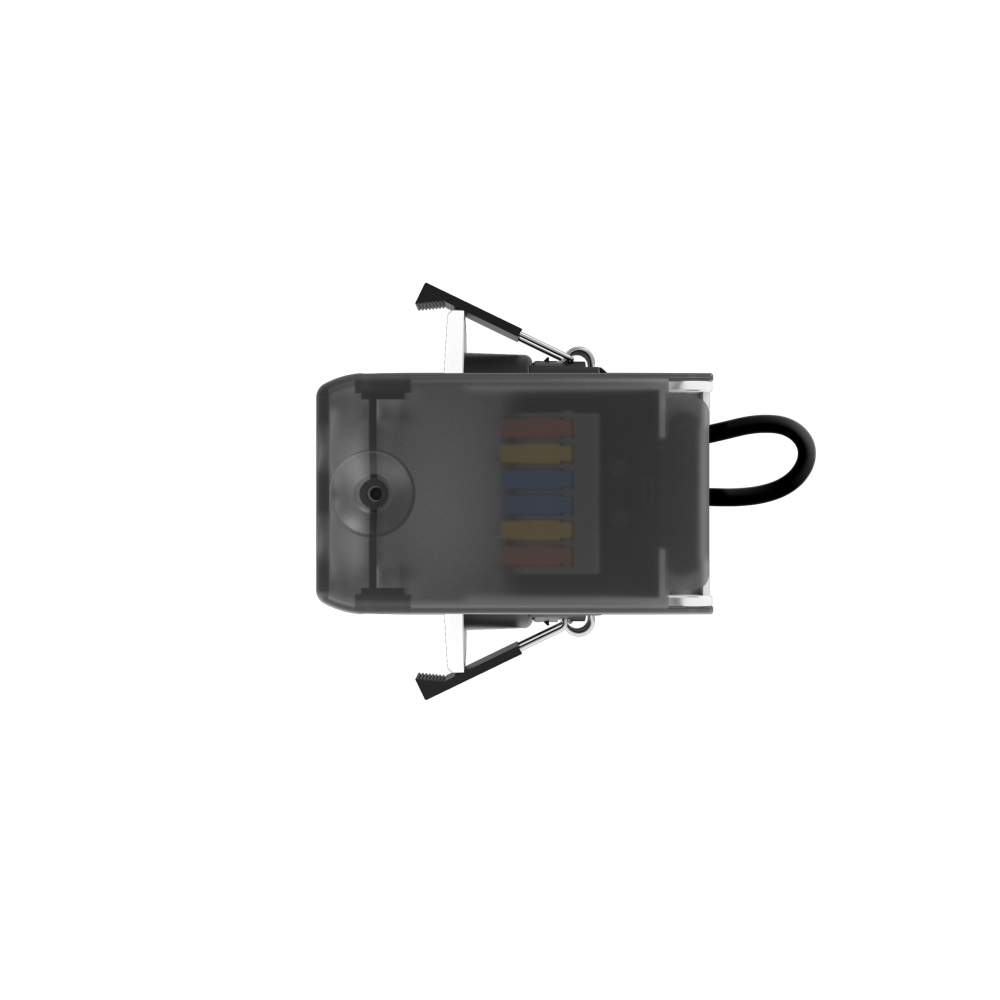

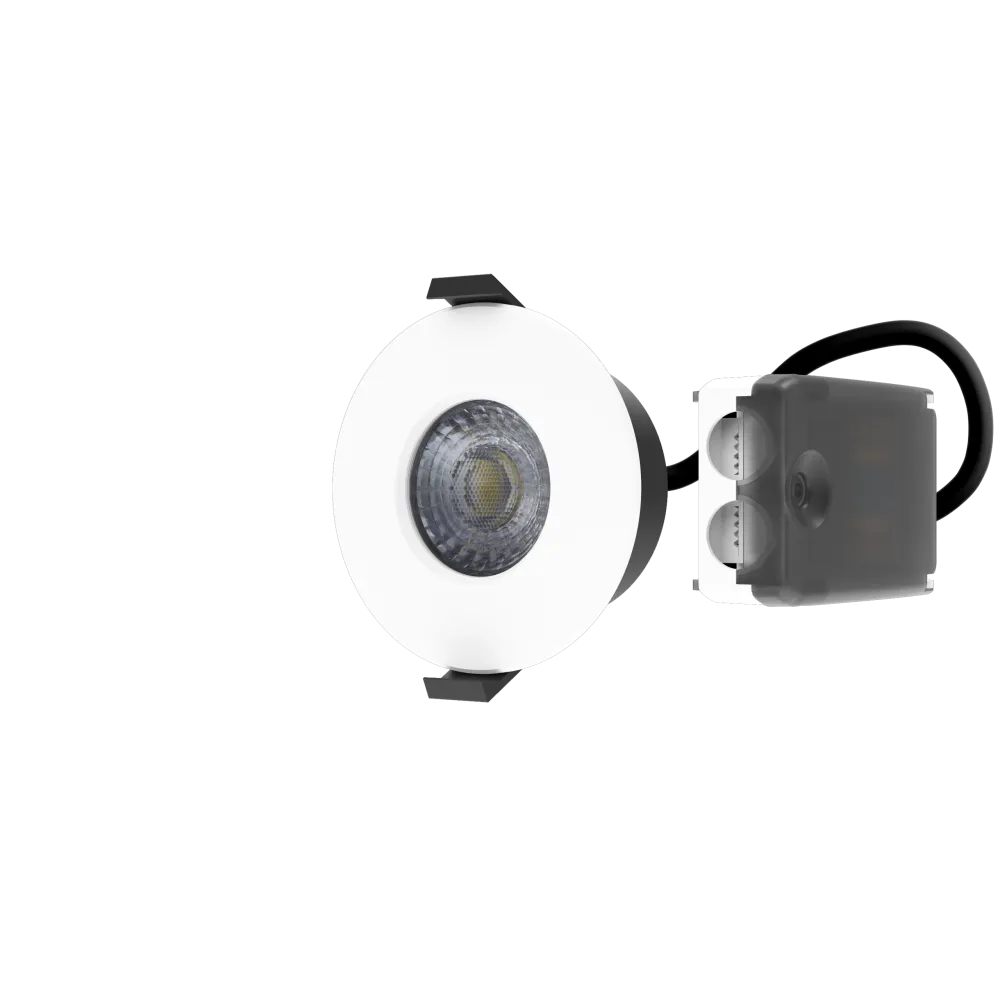

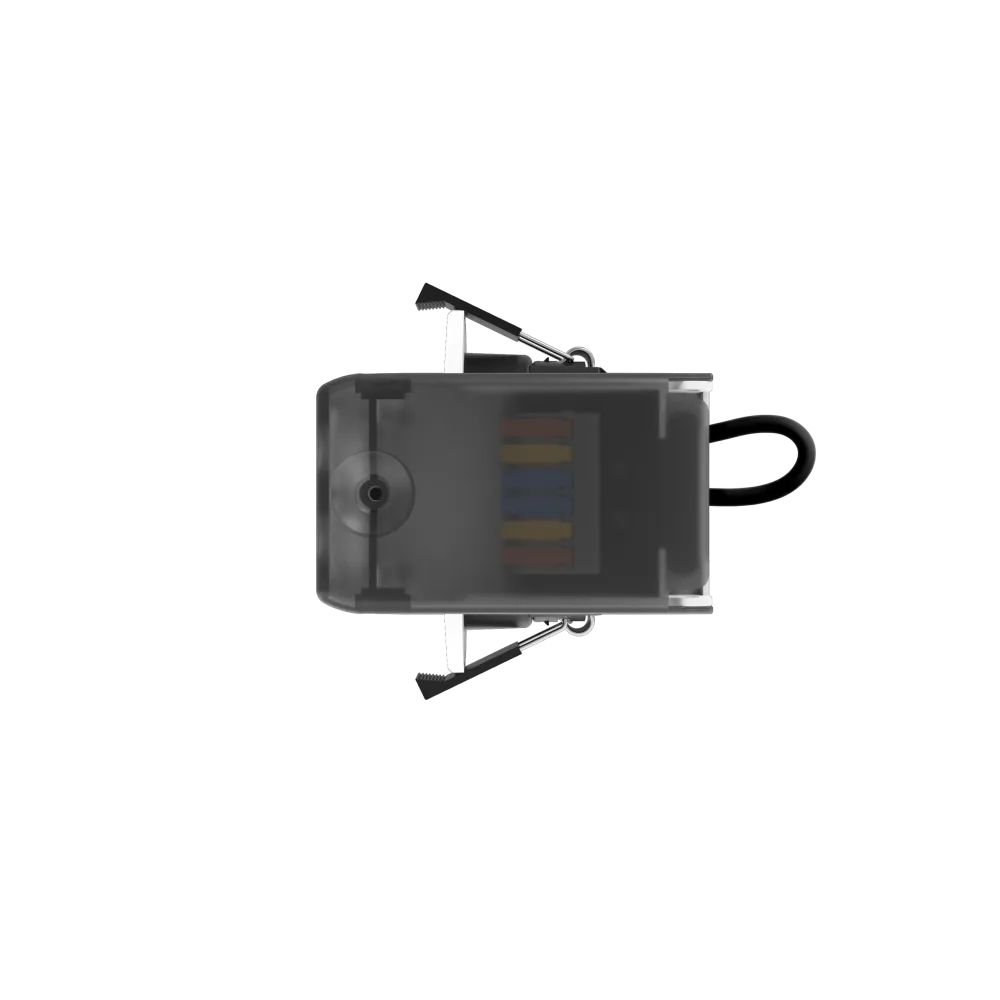

Equipped with a junction box with anti-crossing terminal block, it guarantees safe and fast wiring. Its interchangeable bezel allows the design to be adapted to any atmosphere, for perfect integration into all projects.

Key features:

  • Power Switch and CCT Switch
  • RE2020 BEPOS certified, fire resistant and coverable
  • IP65 and IK08
  • Interchangeable bezels
  • L80B10 lifespan of 50,000 hours and 7-year warranty
Ref: DOW.5555A2

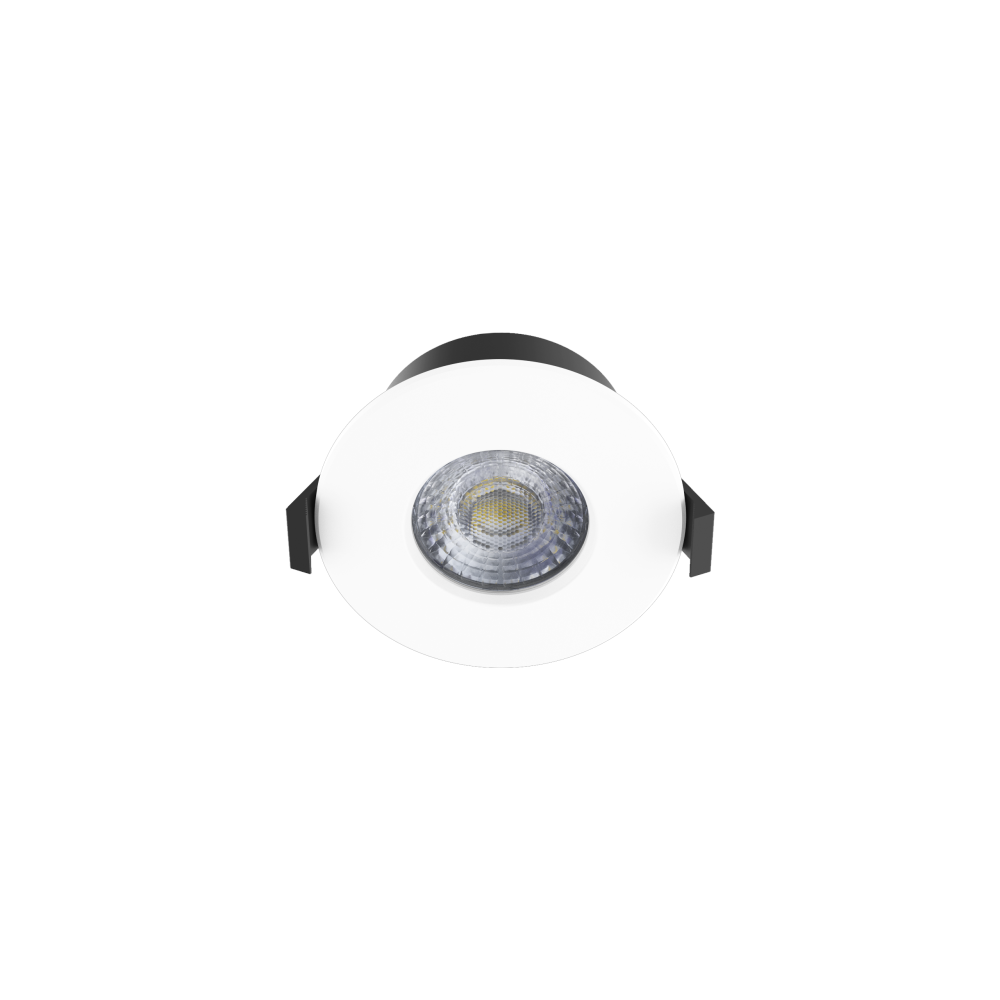

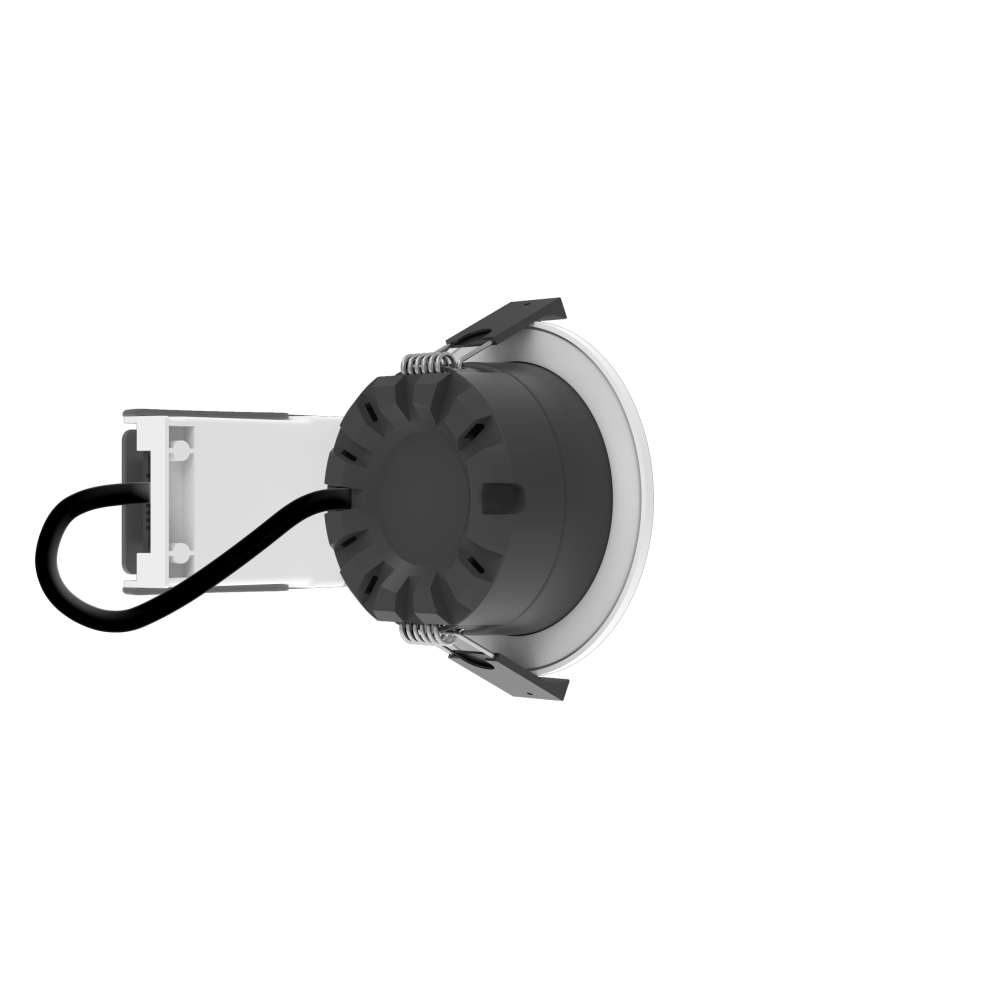

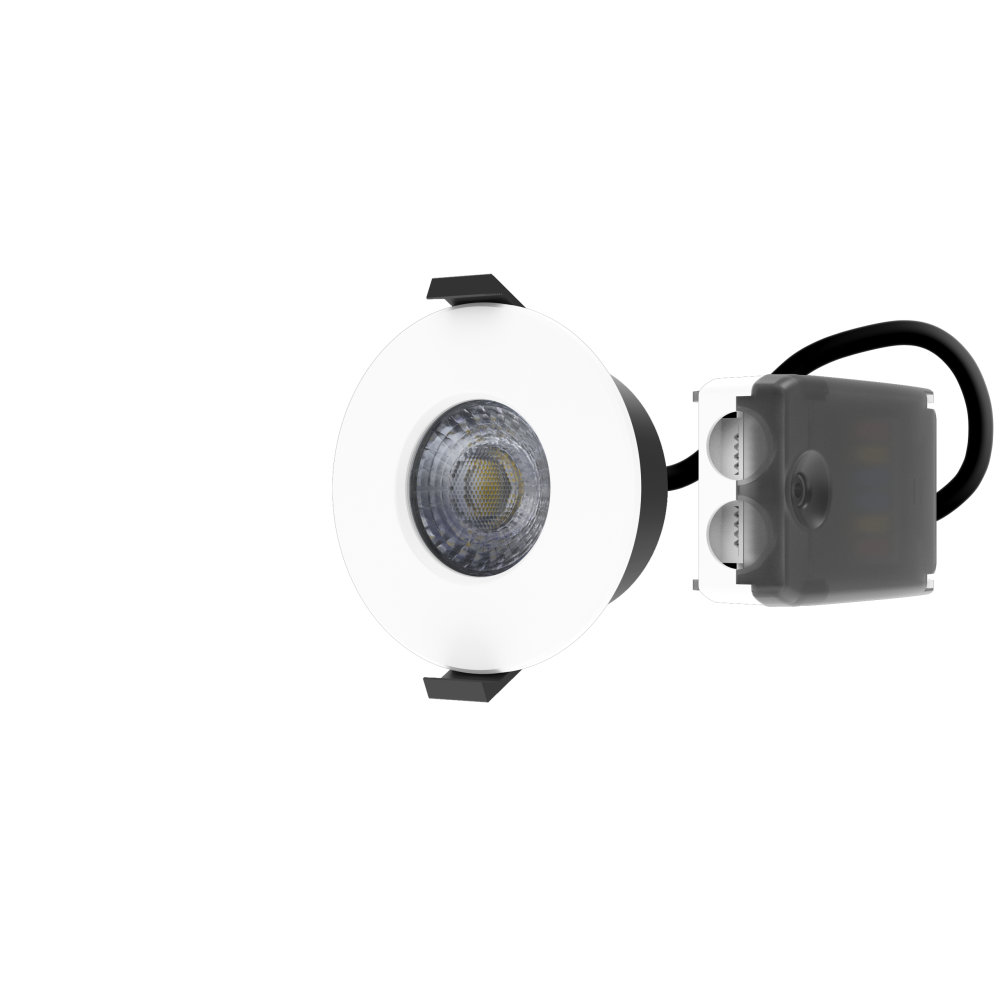

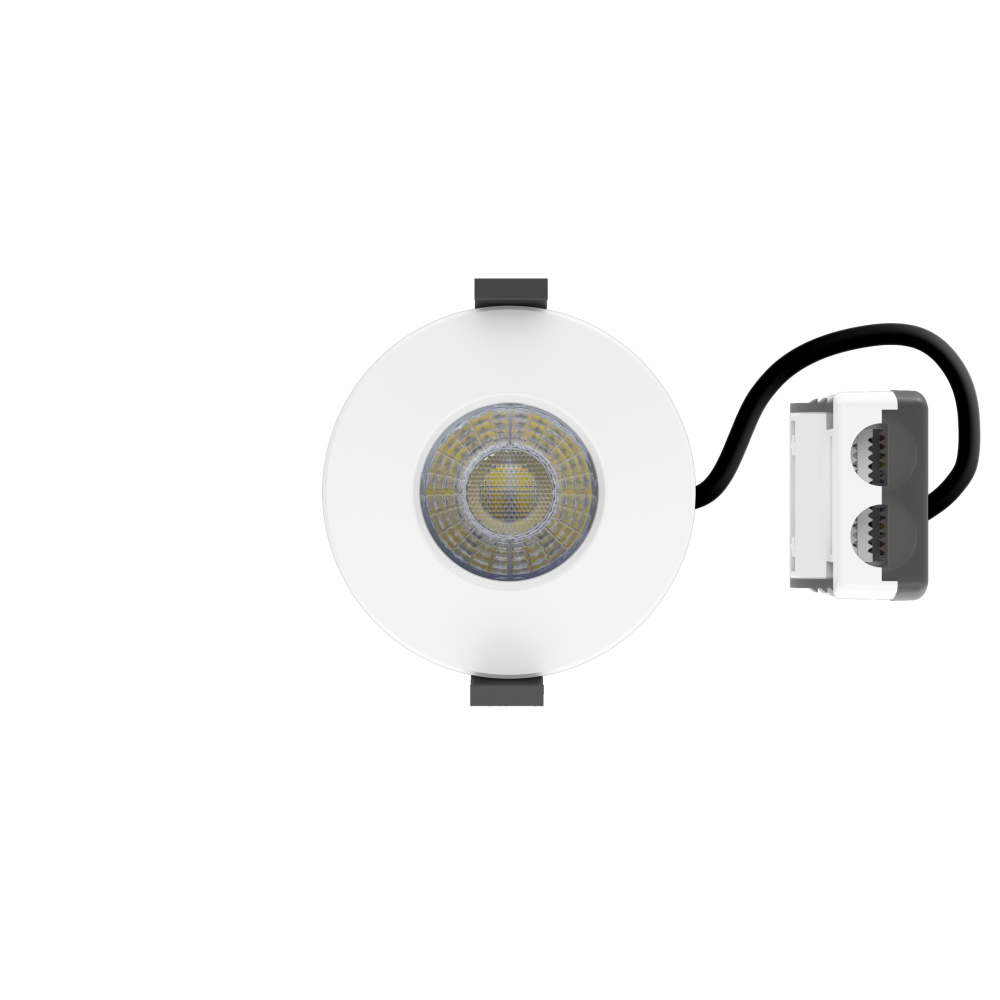

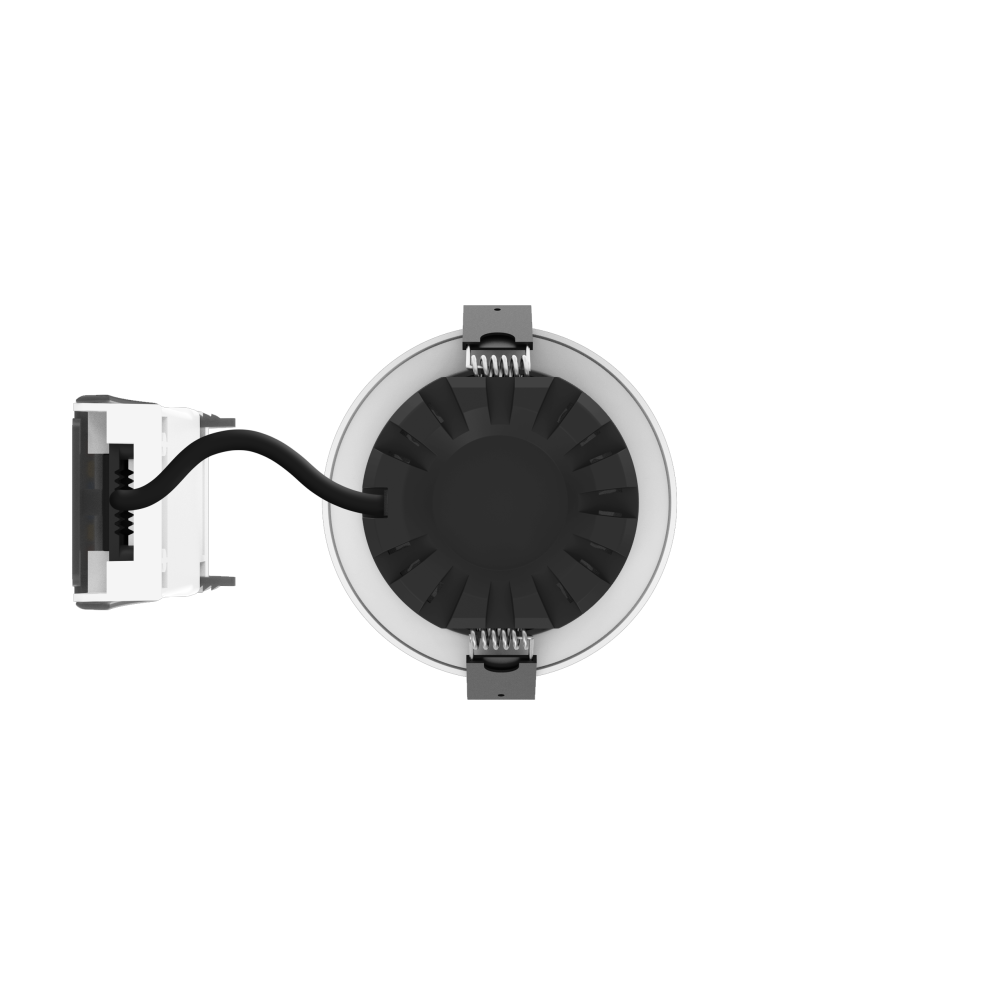

MiniRay CLAREO 5/8W 130lm/W RE2020 ADVANCE 2

save_alt Download the technical sheet

Color

Switch 2700-3000-4000-5700K

Angle

Diffuser

Driver

Product color

In stock, next-day delivery before 1 PM
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

MiniRay RE2020 ADVANCE 2: Compact, durable and certified lighting for the buildings of tomorrow

The MiniRay RE2020 ADVANCE 2 stands out as the ideal solution for projects requiring energy performance, durability and regulatory compliance.
RE2020 BEPOS certified, it perfectly meets the standards of positive energy buildings, offering efficient lighting while controlling environmental impact.

Thanks to its IP65 protection and IK08 resistance, it is designed to withstand indoor and outdoor environments, guaranteeing robustness and longevity.
Its CCT Switch (2700- 3000- 4000-5700K) and Power Switch (5/8W) allow precise adaptation of the lighting to project needs, for maximum flexibility.

Equipped with a junction box with anti-crossing terminal block, it guarantees safe and fast wiring. Its interchangeable bezel allows the design to be adapted to any atmosphere, for perfect integration into all projects.

Key features:

  • Power Switch and CCT Switch
  • RE2020 BEPOS certified, fire resistant and coverable
  • IP65 and IK08
  • Interchangeable bezels
  • L80B10 lifespan of 50,000 hours and 7-year warranty

General characteristics
Lifetime 54 000 h
Brand CLAREO
Range ADVANCE
Product family Downlights Mini
Installation environment Decorative, Sanitary
Warranty 7 years
Electrical characteristics
Voltage 220-240 V AC
Current Up to 21 mA
Power 5W - 8W
Electrical class Class I
Dimmable PHASE (TRIAC)
Facteur de puissance > 0.65
Taux de distorsion harmonique < 26 %
EU energy class 2019/2015 D
Lighting characteristics
Technology LED
Lumens output 618 - 1040 lm
Energy savings - 30 %
Lumens efficiency 130 lm/W
Lifetime LXBY L80B10
Diffuser Transparent
Beam Angle 60°
Photobiological risk GR0 - No risk
IRC > 80
UGR < 27
Lumens range 500-799 lm
Physical characteristics and dimensions
Diameter 87 mm
Height 40 mm
Net weight 0.2 kg
Materials Polycarbonate
IP IP65
IK IK08
Product color White
Diameter range 51-100 mm
Cut-out Ø68-70 mm
Working temperature -20 °C to 40 °C
Installation mode Recessed
Type SMD 2835
Standards and regulations
Standards RE2020, CE, RoHS
Carbon footprint 19.7 kgCO2eq
