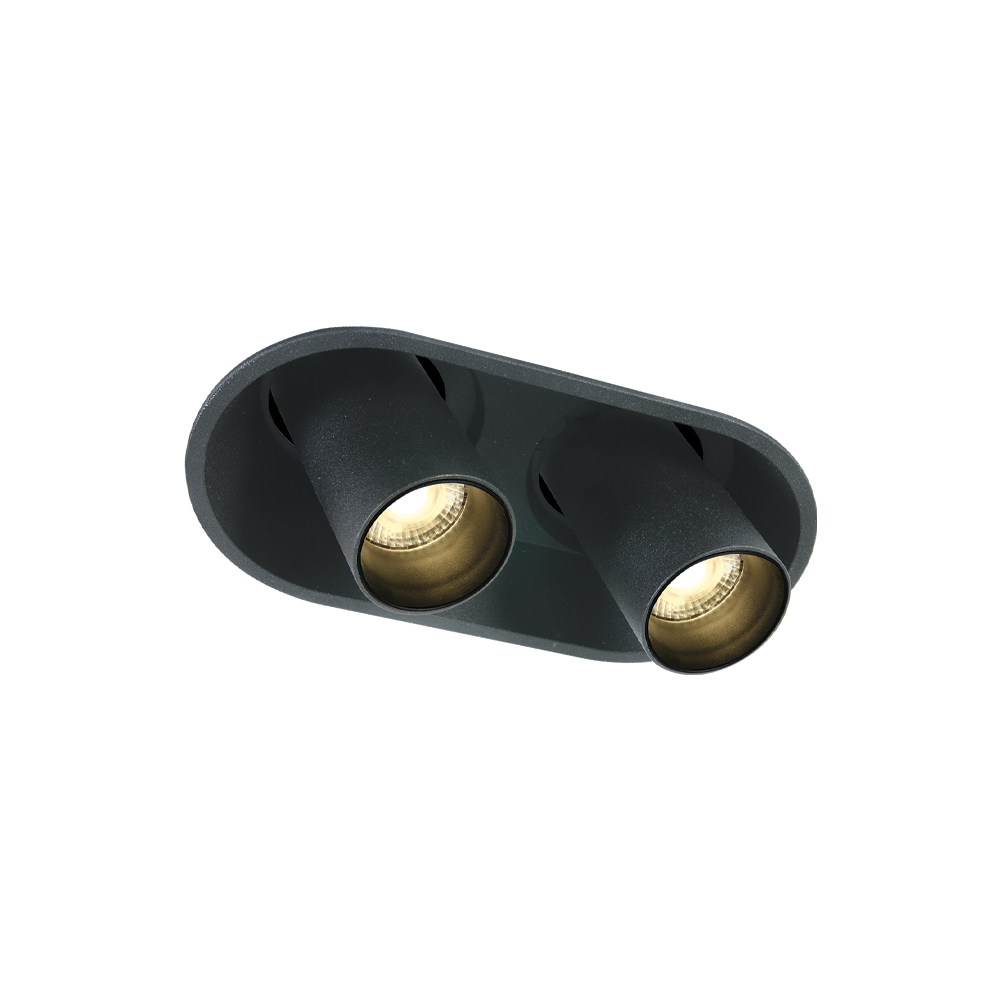

DownRay Encastré Orientable ZAMBELIS DESIGN: dual directional beam in Sand Black finish

The DownRay Encastré Orientable ZAMBELIS DESIGN is designed for the most demanding architectural lighting projects. Its Sand Black aluminium finish body recesses precisely into ceilings, while its two adjustable heads allow the beams to be directed independently towards areas to be highlighted: artworks, furniture, interior architecture, display cases. A powerful and flexible luminaire, crafted for high-end architectural and residential spaces.

With a total power of 18 W (2 x 9 W), this DownRay delivers a luminous flux of 1,008 to 1,185 lm with a CRI above 90 and a UGR below 12, limiting glare for optimal visual comfort. The beam angle is 24° for precise and directional lighting, in 2700K (very warm white). The ON/OFF driver is included, simplifying on-site installation.

The ceiling cutout is 83 x 160 mm for a neat integration.

Key highlights:

  • Two independently adjustable heads for precise directional lighting
  • Sand Black aluminium body, premium architectural finish
  • CRI> 90 and UGR < 12 for remarkable visual comfort and colour rendering
  • ON/OFF driver included, easy installation
  • 3-year warranty
Ref: ZAM.25363

DownRay Recessed Adjustable ZAMBELIS 2x9W DESIGN Sandblasted Black With Driver 25363

save_alt Download the technical sheet

Color

Warm white - 2700K

Angle

Driver

Product color

In stock, next-day delivery before 1 PM
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

DownRay Encastré Orientable ZAMBELIS DESIGN: dual directional beam in Sand Black finish

The DownRay Encastré Orientable ZAMBELIS DESIGN is designed for the most demanding architectural lighting projects. Its Sand Black aluminium finish body recesses precisely into ceilings, while its two adjustable heads allow the beams to be directed independently towards areas to be highlighted: artworks, furniture, interior architecture, display cases. A powerful and flexible luminaire, crafted for high-end architectural and residential spaces.

With a total power of 18 W (2 x 9 W), this DownRay delivers a luminous flux of 1,008 to 1,185 lm with a CRI above 90 and a UGR below 12, limiting glare for optimal visual comfort. The beam angle is 24° for precise and directional lighting, in 2700K (very warm white). The ON/OFF driver is included, simplifying on-site installation.

The ceiling cutout is 83 x 160 mm for a neat integration.

Key highlights:

  • Two independently adjustable heads for precise directional lighting
  • Sand Black aluminium body, premium architectural finish
  • CRI> 90 and UGR < 12 for remarkable visual comfort and colour rendering
  • ON/OFF driver included, easy installation
  • 3-year warranty

General characteristics
Lifetime 30,000 h
Brand ZAMBELIS
Range DESIGN
Product family Downlights
Installation environment Architectural, Residential
Warranty 3 years
Electrical characteristics
Voltage 220-240 V AC / 30-40 V DC
Current 220 mA
Power 18 W
Electrical class Class I
EU energy class 2019/2015 F
Lighting characteristics
Technology LED
Lumens output 1008 - 1185 lm
Lifetime LXBY L70B50
Beam Angle 24 deg
IRC > 90
UGR < 12
Physical characteristics and dimensions
Height 89 mm
Width 90 mm
Length 168 mm
Net weight 1.3 kg
Materials Aluminum
Waterproof No
IP IP20
Product color Black
Cut-out 83 x 160 mm
Detailed color Sandy Black
Installation mode Recessed
Standards and regulations
Carbon footprint 38,3 kgCO2eq
