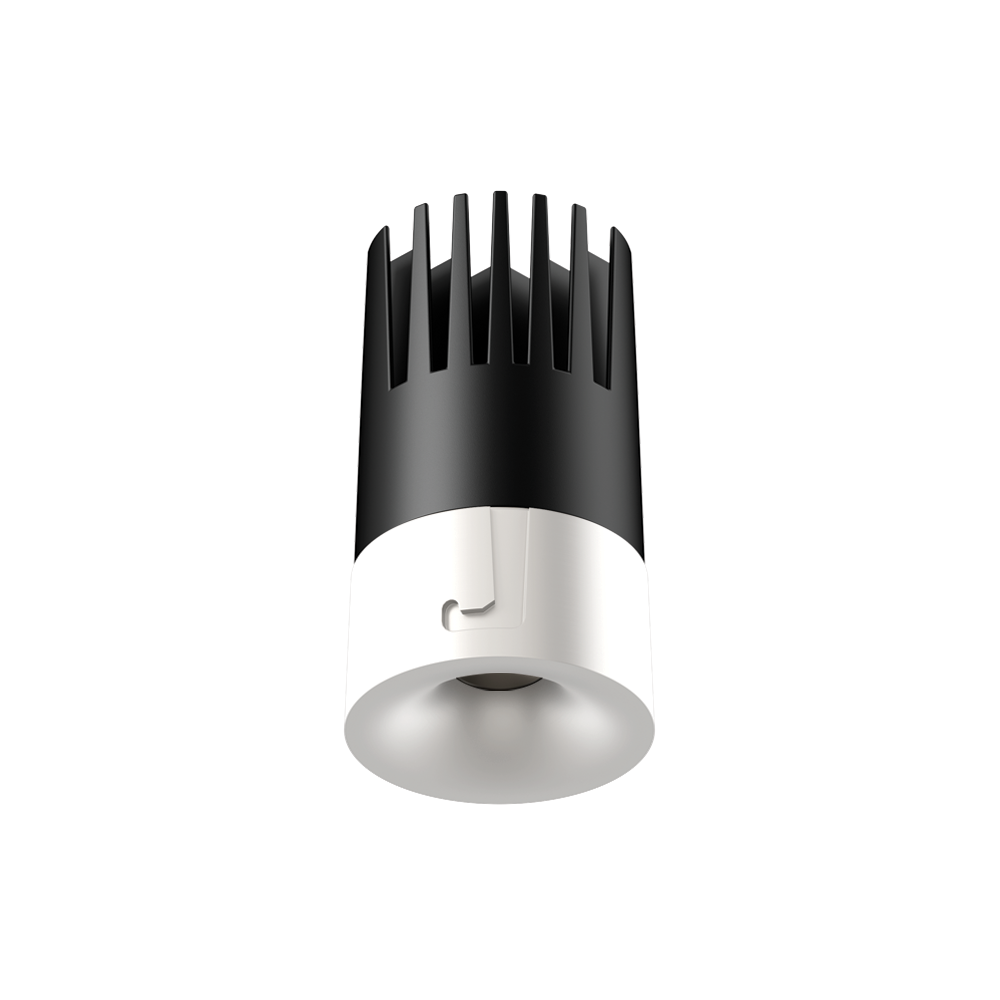

Module DownRay ZAMBELIS DESIGN Sand White D44 12W: CRI 90 and UGR<16 in intermediate 36V format

The Module DownRay ZAMBELIS DESIGN Sand White D44 (Ø44 mm × H80 mm) in sand white aluminium steps up in power compared to the D26 format, with an integrated 12W LED delivering 683 lm at 3000K. It maintains a CRI> 90 and a UGR < 16 for exceptional rendering, with the same concentrated beam of 36° for architectural lighting projects in hotels, museums and boutiques. Lifespan: 30,000 hours.

Powered by 36V DC, it is compatible with a wide selection of drivers (ON/OFF, TRIAC, DALI, RF, Bluetooth). IP20, IK02.

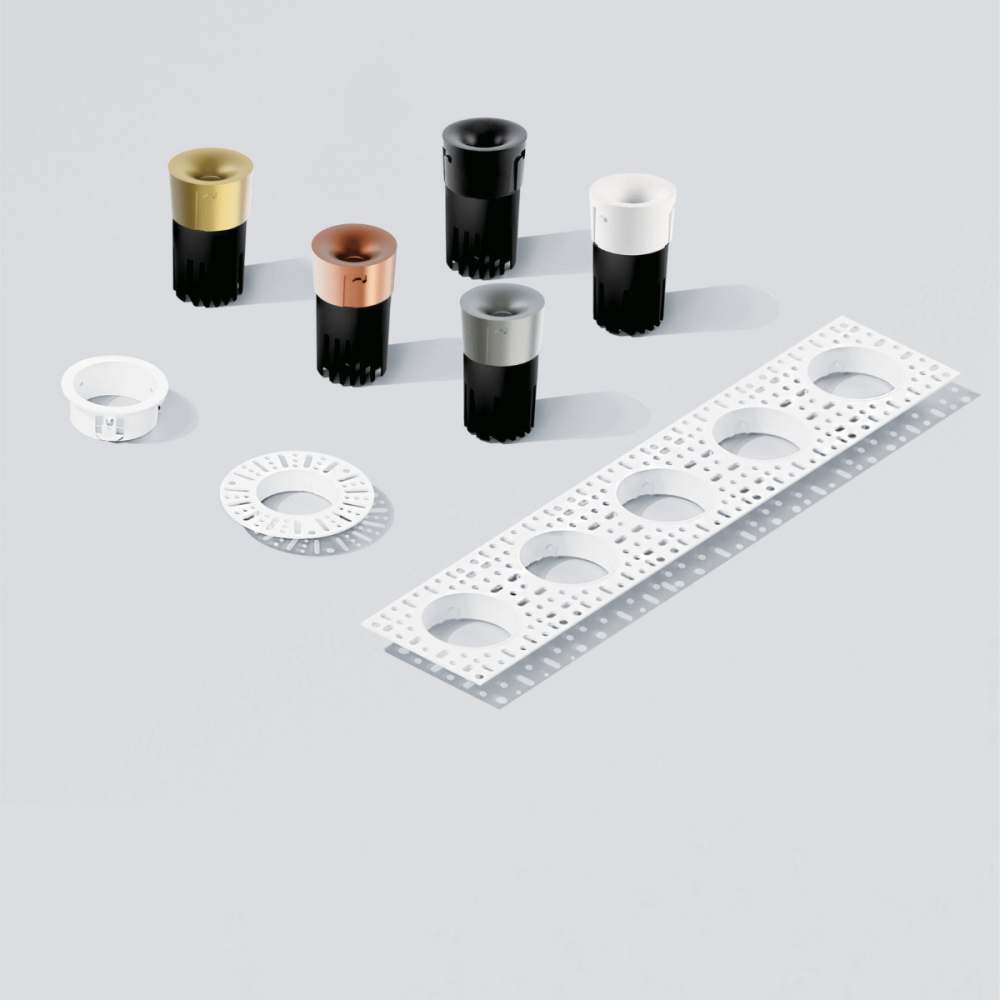

Accessories: ZAMBELIS recessed collar and driver not included, available as accessories.

Key highlights:

  • CRI> 90 and UGR < 16 for chromatic rendering without glare
  • Concentrated beam 36°, compact format Ø44 mm
  • Power supply 36V DC, compatible with multiple driver types
  • 12W, 683 lm, 3000K, lifespan 30,000 hours
  • 3-year warranty
Ref: ZAM.25400

DownRay ZAMBELIS 12W DESIGN Sandblasted White Without Driver 25400

save_alt Download the technical sheet

Color

White warm - 3000K

Angle

Driver

Product color

In stock, next-day delivery before 1 PM
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

Module DownRay ZAMBELIS DESIGN Sand White D44 12W: CRI 90 and UGR<16 in intermediate 36V format

The Module DownRay ZAMBELIS DESIGN Sand White D44 (Ø44 mm × H80 mm) in sand white aluminium steps up in power compared to the D26 format, with an integrated 12W LED delivering 683 lm at 3000K. It maintains a CRI> 90 and a UGR < 16 for exceptional rendering, with the same concentrated beam of 36° for architectural lighting projects in hotels, museums and boutiques. Lifespan: 30,000 hours.

Powered by 36V DC, it is compatible with a wide selection of drivers (ON/OFF, TRIAC, DALI, RF, Bluetooth). IP20, IK02.

Accessories: ZAMBELIS recessed collar and driver not included, available as accessories.

Key highlights:

  • CRI> 90 and UGR < 16 for chromatic rendering without glare
  • Concentrated beam 36°, compact format Ø44 mm
  • Power supply 36V DC, compatible with multiple driver types
  • 12W, 683 lm, 3000K, lifespan 30,000 hours
  • 3-year warranty

General characteristics
Lifetime 30,000 h
Brand ZAMBELIS
Range DESIGN
Product family Downlights
Installation environment Architectural, Residential
Warranty 3 years
Electrical characteristics
Voltage 36 V DC
Current 300 mA
Power 12 W
Electrical class Class III
EU energy class 2019/2015 E
Lighting characteristics
Technology LED
Lumens output 683 lm
Lifetime LXBY L70B50
Beam Angle 36 deg
IRC > 90
UGR < 16
Physical characteristics and dimensions
Diameter 44 mm
Height 80 mm
Net weight 0.2 kg
Materials Aluminum
Waterproof No
IP IP20
Product color White
Detailed color Sand White
Installation mode Recessed
Standards and regulations
Carbon footprint 44,3 kgCO2eq
