Asymmetric Wall Washer Spot ZAMBELIS DESIGN Sand-Blasted White: asymmetric beam and UGR <12 for your architectural lighting scenes

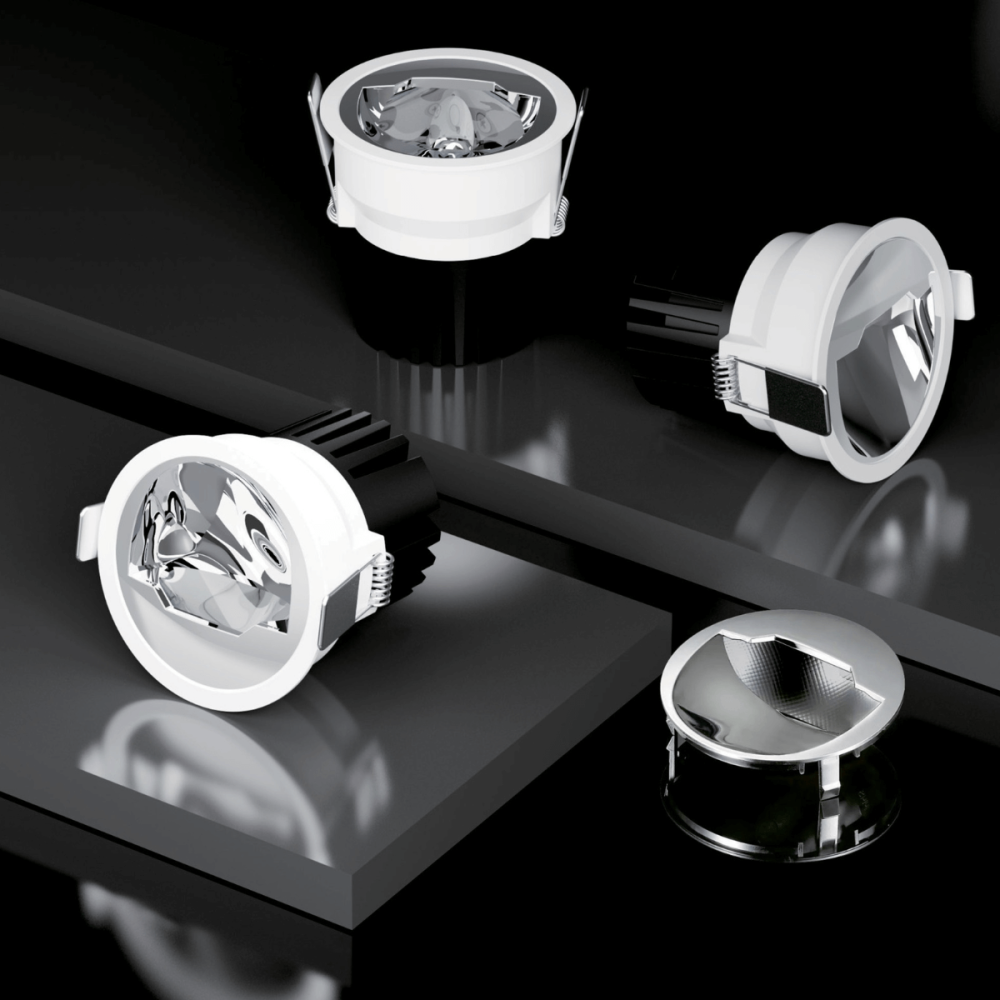

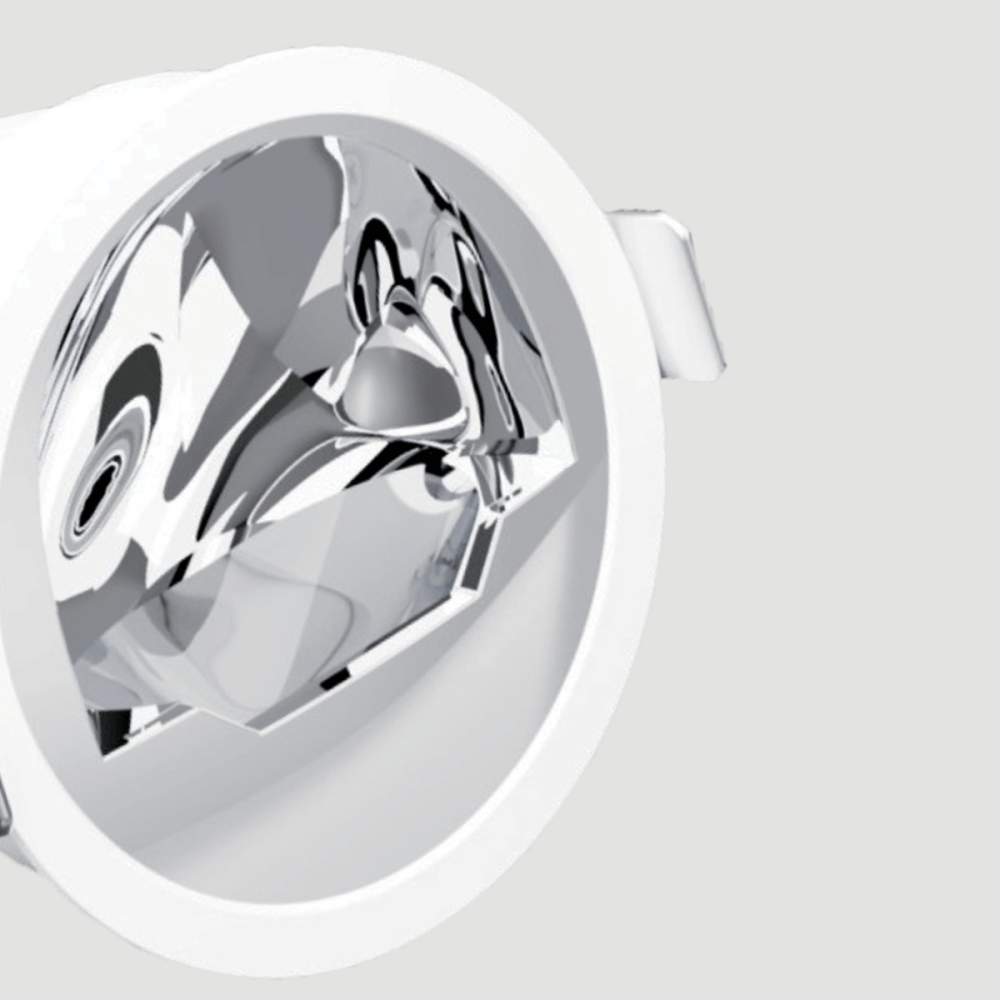

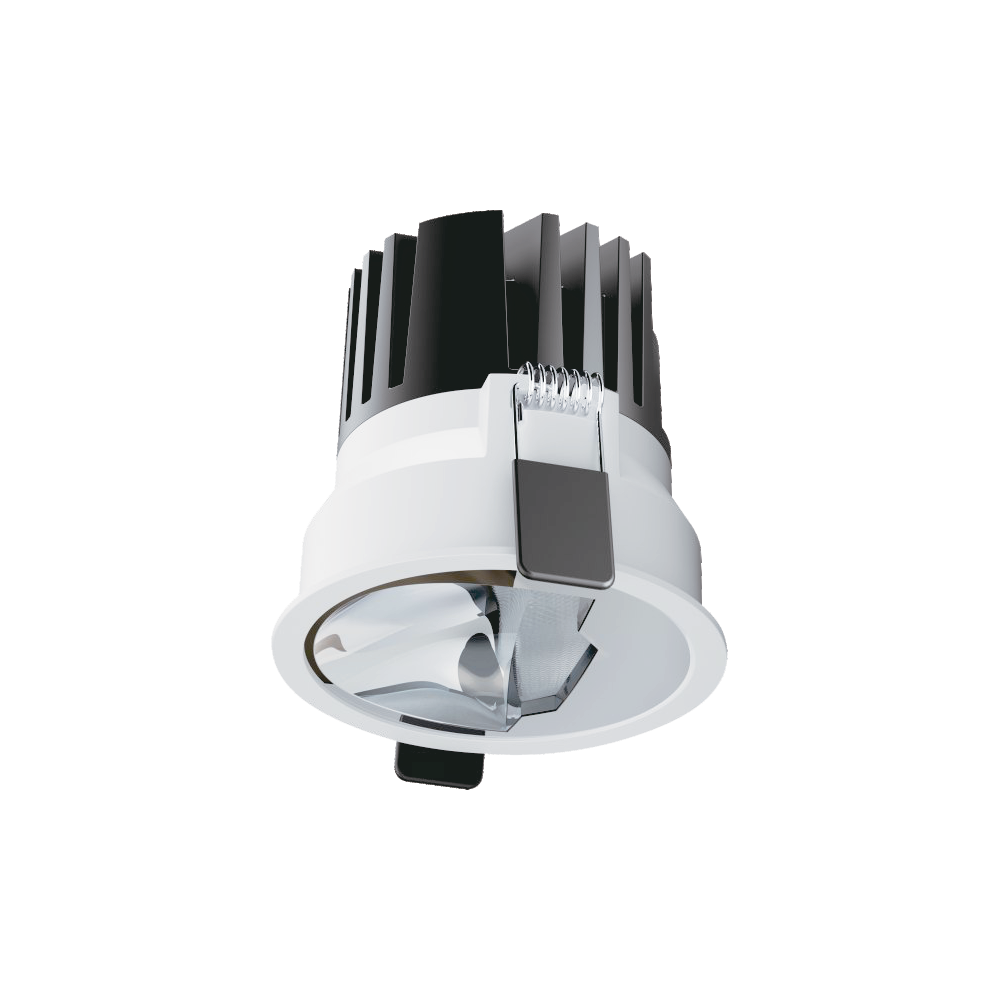

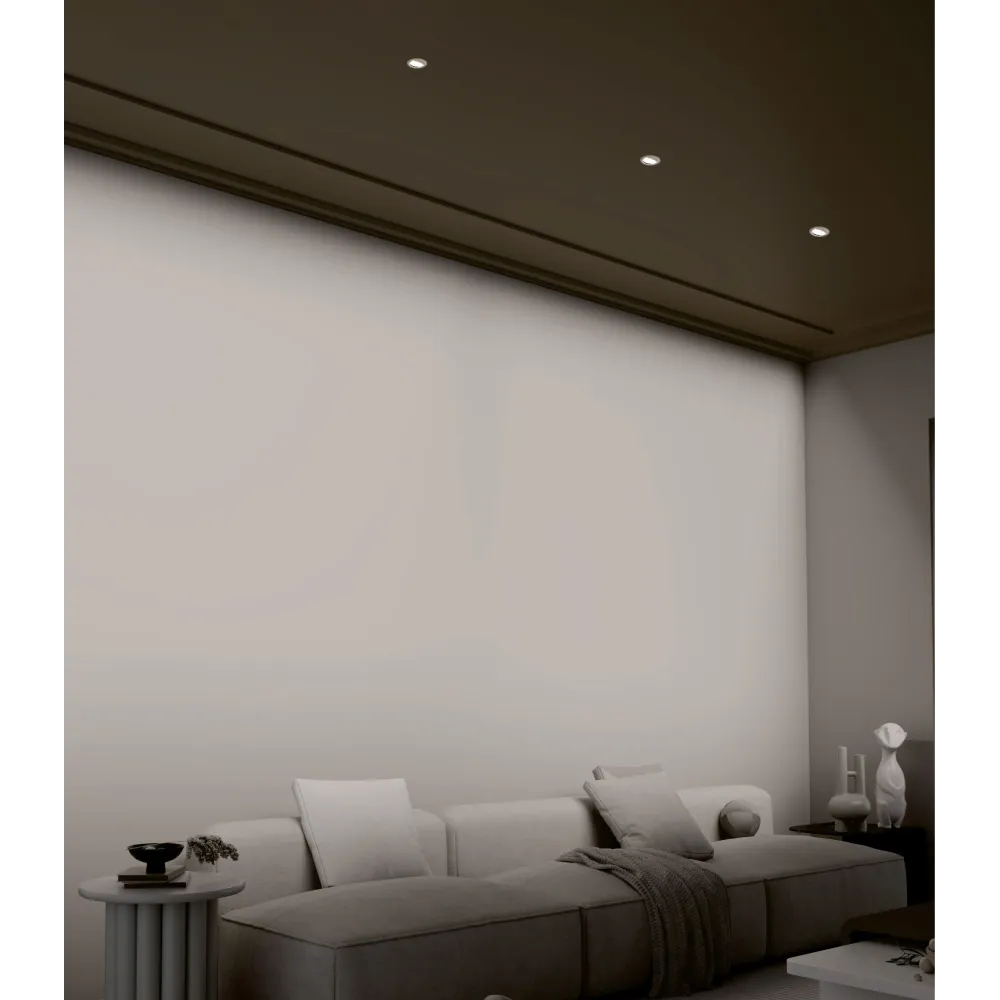

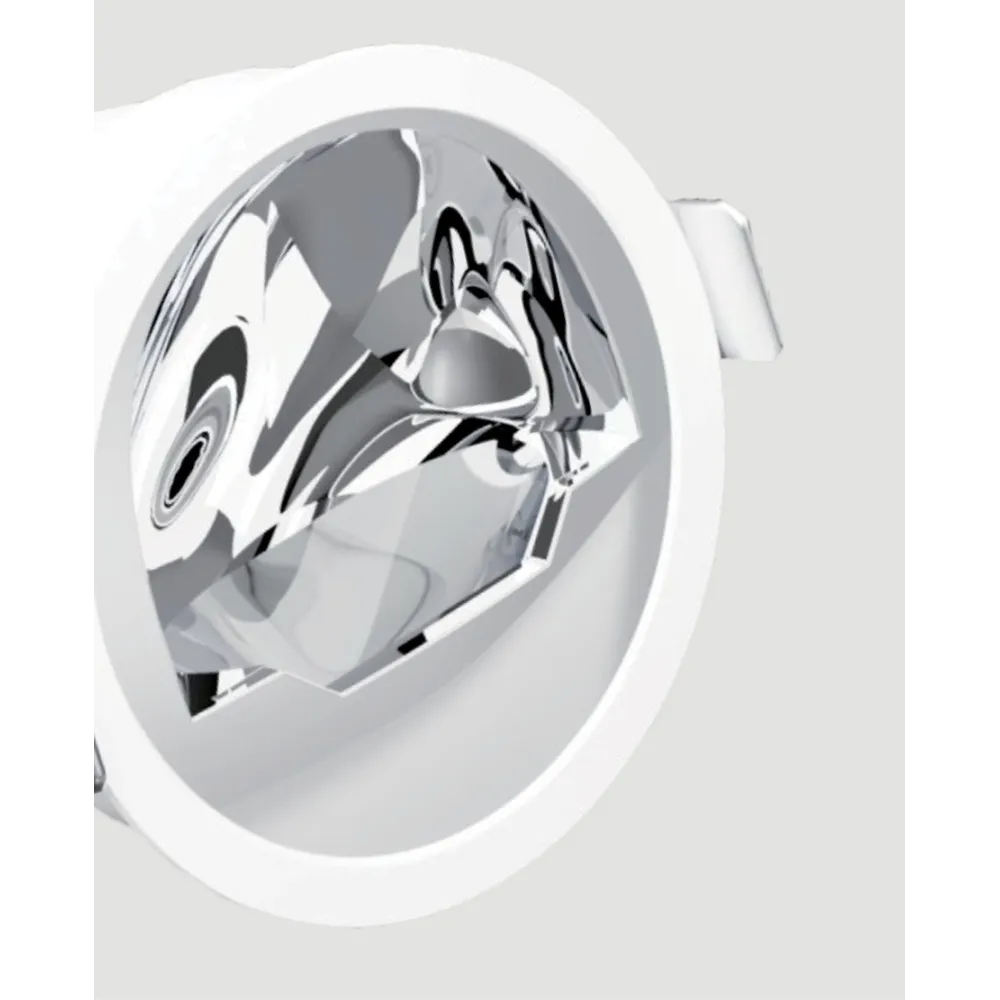

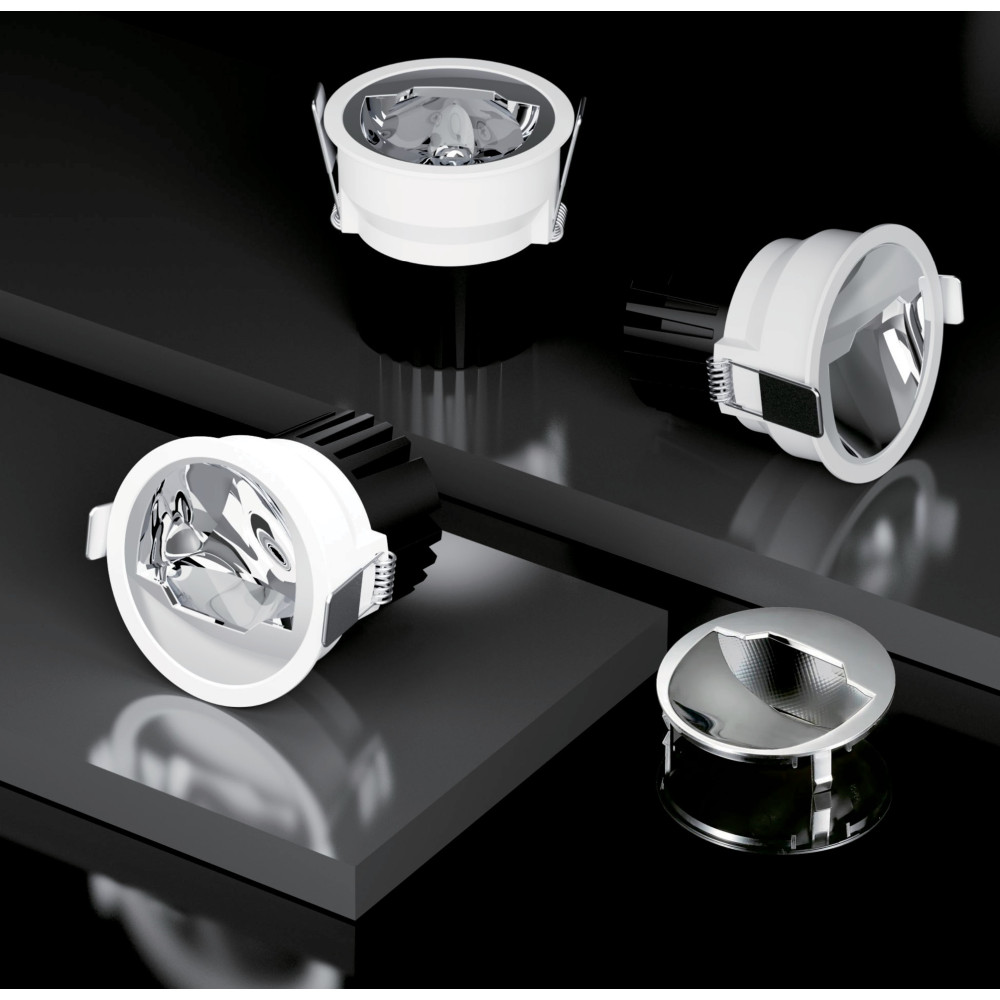

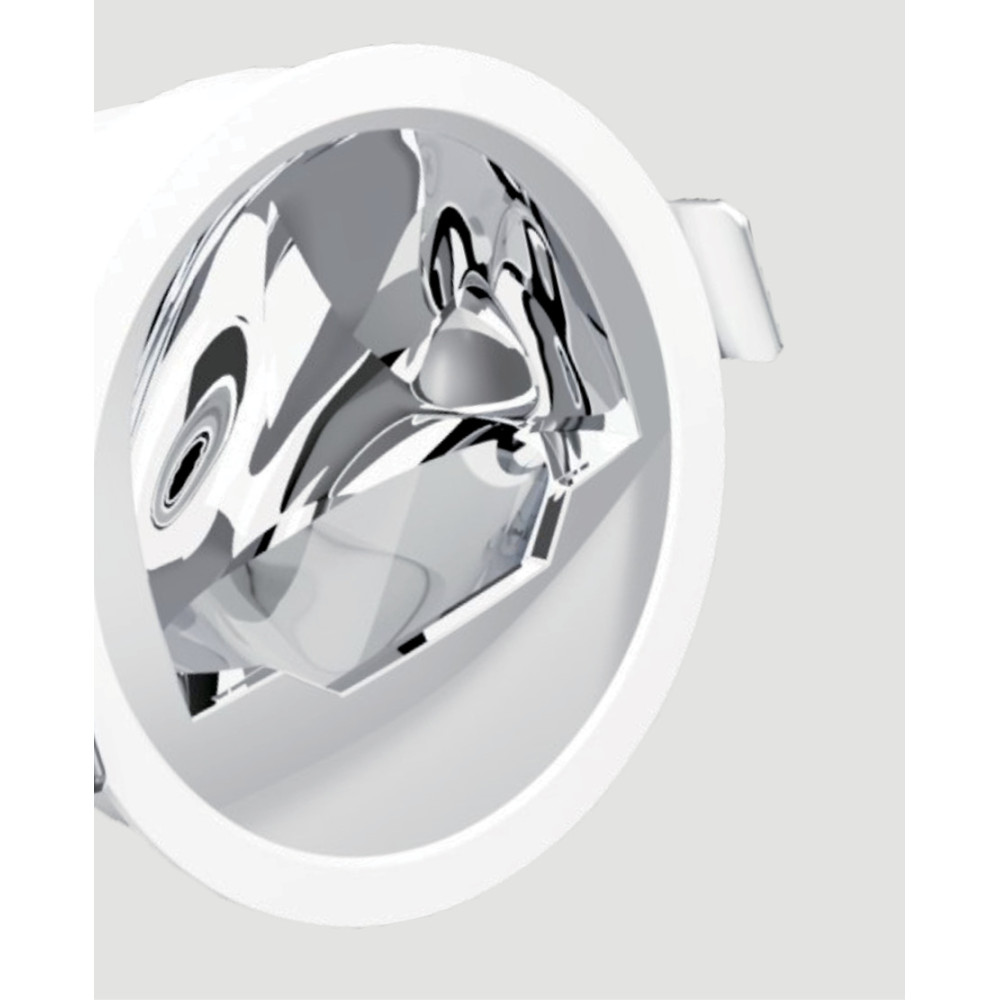

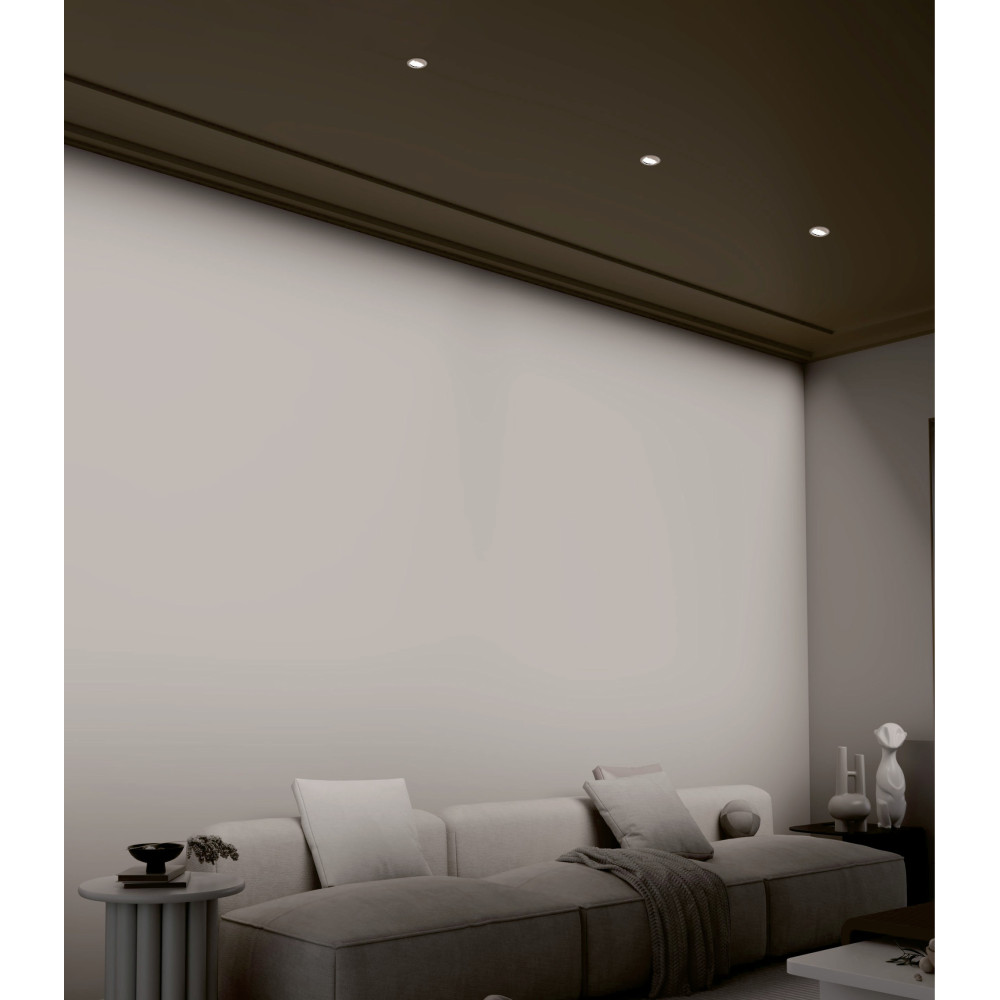

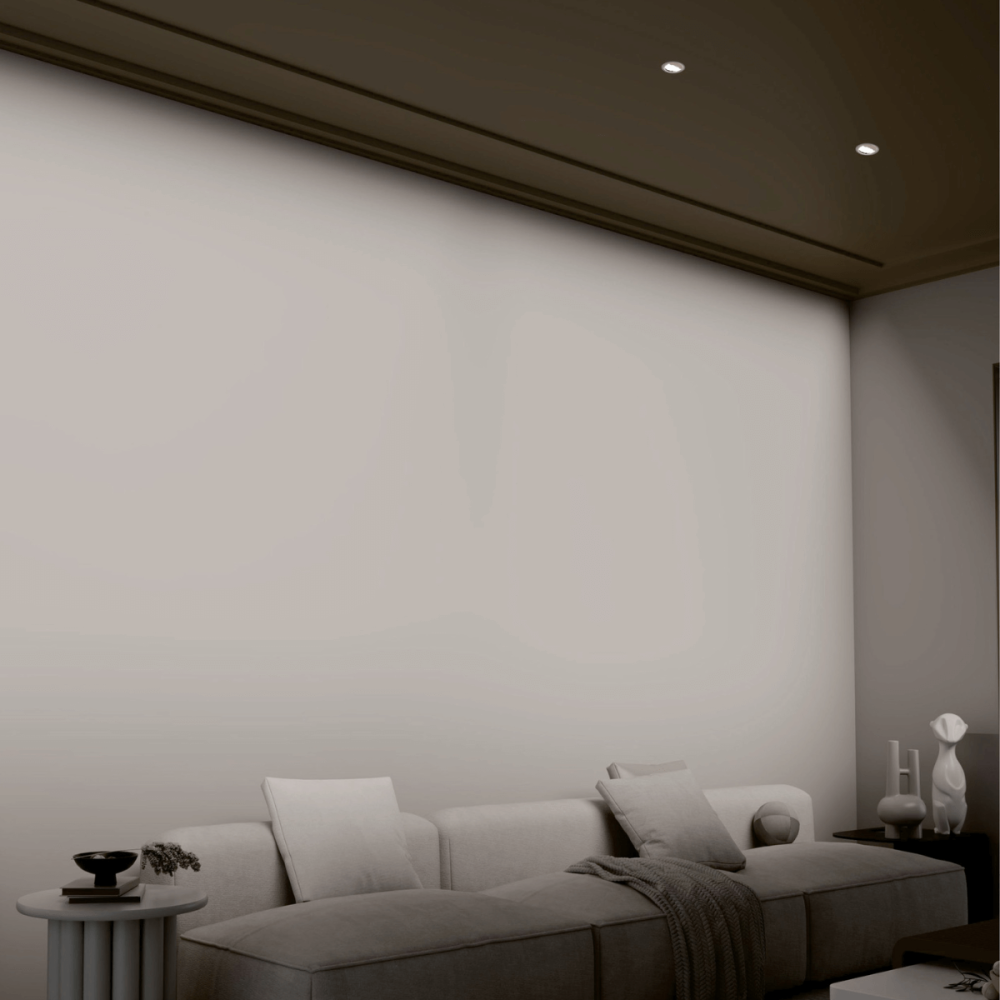

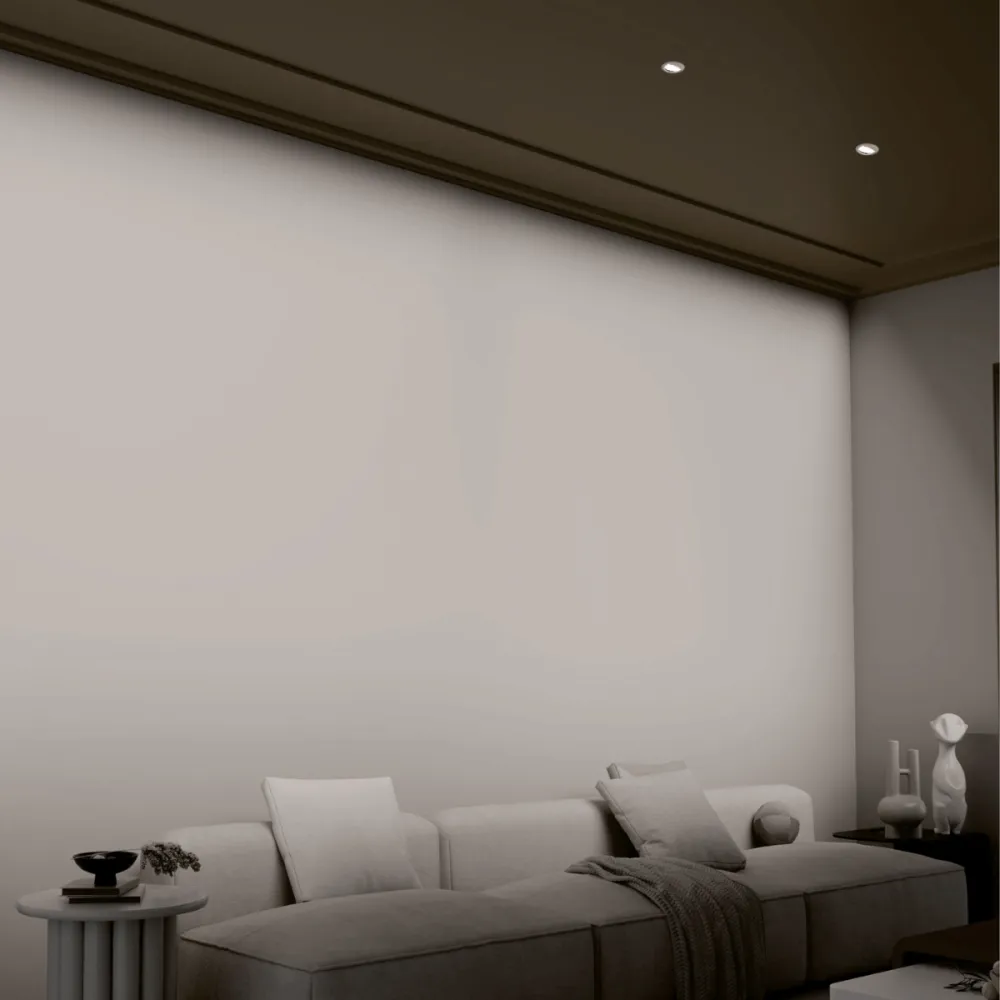

The Asymmetric Wall Washer Spot ZAMBELIS DESIGN S337 is a circular downlight in sand-blasted white aluminium, designed to create grazing light effects on vertical surfaces with architectural precision. Its asymmetric 60°x10° beam projects light broadly horizontally and concentrated vertically, revealing textures, materials and wall reliefs with controlled intensity. Ideal for boutiques, hotels, museums and reception halls where the lighting staging of walls is part of the identity of the space.

This spot delivers 10W for 655 lm at 3000K (warm white) with a CRI 90 for faithful and natural colour rendering. Its UGR below 12 is exceptional: it guarantees absolute visual comfort with no perceptible light disturbance. Lifespan: 30,000 hours.

Accessories: Driver not included, available as an accessory (ON/OFF, DALI, TRIAC, 0-10V, RF). Cutout: Ø57 mm, recessing depth: 60 mm.

Key highlights:

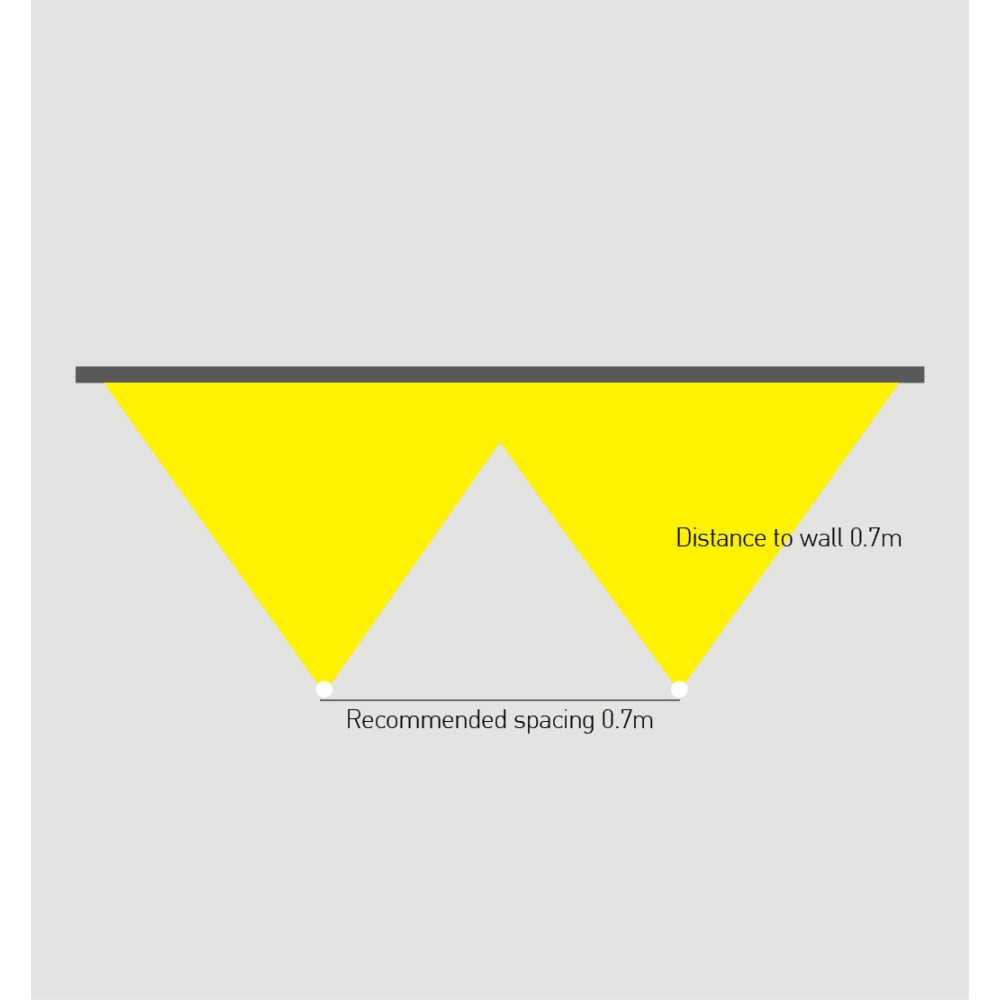

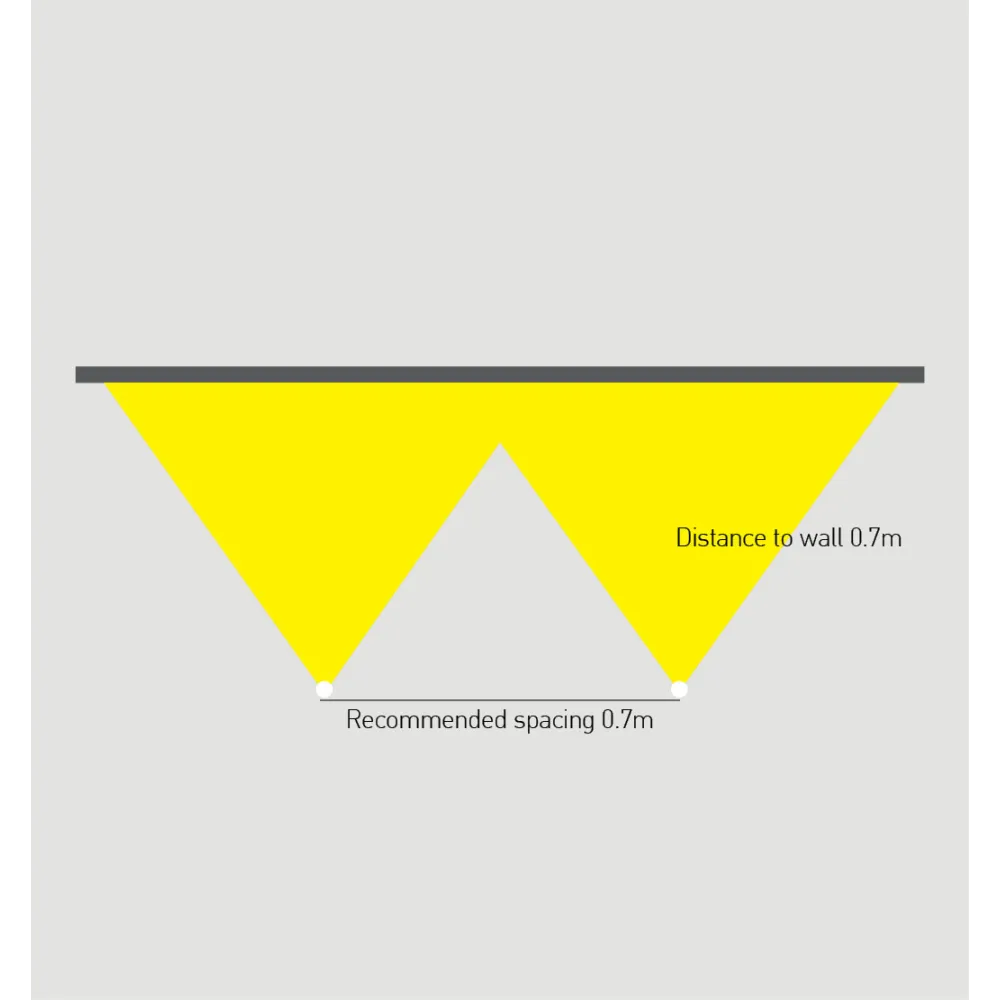

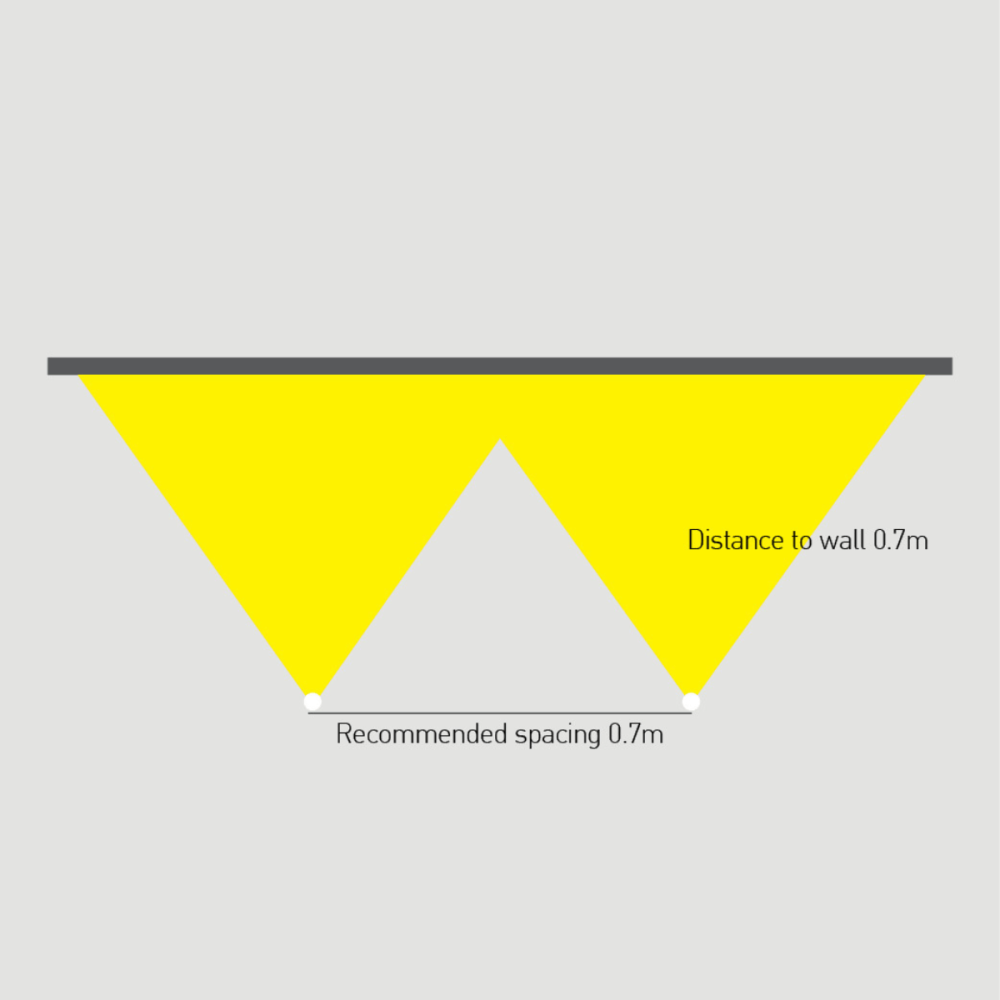

  • Asymmetric 60°x10° beam for a targeted grazing effect on vertical surfaces
  • Exceptional UGR <12: absolute visual comfort with no glare
  • CRI 90 for faithful and natural colour rendering
  • Compatible with multiple dimming protocols (DALI, TRIAC, 0-10V, RF)
  • 3-year warranty
Ref: ZAM.S337

DownRay Low Glare ZAMBELIS Asymmetric 10W DESIGN Sand White Without Driver S337

save_alt Download the technical sheet

Color

White warm - 3000K

Angle

Driver

Product color

In stock, next-day delivery before 1 PM
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

Asymmetric Wall Washer Spot ZAMBELIS DESIGN Sand-Blasted White: asymmetric beam and UGR <12 for your architectural lighting scenes

The Asymmetric Wall Washer Spot ZAMBELIS DESIGN S337 is a circular downlight in sand-blasted white aluminium, designed to create grazing light effects on vertical surfaces with architectural precision. Its asymmetric 60°x10° beam projects light broadly horizontally and concentrated vertically, revealing textures, materials and wall reliefs with controlled intensity. Ideal for boutiques, hotels, museums and reception halls where the lighting staging of walls is part of the identity of the space.

This spot delivers 10W for 655 lm at 3000K (warm white) with a CRI 90 for faithful and natural colour rendering. Its UGR below 12 is exceptional: it guarantees absolute visual comfort with no perceptible light disturbance. Lifespan: 30,000 hours.

Accessories: Driver not included, available as an accessory (ON/OFF, DALI, TRIAC, 0-10V, RF). Cutout: Ø57 mm, recessing depth: 60 mm.

Key highlights:

  • Asymmetric 60°x10° beam for a targeted grazing effect on vertical surfaces
  • Exceptional UGR <12: absolute visual comfort with no glare
  • CRI 90 for faithful and natural colour rendering
  • Compatible with multiple dimming protocols (DALI, TRIAC, 0-10V, RF)
  • 3-year warranty

General characteristics
Lifetime 30,000 h
Brand ZAMBELIS
Range DESIGN
Product family Downlights
Installation environment Architectural, Residential
Warranty 3 years
Electrical characteristics
Voltage 36 V DC
Current 250 mA
Power 10 W
Electrical class Class III
EU energy class 2019/2015 F
Lighting characteristics
Technology LED
Lumens output 655 lm
Lifetime LXBY L70B50
Beam Angle 60 ° x 10 °
IRC > 90
UGR < 12
Physical characteristics and dimensions
Diameter 63 mm
Height 60 mm
Net weight 0.2 kg
Materials Aluminum
Waterproof No
IP IP20
Product color White
Cut-out ⌀57x H65 mm
Detailed color Sand White
Installation mode Recessed
Standards and regulations
Carbon footprint 38,5 kgCO2eq
