Bluetooth Driver ZAMBELIS DESIGN 288W 5 Channels Casambi: multi-zone controller for complex LED installations

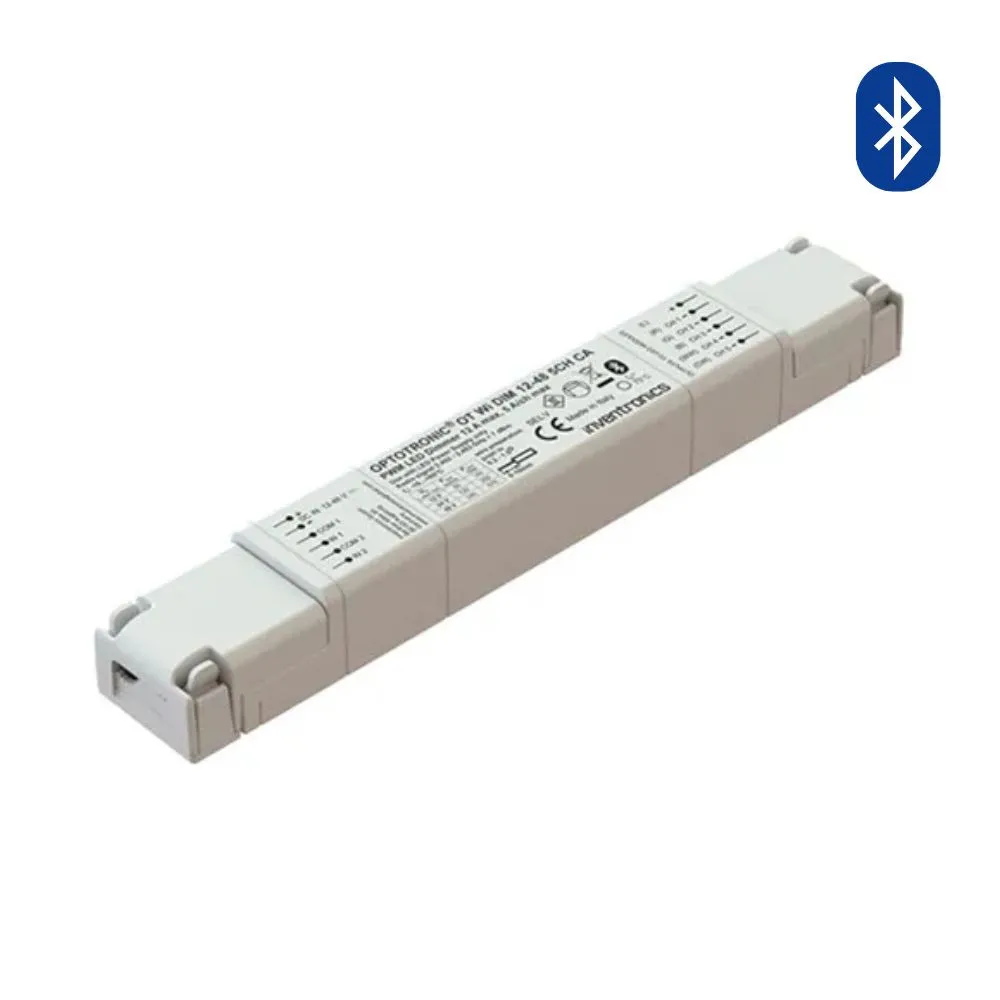

The Bluetooth Driver ZAMBELIS DESIGN 6937186115232 is a constant-voltage controller-dimmer designed to wirelessly control complex, multi-zone LED installations. Based on Bluetooth Low Energy technology compatible with Casambi, its 5 independent channels allow simultaneous management of various module types: fixed white, tunable white (Tunable White), RGB, RGBW or RGBTW, without additional control wiring. It is aimed at hotels, restaurants, museums, boutiques and high-end residential projects.
Input and output voltage: 12 to 48V DC, maximum power 576W at 48V (288W at 24V). PWM 0.8 to 100% dimming without flicker. Compact housing 186 × 29 × 22 mm (71 g). Indoor use (IP20). Temperature range: -10°C to +60°C. 3-year warranty.
Key highlights:
- Bluetooth Low Energy Casambi protocol: control without additional network infrastructure
- 5 independent channels for white, Tunable White, RGB, RGBW and RGBTW
- Maximum power 576W at 48V for large-scale installations
- PWM 0.8–100% dimming, smooth and flicker-free
- 3-year warranty
