The new LineLED Louvre CLAREO ADVANCE 2:

This light line comes with integrated driver and can be installed as suspended, surface-mounted, or wall-mounted using its accessories, sold separately.

Designed for intensive use, with a 7-year warranty and a 70,000-hour lifespan.

Box contents: 1 LineLED Louvre CLAREO ADVANCE 2

Key features:

  • Louvre diffuser
  • Long service life L80B10 70,000h
  • Mounting: surface, suspended, wall-mounted, trimless on request
  • 7-year warranty
  • Many custom optics available
  • Many custom colors available
Ref: RST.3013A2

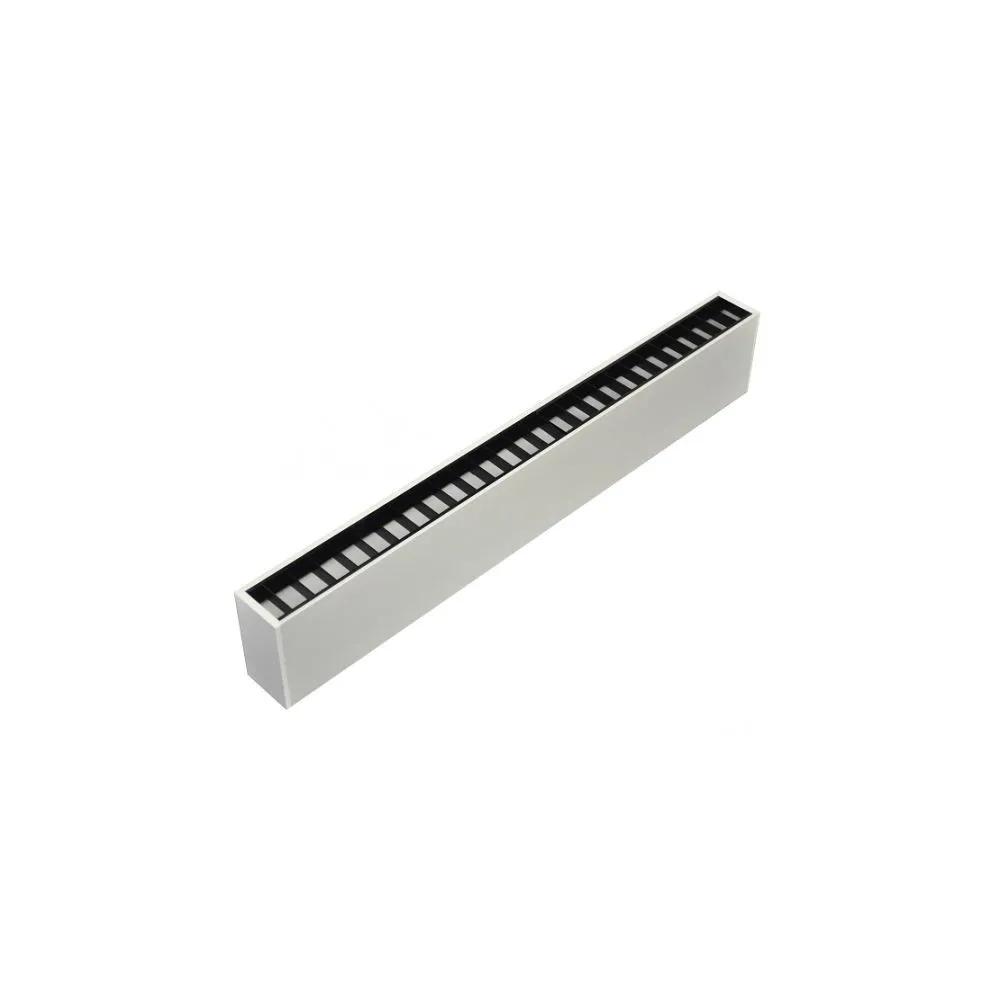

LineLED Louvre CLAREO 100x50 150cm 40W ADVANCE 2 White FS

save_alt Download the technical sheet

Color

Switch 3000-3500-4000K

Driver

In stock, next day delivery before 1pm
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

General characteristics
Lifetime 70 000 h
Brand CLAREO
Range ADVANCE
Product family Linear lights
Installation environment Point of sale, Office
Quick installation YES
Repairable YES
Reuse Yes
Warranty 7 years
Electrical characteristics
Voltage 230-230 V AC
Power 30 W
Electrical class Class I
Dimmable Yes : depending on the reference
Facteur de puissance > 0,9
Taux de distorsion harmonique < 20 %
Power range 26-50 W
EU energy class 2019/2015 D
Lighting characteristics
Technology LED
Lumens output 3200 lm
Lumens efficiency 80 lm/W
Lifetime LXBY L80B10
Beam Angle 70 deg
Photobiological risk GR0 - No risk
IRC > 80
UGR < 16
Lumens range 3000-3999 lm
Physical characteristics and dimensions
Height 100 mm
Standard length 150 cm
Width 50 mm
Length 1 500 mm
Net weight 3 kg
Materials Aluminum
Waterproof No
IP IP20
IK IK07
Product color White
Working temperature -20 °C to 45 °C
Detailed color White
Type SMD 2835
Standards and regulations
CEE BAT-EQ-127
Standards CE, RoHS

Log in to access downloadable documents
Technical data sheets, IES files, installation instructions, certificates... are only downloadable for customers whose access has been validated. To request access, go here

Log in to access the prescription
To access the prescription text, you must have an account and log in.
