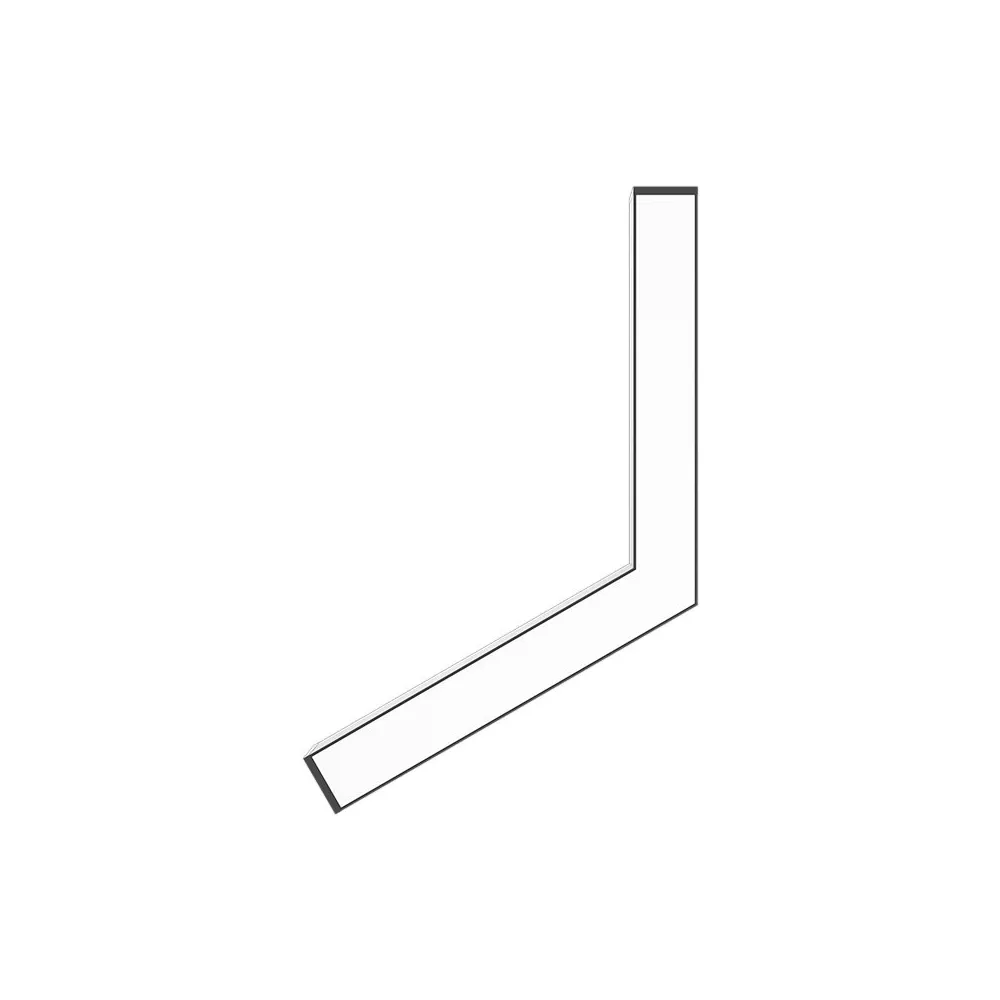

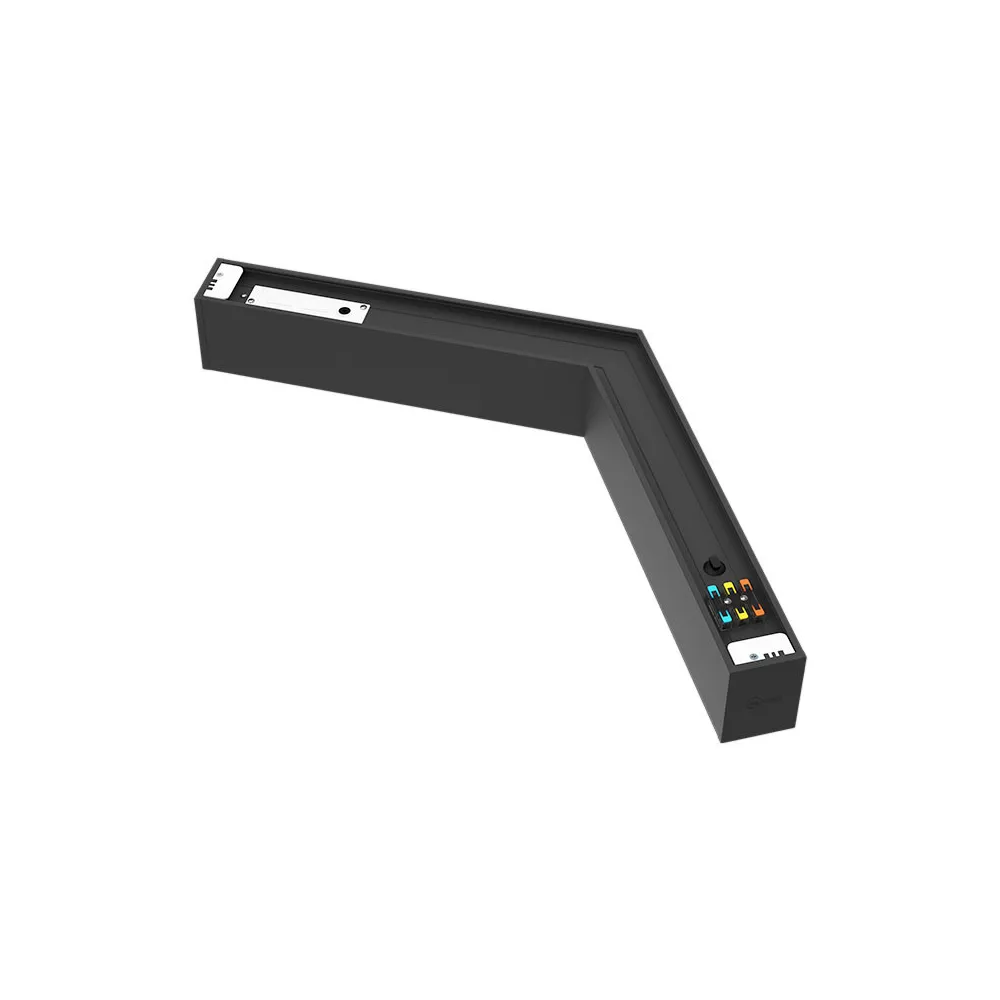

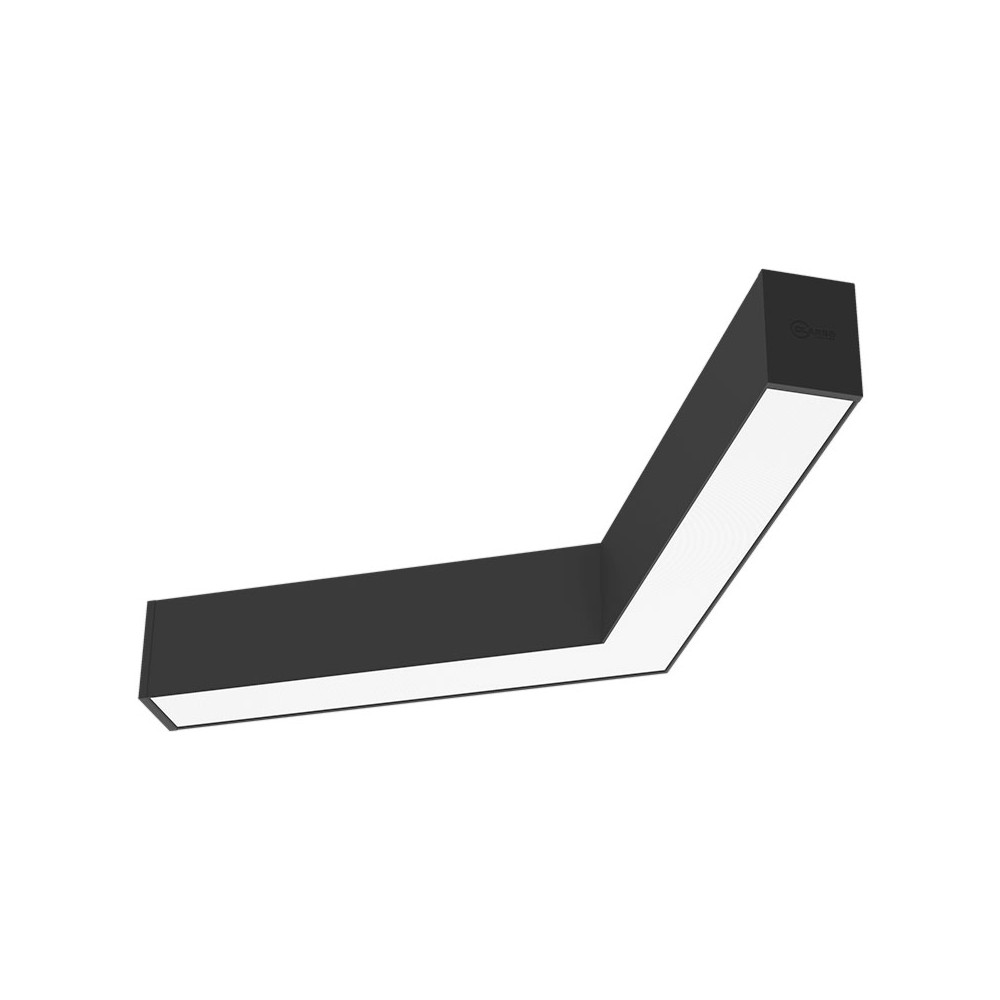

120deg 15W Connector for LineLED CLAREO ADVANCE 3 Black

120° Black 15W Connector for LineLED CLAREO ADVANCE 3 – with integrated driver.
This 120° angle connector, with a power of 15W, allows you to create elegant and customized light lines with your LineLED CLAREO ADVANCE 3. Thanks to its internal driver, it can operate autonomously, without needing to be interconnected to a linear module.

Its black finish integrates perfectly with your installations, offering both flexibility and performance.

Features:

Power: 15W
Color: Black (RAL 9005)
Integrated driver for autonomous operation or interconnection

120deg 15W Connector for LineLED CLAREO ADVANCE 3 Black

Pricing is only available to customers who are logged into their account and whose access request has been validated.

To request access, go here

General characteristics

Lifetime	72,000 h
Brand	CLAREO
Range	ADVANCE

Product family	Linear lights
Installation environment	Traffic, Traffic, Schools, Public space
Repairable	YES
Warranty	7 years

Electrical characteristics

Voltage	220-240 V AC
Power	7/11/15 W
Electrical class	Class I
Dimmable	Yes : depending on the reference

Facteur de puissance >	0,95
Taux de distorsion harmonique <	15%
Power range	0-25 W
EU energy class 2019/2015	C
Max power	15 W Max

Lighting characteristics

Technology	LED
Lumens output	1050 - 2100 lm
Energy savings	- 40 %
Lumens efficiency	140 lm/W
Lifetime LXBY	L80B10

Diffuser	Prismatic
Beam Angle	70 deg
Photobiological risk	GR0 - No risk
IRC >	80
UGR <	19
Lumens range	800-1099 lm

Physical characteristics and dimensions

Height	75 mm
Standard length	55 cm
Width	358 mm
Length	538 mm
Net weight	0.9 kg
Materials	Aluminum

Waterproof	No
IP	IP20
IK	IK07
Product color	Black
Working temperature	-15 °C to 40 °C
Installation mode	Surface mount with accessory, Pendant with accessory, Wall sconce, Wall sconce, Wall sconce
Type	SMD2844

Standards and regulations

CEE	BAT-EQ-127, BAR-EQ-110

Standards	CE, RoHS
