LineLED Louvre ADVANCE 3: Perfect lines, absolute comfort

Illuminate your spaces with elegance and comfort: the LineLED Louvre ADVANCE 3 combines performance, design and ergonomics to transform all your projects.

Its Louvre diffuser UGR < 14 guarantees uniform and glare-free lighting, providing optimal visual comfort.

Thanks to the CCT Switch 3000/3500/4000 K, the LineLED Louvre ADVANCE 3 easily adapts to each atmosphere and lighting need.

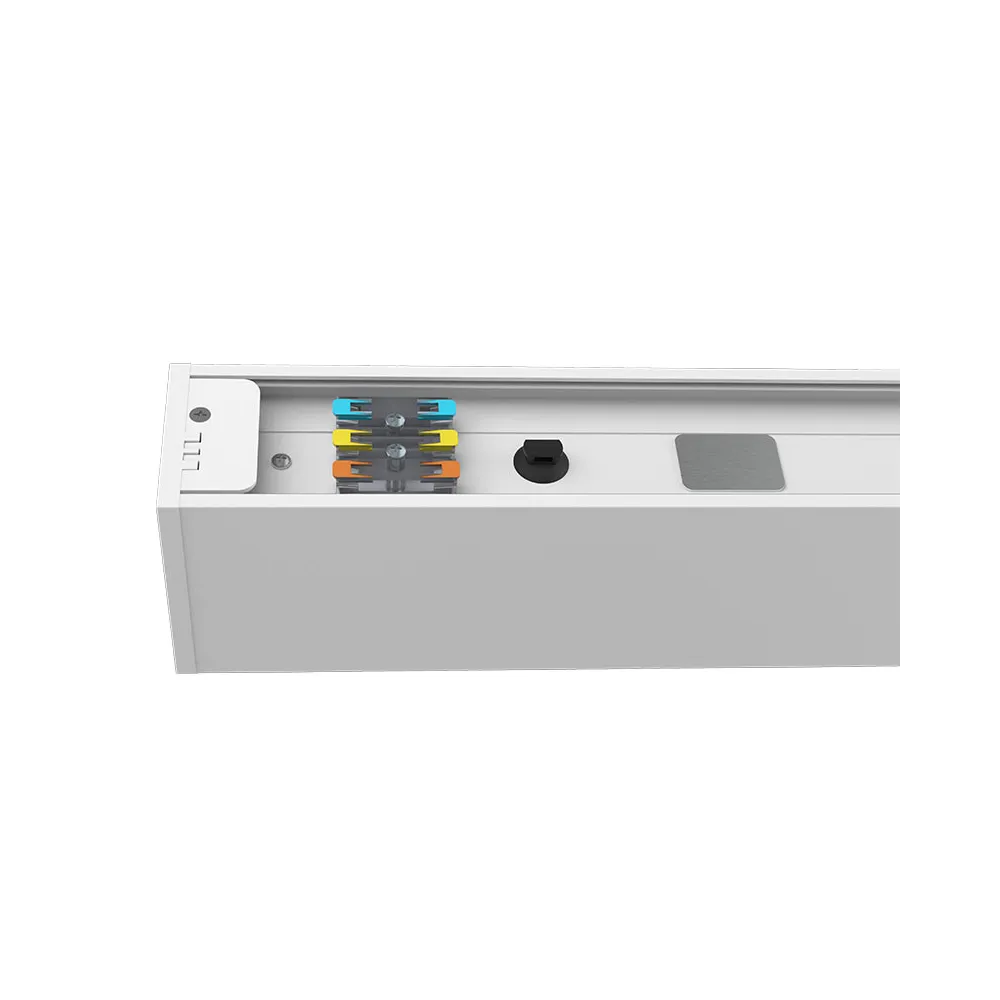

Its simple and quick interconnection system, without tools, facilitates installation and line modularity, to create configurations perfectly adapted to your spaces.

Available with integrated ON/OFF or DALI BP driver, it can be positioned as pendant, surface-mounted or wall-mounted according to your needs, and can include up to 10 modules in series for a homogeneous and continuous result.

With a 7-year warranty and an L80B10 lifespan of 72,000 hours, the LineLED Louvre ADVANCE 3 is also an extremely reliable and durable solution.

Key features:

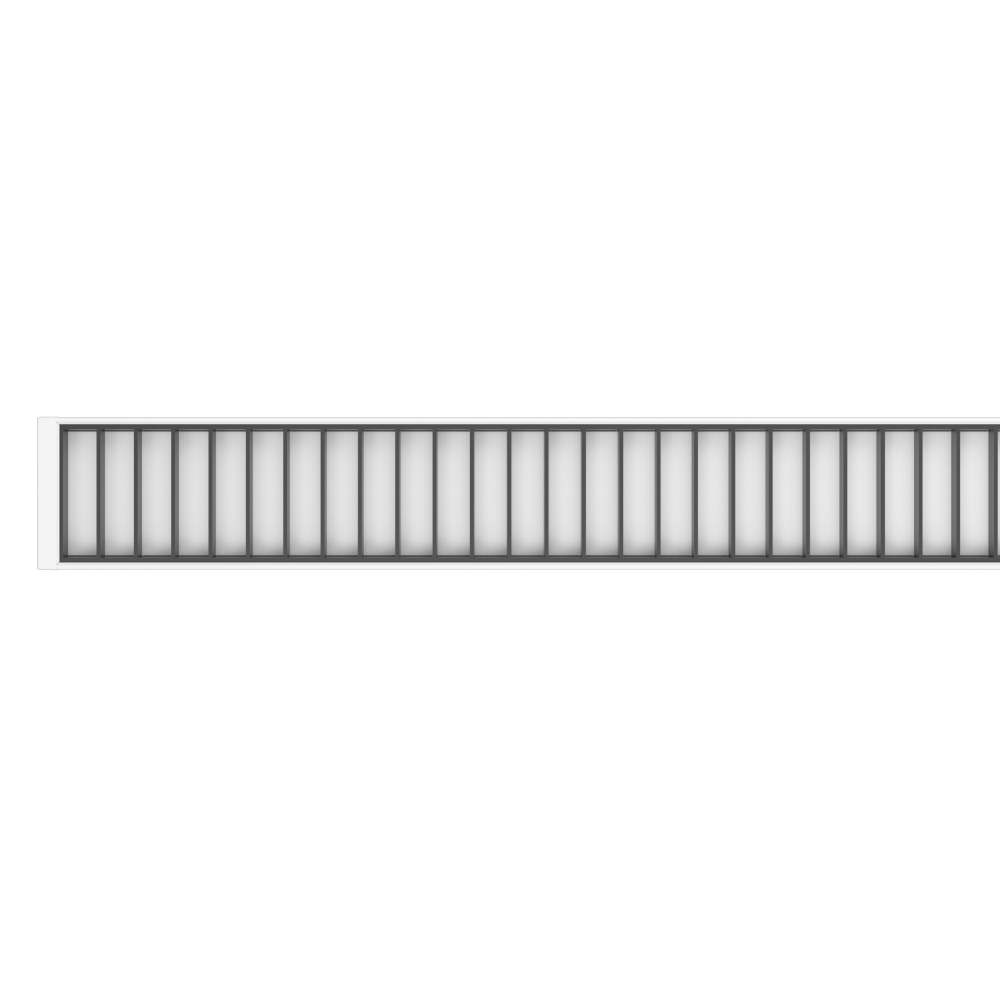

  • Louvre diffuser
  • UGR < 14

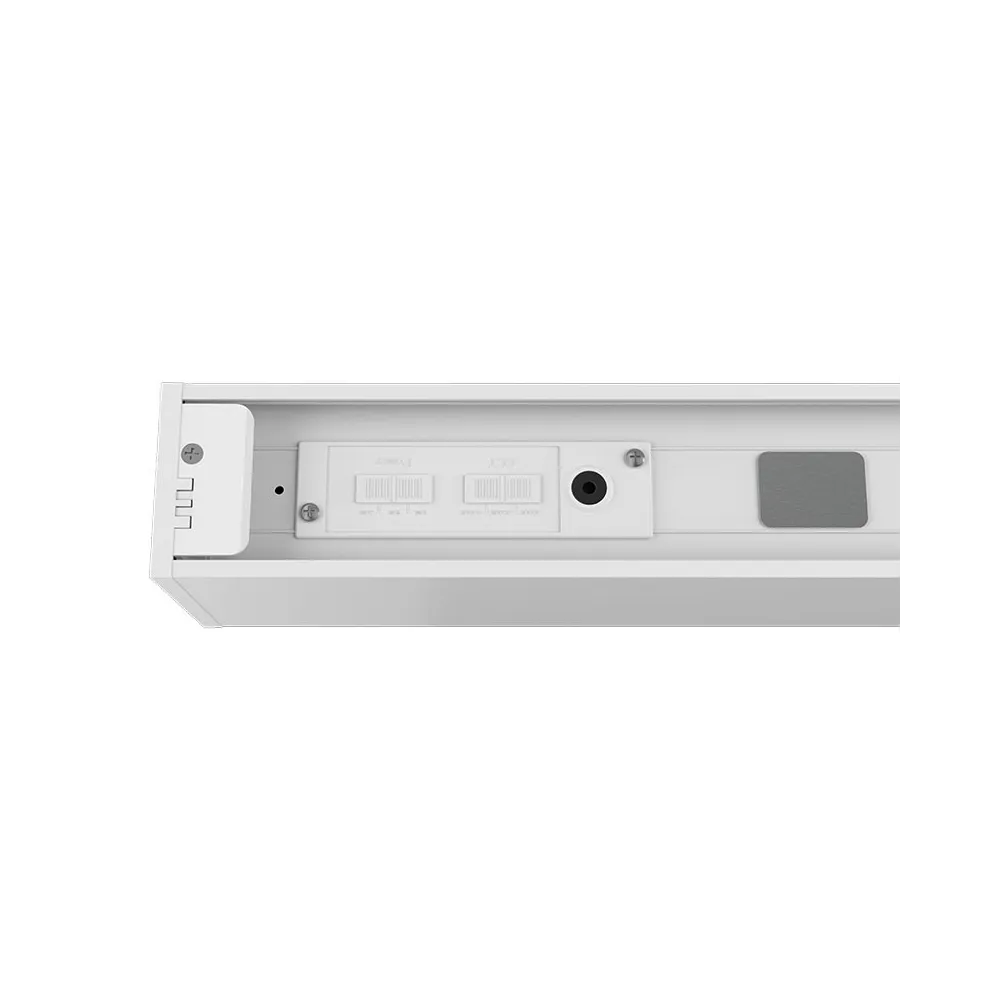

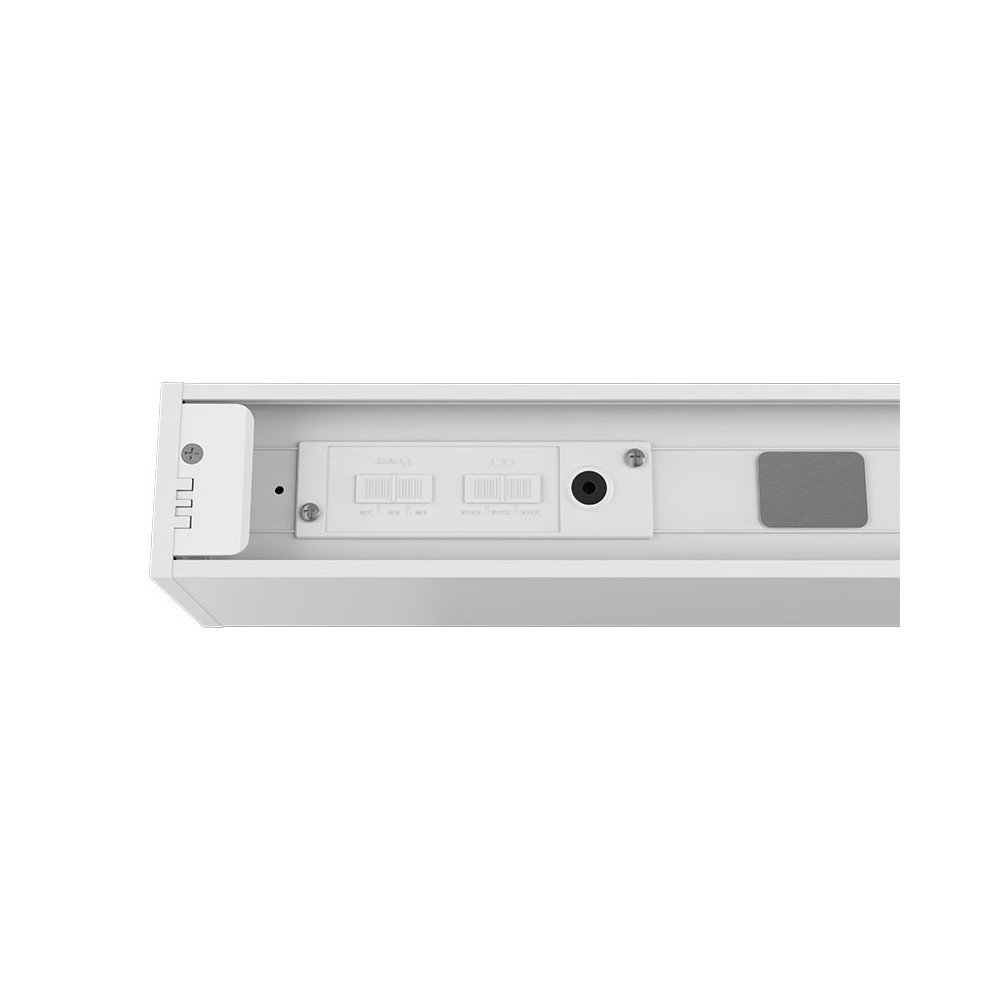

  • Power Switch and CCT Switch 3000-3500-4000K
  • Simple and quick interconnection
  • 7-year warranty
Ref: RST.3218A3

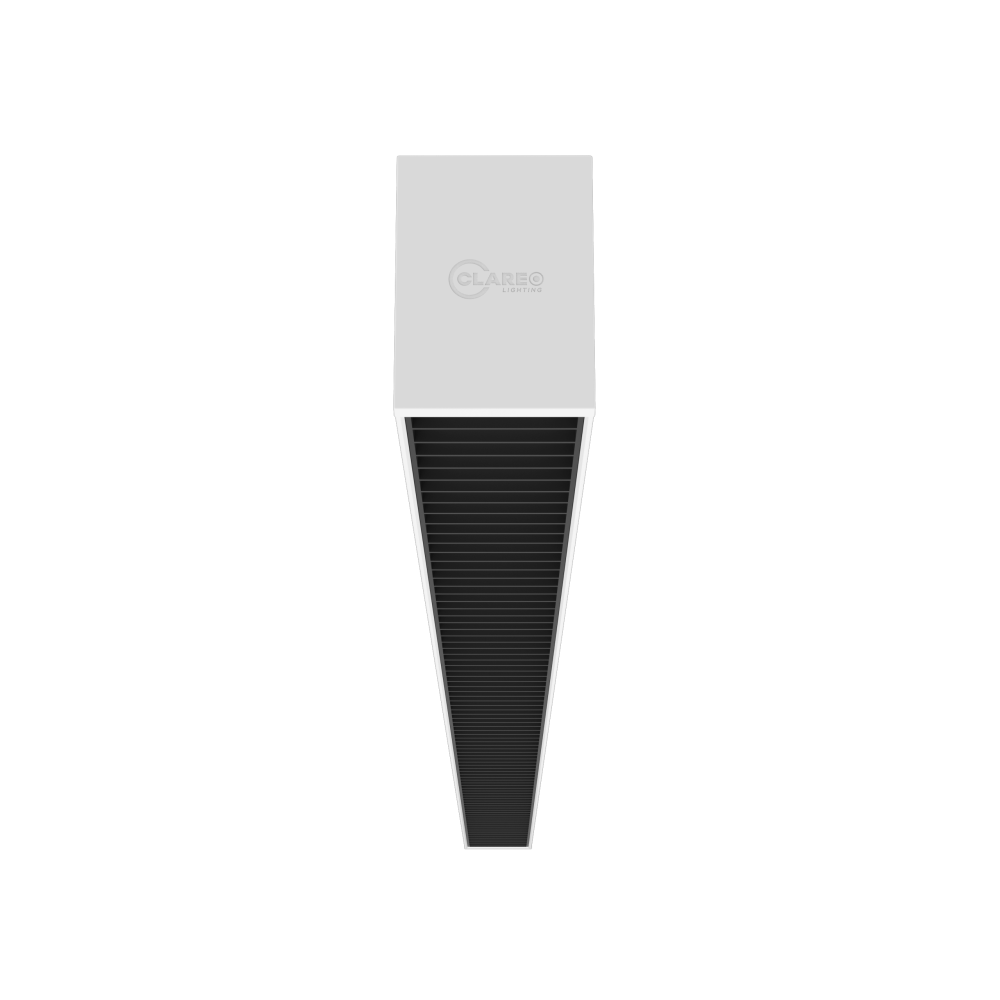

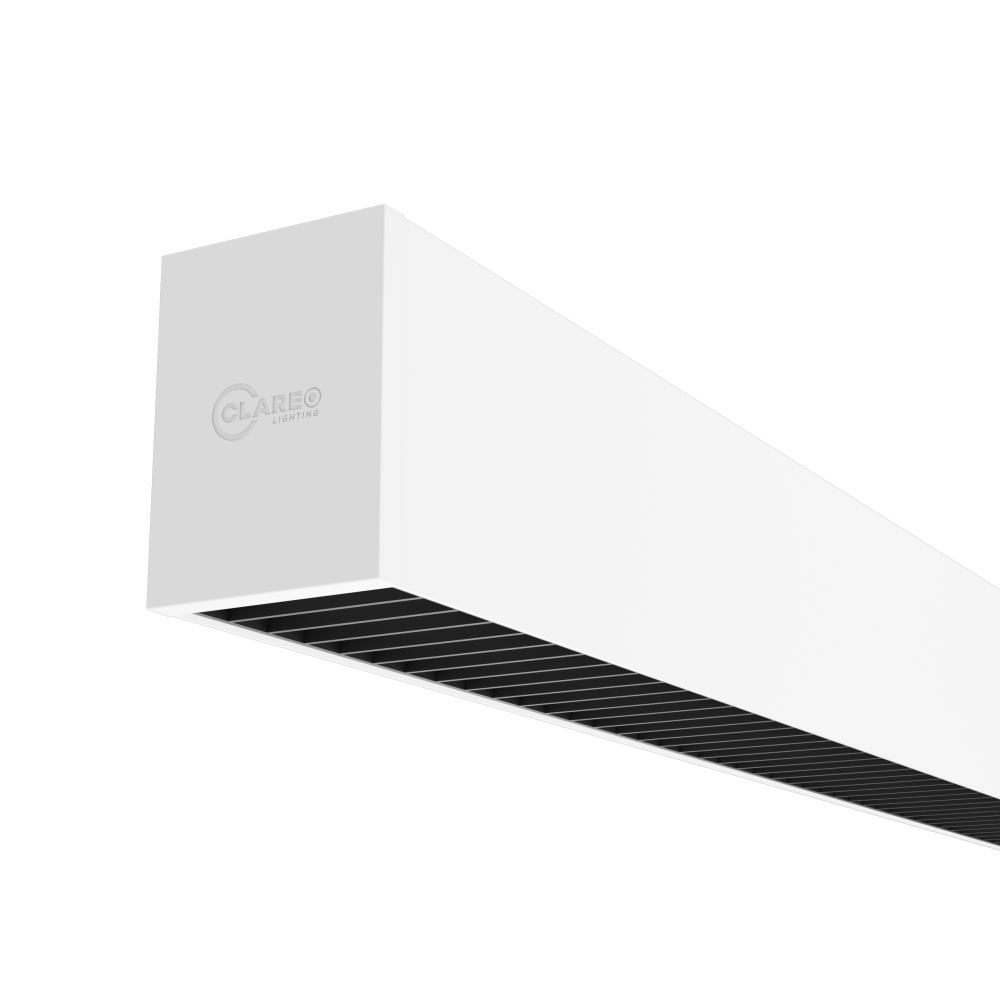

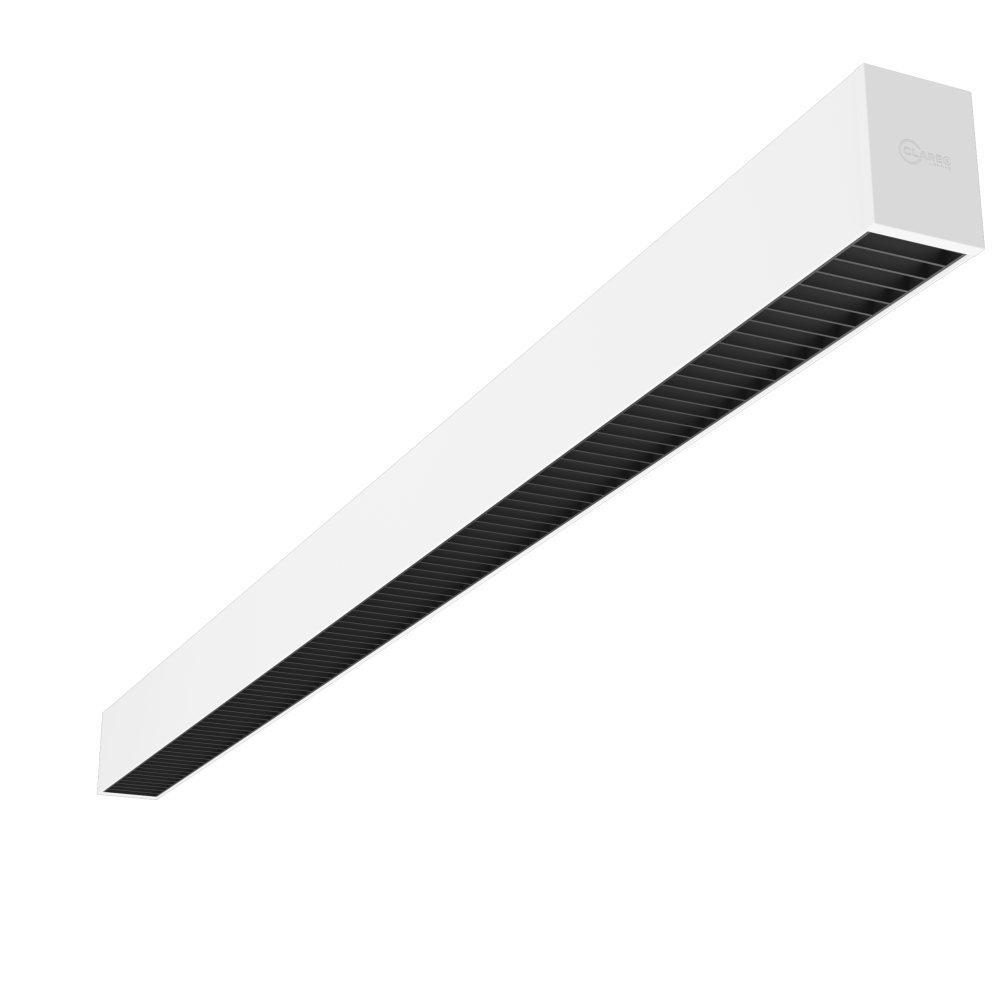

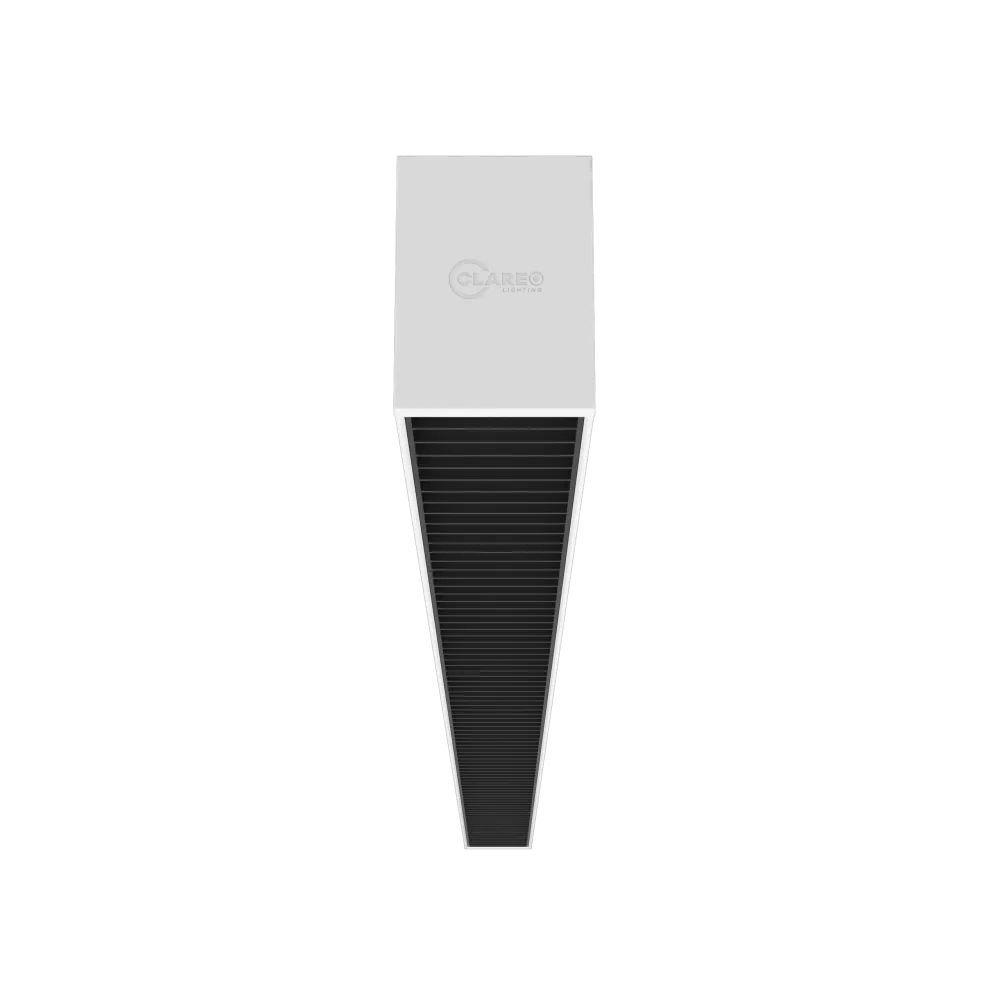

LineLED Louvre CLAREO 150cm 40W ADVANCE 3 White

save_alt Download the technical sheet

Color

Switch 3000-3500-4000K

Driver

This item is unavailable. You can choose another one or contact your dedicated sales representative.
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

LineLED Louvre ADVANCE 3: Perfect lines, absolute comfort

Illuminate your spaces with elegance and comfort: the LineLED Louvre ADVANCE 3 combines performance, design and ergonomics to transform all your projects.

Its Louvre diffuser UGR < 14 guarantees uniform and glare-free lighting, providing optimal visual comfort.

Thanks to the CCT Switch 3000/3500/4000 K, the LineLED Louvre ADVANCE 3 easily adapts to each atmosphere and lighting need.

Its simple and quick interconnection system, without tools, facilitates installation and line modularity, to create configurations perfectly adapted to your spaces.

Available with integrated ON/OFF or DALI BP driver, it can be positioned as pendant, surface-mounted or wall-mounted according to your needs, and can include up to 10 modules in series for a homogeneous and continuous result.

With a 7-year warranty and an L80B10 lifespan of 72,000 hours, the LineLED Louvre ADVANCE 3 is also an extremely reliable and durable solution.

Key features:

  • Louvre diffuser
  • UGR < 14
  • Power Switch and CCT Switch 3000-3500-4000K
  • Simple and quick interconnection
  • 7-year warranty

General characteristics
Lifetime 72,000 h
Brand CLAREO
Range ADVANCE
Product family Linear lights
Repairable YES
Warranty 7 years
Electrical characteristics
Voltage 220-240 V AC
Power 20/30/40 W
Electrical class Class I
Dimmable Yes : depending on the reference
Facteur de puissance > 0,9
Taux de distorsion harmonique < 20 %
Power range 26-50 W
EU energy class 2019/2015 F
Lighting characteristics
Technology LED
Lumens output 3200 lm
Lumens efficiency 80 lm/W
Lifetime LXBY L80B10
Diffuser Louvre
Beam Angle 60°
Photobiological risk GR0 - No risk
IRC > 80
UGR < 14
Lumens range 3000-3999 lm
Physical characteristics and dimensions
Height 55 mm
Standard length 150 cm
Width 75 mm
Length 1,512 mm
Net weight 2 kg
Materials Aluminum
Waterproof No
IP IP20
IK IK07
Product color White
Working temperature -15 °C to 40 °C
Detailed color White
Installation mode Surface mount with accessory, Pendant with accessory, Wall sconce, Wall sconce, Wall sconce
Type SMD2835
Standards and regulations
Standards CE, RoHS
Carbon footprint 23.62 kgCO2eq
