New CLAREO Fineline Prisma TECH 2 LED panel:

Equipped with "Edgelit" technology, this luminaire provides excellent uniformity.

Ideal and compatible installation in all offices or rooms equipped with a Fineline type hollow joint ceiling.

Designed for intensive use, with a 7-year warranty and 80,000 hours.

Simple installation with quarter-turn connection.

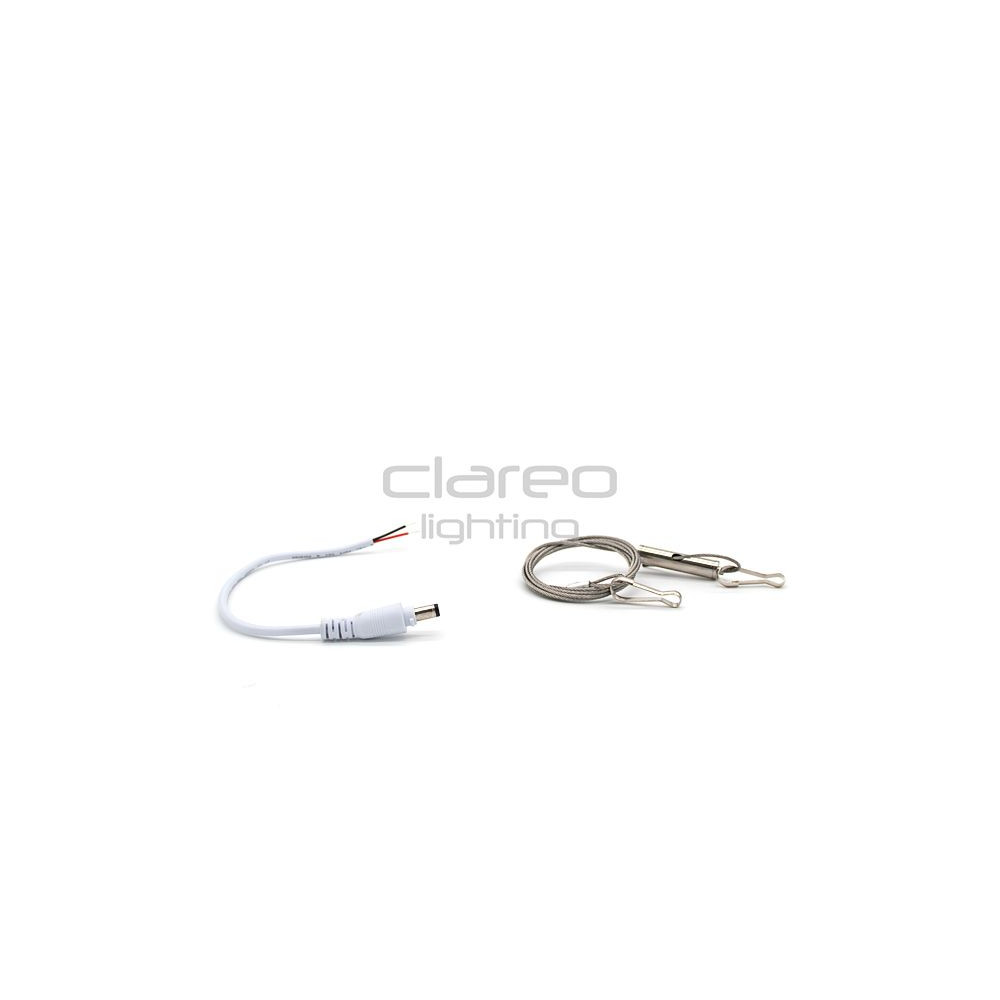

Box contents: 1 CLAREO Fineline Panel Prisma TECH 2, 1 safety cable, and 1 female quarter-turn connector for driver connection.

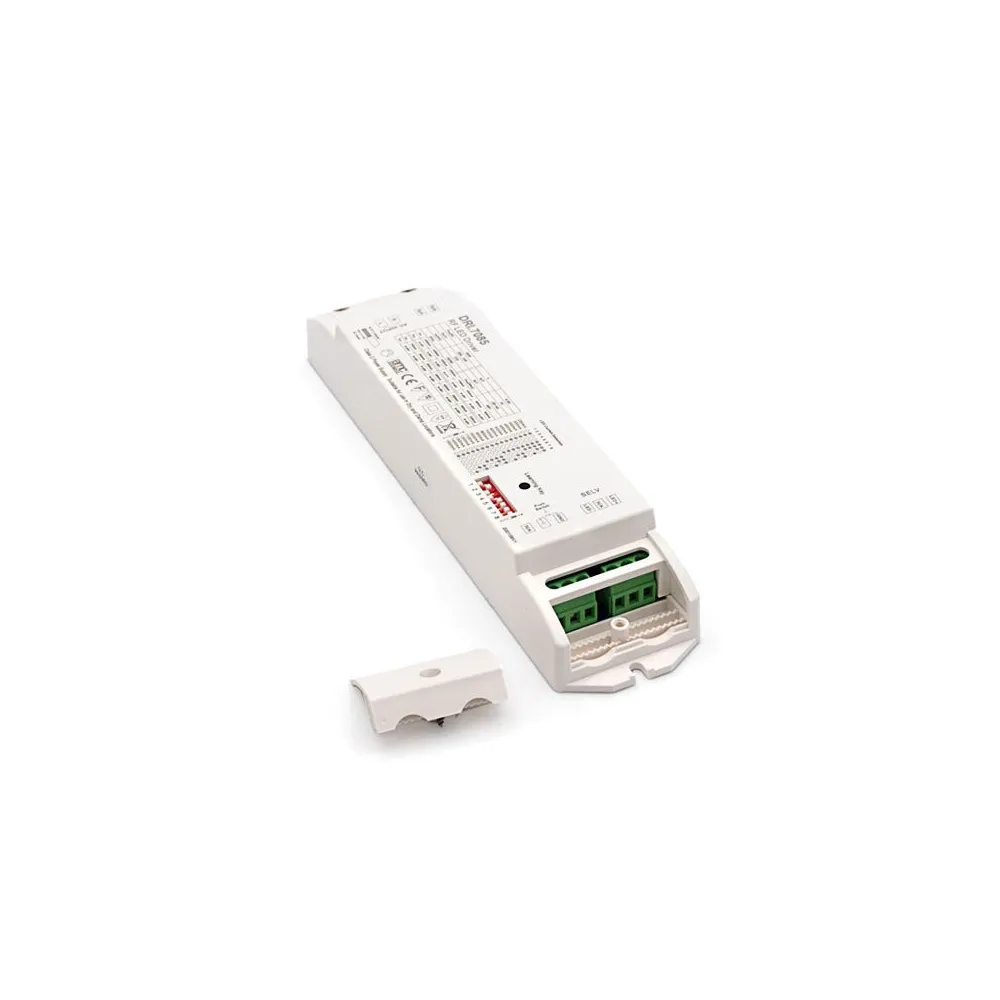

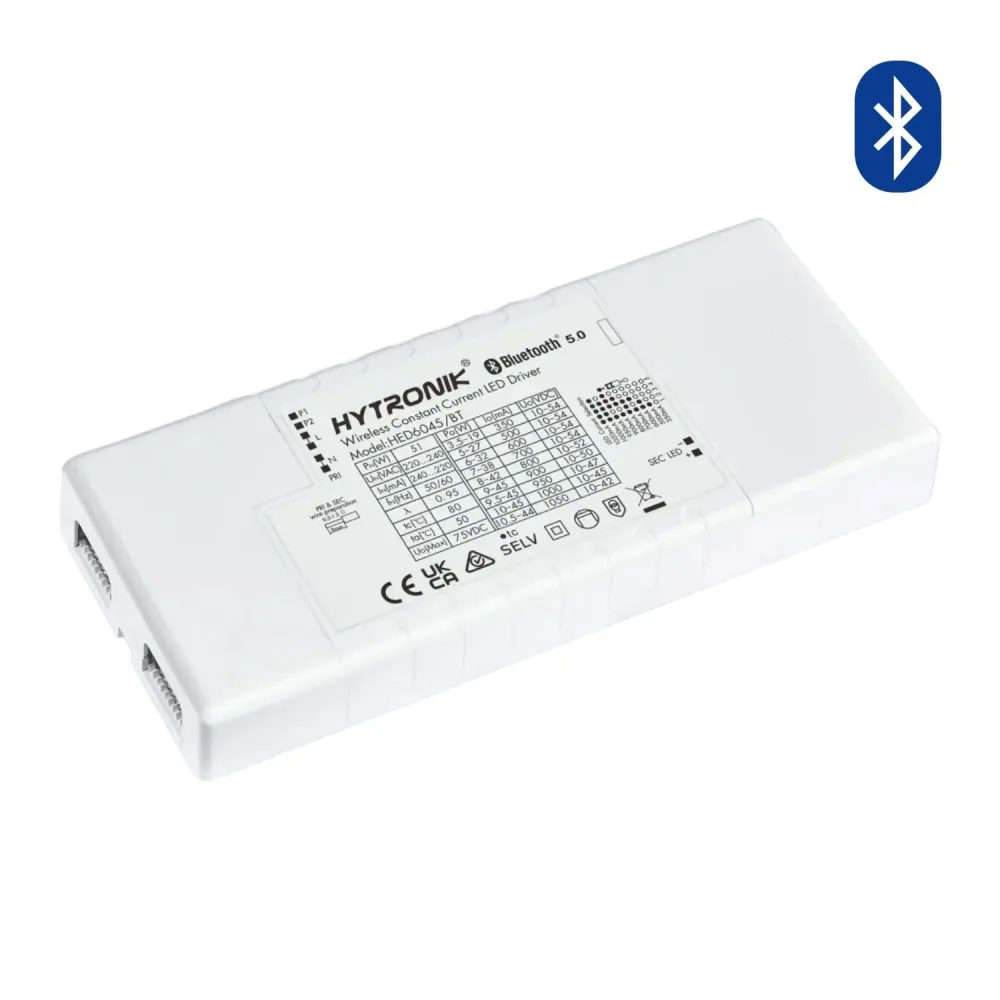

accessories: dimmable drivers.

Key features:

  • Fineline around the entire perimeter, preventing light leakage
  • IP44 protection rating from below
  • Long lifespan: 80,000 hours
  • Warranty: 7 years
  • Comparative UGR < 16
  • Safety cable included
  • SDCM < 3
Ref: PAN.100224

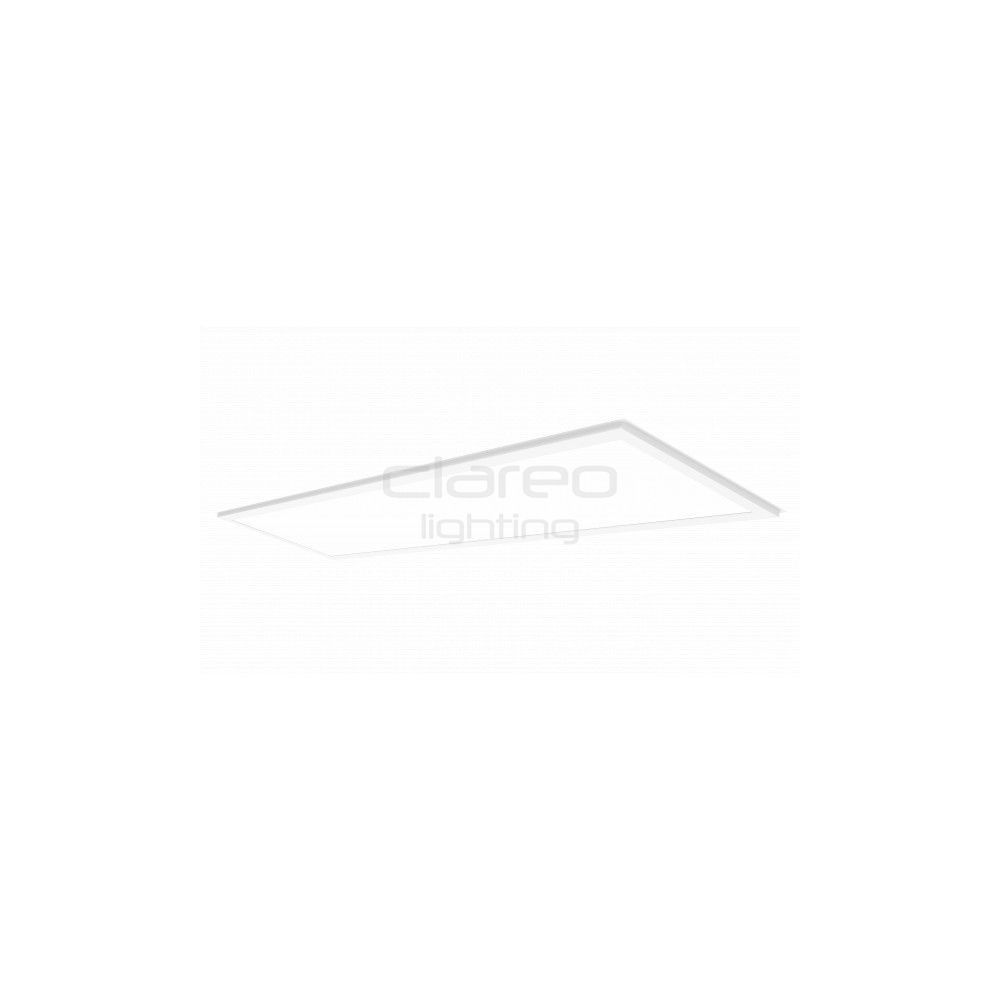

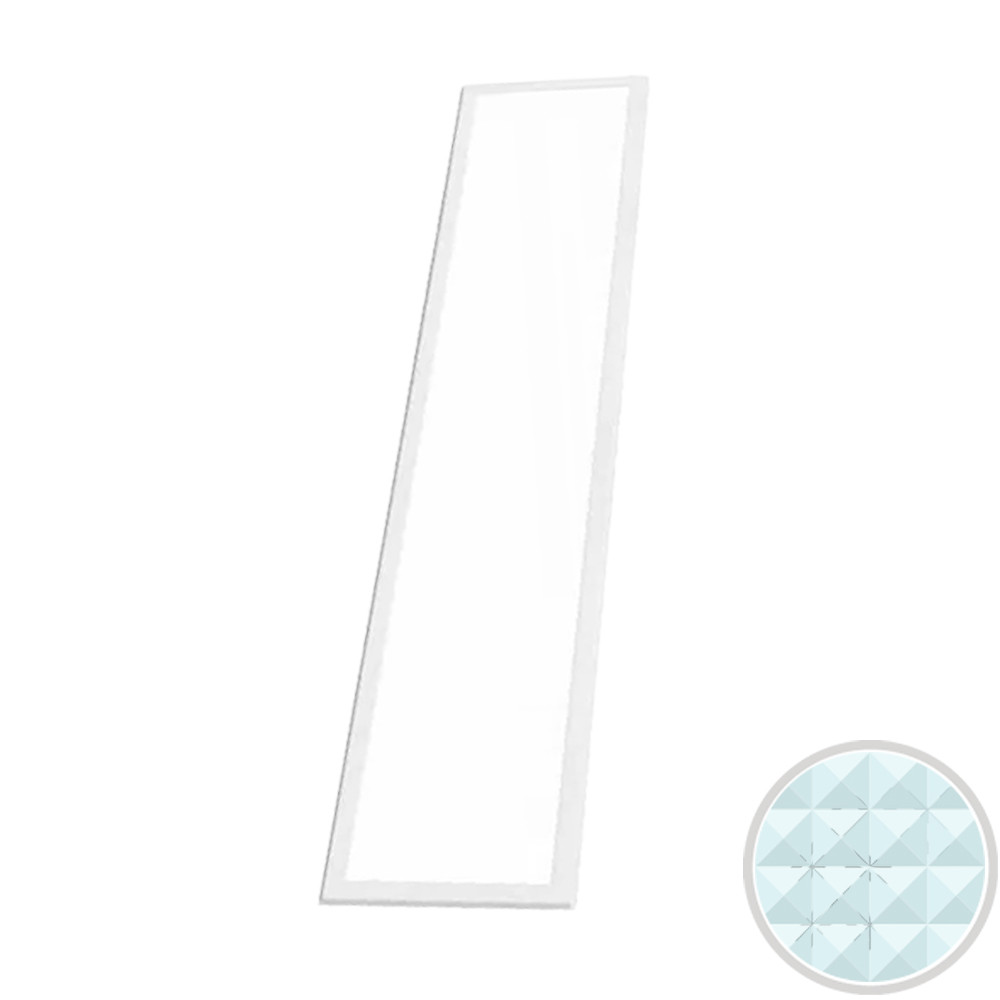

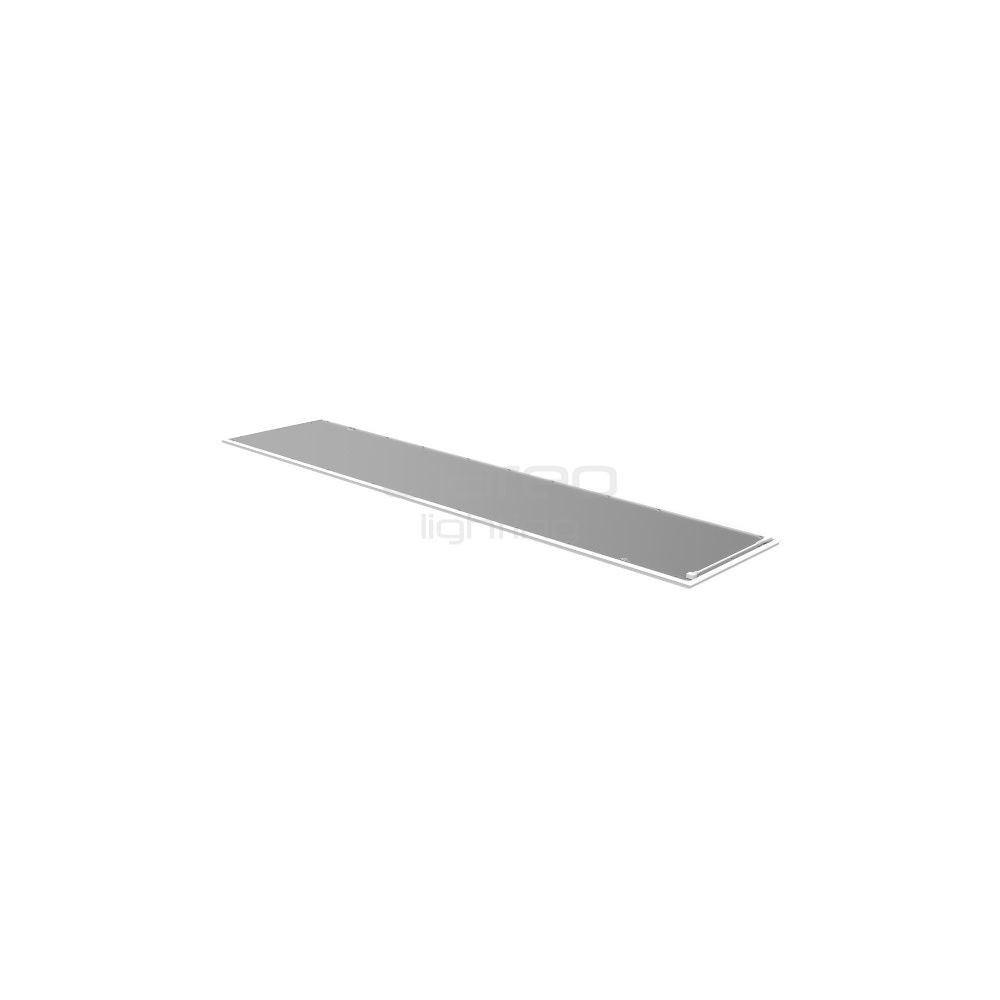

CLAREO Fineline Panel 1200x300 40W Prisma TECH 2 Without Driver

4000 lm 4000 lm
Energy savings - 20 % Energy savings - 20 %
Repairable Repairable
7 years Warranty 7 years Warranty
80,000 h 80,000 h
100 lm/W 100 lm/W
UGR < 16 UGR < 16
IP44 IP44
IRC > 80 IRC > 80
IK04 IK04
save_alt Download the technical sheet

Color

White warm - 3000K

Angle

In stock, next day delivery before 1pm
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here
Sign in Sign up

New CLAREO Fineline Prisma TECH 2 LED panel:

Equipped with "Edgelit" technology, this luminaire provides excellent uniformity.

Ideal and compatible installation in all offices or rooms equipped with a Fineline type hollow joint ceiling.

Designed for intensive use, with a 7-year warranty and 80,000 hours.

Simple installation with quarter-turn connection.

Box contents: 1 CLAREO Fineline Panel Prisma TECH 2, 1 safety cable, and 1 female quarter-turn connector for driver connection.

accessories: dimmable drivers.

Key features:

  • Fineline around the entire perimeter, preventing light leakage
  • IP44 protection rating from below
  • Long lifespan: 80,000 hours
  • Warranty: 7 years
  • Comparative UGR < 16
  • Safety cable included
  • SDCM < 3

General characteristics
Lifetime 80,000 h
Brand CLAREO
Range TECH
Product family Panels
Installation environment Office
Quick installation YES
Repairable YES
Warranty 7 years
Electrical characteristics
Voltage 30-42 V DC
Current Up to 1,050 mA
Power 40 W
Electrical class Class III
Power range 26-50 W
EU energy class 2019/2015 F
Lighting characteristics
Technology LED
Lumens output 4000 lm
Energy savings - 20 %
Lumens efficiency 100 lm/W
Lifetime LXBY L80B10
Diffuser Prismatic
Beam Angle 110 deg
Photobiological risk GR0 - No risk
IRC > 80
UGR < 16
Lumens range 4000-4999 lm
Physical characteristics and dimensions
Height 296 mm
Standard length 120 cm
Width 1 196 mm
Length 9.5 mm
Net weight 2.2 kg
Materials Aluminum
Waterproof No
IP IP44
IK IK04
Product color White
Working temperature -20 °C to 40 °C
Detailed color White
Installation mode Recessed
Type SMD 4014
Standards and regulations
Standards CE, RoHS
Carbon footprint 25.2 kgCO2eq
